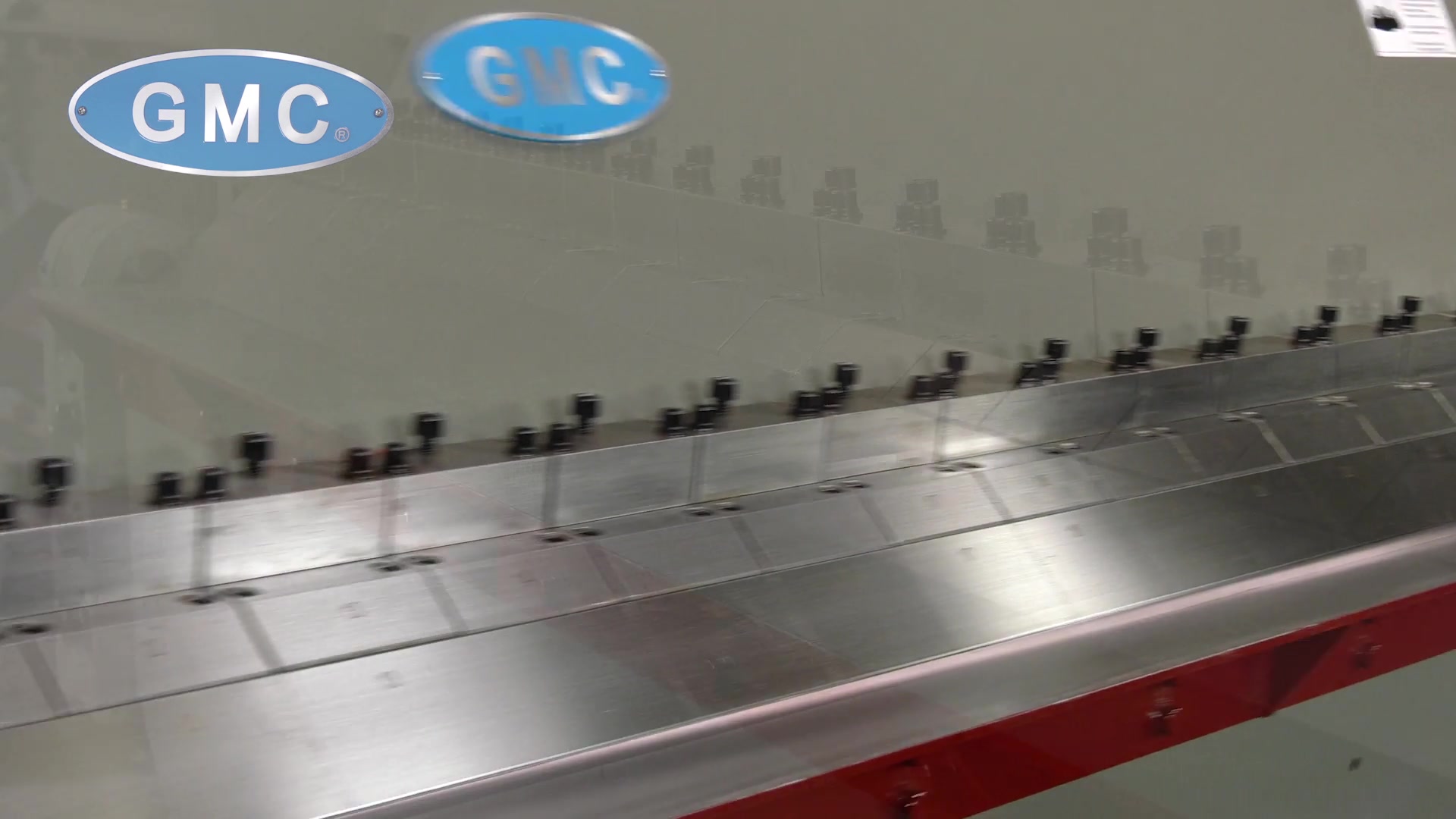

HBB-1010, 10 ft Sheet Metal Box and Pan Brake

HBB-1010, 10 ft Sheet Metal Box and Pan Brake

Name: HBB-1010, 10 ft Sheet Metal Box and Pan Brake
Brand: GMC
SKU: HBB-1010
Availability: InStock

Brand

GMC

Location

Not specified

Specifications
Files & Videos

Taiwan Machines
ISO 9001 certified
Hydraulic adjustment for opening
Hydraulic power clamping for workpiece
26” manual back gauge with handwheel
1” manual beam adjustment ( front and back )
Min. reverse bend is ¾” (20mm)
Heavy welded all steel construction for maximum rigidity
Germany Rexroth Hydraulic logic system centrally located and quiet
A wide guidebody ensures strong, stable, smooth & accurate movement
Total pieces fingers assortment:
1. HBB-0410 & 0412: 3”/ 3pcs, 4”/2pcs, 5”/5pcs and 6”/1pc
2. HBB-0610 & 0612: 3”/6pcs, 4”/3pcs, 5”/6pcs, 6”/2pcs
3. HBB-0810 & 0812: 3”/6pcs, 4”/4pcs, 5”/10pcs, 6”/2pcs
4. HBB-1010 & 1014: 3”/6pcs, 4”/4pcs, 5”/10pcs, 6”/6pcs
5. HBB-10316: 4”/3pcs, 5”/5pcs, 6”/5pcs, 7”/3pcs, 8”/ 4pcs
6. HBB-1214: 3”/6pcs, 4”/4pcs, 5”/10pcs, 6”/10pcs
Central control panels on each side for convenient operation
Jog and auto operation modes
Overload protection and disconnect switch

One year warranty for parts

This machine is compatible with a phase converter. Please note that the phase converter must be installed by GMC Machine Tools to ensure warranty coverage.

Once the machine is received and the phase converter is installed by us, it will be ready for use. For more information or if you have any further questions or need assistance, feel free to contact us.

Bending capacity: mild steel(hot roll), 60,000PSI stainless steel, tensile 85,000PSI soft aluminum, tensile 28,000PSI Opening hem max thickness x 10' Closing hem max thickness x10' Minimum material thickness	10’x10Ga 10’x14Ga 10’ x 3/16" 20Ga 24Ga 26Ga.
Finger length	10’1”
Bending degree	135°
Max. box & pan depth	153mm=6.02”
Large beam opening	3”
Manual back gauge	26”
Oil tank capacity	32 Gal Hydraulic oil , Shell # 68 or equivalent
Main motor Amperage draw	10HP, 220V/ 440V , 3 ph 220V/35A , 440V/20A
Machine weight Shipping weight	8,050LBS 8,150LBS
Machine dimensions LWH Shipping dimensions LWH	142x46x66” 153x41x67”
