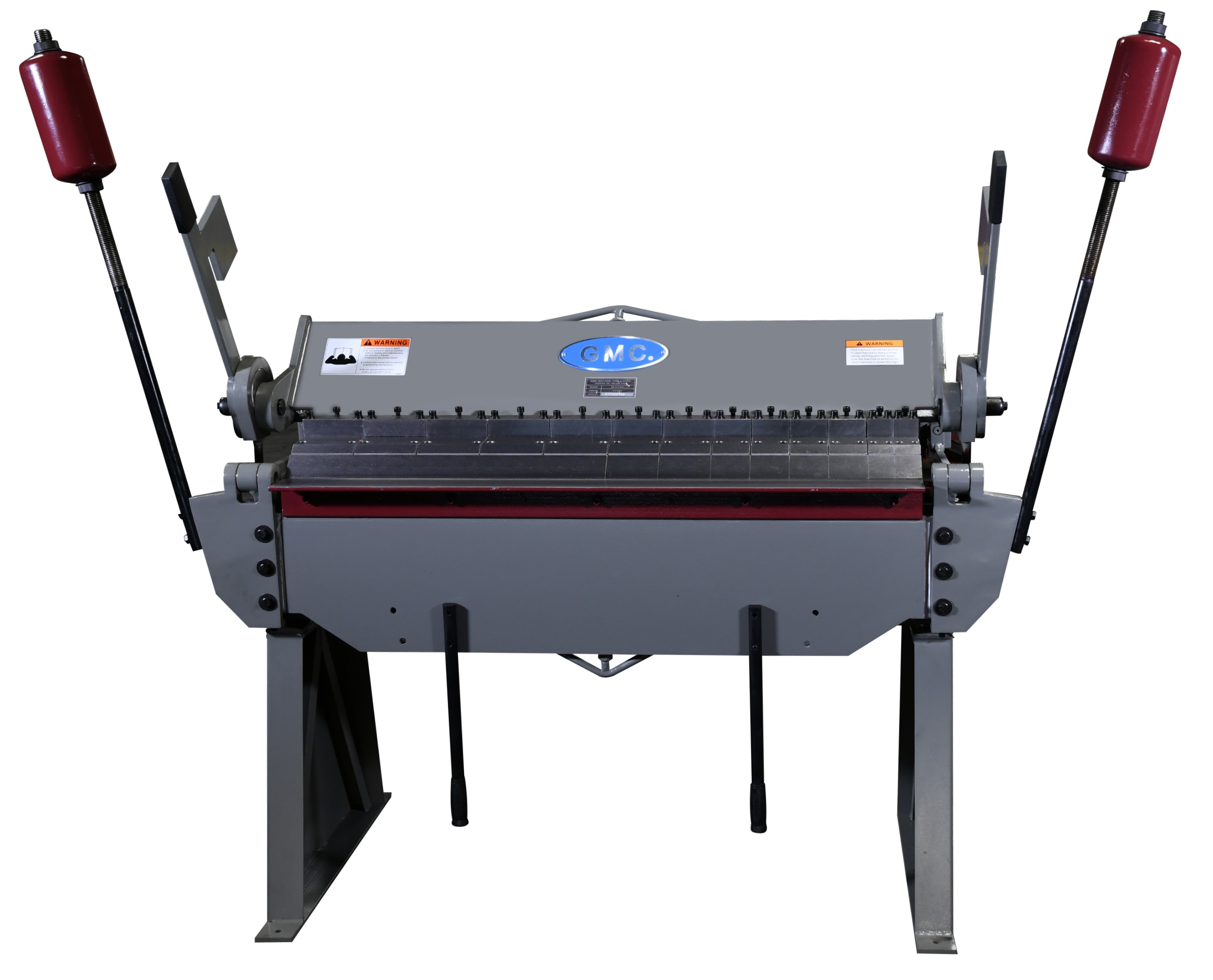

BB-412-6HD, 48" Box and Pan Brake, Metal Finger Brake

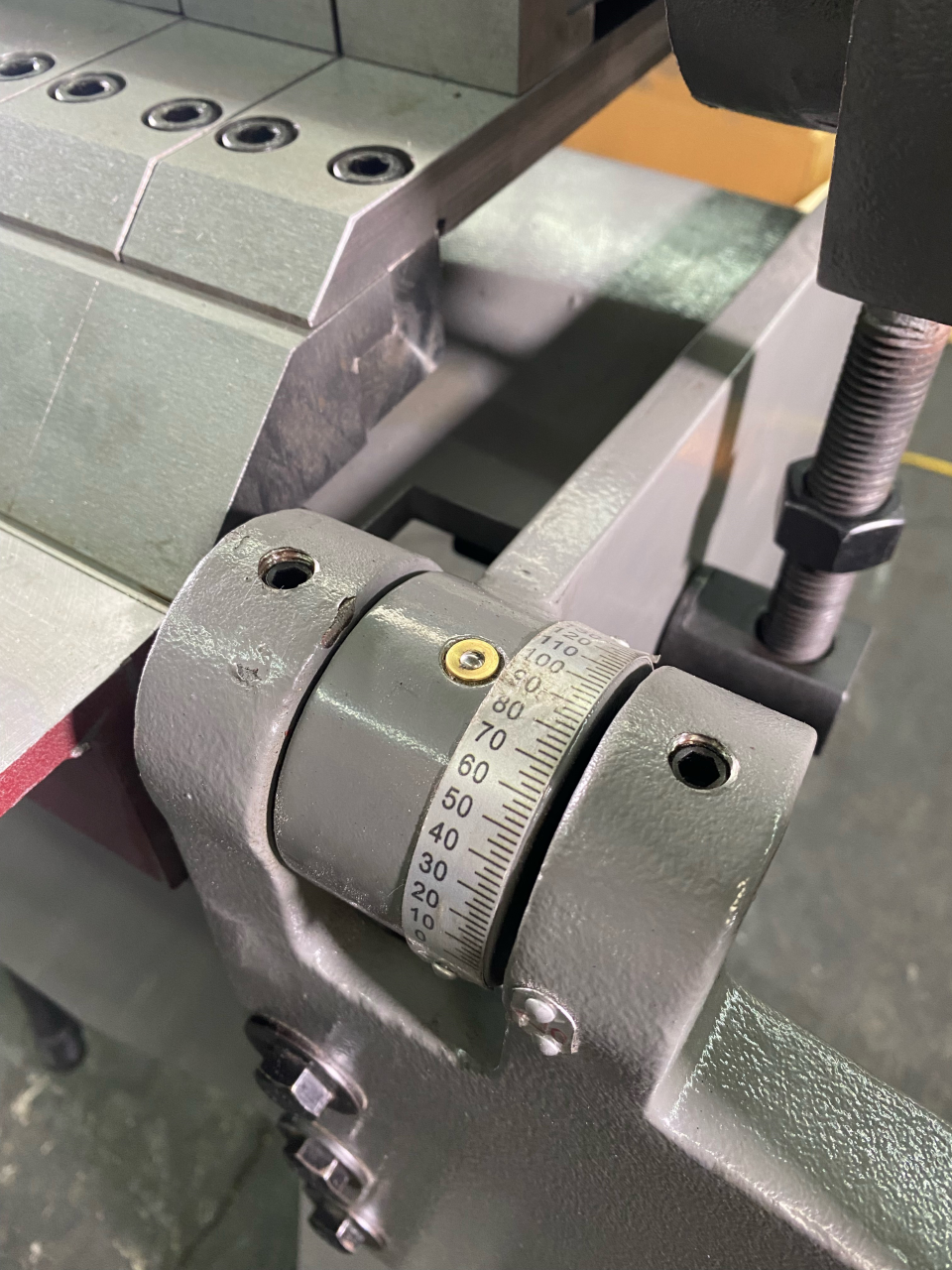

ISO 9002 certified 1-year parts only warranty Large 1-9/16” beam opening, adjustable 135 degree bend angle capacity with built in scale 2 - handwheels on the rear to ajust the gap 1” beam adjustment (front and back) Hem light gauge material 26 Ga. or thinner 2 - 30 lbs. adjustable counterweights May require 2 or more people Includes 9 fingers total: (measures 49")  2 - 2" 4 - 3" 2 - 4" 1 - 25" 1 - Simple stop rod is included to make repeat bends All steel heavy body construction with extra heavy tie rod for minimum deflection Bending capacity in Mild Steel: 12 Ga. Bending capacity in Stainless Steel:Bending capacity in soft aluminum  16 Ga.3/16" Max. hemming thickness for mild steel: 26 Ga. Max. box depth 6" Bending length capacity 4’ Bending angle, degree 0-135 Beam adjustment, front and back 1" Minimum reserve bend 1/2" Manual clamping Standard Beam opening 1-9/16" Net weight 1,150 lbs. Shipping weight: 1,265 lbs. Machine Dimensions: 82" x 32" x 69" Shipping Dimensions: 67” x 30” x 38” For more complete information: https://www.gmcmachinetools.com/catalog
