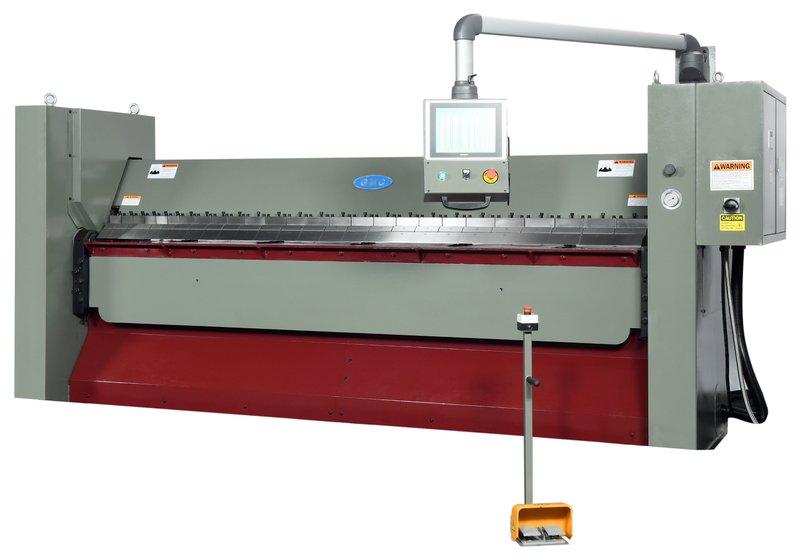

HBB-1010NC, 10 ft. Hydraulic Box and Pan Brake, with NC Controller

Brand
Model
HBB-1010NC
Stock #
HBB-1010NC
Year
Not specified
Condition
New

Location

Not specified
  • ISO 9001 certified
  • Meet OSHA and CE safety standard
  • 48” NC table back gauge with fingers

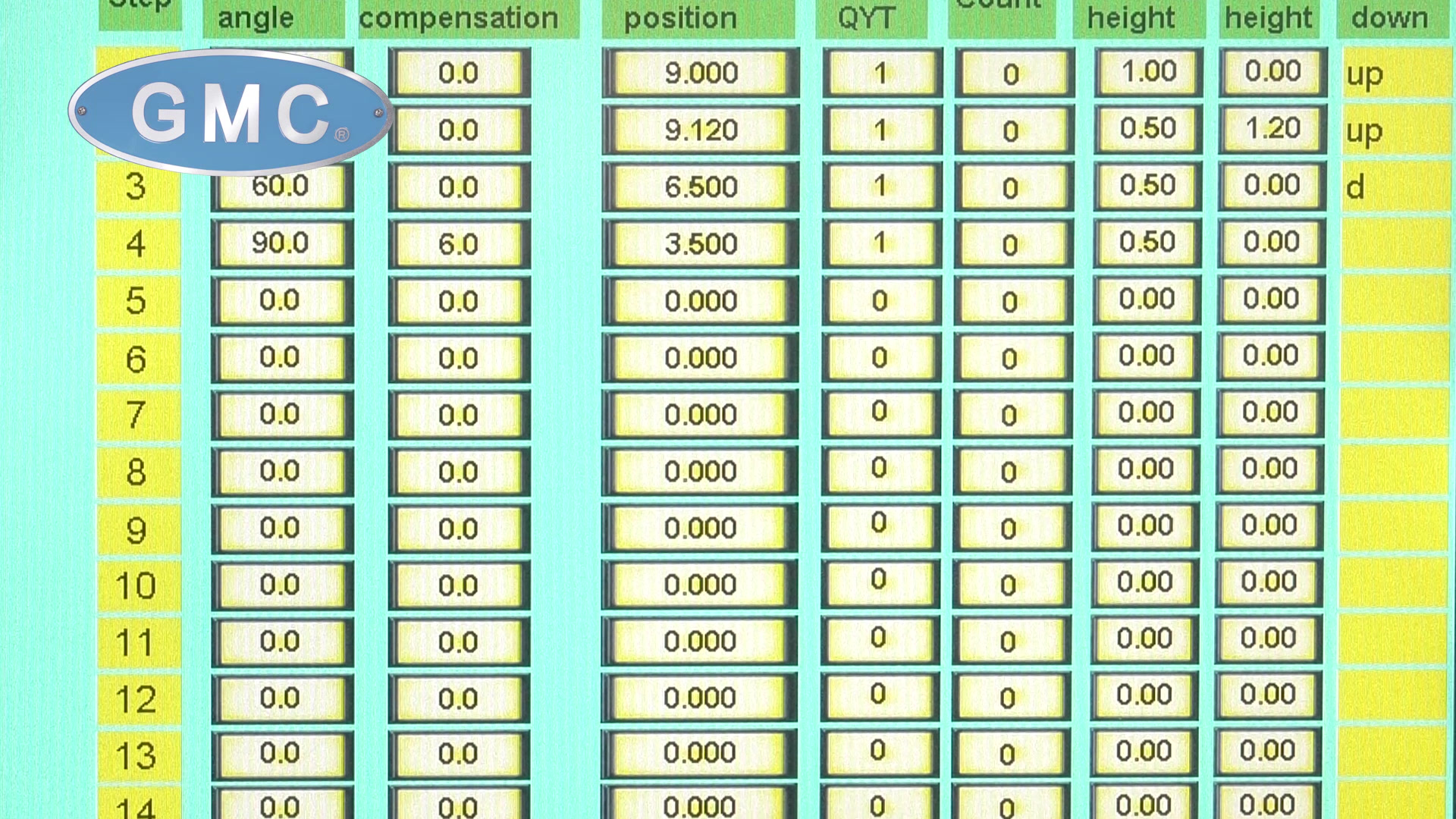

  • Max. 16 bends per program
  • Upto 100 Program Storage
  • Programmable Angle/ Angle Correct
  • NC ram height control for open hemming

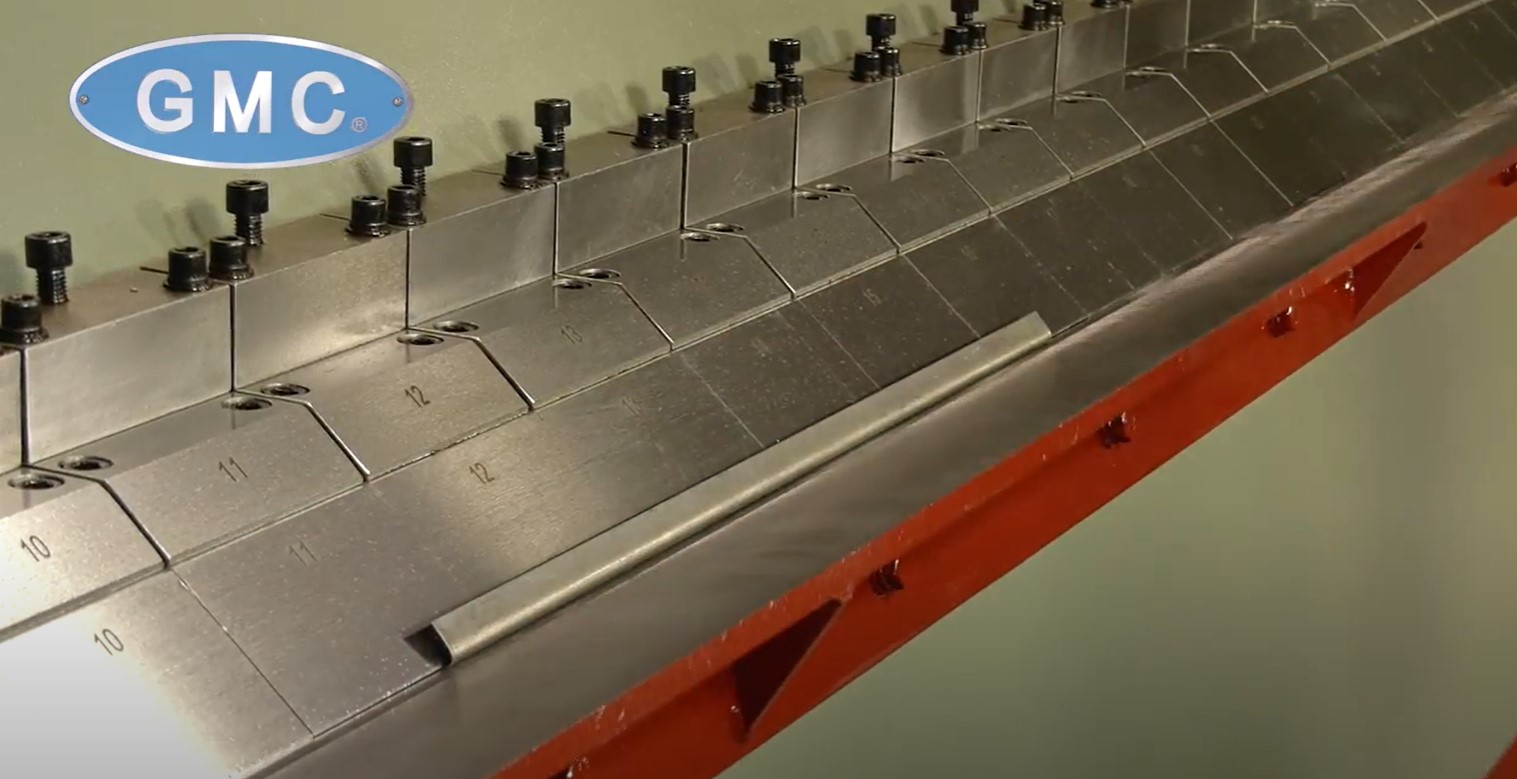

  • Hardened fingers and table
  • Germany Rexroth  hydraulic system
  • Yaskawa Servo motors and Drives

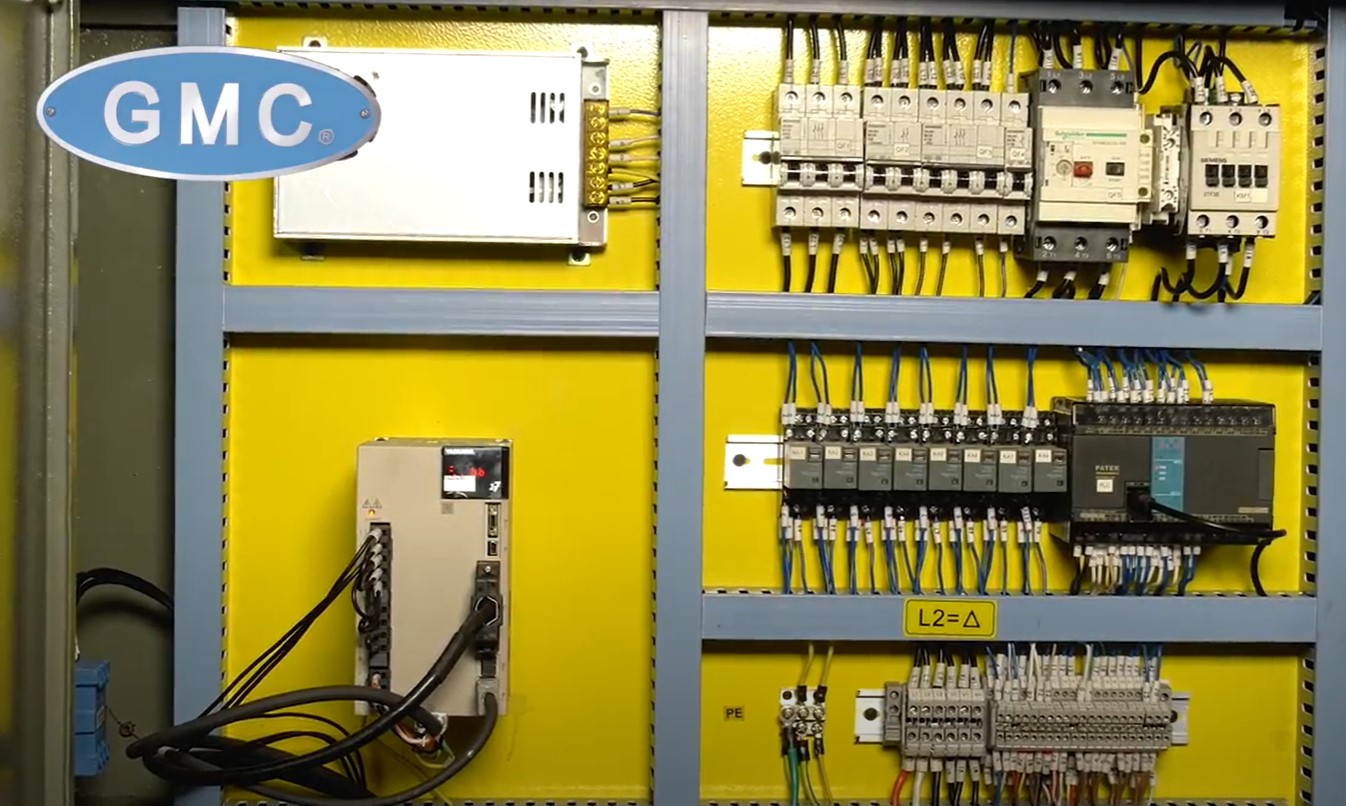

  • Schneider electrical components
  • All steel construction for maximum rigidity
  • Hydraulic logic system centrally located and quiet
  • Safety type foot pedal with handle and E-stop switch
  • Safety 24V low voltage & overload protection
  • One year industrial warranty for parts

DISCLAIMER

Please note this machine is incompatible with the use of a rotary phase converter. Any attempt to purchase, install, or employ one, whether carried out by you or a professional service company, will automatically void the warranty. It is crucial to understand that any such actions are entirely the responsibility of the buyer.



This disclaimer is intended to clearly convey that the utilization of a rotary phase converter to power or operate this machine is not supported.



Capacity:

Mild Steel(hot roll)60K PSI

Stainless Steel 85 K PSI

Soft aluminum 28K PSI

Hemming max thickness:



10 Ga.

14 Ga.

3/16"

22 Ga.

Bending length capacity 10'
Bend Angel Degree, programmable 135 degree
Max. Box Depth

153mm=6.02”

Large Beam Opening/Clamping Opening 3"
Beam front/back adjustment 1"
Min. Reverse Bend 1"

Max. Table Back Gauge Distance

Min. Table Back Gauge Distance

48-3/8"

1/4"

Back Gauge Repeatability 0.0039"
Back Gauge Table Height 35-3/4"
Assorted fingers

3"

4"

5"

6"

Main Motor





Servo Motor for back gauge



10HP,220V/208V, 3ph     (35amps)



 1HP

Hydraulic Oil Tank Capacity:

Recommended hydraulic oil:

32 Gal.

Shell #68 or equivalent

Machine Weight:

Shipping weight:

Machine Dimensions:

Shipping Dimensions:

11,550 lbs.

11,850 lbs.

175" x 93" x 76"

163" x  85" x 78"
