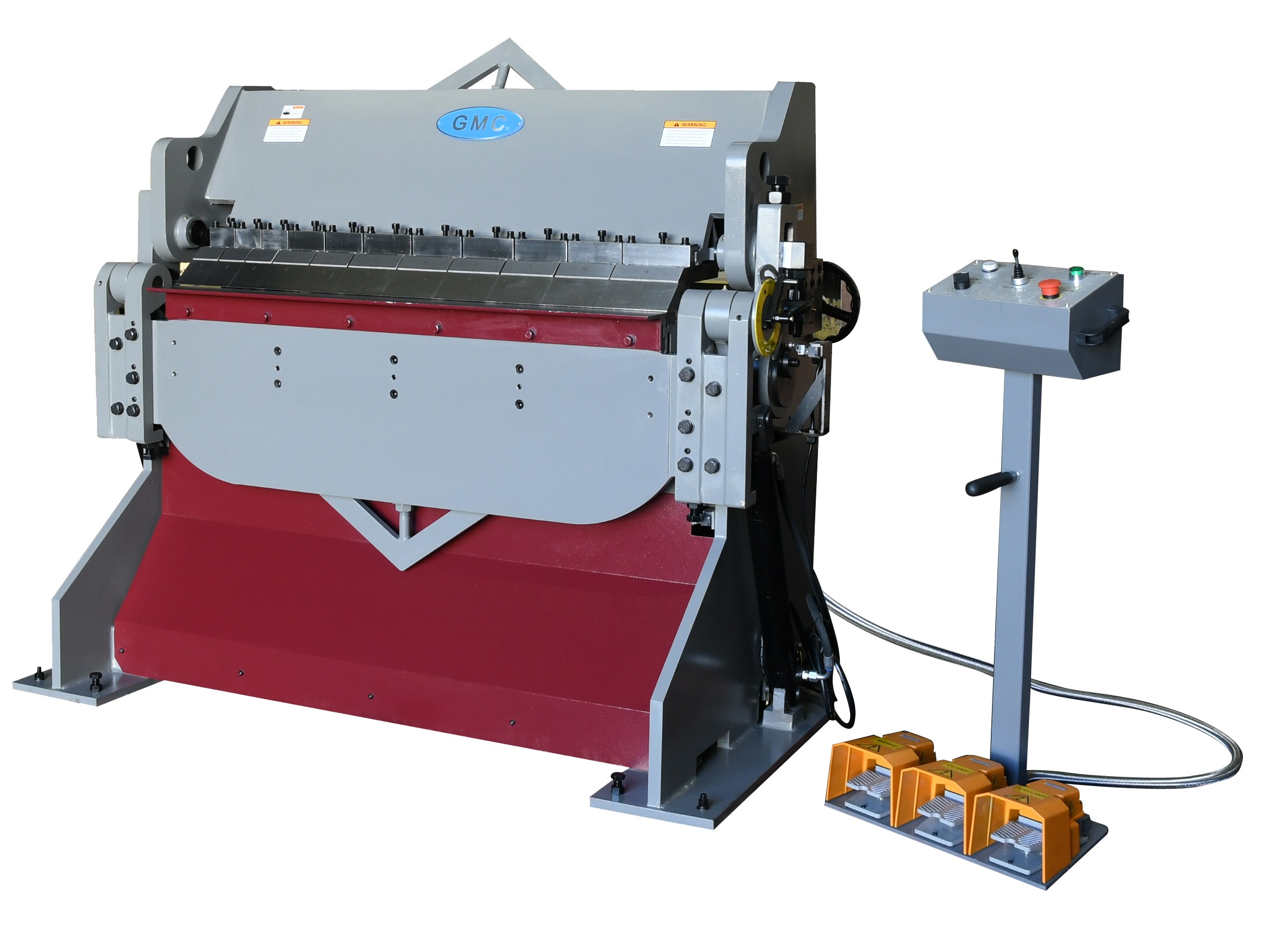

HBB-0410, 4 FT Sheet Metal Hydraulic Box and Pan Brake

• Taiwan Machines
• ISO 9001 certified
• Hydraulic adjustment for opening
• Hydraulic power clamping for workpiece

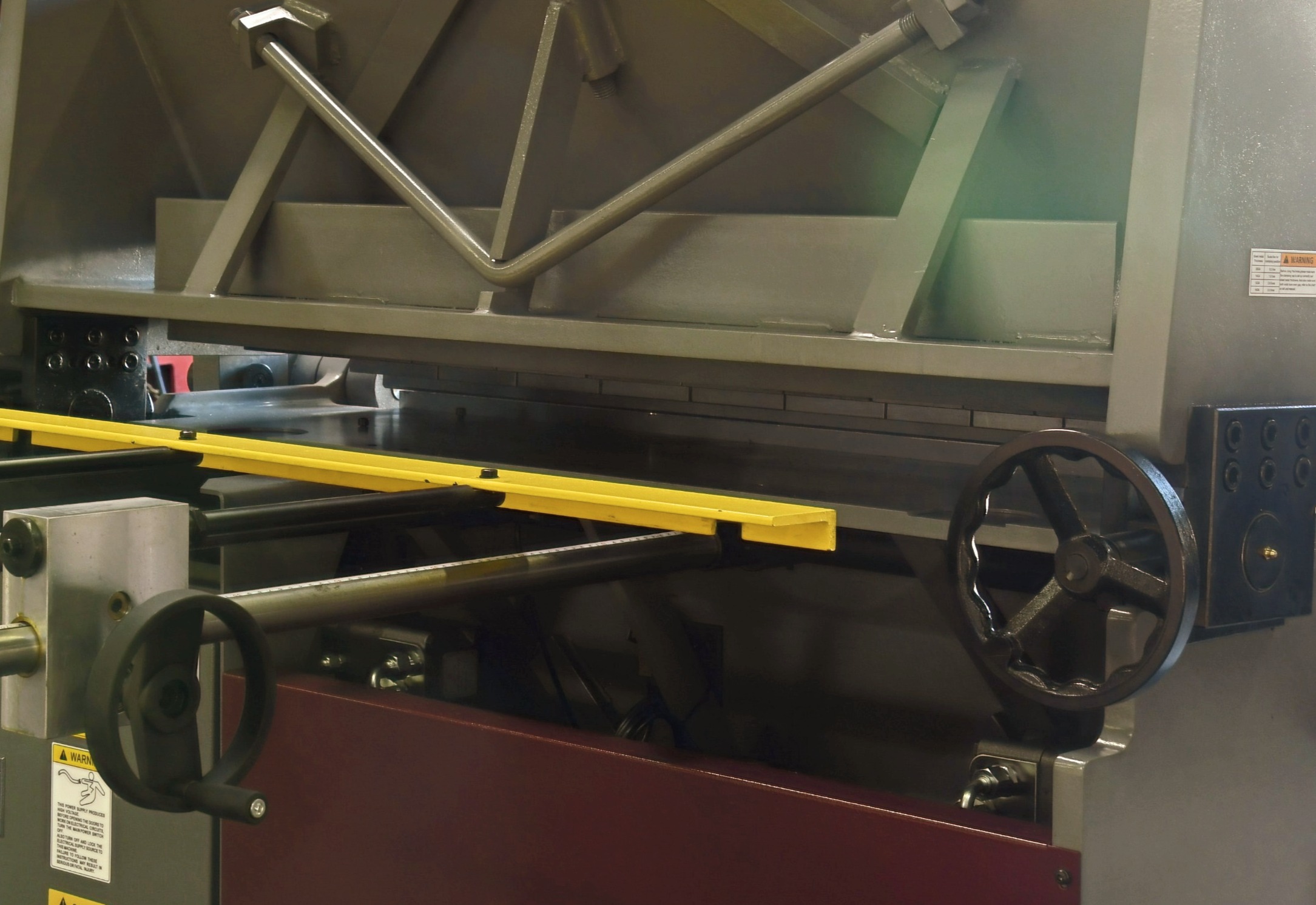

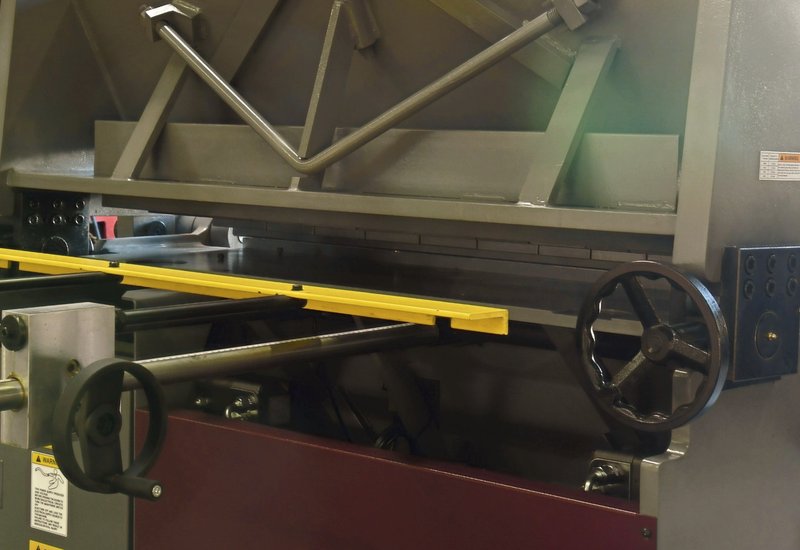

• 26” manual back gauge with handwheel
• 1” manual beam adjustment ( front and back )
• Min. reverse bend is ¾” (20mm)
• Heavy welded all steel construction for maximum rigidity
• Germany Rexroth Hydraulic logic system centrally located and quiet
• A wide guidebody ensures strong, stable, smooth & accurate movement

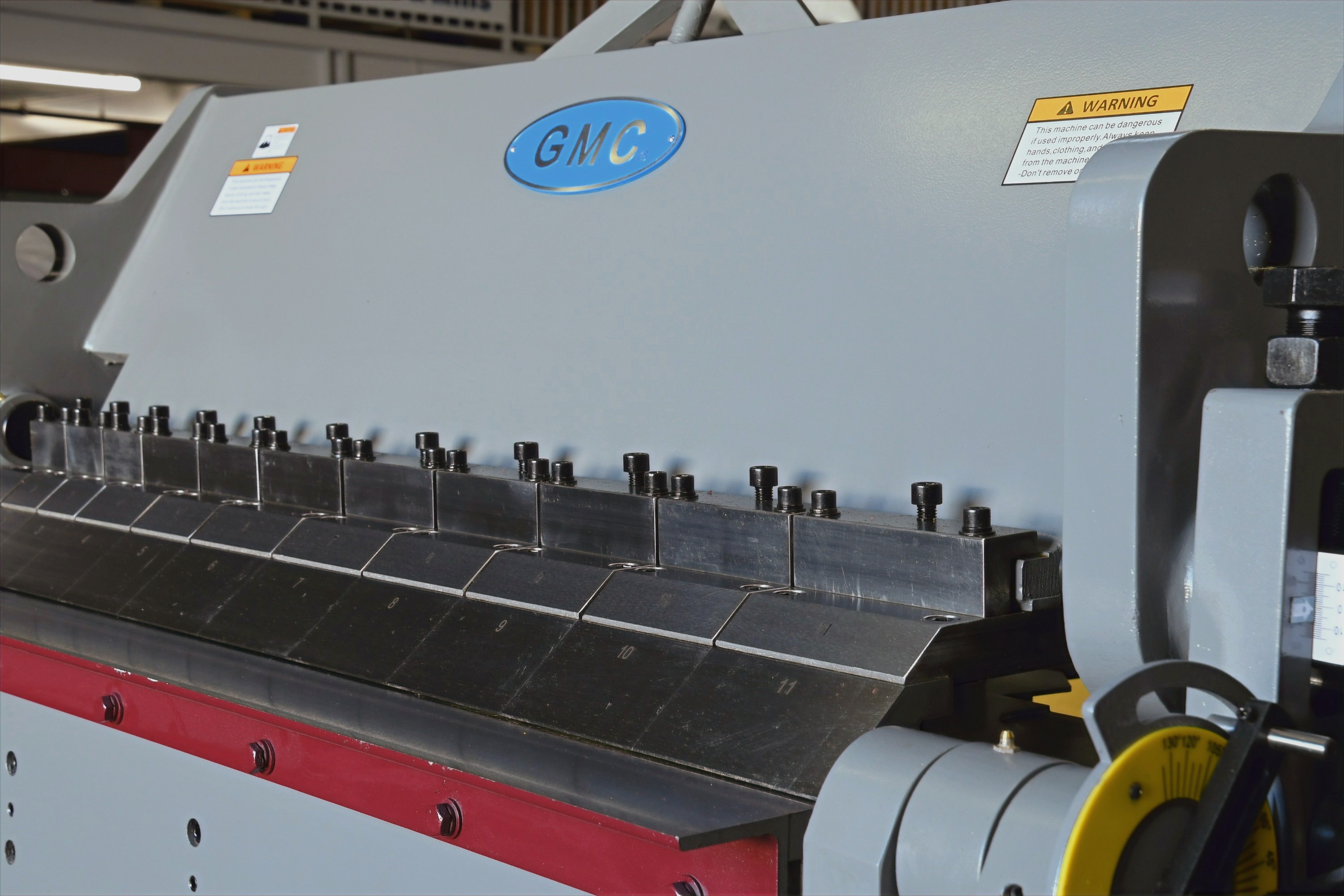

• Total pieces fingers assortment:
  • 3”/ 3pcs, 4”/2pcs, 5”/5pcs and 6”/1pc
• Central control panels on each side for convenient operation
• Jog and auto operation modes
• Overload protection and disconnect switch
• One year warranty for parts

This machine is compatible with a phase converter. Please note that the phase converter must be installed by GMC Machine Tools to ensure warranty coverage.

Once the machine is received and the phase converter is installed by us, it will be ready for use. For more information or if you have any further questions or need assistance, feel free to contact us.
