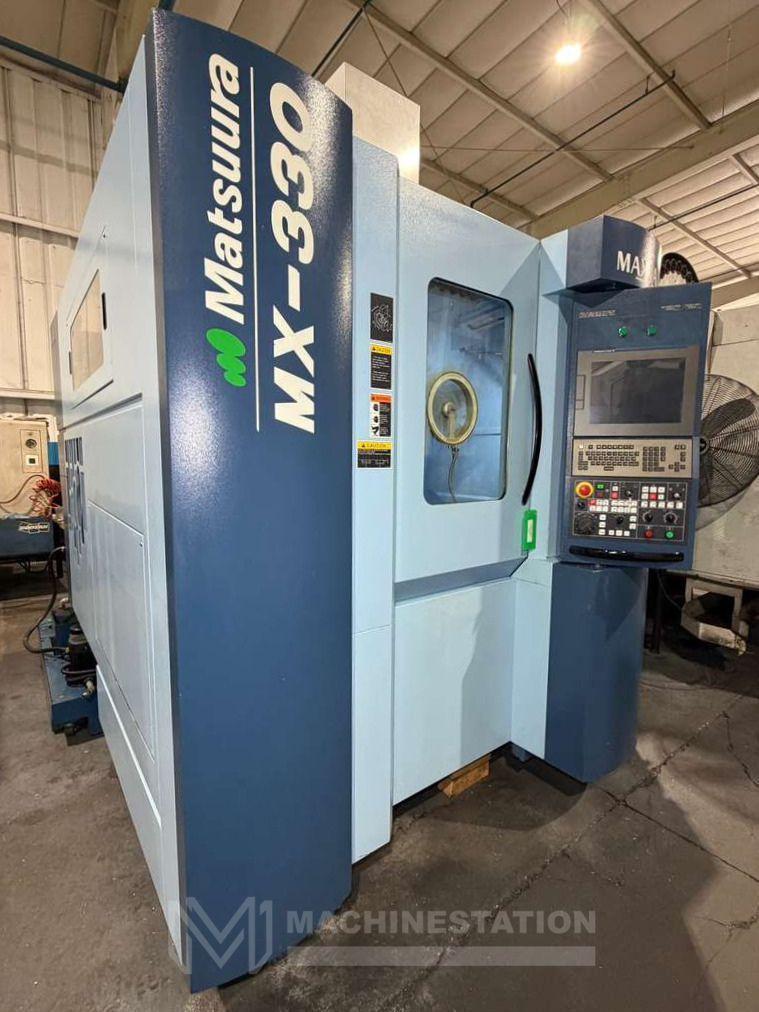

Matsuura MX-330 5-Axis CNC Vertical Machining Center – 15,000 RPM Mill

Matsuura MX-330 5-Axis CNC Vertical Machining Center – 15,000 RPM Mill

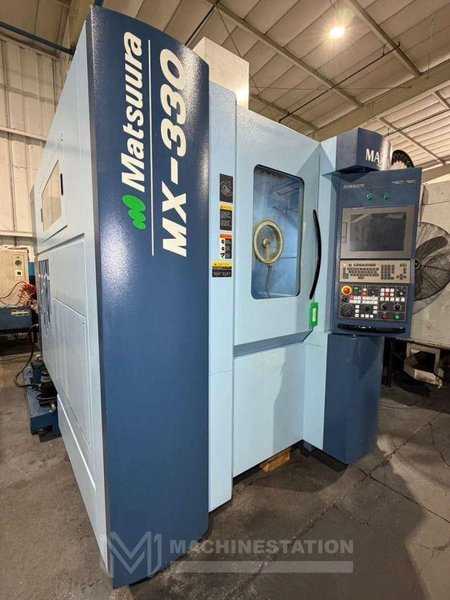

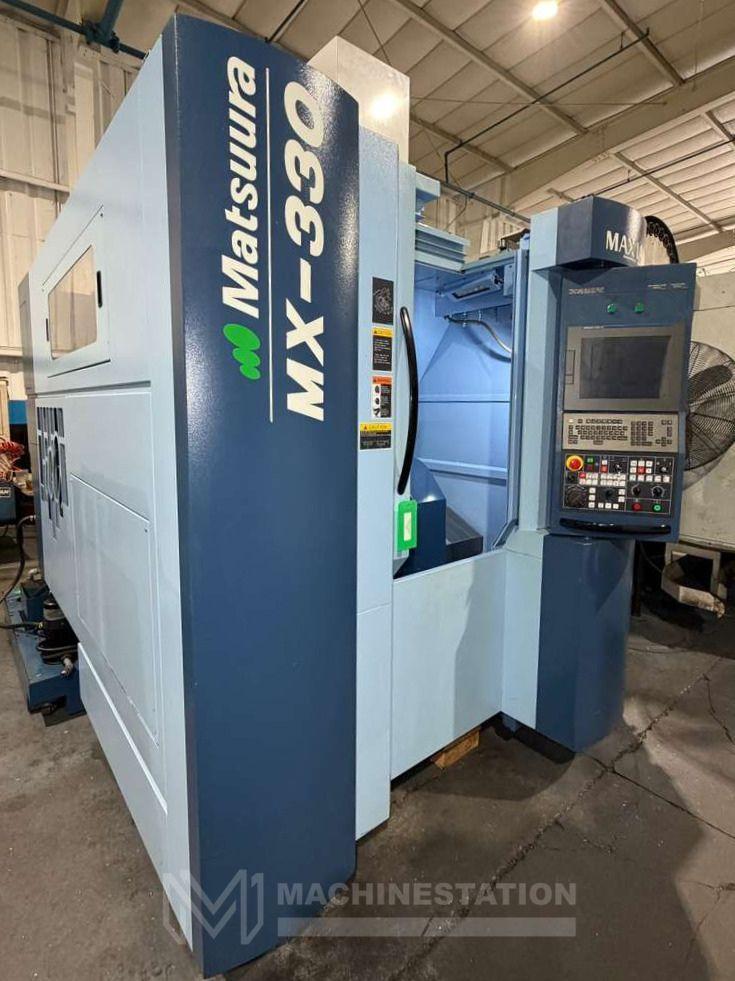

Name: Matsuura MX-330 5-Axis CNC Vertical Machining Center – 15,000 RPM Mill
Brand: MATSUURA
SKU: 113609
Availability: InStock

Brand

MATSUURA

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

SKU:	113609
Make:	Matsuura
Model No.:	MX-330
Year of Manufacture:	2016
Condition:	Used – Good

Equipped With:

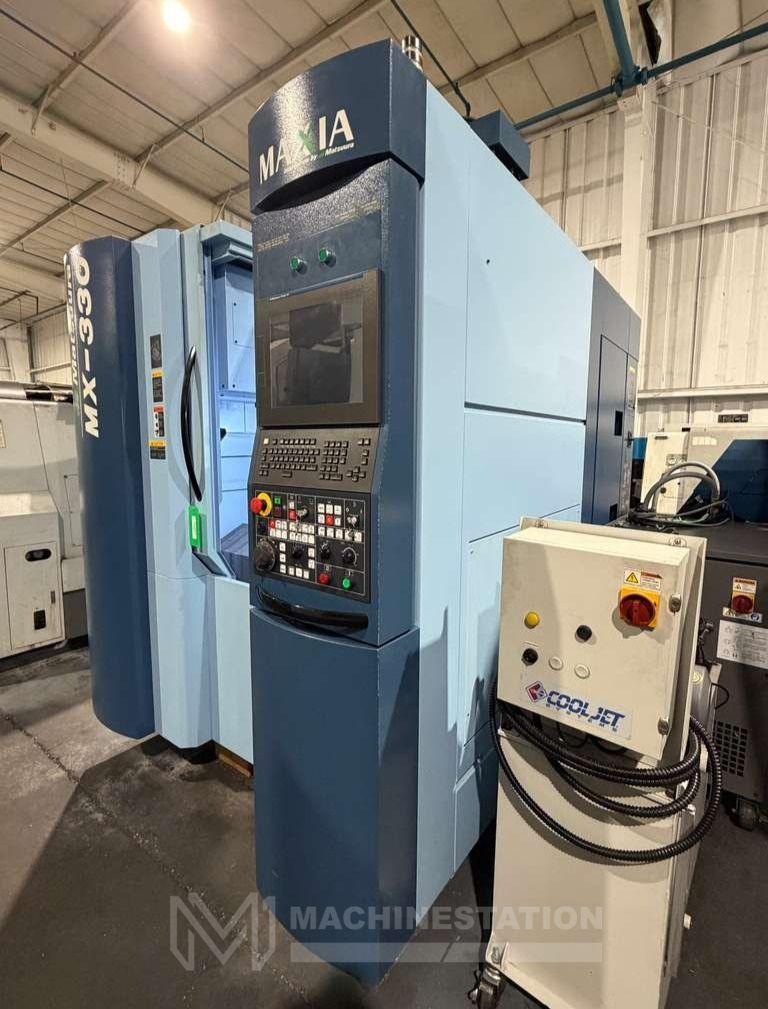

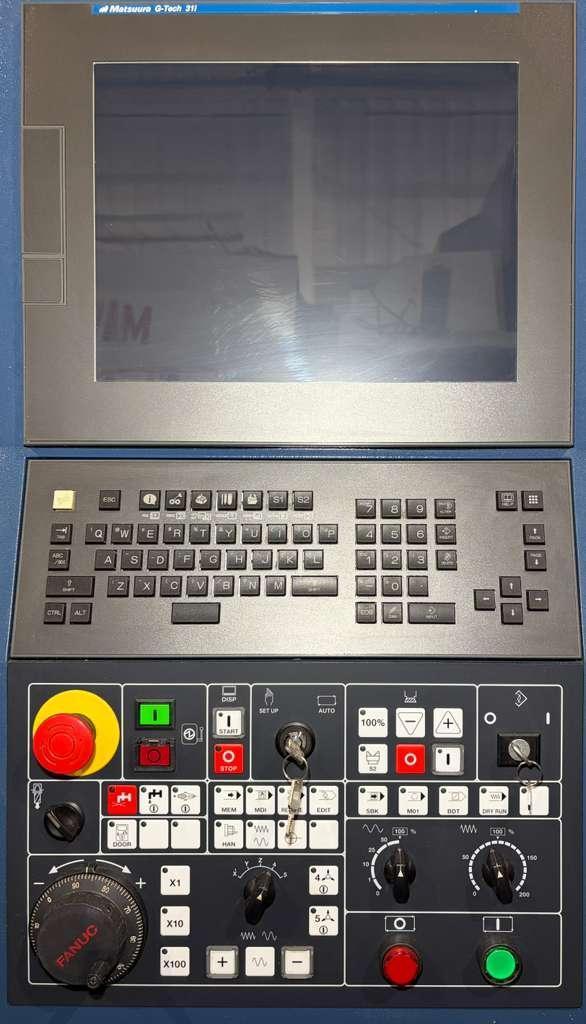

Matsuura G-Tech 31i (Fanuc) CNC Control
5-Axis Simultaneous Machining
9.84″ Diameter Rotary Table
15,000 RPM High Speed Spindle
60 Station Automatic Tool Changer

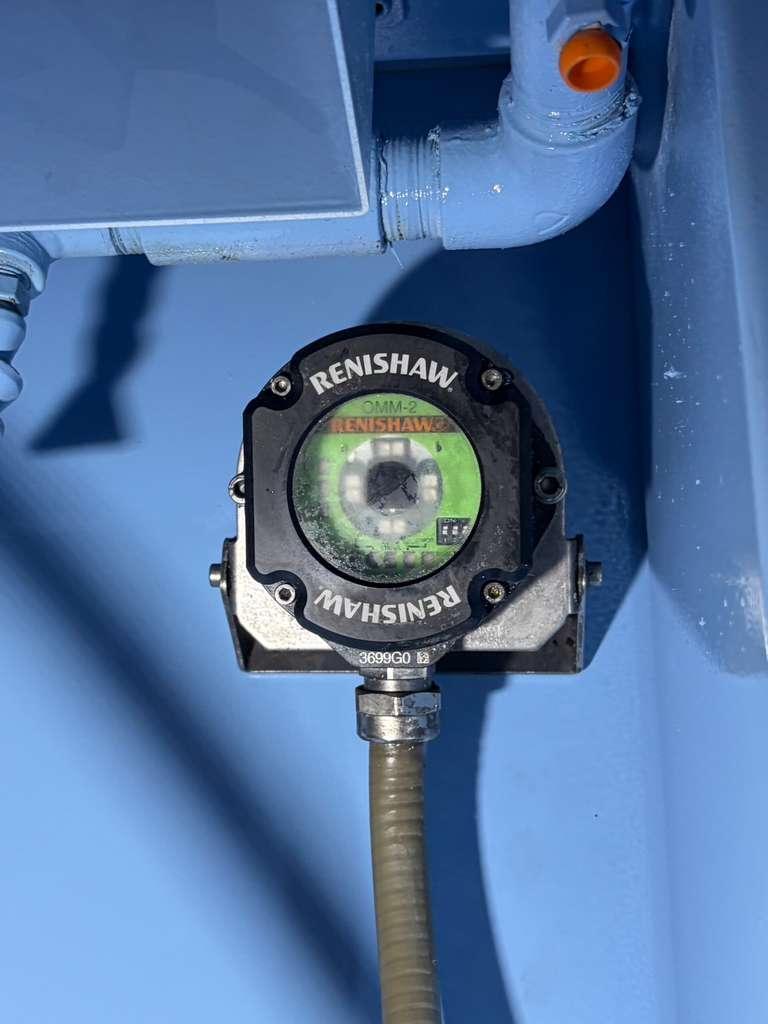

Renishaw Receiver Installed
Renishaw Tool Probe
Through Spindle Coolant
Cool Jet Coolant Unit
Rigid Tapping
Spindle Orientation
Coolant System

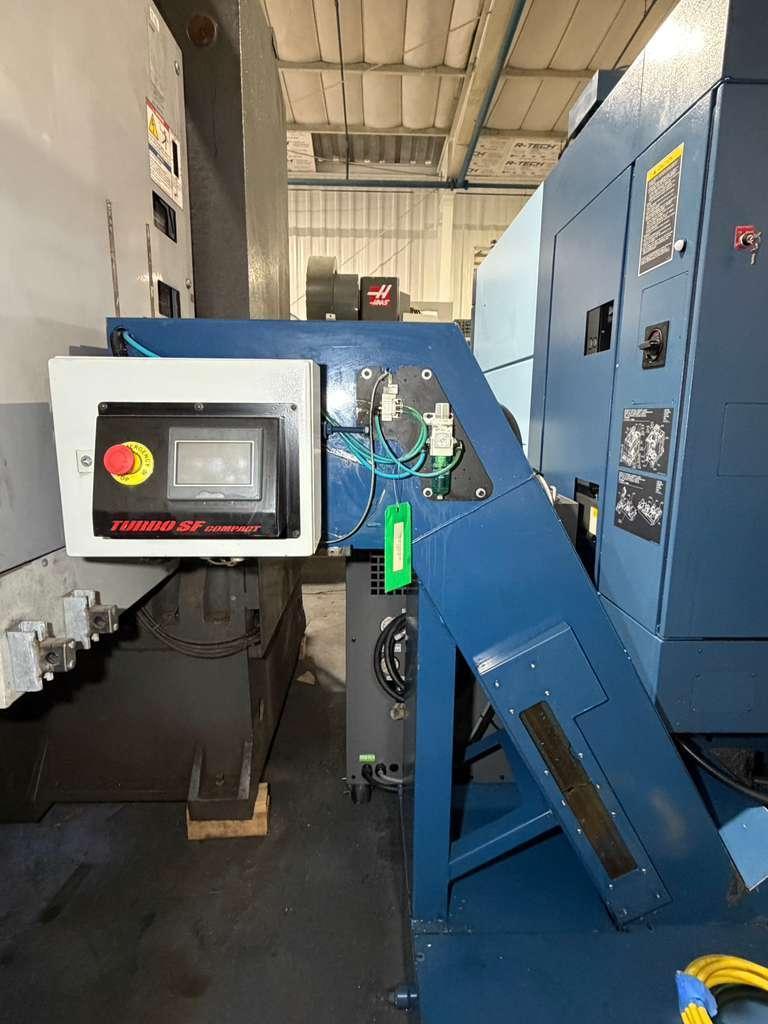

LNS Chip Conveyor

Travels:
X Axis: 17.13″
Y Axis: 18.31″
Z Axis: 22.05″
A Axis: -125° to +10°
C Axis: 360° Continuous

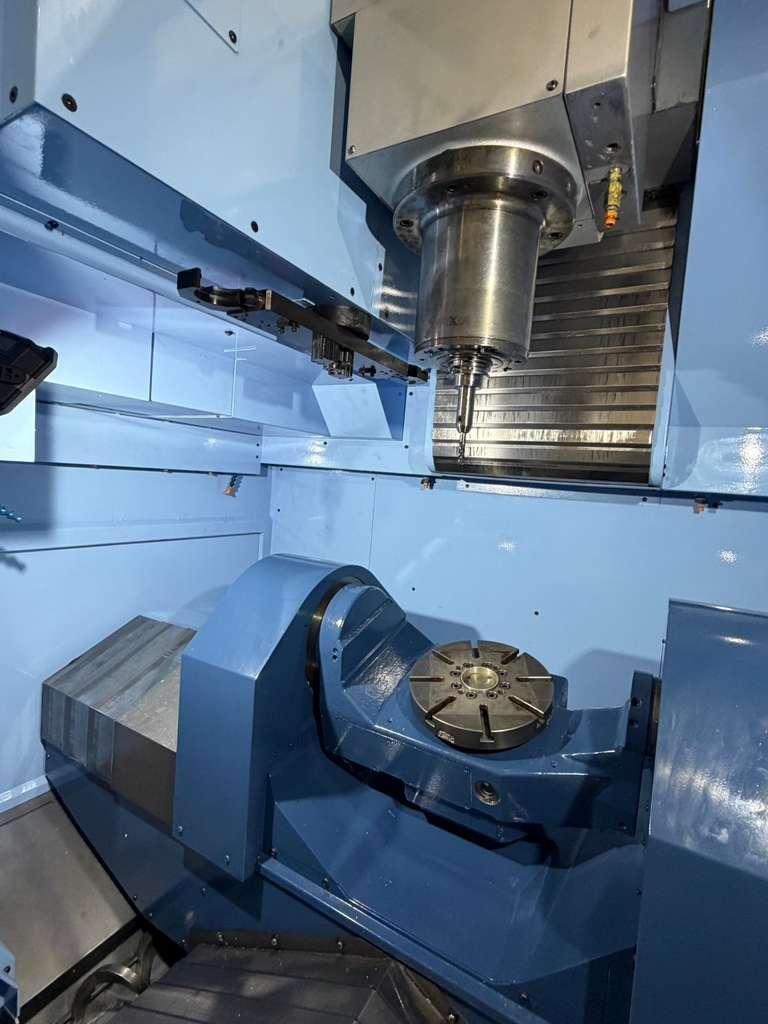

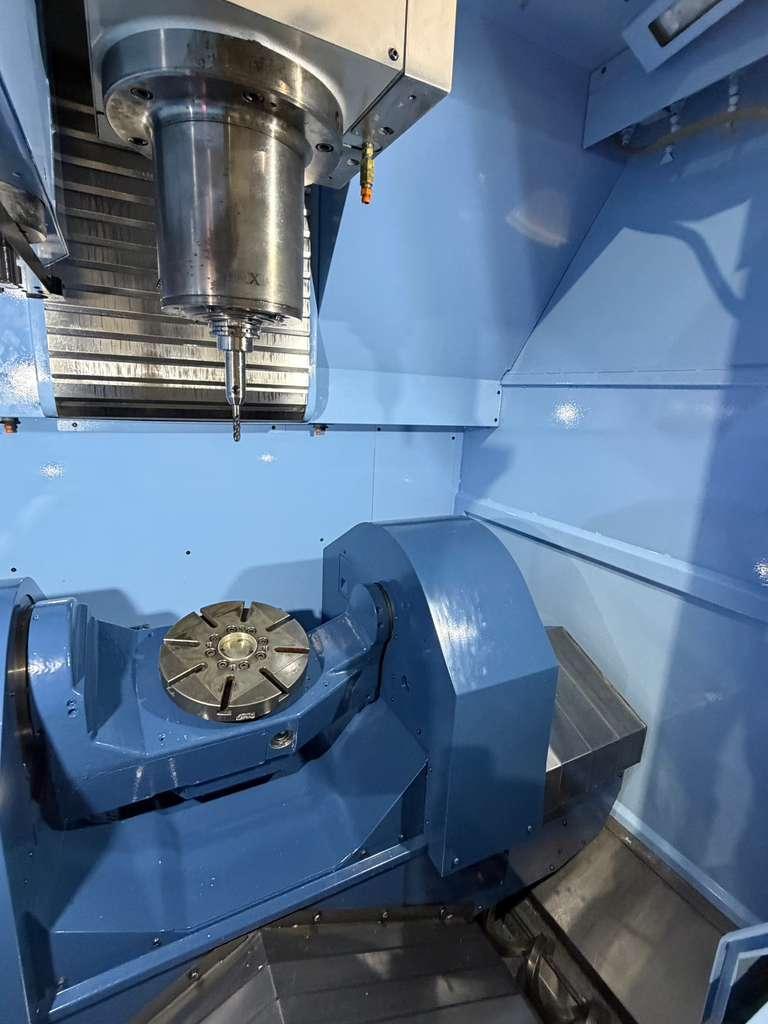

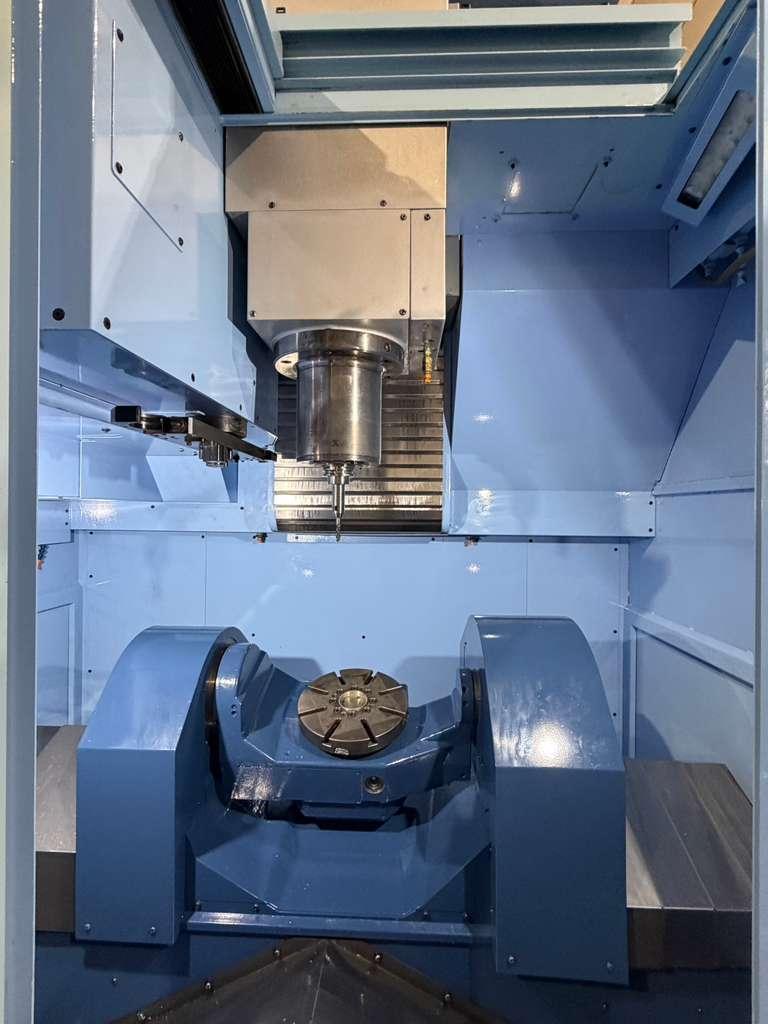

Trunnion Table:
Table Diameter: 9.84″
Max Workpiece Diameter: 12.99″
Max Workpiece Height: 12.59″
Max Weight on Table: 176 lbs

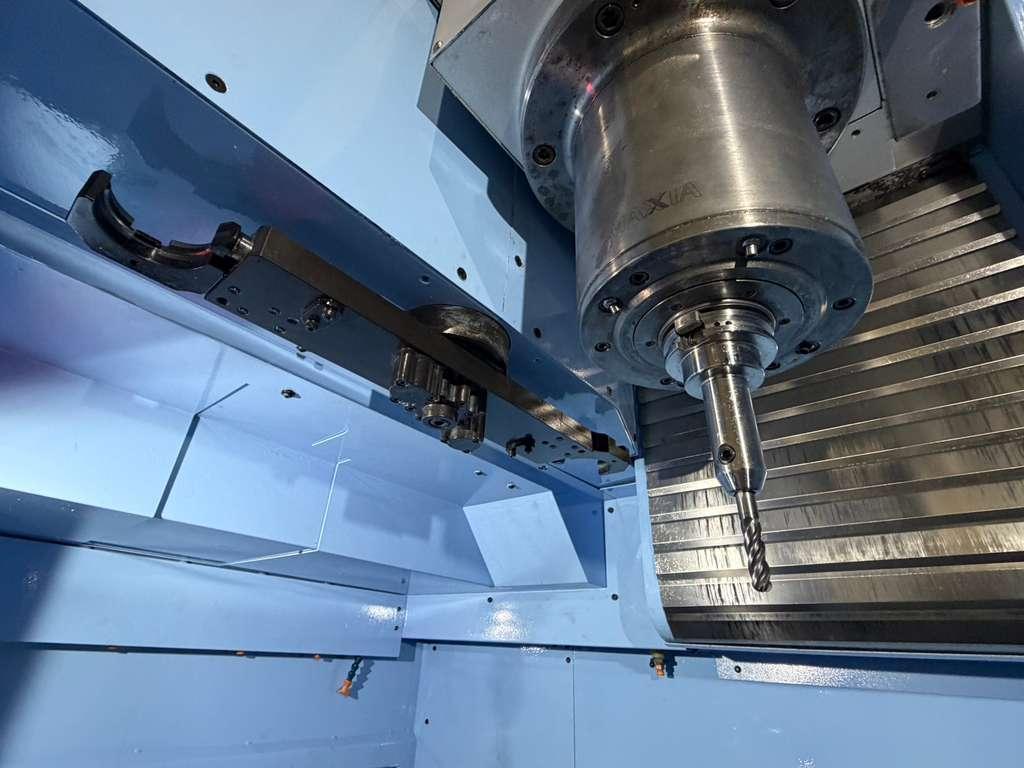

Spindle:
Taper Size: CAT-40
Spindle Speed: 15,000 RPM
Spindle Power: 25 HP

Feed Rates:
Rapid Traverse Rate X, Y & Z Axis: 1,574 IPM
Cutting Feed Rate X, Y & Z Axis: 1,574 IPM
Rapid Traverse Rate A / C: 17 / 33 RPM

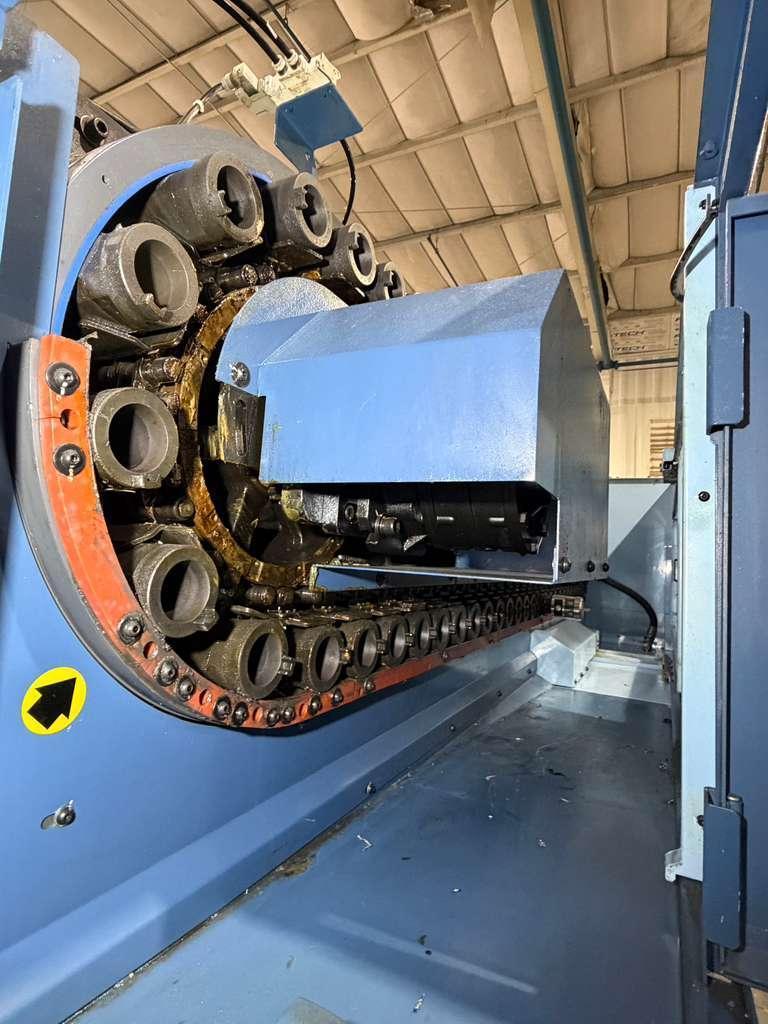

Tool Changer:
Capacity: 60 Tools
Taper: CAT-40
Max Tool Diameter: 3.14″
Max Tool Diameter (Without Adjacent Tools): 5.90″
Max Tool Length: 11.81″
Max Tool Weight: 22 lbs
