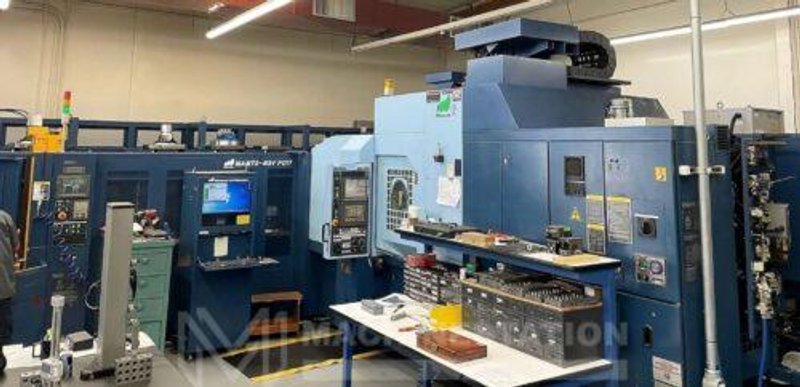

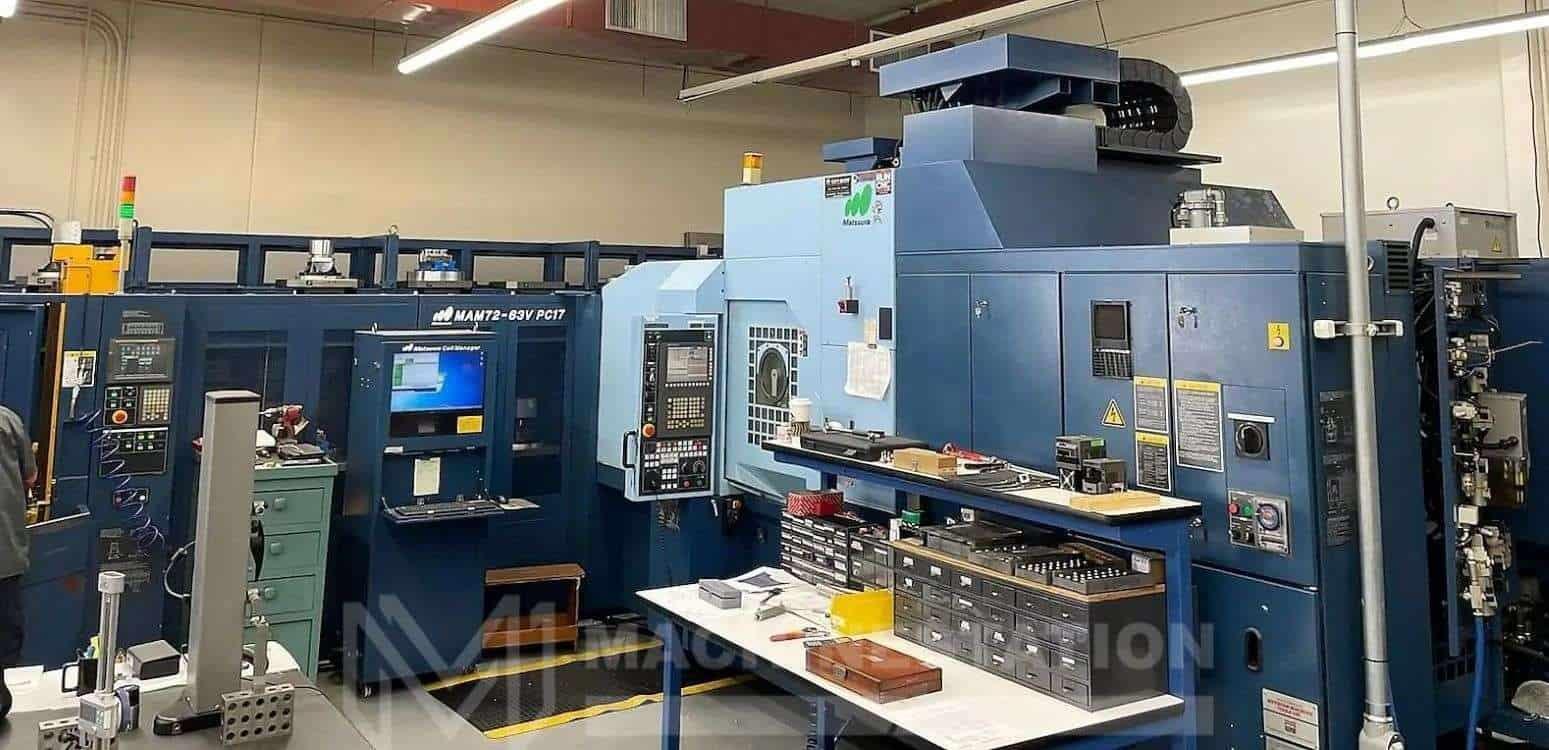

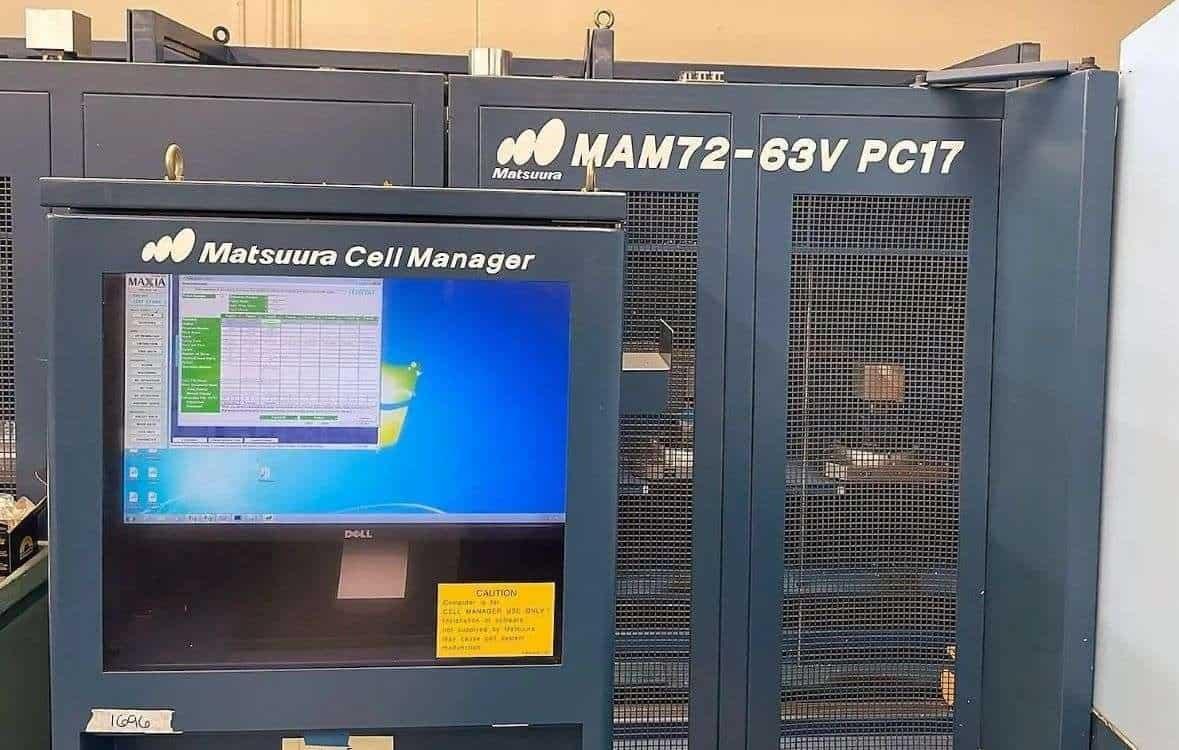

Matsuura MAM72-63V PC17 5 Axis CNC Vertical Mill

Brand
MATSUURA
Category
Machining Centers
Type
Machining Centers, Horizontal, (5-Axis or More)
Model
Make:MatsuuraModel:MAM72-63V PC17
Stock #
Not specified
Year
Not specified
Condition
Not specified

Location

Not specified
REQUEST FINANCING

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:Matsuura
Model:MAM72-63V PC17
Year:2005
Condition:Used – Good

Features:

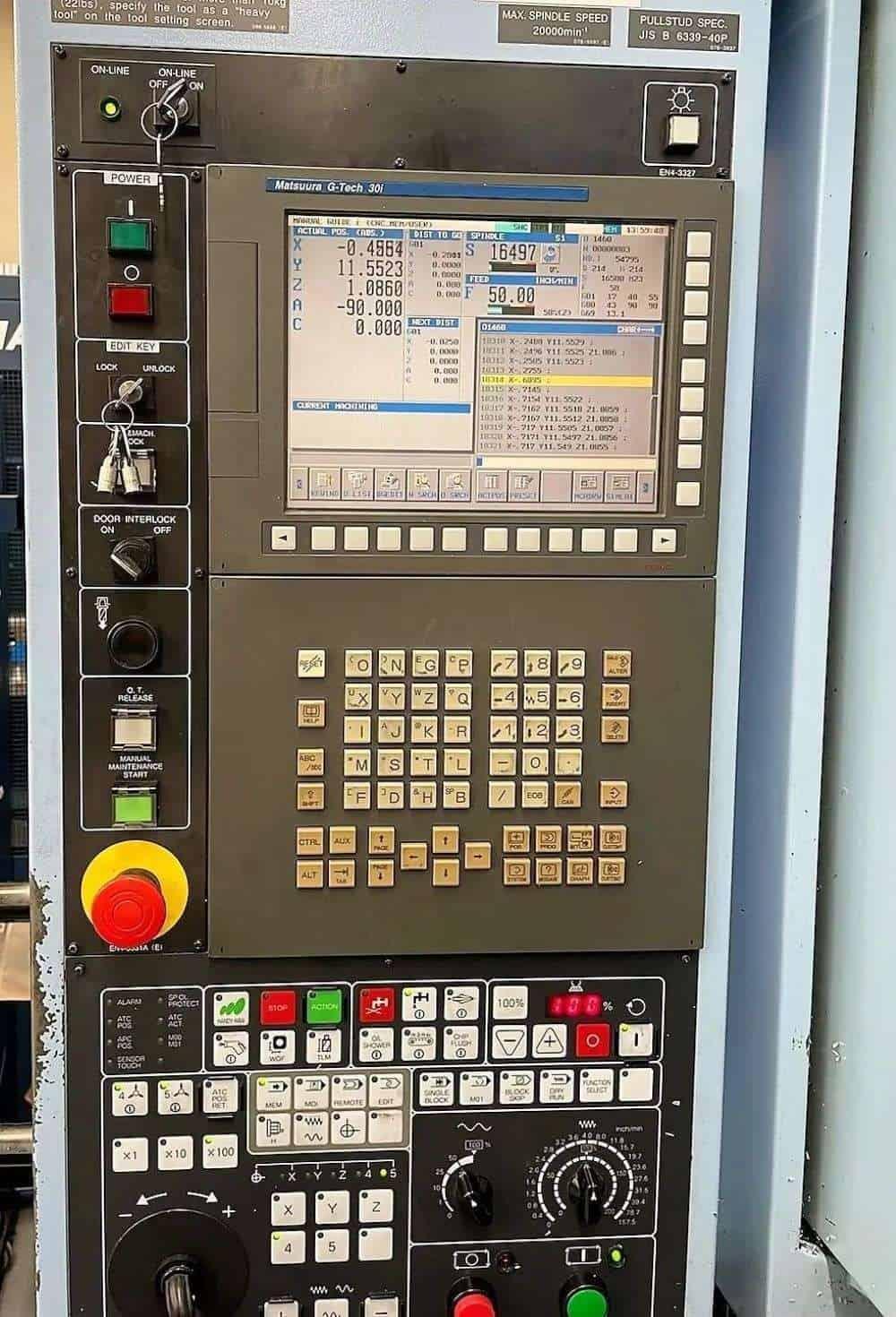

  • Fanuc G-Tech 30i Series CNC Control

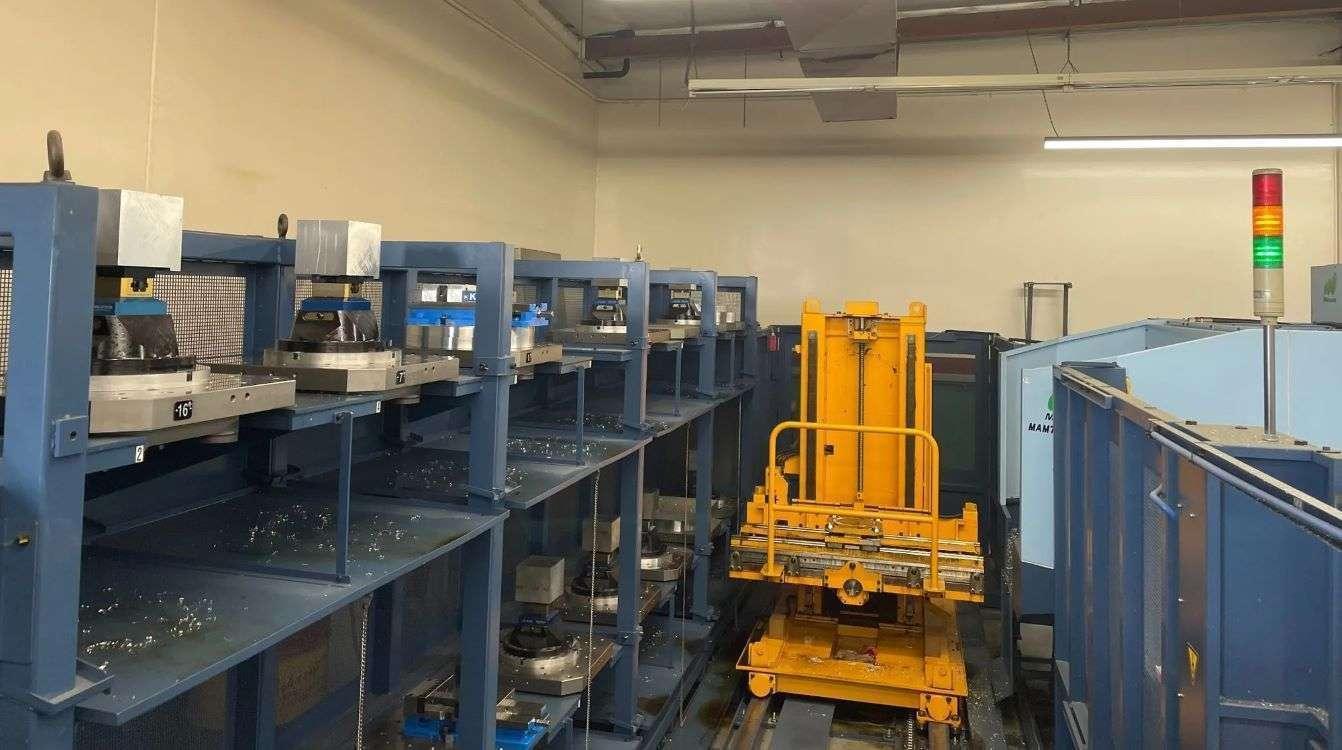

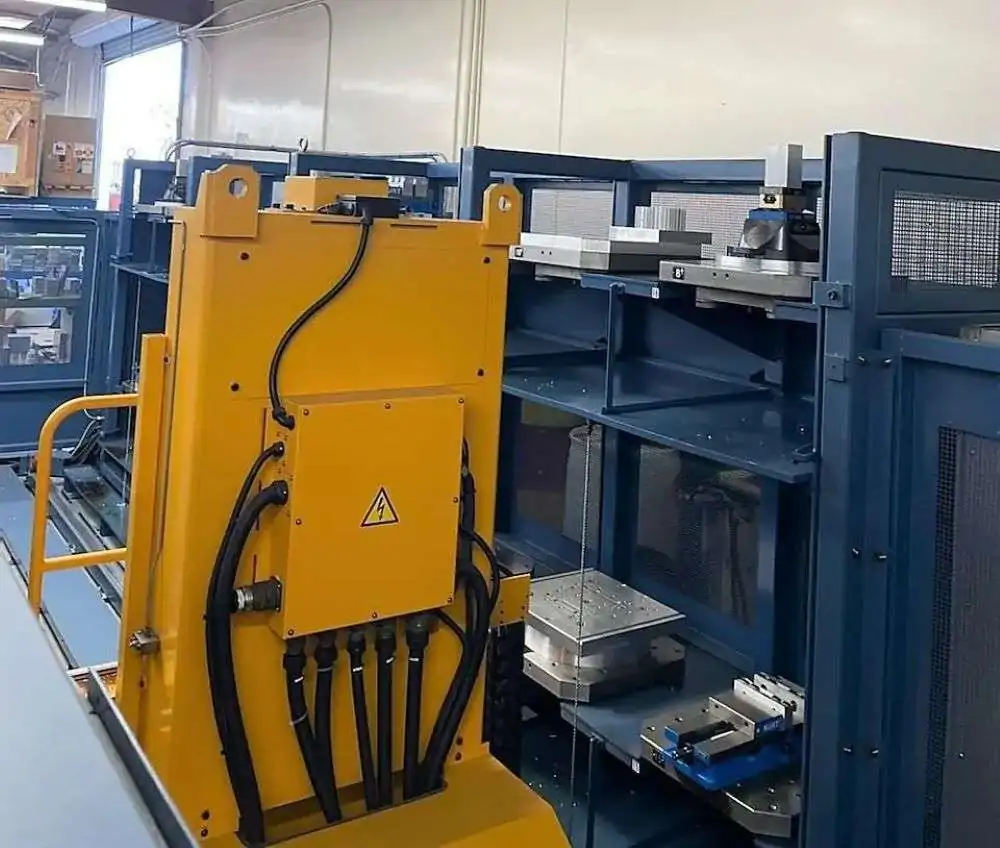

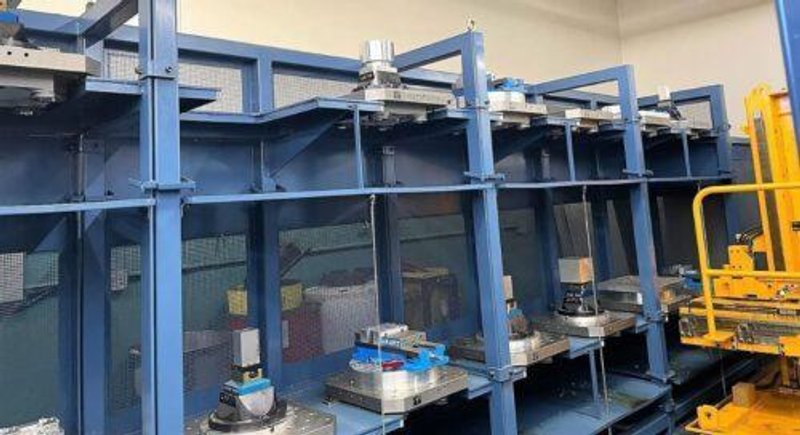

  • 17 Pallets Cell System
  • NC Programmable Swiveling Trunnion Table 19.8” x 19.8”
  • 20,000 RPM High Speed Spindle
  • 1000 psi Through Spindle Coolant
  • 240 Station Automatic Tool Changer
  • Laser Tool Measure/Tool Breakage Detection
  • Probing System
  • Tool Life Management
  • Coolant Shower System
  • Linear Scales (X,Y,Z) Axis
  • Rigid Tapping
  • Broken Tool Detection
  • Chip Conveyor

Travels:

  • X Axis: 29.92″
  • Y Axis: 33.26″
  • Z Axis: 25.98″
  • A Axis: 240° (+120°/– 120°) ( Table Tilt )
  • C Axis: 360° ( Table Rotate )
  • Rapid Traverse Rates X, Y, Z Axis: 1968 Inch Per Minute

Pallet:

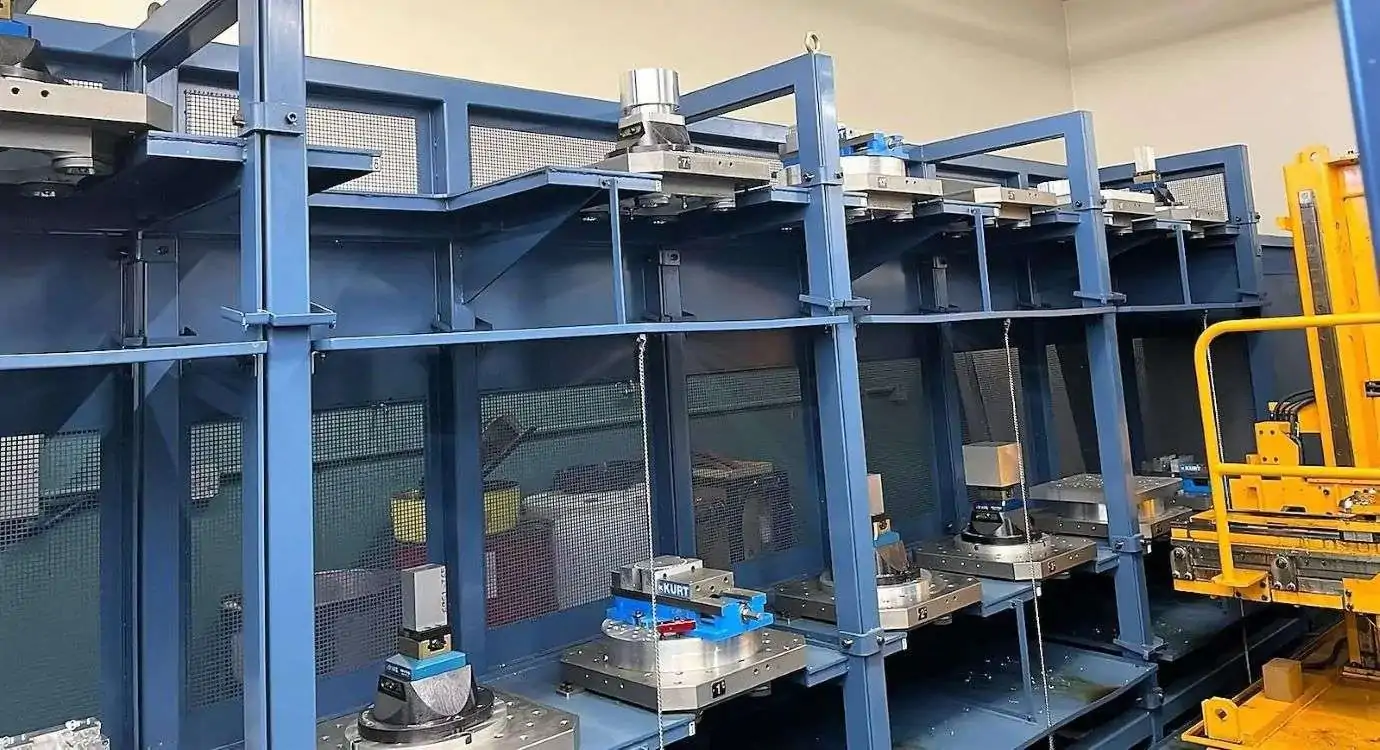

  • Number of Pallets: 17 Station
  • Pallet Surface: 19.68″ x 19.68″
  • Max Workpiece Diameter: 28.34″
  • Max Workpiece Height: 17.71″
  • Max Weight on Table: 770 lbs

Spindle:

  • Taper Size: BT-40
  • Speed Range: 20,000 RPM
  • Spindle Power: 30 HP

Automatic Tool Changer:

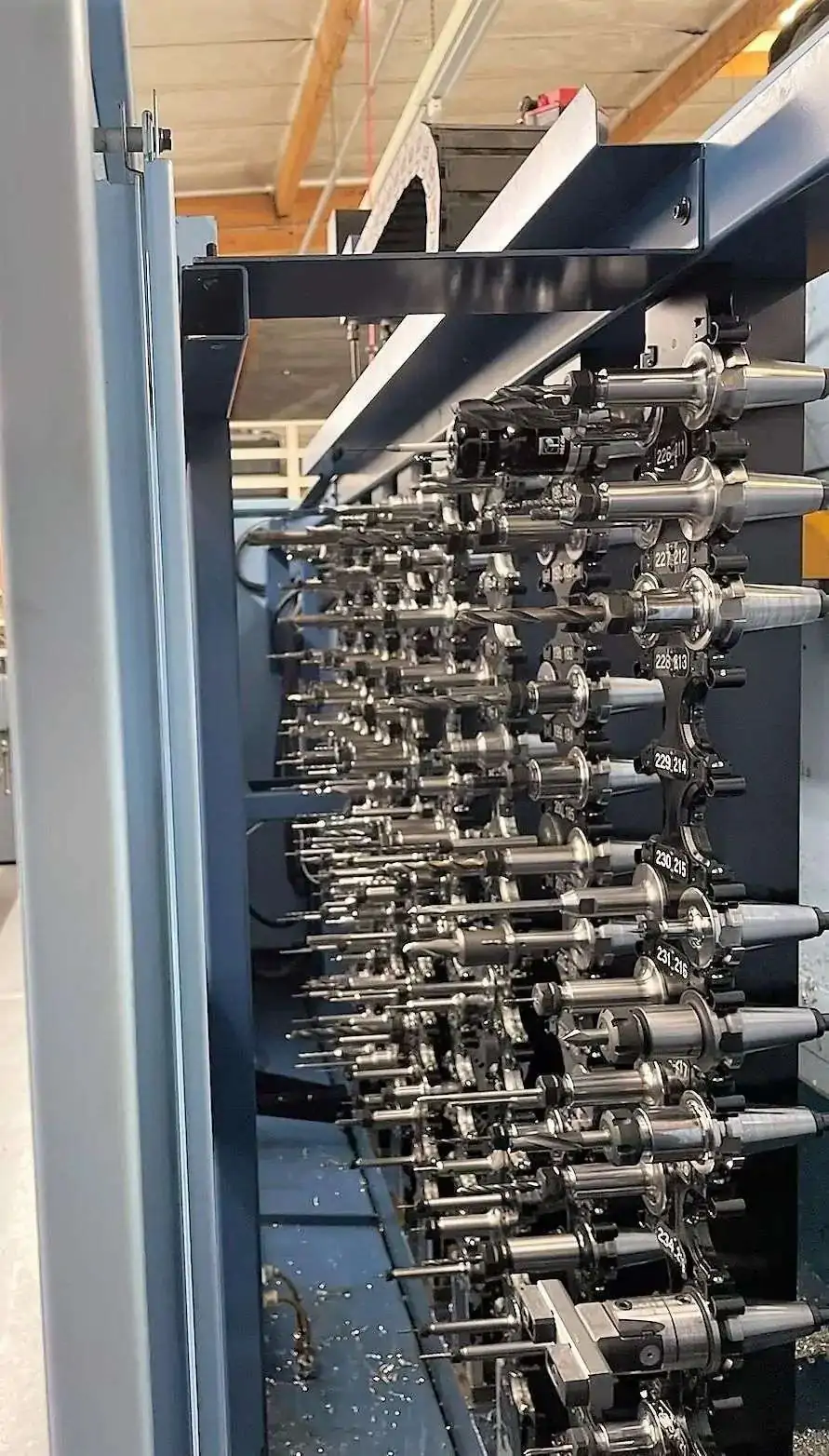

  • Capacity: 240 Tools
  • Taper: BT-40
  • Max Tool Diameter: 3.77″
  • Max Tool Length: 13.77″
  • Max Tool Weight: 22 lbs.

General:

  • Air Required: 80 psi 4 scfm
  • Power: 220v / 66FLA / 3-Phase
  • Overall Dimensions: 249″ X 153″ X 126″ High (Only Machine without Pallet Cell System)
  • Weight: 31,967 lbs Approx.
