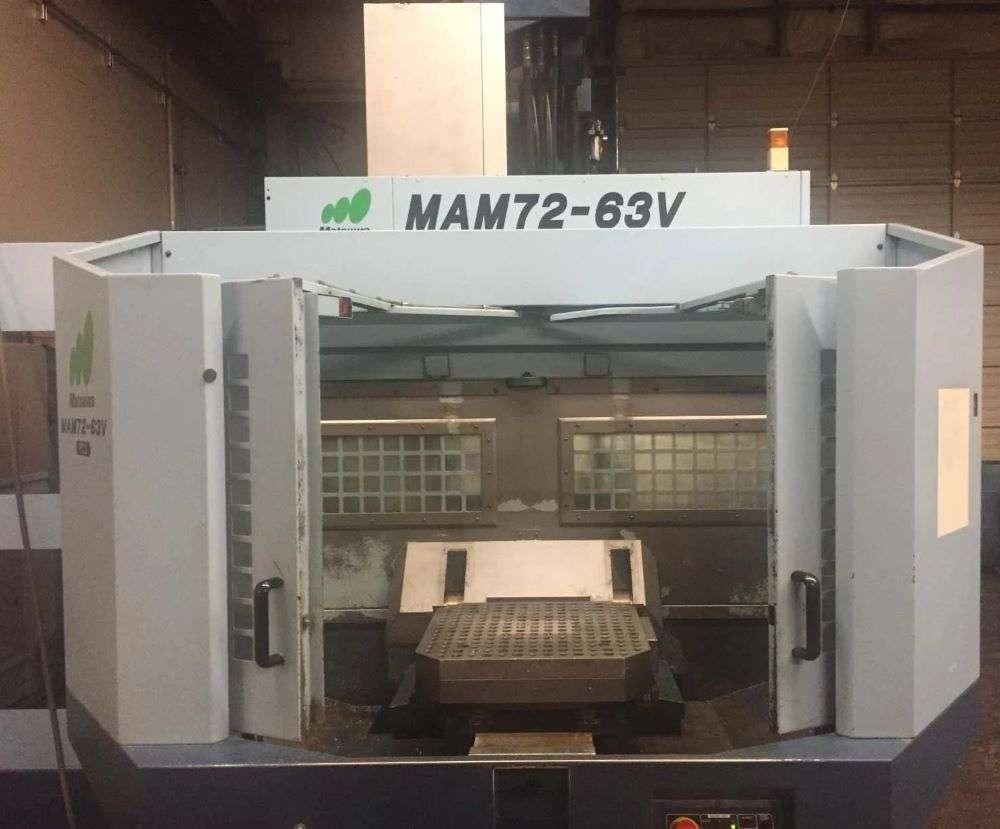

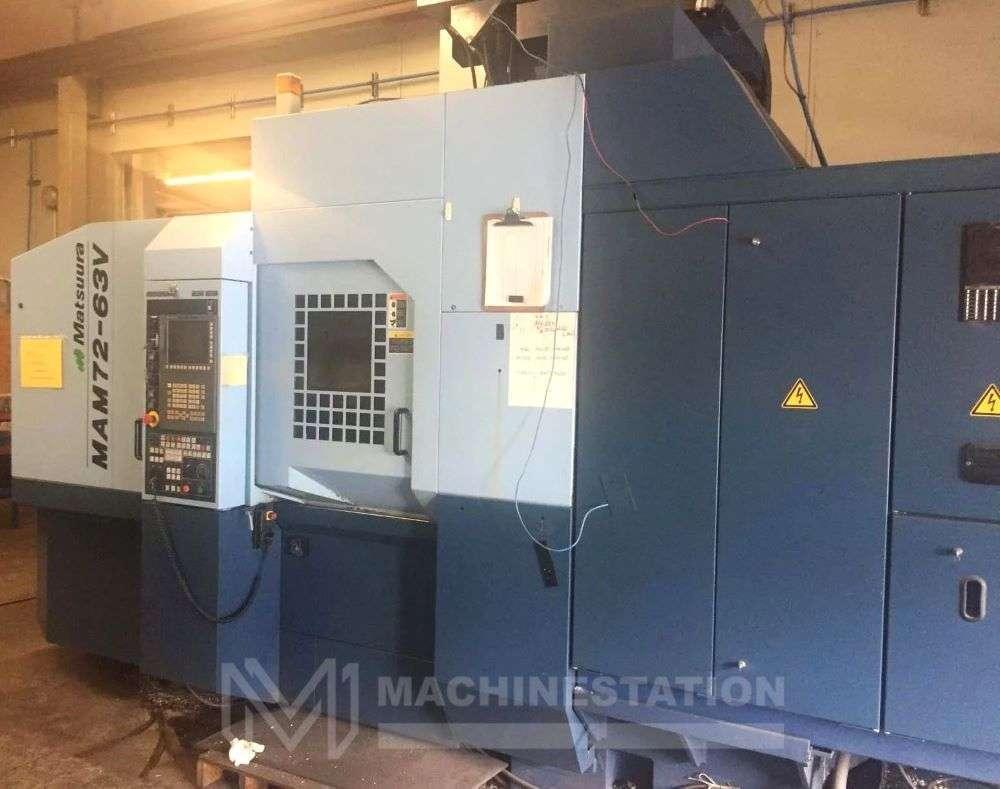

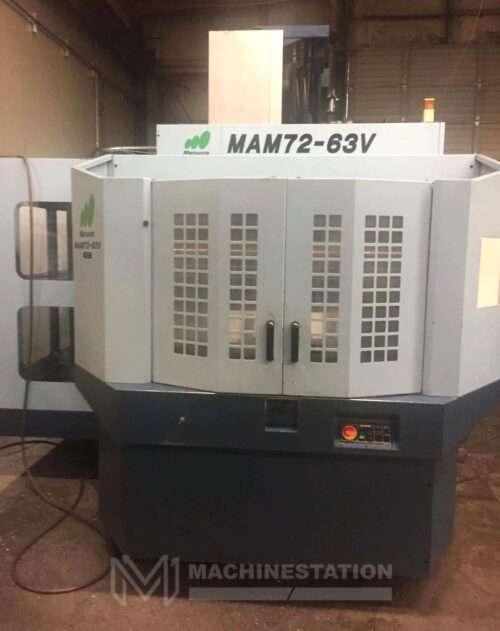

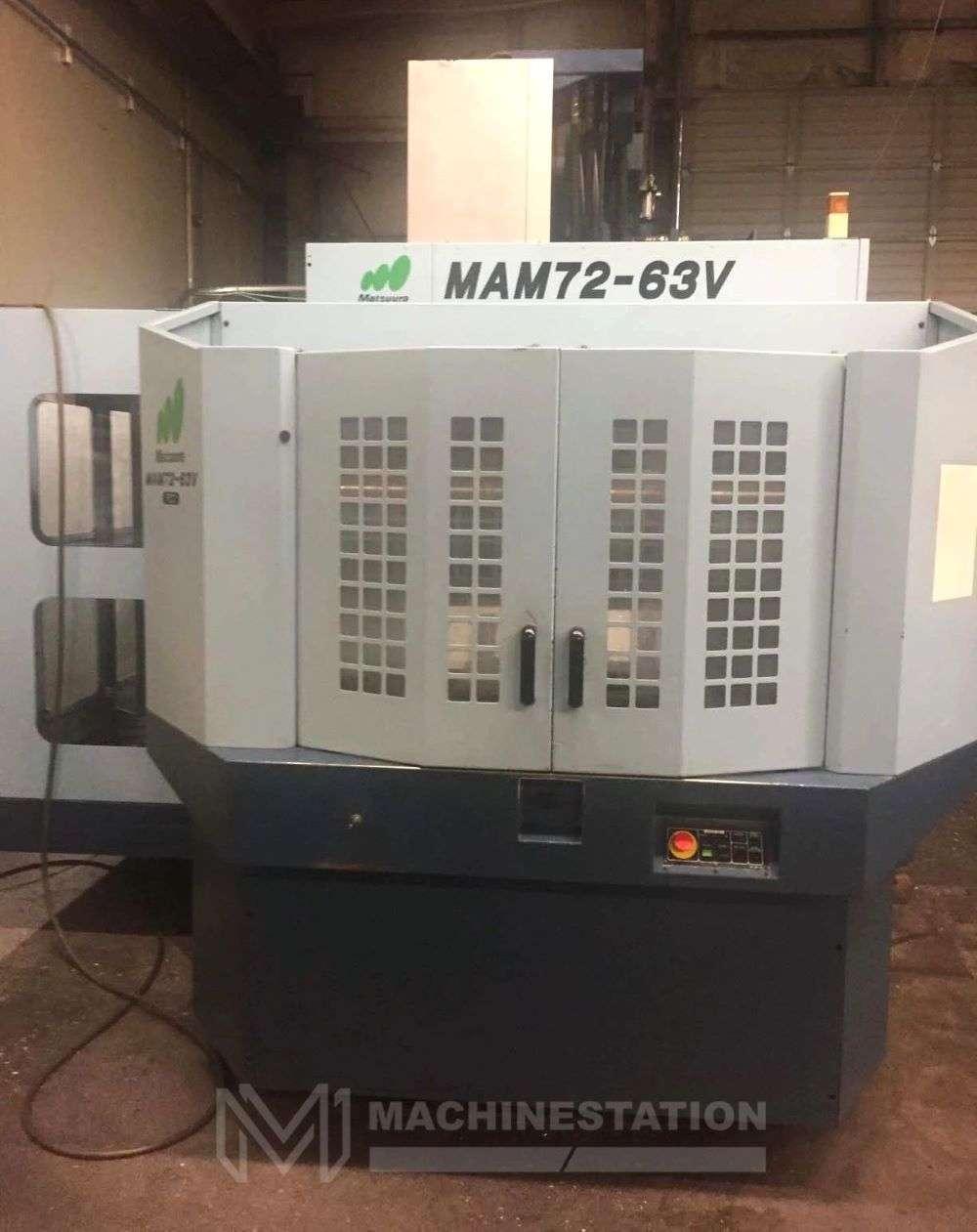

Matsuura MAM72-63V 5 Axis CNC Vertical Mill

Matsuura MAM72-63V 5 Axis CNC Vertical Mill

Brand

MATSUURA

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	Matsuura
Model:	MAM72-63V
Year:	2007
Condition:	Used – Good

Features:

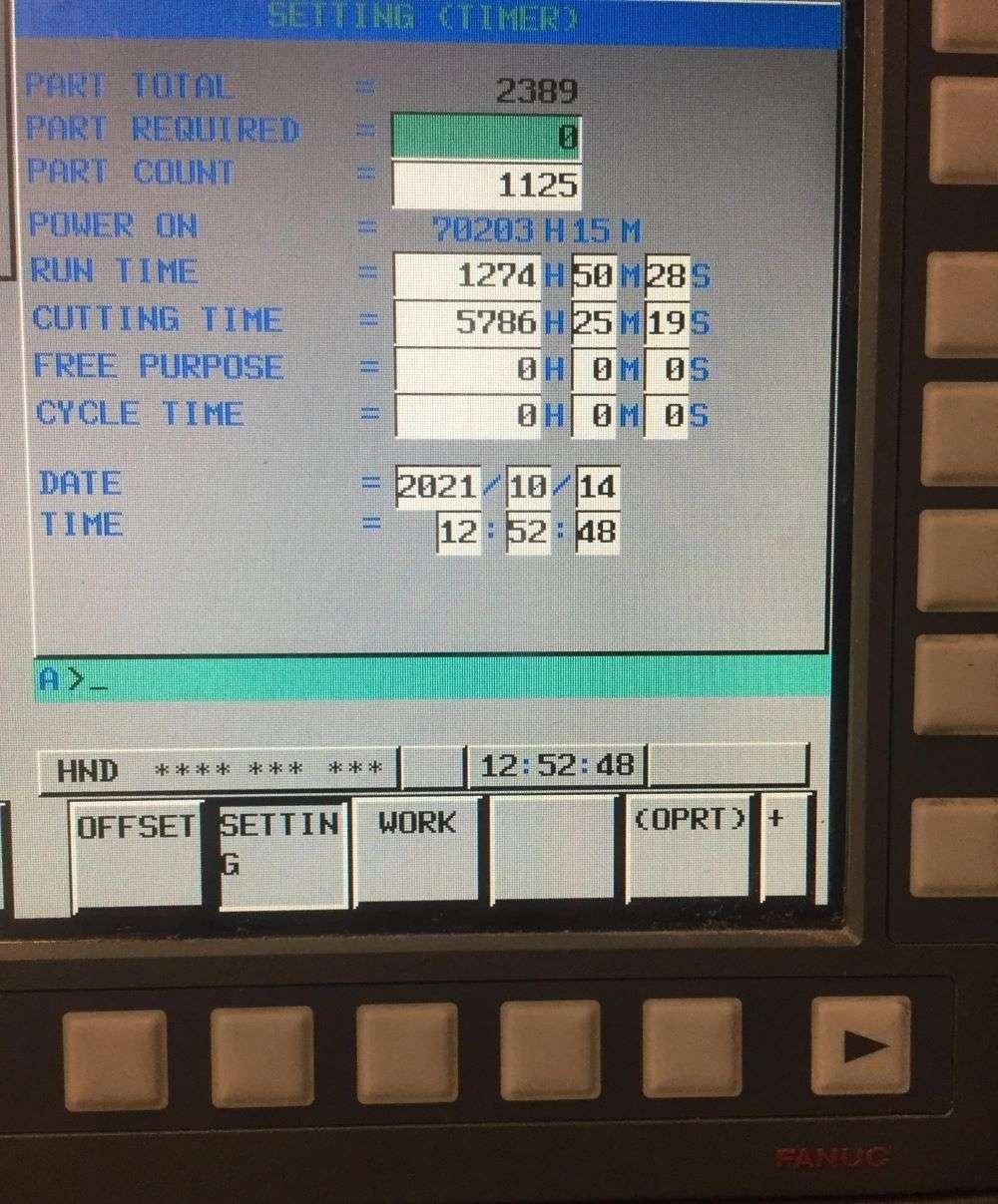

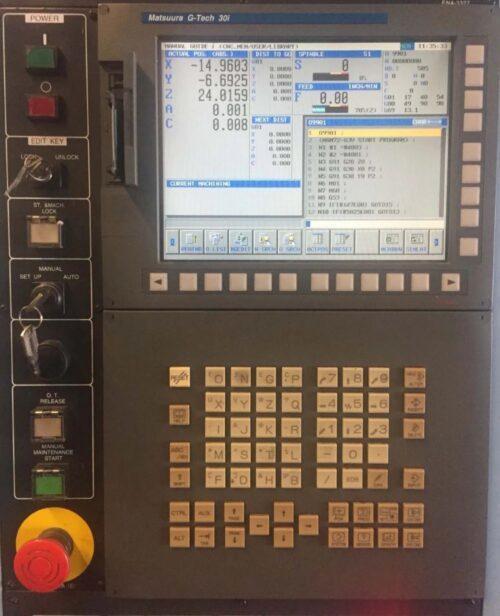

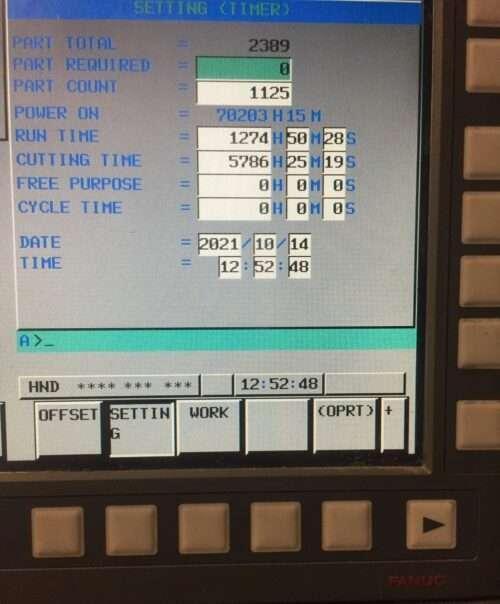

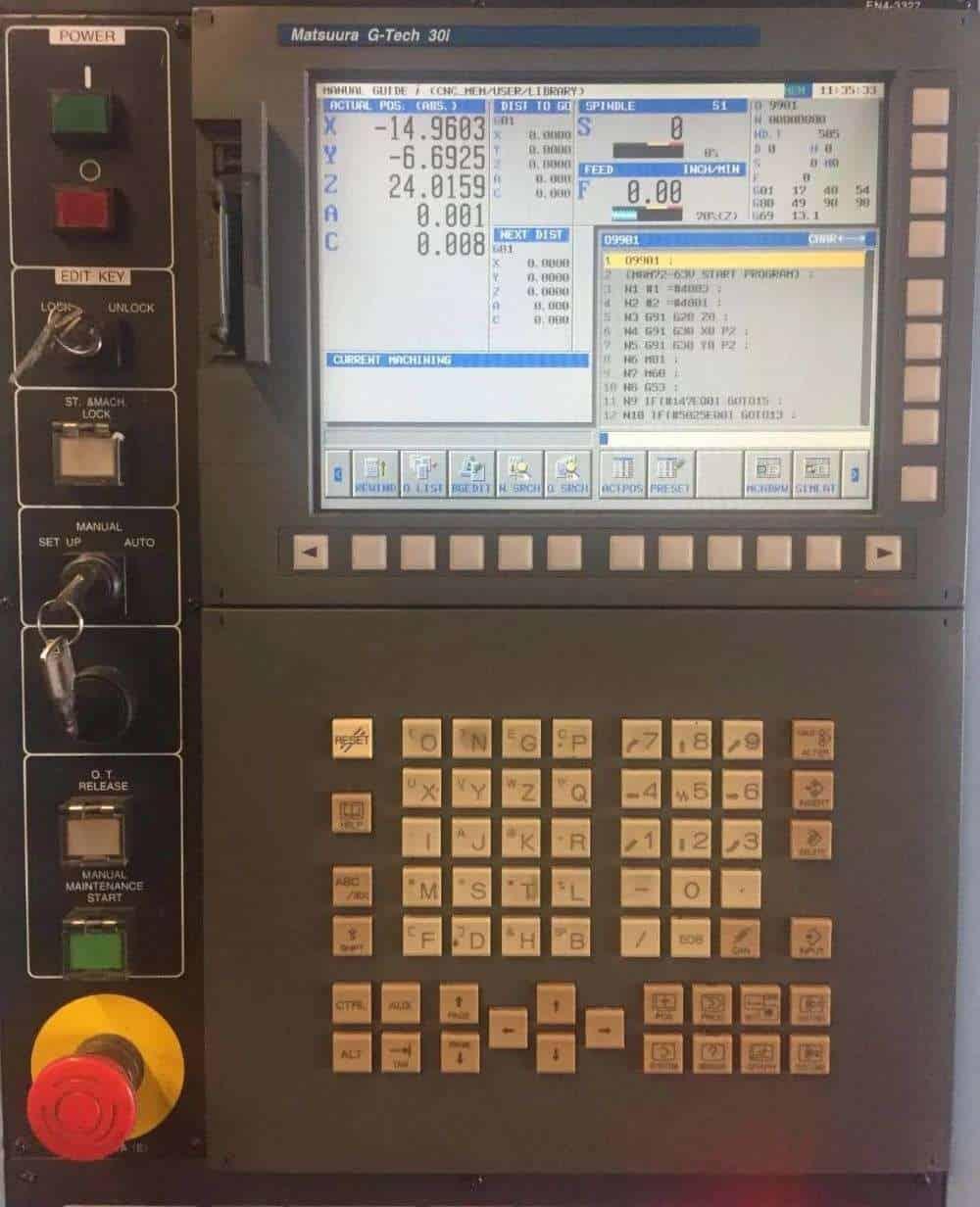

Fanuc G-Tech 30i Series CNC Control
Twin Pallet with 2 Extra Pallets (4 Total Pallets)

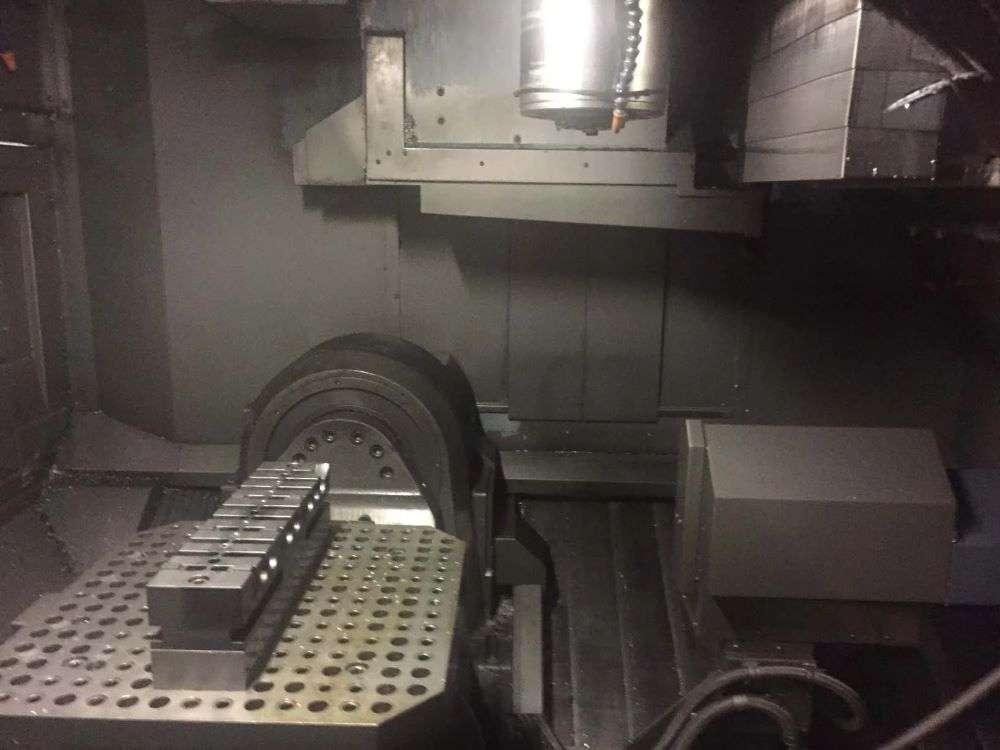

NC Programmable Swiveling Trunnion Table 19.8” x 19.8”
12,000 RPM High Speed Spindle
Through Spindle Coolant
120 Station Automatic Tool Changer
Laser Tool Setter
300 Work Offsets
1000 Tool Offsets
2MB Data Server on Board
Tool Radius Comp For 5-Axis Machining
Tolerance Control
Broken Tool Detection
Tool Life Management
Auto Tool Measurement

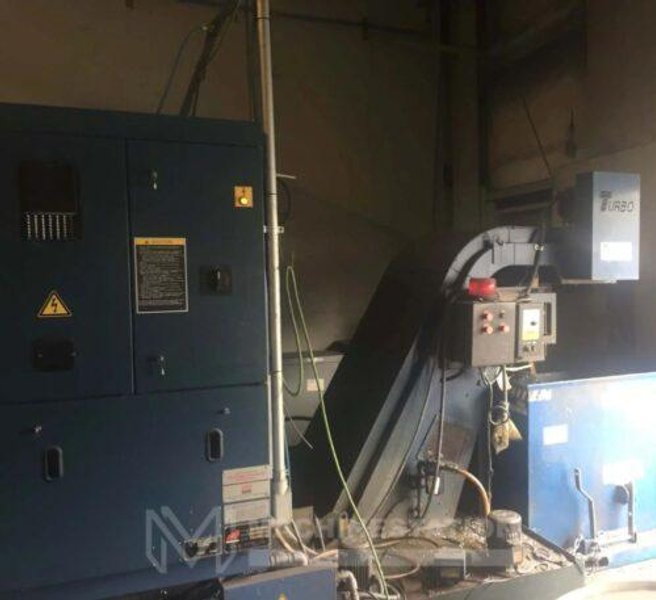

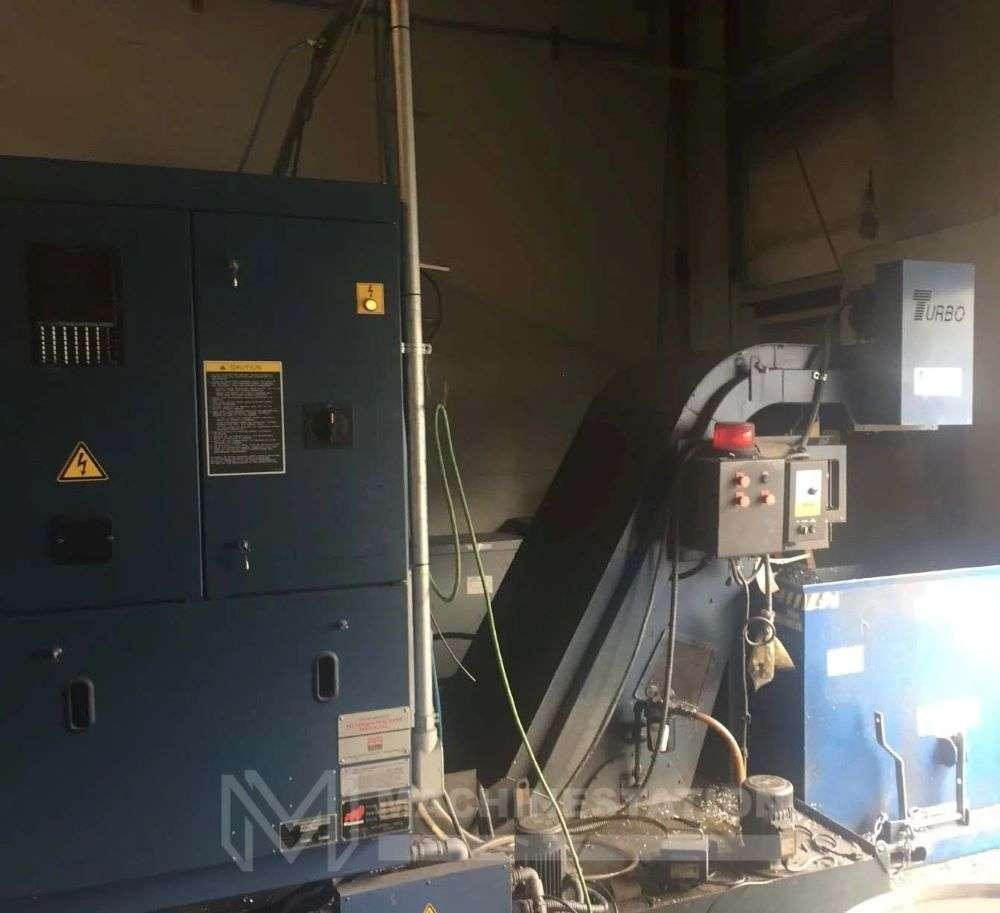

MAYFRAN Conveyor For Aluminum (Backflush Fine Swarf Removal)

Travels:

X Axis: 29.92″
Y Axis: 33.26″
Z Axis: 25.98″
A Axis: 240° (+120°/– 120°) ( Table Tilt )
C Axis: 360° ( Table Rotate )
Rapid Traverse Rates X, Y, Z Axis: 1968 Inch Per Minute

Pallet:

Number of Pallets: 2 Station with 2 Extra Pallets (4 Total Pallets)
Pallet Surface: 19.68″ x 19.68″
Max Workpiece Diameter: 28.34″
Max Workpiece Height: 17.71″
Max Weight on Table: 770 lbs

Spindle:

Taper Size: CAT-40
Speed Range: 12,000 RPM
Spindle Power: 30 HP

Automatic Tool Changer:

Capacity: 120 Tools
Taper: CT-40
Max Tool Diameter: 3.77″
Max Tool Length: 13.77″
Max Tool Weight: 22 lbs.

General:

Air Required: 80 psi 4 scfm
Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 249″ X 153″ X 126″ High
Weight: 31,967 lbs Approx.
