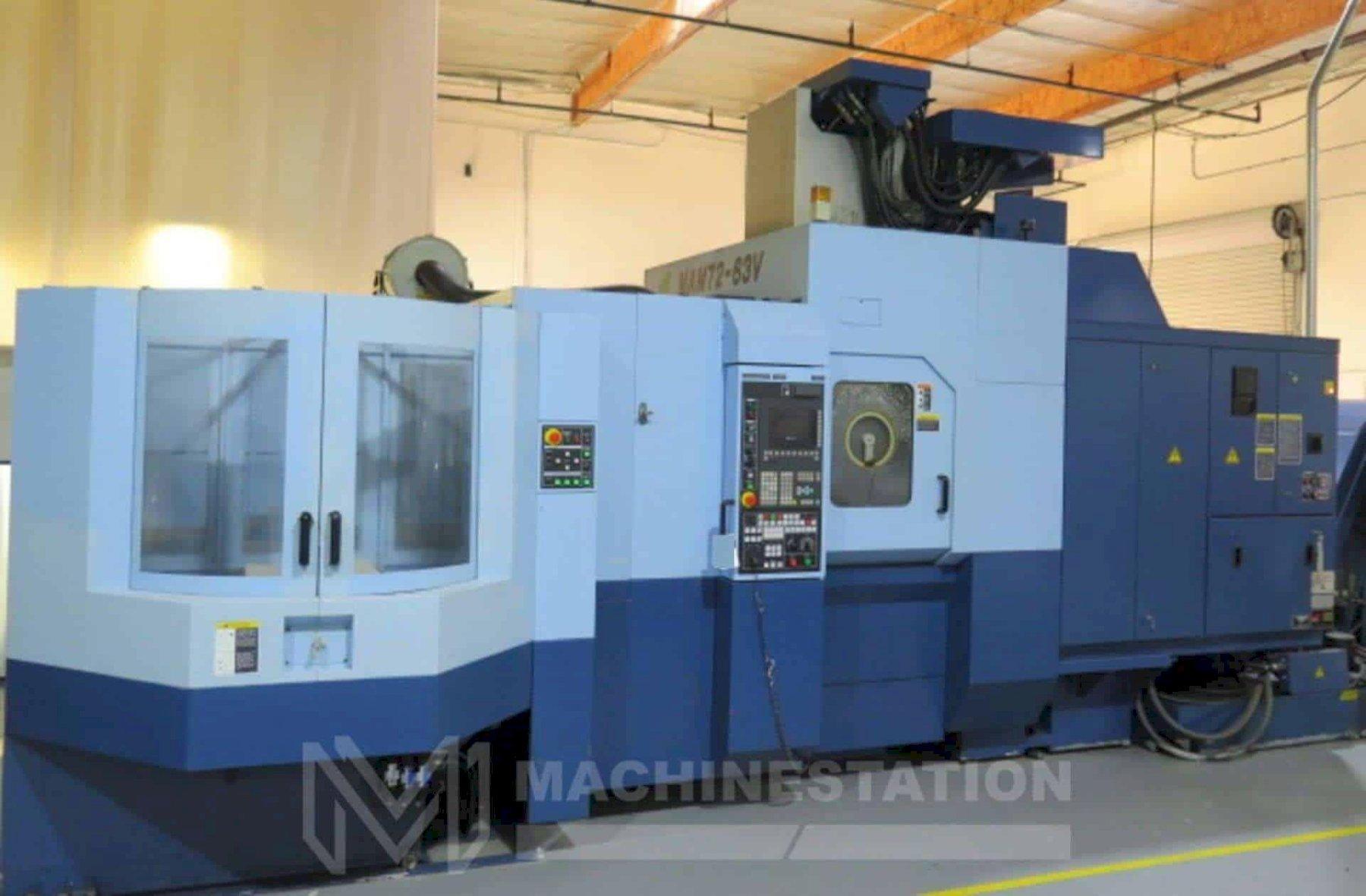

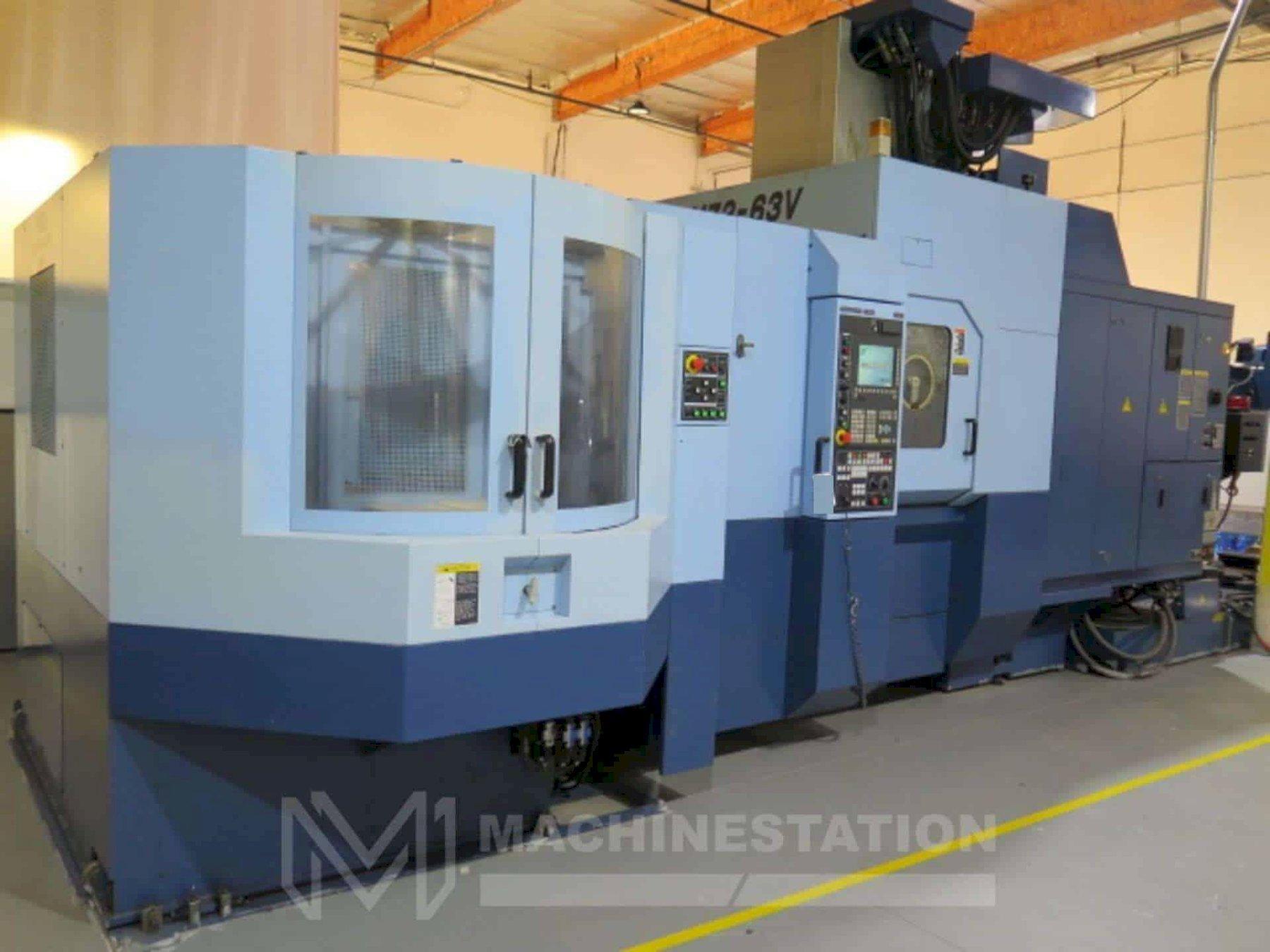

Matsuura MAM72-63V PC6 5 Axis CNC Vertical Mill

Matsuura MAM72-63V PC6 5 Axis CNC Vertical Mill

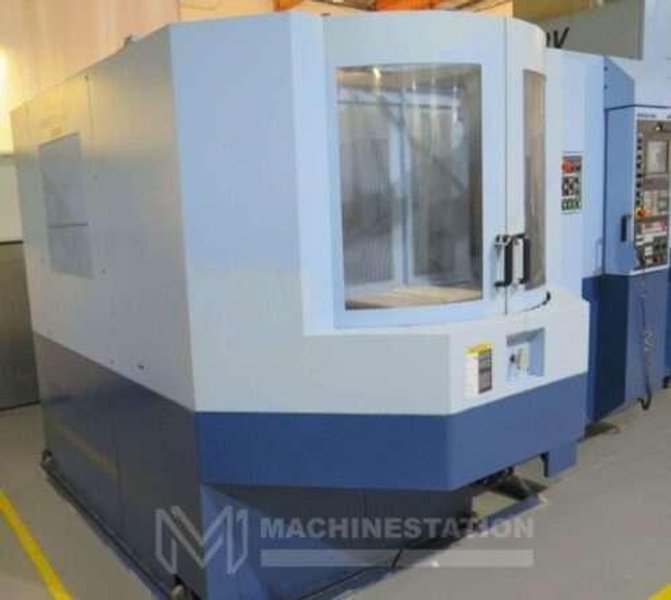

Name: Matsuura MAM72-63V PC6 5 Axis CNC Vertical Mill
Brand: MATSUURA
SKU: 112693
Availability: PreOrder

Brand

MATSUURA

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Make:	Matsuura
Model:	MAM72-63V PC6
Year:	2007
Condition:	Used – Good

Features:

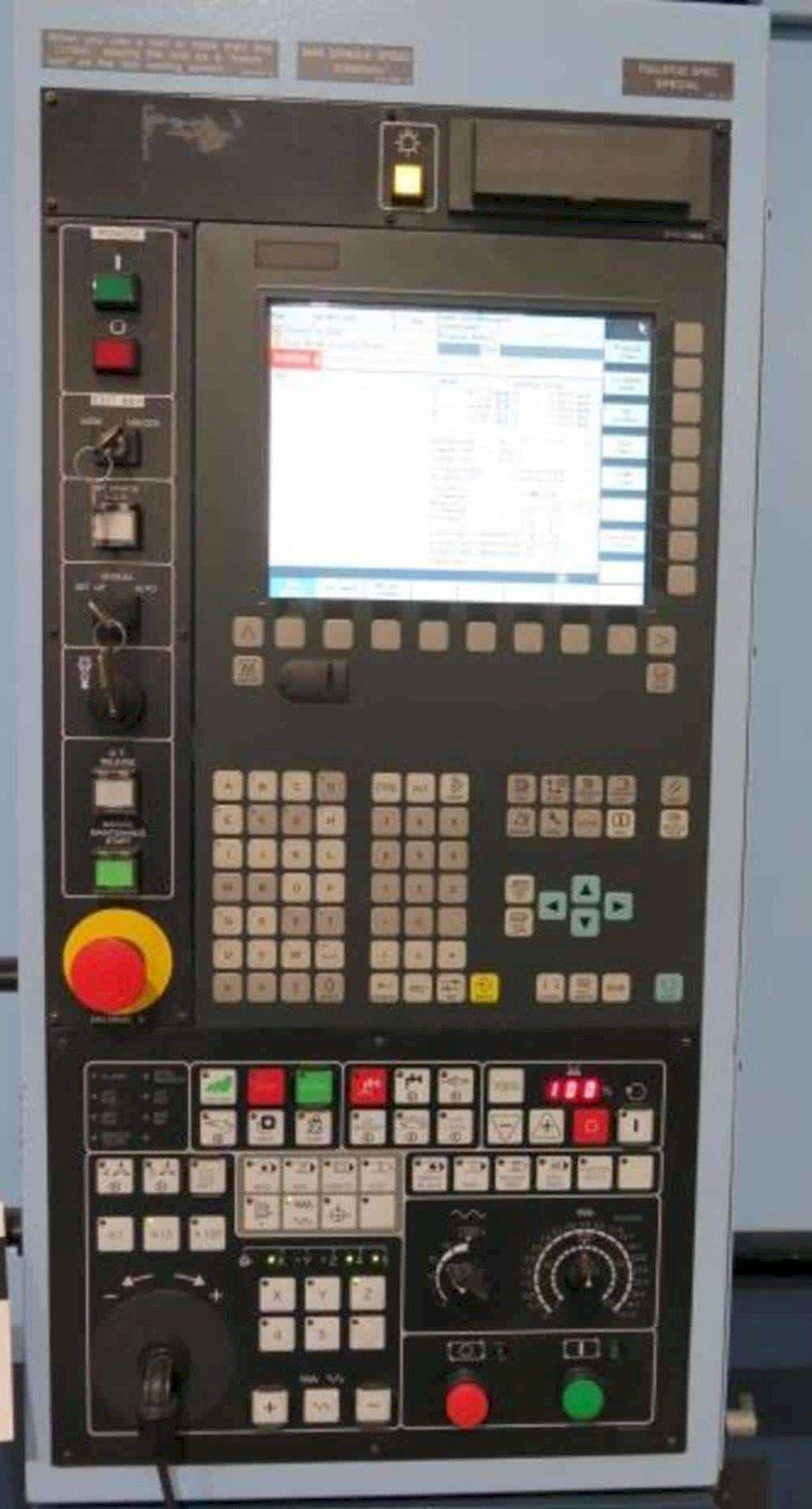

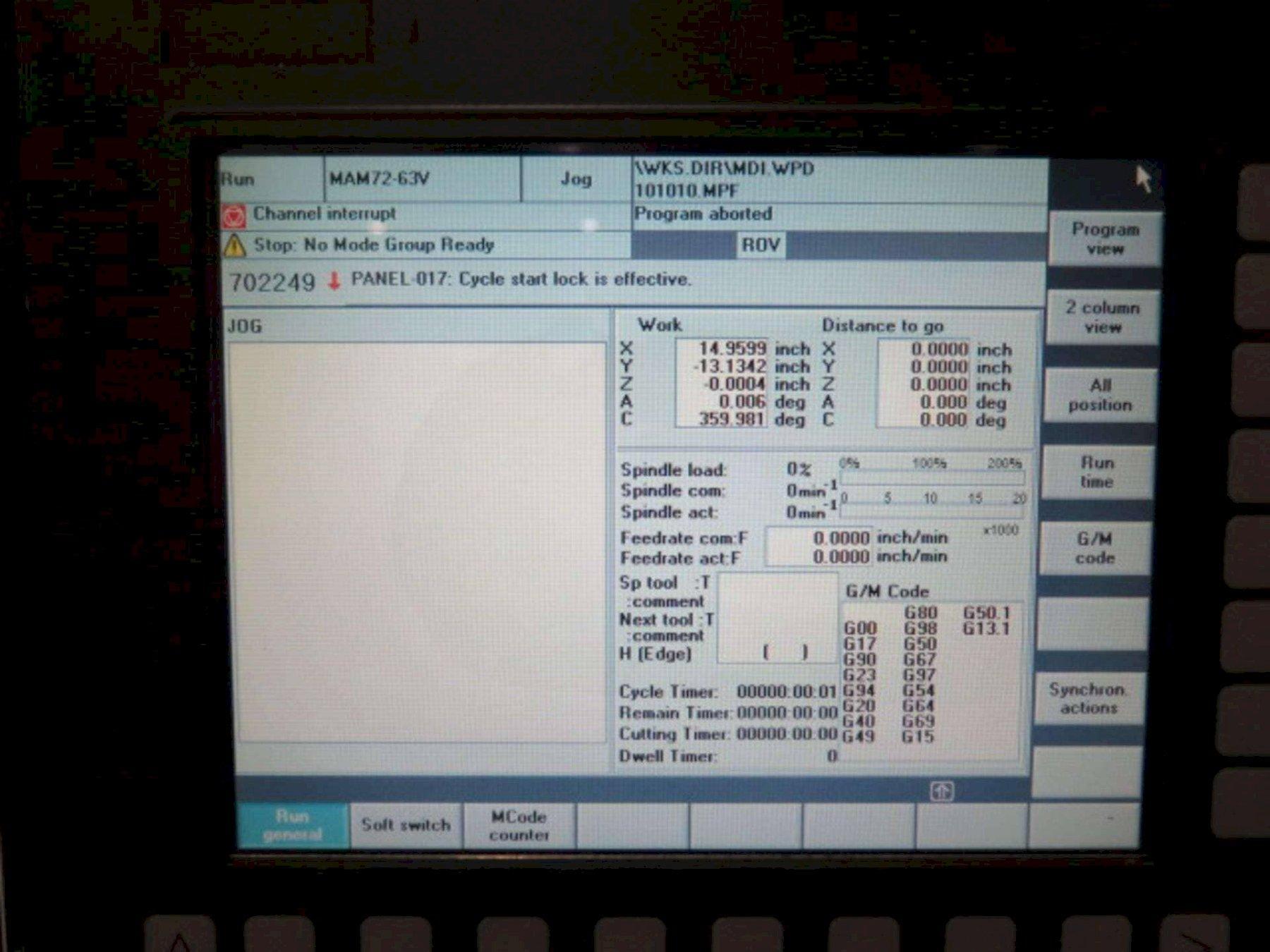

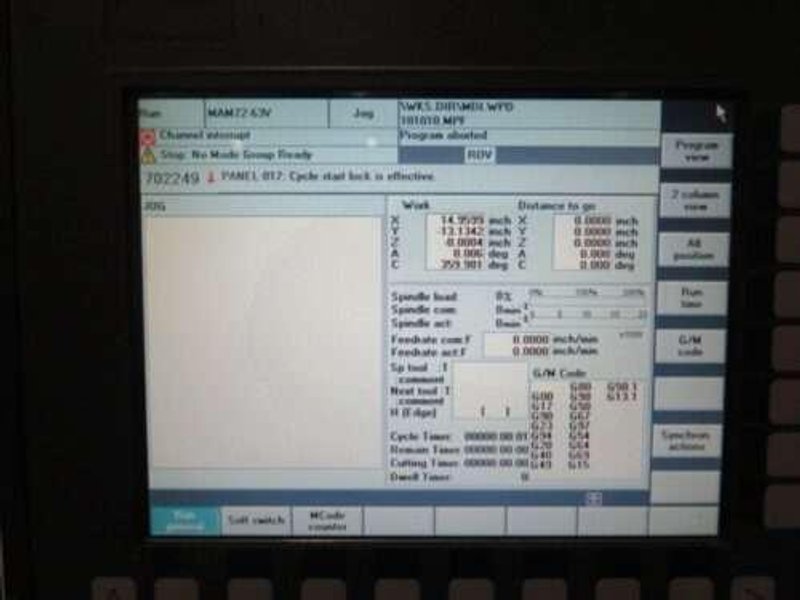

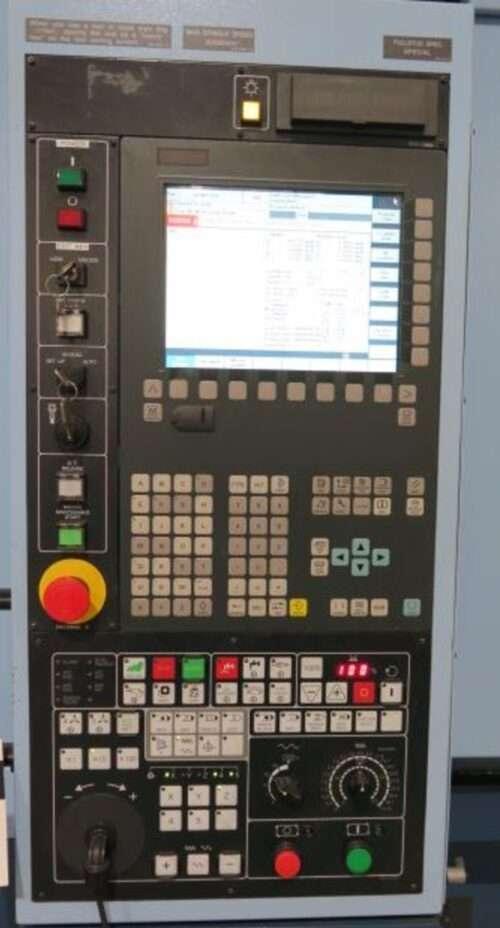

Siemens CNC Control

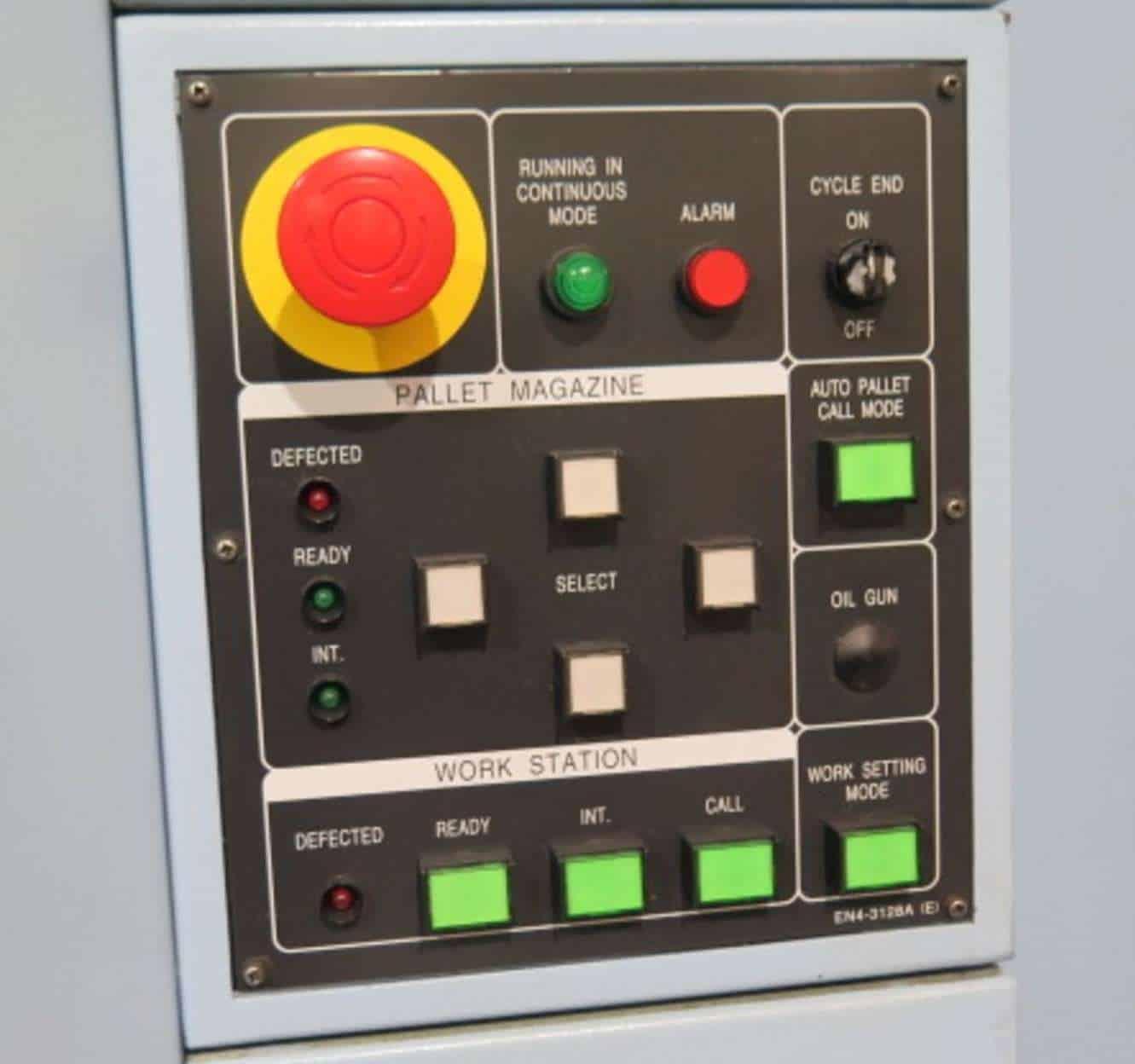

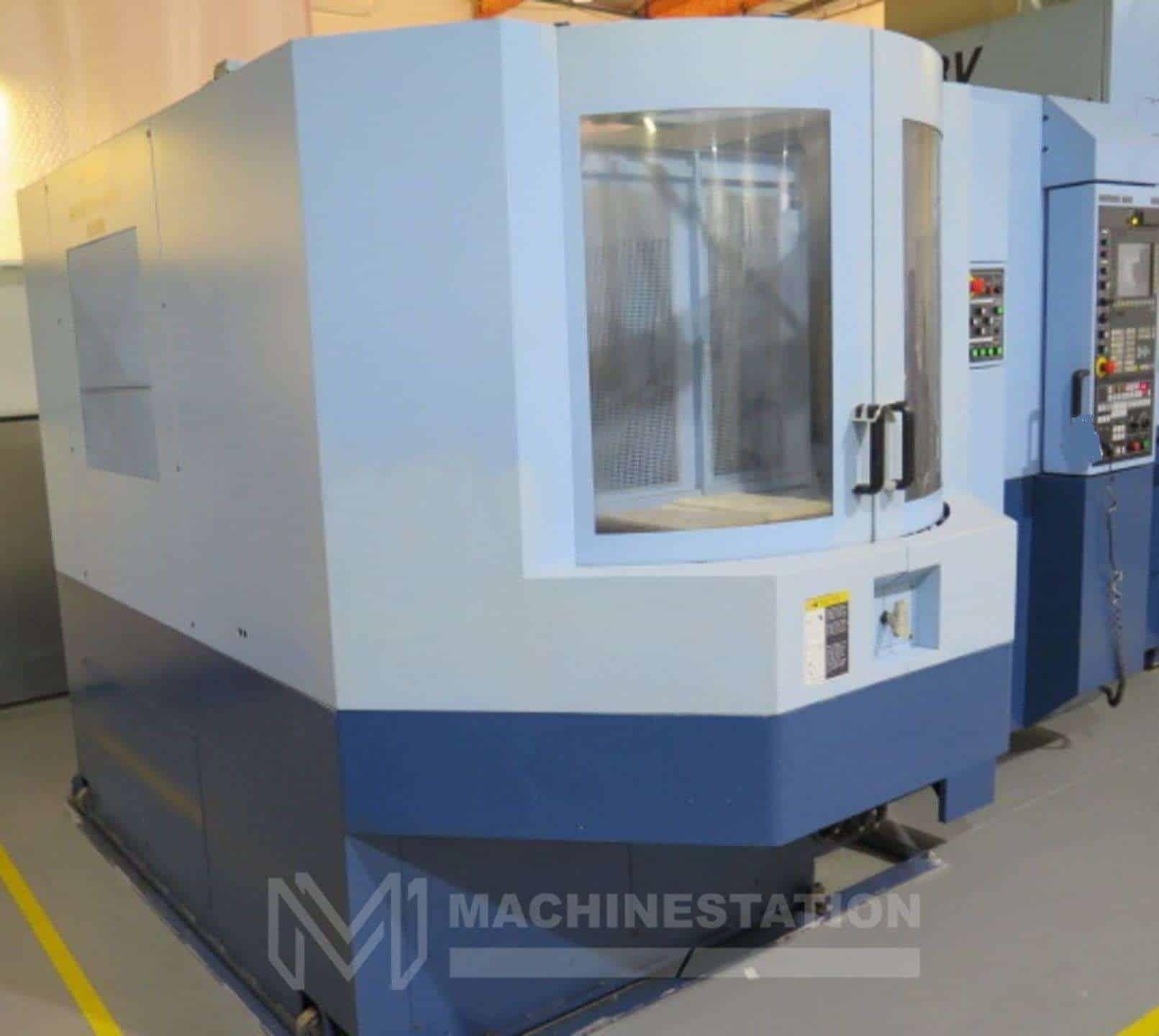

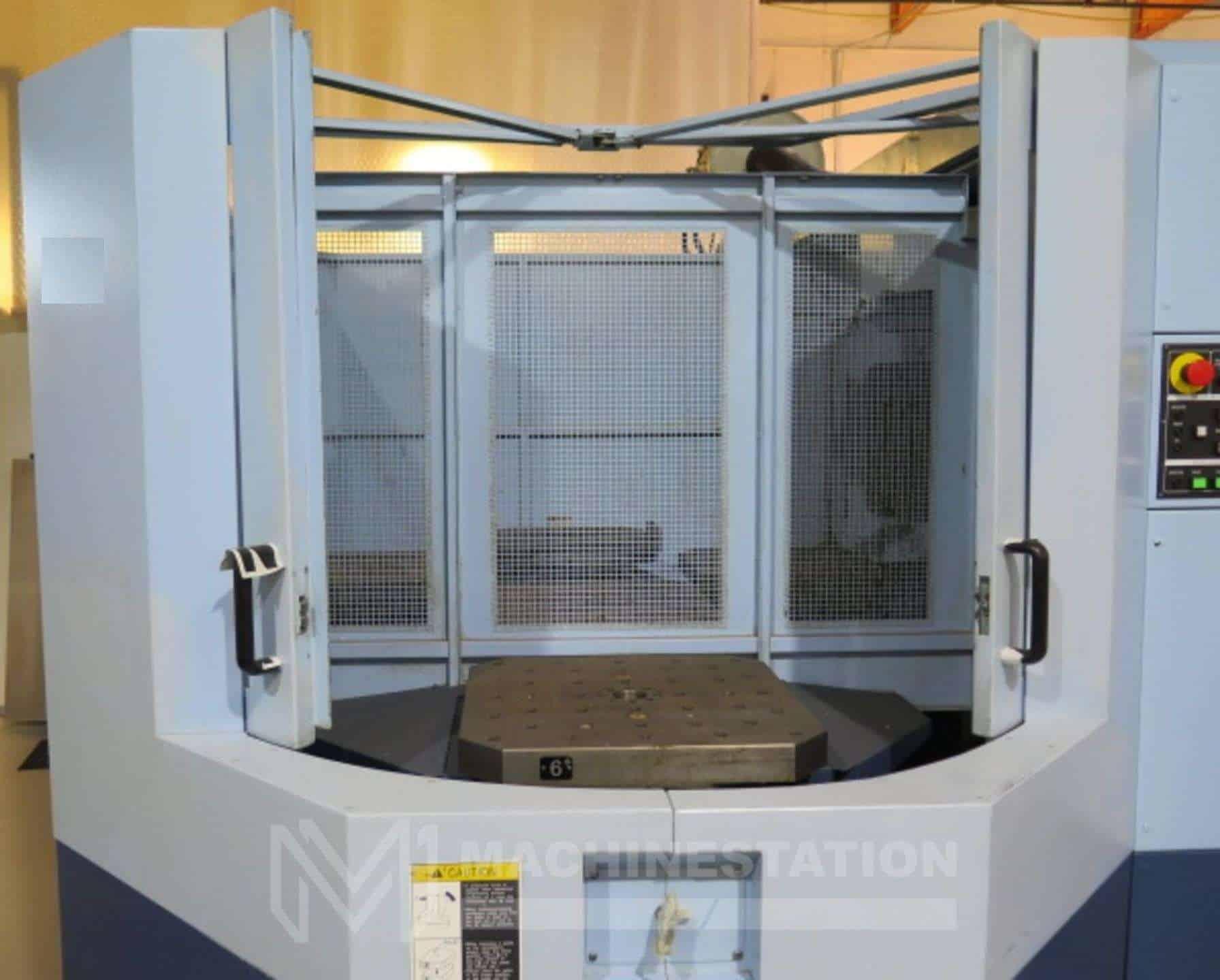

6 Pallets Cell System

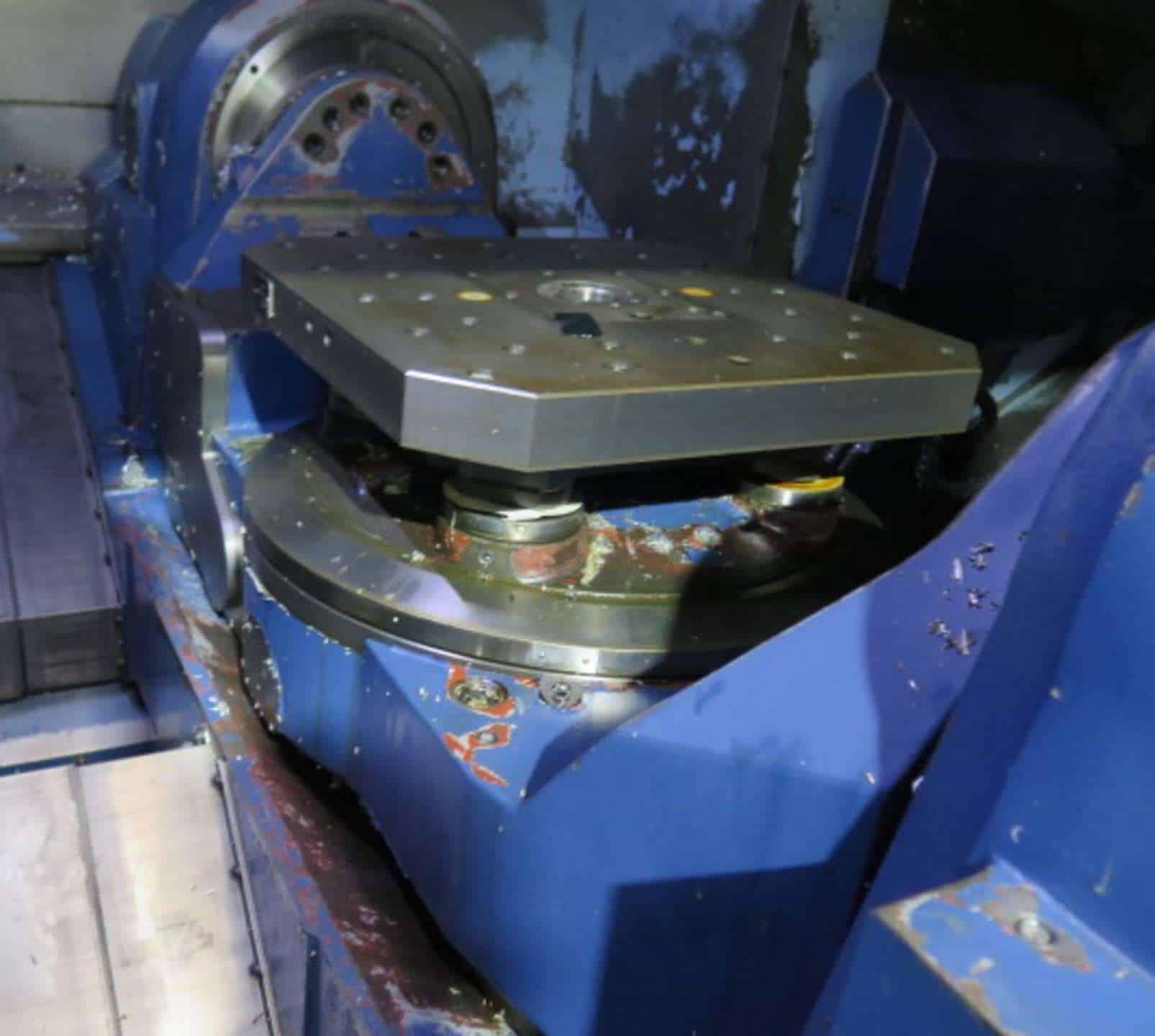

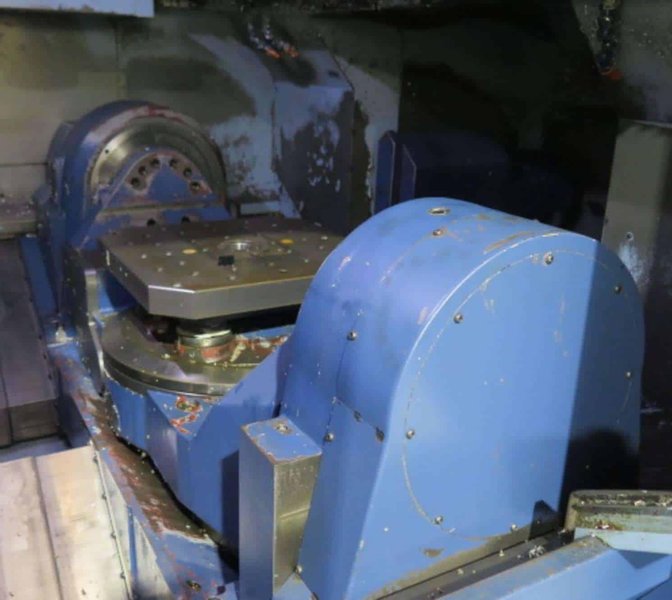

19.8” x 19.8” NC Programmable Swiveling Trunnion Table
5 Axis Simultaneous Machining
Full 4th Axis Thru Pallets
20,000 RPM High Speed Spindle
Through Spindle Coolant
240 Station Automatic Tool Changer
BT-40 Spindle Taper
Rigid Tapping
Coolant System
Chip Conveyor

Travels:
X Axis: 29.92″
Y Axis: 33.26″
Z Axis: 25.98″
A Axis: 220° (+110°/– 110°) ( Table Tilt )
C Axis: 360° ( Table Rotate )
Rapid Traverse Rates X, Y, Z Axis: 1968 Inch Per Minute

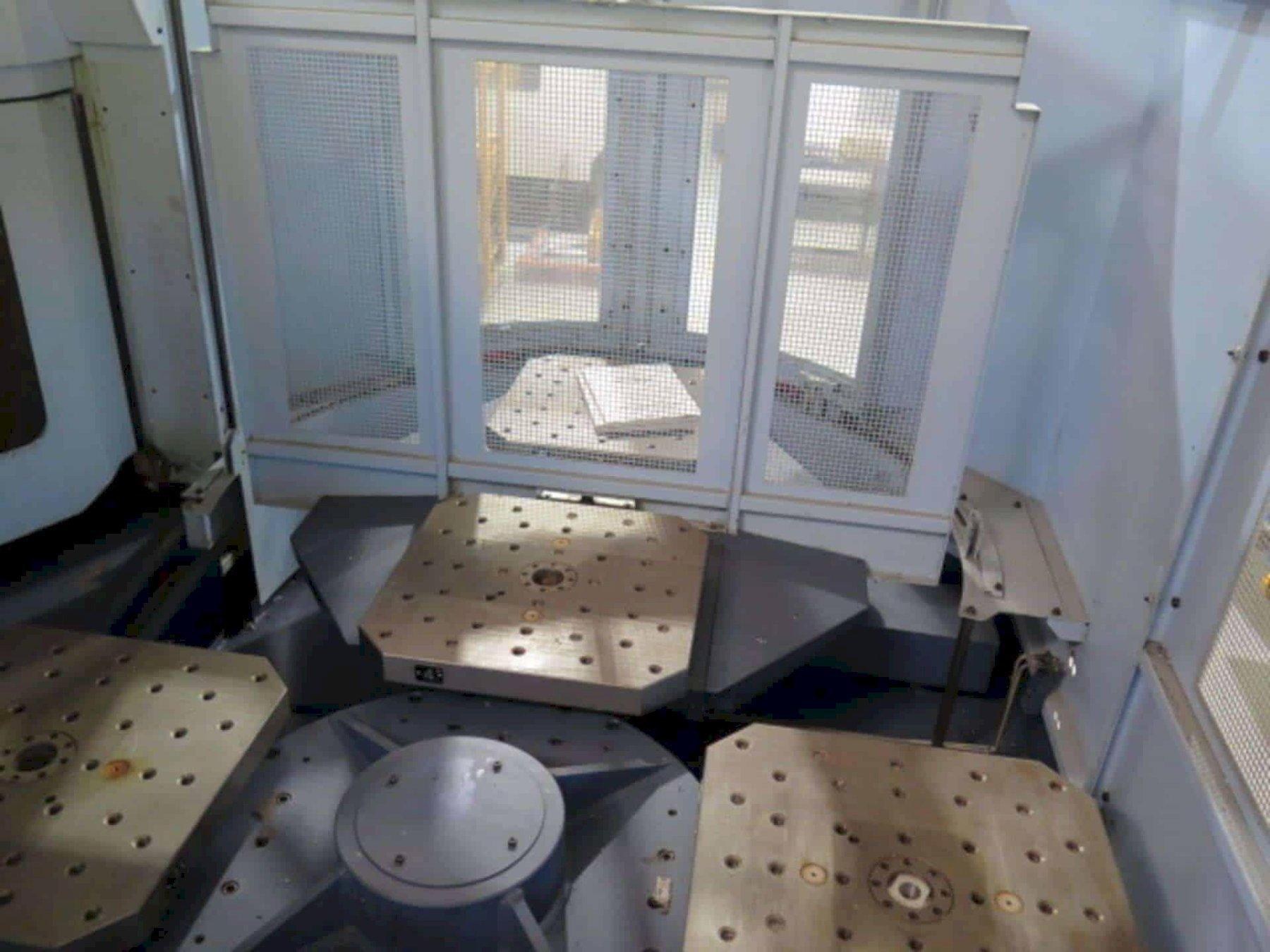

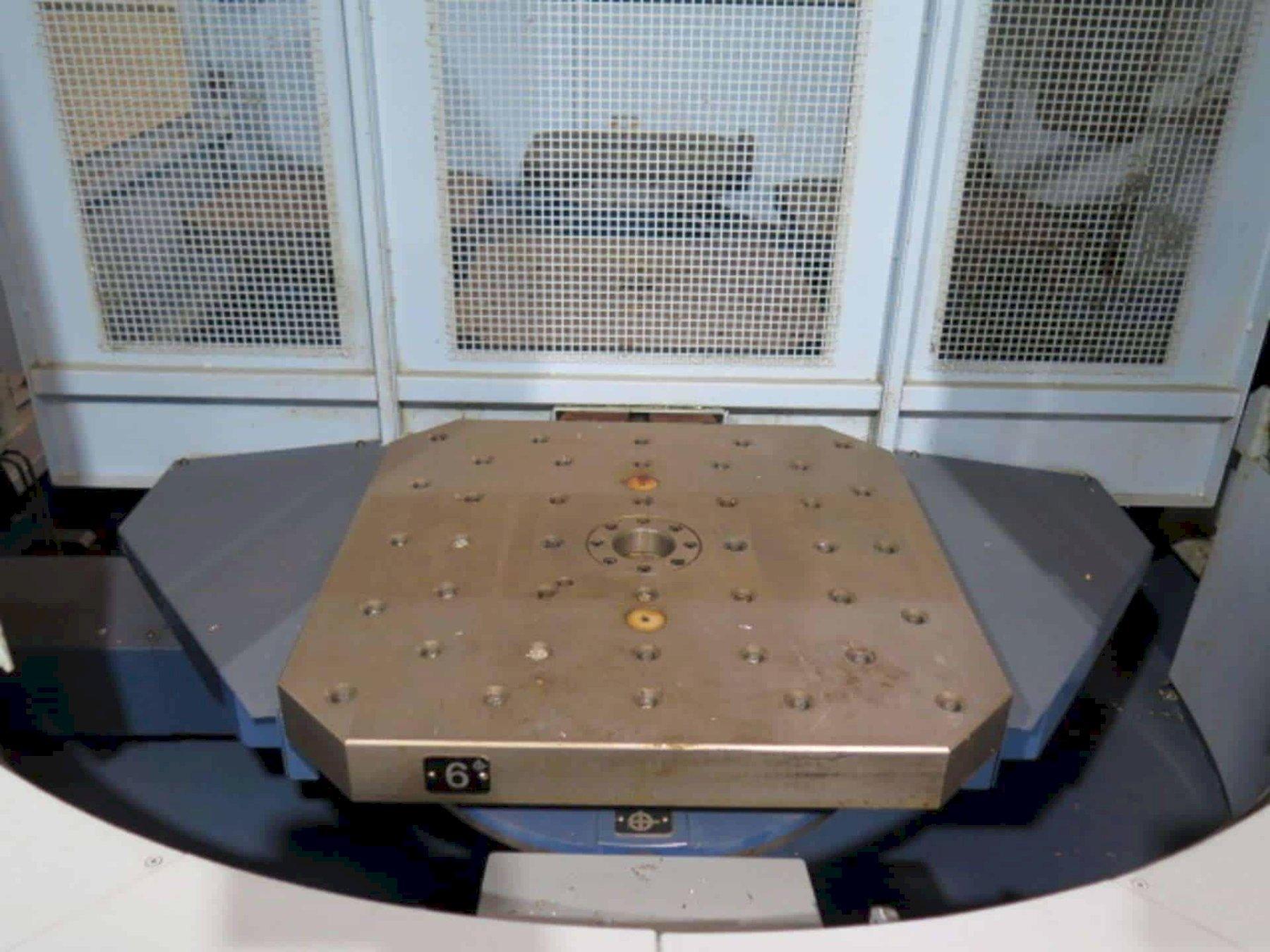

Pallet:
Number of Pallets: 6 Station
Pallet Surface: 19.68″ x 19.68″
Max Workpiece Diameter: 28.34″
Max Workpiece Height: 17.71″
Max Weight on Table: 770 lbs

Spindle:
Taper Size: BT-40
Speed Range: 20,000 RPM
Spindle Power: 30 HP

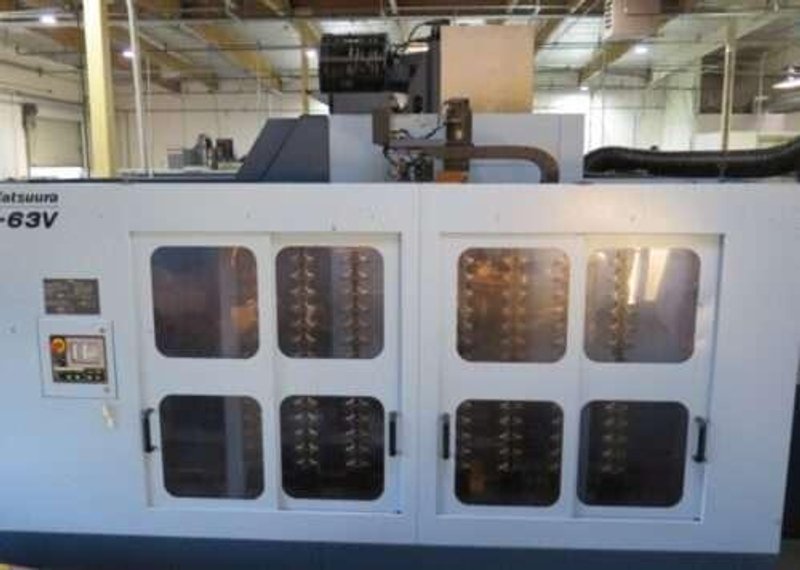

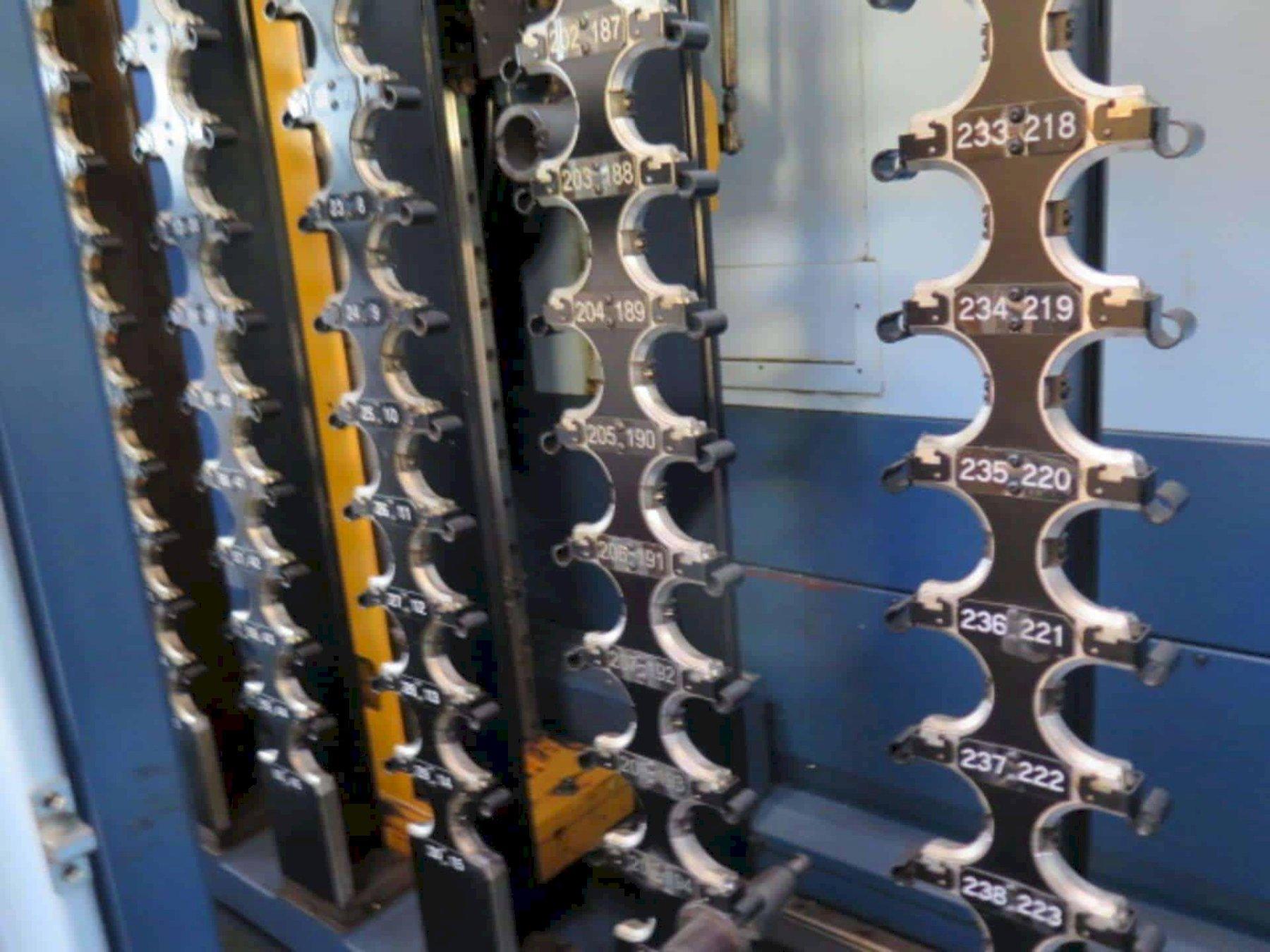

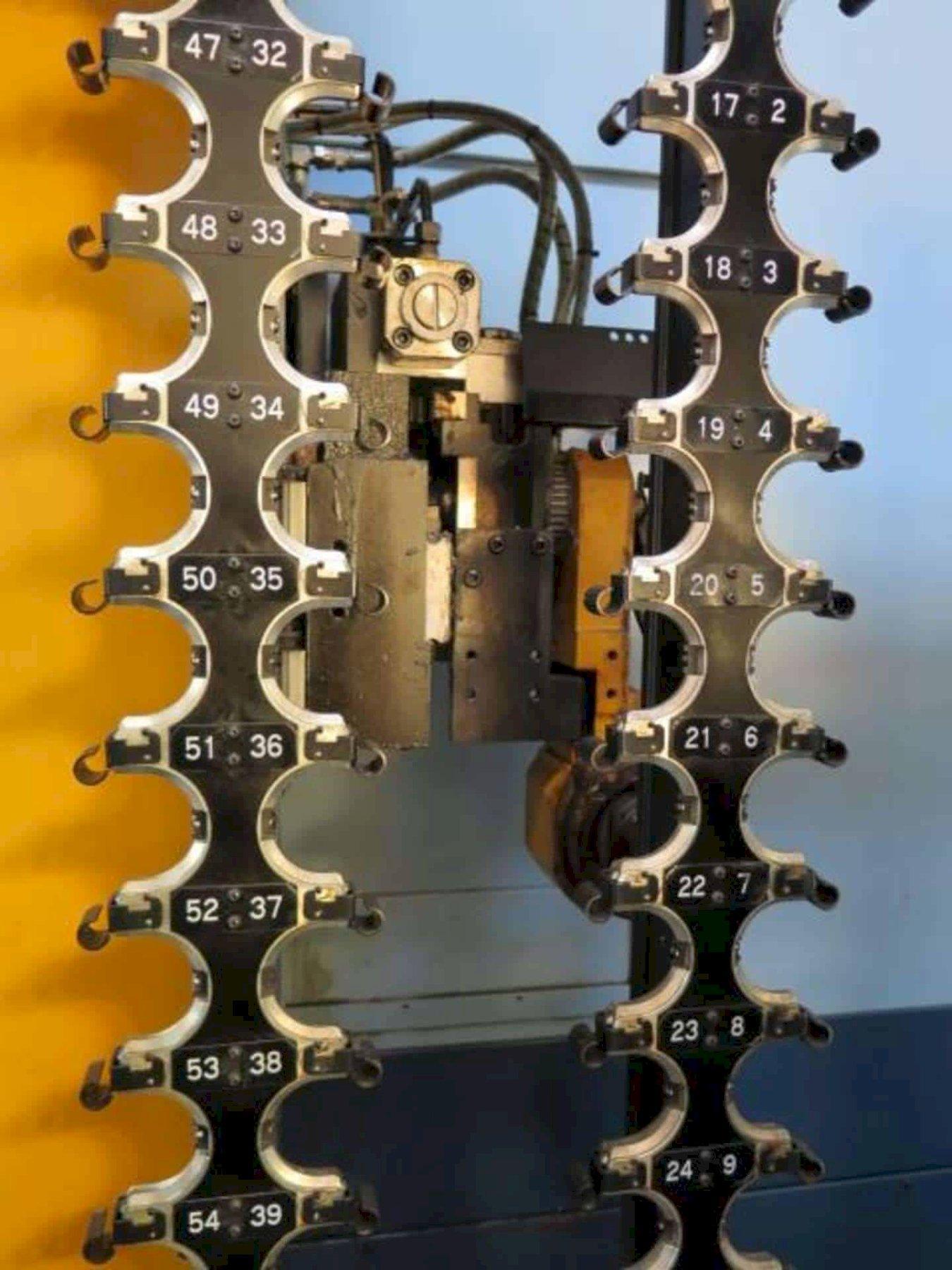

Automatic Tool Changer:
Capacity: 240 Tools
Taper: BT-40
Max Tool Diameter: 3.77″
Max Tool Length: 13.77″
Max Tool Weight: 22 lbs.

General:
Air Required: 80 psi 4 scfm
Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 249″ X 153″ X 126″ High (Only Machine without Pallet Cell System)
Weight: 31,967 lbs Approx.

Matsuura MAM72 is a 5 axis CNC vertical machining center that is designed for precise and accurate manufacturing of complex and heavy design products. The Xaxis of the machine is 760mm, the Yaxis has a size of 850mm and the Zaxis is 610mm. Every pallet has a loading capacity of 350kgs. The standard speed of the spindle is 12000 RPM with options of getting high speed spindles, the speed of which ranges are 15000 RPM or 20000 RPM. The machine comes with a control system of Matsuura G-Tech 31i, with a touch screen interface. The Matsuura MAM72 offers you different automation features like a 6 pallet changer system which helps in unmanned machining and also more efficient production cycles. Also the rapid traverse rate and the high speed spindle of the Matsuura MAM72 machine ensures rapid work delivery while bringing the overall lead time down. There are several tool magazine options also available with the machine helping in different machining tasks.
