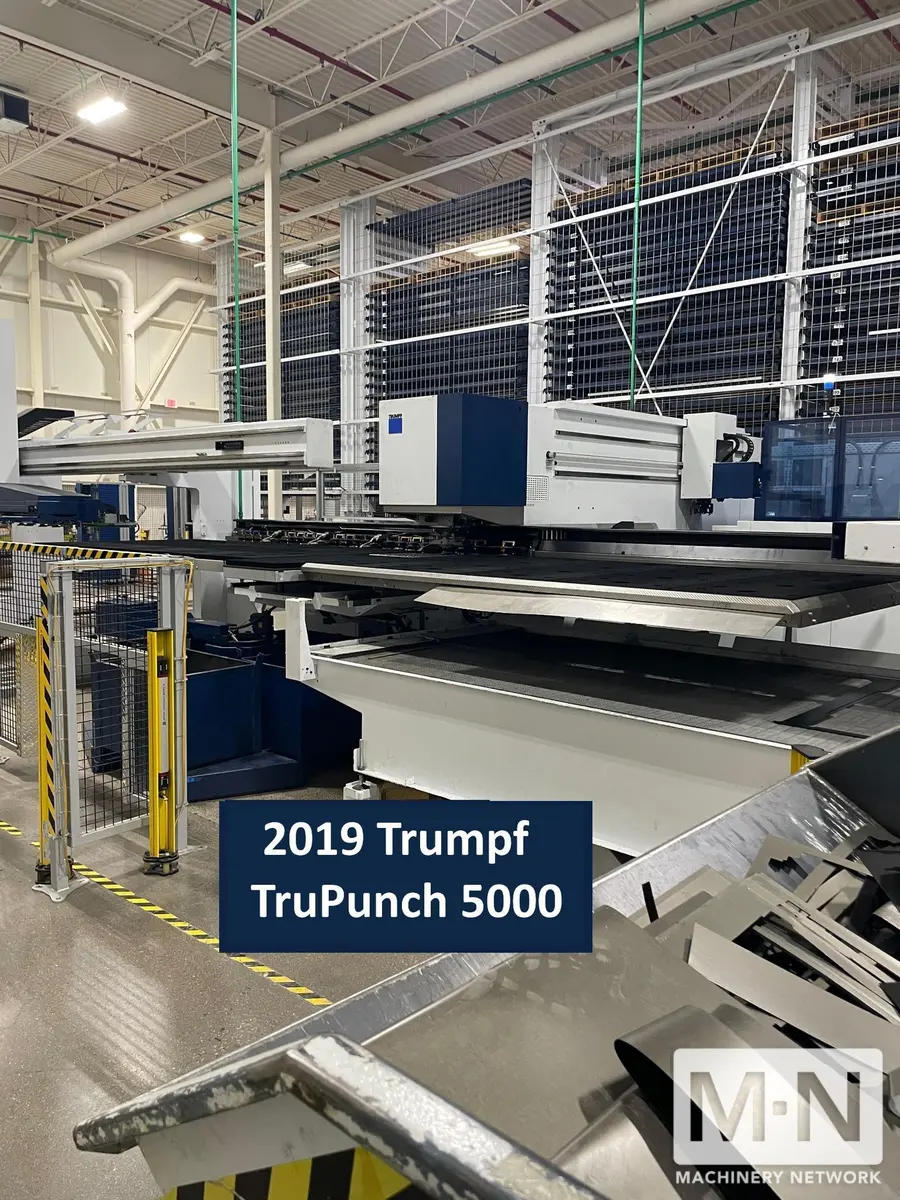

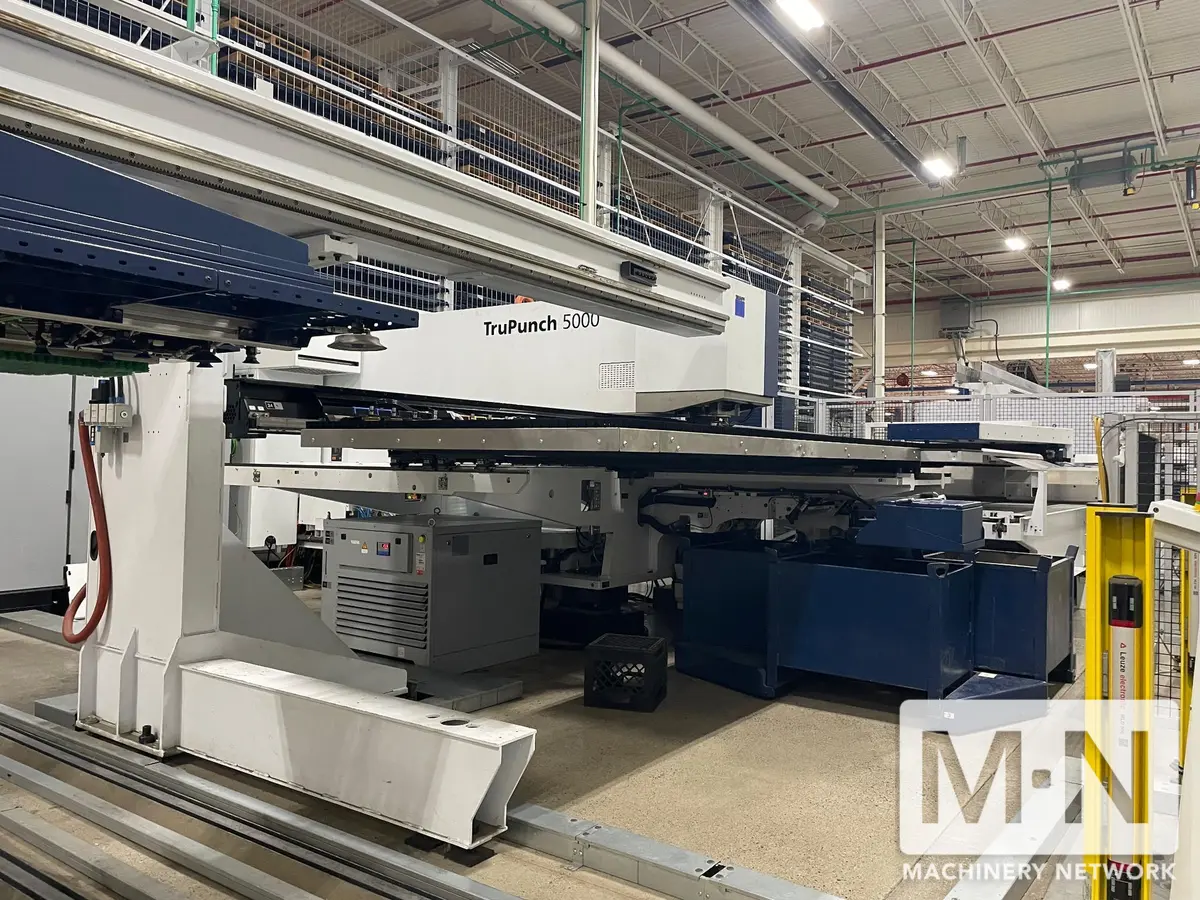

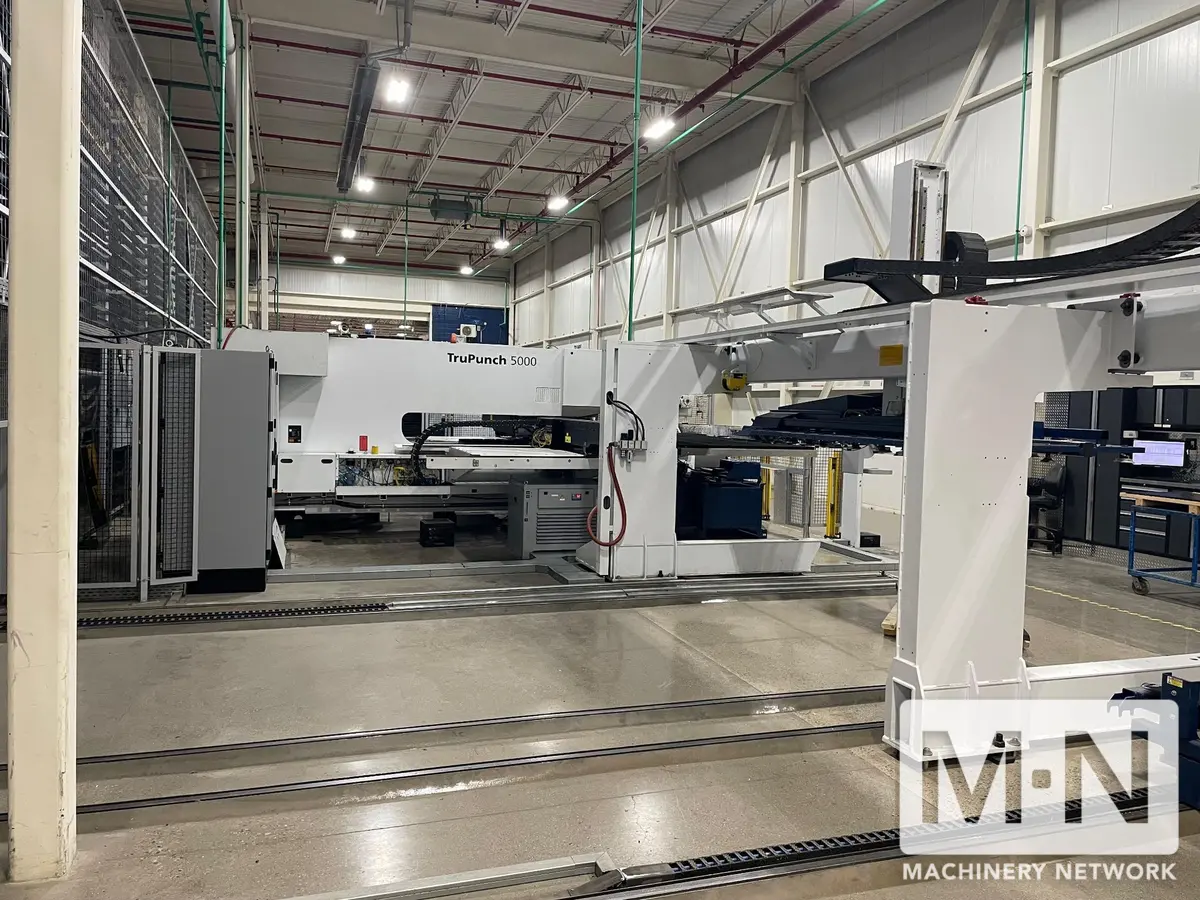

2019 TRUMPF TRUPUNCH 5000 LARGE FORMAT

Stock #: 7612264 | Year: 2019 | TRUMPF TRUMPF TRUPUNCH 5000 LARGE FORMAT

DESCRIPTION:

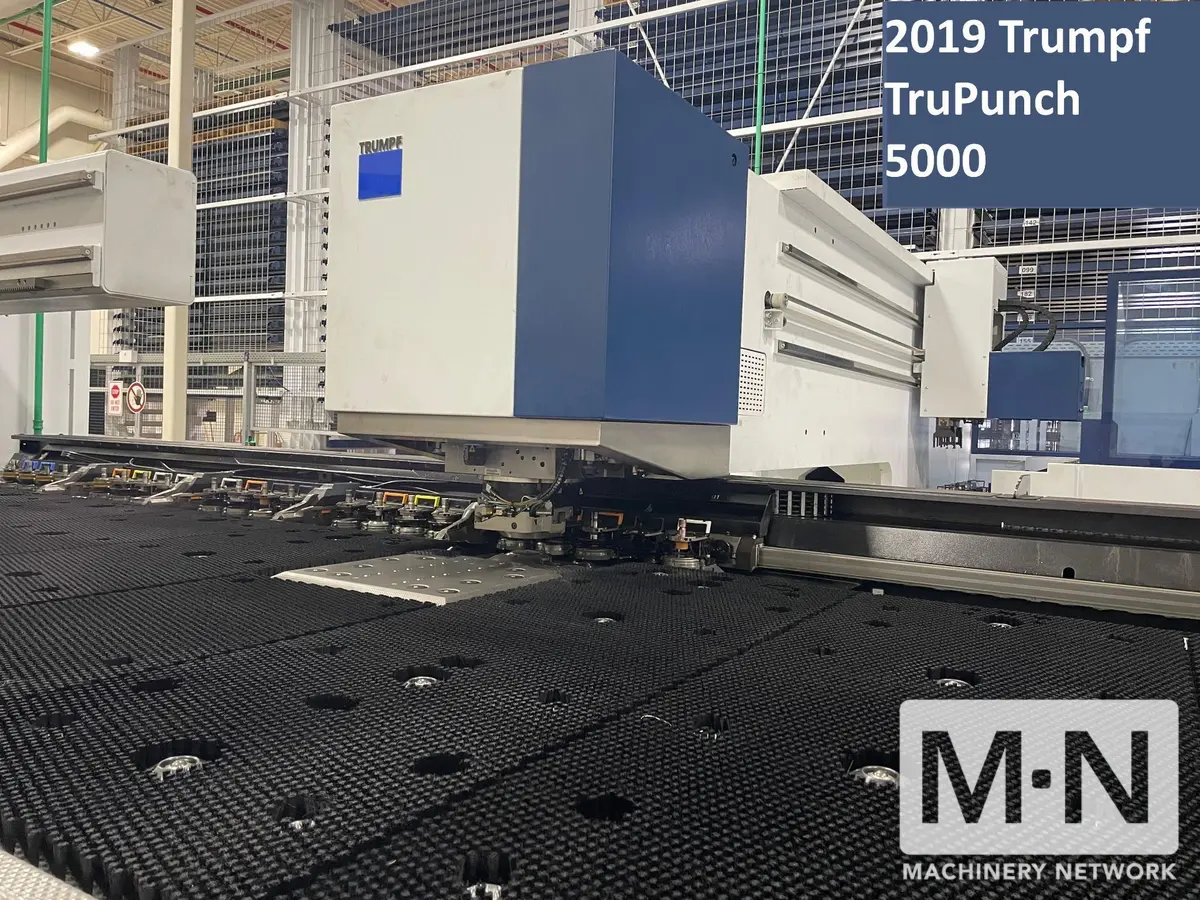

TRUMPF TRUPUNCH 5000 LARGE FORMAT PUNCHING MACHINE (S12), NEW: 2019
61" x 120" TABLE

EQUIPPED WITH:

SIEMENS SINUMERIK 840D CONTROL
LARGE FORMAT 60" x 120" BRUSH TABLES
ACTIVE DIE
54 STATION TOOL TOOLMASTER LINEAR ATC
SHEARMASTER

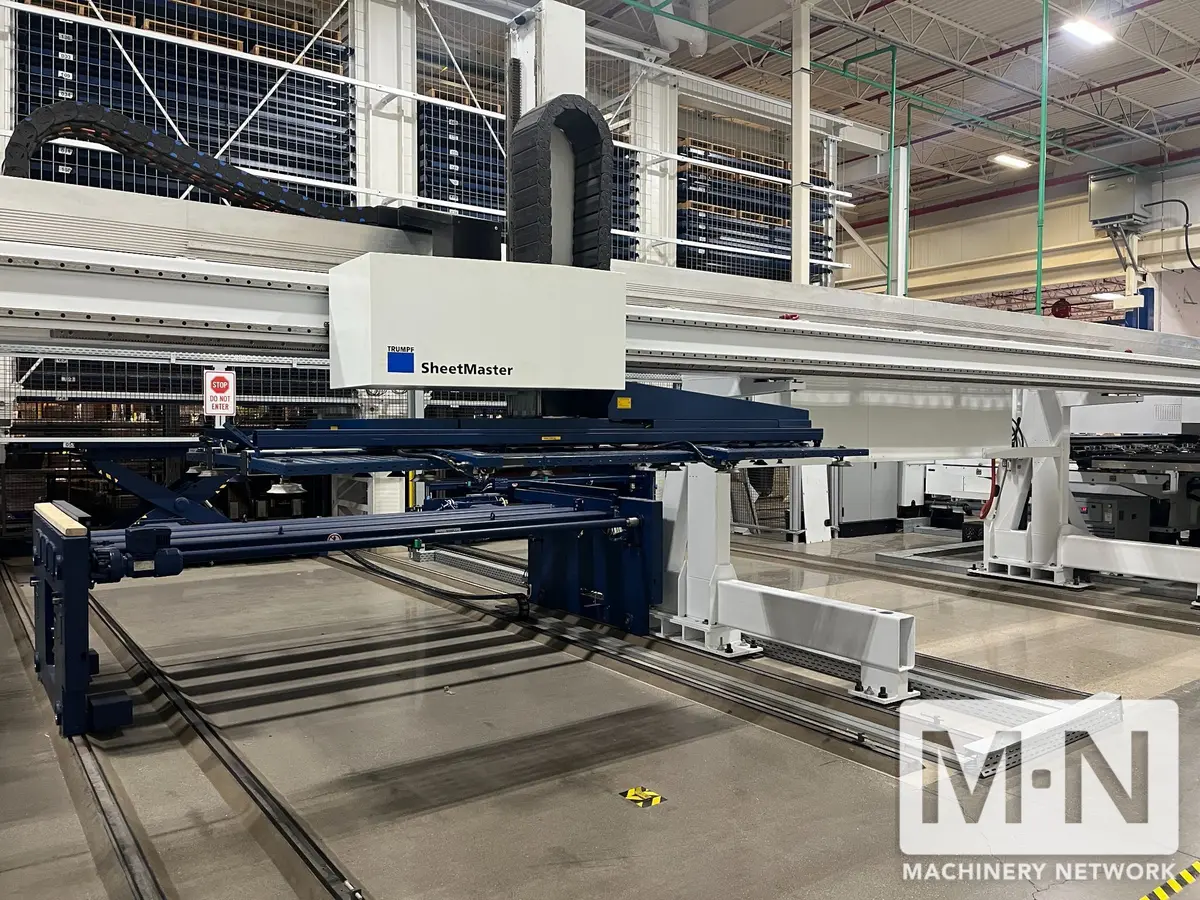

SHEETMASTER
PARALLEL TO PRODUCTION
INTERGRATED FLATTENING
MULTI SHEAR
MULTI BEND
TAPPING DRIVE
HIGH SPEED MARKING
ENGRAVING
WHEEL TECHNOLOGY FUNCTION - FORMING & CUTTING
ADAPTIVE STROKE CALIBRATION
DIE SPRAY LUBRICATION
SMART PUNCH MONITORING (BREAKAGE CONTROL FOR PUNCH)
SOFTPUNCH
STRIPLINE
INDEPENDENT AND AUTOMATIC CLAMP CLOSING
ANTI-VIBRATION ISLOLATION PADS
PNEUMATIC REPOSITION CYLINDERS

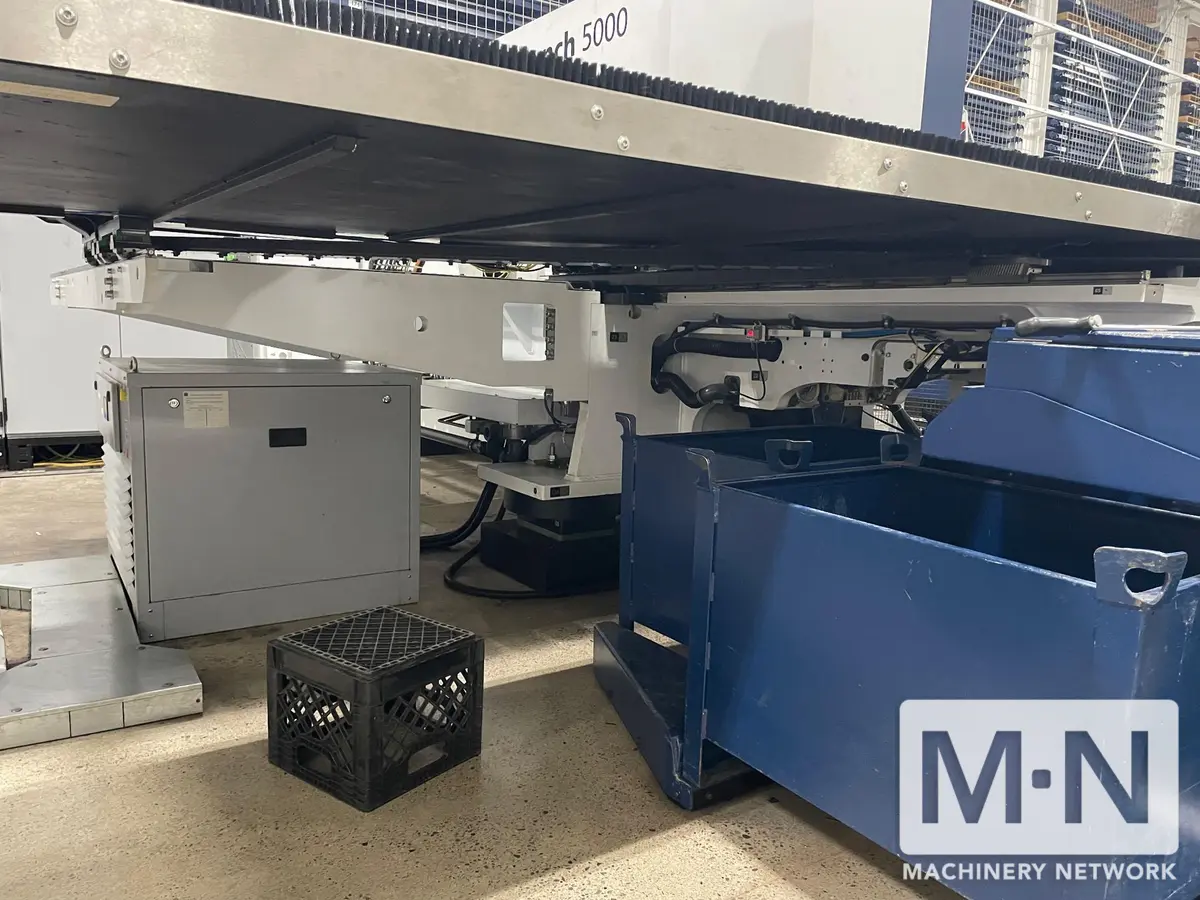

CHIP/SLUG CONVEYOR WITH BOX
VARIABLE VACUUM SLUG REMOVAL
LOADING/UNLOADING AIDS
SMALL PARTS BLOW-OUT DEVICE
WIRELESS OPERATION POINT AND MOBILE-CONTORL APP
RCI REMOTE CONTORL INTERFACE
SHEET COLLISION DETECTION
NEW PRICE AS EQUIPPED TODAY (WITHOUT SHEETMASTER OR SHEARMASTER): $1,050,000
PRICE INCLUDES DECOMMISIONG BY TRUMPF AND LOADING.

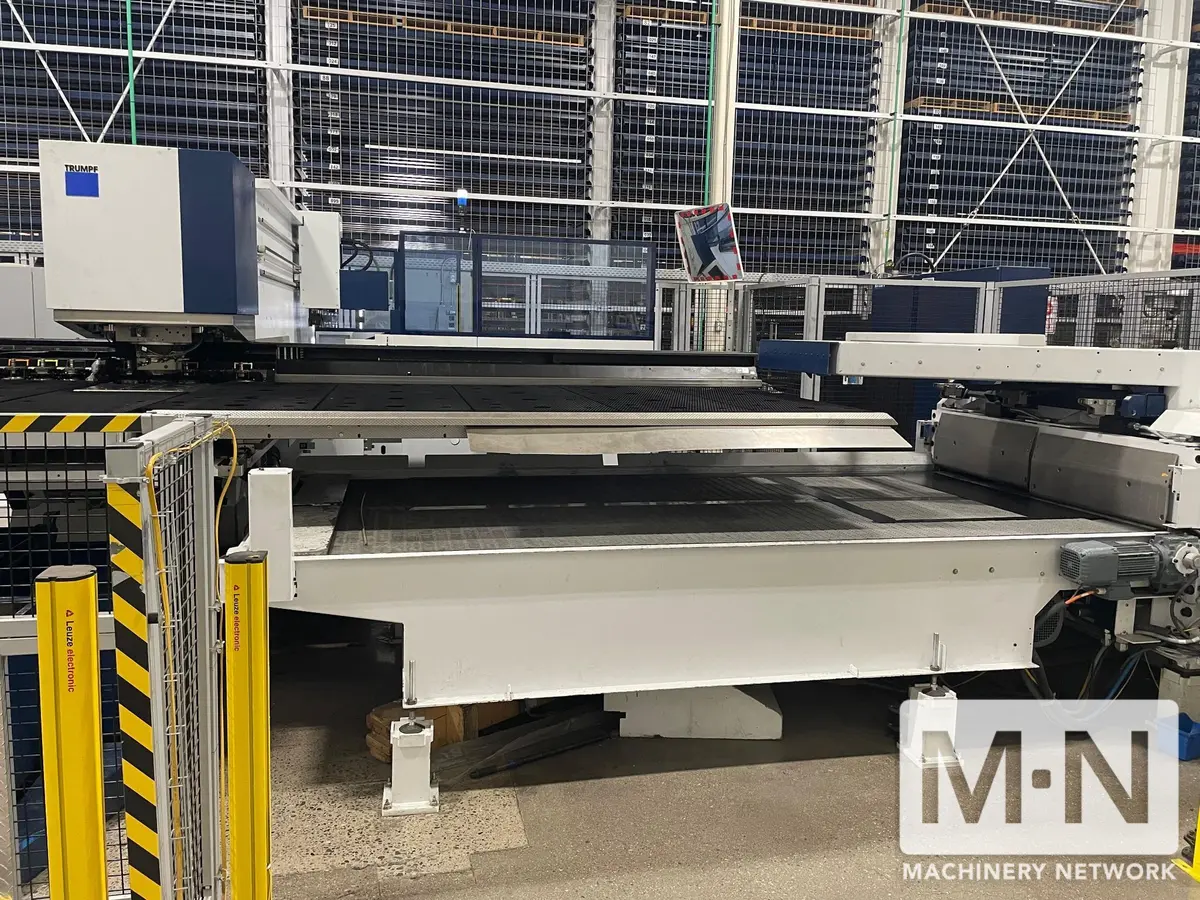

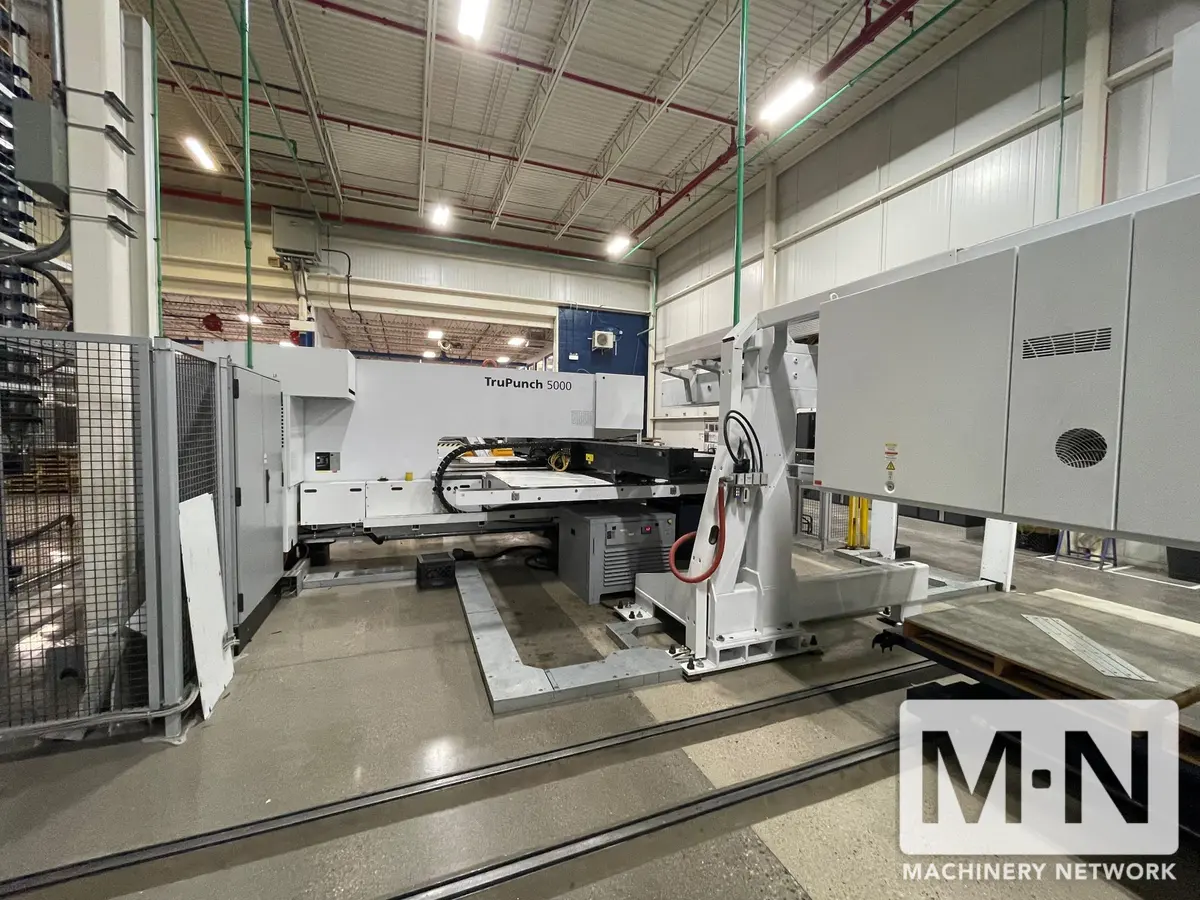

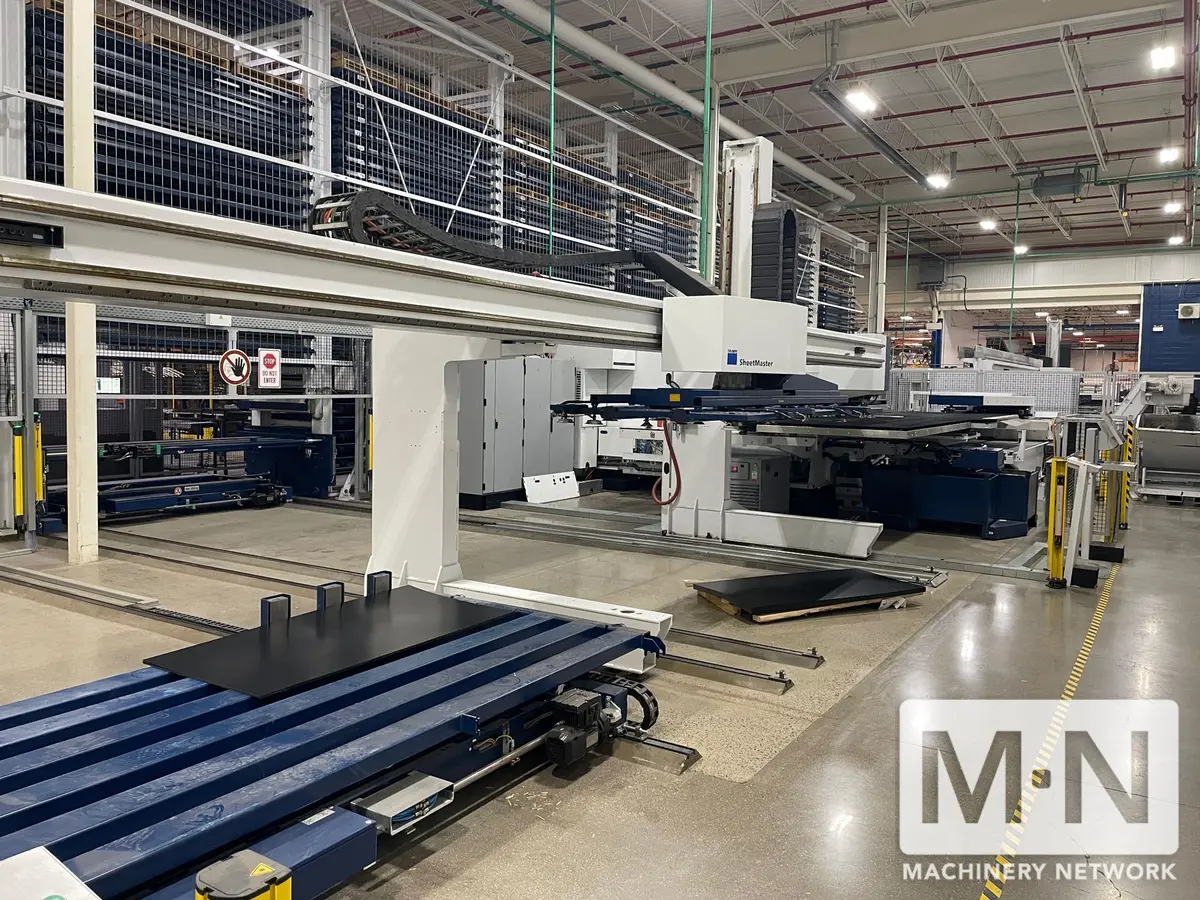

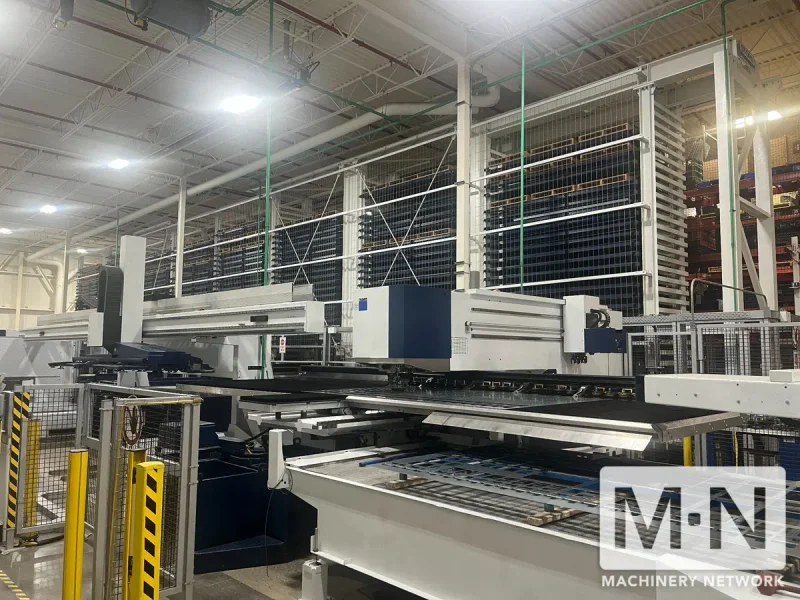

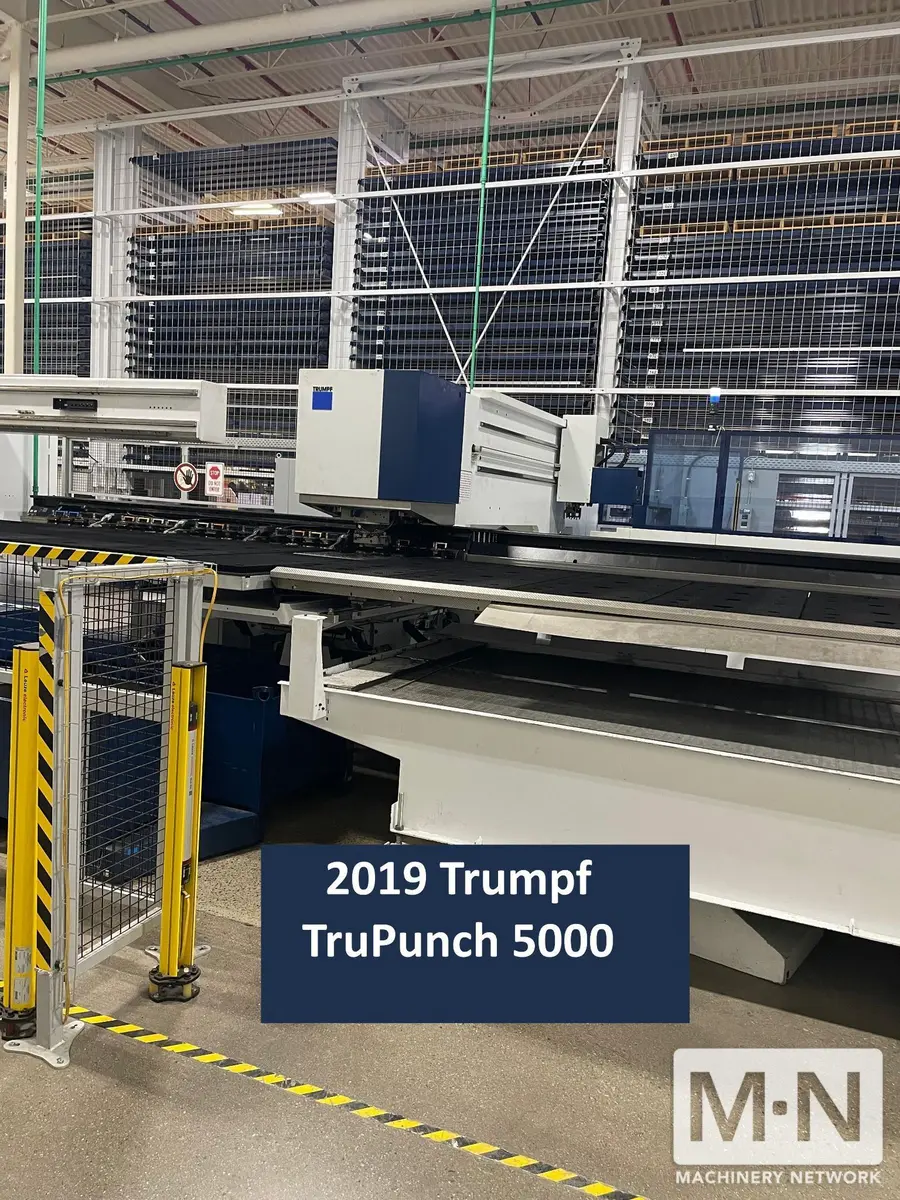

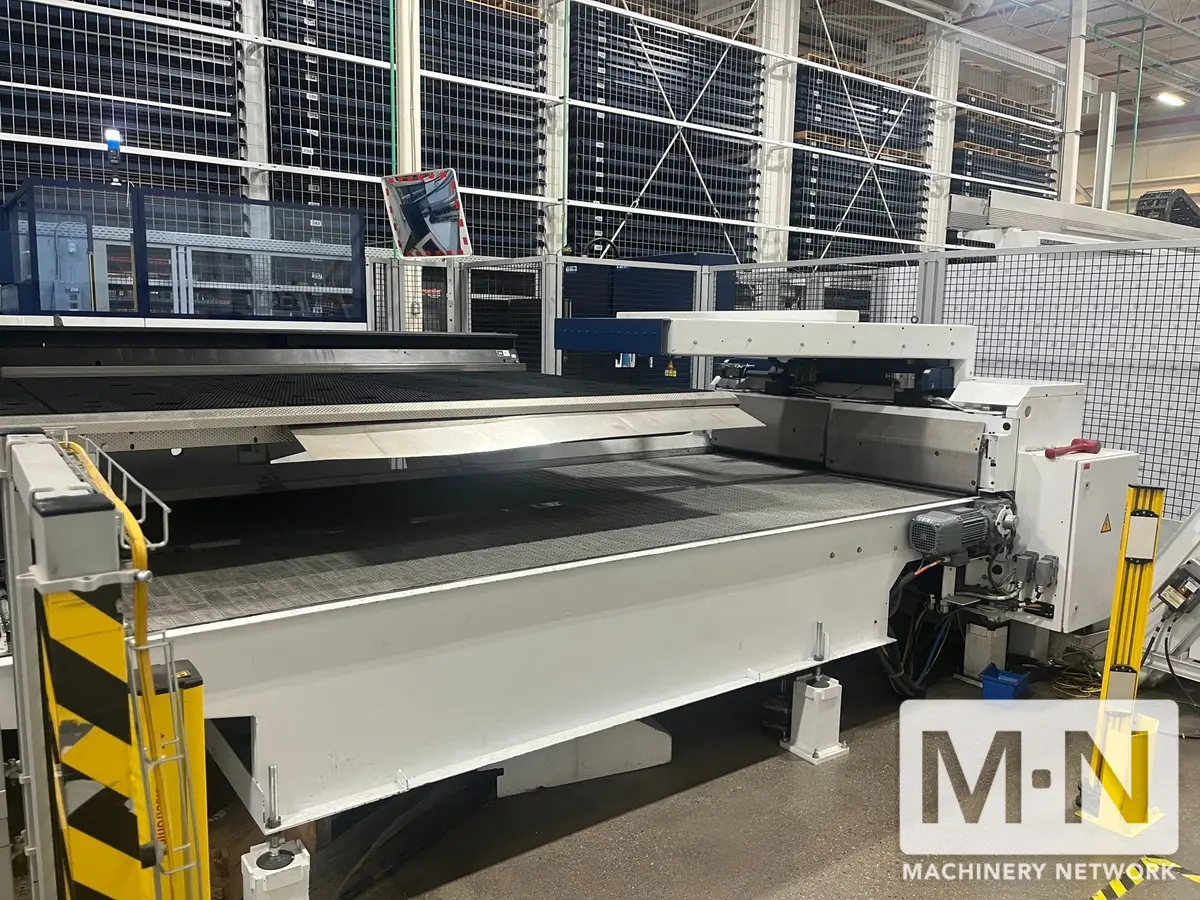

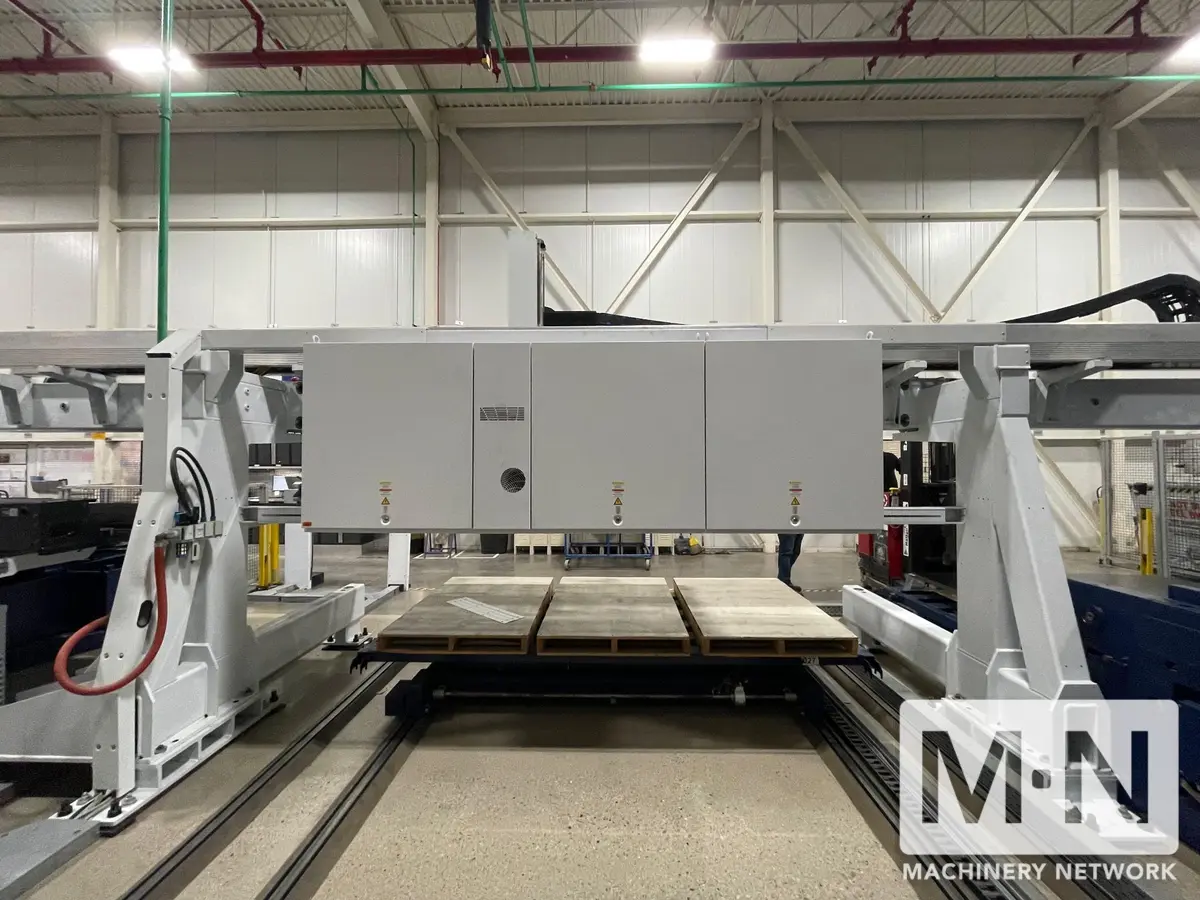

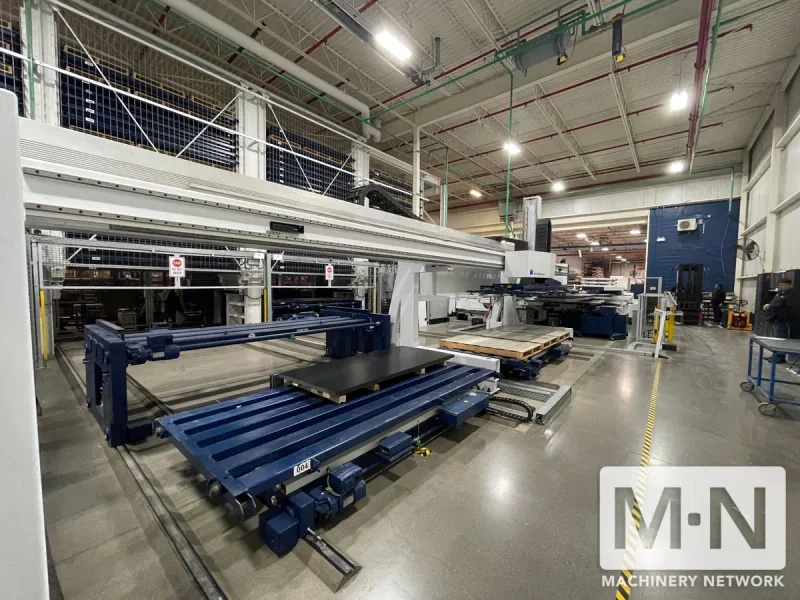

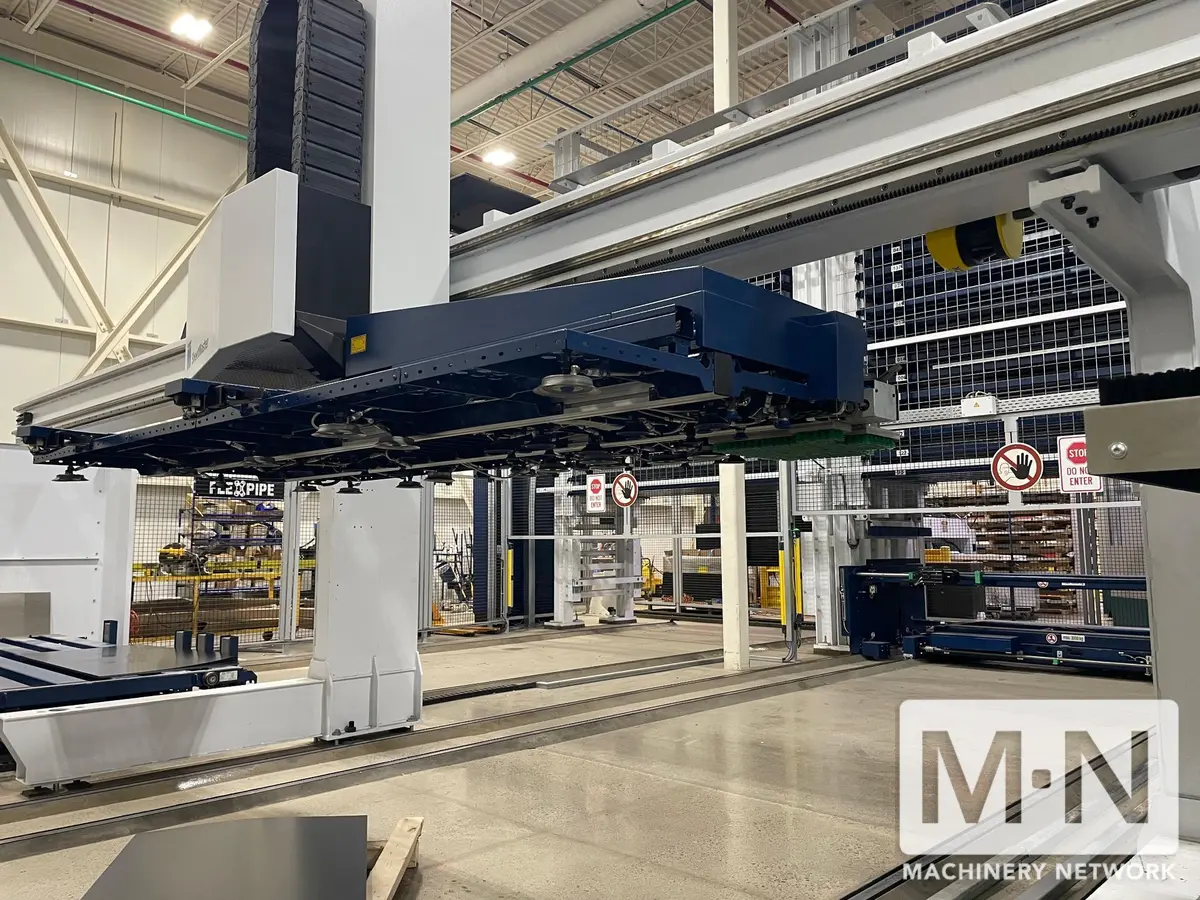

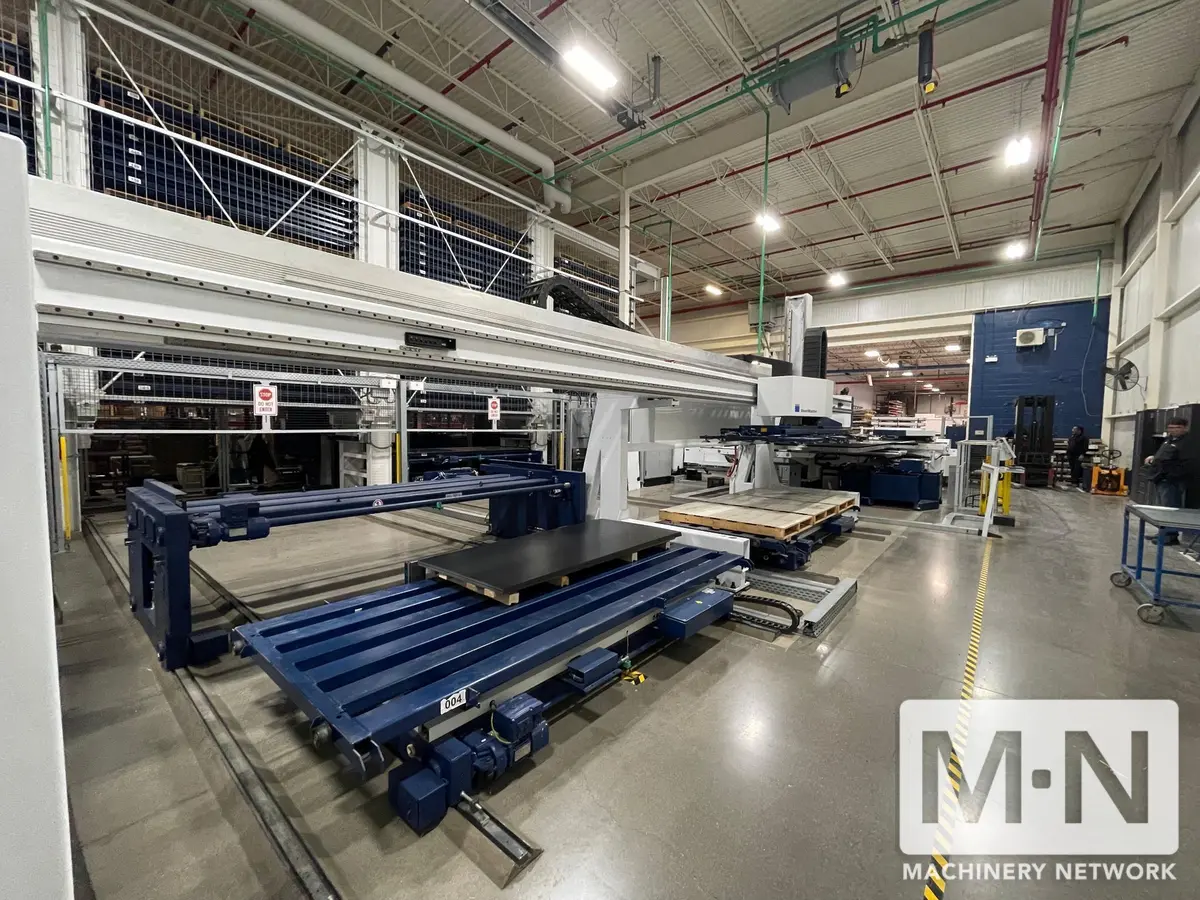

MACHINE BEING OFFERED AS STAND-ALONE UNIT OR AS COMPLETE SYSTEM, AS SEEN IN PHOTOS, CONSISTING OF TWO TRUMPF TRUPUNCH 5000s AND 8-TOWER, 229 PALLET, STOPA SYSTEM. OFFERS CONSIDERED FOR PARTIAL STOPA AS WELL.

SPECIFICATIONS:

TONNAGE 25 T
# TURRET STATIONS 21
MAX. PUNCHING FORCE: 25 TONS
CONSTRUCTION: C-FRAME
WORKING RANGE:
- X-AXIS: 120”
- Y-AXIS: 61"
MAX. SHEET THICKNESS: 0.31"
MAX. WORKPIECE WEIGHT: 617 LBS
NUMBER OF TOOLS: 21
SPEEDS:
- X-AXIS: 3,937 IPM
- Y-AXIS: 2,362 IPM
- SIMULTANEOUS: 4,567 IPM
- C-AXIS: 500 RPM
MAX. STROKE RATE:
- PUNCHING: 1,350 SPM
- MARKING: 3,000 SPM
MULTITOOL TOOL CHANGING TIME: 0.3 SEC.
PART REMOVAL:
- MAX. PART SIZE, PART REMOVAL FLAP, PUNCHING: 19.69" x 19.69"
- MAX. PART SIZE, FIXED CHUTE, PUNCHING (WITH MOVING TABLE): 3.1" x 1.97"
APPROX. DIMENSIONS: 321”(L) x 322"(W) x 82"(H)
