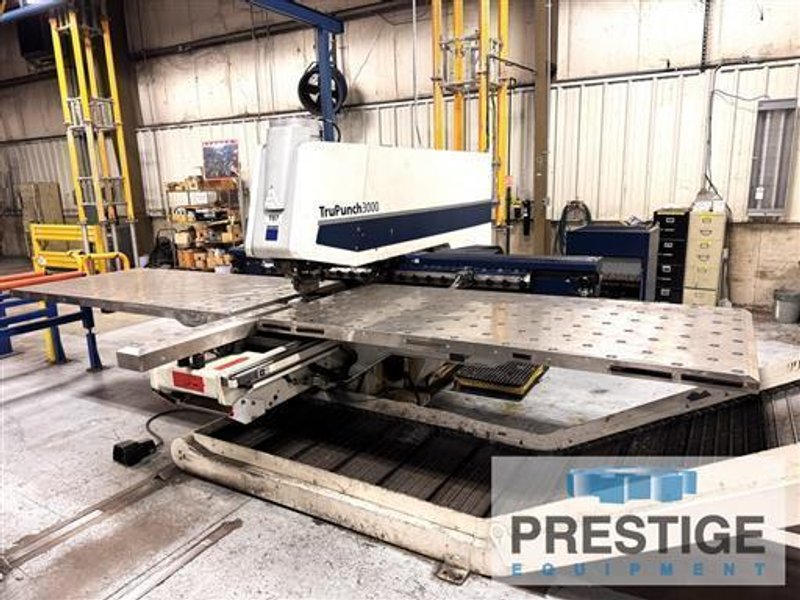

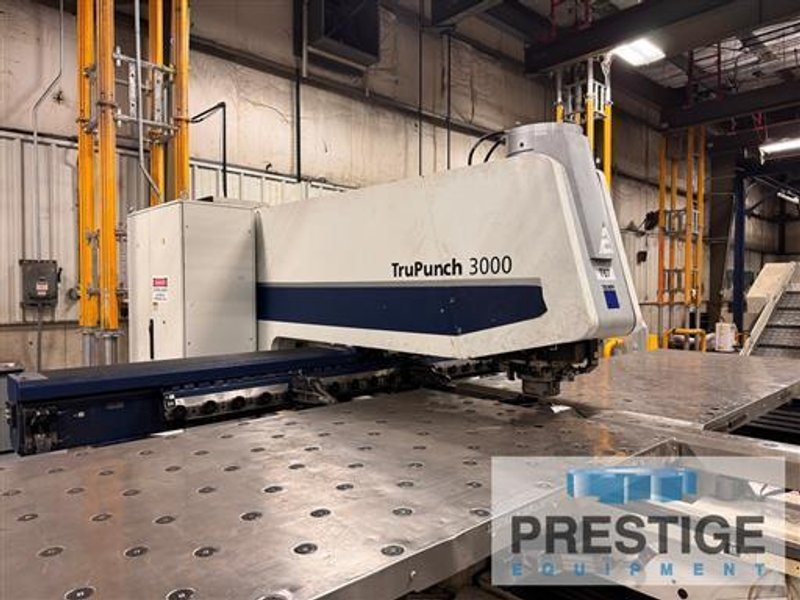

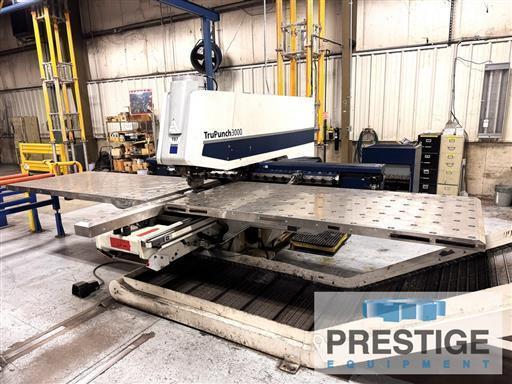

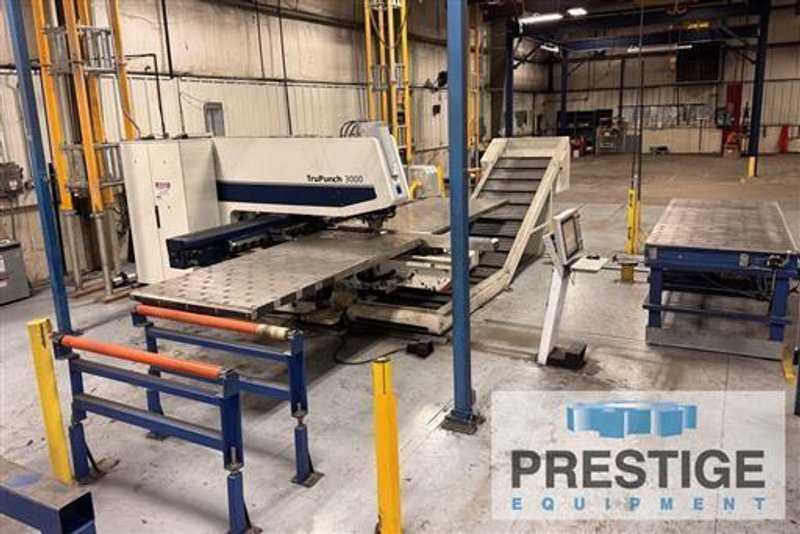

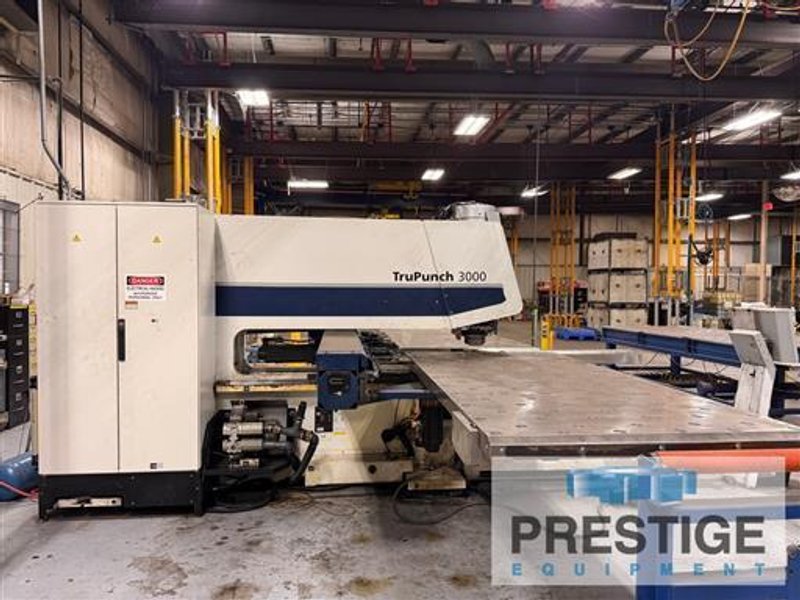

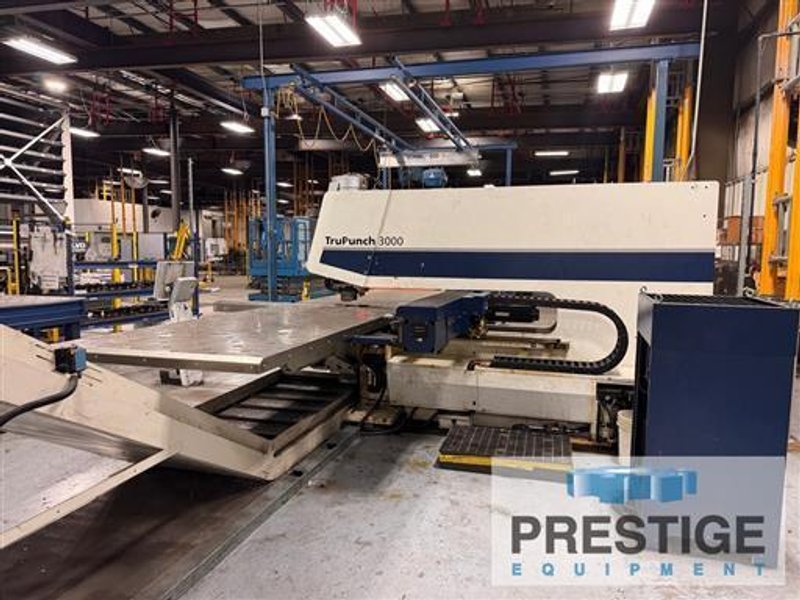

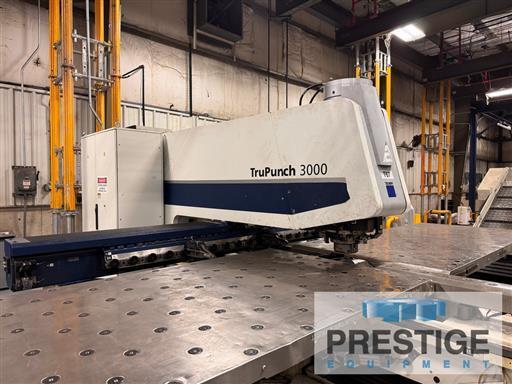

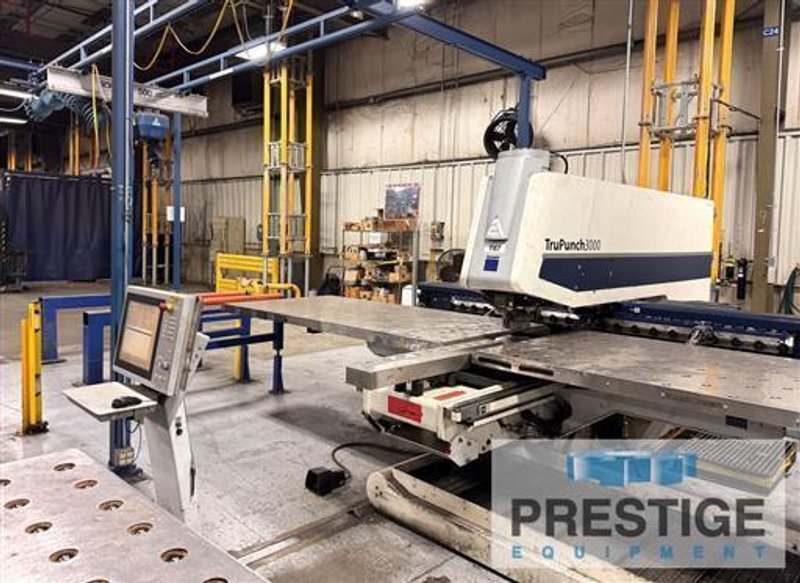

Punches Turret Punch Laser Combination

CAPACITY:
Tonnage Capacity 22 Tons
Maximum Sheet Thickness .25"
Maximum Punch Diameter 3"
Y-Axis Table Travel 50"
X-Axis Table Travel 100"
Stroke Rate (.0404" Pitch) 1000 /Min
C-Axis 5.5 Rotations / Sec
Maximum Positioning Speed (Y-Axis)..... 2236 IPM 2236 IPM
Maximum Positioning Speed (X-Axis)..... 3543 IPM 3543 IPM
Simultaneous (X & Y) Axis 4242 IPM
Part Chute Size 7" x 20"
Maximum Forming Height 1"
Approximate Dimensions 204" x 252"
Approximate Weight 24,000 Lbs



Equipped With:
Bosch MTX CNC Control, 17" Touch Panel
18-Station Linear Tool Changer (All with Full Rotation)
Riedel Chiller


Auction Message:
At Auction 06/11, Surplus to Continuing Operations of Zurn Elkay Water Solutions, Pre-Auction Offers Considered




View The Auction
