Working Area (Punch Operation) | 50" X 100" |
Working Area (Combined Operation) | 50" X 80" |
Travels X,Y | 100" x 49" |
Max. Sheet Thickness | .250" |
Max. Punching Force | 18 Tons |
Number of Turret Stations | 17 |
Laser Output Power | 3000 Watts (3 KW) |

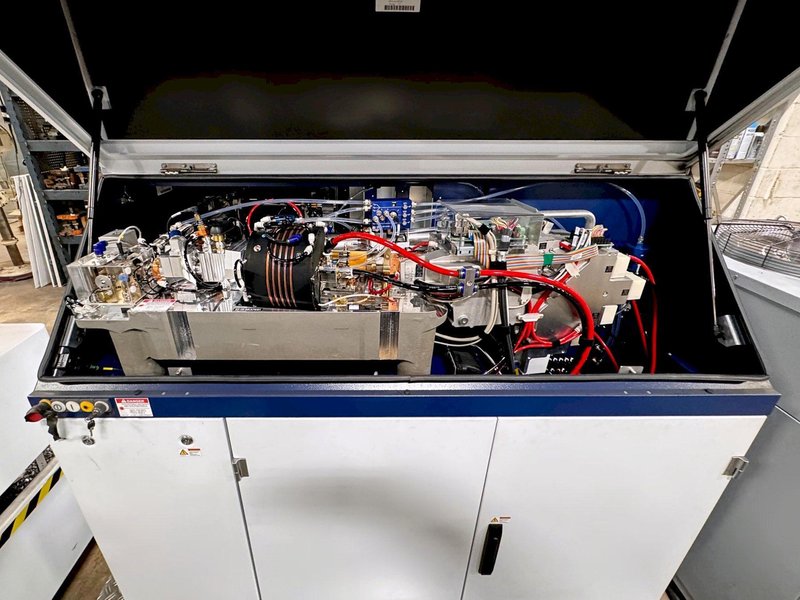

Fiber Source | Trudisk 3001 |
Speed, Sim. (X And Y) | 3,937 IPM |
Max. Stroke Rate - Punching (E = .039") | 600 HPM |
Max. Stroke Rate - Marking | 1000 HPM |
Max. Part Size - Chute | 7" X 7" |
Large Part Flap Size (X X Y) | 16" X 48" |
Multitool Tool Changing Time | 2.4 Sec. |
Number Of Tools/Clamps | 17/3 |
Dimensions | W 273" / L 247" / H 86" |

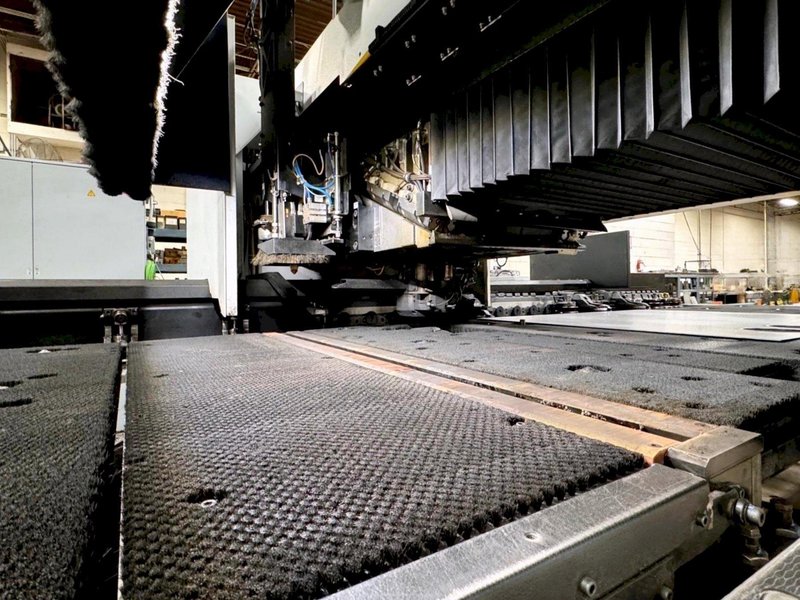

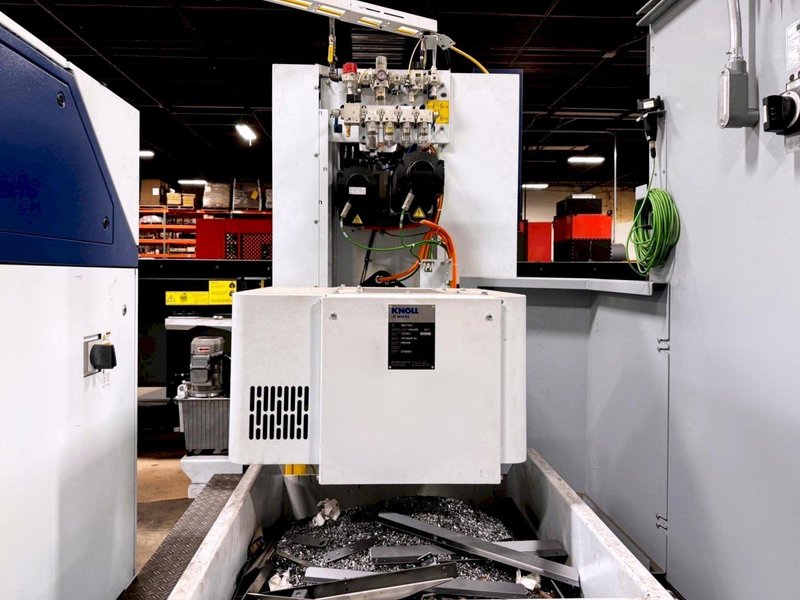

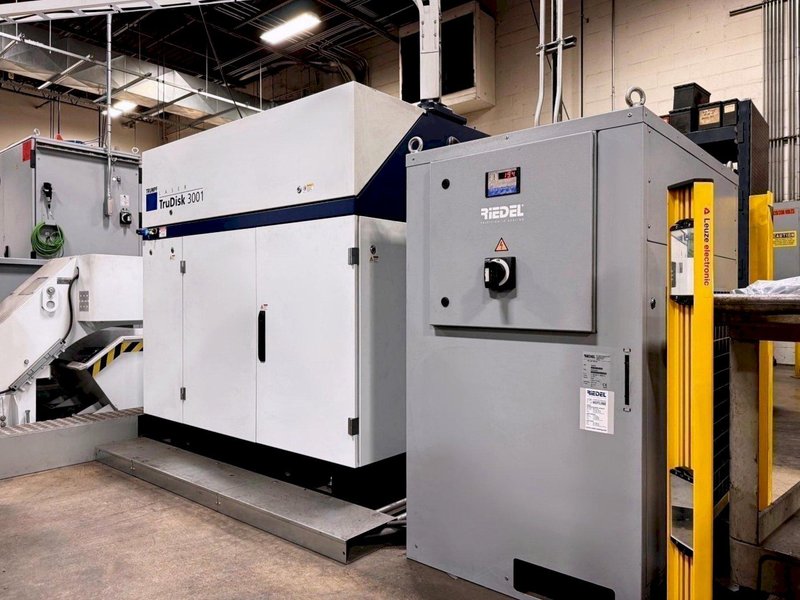

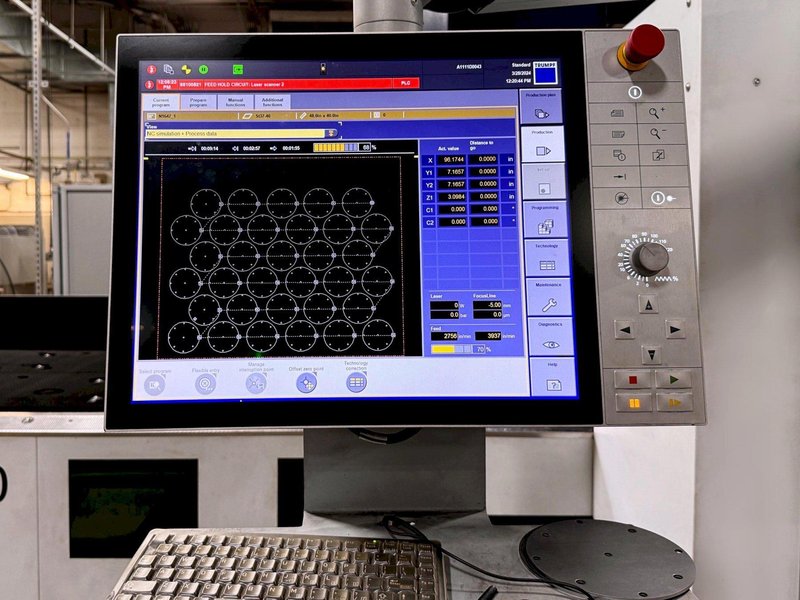

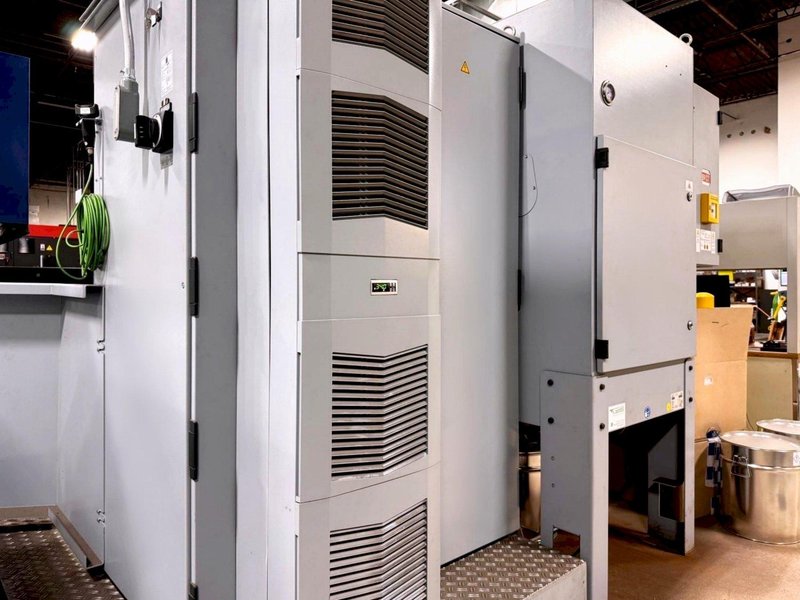

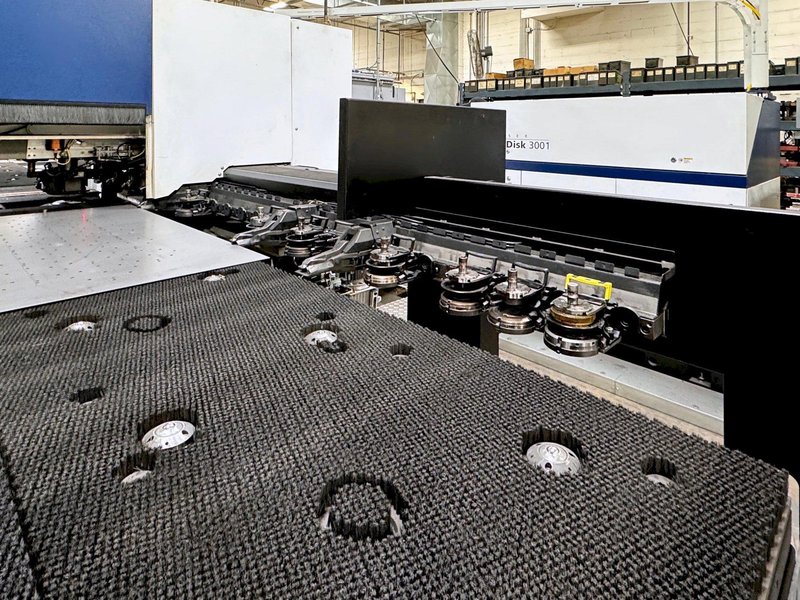

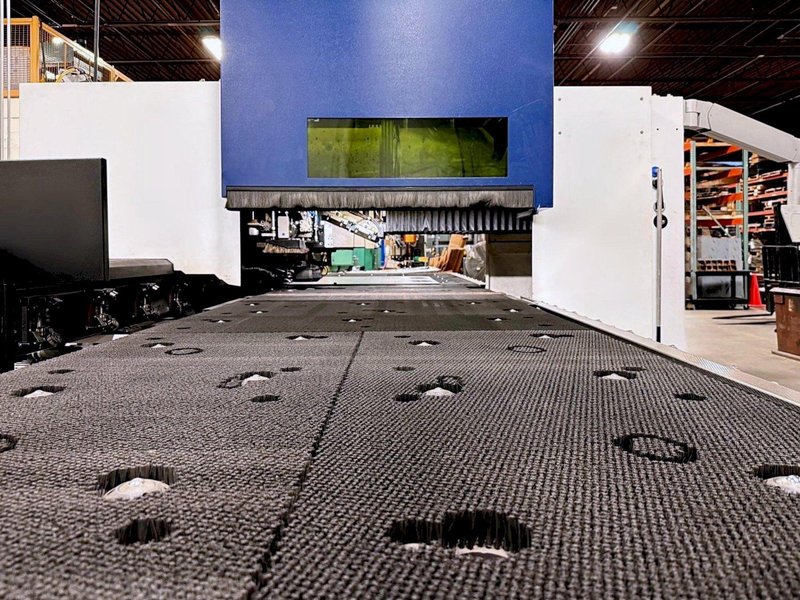

Equipped With: Touchpoint HMI Trudisk 3001 3KW Fiber Source Servo Electric Punch Drive Universal Cutting Unit 360 Deg. Index - All Tools Brush Table Multi Tool Extrude & Tapping Chip Conveyor Riedel Laser Chiller Dust Collector |
