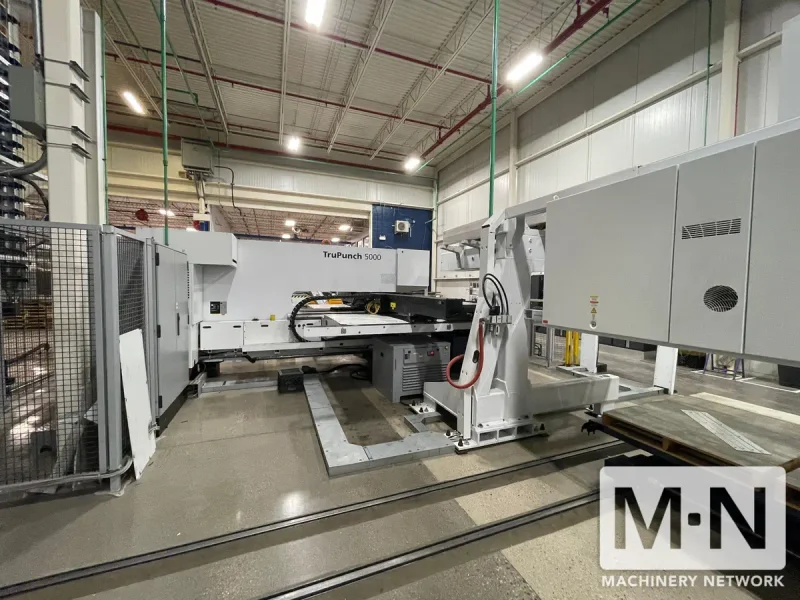

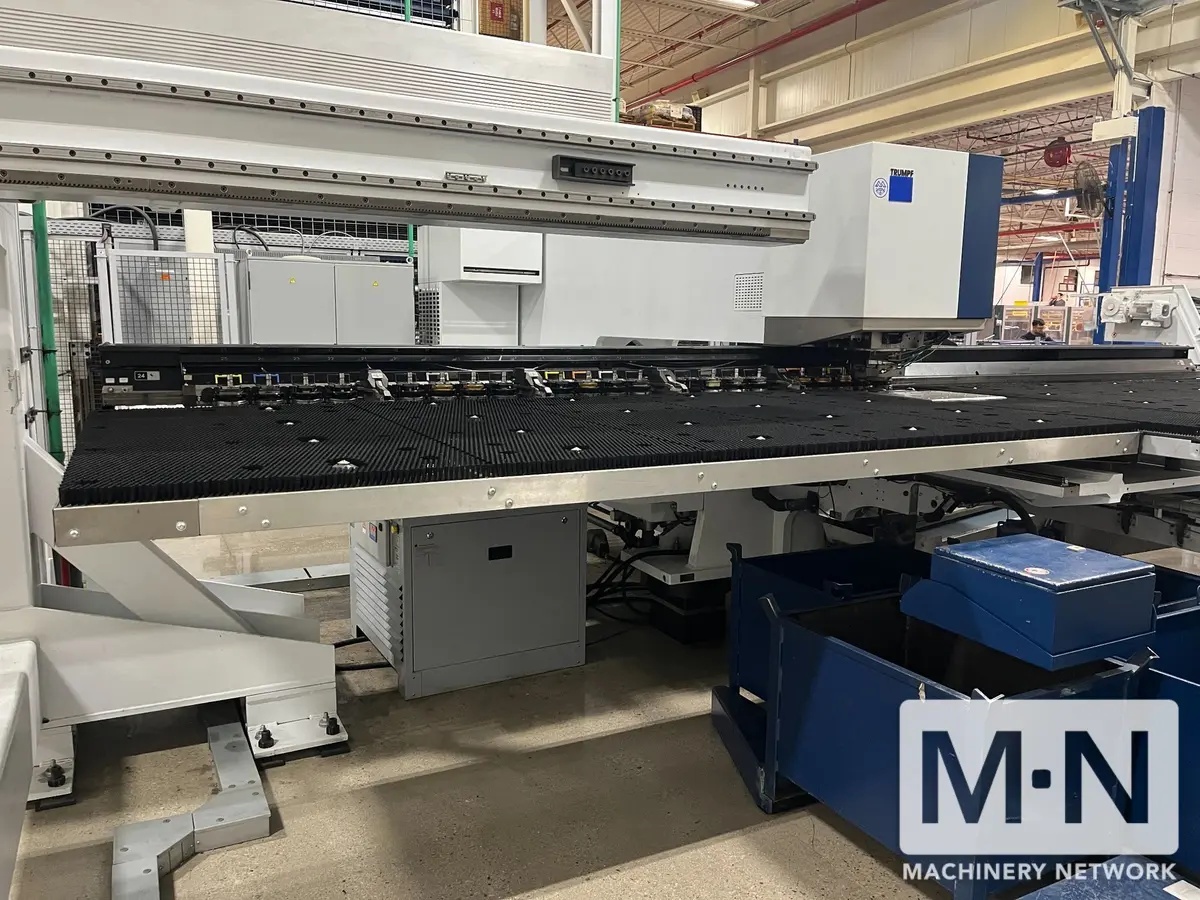

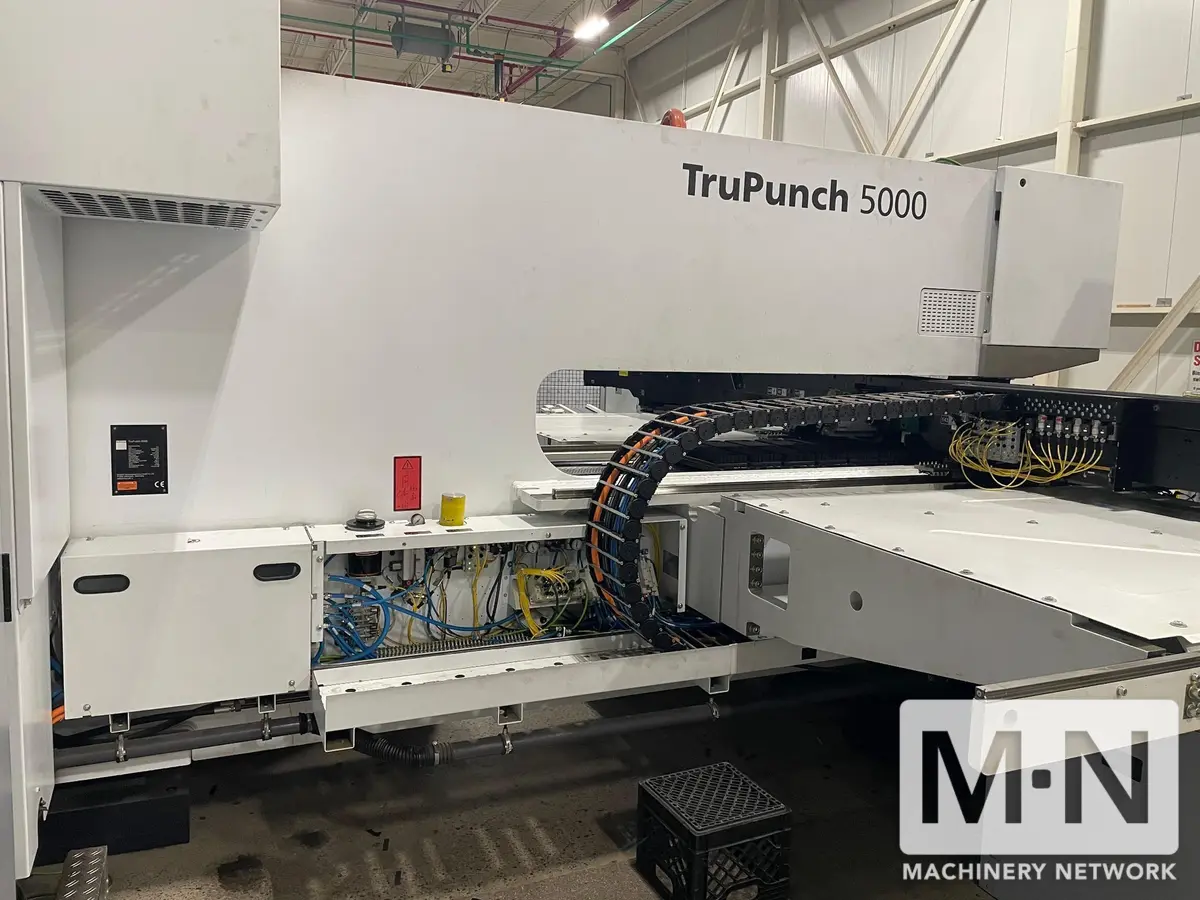

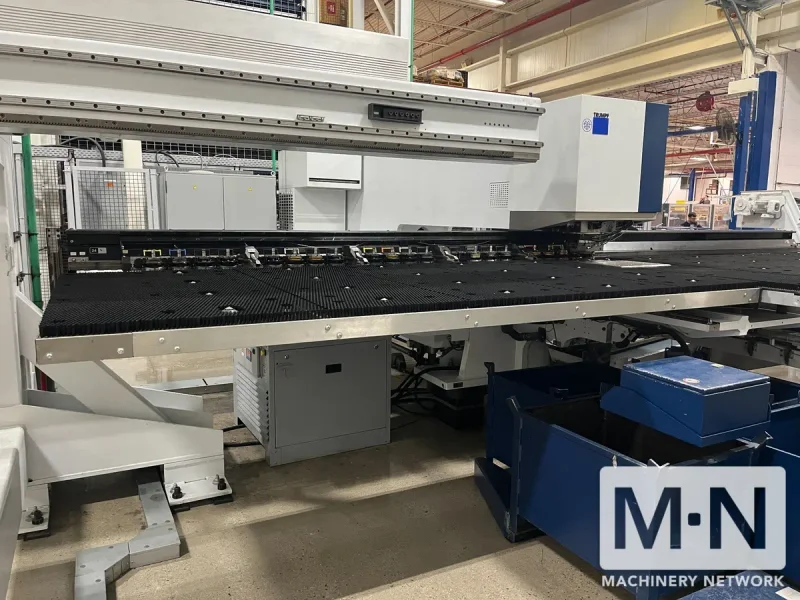

2016 TRUMPF TRUPUNCH 5000 LARGE FORMAT

EQUIPPED WITH:

SIEMENS SINUMERIK 840D CONTROL
LARGE FORMAT

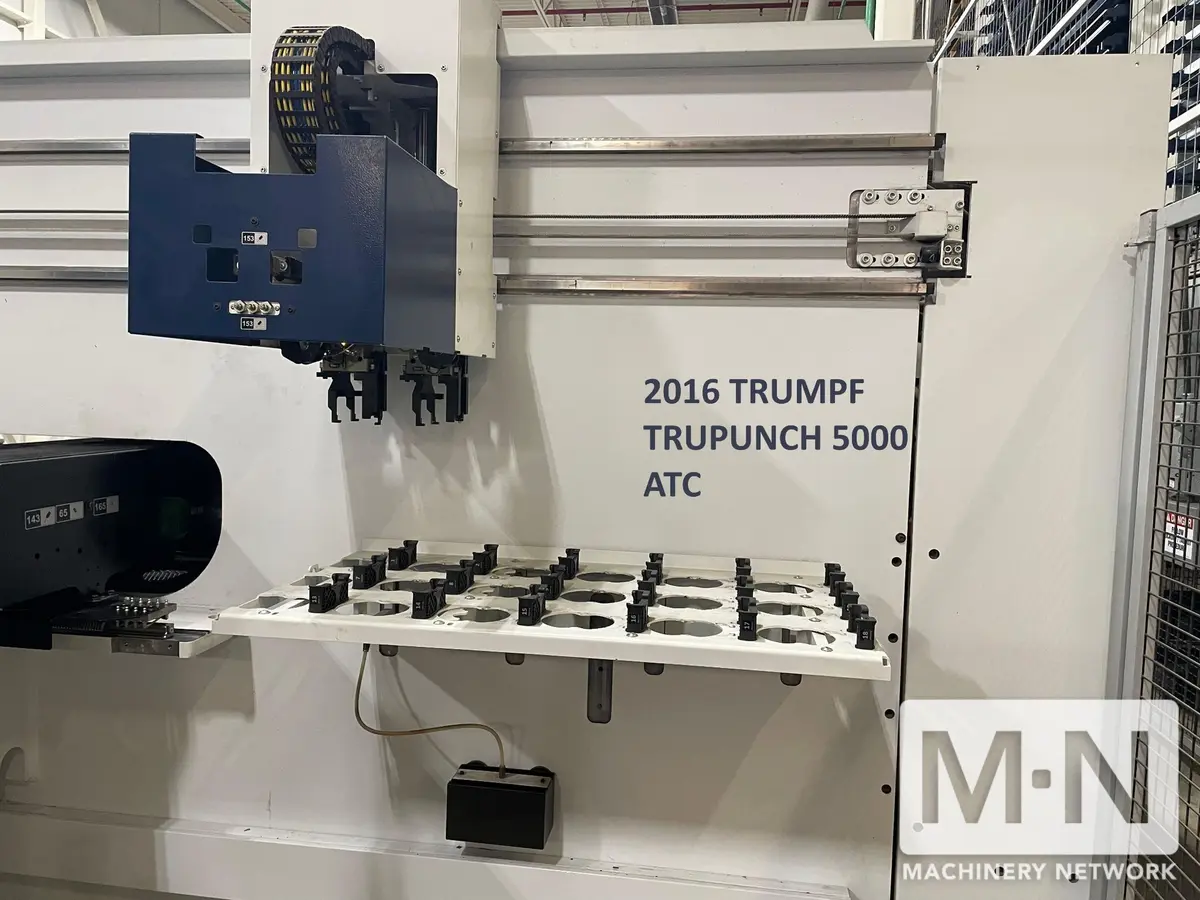

54 STATION TOOLMASTER LINEAR ATC

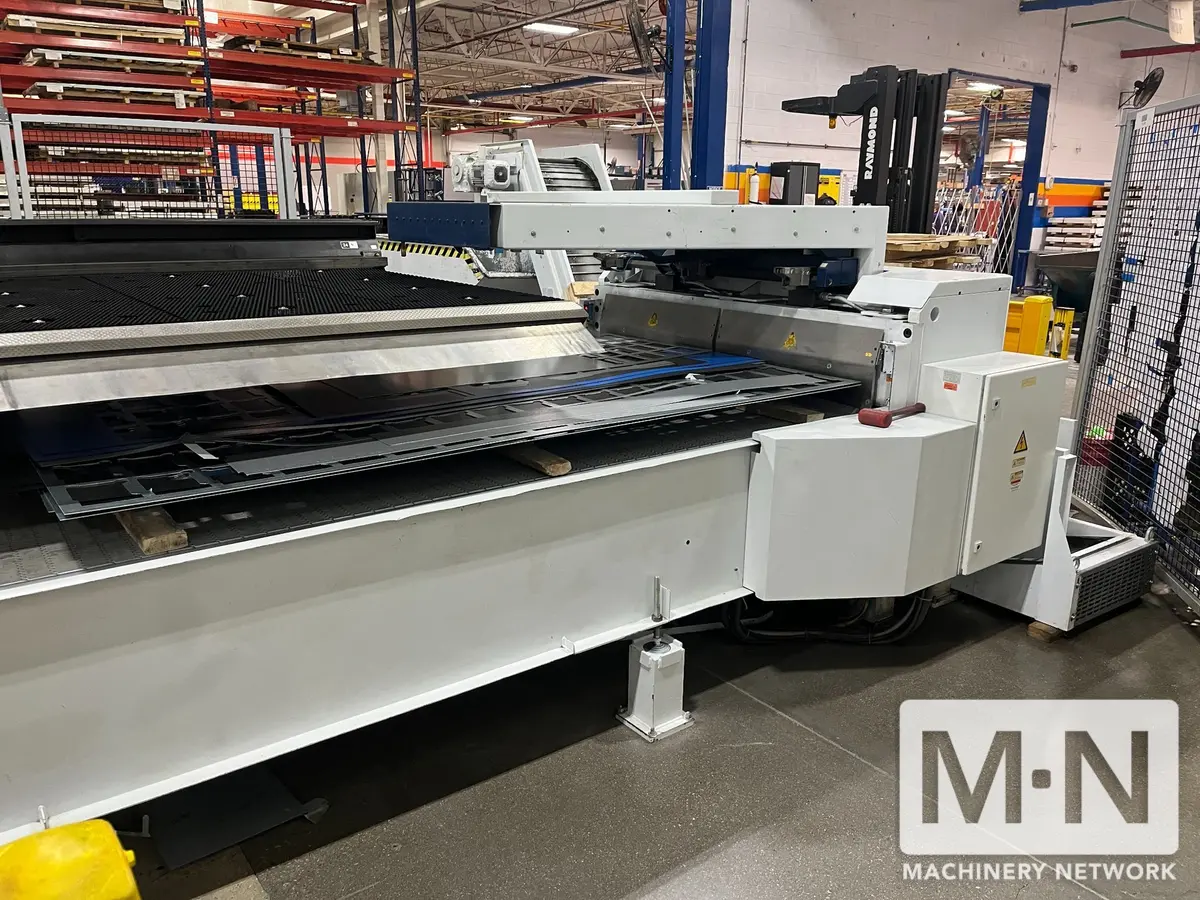

SHEARMASTER

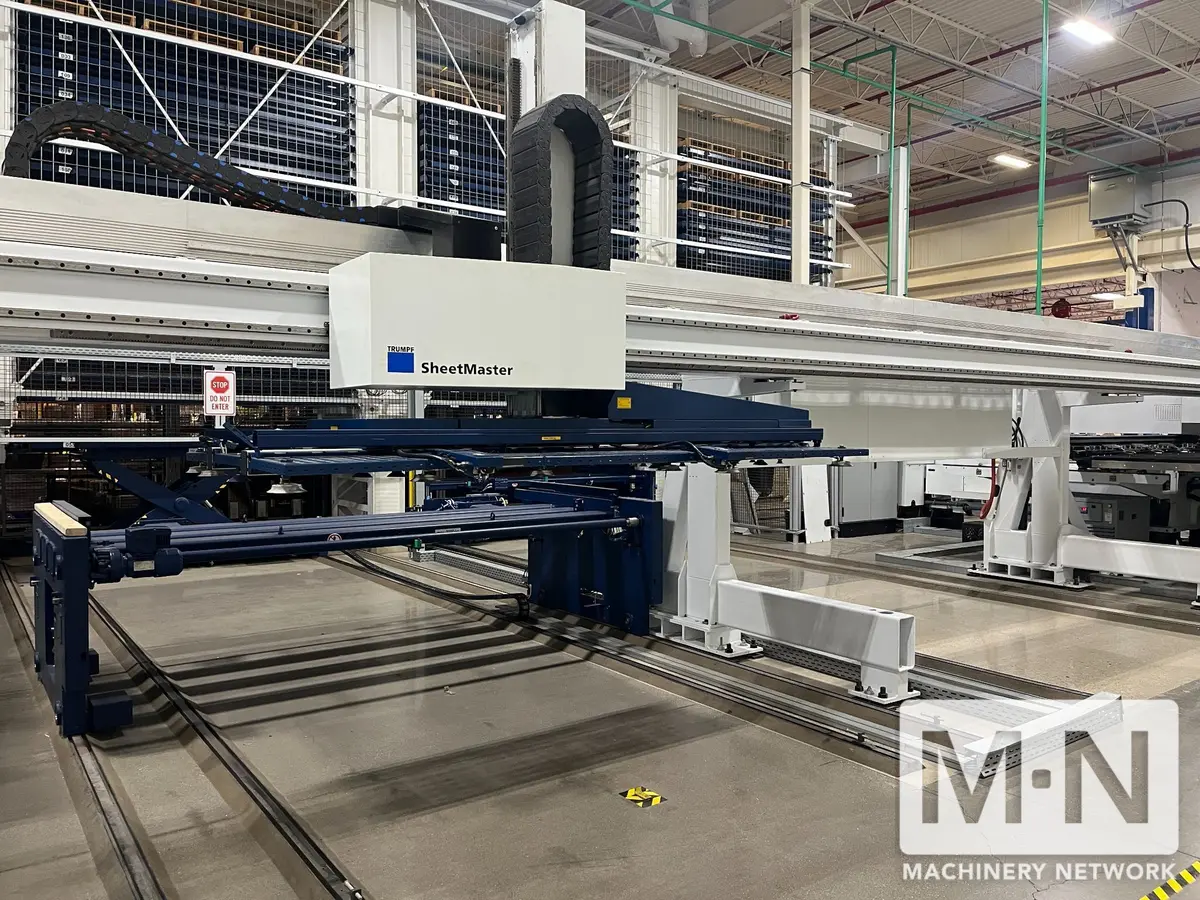

SHEETMASTER
PARALLEL TO PRODUCTION
INTERGRATED FLATTENING
MULTI SHEAR
MULTI BEND
TAPPING DRIVE
HIGH SPEED MARKING
ENGRAVING
WHEEL TECHNOLOGY FUNCTION - FORMING & CUTTING
ADAPTIVE STROKE CALIBRATION
DIE SPRAY LUBRICATION
SMART PUNCH MONITORING (BREAKAGE CONTROL FOR PUNCH)
SOFTPUNCH
STRIPLINE
INDEPENDENT AND AUTOMATIC CLAMP CLOSING
ANTI-VIBRATION ISLOLATION PADS
PNEUMATIC REPOSITION CYLINDERS

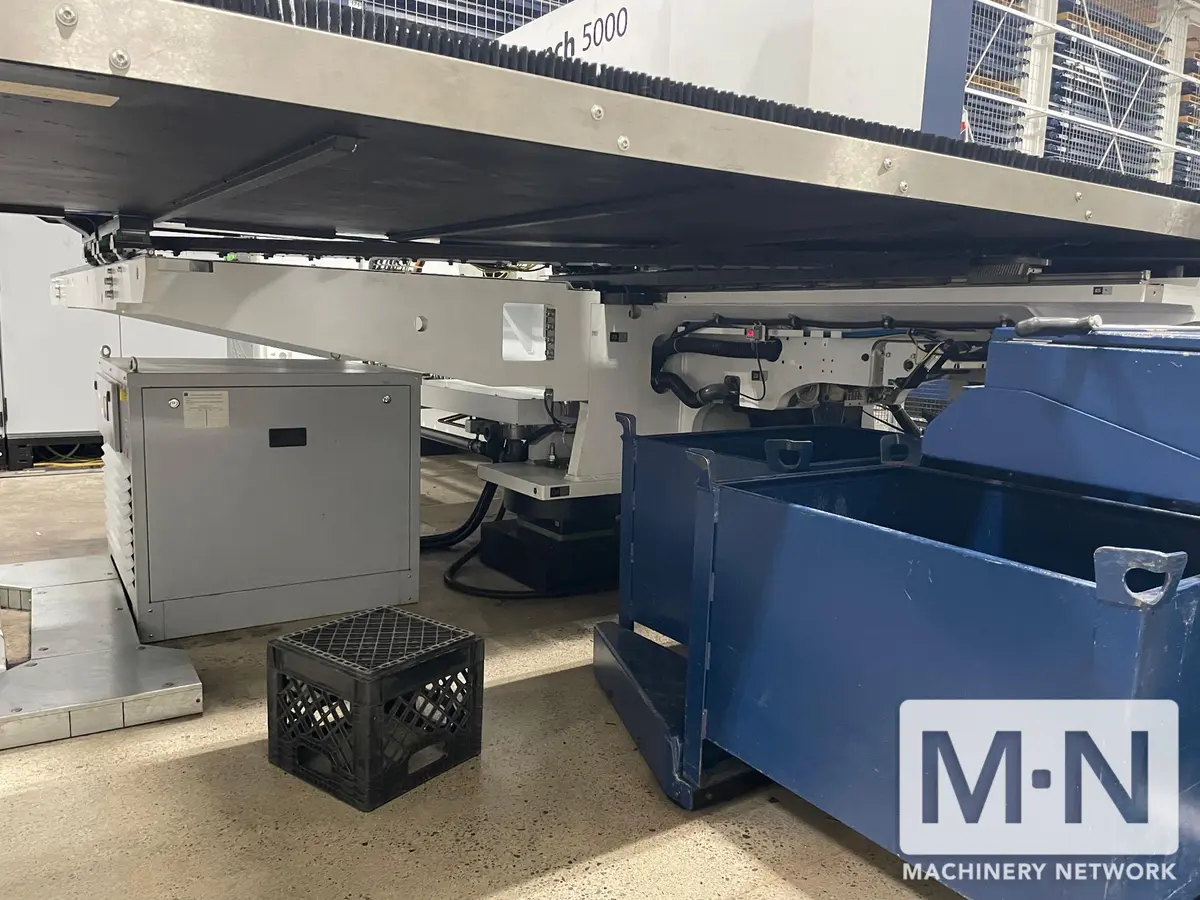

CHIP/SLUG CONVEYOR WITH BOX
VARIABLE VACUUM SLUG REMOVAL

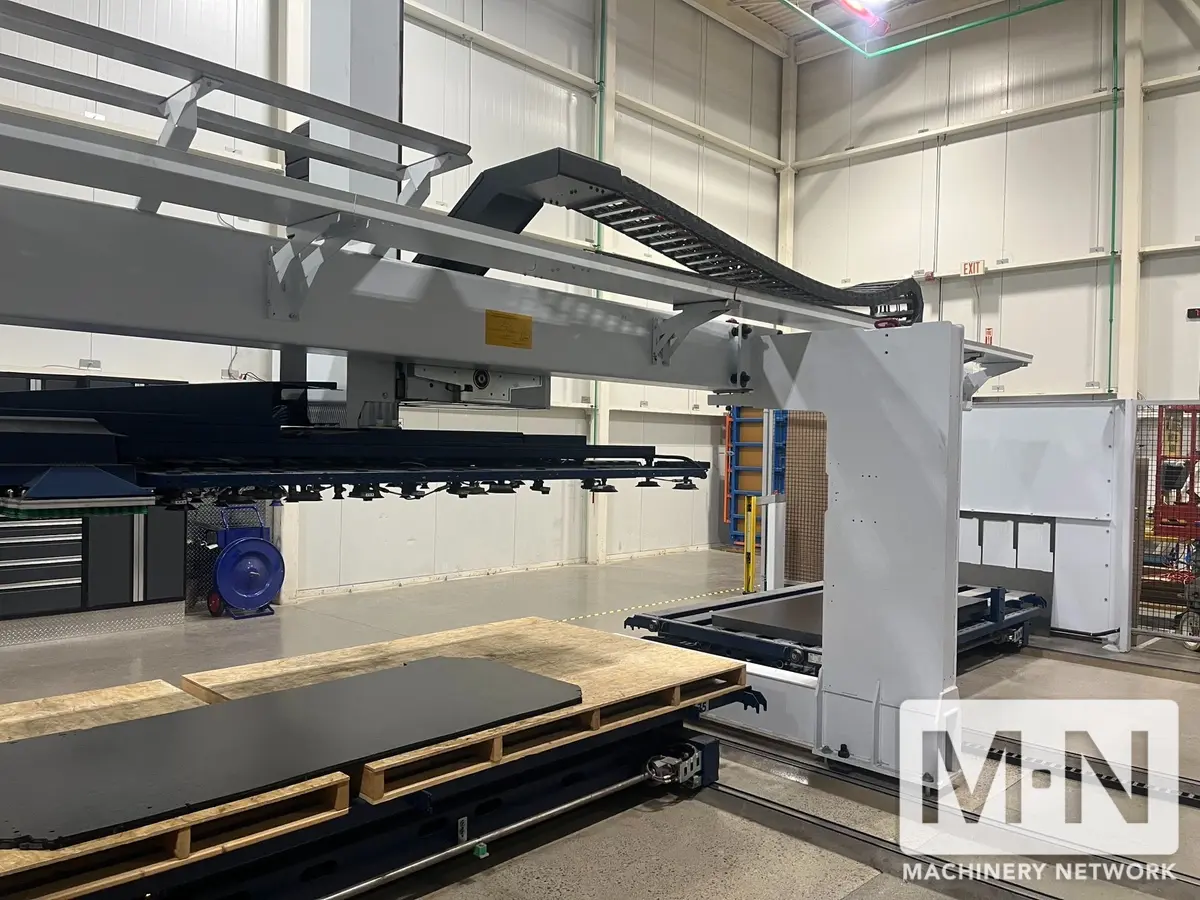

LOADING/UNLOADING AIDS
SMALL PARTS BLOW-OUT DEVICE
WIRELESS OPERATION POINT AND MOBILE-CONTORL APP
RCI REMOTE CONTORL INTERFACE
SHEET COLLISION DETECTION
NEW PRICE AS EQUIPPED TODAY (WITHOUT SHEETMASTER OR SHEARMASTER): $1,050,000
PRICE INCLUDES DECOMMISIONG BY TRUMPF AND LOADING.

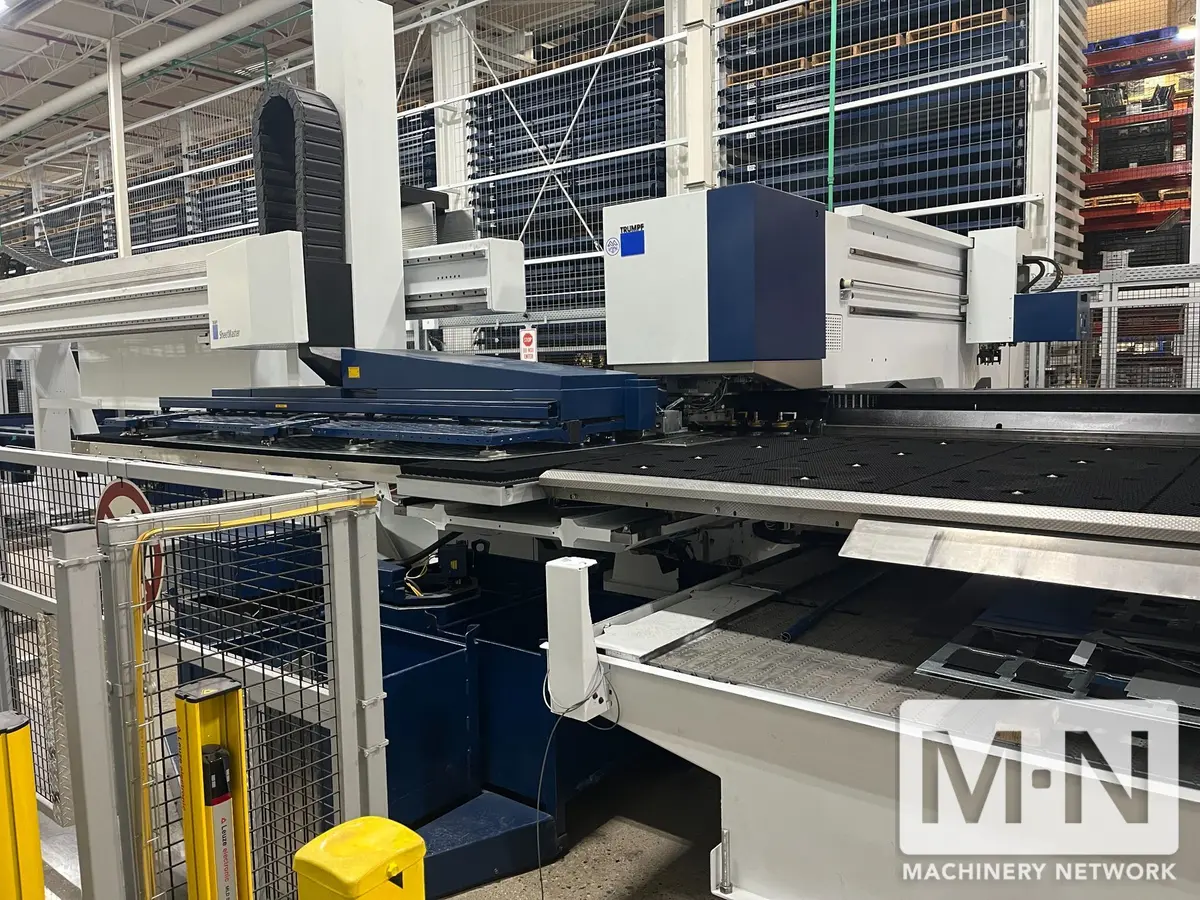

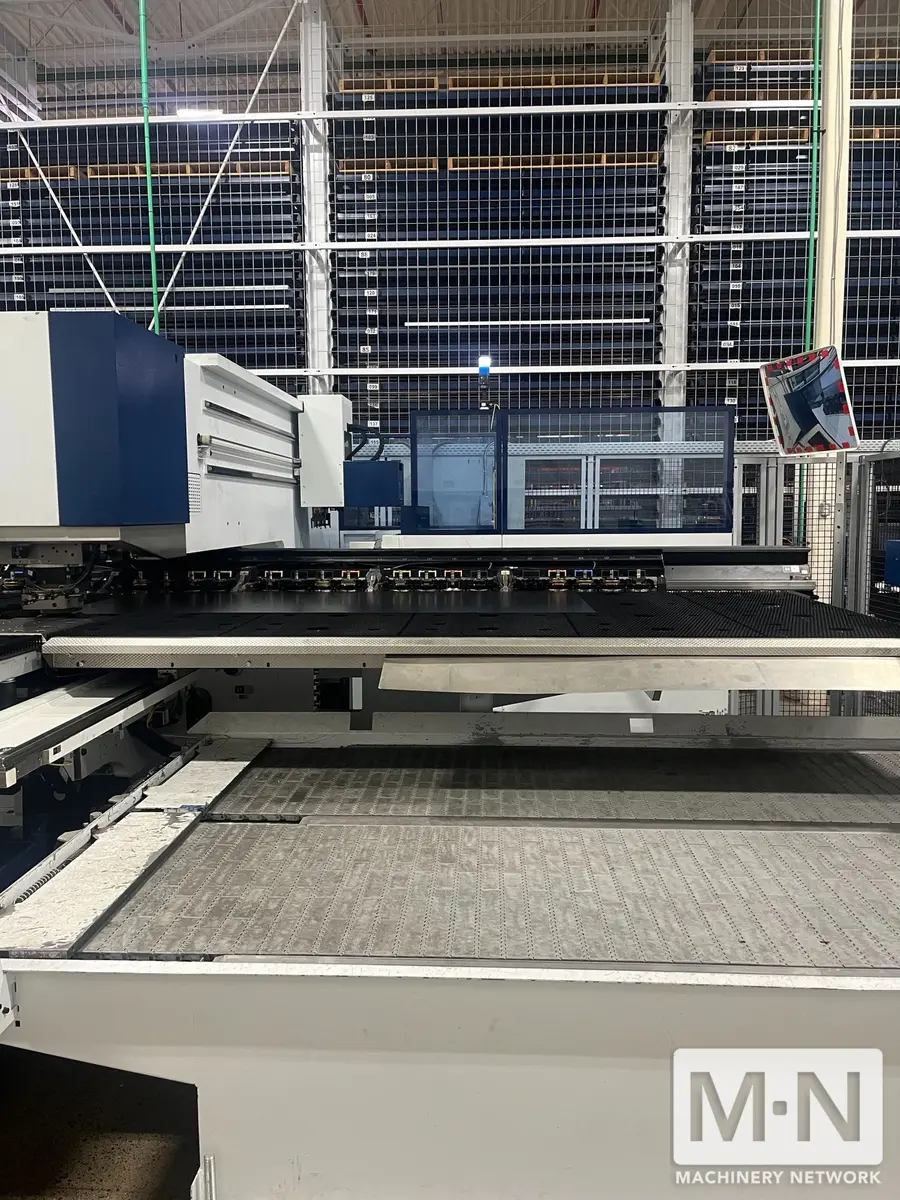

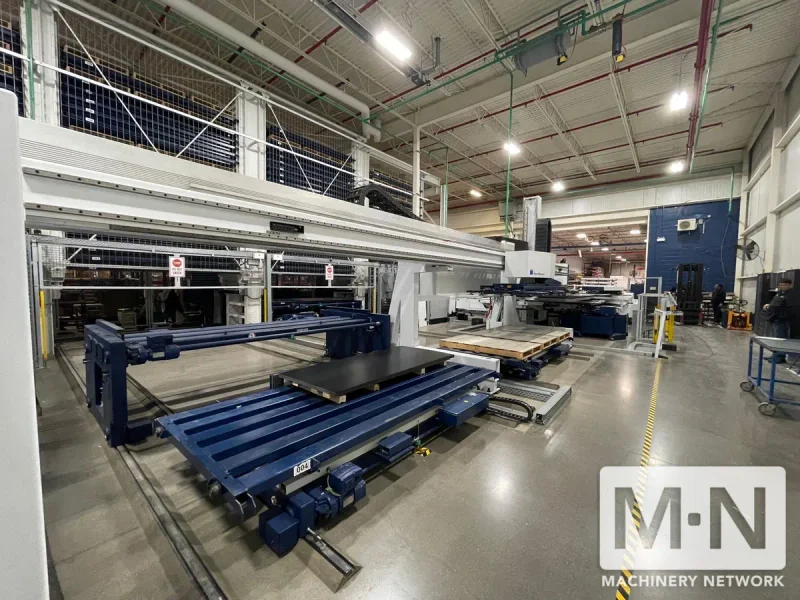

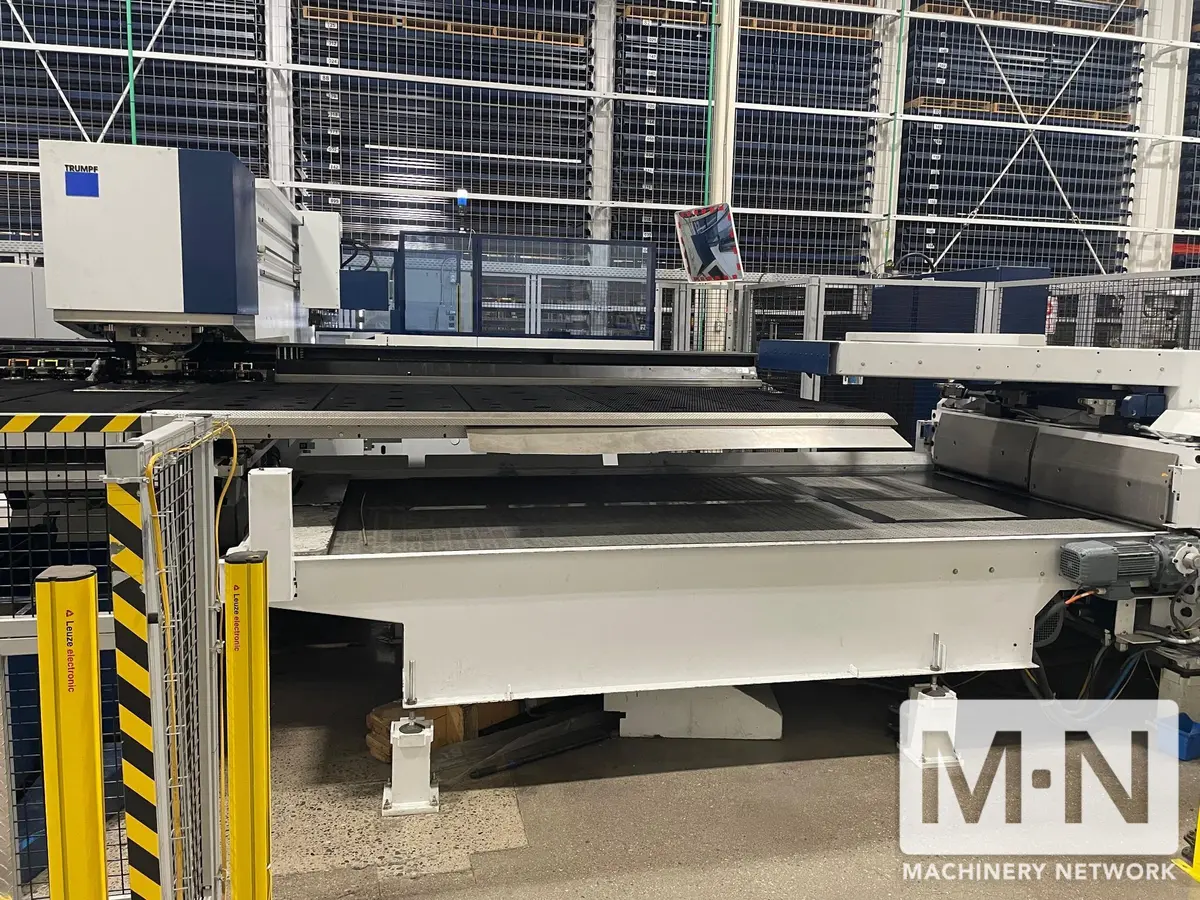

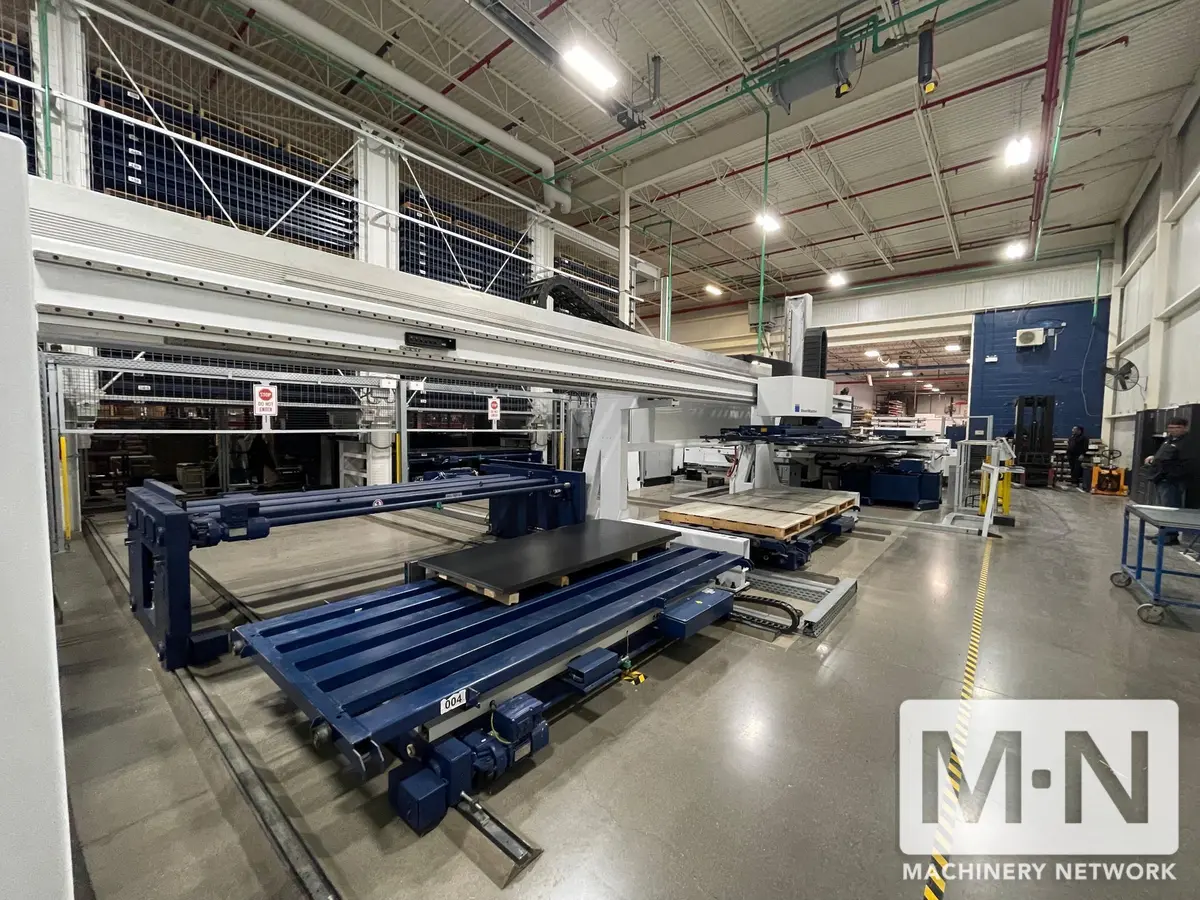

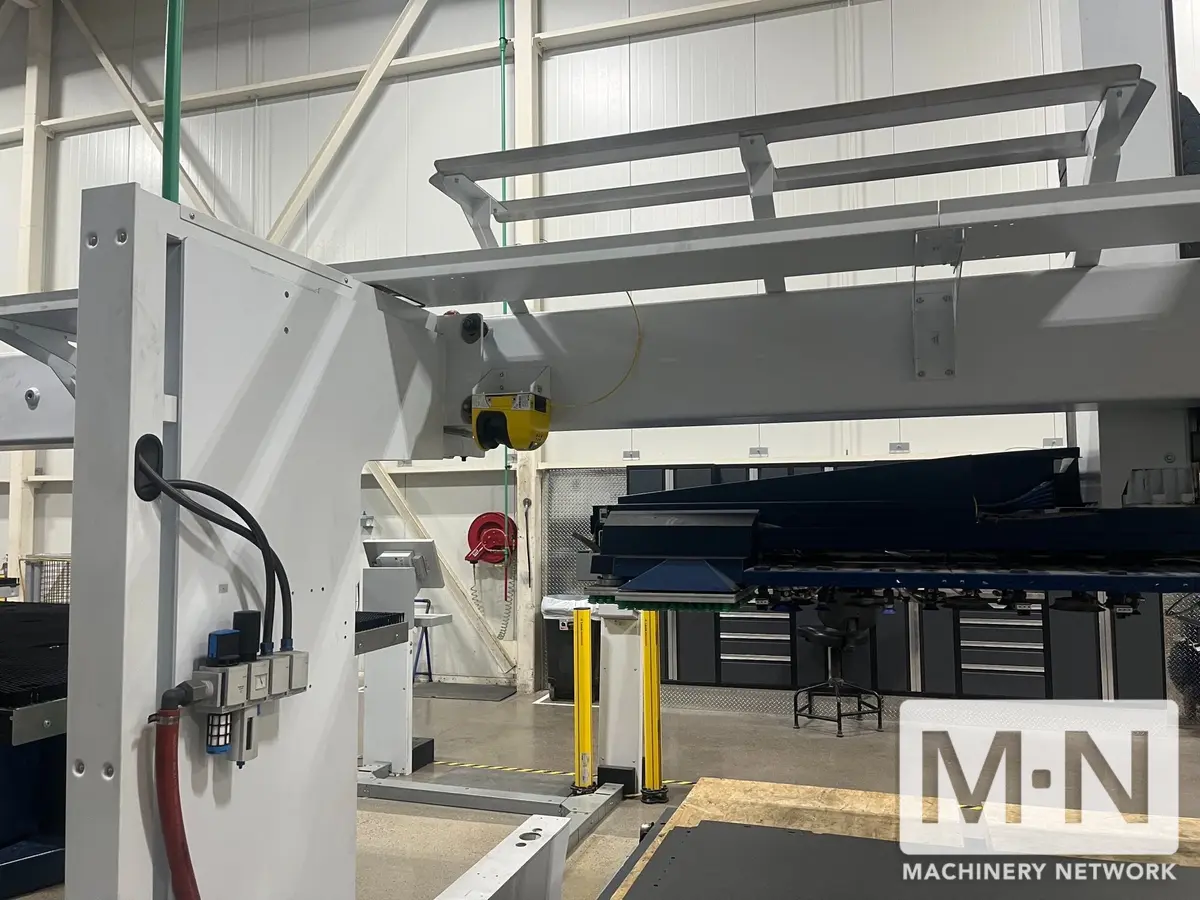

MACHINE BEING OFFERED AS STAND-ALONE UNIT OR AS COMPLETE SYSTEM, AS SEEN IN PHOTOS, CONSISTING OF TWO TRUMPF TRUPUNCH 5000s AND 8-TOWER, 229 PALLET, STOPA SYSTEM. OFFERS CONSIDERED FOR PARTIAL STOPA AS WELL.

SPECIFICATIONS:

TONNAGE 25 T
# TURRET STATIONS 21
MAX. PUNCHING FORCE: 25 TONS
CONSTRUCTION: C-FRAME
WORKING RANGE:
- X-AXIS: 120”
- Y-AXIS: 61"
MAX. SHEET THICKNESS: 0.31"
MAX. WORKPIECE WEIGHT: 617 LBS
NUMBER OF TOOLS: 21
SPEEDS:
- X-AXIS: 3,937 IPM
- Y-AXIS: 2,362 IPM
- SIMULTANEOUS: 4,567 IPM
- C-AXIS: 500 RPM
MAX. STROKE RATE:
- PUNCHING: 1,350 SPM
- MARKING: 3,000 SPM
MULTITOOL TOOL CHANGING TIME: 0.3 SEC.
PART REMOVAL:
- MAX. PART SIZE, PART REMOVAL FLAP, PUNCHING: 19.69" x 19.69"
- MAX. PART SIZE, FIXED CHUTE, PUNCHING (WITH MOVING TABLE): 3.1" x 1.97"
APPROX. DIMENSIONS: 321”(L) x 322"(W) x 82"(H)

To the best of our knowledge all details listed below are deemed correct. It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.
