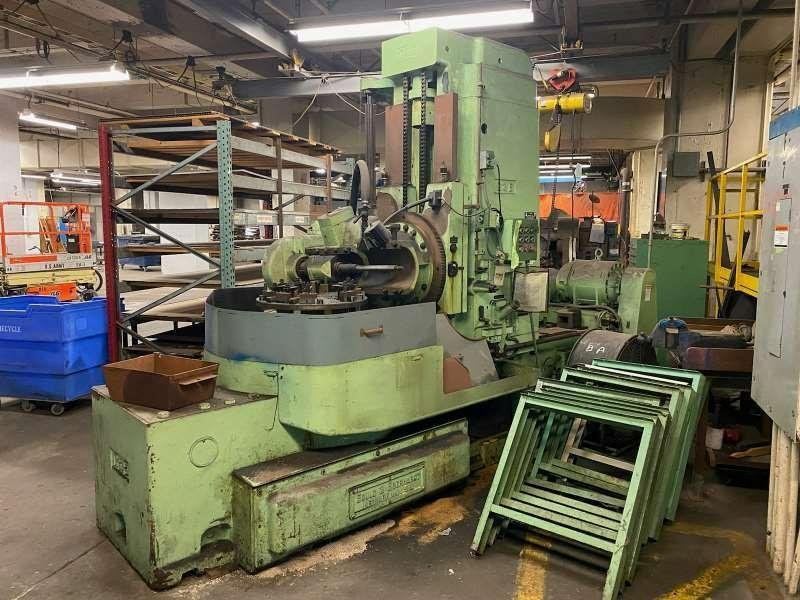

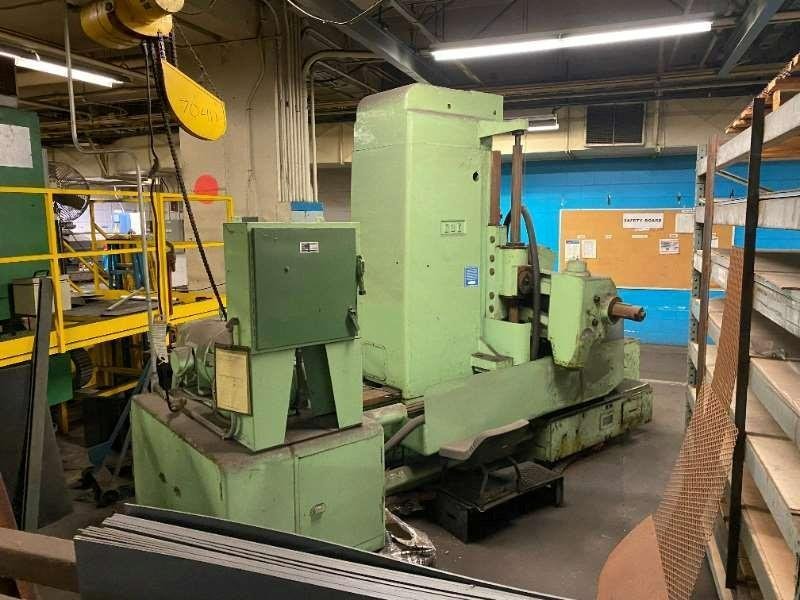

72" GOULD & EBERHARDT MODEL #72H VERTICAL GEAR HOBBER: YOBRO #25305

GOULD & EBERHARDT VERTICAL GEAR HOBBER

MODEL: 72H

90" Max workpiece Diameter
0.75" hob diameter
100 RPM speed
40" table

Specifications:

• Maximum DP in Steel: 1.5 DP
• Face Capacity Spur Pinions and Gears: 24"
• Face Capacity 45 Degree Helical Gears: 18"
• Maximum Diameter Spur Gear With Support: 48"
• Maximum Diameter Spur Gear Without Support: 90"
• Maximum Diameter Helical Gear w/o Sup (45 Degrees): 72"
• Minimum Centers Work & Hob Arbors: 4"
• Maximum Diameter Hob: 10.75"
• Diameter of Work Table: 40"
• Diameter of Index Worm Gear: 48"
• Index Range Including Primes: 15 - 100
• Index Range Excluding Primes: 100-400
• Number of Hob Speeds: 14
• Hob Speed Ranges: 6-100 RPM
• Drive Pulley: 600 RPM
• Number of Feeds: 12
• Feed Range: .03 - .200"
• Motor HP Requirements, Machine: 15 HP
• Motor HP Requirements, Traverse: 5 HP
• Motor HP Requirements, Coolant: 3/4 HP
• Approximate Dimensions: 207" x 90" x 115"
• Approximate Weight: 38,000#
