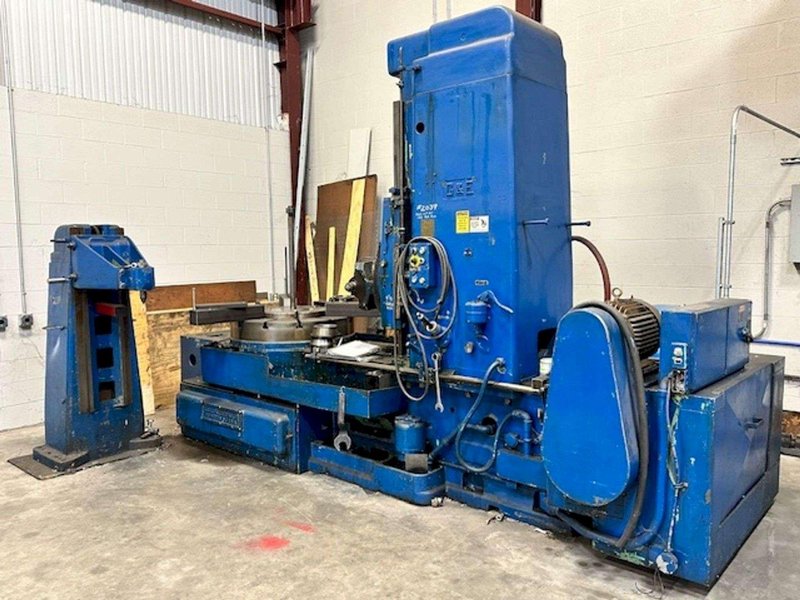

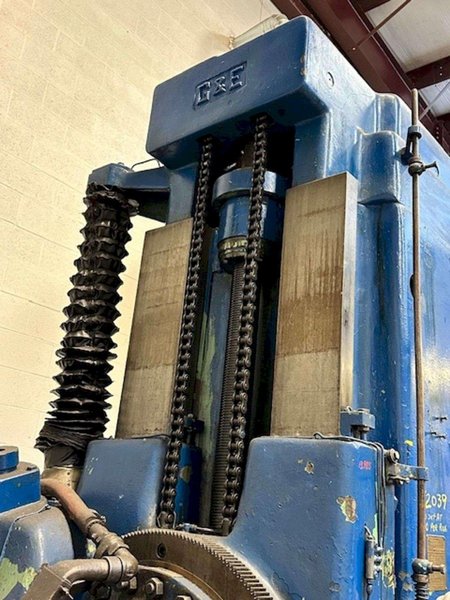

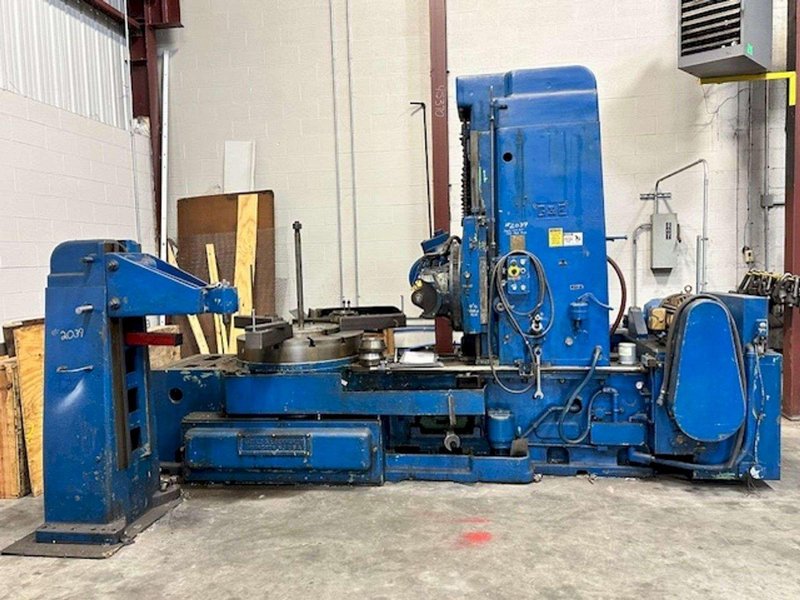

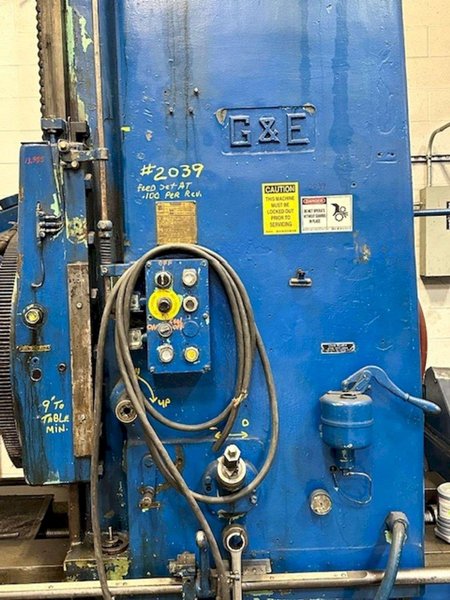

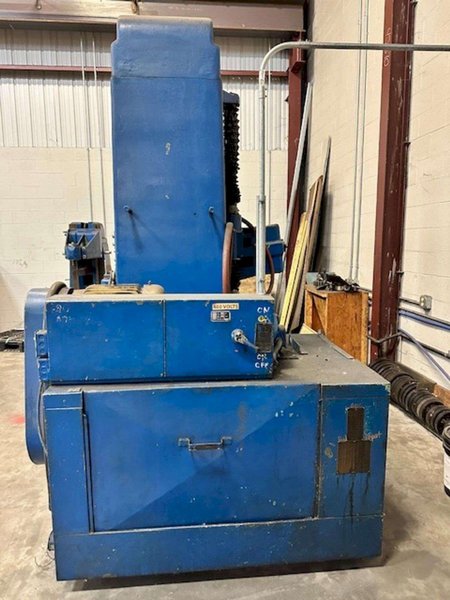

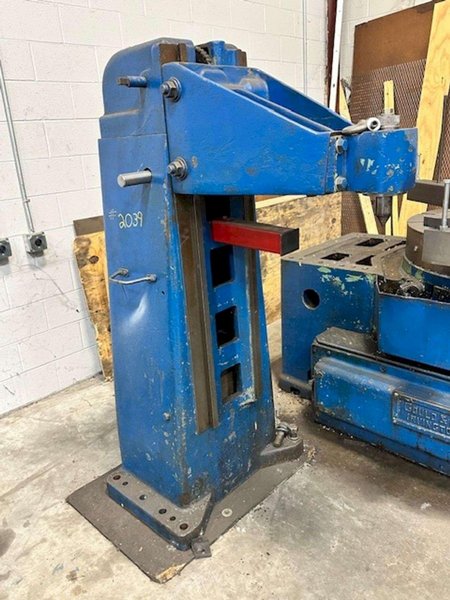

72" GOULD & EBERHARDT MODEL #72H VERTICAL GEAR HOBBER: STOCK #21263

72" GOULD & EBERHARDT MODEL #72H VERTICAL GEAR HOBBER: STOCK #21263

Name: 72" GOULD & EBERHARDT MODEL #72H VERTICAL GEAR HOBBER: STOCK #21263

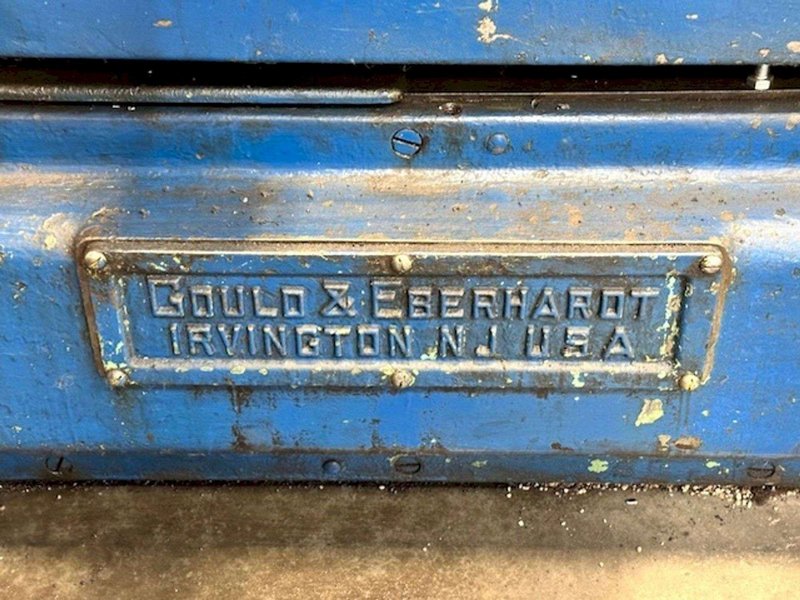

Brand: GOULD & EBERHARDT
SKU: 21263
Availability: PreOrder

Brand

GOULD & EBERHARDT

Location

Ohio

REQUEST FINANCING

Specifications
Files & Videos

Model 72H

MAXIMUM WORKPIECE DIAMETER 72"

HORZ/VERT Vert

MAXIMUM DIAMETRAL PITCH 1

MODULE 25.4

AXIAL TRAVEL 30"

MAXIMUM HOB DIAMETER 10.75"

HOB ARBOR SIZE 1.5"

HOB SPEED 100 RPM

TABLE DIAMETER 40"

TABLE HOLE DIAMETER 10"

CONTROL MANUFACTURER Conventional

Maximum DP in Steel: 1. DP

Face Capacity: 30"

Maximum Diameter Spur Gear With Support: 48"

Maximum Diameter Spur Gear Without Support: 80"

Maximum Diameter Helical Gear w/o Sup (45 Degrees): 78"

Minimum Centers Work & Hob Arbors: 3"

Maximum Diameter Hob: 10.75"

Diameter of Work Table: 40"

Diameter of Index Worm Gear: 48"

Hob Speed Ranges: 6 - 100 RPM

Feed Range: .03 - .200"

Main Motor: 15 HP

Approximate Dimensions: 90" x 207"

Approximate Weight: 38,000#

EQUIPPED WITH:

Differential

Infeed

Change Gears

Hob Arbor

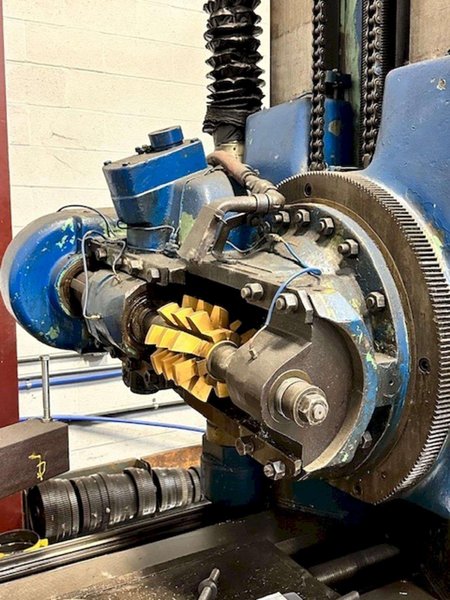

Heavy Duty Worm Hob Drive

Tailstock W/Center

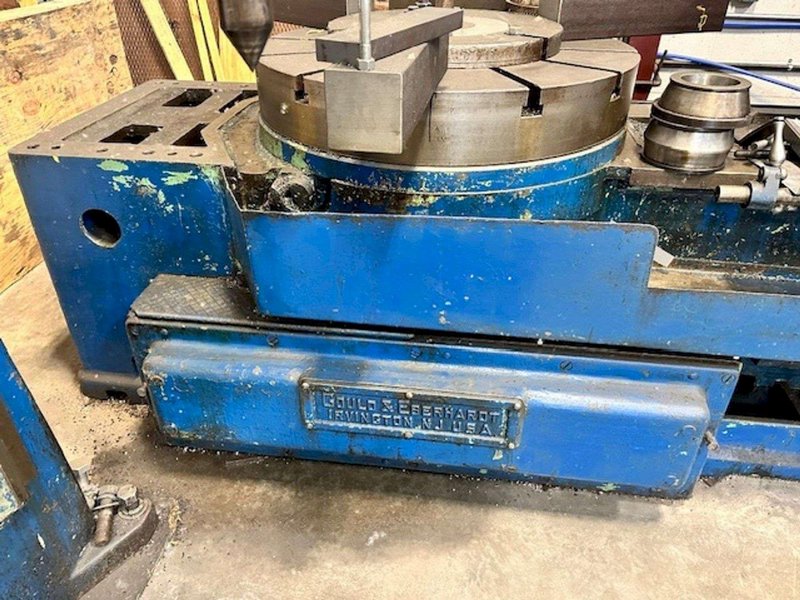

40" T-Slotted Table

Coolant Pump

Lube

Watch https://youtu.be/ryvgL6XvcTk
