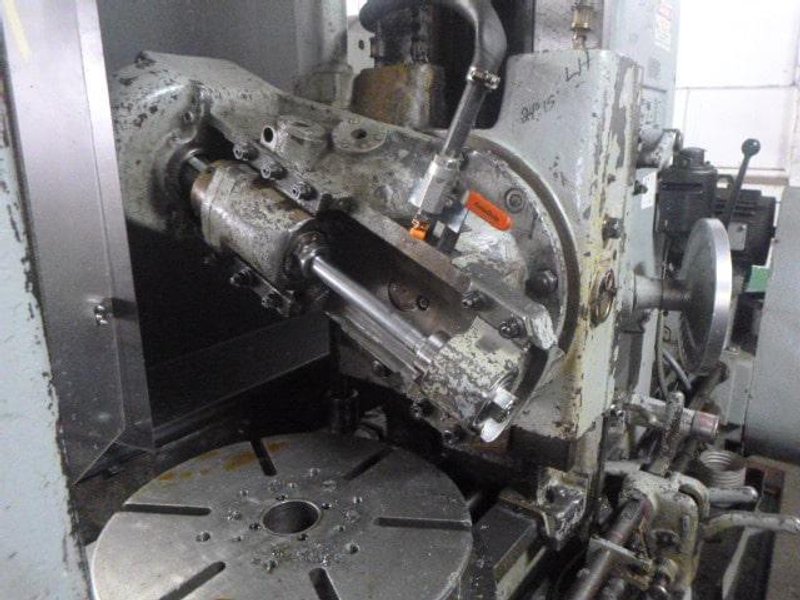

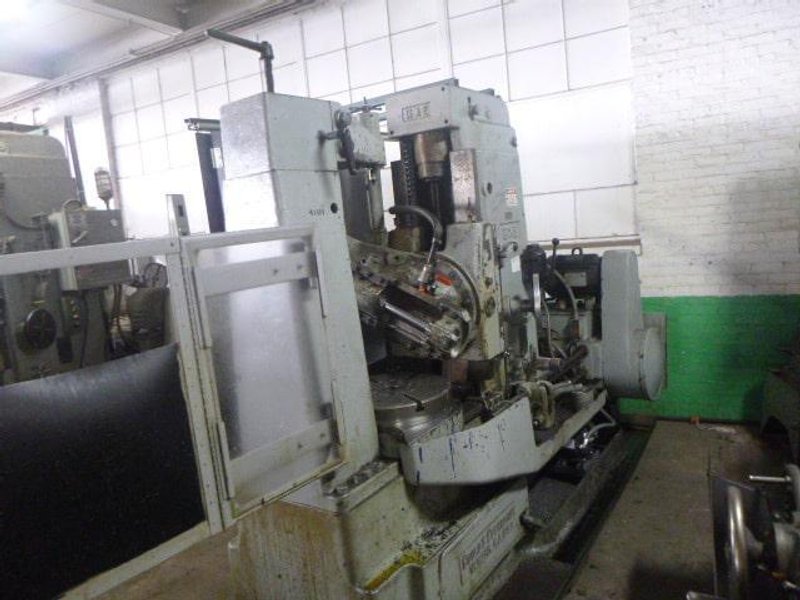

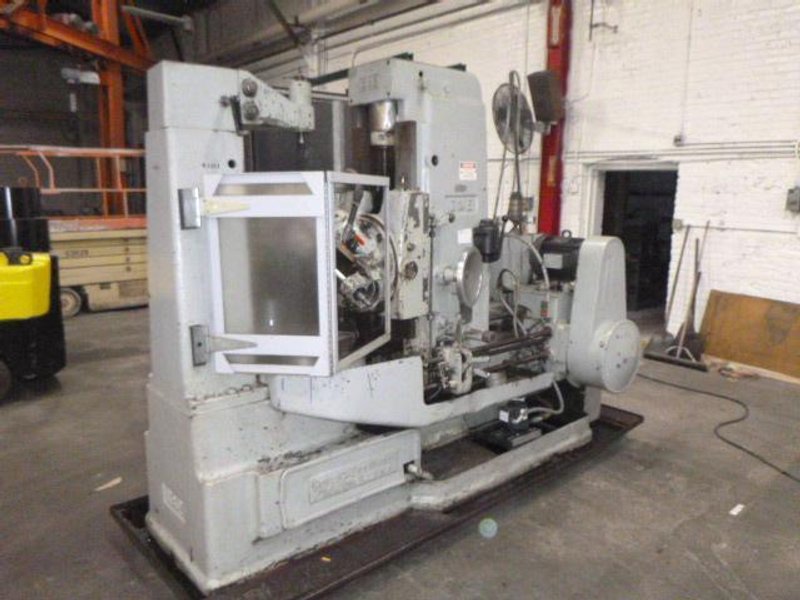

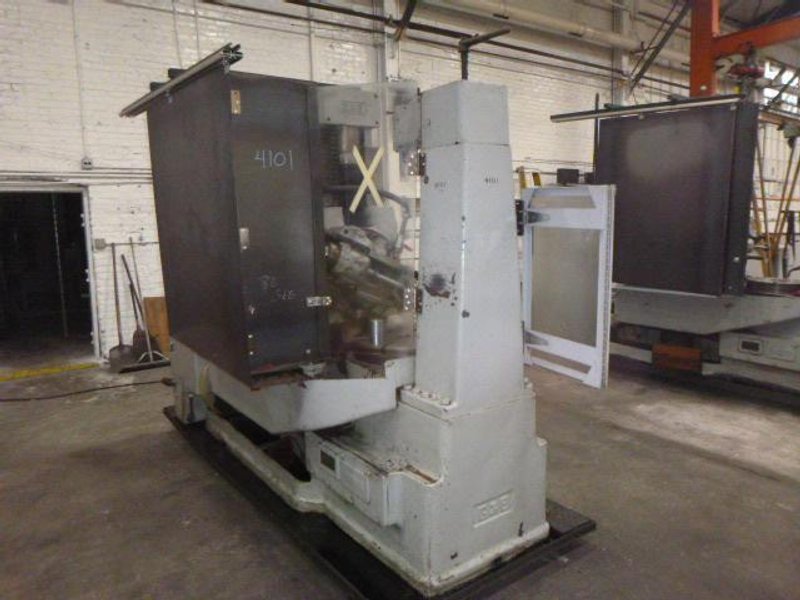

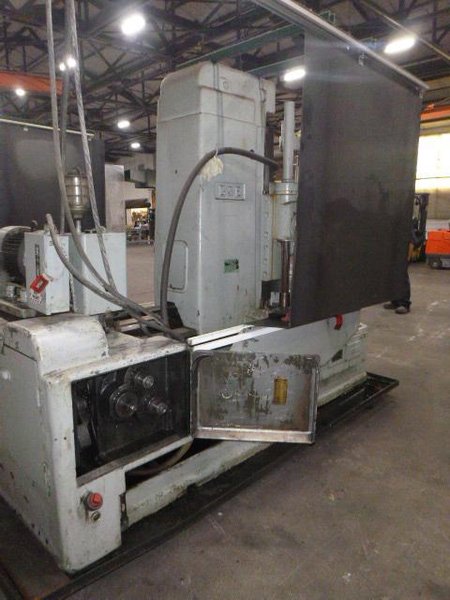

Gould & Eberhardt Model 36H Universal Vertical Gear Hobber
Brand
Category
Type
Model
36H
Stock #
GH36HAX
Year
Not specified
Condition
Used
Location
Illinois
| Rated Pitch In Steel, Maximum | 3 DP |
| Face Capacity-Spur | 15” |
| Face Capacity-45° Helical Gear | 12” |
| Max. Diameter Spur Gear-w/o Support | 36” |
| Max. Diameter Spur Gear W/Support | 24” |
| Max Diameter 45° Helical Gear | 36” |
| Hob Diameter, Max | 7” |
| Work Table Diameter | 24” |
| Index Worm Gear Diameter | 24” |
| Index Range (Per Catalog)-Including Primes | 15-100 |
| Index Range (Per Catalog)-Excluding Primes | 100-400 |

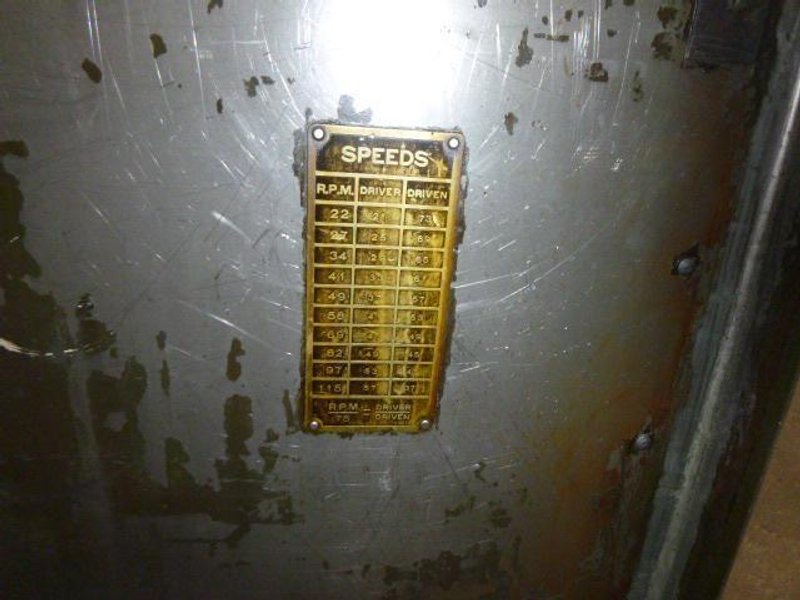

| Hob Speeds (12) | 30-175 RPM |
| Overall Dimensions (Approx.) | 131" x 82" x 90" Height |
| Weight (Est.) | 14,000 lbs. |
|
EQUIPPED WITH:

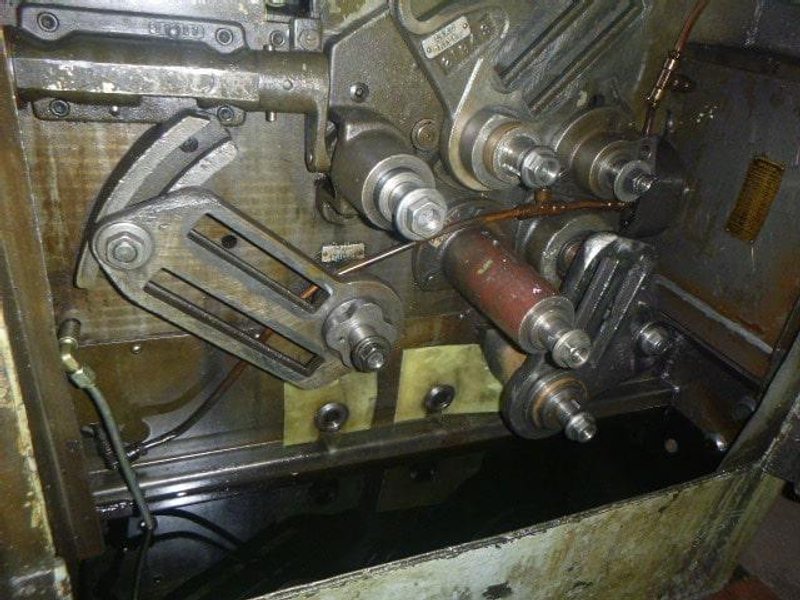

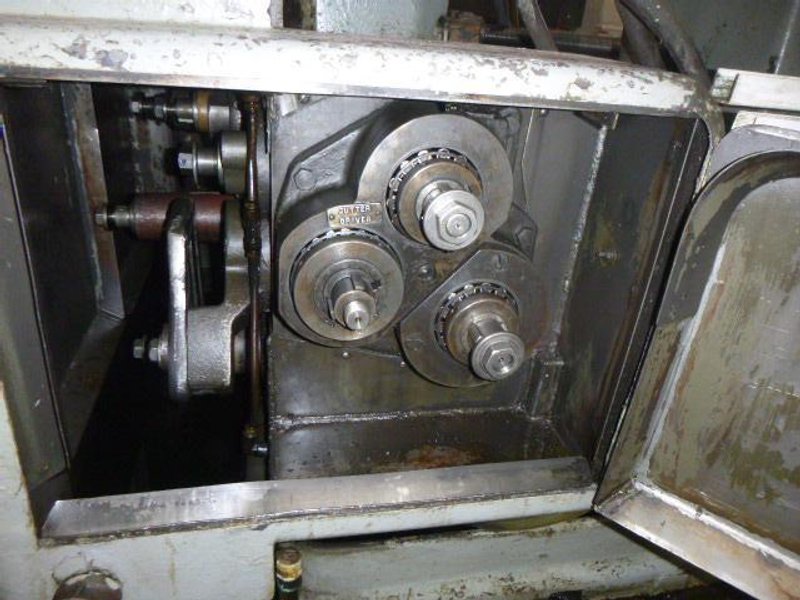

Differential. Standard Swivel Hob-Head. Single Thread Index Worm. Power Rapid Traverse. Auto Infeed. Outboard Support Column w/Tailstock. Climb & Conventional Hobbing Capability. Change Gears in Machine. Coolant System. |
|
