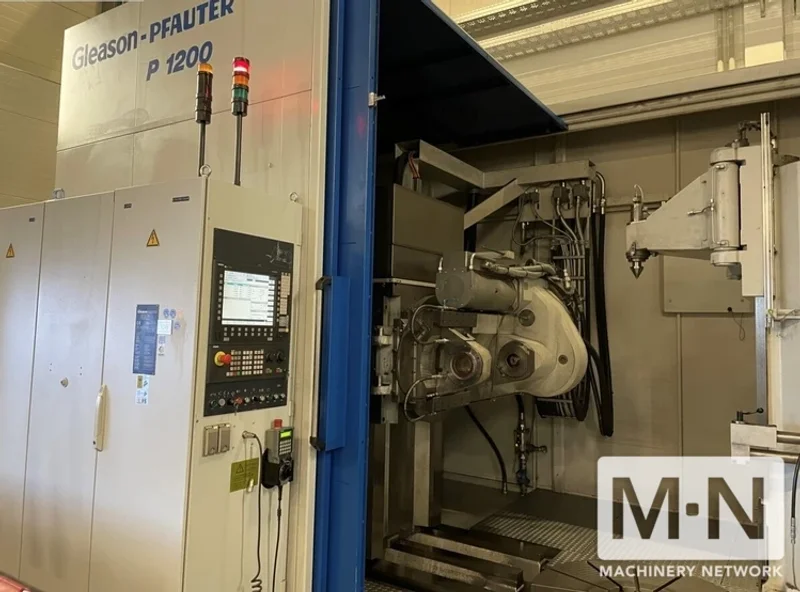

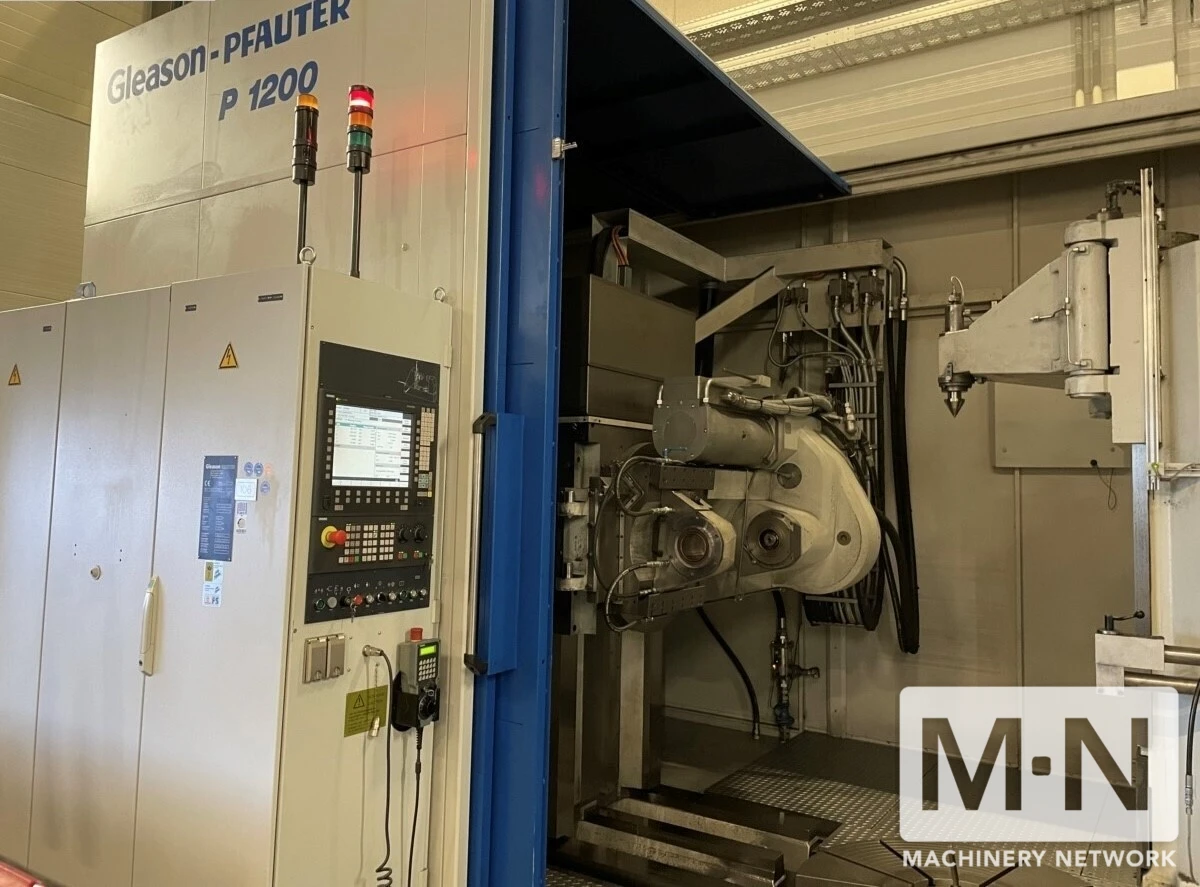

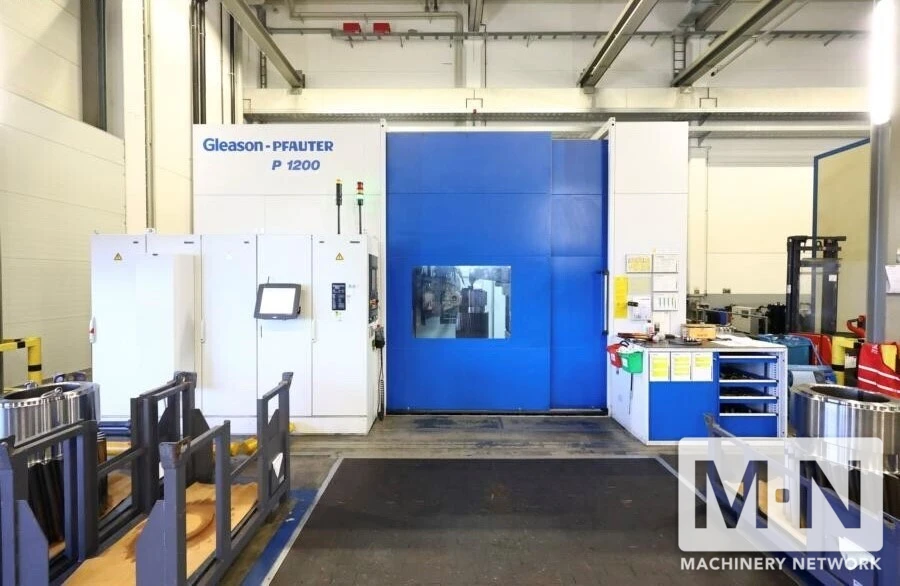

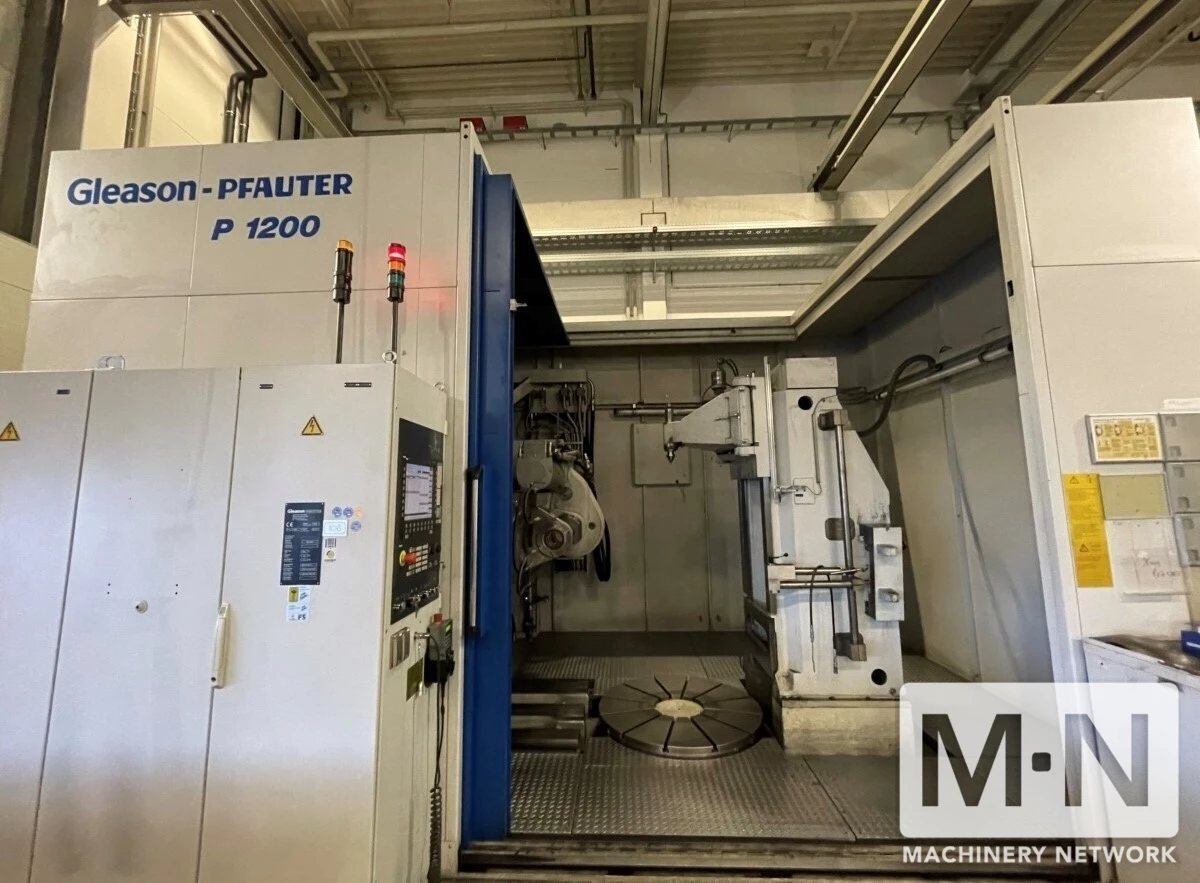

Name: Gleason Pfauter P1200 CNC Vertical Gear Hobber, 2008
Brand: GLEASON PFAUTER
SKU: 2008
Availability: InStock

Brand

GLEASON PFAUTER

Location

Not specified

Specifications
Files & Videos

Overview

Type:

GEAR HOBBERS, VERTICAL

Manufacturer:

GLEASON PFAUTER

Model:

P1200

Year:

2008

Stock #:

51017

Status:

For Sale

Max. Wheel Diameter: 1200 mm
Gear Width: 1000 mm
Max. Module: 25/36
Min. Module: 1
Control: Siemens 840 D
Table Load: 15 ton
Total Power Requirement: 75 kW
Weight of the Machine: 24 ton
Dimensions of the Machine: 6,5x4x3,75 m
Smallest/largest distance between milling cutter and workpiece axis 100 / 750 mm
Largest axial slide path 1,000 mm (special design)
Largest clampable hob cutter - Ø 450 mm
Length 500 mm
Swiveling range of the milling head + 30/- 45o
Cutter arbour taper HSK-B160 (hollow shank taper according to DIN 69063)
Largest milling cutter movement 450 mm

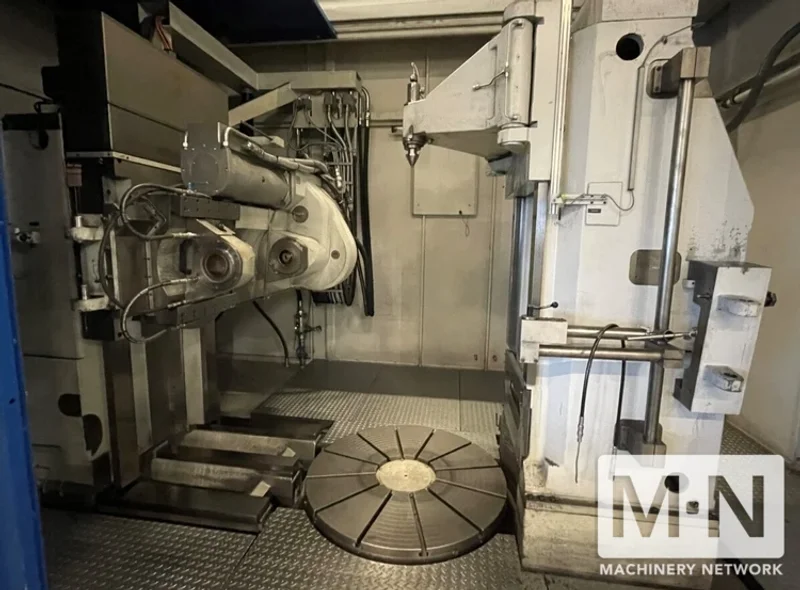

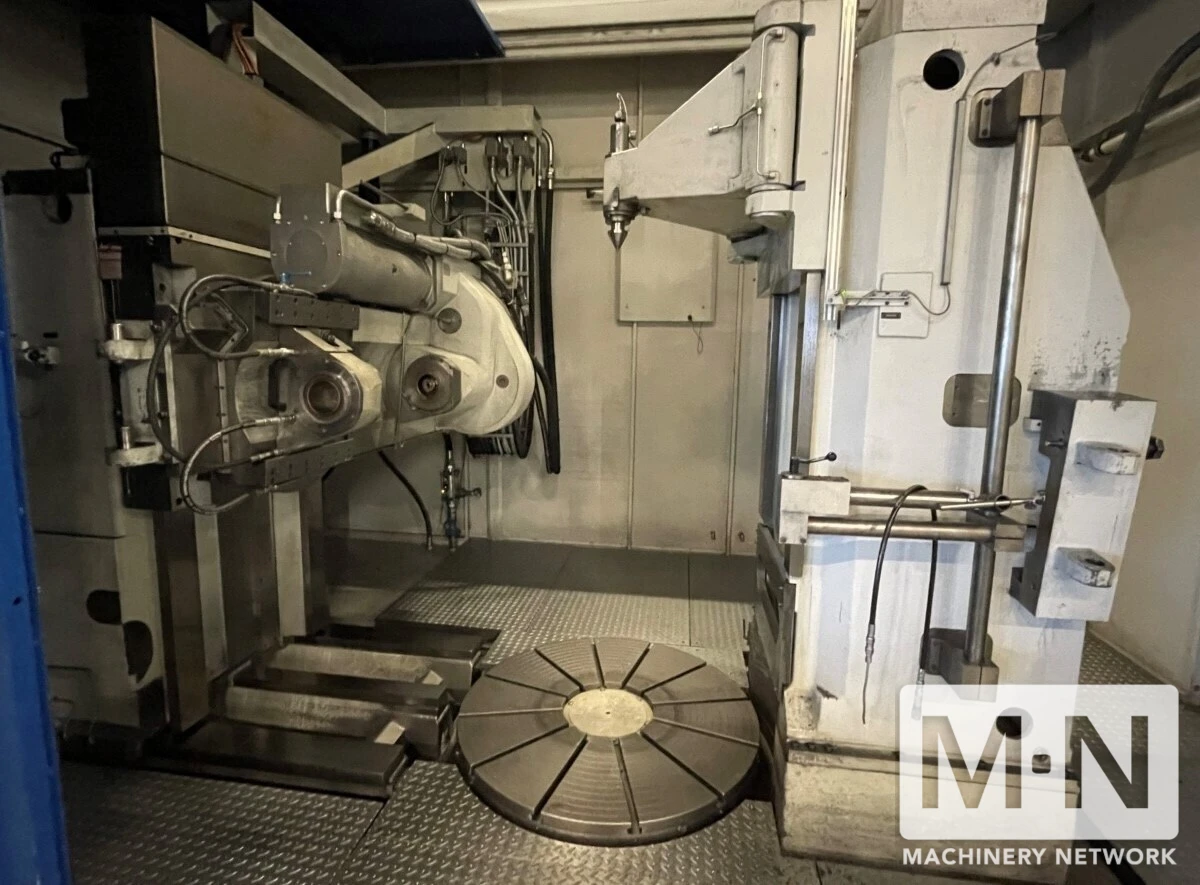

Table diameter 1,200 mm
Table bore - Ø 300 mm
Depth 875 mm
Maximum table load approx 15,000 kg

Working Range & Technical Data:
Nominal workpiece diameter 1,200 mm

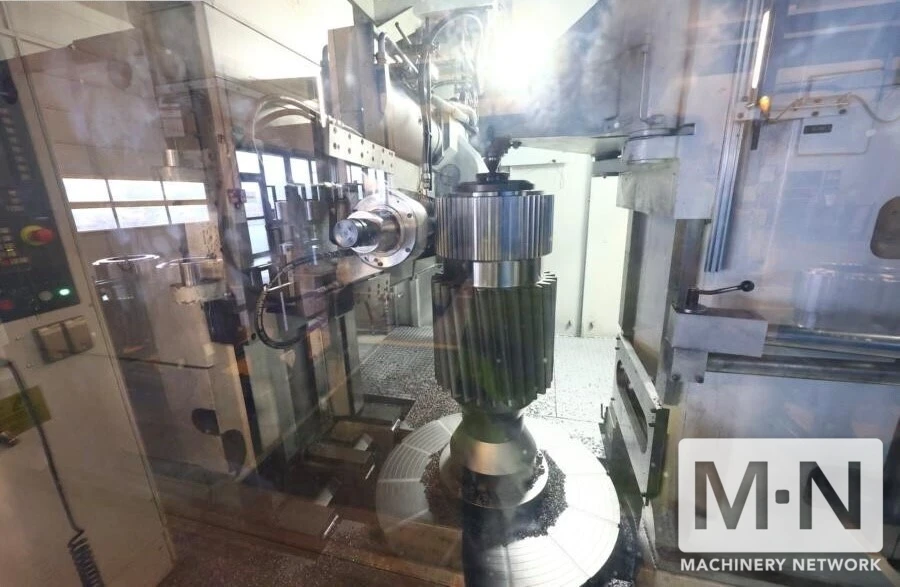

Gear hobbing approx25 mm
Tooth moulding approx 35 mm

Workpiece:
Module max. 25 mm (in steel, 600N/mm2)
Module profile milling max. 35 mm
Ø max. 1,200 mm

Roll Milling Cutter:
Head circle Ø max. 450 mm
length max. 500 mm
Carriage paths: X/Y/Z- 800 / 450 / 1,000 mm
Milling head swivelling angle +A/-A-30/15 degrees
Hydraulic unit, made by Parker

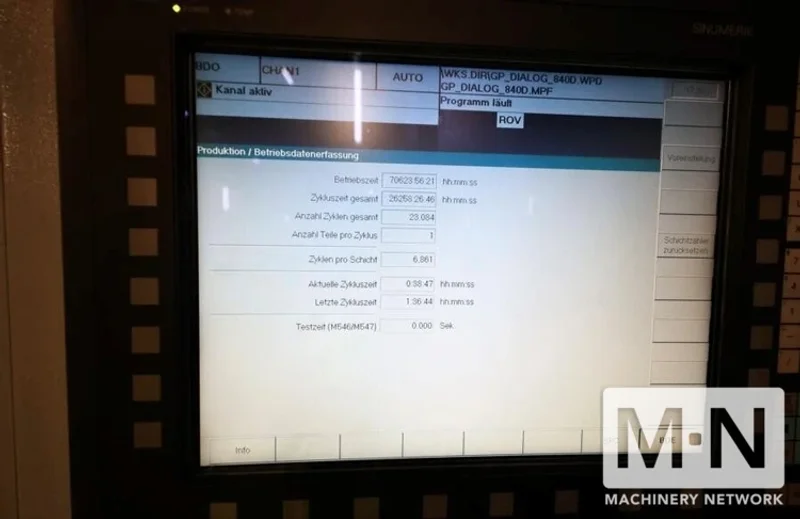

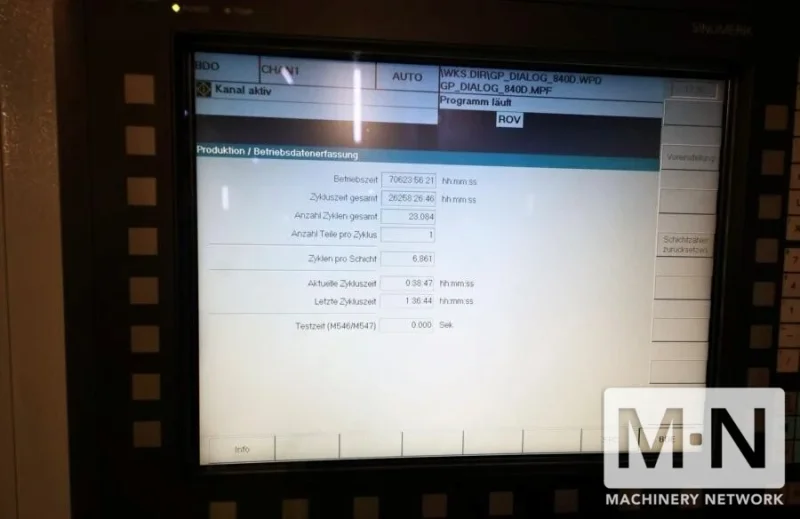

Siemens 840D PowerLine (XP)
Motorized milling head M3
Special speed series motorized milling head M3
Chip scraper conveyor
Special chip separator
Extended software for fault diagnosis
Main stand - raised 1000mm
2 x fume separator make "3nine" type EMMA
Set of adjusting wedges
Dialogue program "Milling in single-part process"
Switching the machine (dry/wet)
Counterholder tip - travelling
Magnetic roller
Clamping upper part - complete
Clamping device - complete
Signal light (3-coloured)
Telephone diagnosis system
Swiveling counter bearing holder
Monitoring devices
Warm-up program
Network connection (Ethernet)
Dialogue program "Saving shifting data"
Dialogue program "Saving damaged areas"
19" flat control panel OP 015A
Rinsing gun
Special software Free travelling counterholder
Intermediate plate 300 mm for raising the counter support position
Milling arbor 40 mm diameter changed to milling arbor 60 mm
BDE/MDE interface in the machine control cabinet
Oil separation systems 3nine System EMMA
