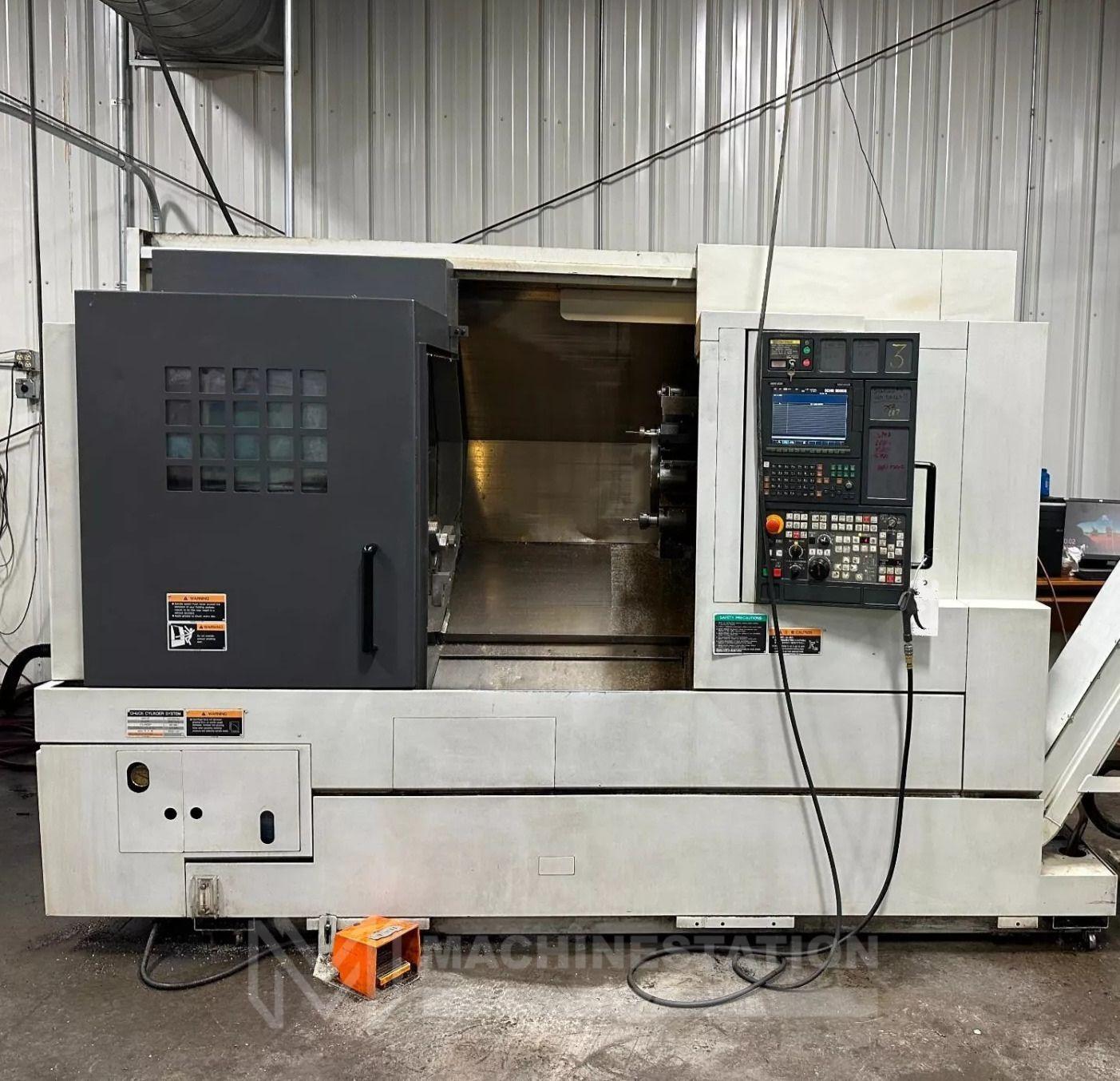

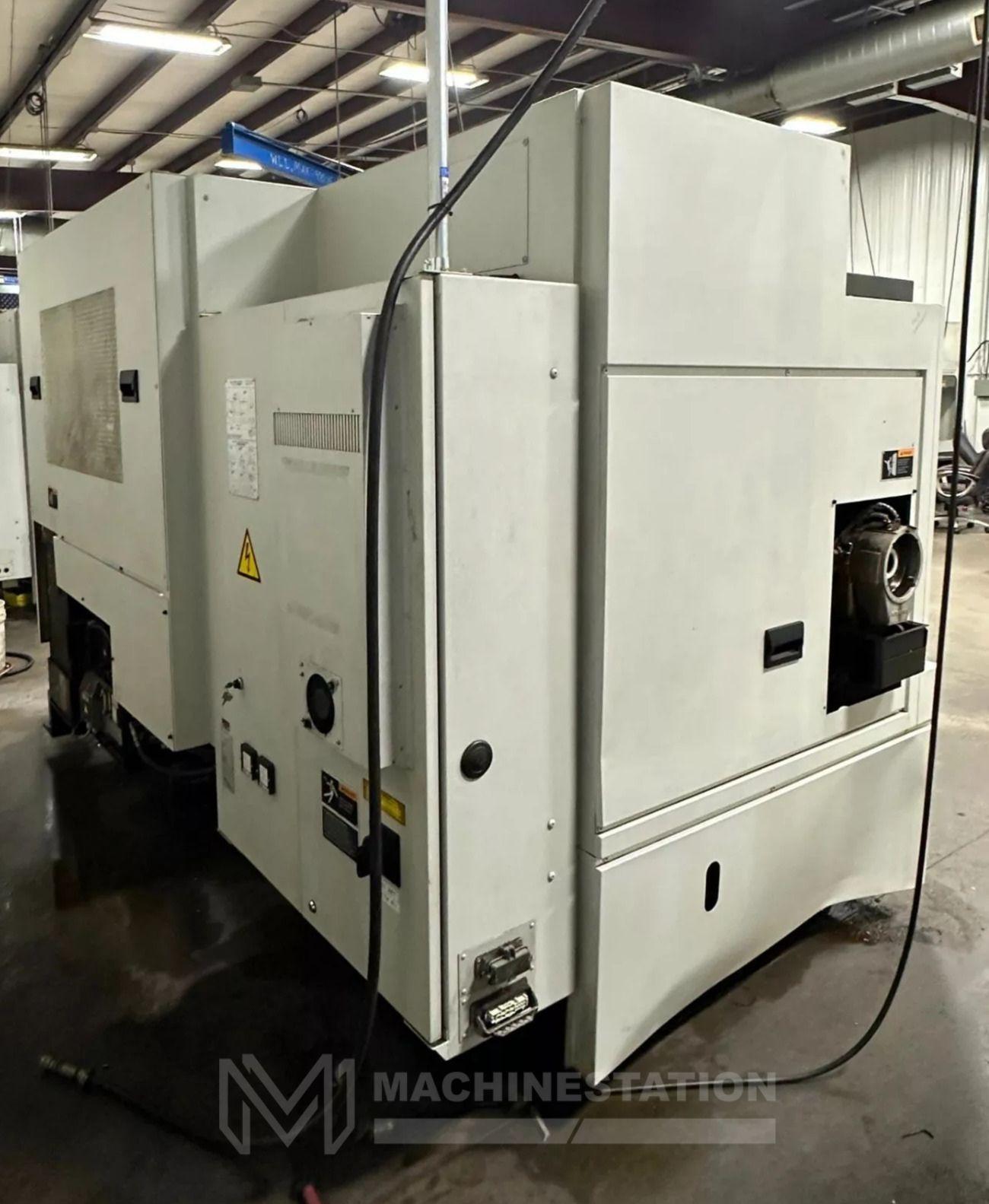

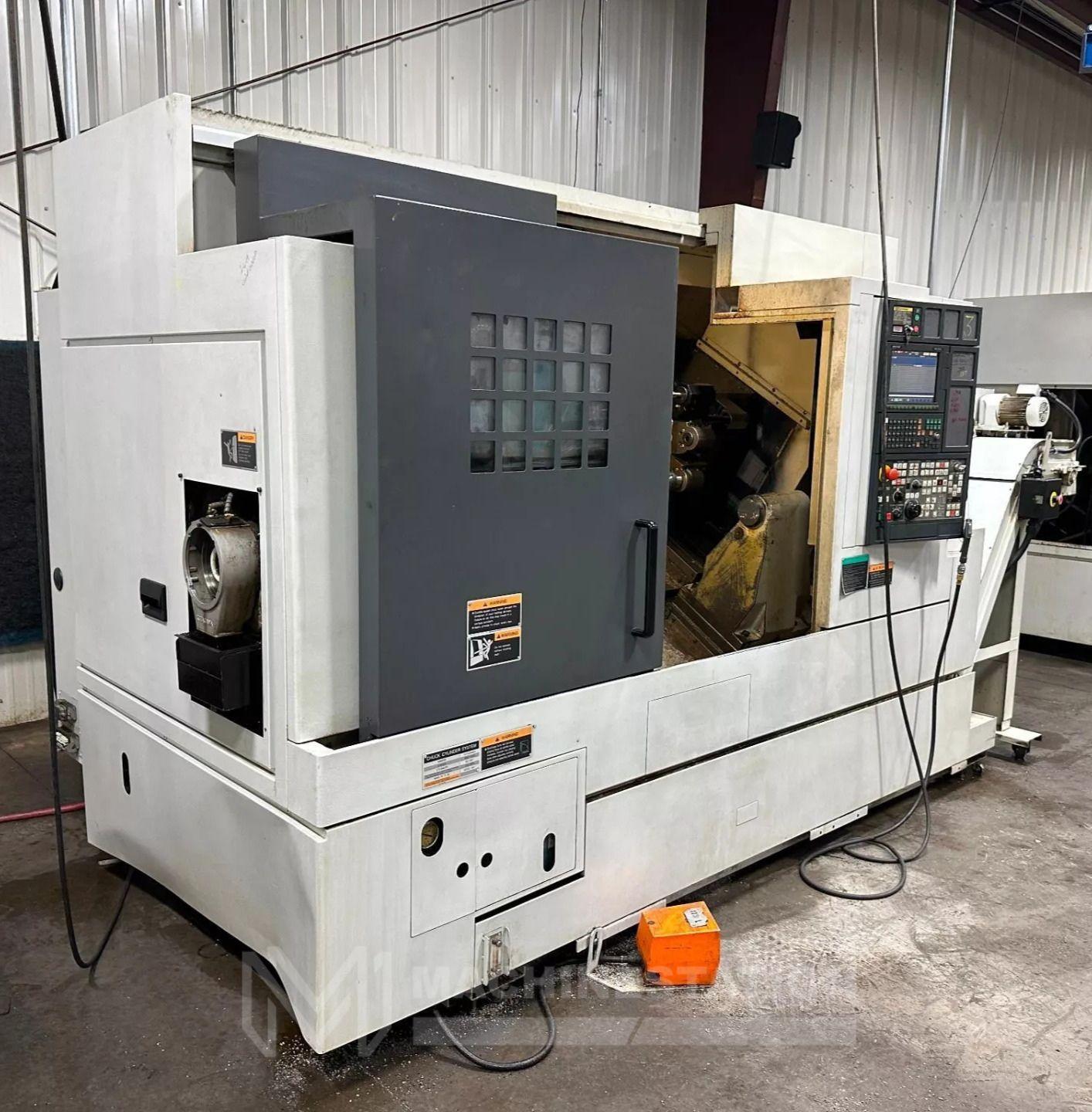

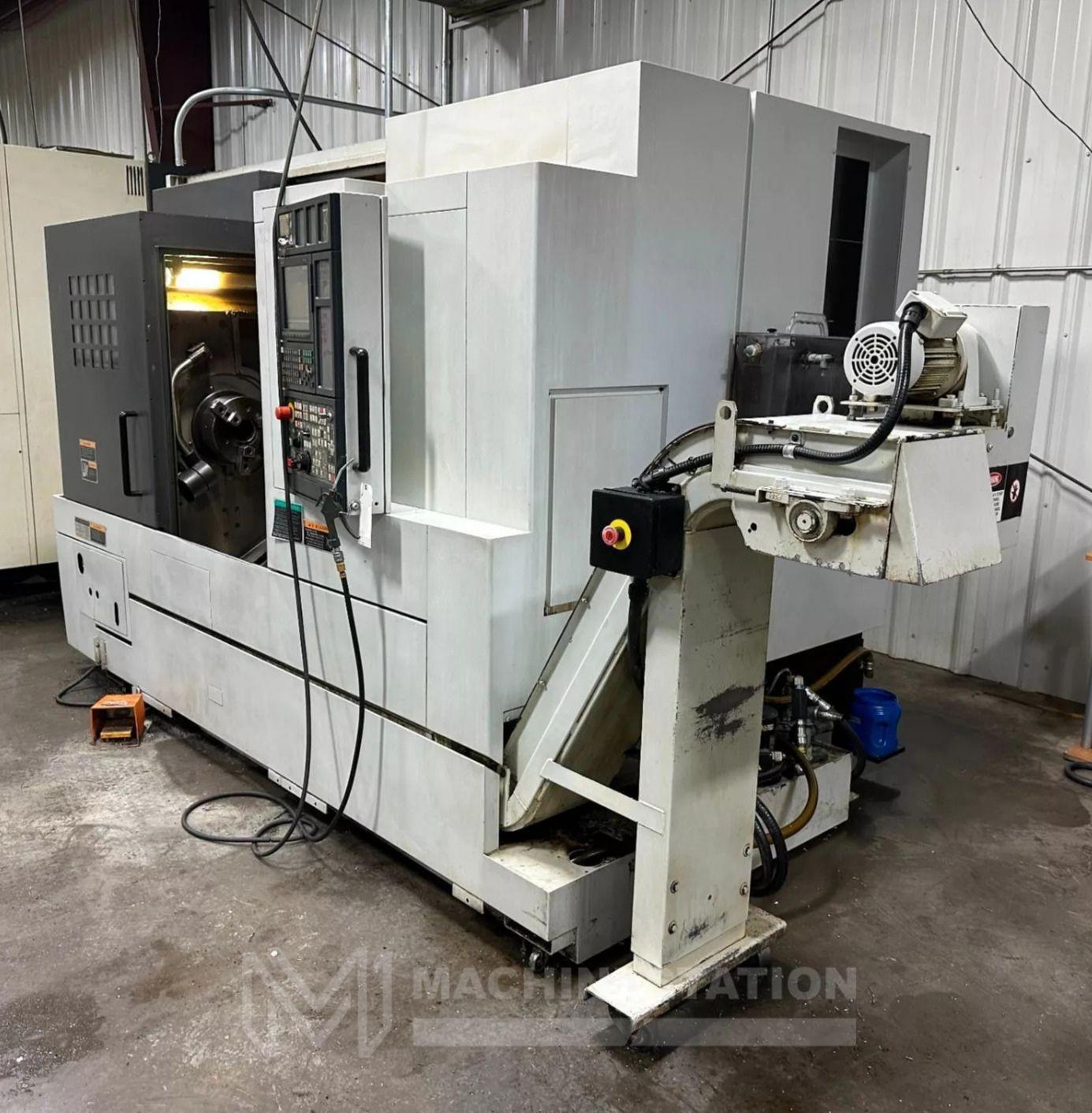

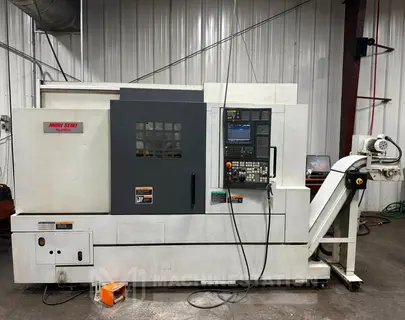

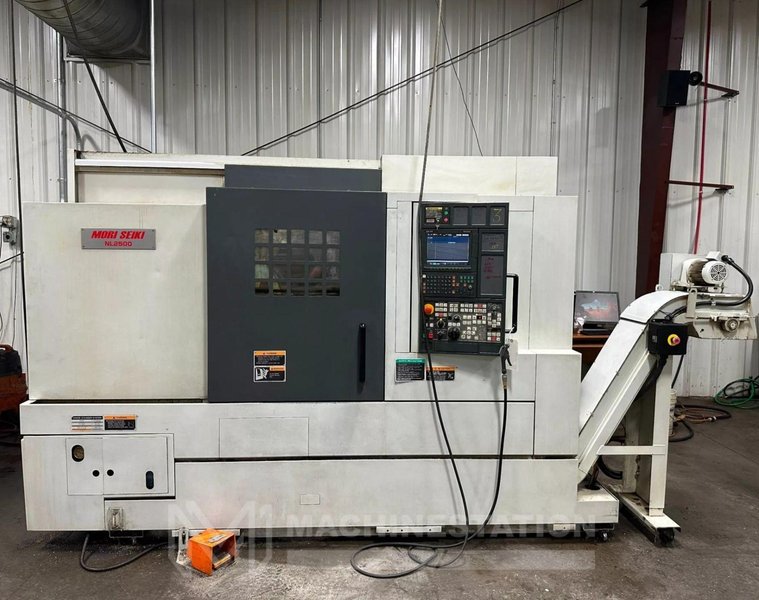

Mori Seiki NL2500MC/700 CNC Turning Center – 10″ Chuck, C Axis Live Tooling Lathe

Brand
Not specified
Category
Lathes & Turning Machines
Type
Turning Centers
Model
Mori Seiki NL2500MC/700
Stock #
113619
Year
2008
Condition
Not specified

Location

California
REQUEST FINANCING

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Make: Mori Seiki
Model: NL2500MC/700
Year: 2008
Condition: Used – Good
Equipped With:

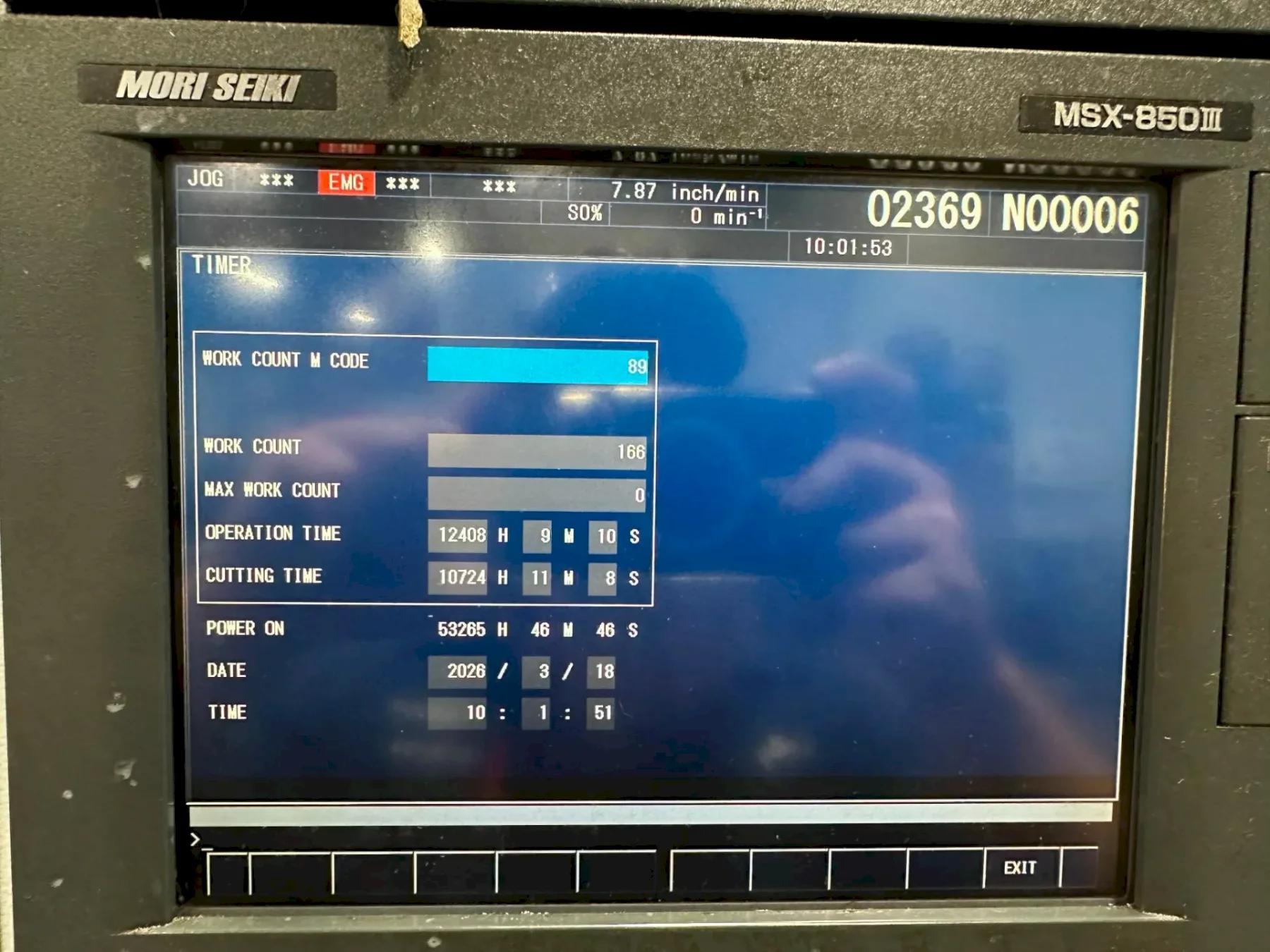

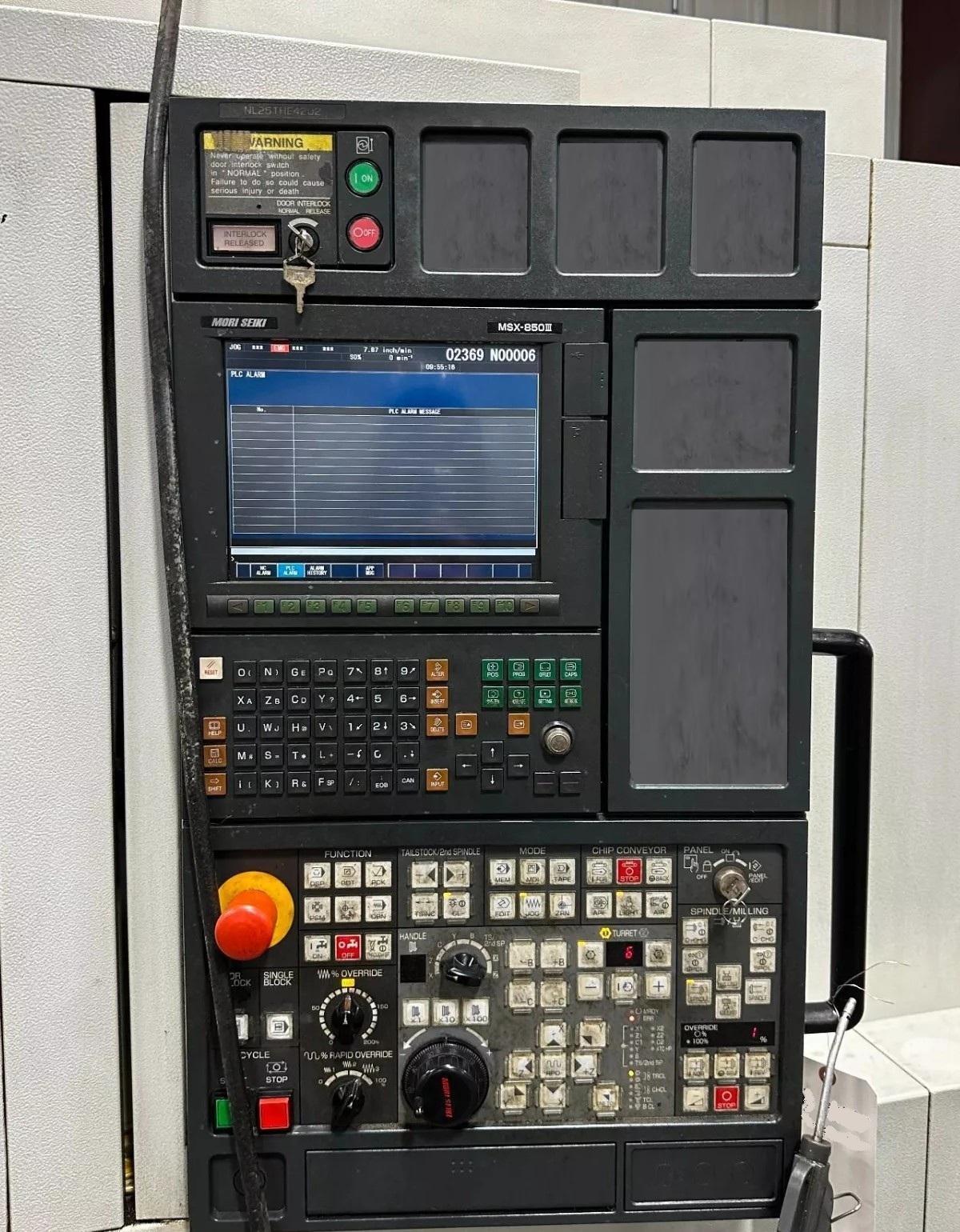

Mori Seiki MSX-850III CNC Control
Heavy Duty Box Way Construction

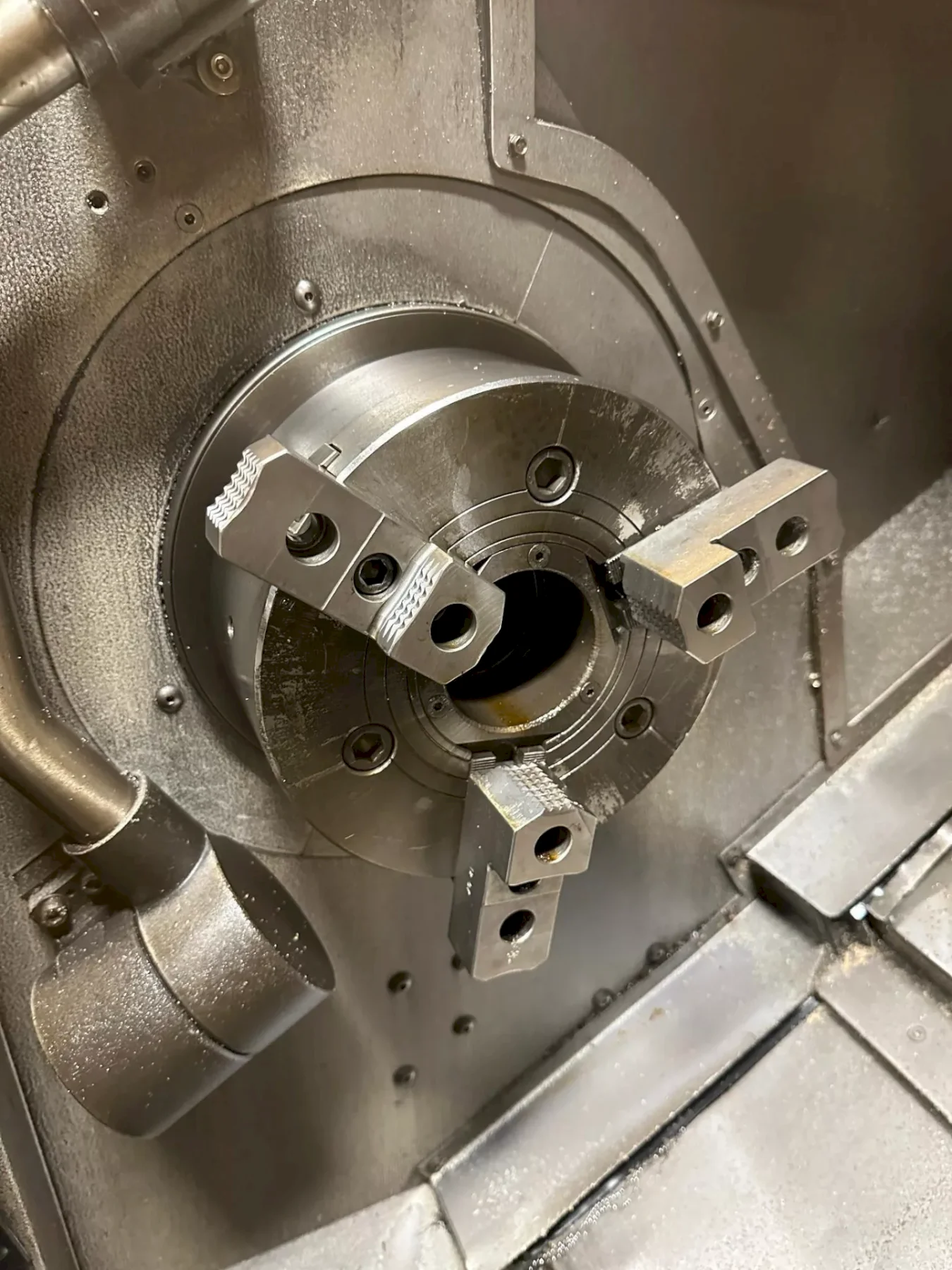

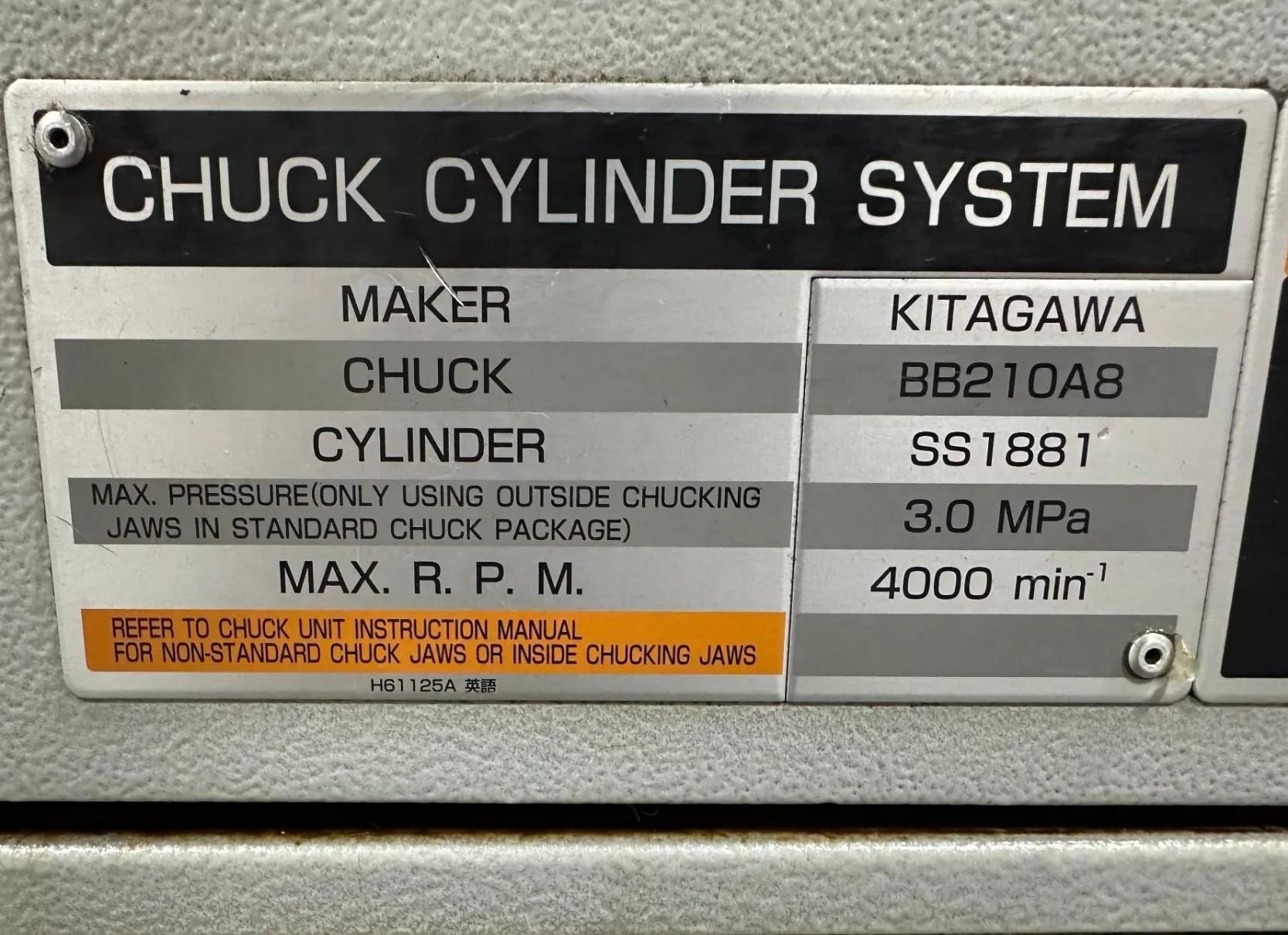

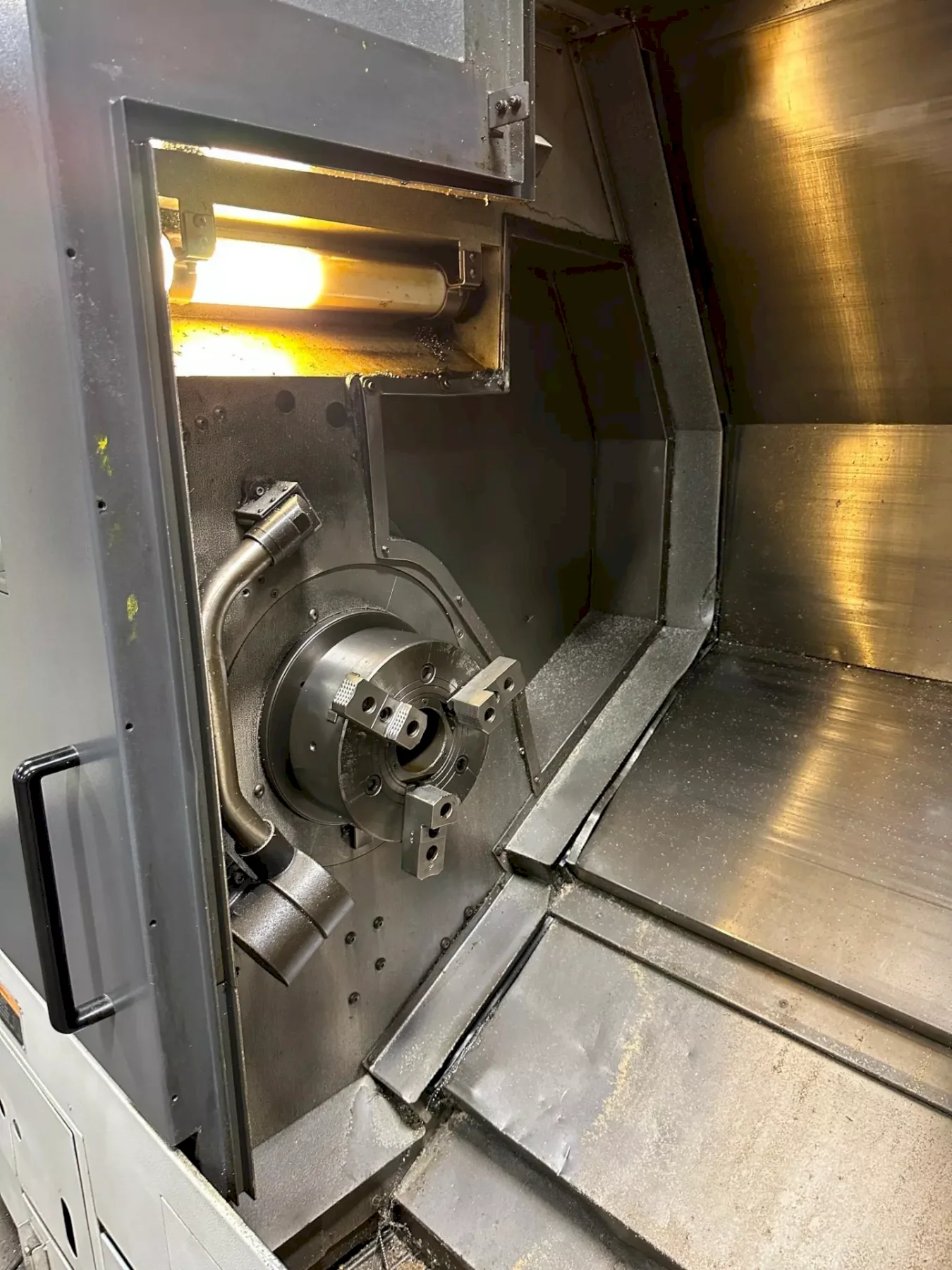

10″ 3-Jaw Kitagawa BB210 Hydraulic Chuck
Servo Controlled Full C Axis On Spindle
A2-8 Spindle Nose, 4000 RPM Spindle

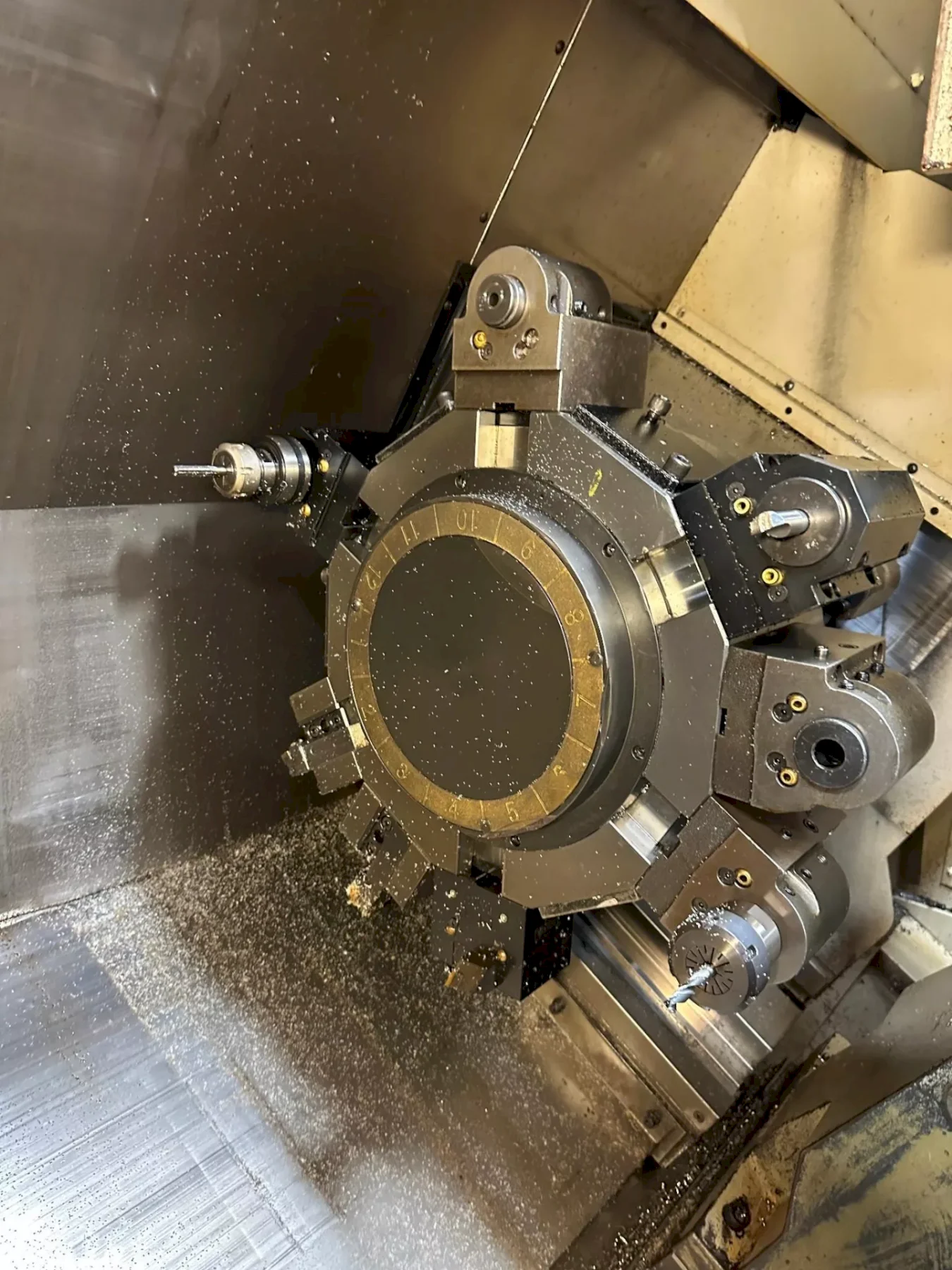

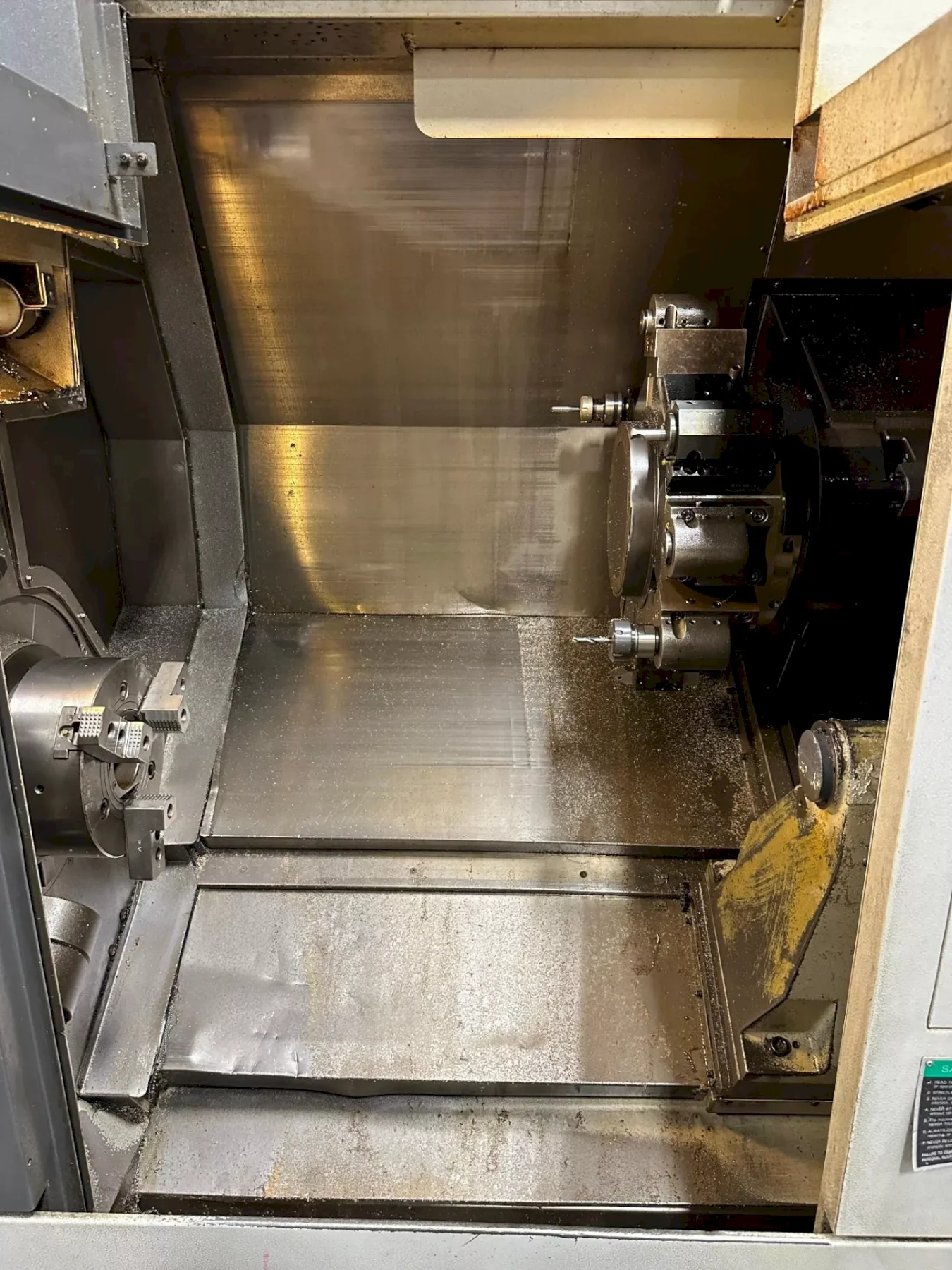

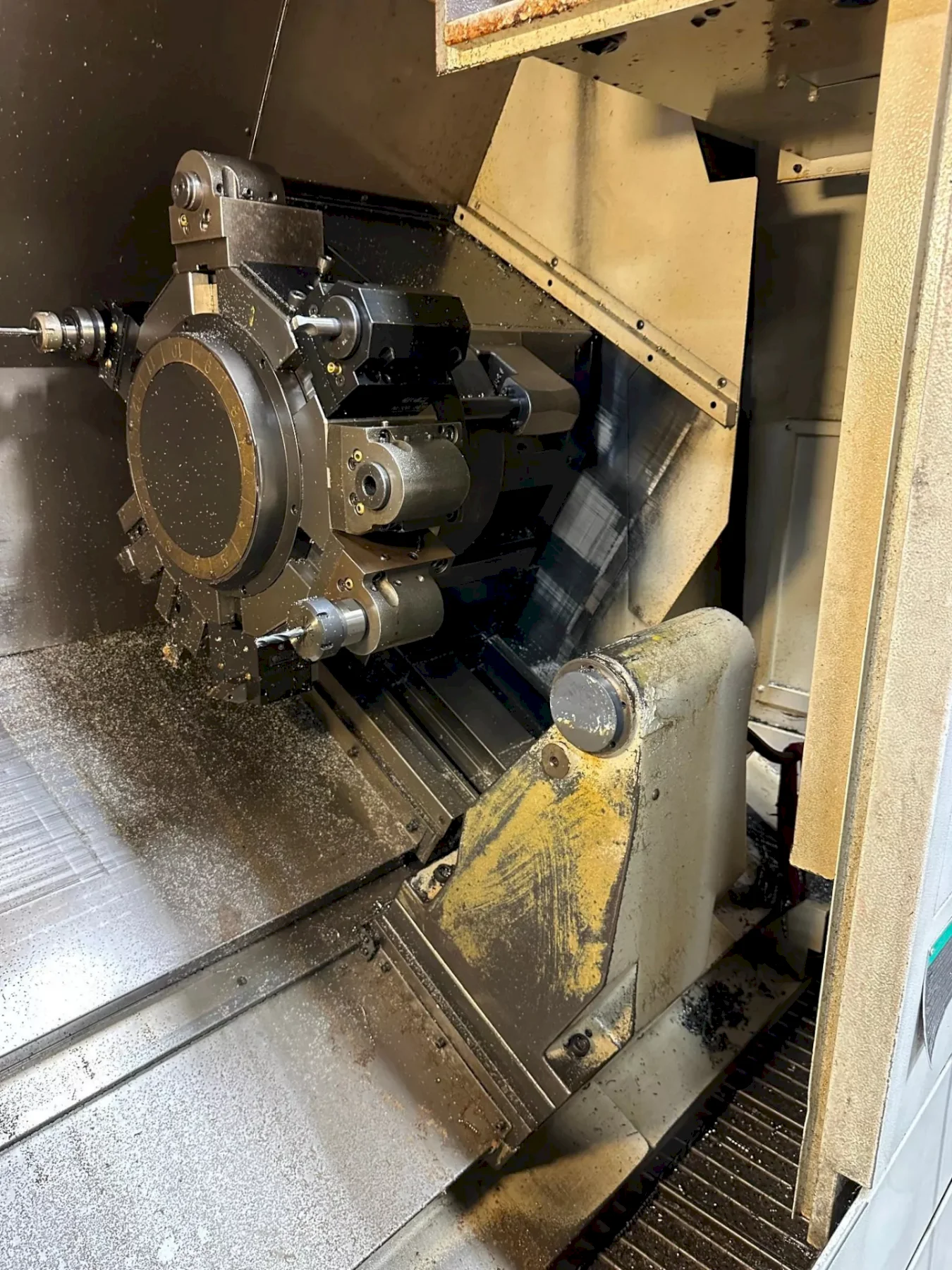

12 Station Live Tool Turret
Tool Presetter
Tailstock
Rigid Tapping
Coolant System

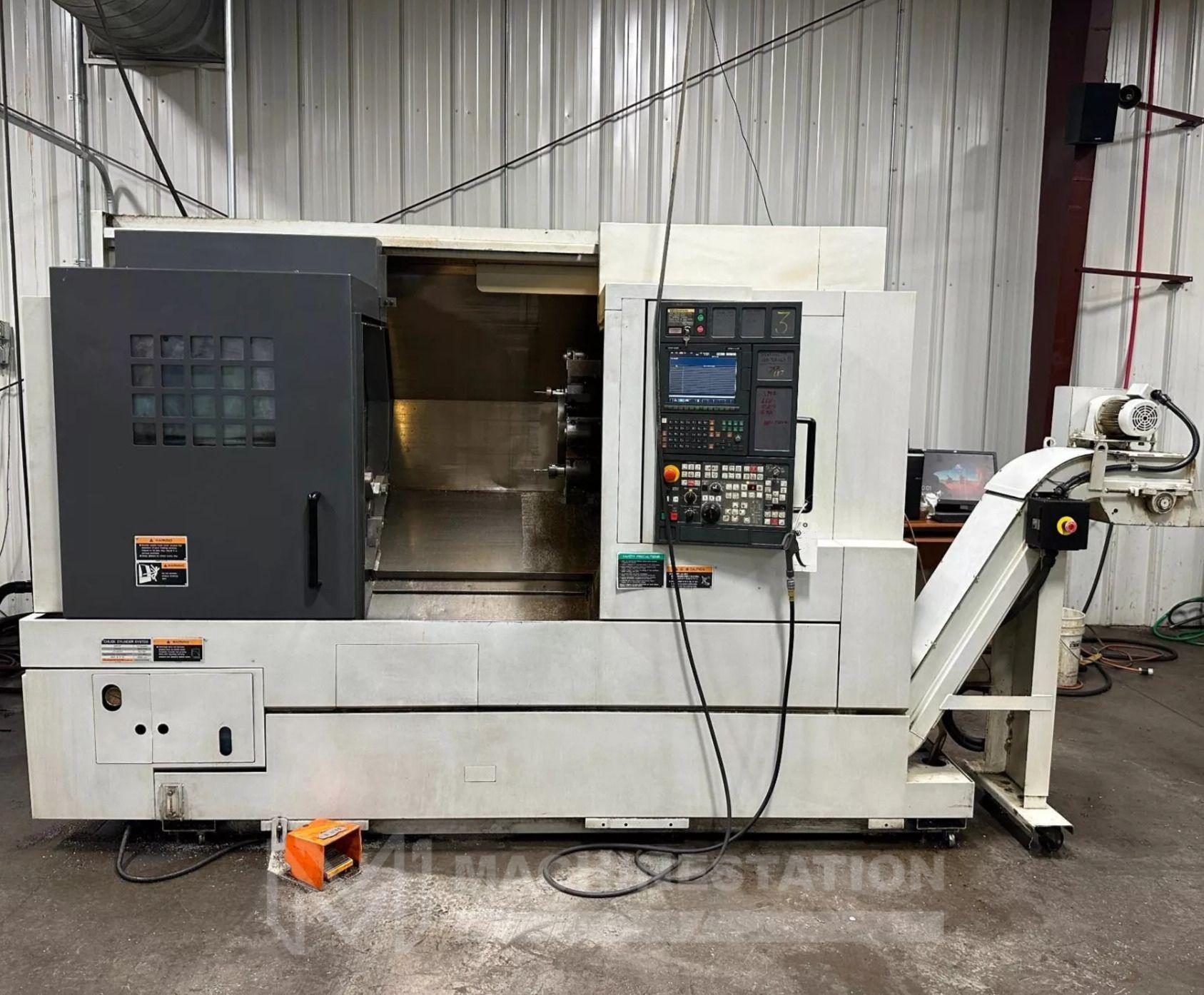

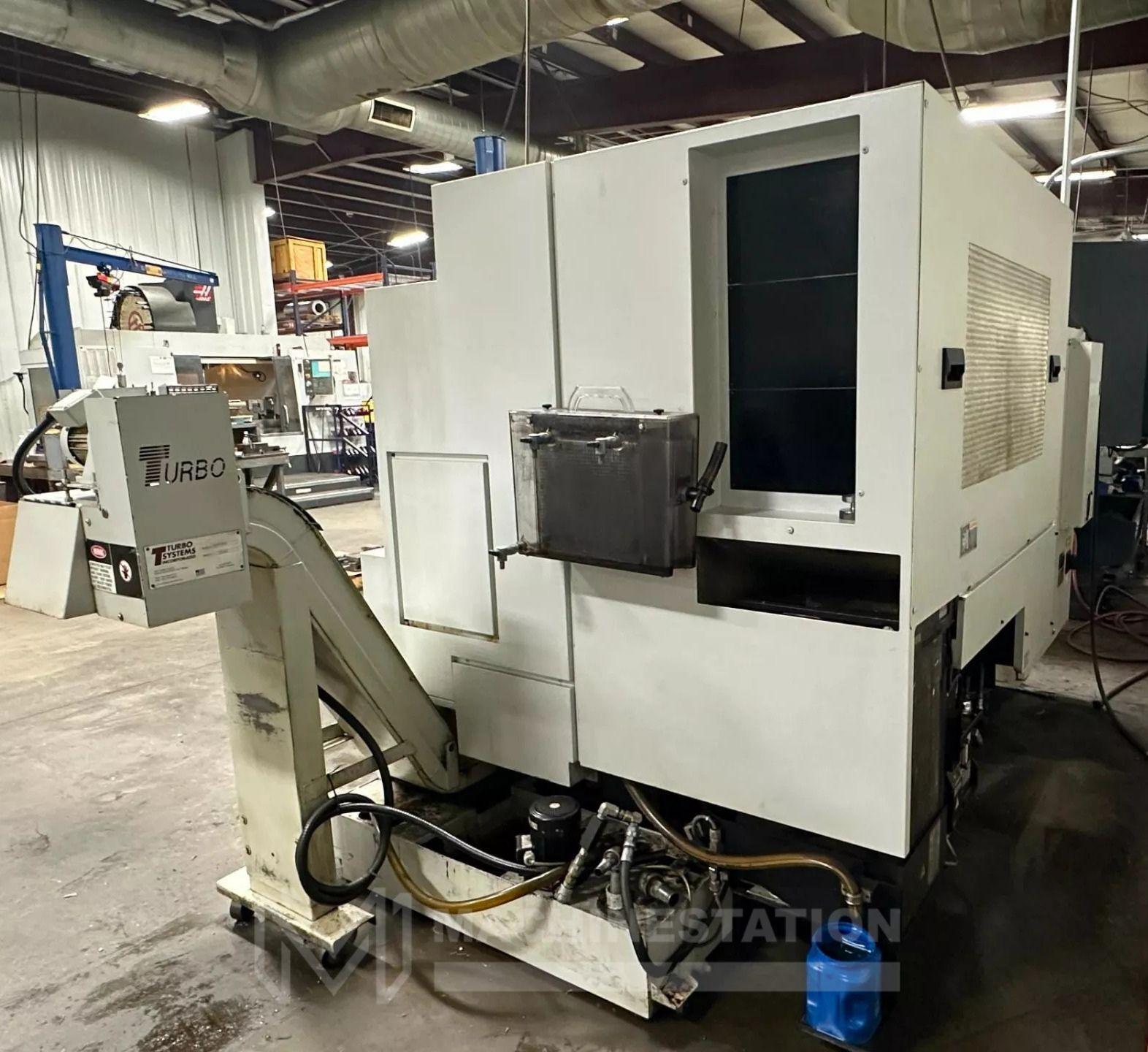

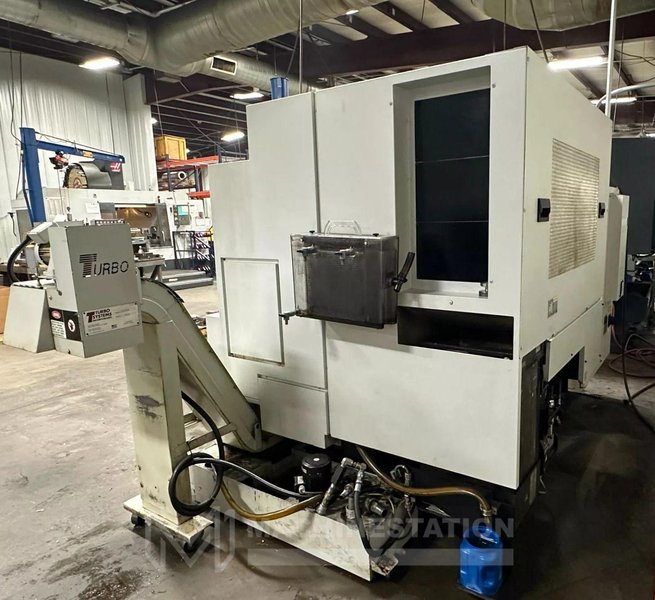

Chip Conveyor
Foot Switch
Note: Tool holders mounted on the turret are not included with the machine
Capacity:
Max Turning Diameter: 14.0″
Max Turning Length: 27.7″
Swing Over Cross Slide: 29.7″
Max Bar Capacity: 3.1″
Travels:
X Axis Travel: 10.2″
Z Axis Travel: 31.3″
C Axis: 360 Degree (0.001)
Rapid Traverse Rate X & Z Axis: 1181 IPM
Spindle:
Spindle Nose: A2-8
Spindle Bore: 3.6″
Spindle Speed: 4000 RPM
Spindle Motor: 25 HP
Turret:
Turret Capacity: 12 Stations
Turret Index Time: 0.25 Second
Rotary Tool Speed: 6000 RPM
Rotary Tool Motor: 7.5 HP
Tool Holders Type: Bolt Mounted
Tailstock:
Tailstock Tapper: MT-5
Tailstock Body Travel: 28.9″
Tailstock Quill Diameter: 3.1″
General:
Power Source: AC 220 V Three Phase 60 Hz
Power Requirement: 34 kva
Overall Dimensions: 122″ x 76 ″ x 83″ High Apporx.
Weight : 13,000 lbs Approx.

Tags:DMG, DMG MORI, DMG Mori Seiki
