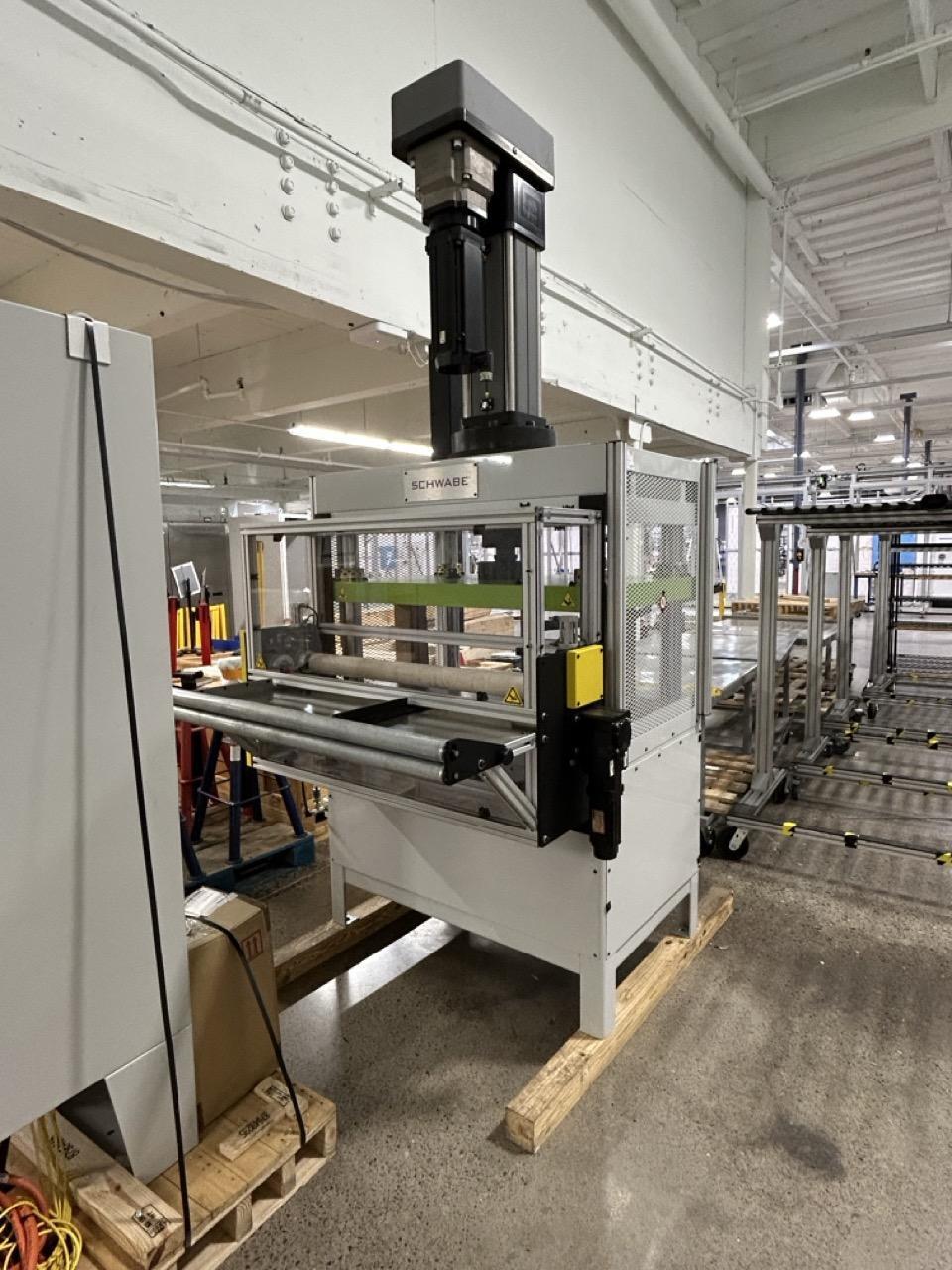

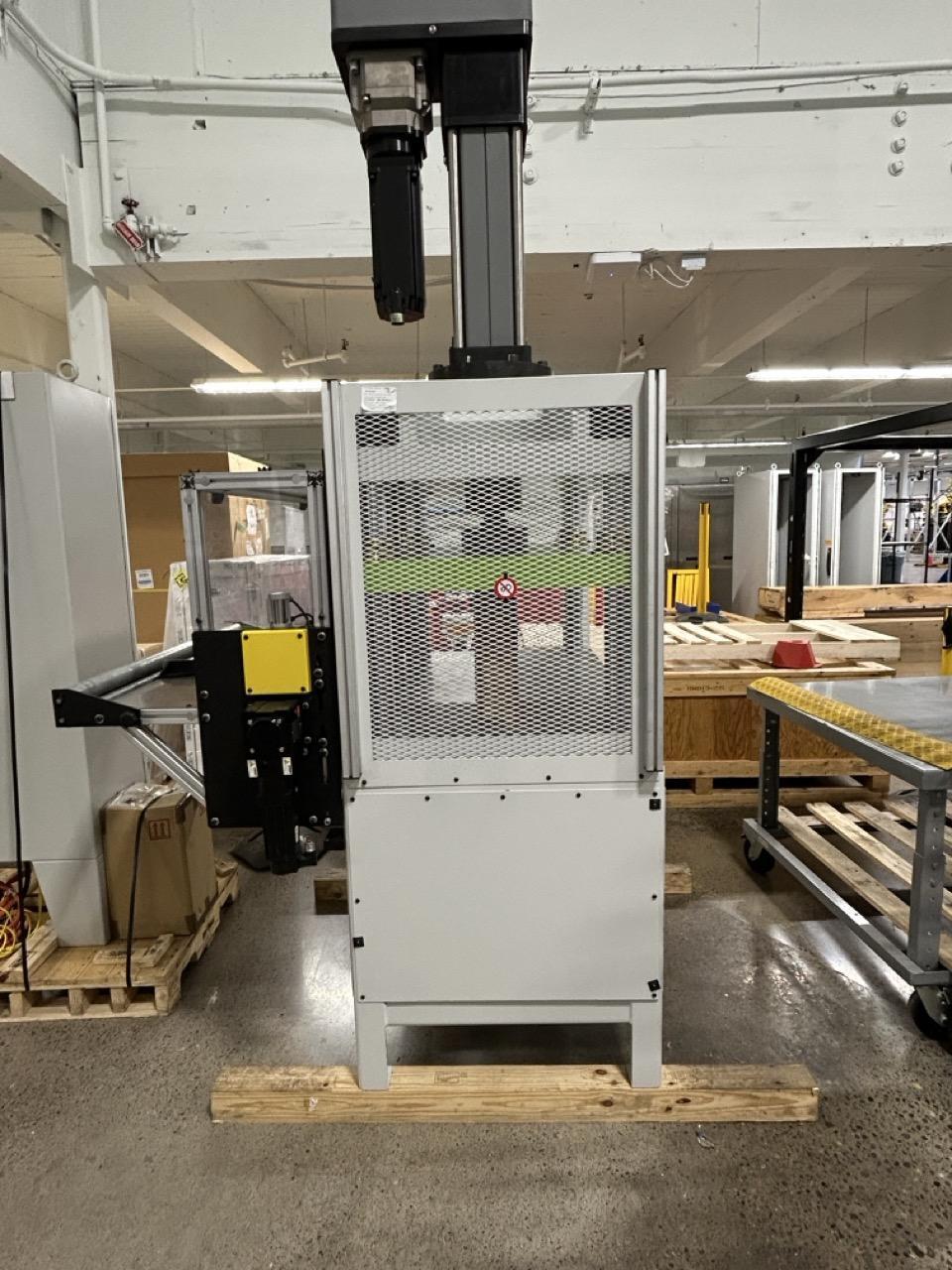

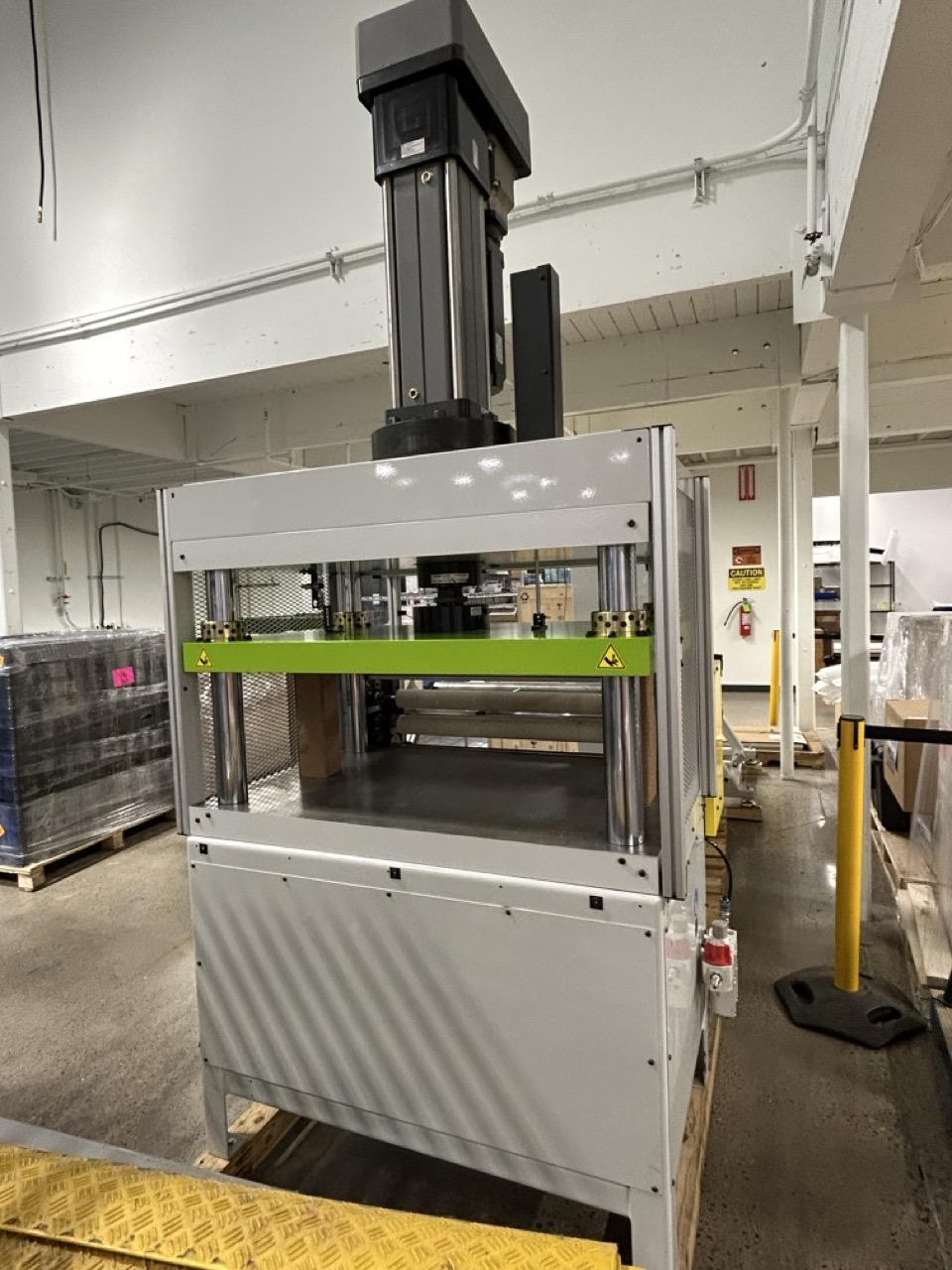

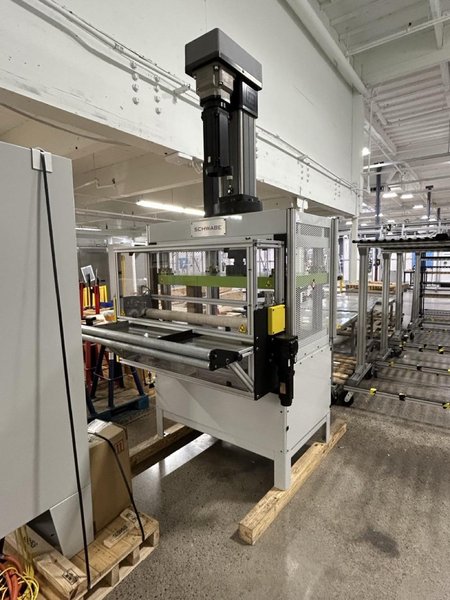

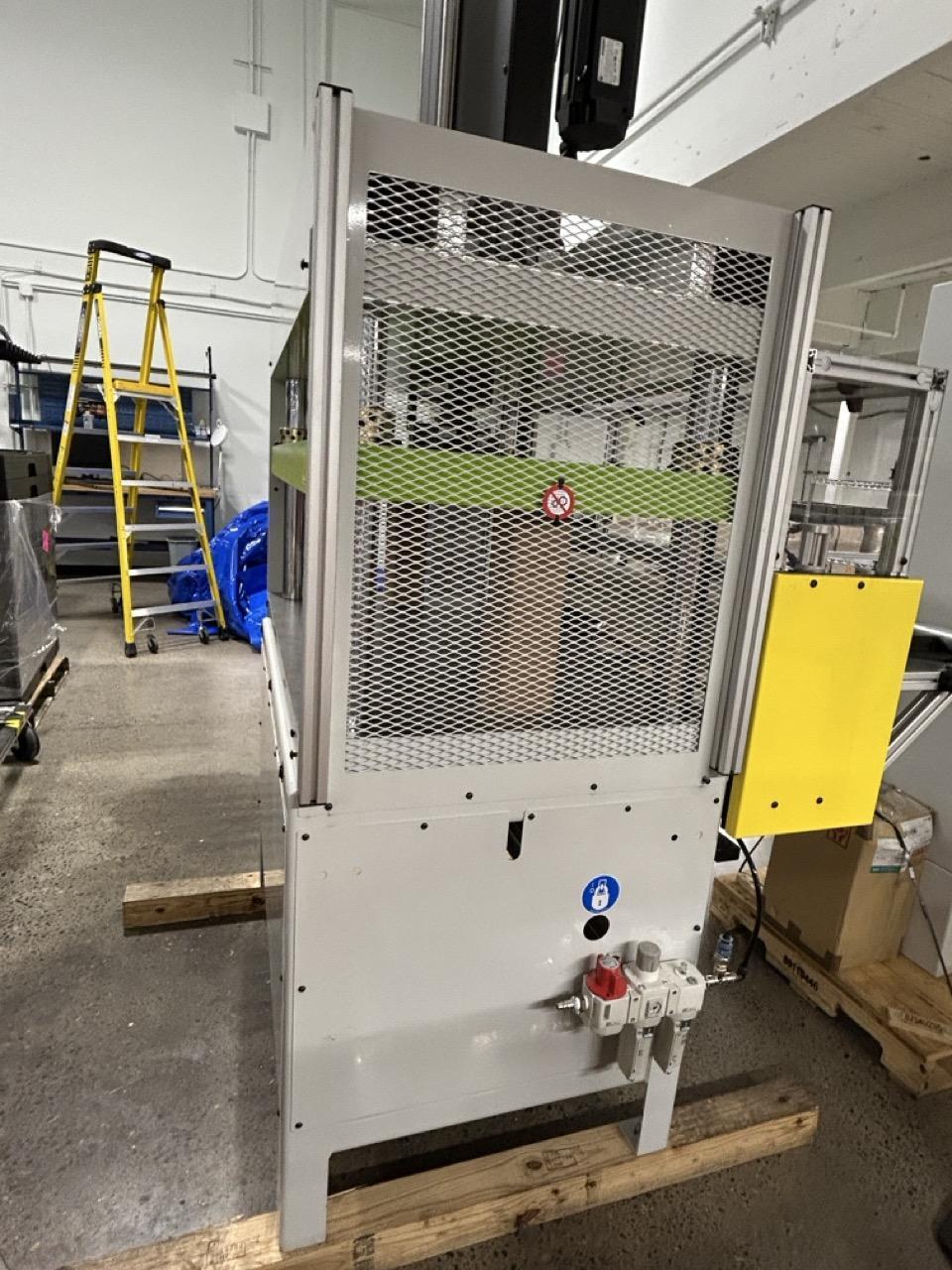

30 Ton Freeman Schwabe SEP30 Servo Electric Die Cutting Press, 2025 – Infeed Nip Roll System, Programmable Servo Control

The Freeman Schwabe SEP30 servo electric die cutting press is a high-precision, clean-room-capable system designed for kiss-cutting, through-cutting, and laminating applications. Featuring advanced servo-driven control with programmable force, speed, and dwell, this press delivers exceptional accuracy and energy efficiency for medical, gasket, and industrial converting operations.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Tonnage: 30 Ton Press Type: Servo Electric Flat Bed Die Cutting Press Frame Design: Four-Post Platen Size: 10″–50″ Range (Application Dependent) Stroke: Application Dependent Programmable Stroke Ram Speed: Up To 5 IPS Positional Repeatability: ±0.0005″ Control: Programmable Servo Control With Load Cell Feedback Drive System: Roller Screw Servo Actuator Cutting Capability: Kiss Cutting And Through Cutting Feed System: Infeed Nip Roll System Tooling Compatibility: Steel Rule, Match Metal, Male/Female, Flexible Dies Power Requirements: 230/480V Energy Efficiency: Up To 70–80% Less Than Hydraulic Systems Applications: Die Cutting, Laminating, Molding, Embossing

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With:

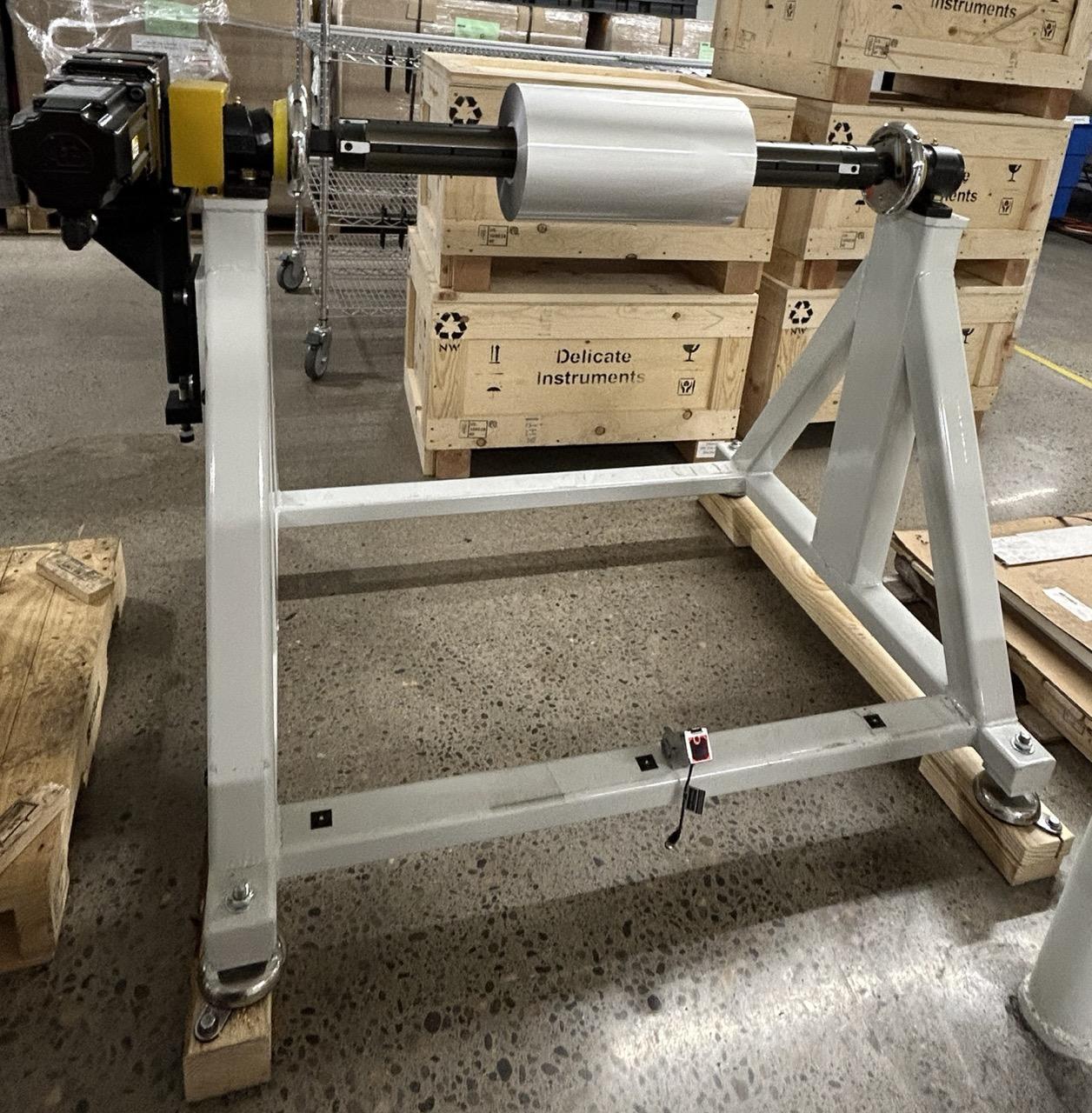

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Infeed Nip Roll Feed System Integrated Load Cell Programmable Speed Force And Dwell Control Quick Change Tooling System Servo Electric Drive System Clean Room Compatible Design

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
