Vecoplan VAZ 1300-M-XL 100 HP Stacked Plastics Shredder, 2017 – with WO-1442 75 HP Granulator

Manufacturer: Vecoplan

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Make Year: Quote Year was 2017

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,System configuration: Two-stage stacked plastics size-reduction system

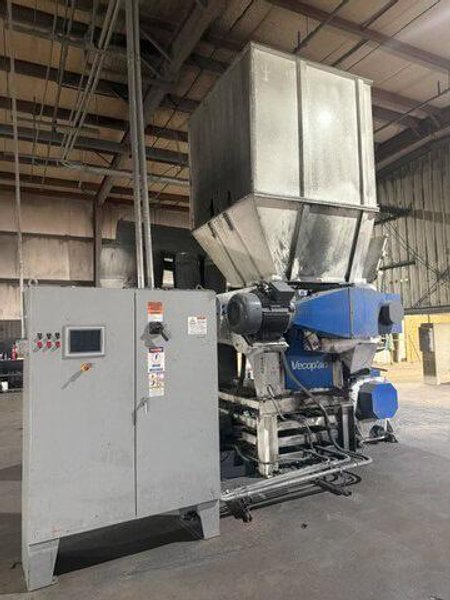

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Primary shredder: VAZ 1300-M-XL

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Secondary granulator: WO-1442

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Intended material: Assorted rigid plastics scrap, up to the size of a standard 96-gallon cart

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Proposed throughput: Up to 3,000 lb/hr; actual output depends on material and operating condition

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Electrical: 460 V, 3-phase, 60 Hz.

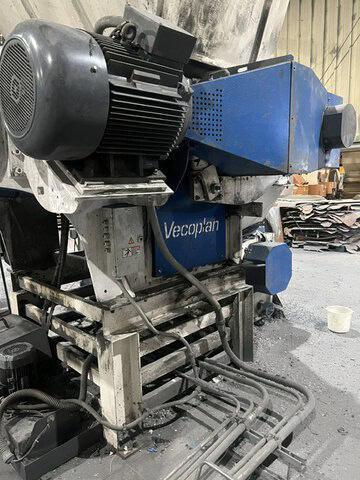

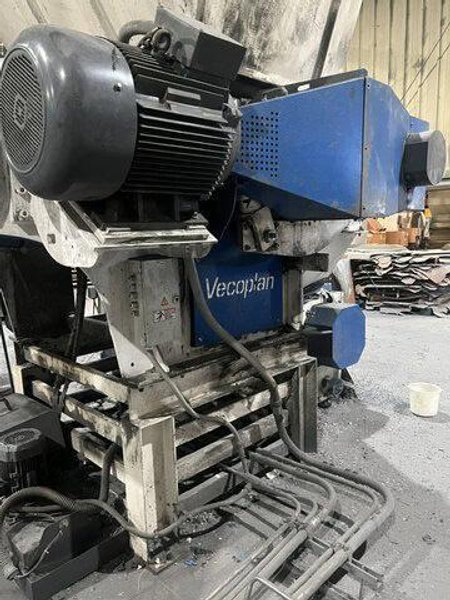

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Primary Shredder — VAZ 1300-M-XL Main drive: 100 HP with fluid clutch

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Cutting chamber: 52″ W x 58″ L

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Rotor: 20″ diameter x 52″ long

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Infeed hopper opening: Up to 86″ x 80″, with customer-specific flared configuration

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Rotor cutters: 90 D2 tool-steel cutters, triple-row arrangement, four-way indexable

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Stationary cutters: Five reversible, individually adjustable sections

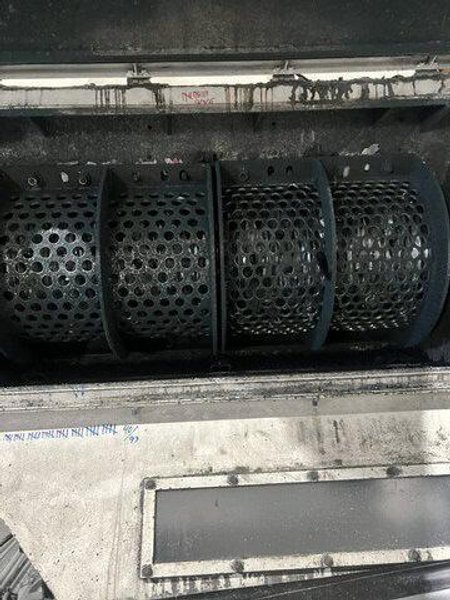

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Sizing screen: Two-piece reversible screen with 1.25″ holes

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Feed system: PLC-controlled hydraulic ram with two speeds and dual pressure settings

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Hydraulic ram motor: 5 HP with VFD speed control

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Operating features: Full-load startup capability, automatic reversal on over-amperage, and automatic shutdown when empty

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,XL construction: Oversized rotor, reinforced frame/floor/ram, thicker sidewalls, larger gearbox and hydraulics, and easy-access screen doors.

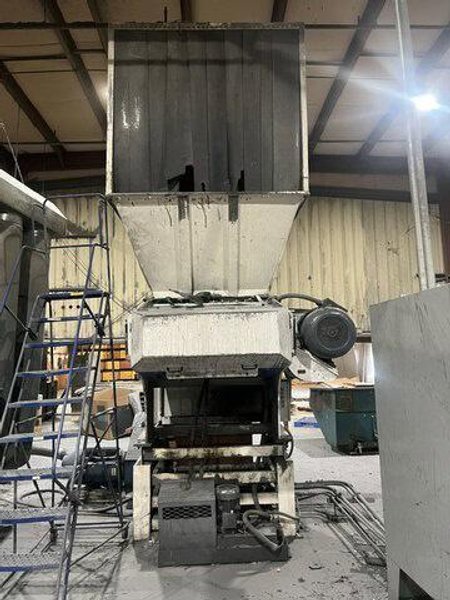

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Secondary Granulator — WO-1442 Main motor: 75 HP, TEFC

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Throat opening: 14″ x 42″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Rotor knives: 20, arranged in five rows

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Bed knives: Four, arranged in two rows; micro-adjustable

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Cutting configuration: Scissor-cut rotor and bed knives

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Knife material: Hardened, precision-ground D2 tool steel

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Discharge: 6″-diameter pneumatic port

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Construction: Soundproof welded frame, heavy-duty cutting chamber, oversized rotor shaft and twin solid-steel flywheels

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Mounting: Caster-mounted unitized base

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Safety: Power-cutoff devices for chute/screen access

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Final sizing screen: Not specified in the proposal.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Included Integration & Discharge Equipment Elevated shredder support base with transfer chutes to the granulator

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Electrical interlocks and metered-flow control

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Magnetic plate for ferrous-metal removal between stages

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Hopper hood with infeed curtains and dust-extraction port

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Pneumatic discharge package: PH-20-155-15

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Blower motor: 15 HP, 3,600 RPM, TEFC

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Blower inlet/outlet: 10″ diameter

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Impeller: 15.5″ diameter, dynamically balanced

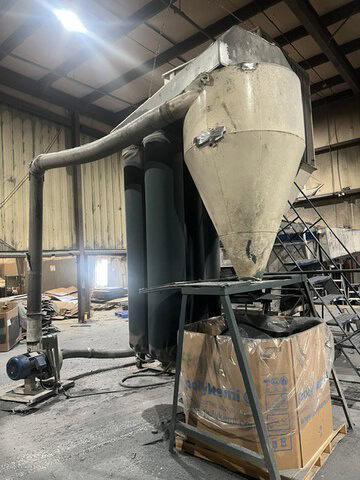

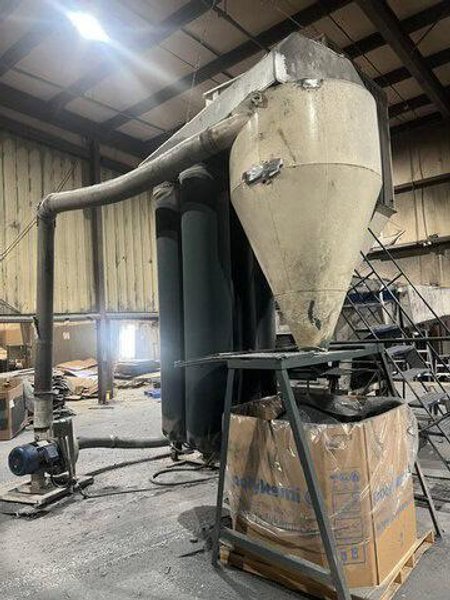

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Cyclone: 48″ diameter x 85″ high

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Cyclone support: Adjustable-height steel structure.
