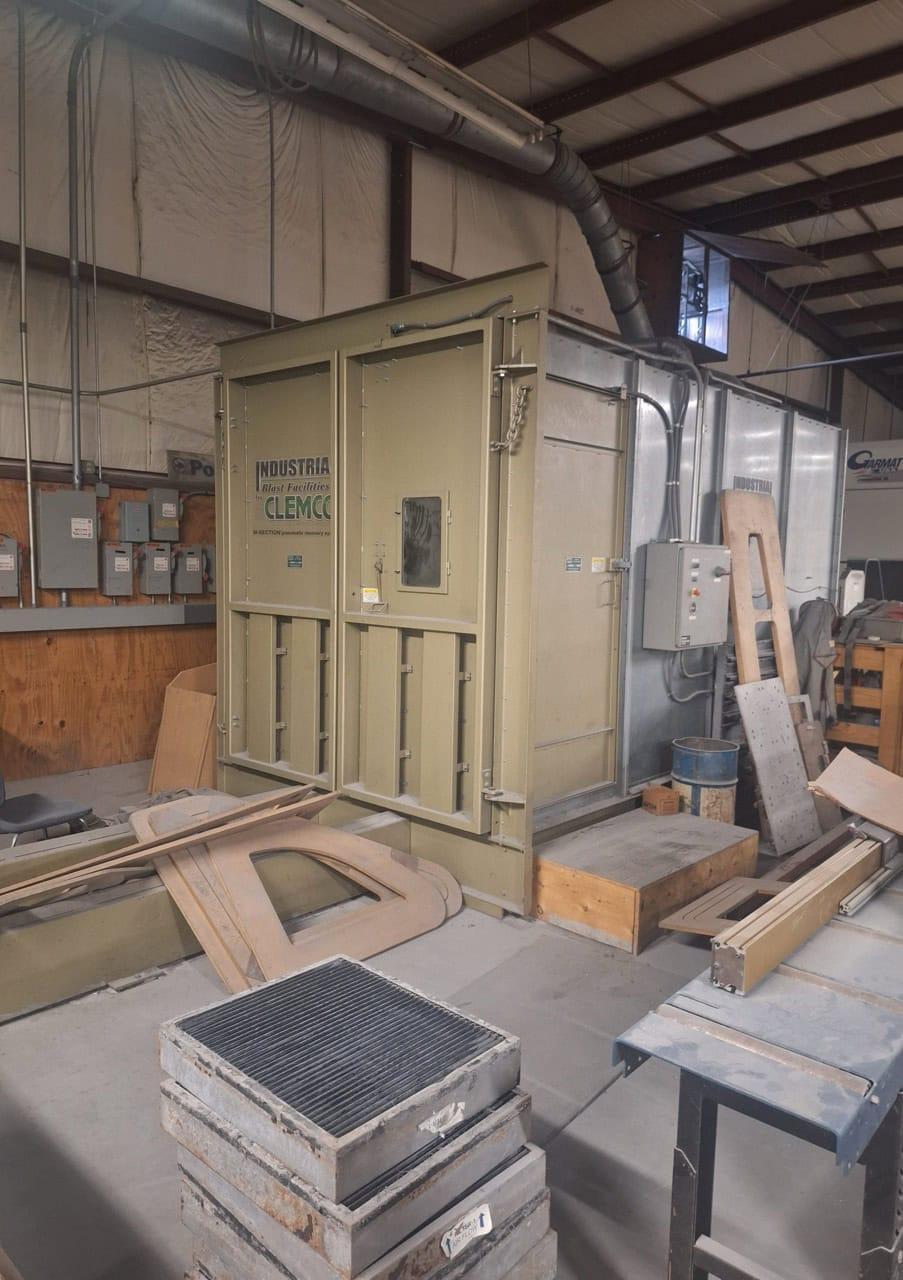

Clemco 7’W x 8’H x 14’L Abrasive Blast Room w/ Media Recovery & Dust Collector, 2015

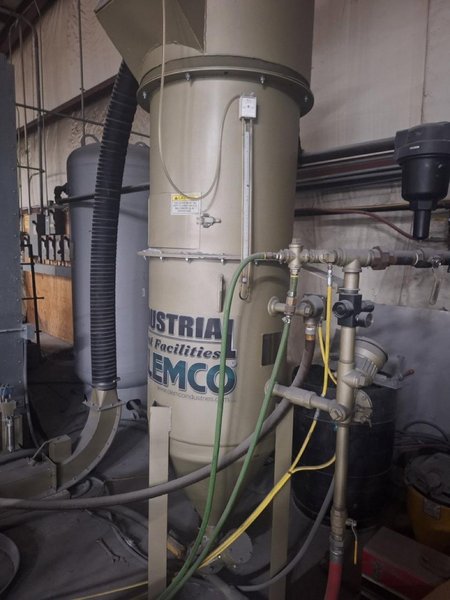

Manufacturer: Clemco Industries Corp. Type: Enclosed abrasive blast room system Blast Room Size: Approx. 7′ W × 8′ H × 14′ L Track Extension: 10′ Work Doors: Double work doors with viewing window Turntable: 500 lb capacity, 48″ diameter Media Recovery: M-section floor recovery system with rubber-lined bottom and tracks Reclaim System: 1,200 CFM Storage Hopper: 6 cu. ft. Blast Machine: 6 cu. ft. Dust Collector: Clemco CDF-4 Dust Collector Exhaust Motor: 15 HP System Air Volume: 4,560 CFM Ventilation: 60 FPM Electrical: 460V / 3-Phase / 60 Hz Full Load Amps: 55 FLA Static Pressure: 12″ W.G. Control Panel: Main control panel with transition control panel Additional Features: Air inlet filters, reclaim access door, abrasive inlet, recovery transition, explosion venting, rigid ducting and dampers

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
