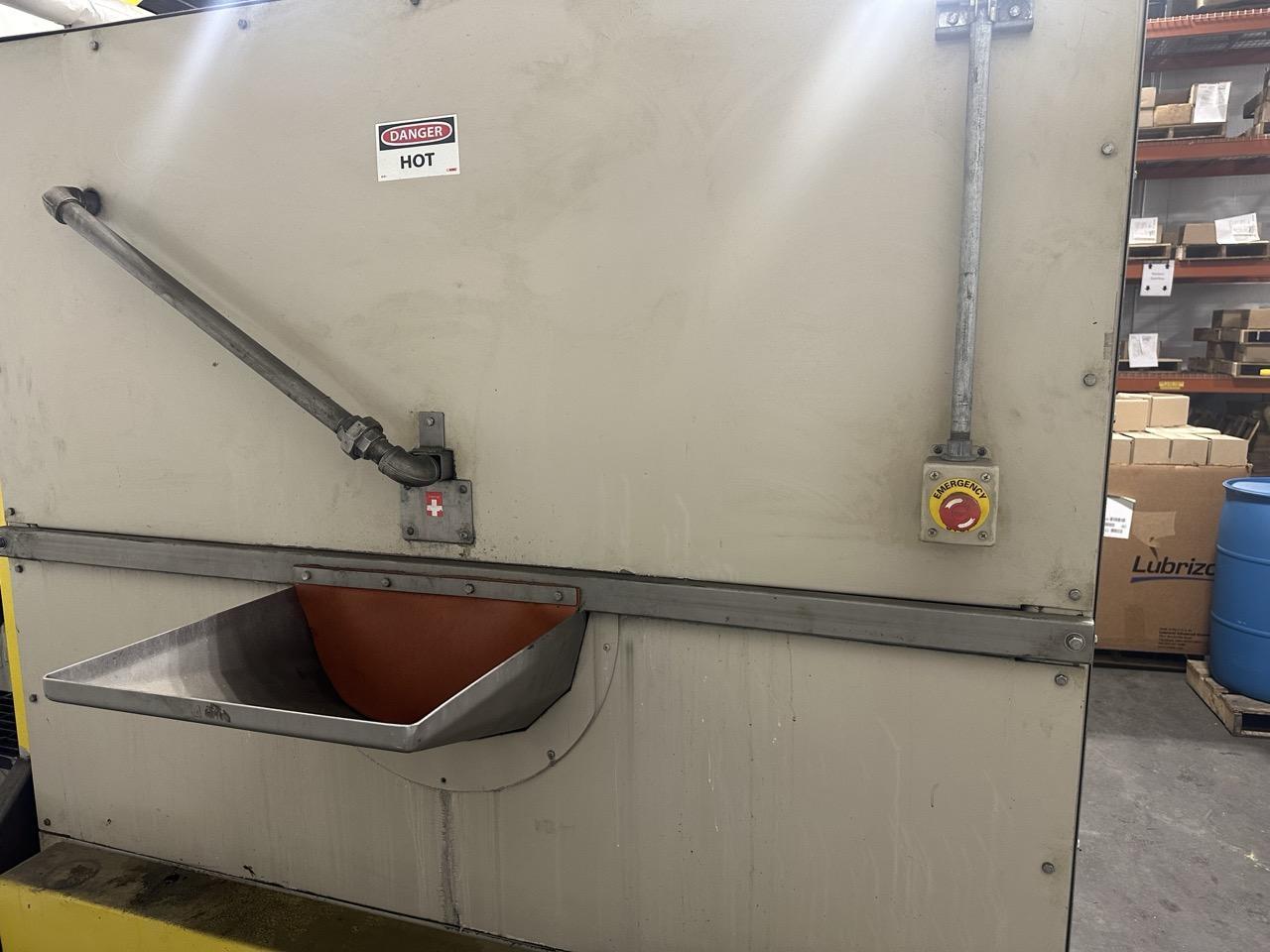

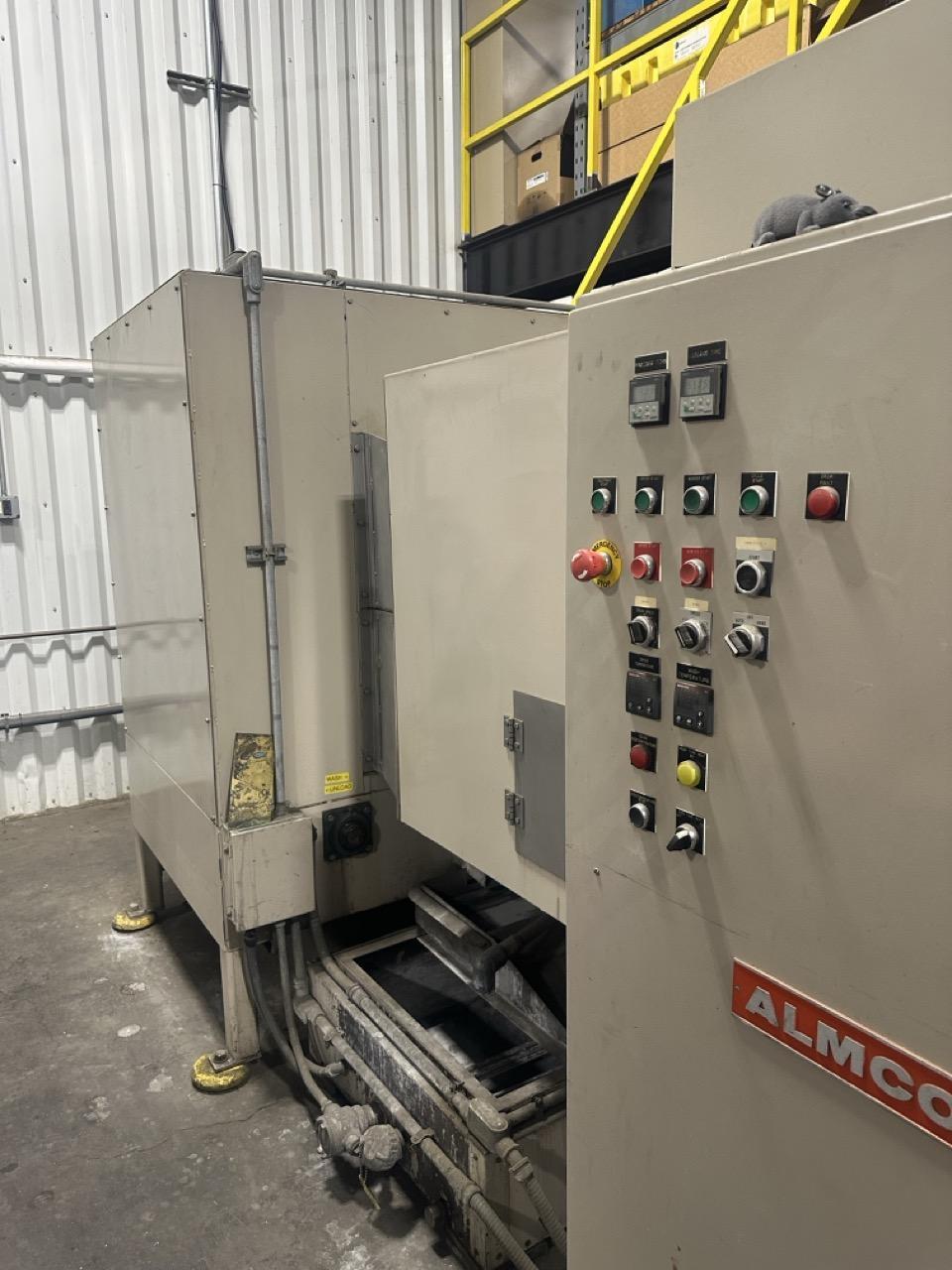

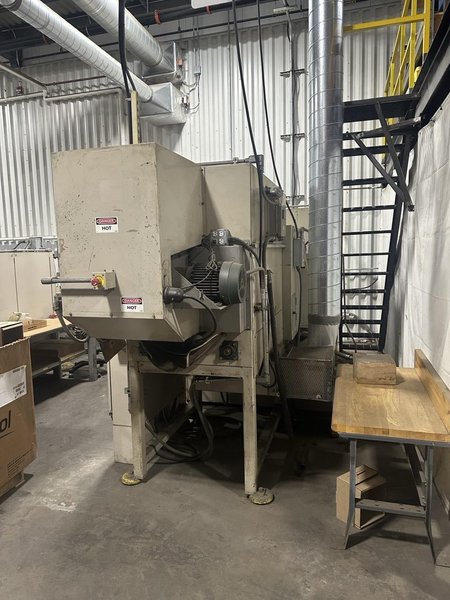

Almco 54-24WRD-E Rotary Drum Parts Cleaning System, 2007

Model: 54-24WRD-E Machine Type: Rotary Drum Wash, Rinse, Dry System (batch, water-based solution) Batch Capacity: Up to 600 lbs Load/Discharge Height: 48″ Load Chute, 36″ Discharge Wash Stage: 54″ dia. x 36″ L, 9″ Helix Pitch Rinse Stage: 24″ dia. x 24″ L, 12″ Helix Pitch Drum Construction: 11 ga Stainless, 1/8″ Perforations; 10 ga Stainless Helix Drum Drive: 1/2 HP w/ VFD, 2 to 4 RPM Variable Wash Tank: Approx. 75 gal, 10 ga 304 Stainless Wash Pump: Gusher 2 HP Centrifugal, Approx. 60 GPM @ 28 PSI Wash Cabinet: 10 ga 304 Stainless, All-Welded Dryer: 48″ L Insulated Housing, up to 300°F Dryer Heat: Indeeco 30 kW Electric w/ Watlow Control Dryer Blowers: New York Blower 1,600 CFM, 5 HP Recirc; 1/3 HP Exhaust Electrical: 460/480V, 3 Ph, 60 Hz, 71.2 FLA Controls: Hoffman NEMA 12 Enclosure, VFDs, 115V Control Circuit Overall Dimensions: Approx. 15′ L x 90″ W x 87″ H

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
