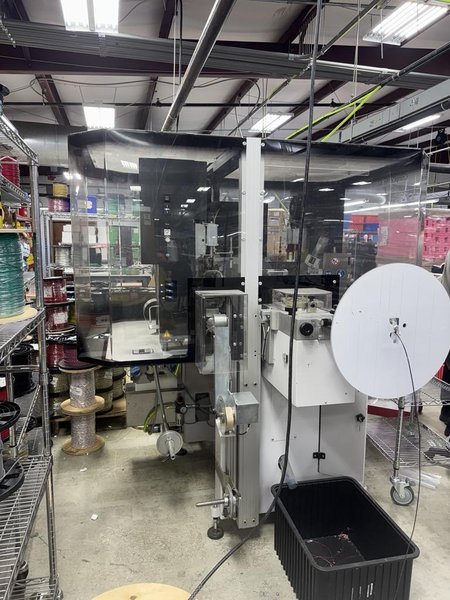

Schleuniger Crimp Center 67, 2018 – 2 crimp units

Maximum Crimp Stations: 2 Wire Length Range: 2.17″ – 213 Ft Strip Length Side 1: 0.004″ – 0.71″ Strip Length Side 2: 0.004″ – 0.71″ Wire Cross Section Range: 26 – 10 AWG Maximum Feed Rate: 39.4 Ft/Sec Power Requirement: 208 – 480 VAC 3 Phase Air Requirement: 90 PSI Machine Dimensions: 147″ x 69″ x 73″ Height With Guard Open: 112″ Machine Weight: 1,378 – 2,160 Lbs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With

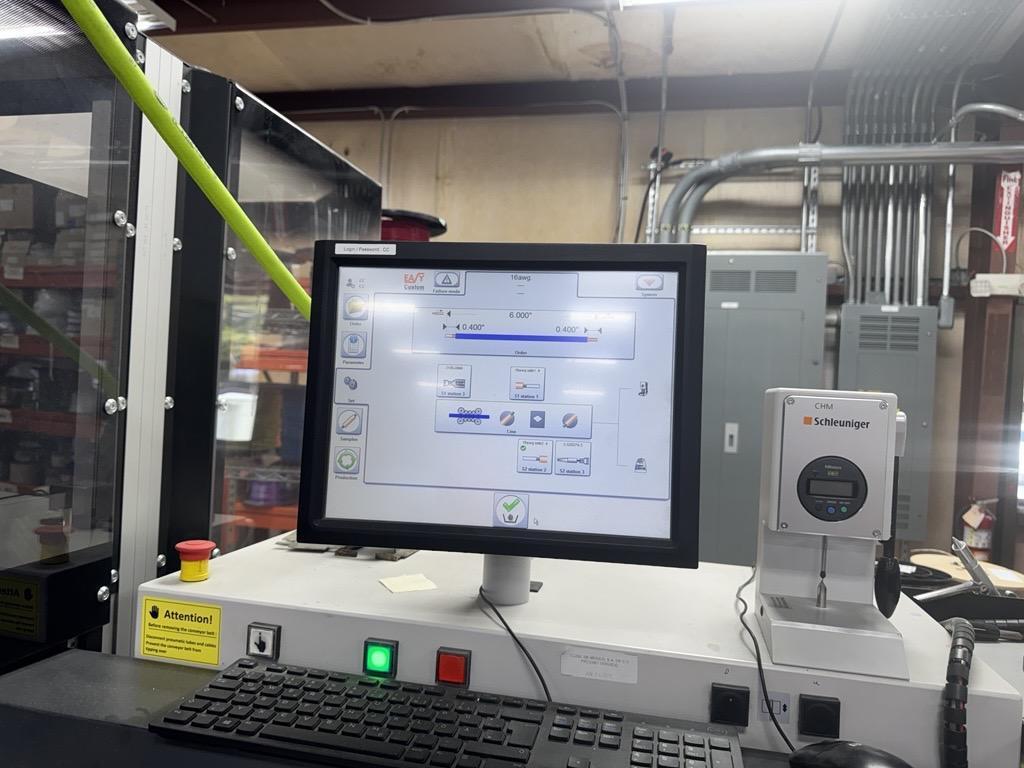

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Touchscreen Control Interface Multi Station Processing Platform Crimping Sealing Twisting And Tinning Capability Quick Change Tooling System TCP IP Network Connectivity All Available Manuals

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
