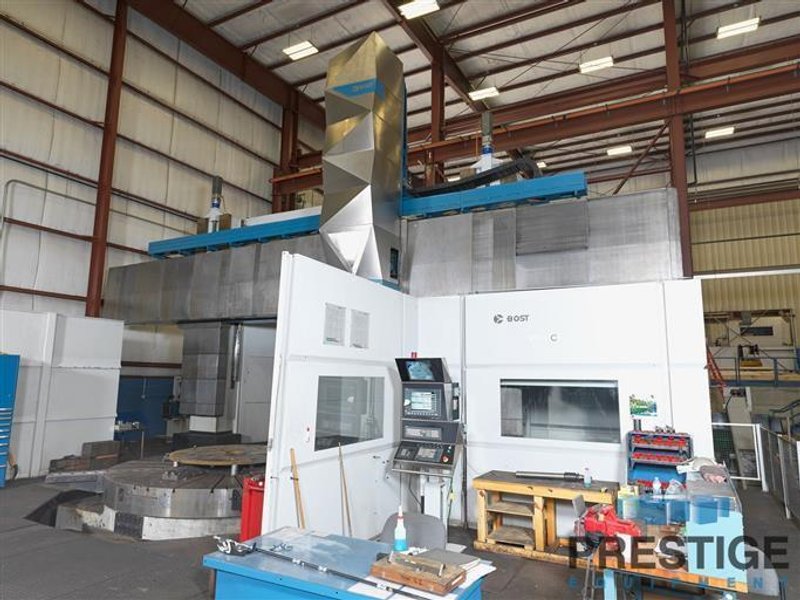

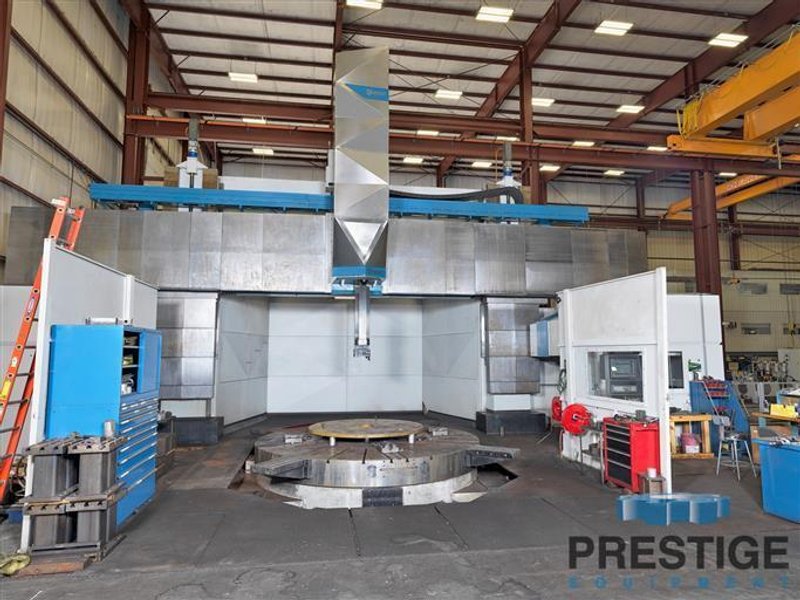

BOST VTL 60 CY 157.48"/236.11" CNC Vertical Turning Center w/Milling & Y-Axis

SPECIFICATIONS:
Table Diameter 157.48"
Maximum Turning Diameter 236.22"
Maximum Turning Height 141.73"
Maximum Height Under ISO 50 Taper 127.16"
Vertical Travel of Cross Rail 102.36"
Vertical Travel of Ram Z-Axis 78.74"
Ram Travel, Horizontal X-Axis +/- 118.11"
Ram Cross Section, Orthogonal 12.20" x 12.20"
Ram Minimum Bore Size 14.17"
TABLE:
Table Speeds 8-118 RPM
Table Weight Capacity 176,000 Lbs
Table Motor Turning Power 136.78 HP
Table Extensions 216.53"
Sub Table Diameter 236.22"
C-Axis Positioning/Contouring Table 360,000
LIVE SPINDLE/C-AXIS:
Live Spindle Speeds To 3000 RPM
Live Spindle Motor 49.6 HP
Live Milling Tools ISO 50 Taper



Equipped With:

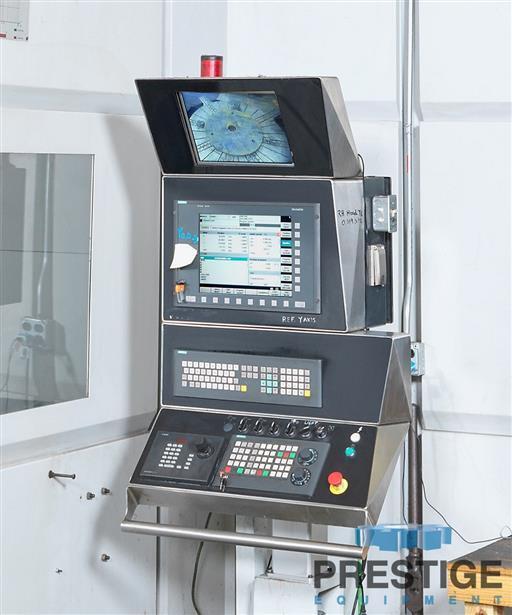

Siemens 840D CNC Control
Heidenhain Scales and Encoders
C-Axis Table For Milling & Drilling Operations
Y-Axis Table Travel

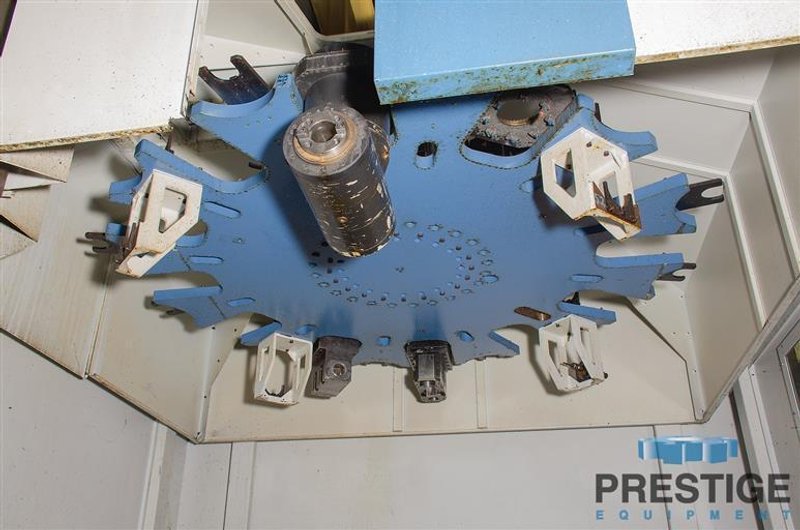

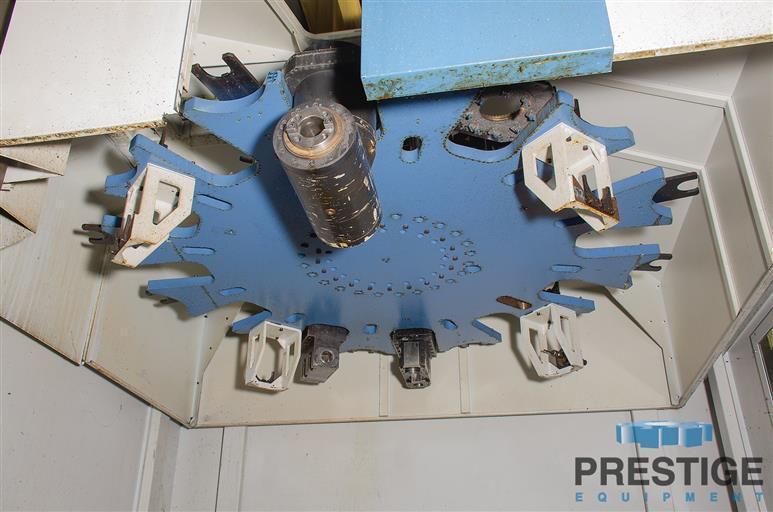

Vertical & Horizontal Automatic Tool Changers
(20) ISO 50 Tools in Vertical
(8) ISO 50 Tools in Horizontal
(12) Positions for Turning/Boring
Renishaw RMP Touch Probe
Hydrostatic X & Y Axes
Hydrostatic Base
Cast Iron Construction
Thru-Spindle Coolant
Telescopic Way Covers and Ram Guarding
Horizontal Right Angle Head
Camera and Display
Chip Conveyor
460V,60Hz Power Imput
130 KVA Total Installed Power
