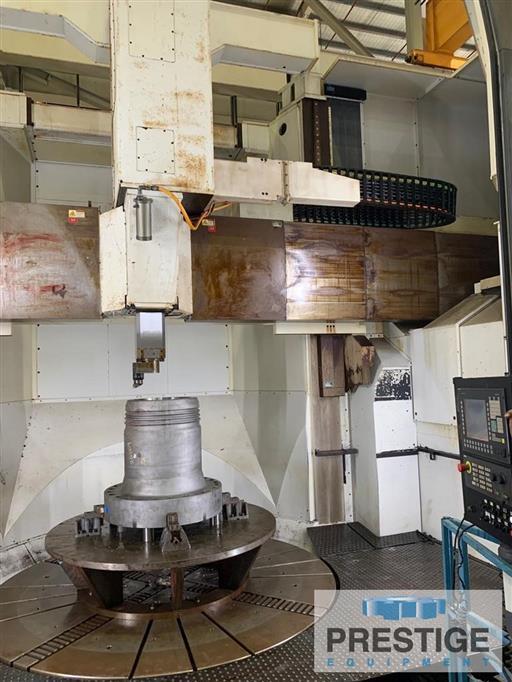

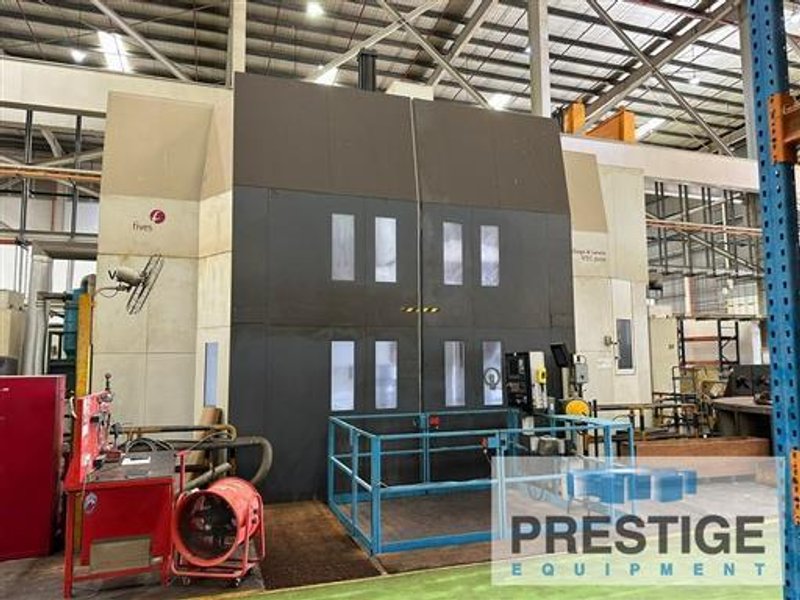

Giddings & Lewis VTC 3000 118" CNC Vertical Turning Center with Milling

SPECIFICATIONS:
Table Diameter 118.11"
Maximum Swing 133.86"
Maximum Facing Capacity 133.86"
Maximum Height Under Ram Face 149.61"
Minimum Height Under Ram Face 90.55"
Cross Rail Elevating Rate 31.5 IPM
X-AXIS TRAVEL OF RAM:
Ram Travel, Right of Center 75.2"
Ram Travel, Left of Center 75.2"
Rapid Traverse X-Axis 787 IPM
Z-AXIS TRAVEL OF RAM:
Right Hand Vertical Ram Travel 68.9"
Ram Cross Section 9.84" x 9.84"
Rapid Traverse Rate Z-Axis Ram 787 IPM
TABLE:
Table Speeds, Infinitly Variable 2-Speed Ranges
Low Range 1-37 RPM
High Range 1-150 RPM
Table Motor 145 HP
Table Motor, Cont.Rating 100.6 HP
Table Load Capacity 132,000 Lbs
Constant Torque 130,000 Nm
Thrust Bearing Load Capacity 250,000 Lbs
LIVE SPINDLE/C-AXIS:
AC Drive Motor S6-40% 44 HP
AC Drive Motor Continuous 29 HP
Number of Speeds 2-Speed Gear Box
Speeds To 4000 RPM
Live Spindle Tooling Taper Kennametal KM80
Coolant Thru-Spindle
C-Axis Positioning/Contouring Table 360,000 Positions
Table, Rapid Traverse 1.6 RPM
Feed Rate Infinitely Variable
Torque Available 24,000 Nm
C-Axis B-Directional Positioning 10 Arc Sec
C-Axis B-Directional Repeatability 5 Arc Sec
AUTOMATIC TOOL CHANGER:
Automatic Tool Drawer,Horiz.Tools 6-Position(KM80)

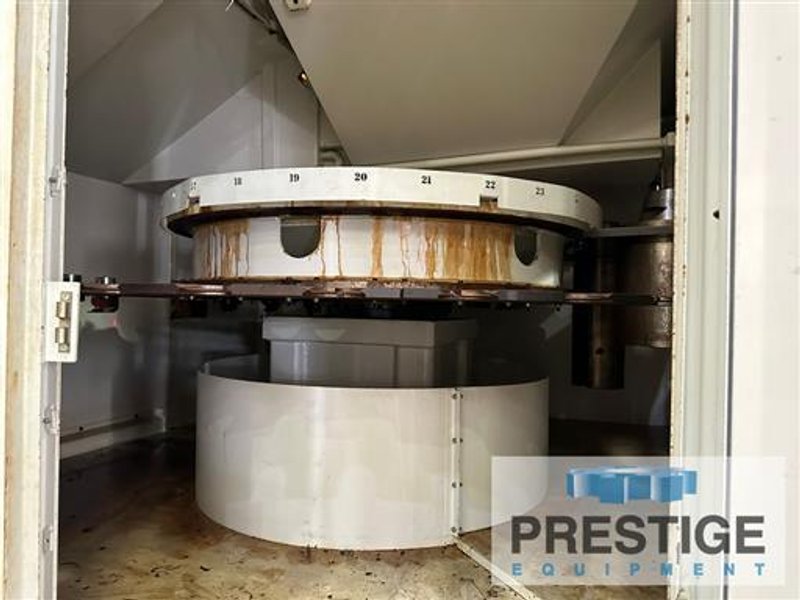

Right Hand Automatic Tool Changer 25
Wedge Lock Taper Pockets 5
Live Spindle Attachment Pocket 1
KM Modular Tool Pockets 19
Maximum Tool Width 15.75"
Maximum Tool Length 27.55"
Tool Shank Taper 2:1 Taper
Wedge Lock Clamping 33,000 lbs
Gauge Diameter 6.3"



Equipped With:

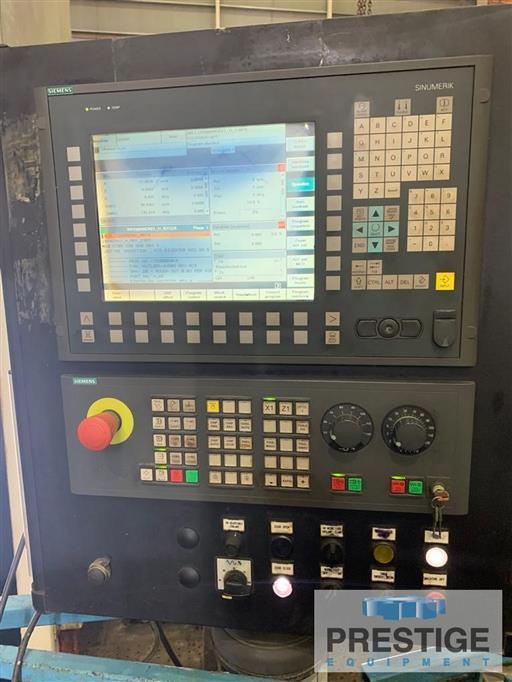

Siemens 840D PowerLine CNC Control w/ MDI Remote Pendant

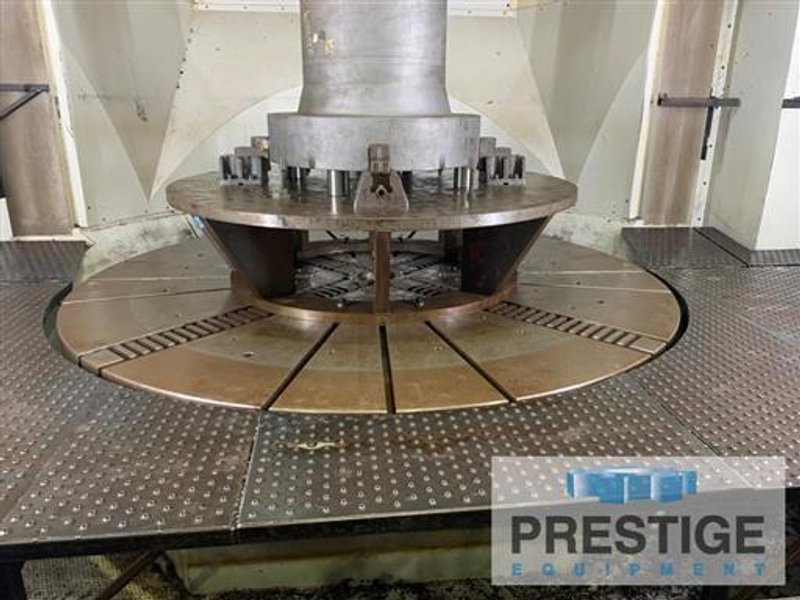

118.11" Dia. T-Slotted Table
C-Axis Table For Milling & Drilling Operations
22-Station Automatic Tool Changer (1-LS,1-LH,11-WL,10-KM80)

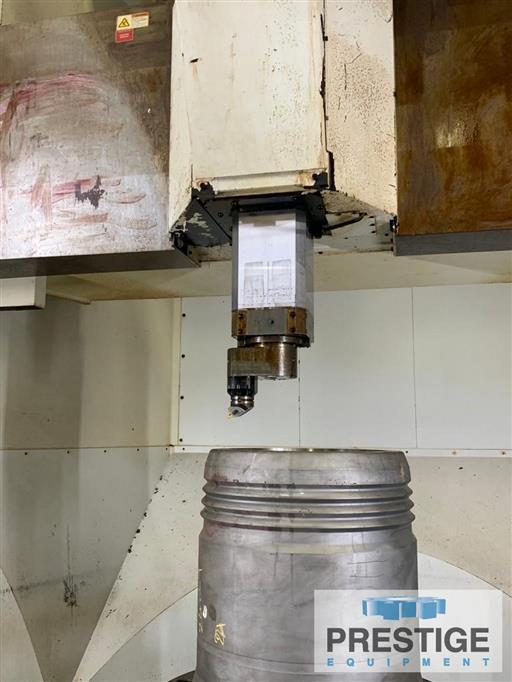

Live Head Spindle Attachment, 4,000 RPM

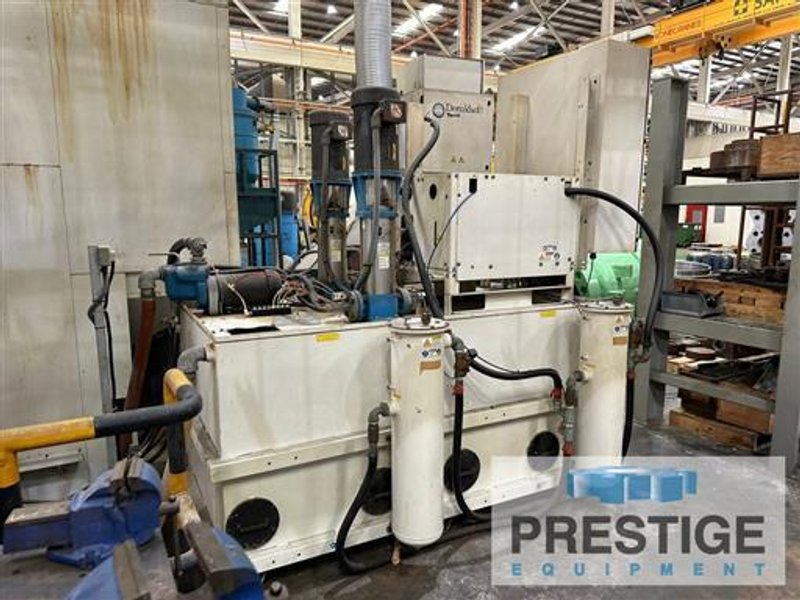

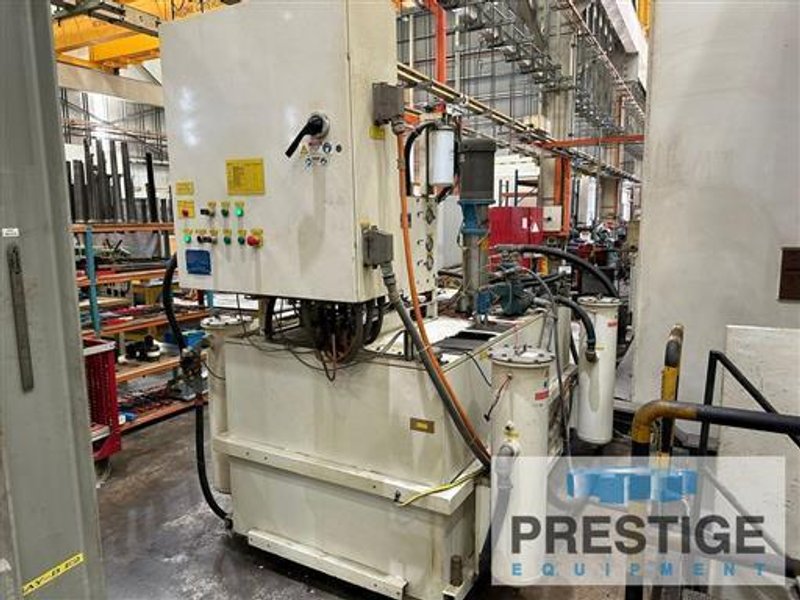

High Pressure Thru Spindle 70 Bar
Coolant Thru Nozzels 20 Bar
Renishaw Part Probe RMP60M

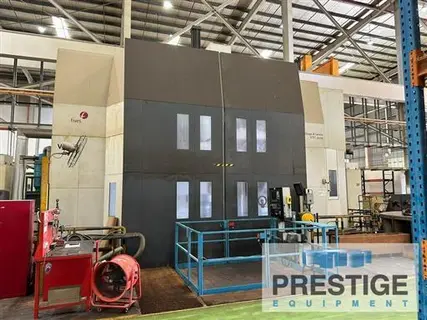

Chip and Splash Enclosure

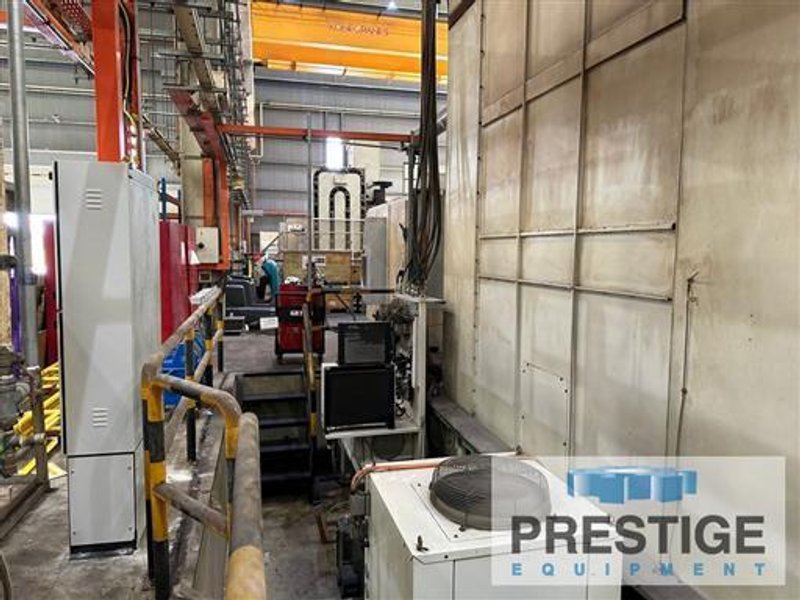

Elevating Operators Platform


SPECIAL FEATURES: 149.61" Maximum Height Top of Table to Bottom of Ram
90.55" Minimum Height Top of Table to Bottom of Ram
