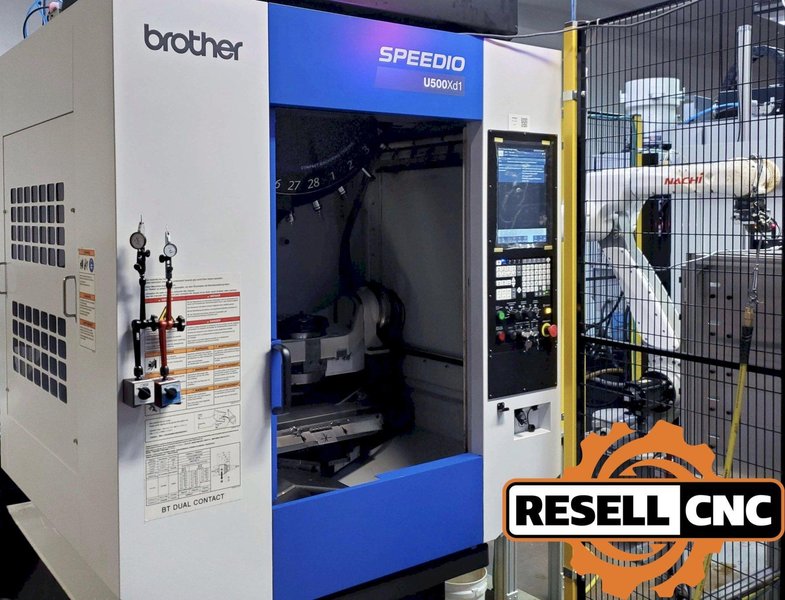

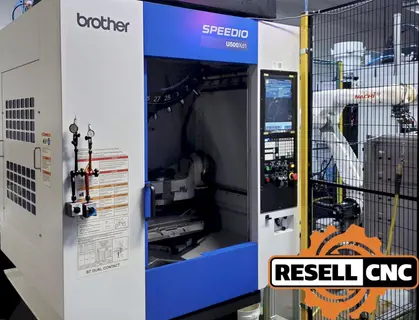

Brother Speedio U500Xd1 5-Axis CNC Vertical Machining Center w/ Nachi Robot

Brother Speedio U500Xd1 5-Axis CNC Vertical Machining Center w/ Nachi Robot

Name: Brother Speedio U500Xd1 5-Axis CNC Vertical Machining Center w/ Nachi Robot
Brand: BROTHER
SKU: 16152
Availability: PreOrder

Brand

BROTHER

Location

Florida

REQUEST FINANCING

Specifications
Files & Videos

SPECIFICATIONS

X-Travel: 19.69"

Y-Travel: 15.75"

Z-Travel: 11.81"

Rapid Traverse: 1969/1969/2205 IPM

Cutting Feed Rate: 1181 IPM

SPINDLE

Spindle Taper Type: BT30

Spindle Taper: Big Plus

Spindle Speed: 16,000 RPM

Spindle Motor: 7.4 HP

Spindle Nose to Table Top: 5.7" - 17.5""

TOOL CHANGER

Tool Magazine Capacity: 28

Tool Change Time: 0.7 seconds

Chip-to-Chip Time: 1 seconds

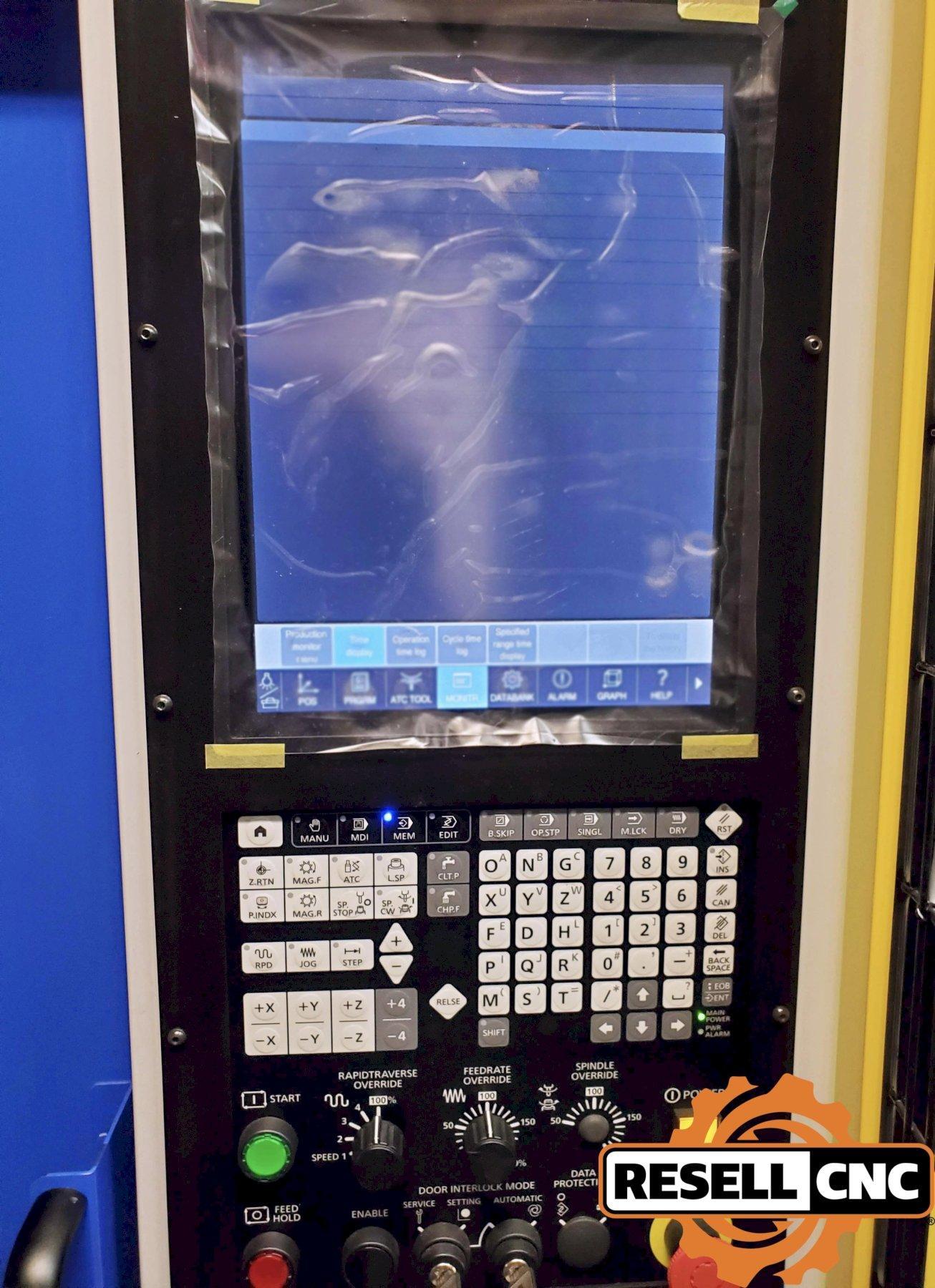

CONTROL

Additional Control Options: Extended I/O
NOP WBF 1000 PSI Brother Collant Pump and Filter Kit w/ Bag Filter

OPTIONS

Machine Options: Auto Door

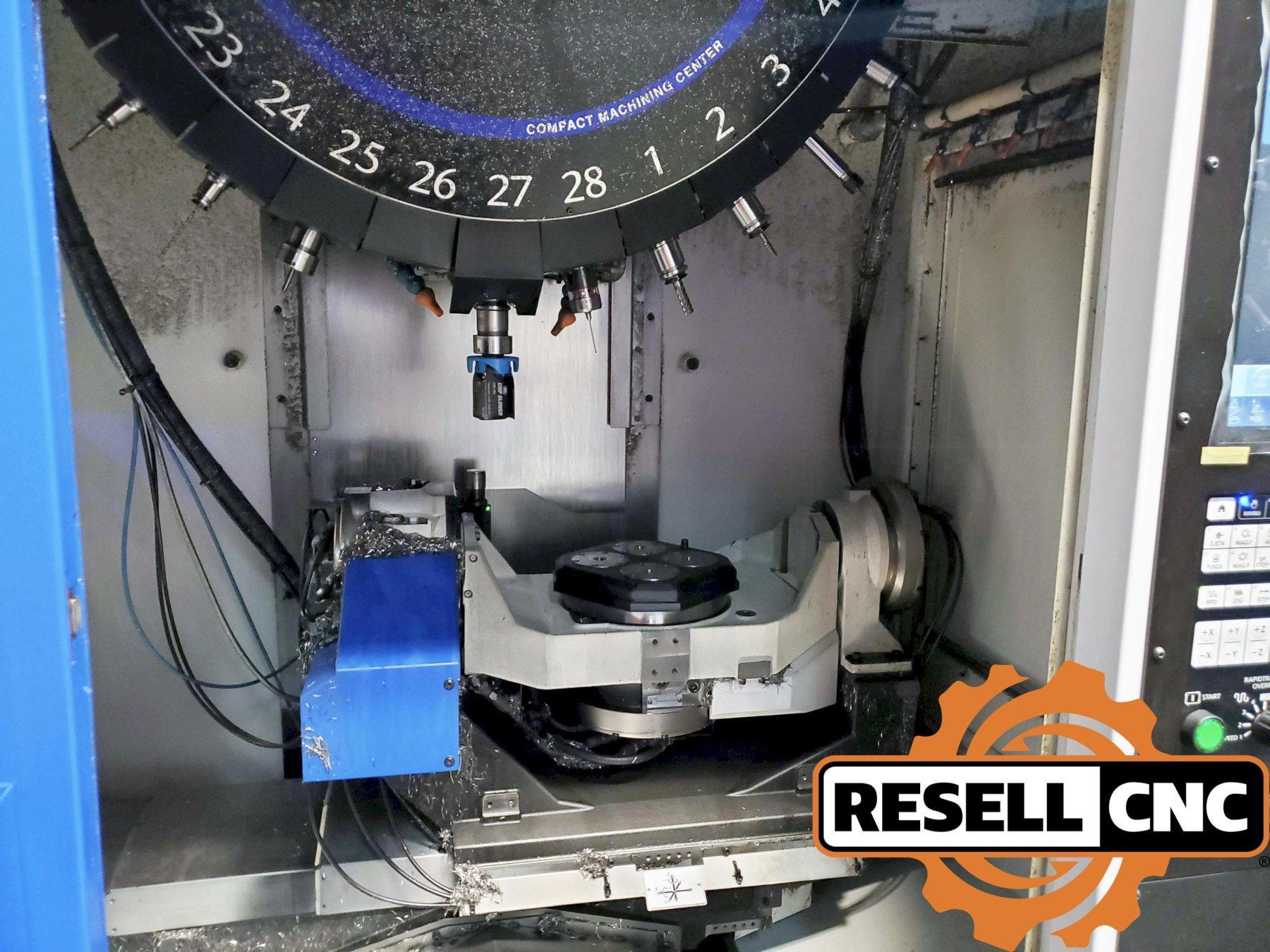

Additional Machine Specs: A-Axis: 120 to -30 Deg.
C-Axis: 360 Deg.
Amano MJ-10 Mist Collector with Top Mount Installation Kit
Blum TC-52 Spindle Probe Kit
Blum Z-Nano
Rotary Joint 6 Port
Pneumatic Panel Side Mounted
Pneumatic Circuit w/ One Dual Acting Valve, 4 Station Block
Schunk Items (Jaws, Adapter Plate, Vero Receiver)
Nachi MZ25 Robot with Controller

Coolant Types: Thru-Spindle Coolant

Chip Removal: Chip Conveyor
