2013 ACCUWAY UV-100ATC

Name: 2013 ACCUWAY UV-100ATC
Brand: ACCUWAY
SKU: 3305
Availability: PreOrder

Brand

ACCUWAY

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Table Dia	40"	1,016 mm
Swing	43"	1,092.2 mm
Work Ht-U/R	27.55"	699.77 mm
Power	60 hp	44.7 kW
RPM	1,200 RPM	1,200 RPM
Control	CNC (Fanuc)	CNC (Fanuc)
Dimensions	122" W x 145.7" D x 181.1" H	122" W x 145.7" D x 181.1" H
Weight	37,500	37,500

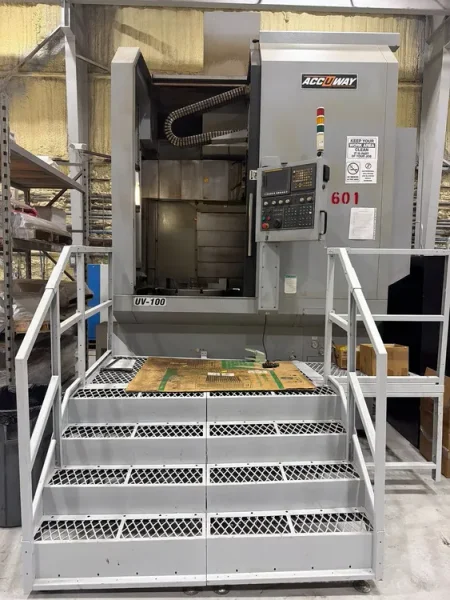

2013 ACCUWAY UV100 VTL with ATC & Milling Spindle

SPECIFICATIONS:
CHUCK / TABLE DIA 40″
Swing Over Bed: 43.30″
Max Turning Diameter: 39.37″
Max Turning Length: 27.55″
Spindle Speed: 1200 RPM
Spindle Taper: BT50
Spindle Nose: A2-15
Chuck Diameter: 40″
X Axis: 30.11″
Z Axis: 31.49″
ATC Turret: 12 Stations
Machine Weight: 37,500 LBS

EQUIPPED WITH:

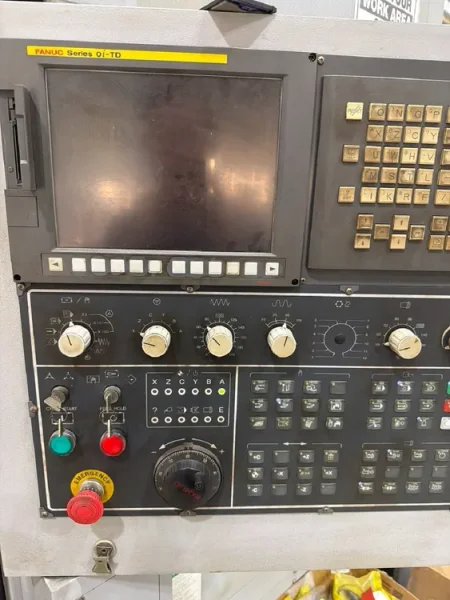

Fanuc Oi-TD Control

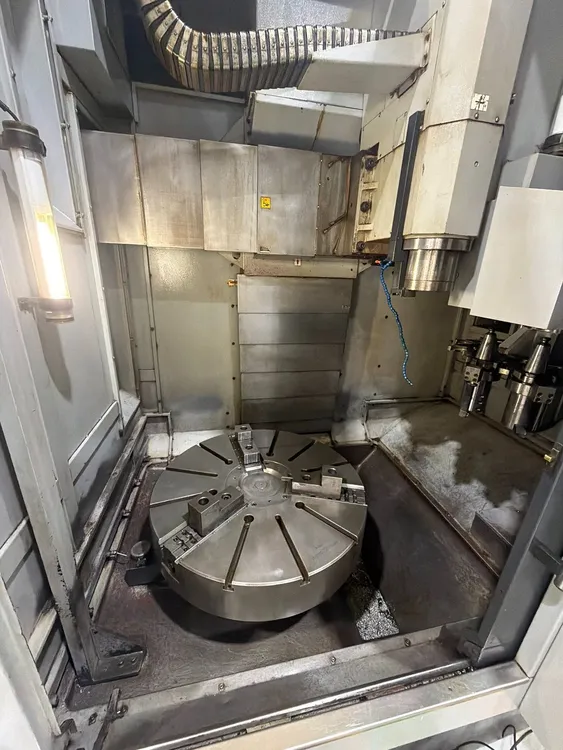

Auto Strong V-240 40″ (3) Jaw Chuck
Live Tool
12 Position ATC
Stainless Steel Way Covers
RJ-45 interface
Heat exchanger for electric cabinet
10.4″ Colored LCD monitor
Hydraulic power supply unit
Lubrication system
4-bar coolant system
Three-color warning light
hydraulic chuck & cylinder
Single chain type chip conveyor + chip cart
Tool kit
