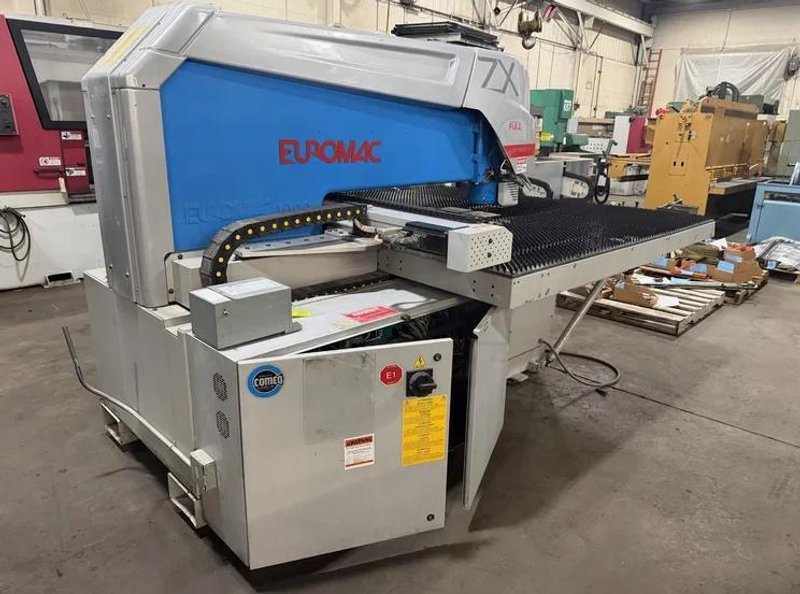

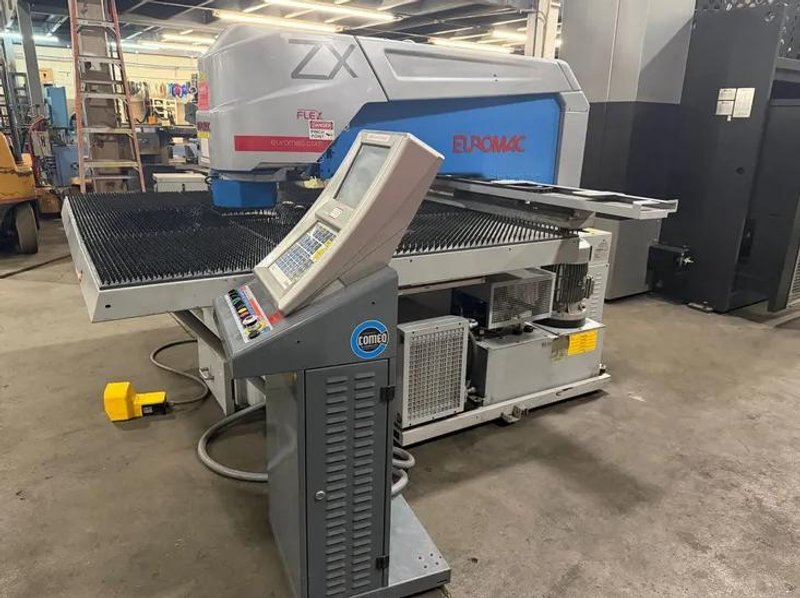

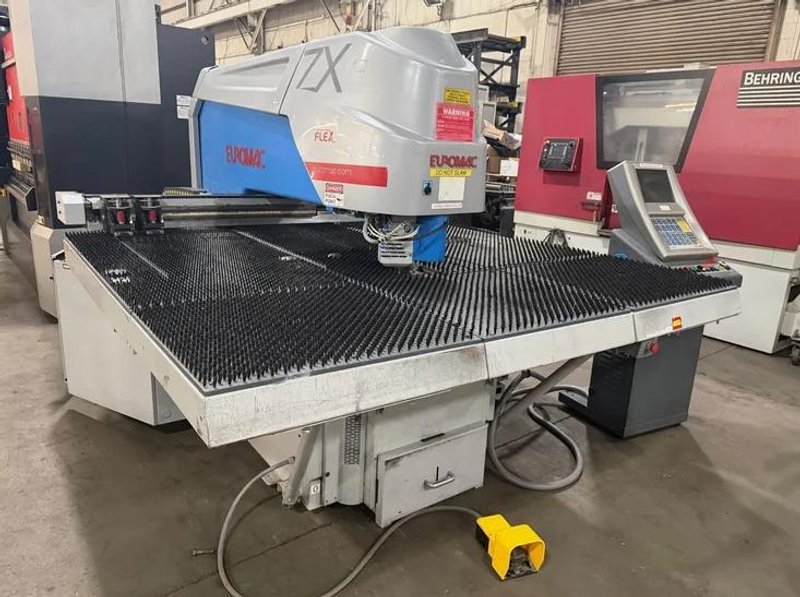

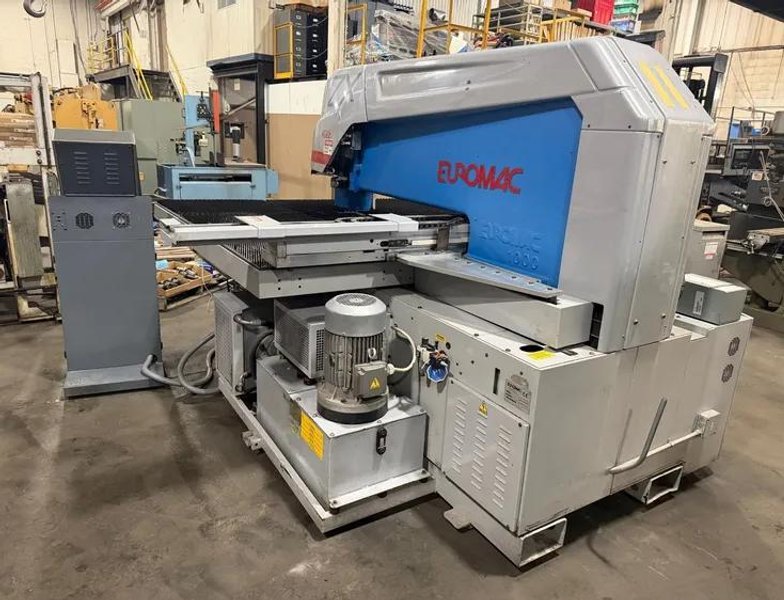

33 Tons, 40” X 50” CNC Turret Punch with Euromac CNC Control, Accepts up to a 10 Station Multi Tool, 360° Bi-Directional Rotation of Tooling and Brush Table.

GENERAL SPECIFICATIONS
Max Punching Force:                        33 Tons
Y - Axis Travel:                            40”
X - Axis Travel:                            50”
Automatic Repositioning in X - Axis:                393”
Stroke Depth:                            .004” - 1.22”
Opening of Clamps:                            .275”
Max Hit Rate with .787” Pitch:                    375 Per Min
Max Nibbling Rate with .039” Pitch:                1,000 Per Min
Marking Speed:                            2,000 IPM
Material Thickness Range:                        .024” - .314”
Maxmaterial Thickness with Optional Clamps:            .492”
Max Material Weight with Reduced Axis Speed:            330 Lbs
Main Motor:                                11 HP
Dimensions:                                88” X 128”
Weight:                                8,800 Lbs

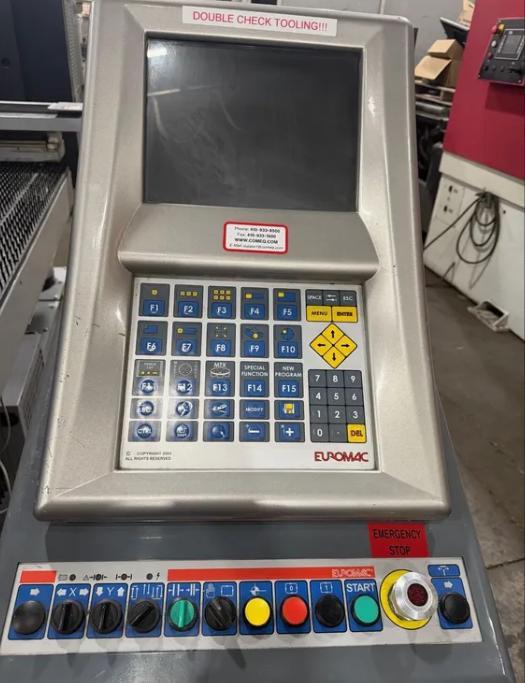

INCLUDES: Euromac CNC Control, Accepts up to a 10 Station Multi Tool, 360° Bi-Directional Rotation of Tooling and Brush Table.

***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
