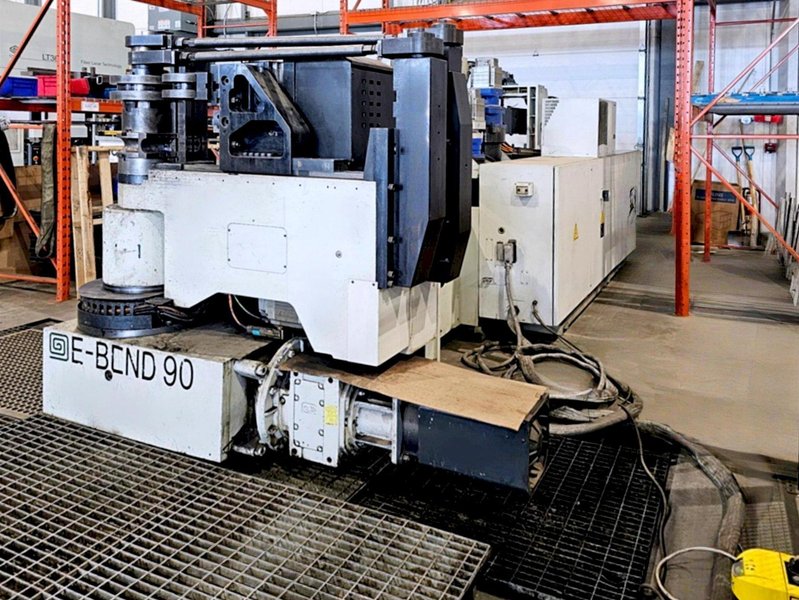

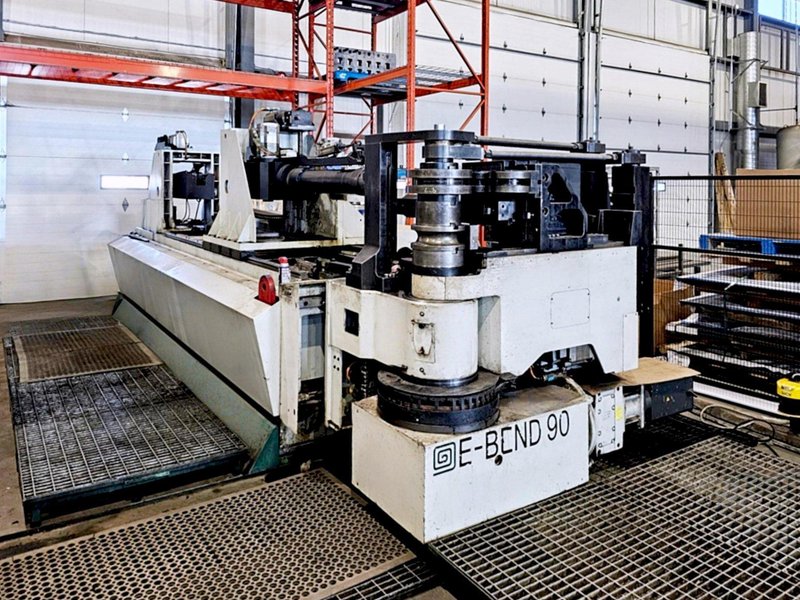

BLM E-Bend 90 Electric Tube Bender
Brand
Category
Model
E-Bend 90
Stock #
100622
Year
2008
Condition
Good
Location
Not specified

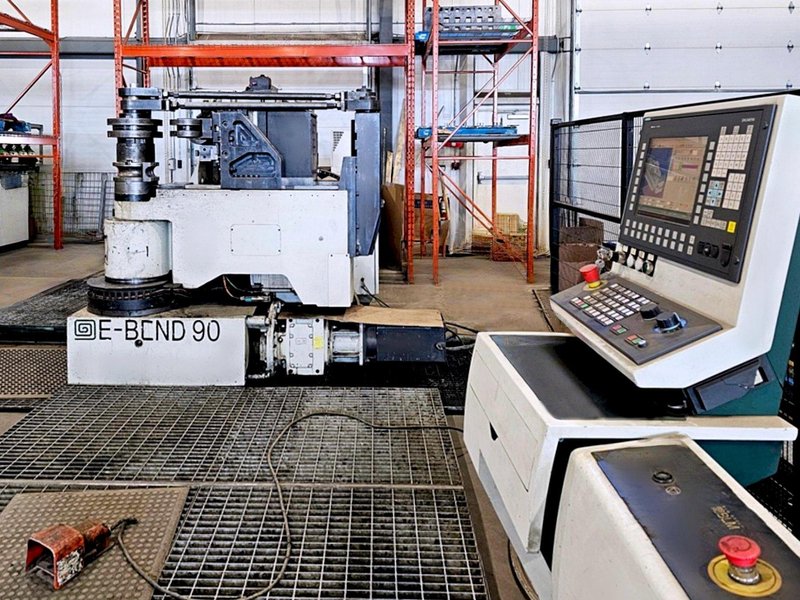

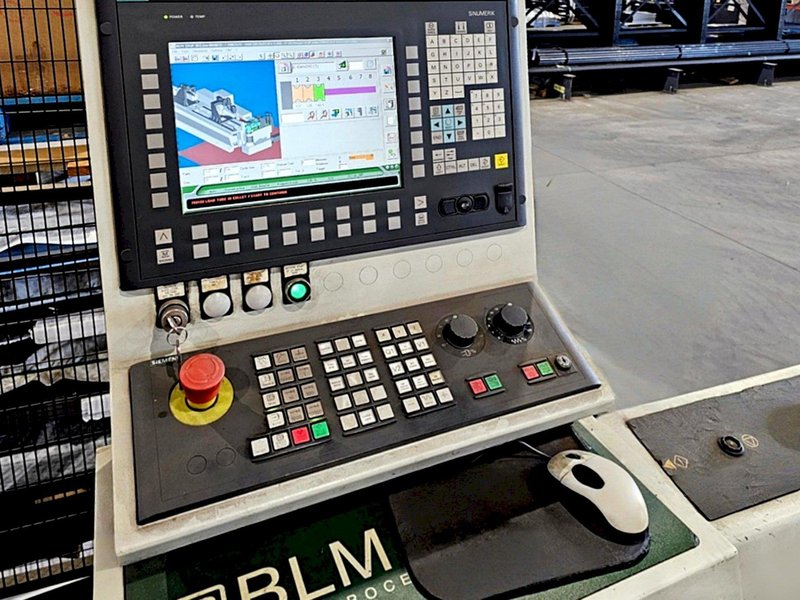

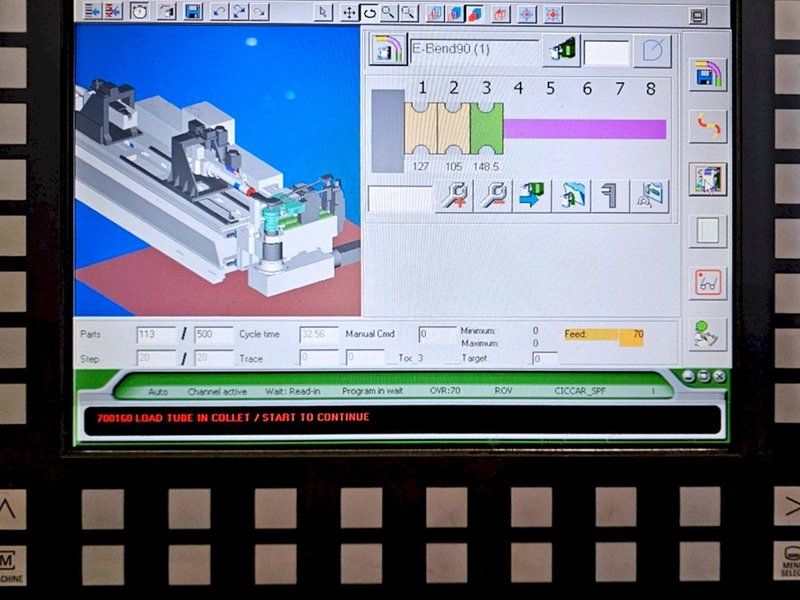

| Control | VGP 3D CNC |
| Type | Electric Driven |
| Diameter | 3.54" |
| Thickness | .080" |
| Bending Direction | RH or LH Convertible |
| Axes | 14 - 15 |
| X Accuracy | ± .002" |
| Y Accuracy | ± 0.05° |
| Z Accuracy | ± 0.05° |
| Clamp Edge | 72.0" |

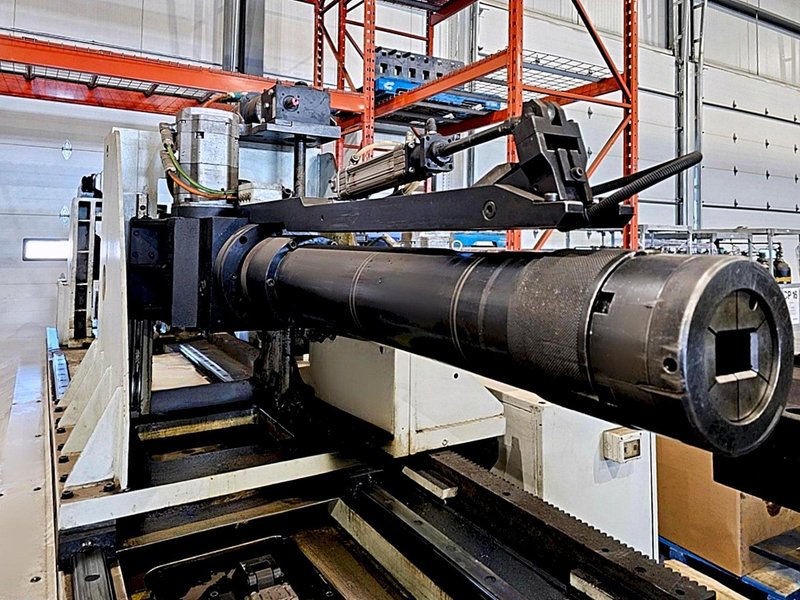

| Mandrel Extractor | 143.0" |

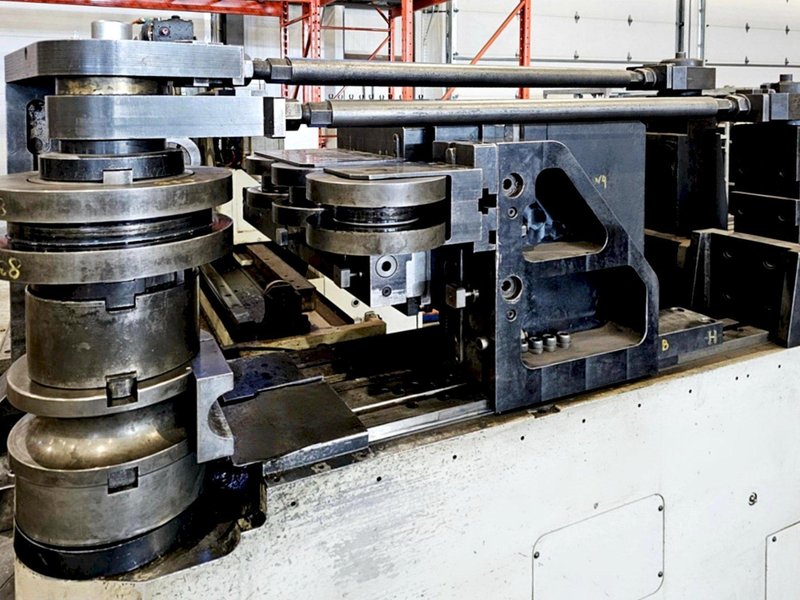

| Number Of Tools | Up to 8 |
| Max. Installed Power | 25 Kw |
| Average Drawn Power | 5 Kw |
| Noise Level | 65 Db(A) |
| Weight | 12,125 Lbs. |
|
Equipped With: VGP 3D CNC Control All Electric Operation R Handed & L Handed Bending Head Variable Radius Tooling Capability In-line Piercing Capability |
|
