Control | Siemens Simotion CNC |
Processing Capacity Al & CU | 1.126” x .059” |
Processing Capacity Steel | .551” x .039” |
Processing Capacity Stainless | .709” x .039” |
Axis Nr | Up to 8 |
X-Axis Accuracy | ± 0.002” |
Max Bore Through Tube Guides | 1.181” |
Max Installed Power | 12 kW (16kw w/ Accessories) |
Average Power Consumption | 4 kW |
Noise Level | 65 Db(A) |
Machine Dims wo/ End Forming Module | 114” X 60” X 73” |
End Forming Module Dimensions | 63” X 50” X 56” |
Machine Weight wo/ End Forming Module | 2,756 Lbs. |
End Forming Module Weight | 2,976 Lbs. |

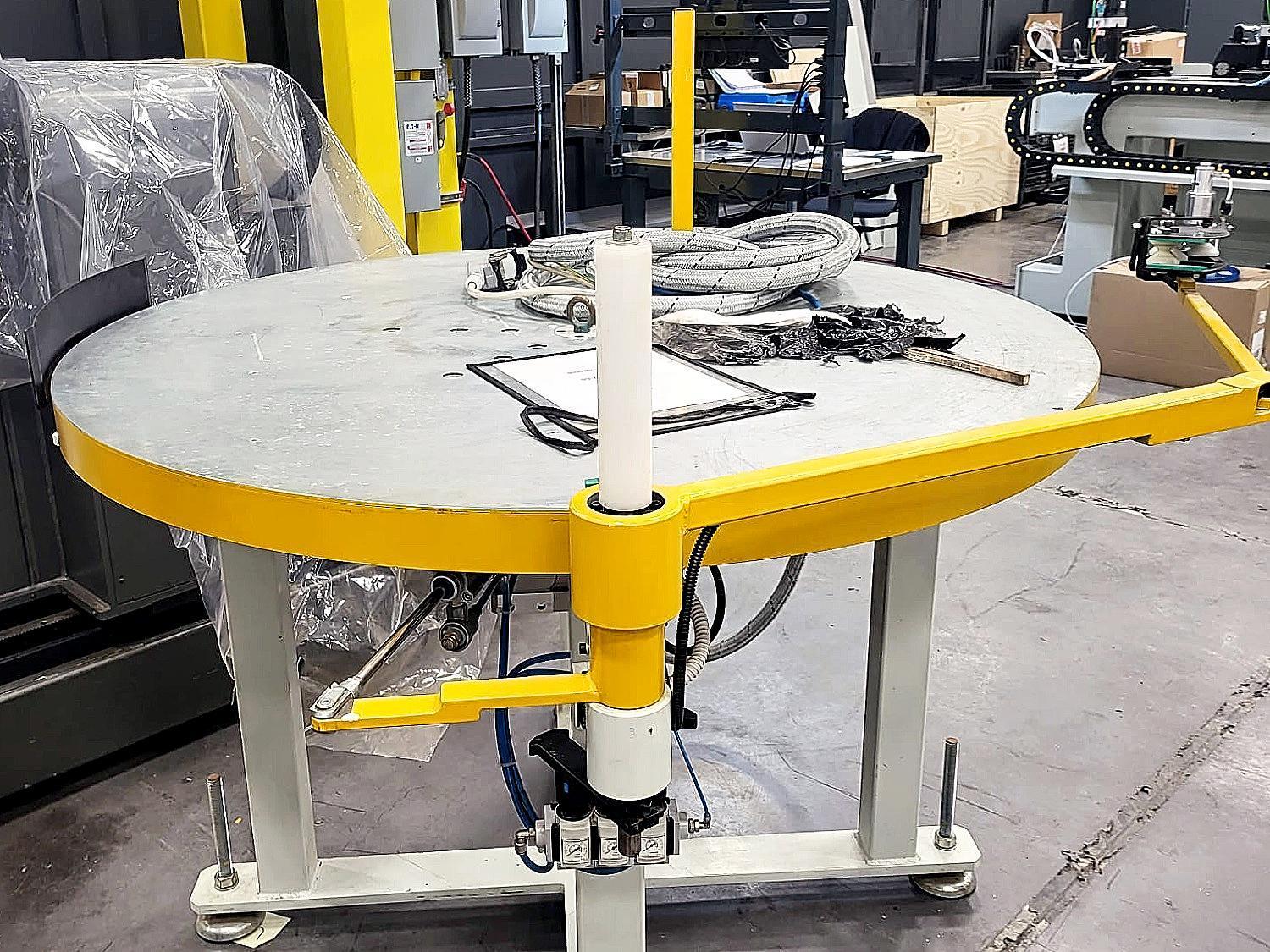

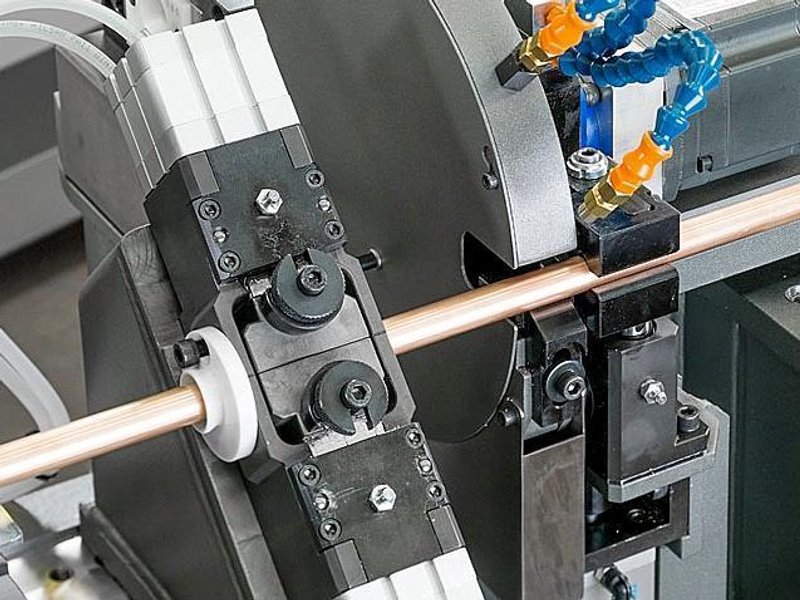

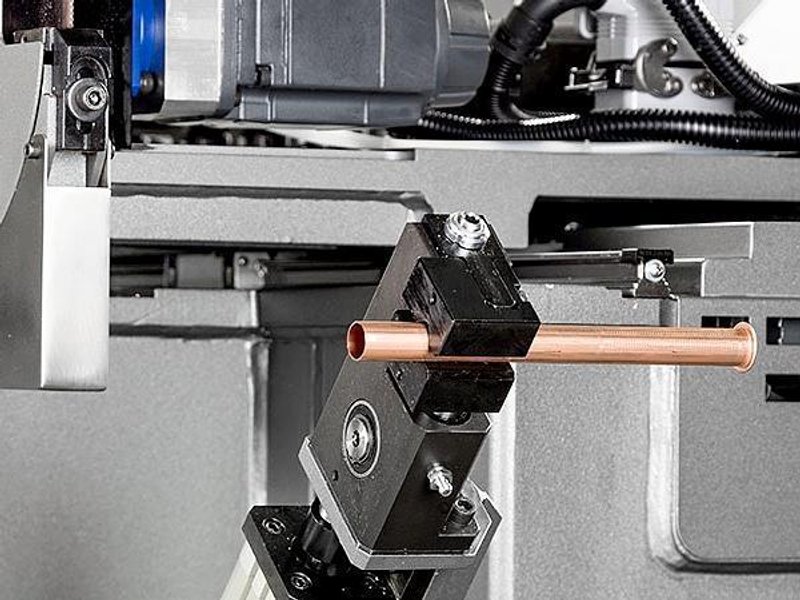

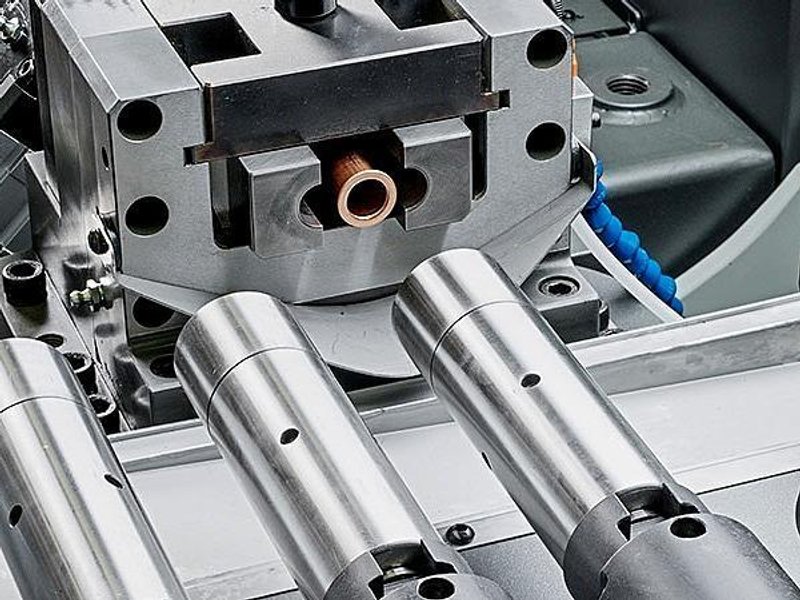

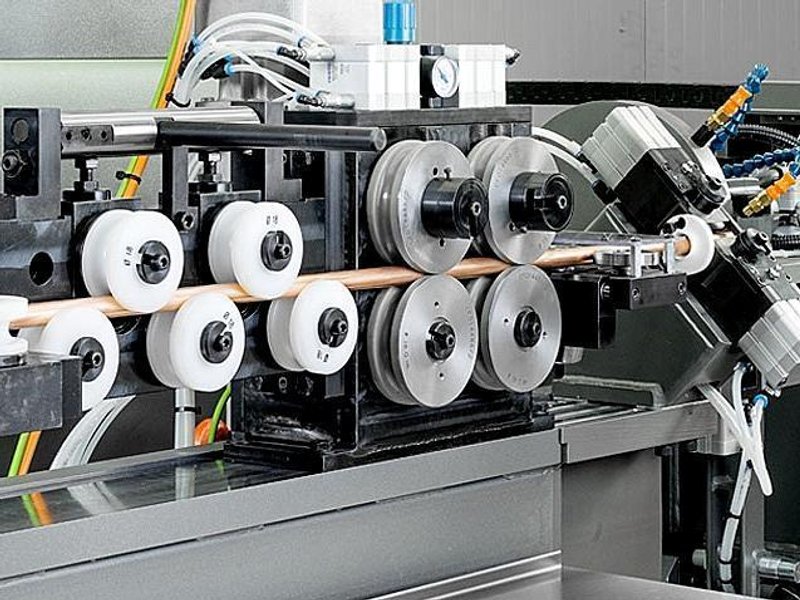

Equipped With: Siemens Simotion Control Touch Screen Operator Panel w/ TFT Color Display VGP Programming Software Horizontal & Vertical Straightening Units Straightening System & Cutting For Alloy Tubes From .157” To 1.125” w/ Rotative Unit Basic Accessory For Cutting & End Forming Devices w/ Unloading Arm Rotating Device For 4RFORM Accessory Feeding Device & Measuring Unit Motorized Coil Reel up to 330 Lbs. / 43.3” X 11.81” On line “Go/No Go" For End Former Orbital Cutting Device Tear Off Cut End Forming Unit Safety Fencing For 3-RUNNER+4RFORM+4RASPO |
