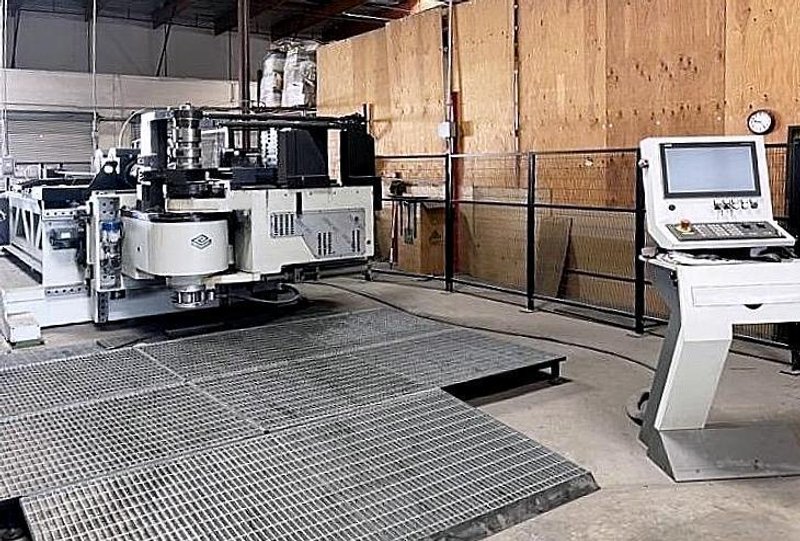

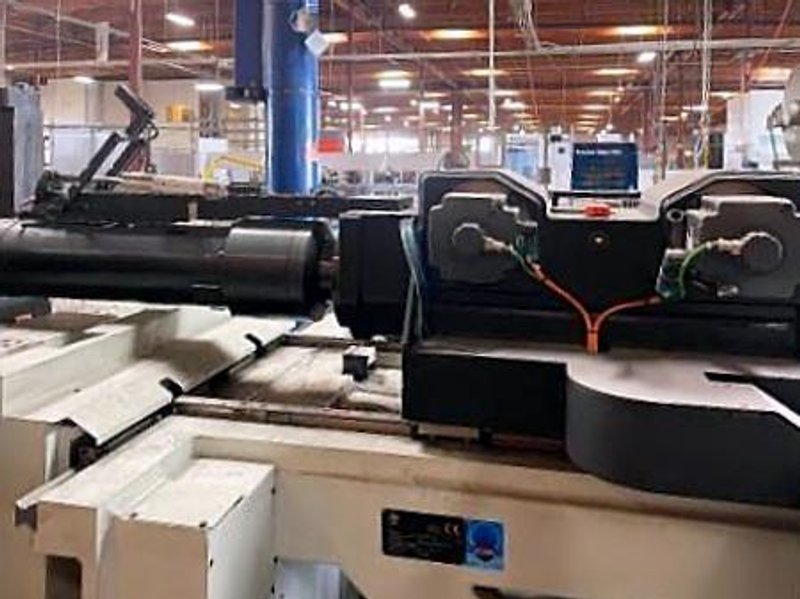

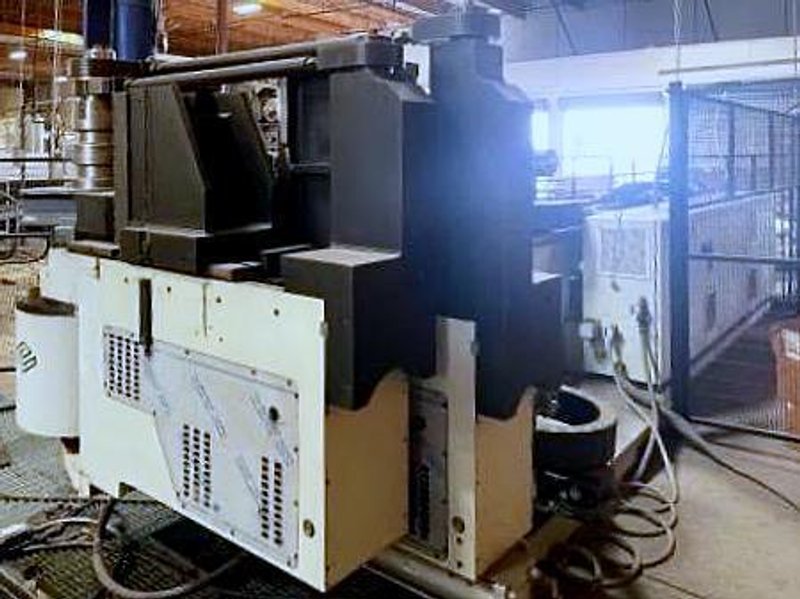

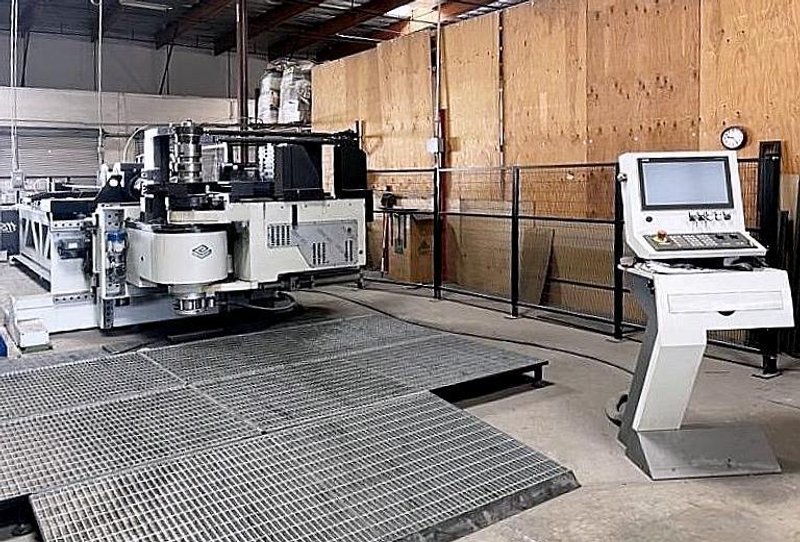

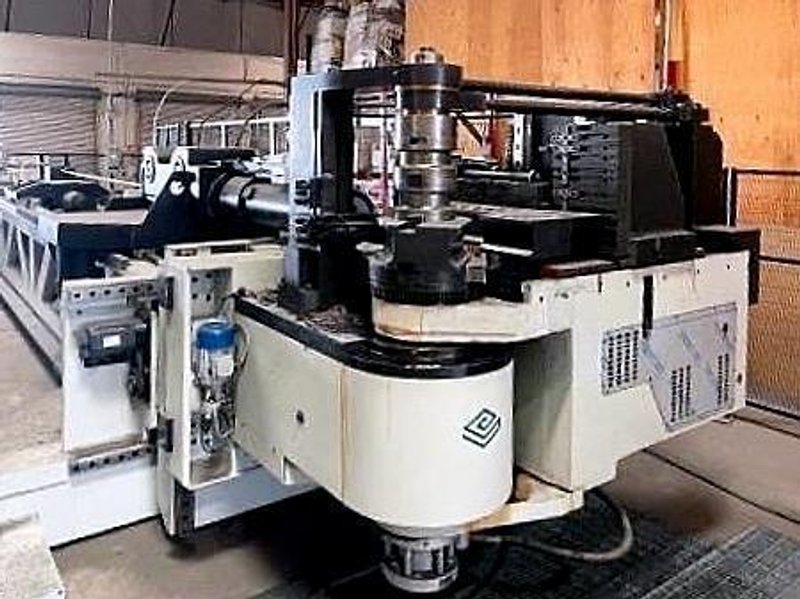

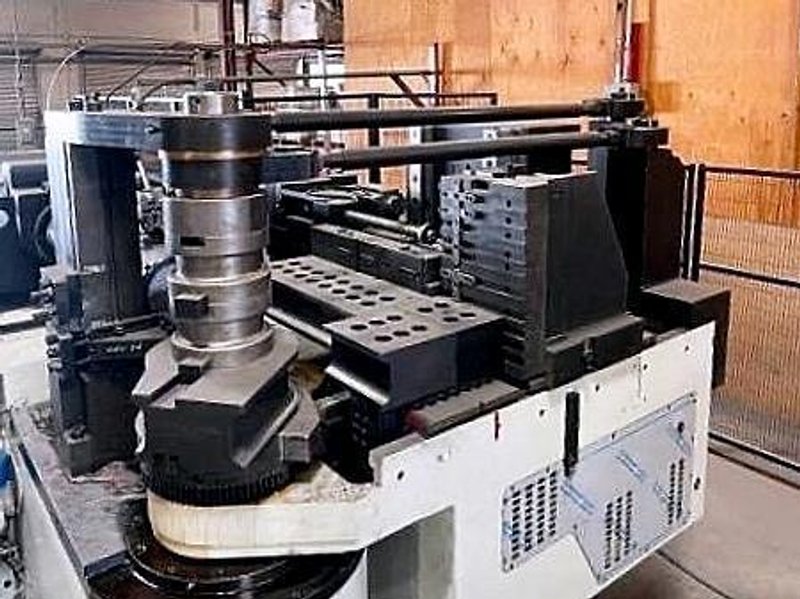

BLM ELECT 150-XL Electric Tube Bender
Brand
Category
Model
ELECT 150-XL
Stock #
100495
Year
2020
Condition
Very Good
Location
Not specified
| Type | New Generation Electric |
| Bending | Right Hand |

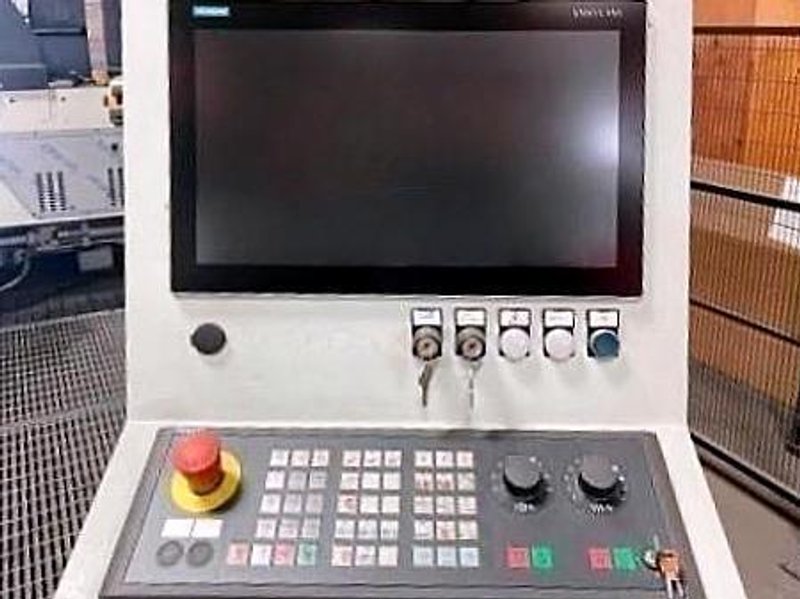

| Control | Siemens Numeric Control |
| Round Tube Max. Bending Capacity | 5.91" |
| Max Thickness | 0.197" |
| X Accuracy | ± .002" |
| Y Accuracy | ± 0.05° |
| Z Accuracy | ± 0.05° |
| Useful Length - Die Center To Clamp Edge | 130.98" |
| Useful Length - Die Center To Mandrel Extractor | 250.39" |
| Number Of Axis | 12 |
| Toolset Capacity | 8 |
| Max. Installed Power | 35.0 kW |
| Average Drawn Power | 6.5 kW |
| Noise Level | 65 dB(A) |
| Weight | 35,054 Lbs. |
|
Equipped With: Siemens Numeric Control CPU Simotion 435 Operator Pedestal Foot Switch VGP3D Software 12-Axis 6" Max Tube Bending Advanced Features For Precise Bending Enhanced Springback Compensation (For Bend Angle & Assorted Length Before & After Bend) Electric Die Assist For Tooling Stack With Programming Modulation Empowered Variable Radius Facility Complete With 500 Kg Booster Tube Backstop For Booster 500Kg Conforms With CE/89/392 Junction Box Miscellaneous Tooling - List Available Upon Request |
|
