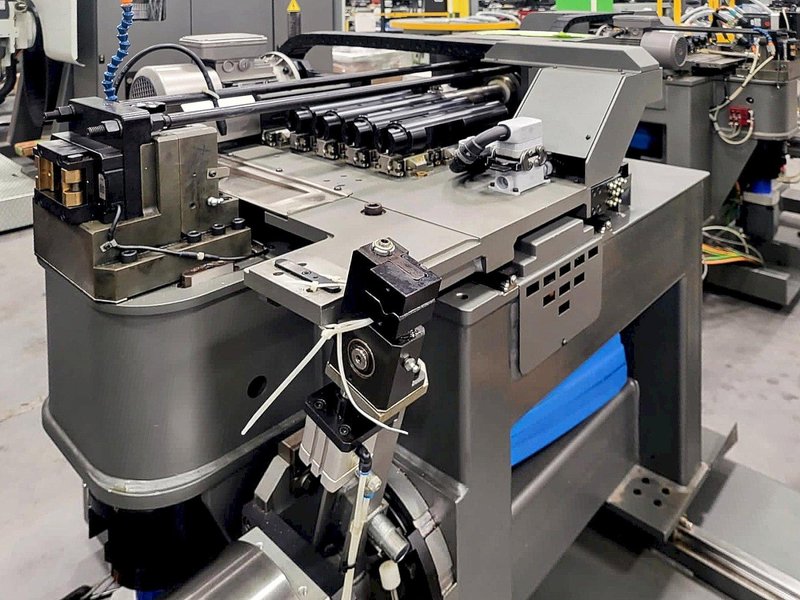

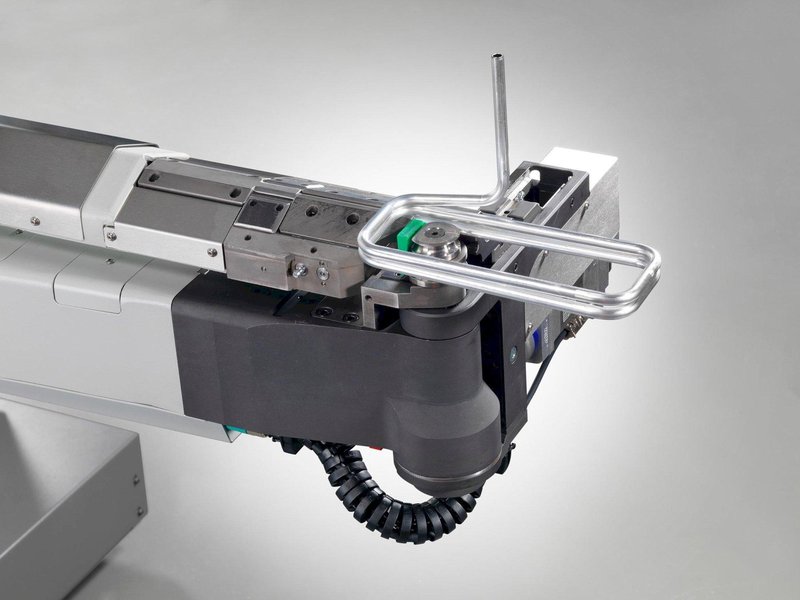

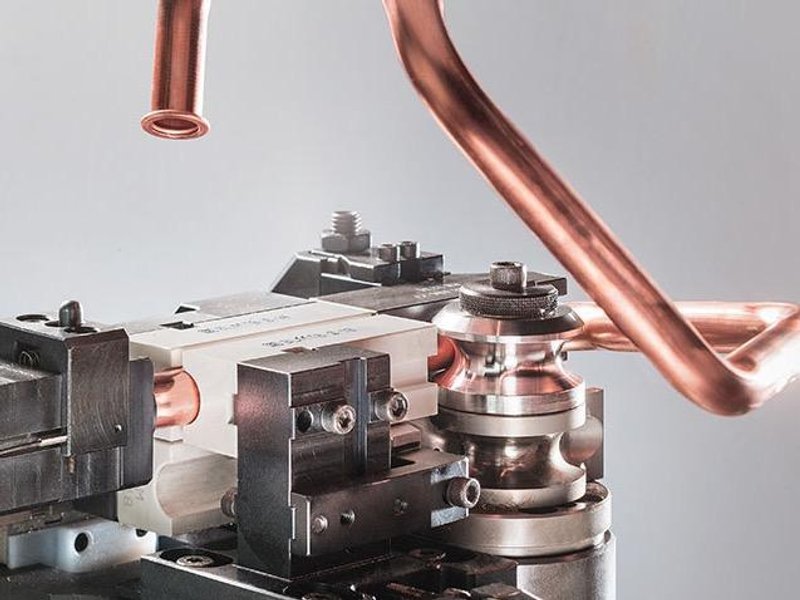

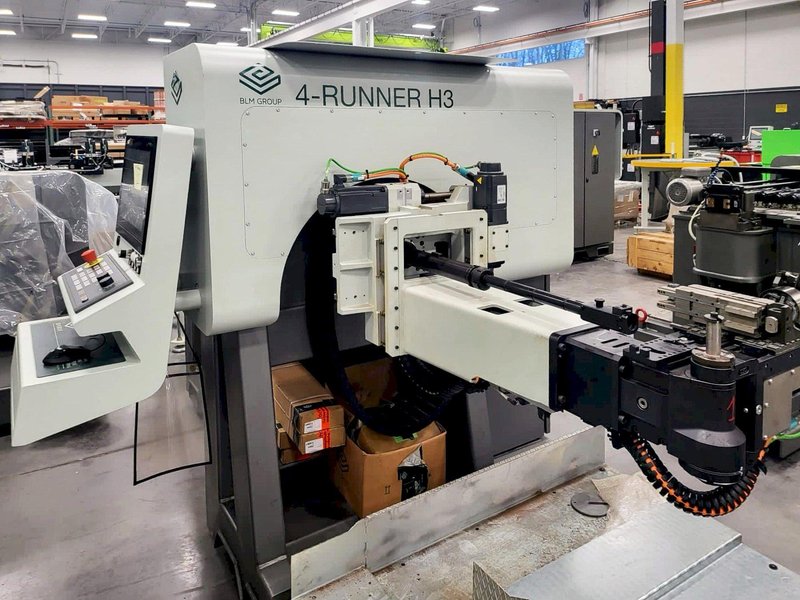

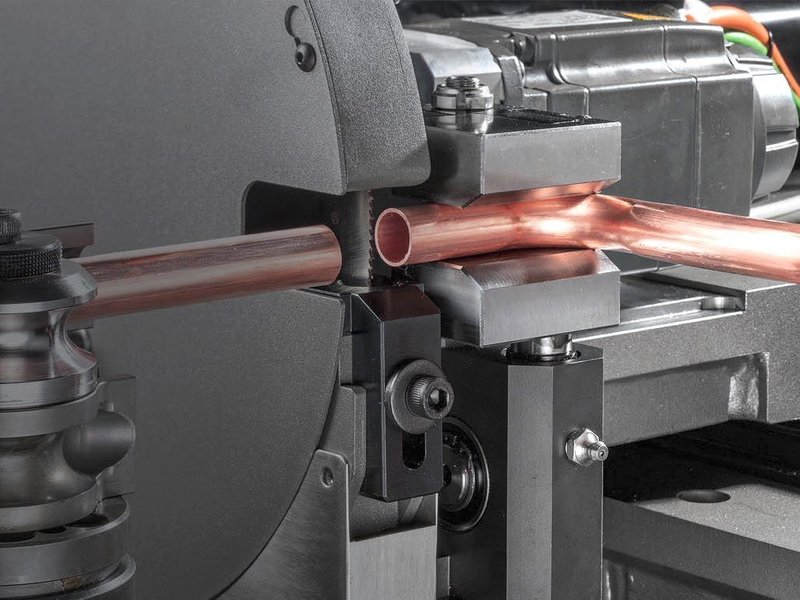

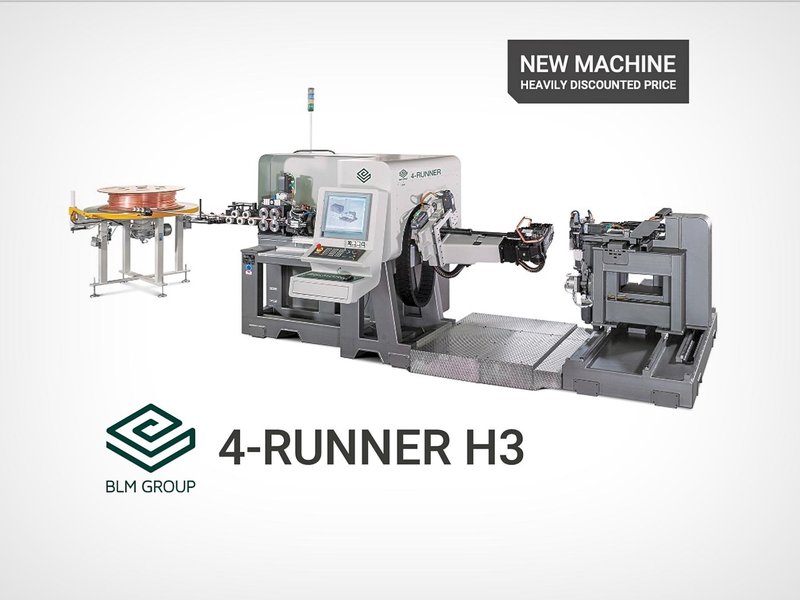

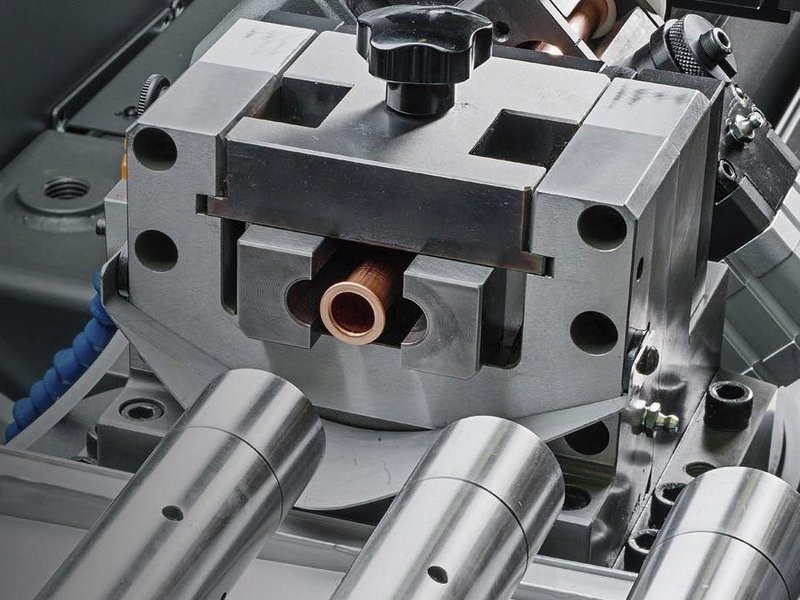

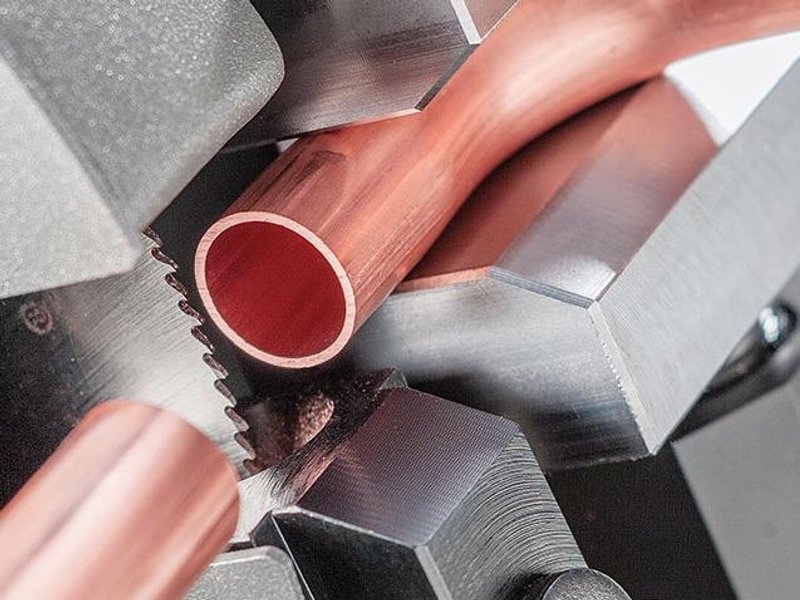

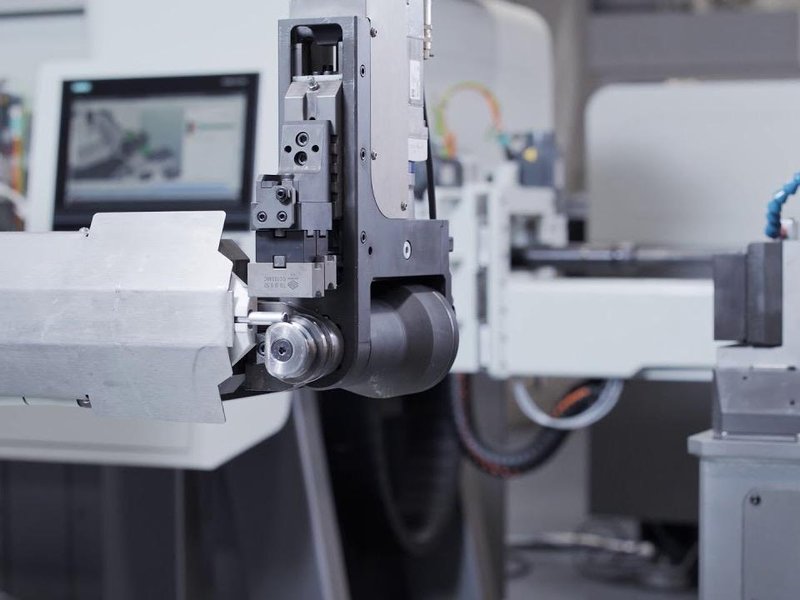

BLM 4-RUNNER H3 - All Electric CNC Tube Forming System
Brand
Category
Model
4-Runner H3
Stock #
100482
Year
2017
Condition
New
Location
Not specified
| Control | Siemens Simotion CNC |
| Max. Workable Diam. Aluminum | .87" x .06" |
| Max. Workable Diam. Copper | .87" x .05" |
| Max. Workable Diam. Mild Steel | .55" x .04" |
| Max. Workable Diam. S. Steel | .47" x .03" |
| Axes | Up to 11 |
| X-Axis Accuracy | ± 0.002” |
| Y-Axis Accuracy | ± 0.005° |
| Z-Axis Accuracy | ± 0.005° |
| Max. Bending Radius | 2.76” |
| Bar Passage | 0.55" |
| Min. Bending Radius | 0.63” |
| Max. Installed Power | 10.5 kW |
| Max. Installed Power With End-Forming Module | 14.5 kW |
| Noise Level | 65 DB(A) |
| Machine Weight Without End-Forming Module | 5,512 Lbs. |
| End Forming Module Weight | 2,976 Lbs. |
| Electrical | 480/60hz |
| Machine Dimensions Without End-Forming Module | 157” X 78” X 75” |
| End-Forming Module Dimensions | 85” X 49” X 55” |
|

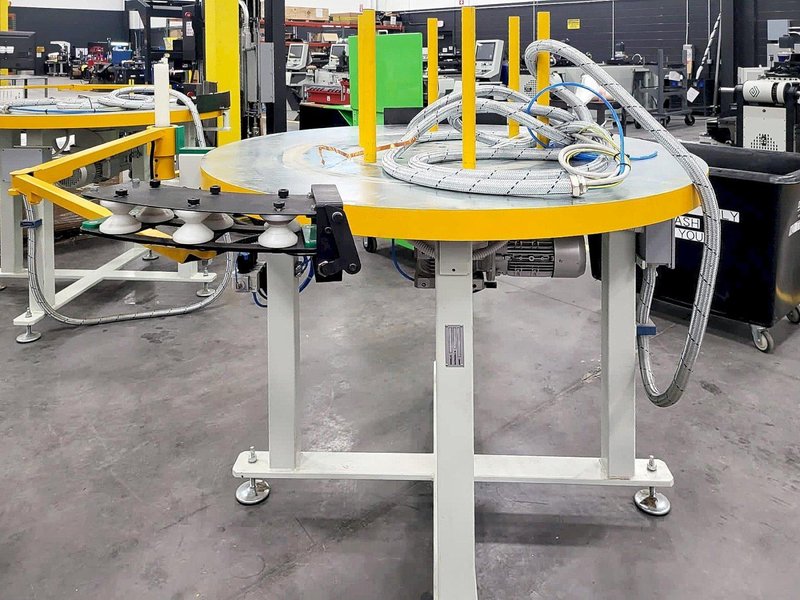

Equipped With: TFT Touchscreen Flat Panel Display Coil Feeder Horizontal and Vertical Straightening Units Feeding Device Measuring Unit End-Forming Unit Internal Orbital Cutting External Orbital Cutter Automatic Diagnostics B-TOOLS - Spring Back Compensation Software All Manuals and Operational Documents |
|
