Used 2" (50 mm) x .197" (5 mm) BRONX #6CR-4-1/2BW 6-Roll Tube Straightener (14599)
Brand
Category
Model
6CR-4-1/2BW 6-Roll Tube Straightener
Stock #
14599
Year
Not specified
Condition
Not specified
Location
Not specified
| Max Dia. Of Workpiece | 2 inches |
| # Rolls | 6 |
| Power | 7.5 horsepower |
| Weight | 8300 pounds |
|

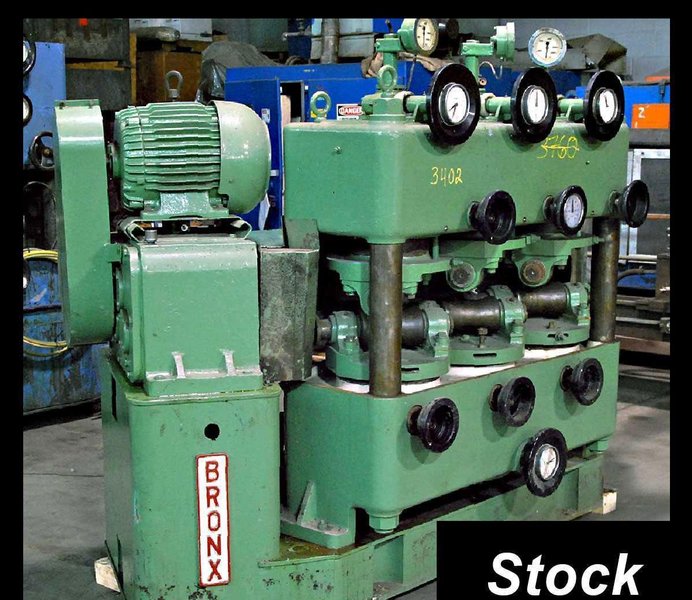

Bronx 6CR- 4-1/2 BW 6 Roll Straightener
Stock # 14599 MANUFACTURER: BRONX MODEL NUMBER: 6CR 4-1/2 BW SERIAL NUMBER: 281074 YEAR: 1974 SPECIFICATIONS: 6-Roll Vertically Opposed Cross Roll Design Maximum Diameter: 2" (50.8 mm) Minimum Diameter: .394" (10.0 mm) Maximum Wall Thickness: .197" (5.00 mm) Maximum Diameter Admitted: 3" (76.2 mm) Feed Direction: Right to Left Roll Size: 4" Diameter x 8" Long Manual Roll Adjustment: 3" (76.2 mm) Approximate Operating Speed: 60 - 120 MPM EQUIPPED WITH: (2) Motors: 7.5 HP/3.7 Kw, 415 v/3/50, 1425/720 RPM OVERALL DIMENSIONS: 8' x 5' x 6' APPROXIMATE WEIGHT: 8,300 Lbs. Notes: Ran in 2025. Gauges do not work **Temporary Specifications Subject to Revisions** **PRICEQ QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE** **ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION** |
|
