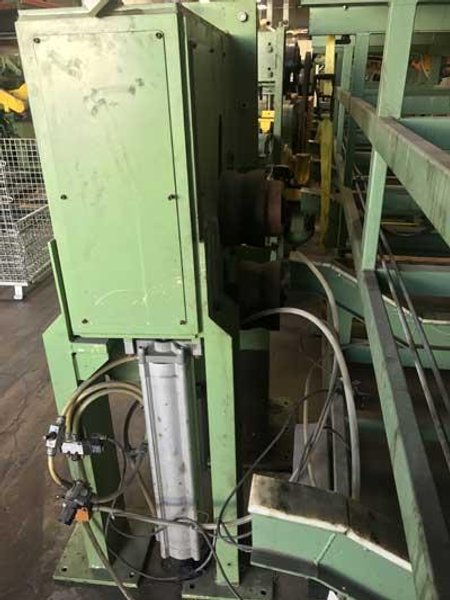

MACHINE# 13585

SPECIFICATIONS:

Manufacturer:                 Bronx Engineering Co. Ltd.
Type:                         6 Roll Rotary Tube Straightener
Model:                        6CR5BW
Purpose:                      Straighten Non-Ferrous or Ferrous Tube

Capacity:*
 Normal Max. Diameter:        2.5" (65mm)
 Max. Diameter Admitted:      3.9" (100mm)
 Min. Diameter:               0.5" (13mm)
 Normal Max. Wall Thickness:  0.24" (6mm)

No. of Driven Rolls: 6

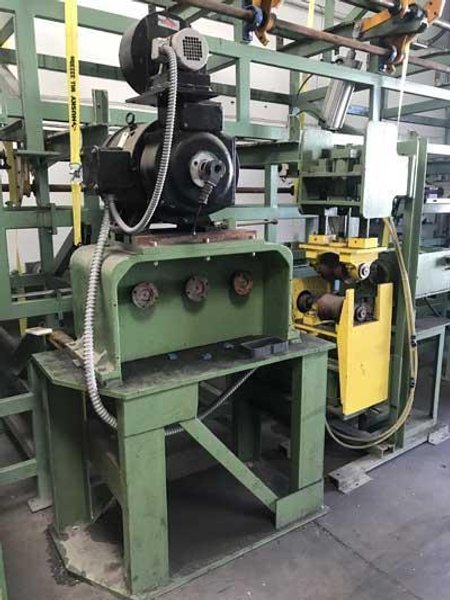

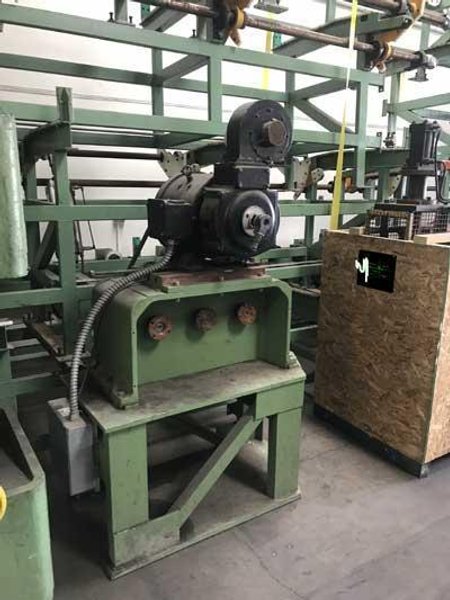

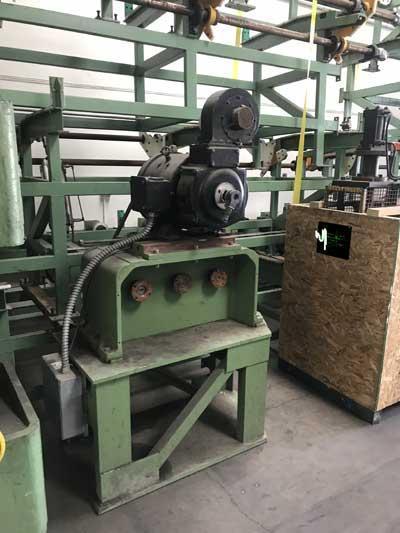

No. of Drive Motors: 2 (One for Top Rolls; One for Bottom Rolls)

Motor Specs:
Drive is Veebelt Transmission
Totally Enclosed Gearboxes
Universal Spindles and Couplings
Roll Material: Carbon Chrome, Hardened Steel

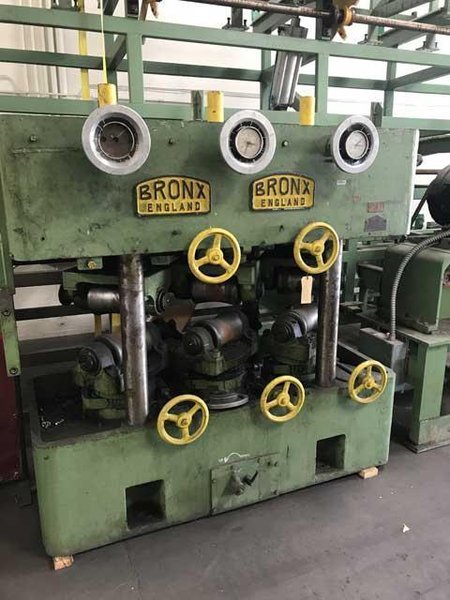

Upper Rolls and Bottom Center Roll are Vertically Adjustable.
All Rolls have Angular Adjustment.

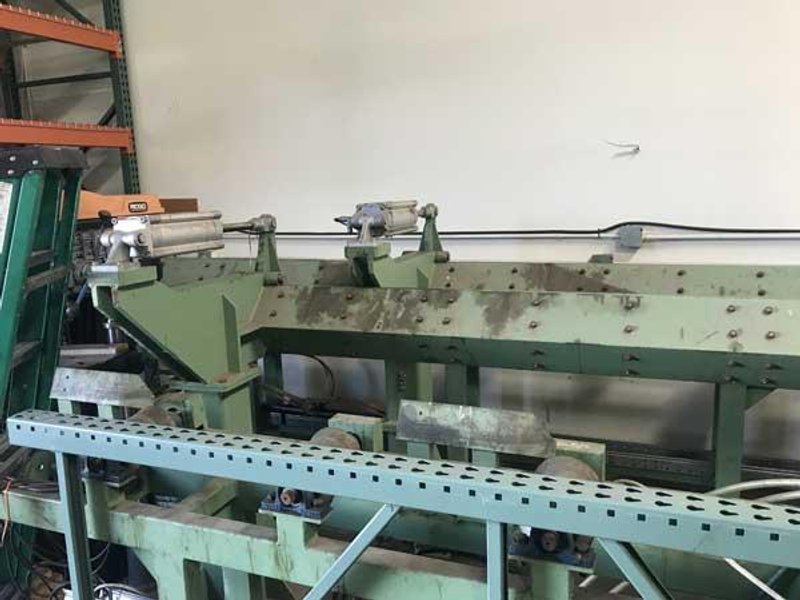

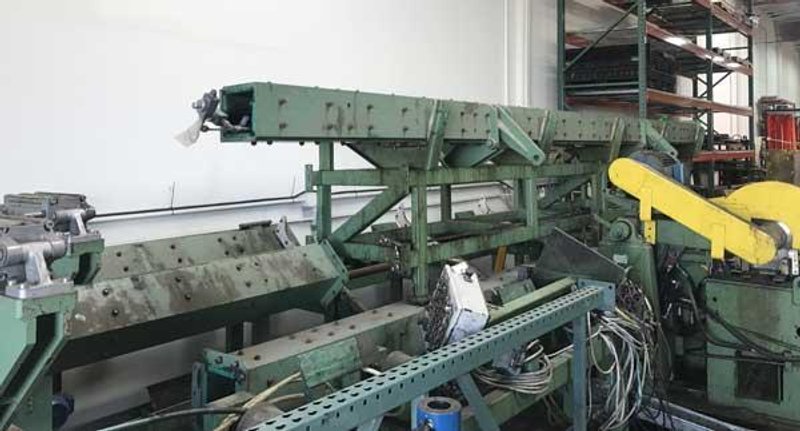

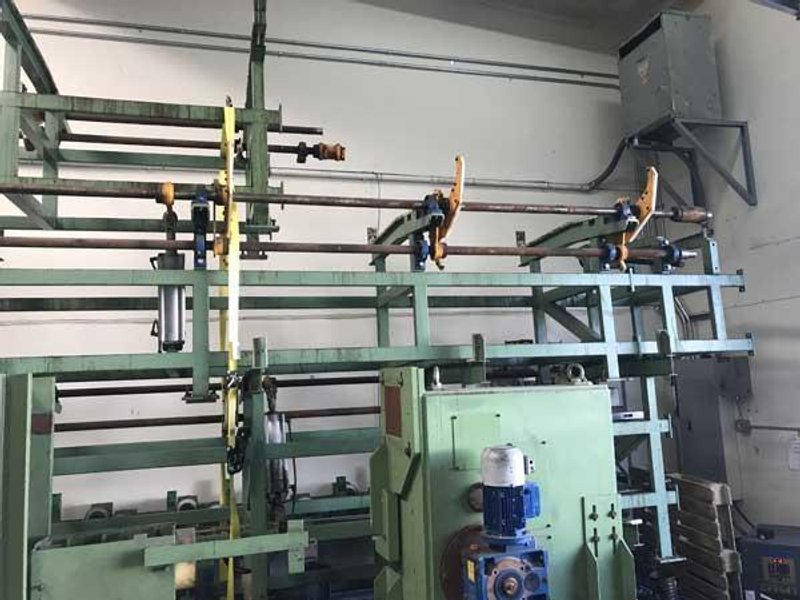

Entry and Exit Tables

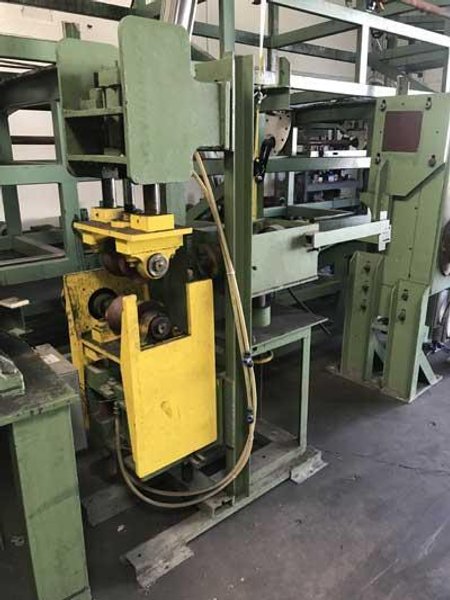

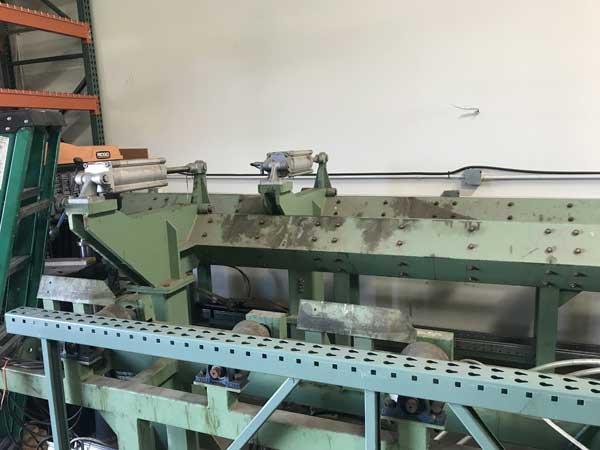

Pinch Roll Feeds

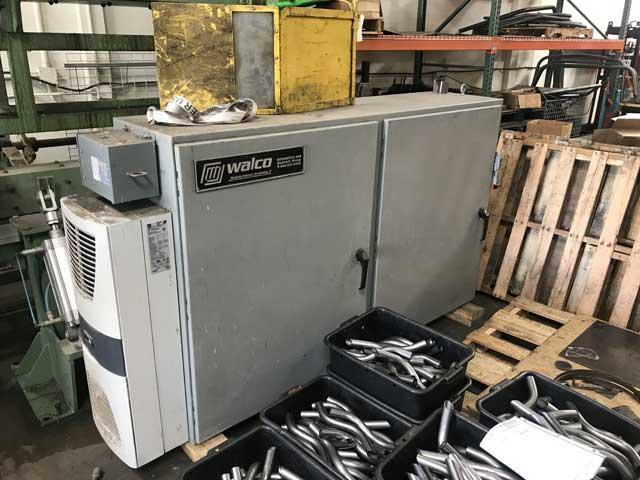

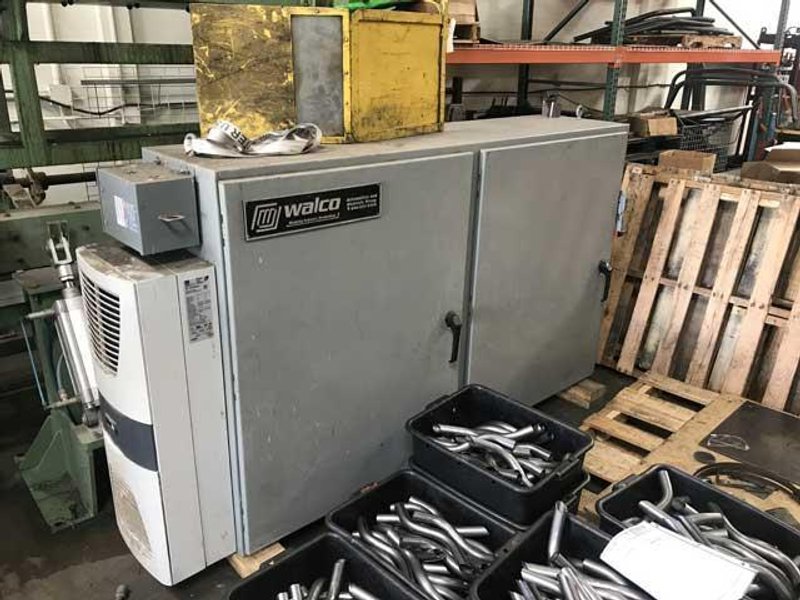

Drive Controls: Walco Electric
Operator Desk
* Based on Yield Strength of 20 Tons/sq. inch or 31.5 Kg/mmc sq. mm

 ** SPECIFICATIONS SUBJECT TO REVISIONS **

 ** SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER **

 ** PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE **
