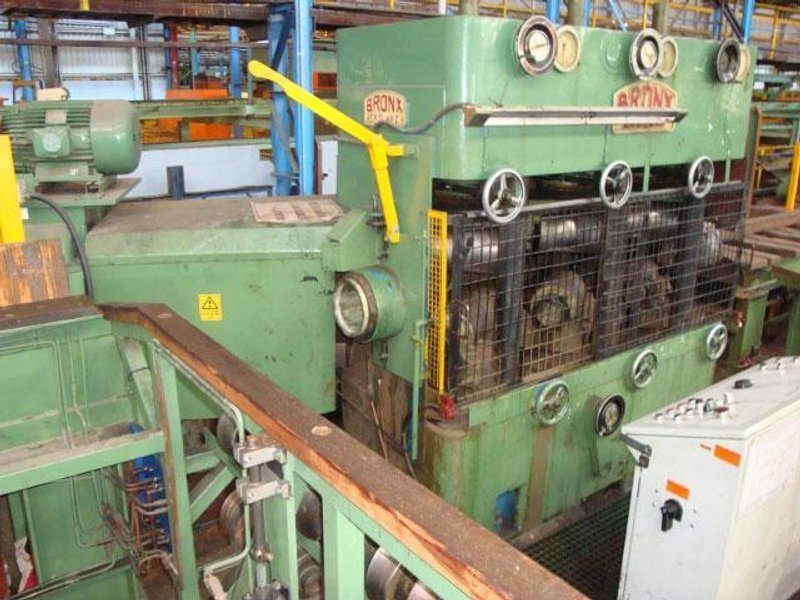

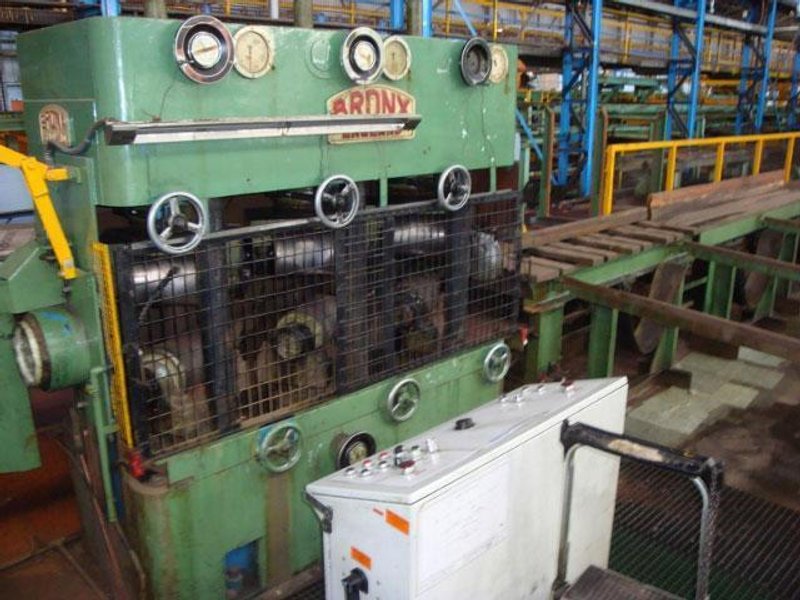

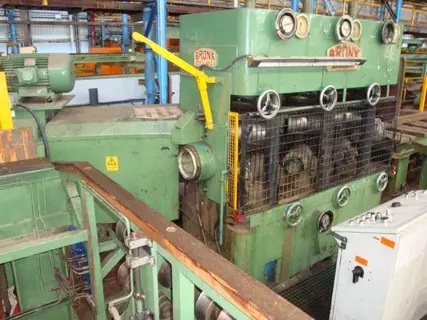

8" (178mm) BRONX 6CR7 ROTARY TUBE STRAIGHTENER (14268)
Brand
Category
Model
6CR7 ROTARY TUBE STRAIGHTENER
Stock #
14268
Year
Not specified
Condition
Not specified
Location
Connecticut
| Max Dia. of Workpiece | 8 inches |
| # Rolls | 6 |
|
MACHINE# 14268

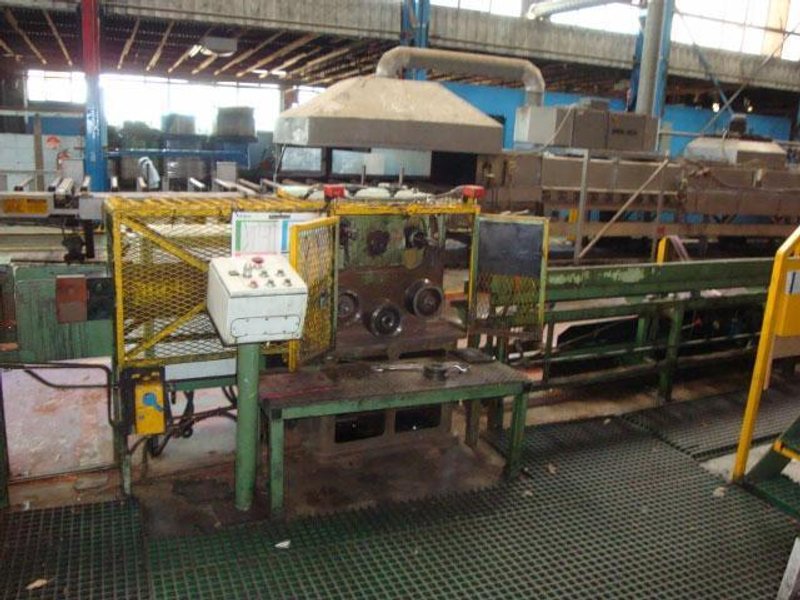

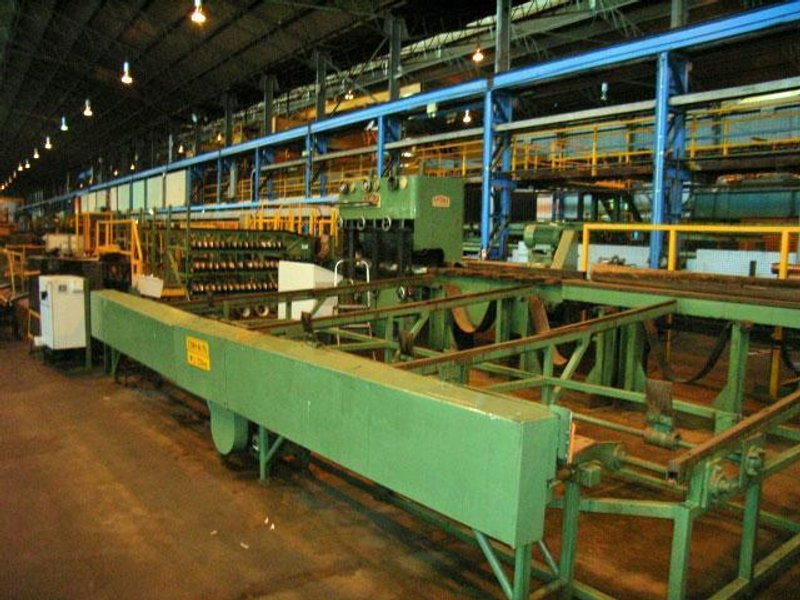

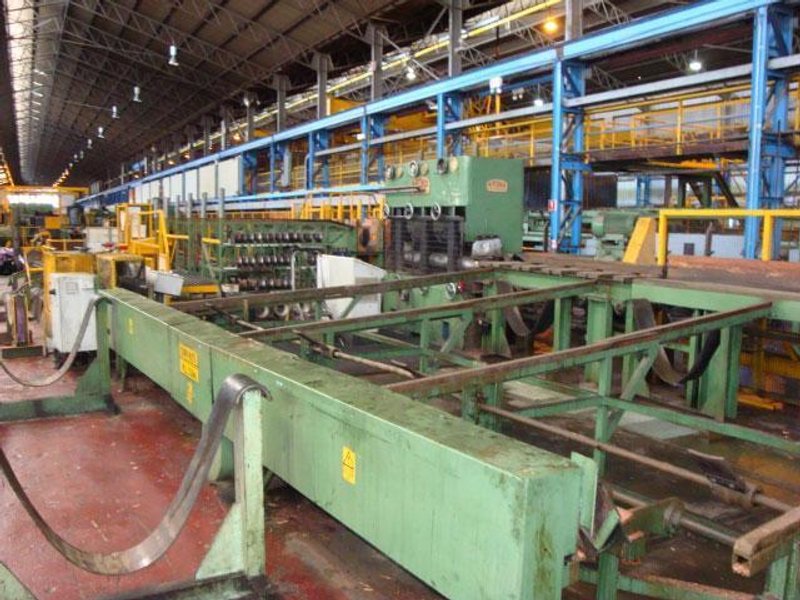

SPECIFICATIONS: MANUFACTURER: BRONX ENGINEERING CO. (U.K.) LTD. TYPE: 6 ROLL ROTARY TUBE STRAIGHTENER MODEL No.: MODEL 6CR7-BWS DIRECTION: LEFT TO RIGHT WITH LOADING AND DISCHARGE TABLES IN FRONT CAPACITY (COPPER & BRASS): MAXIMUM TUBE DIAMETER PER MANUFACTURER'S SPECS: 7" (178mm) MAXIMUM TUBE DIAMETER AS USED: 8" (203mm) MINIMUM DIAMETER SOFT. Cu.: 3/4" (19mm) MINIMUM DIAMETER HALF HARD: 1 3/8" (35mm) MAXIMUM TUBE LENGTH: 20 FT. (6.1m) - DETERMINED BY TABLE LENGTH - CAN BE EASILY LENGTHENED STRAIGHTENING SPEED: 0-50 FPM (0-15m/min.) ROLL TYPE: PARABOLIC (CONCAVE) CENTER DIAMETER: 9" (228mm) END DIAMETER: 10" (254mm) ROLL FACE: 14" (355mm) No. OF ROLLS: 6 (ALL DRIVEN) MOTORS: QUANTITY: 2 EACH MOTOR DRIVES 3 ROLLS SIZE: 12 HP, 720 RPM, 415 VOLT, 3 PH., 50 HZ DRIVE: RELIANCE MINITRON S-2 SERIES, SCR THYRISTOR VARIABLE SPEED PARAFIN FEED: MOTORIZED ROLL ADJUSTMENT: MANUAL PRESSURE INDICATORS: STATIMETERS FITTED TO THREE TOP ROLLS LUBRICATION: GREASE EQUIPPED WITH INCISE MARKER TO LABEL EACH TUBE BY IMPRINT. TUBES LEAVE THE DISCHARGE RACK OF THE STRAIGHTENER AND ARE GRAVITY FED TO THE ENTRY SIDE OF THE INCISING MARKER. INCISING ROLLS: 7" (178mm) DIA. x 4" (100mm) FACE ENTRY AND EXIT TABLES: 20 FT. (6.1m) **PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE** **ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION BY PURCHASER** |
|
