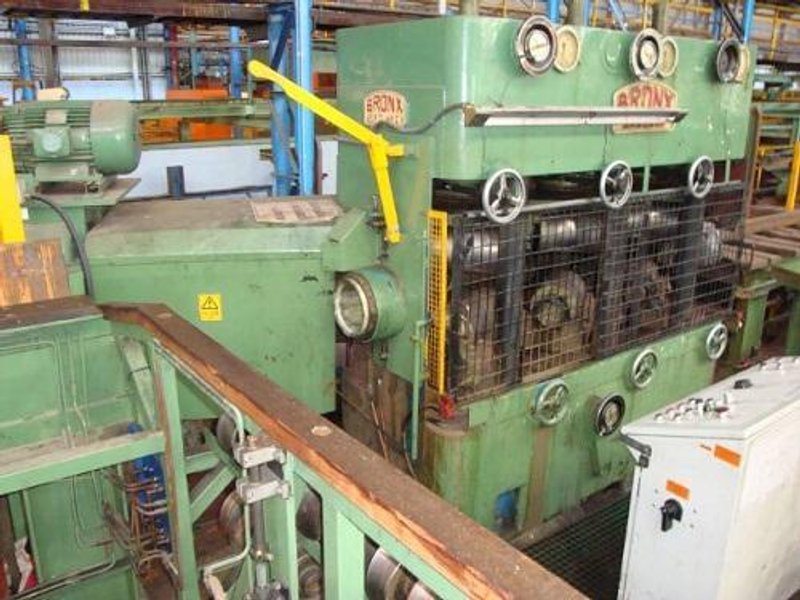

BRONX 6CR7 6 ROLL ROTARY TUBE STRAIGHTENER
Brand
Category
Model
Not specified
Stock #
116368
Year
Not specified
Condition
Used
Location
New Jersey
|

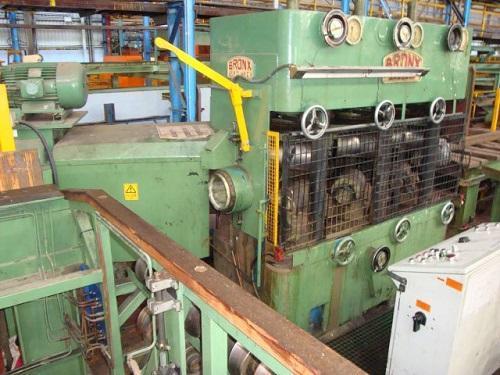

MANUFACTURER: BRONX ENGINEERING CO. (U.K.) LTD.
TYPE: 6 ROLL ROTARY TUBE STRAIGHTENER
MODEL No.: MODEL 6CR7-BWS
DIRECTION: LEFT TO RIGHT WITH LOADING AND DISCHARGE TABLES
CAPACITY (COPPER & BRASS):
MAXIMUM TUBE DIAMETER PER MANUFACTURER'S SPECS: 7" (178mm)
MAXIMUM TUBE DIAMETER AS USED: 8" (203mm)
MINIMUM DIAMETER SOFT. Cu.: 3/4" (19mm)
MINIMUM DIAMETER HALF HARD: 1 3/8" (35mm)
MAXIMUM TUBE LENGTH: 20 FT. (6.1m)
- DETERMINED BY TABLE LENGTH
- CAN BE EASILY LENGTHENED
STRAIGHTENING SPEED: 0-50 FPM (0-15m/min.)
ROLL TYPE: PARABOLIC (CONCAVE)
CENTER DIAMETER: 9" (228mm)
END DIAMETER: 10" (254mm)
ROLL FACE: 14" (355mm)
No. OF ROLLS: 6 (ALL DRIVEN)
MOTORS:
QUANTITY: 2
EACH MOTOR DRIVES 3 ROLLS
SIZE: 12 HP, 720 RPM, 415 VOLT, 3 PH., 50 HZ
DRIVE: RELIANCE MINITRON S-2 SERIES, SCR THYRISTOR VARIABLE SPEED
PARAFIN FEED: MOTORIZED
ROLL ADJUSTMENT: MANUAL

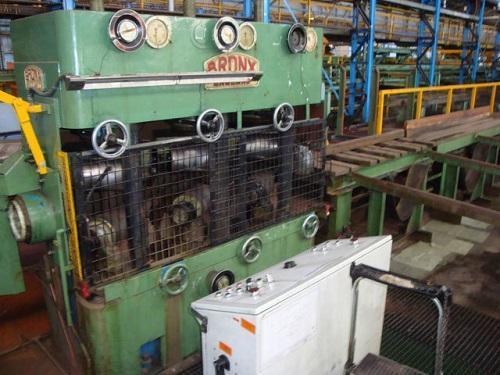

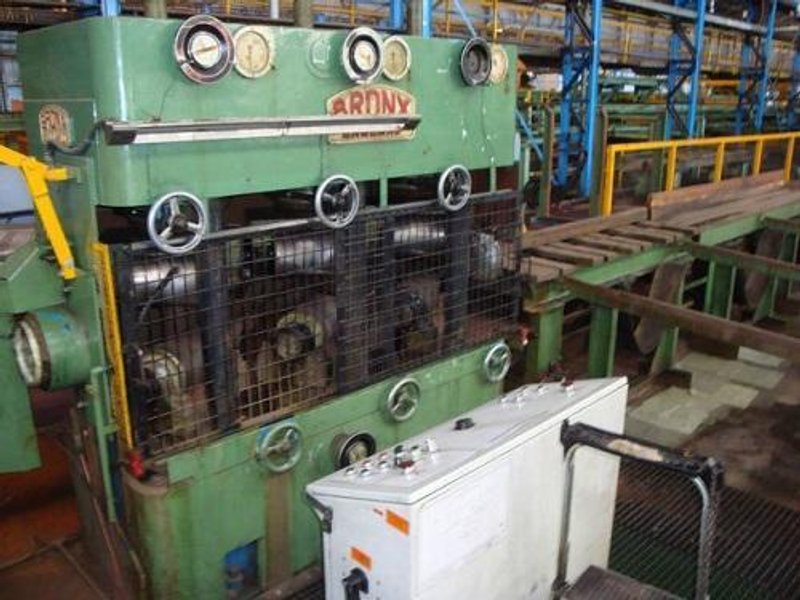

PRESSURE INDICATORS: STATIMETERS FITTED TO THREE TOP ROLLS
LUBRICATION: GREASE

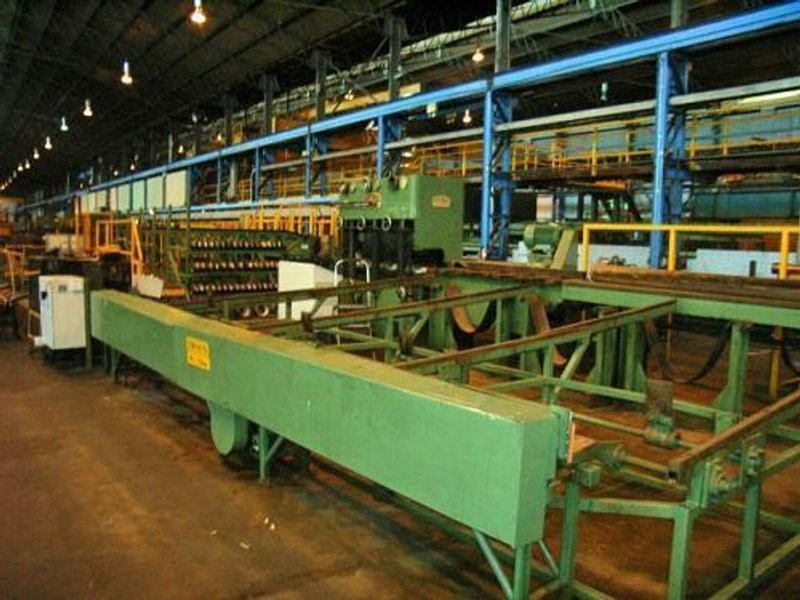

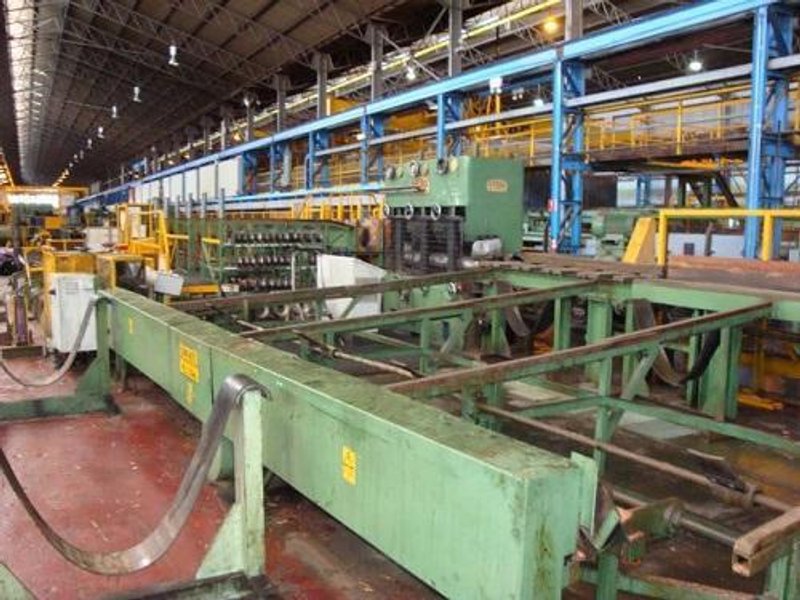

ENTRY AND EXIT TABLES: 20 FT. (6.1m) INCLUDED

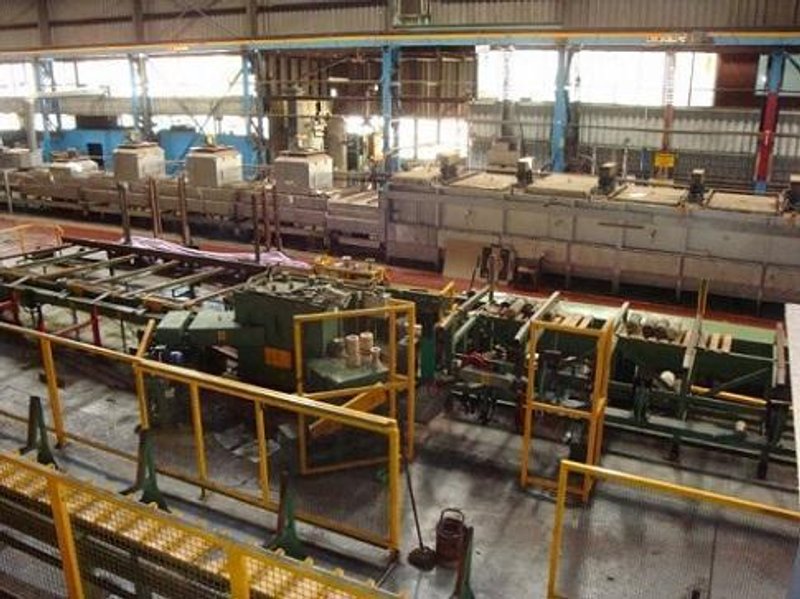

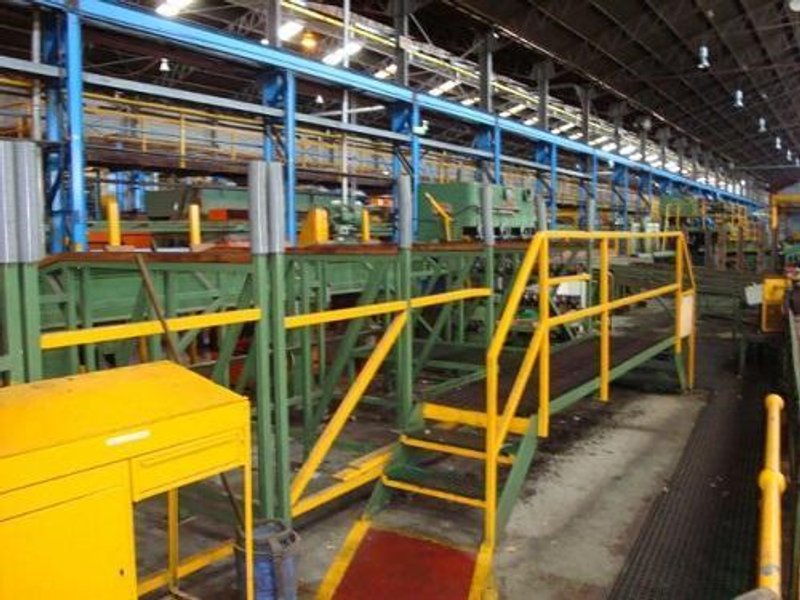

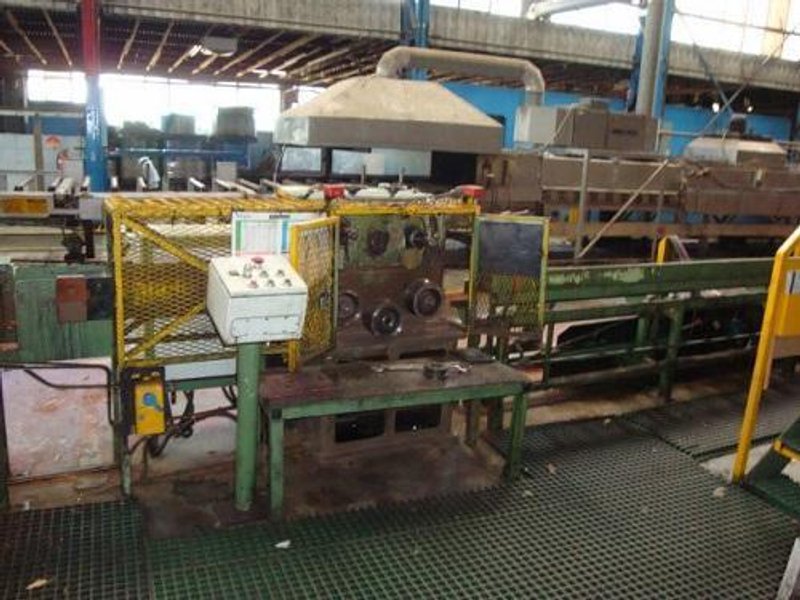

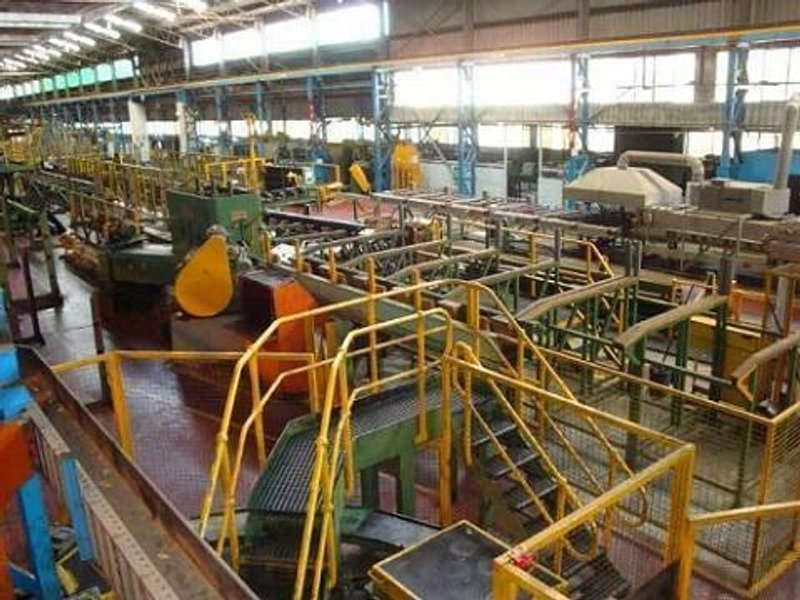

NOTE: ENTRY AND EXIT STORAGE RACKS AND INCISOR SHOWN IN PHOTOS ARE NOT
INCLUDED
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION BY PURCHASER**
|
