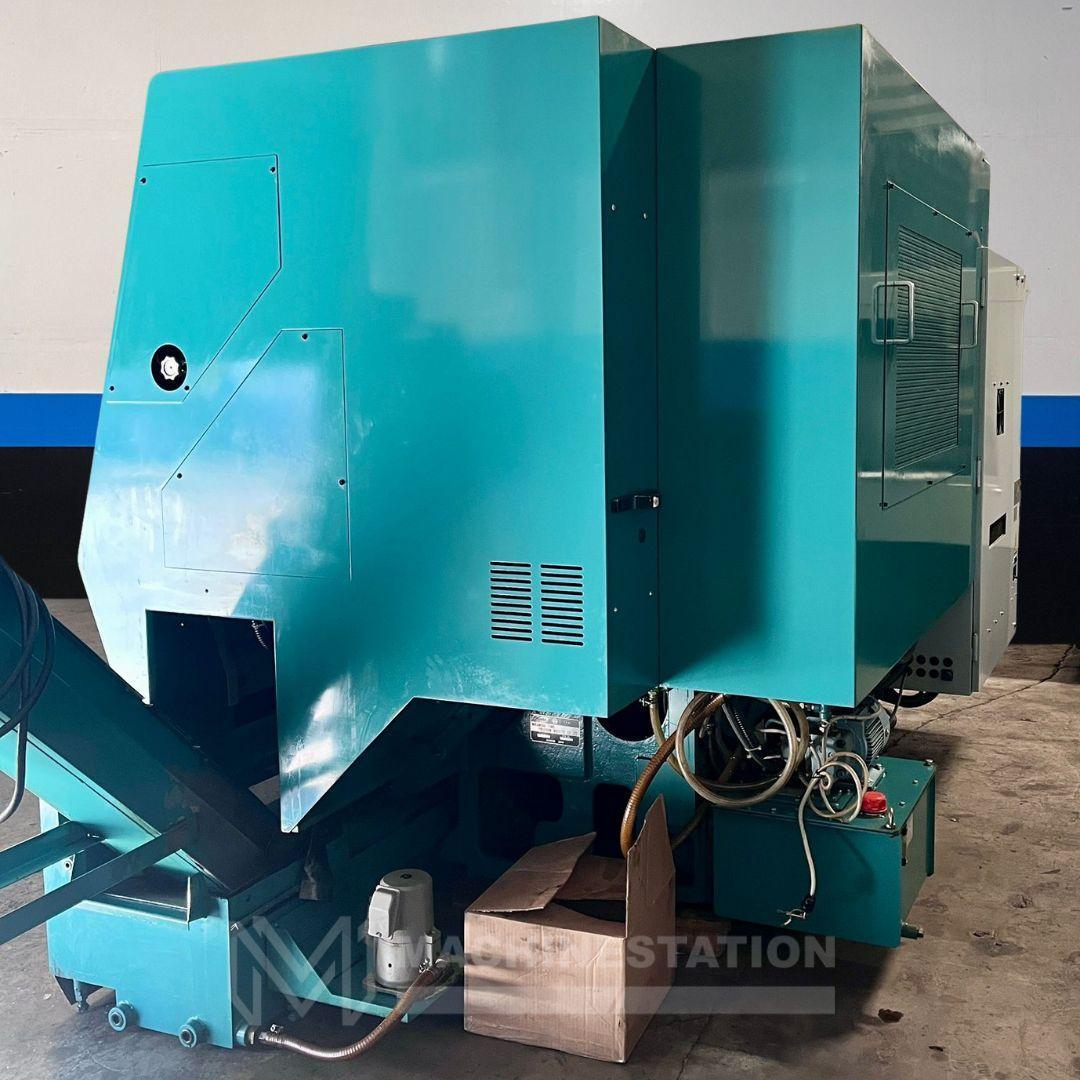

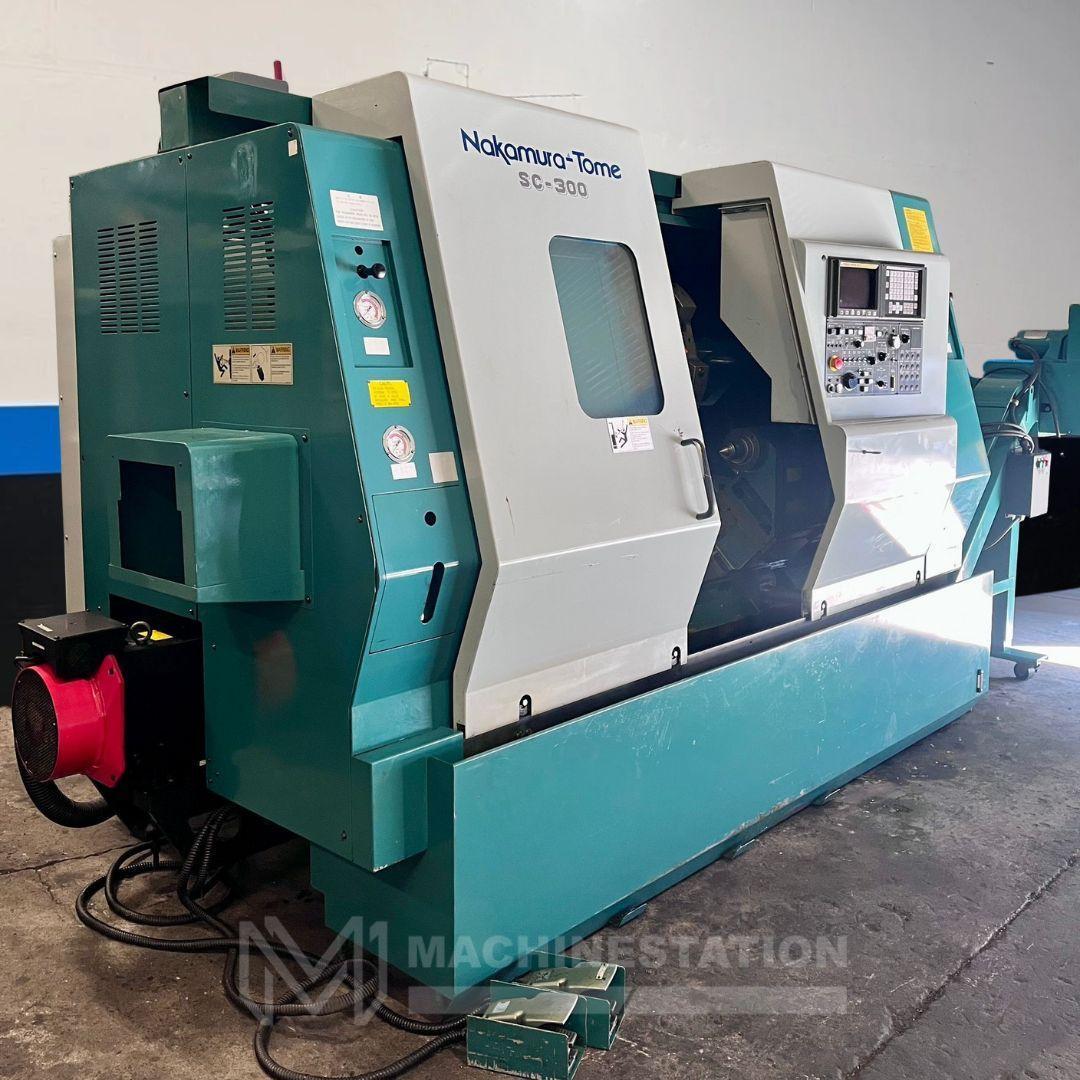

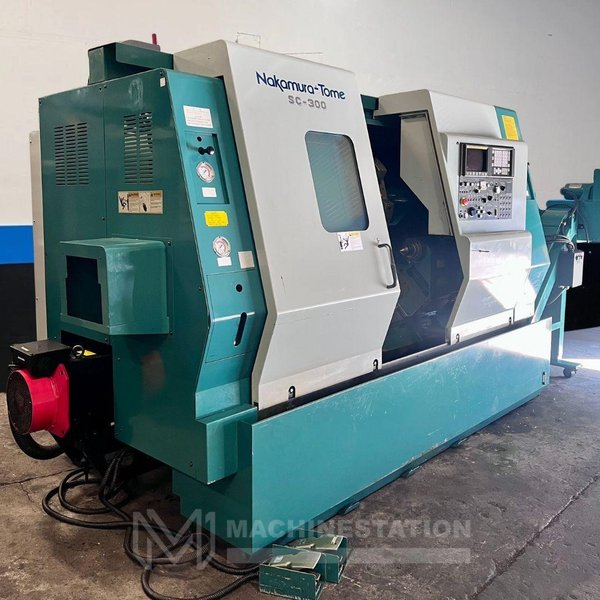

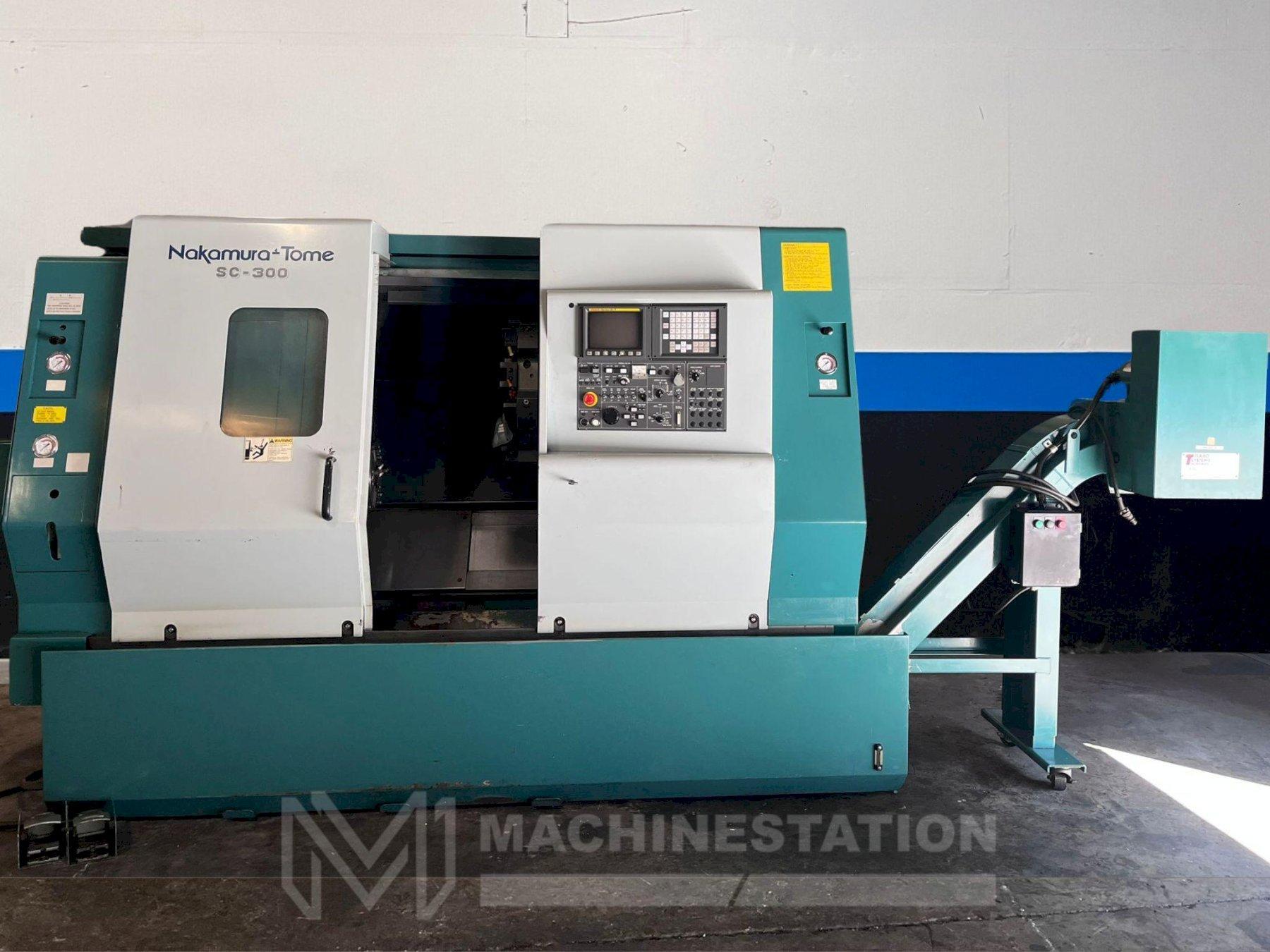

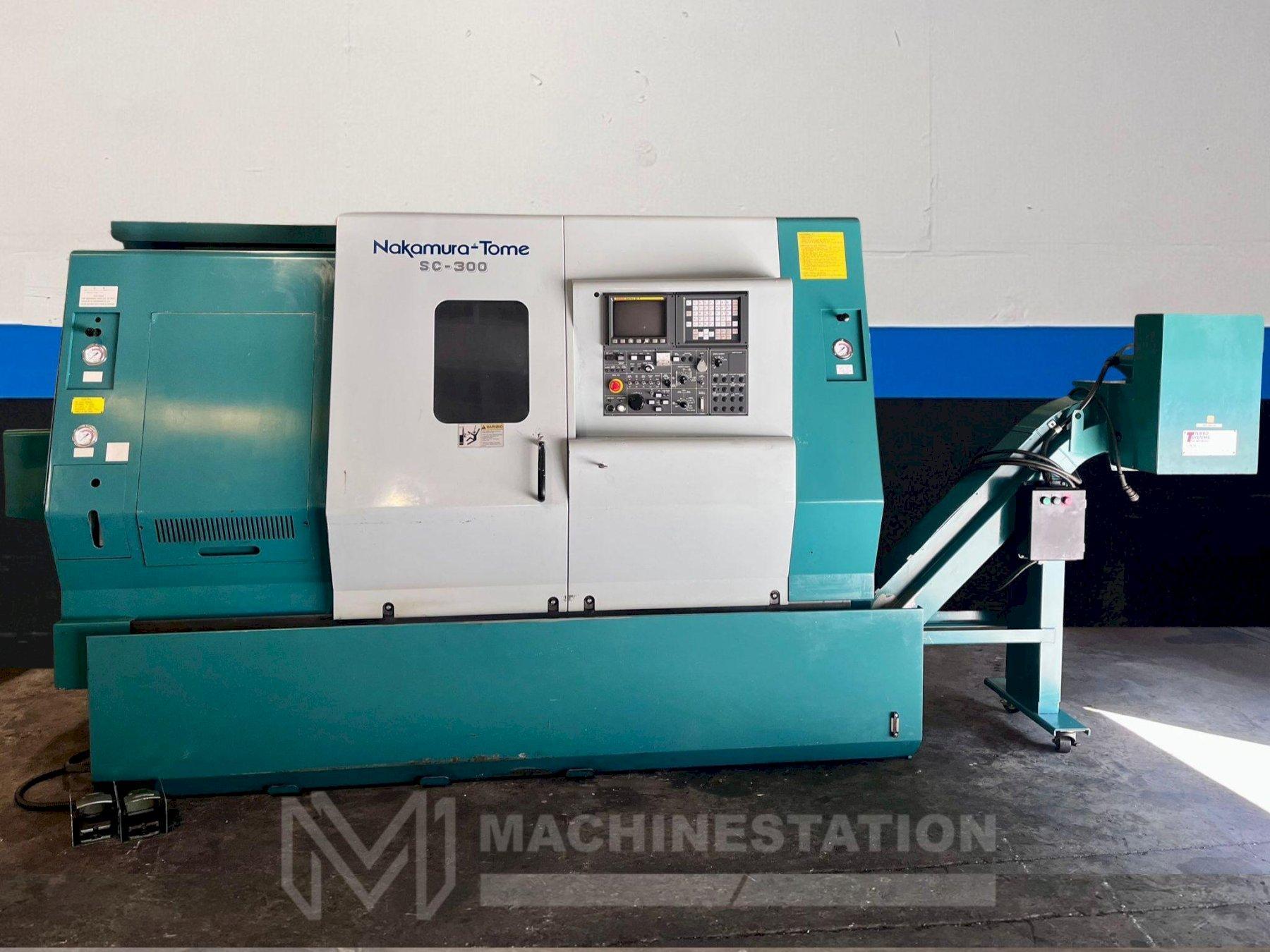

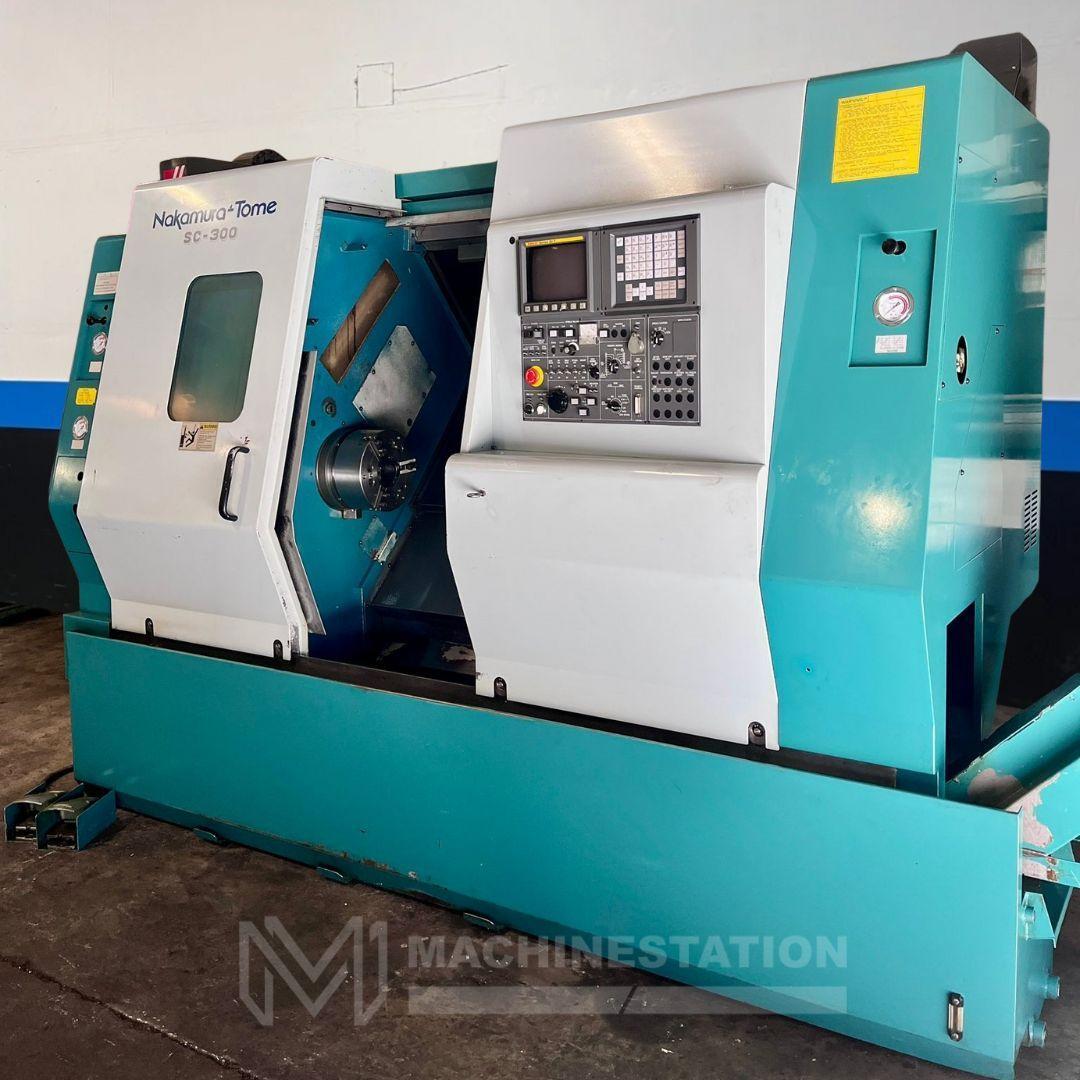

Nakamura Tome SC-300 CNC Turning Center – 10″ Chuck Lathe

Brand
NAKAMURA
Category
Lathes & Turning Machines
Type
Turning Centers
Model
Nakamura Tome SC-300
Stock #
113012
Year
1998
Condition
Not specified

Location

Not specified
REQUEST FINANCING

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Make: Nakamura Tome
Model: SC-300
Year: 1998
Condition: Used – Good
Equipped With:

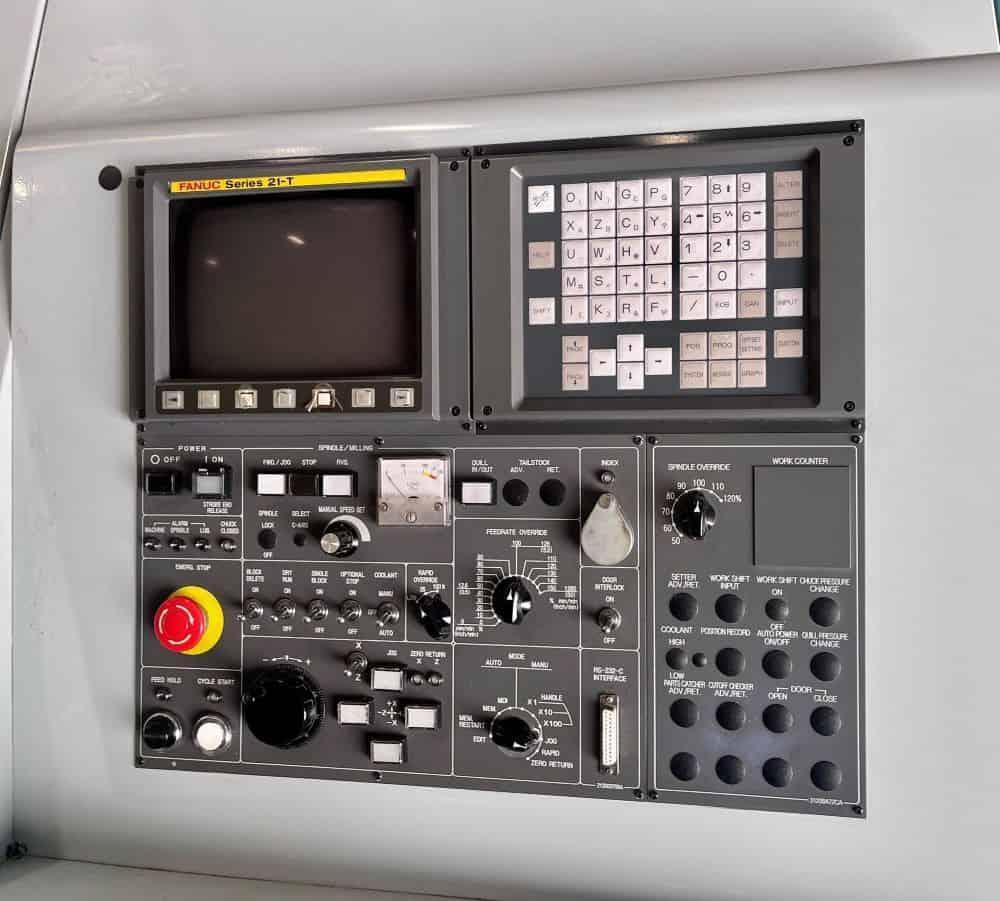

Fanuc 21-T CNC Control

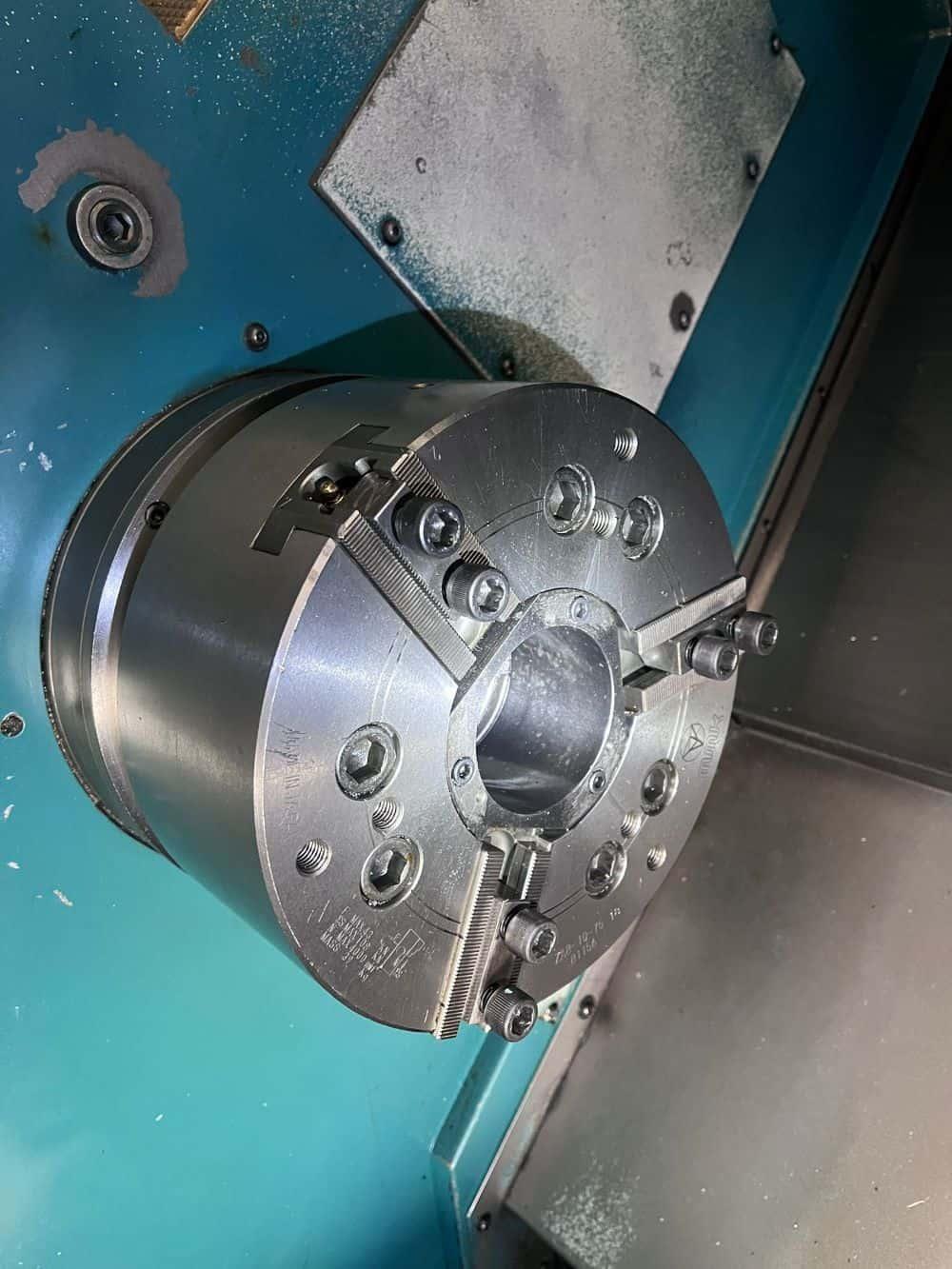

10″ 3-Jaw Chuck
12 Station Automatic Turret
Tailstock
Rigid Tapping
Foot Switches
Coolant System
Chip Conveyor

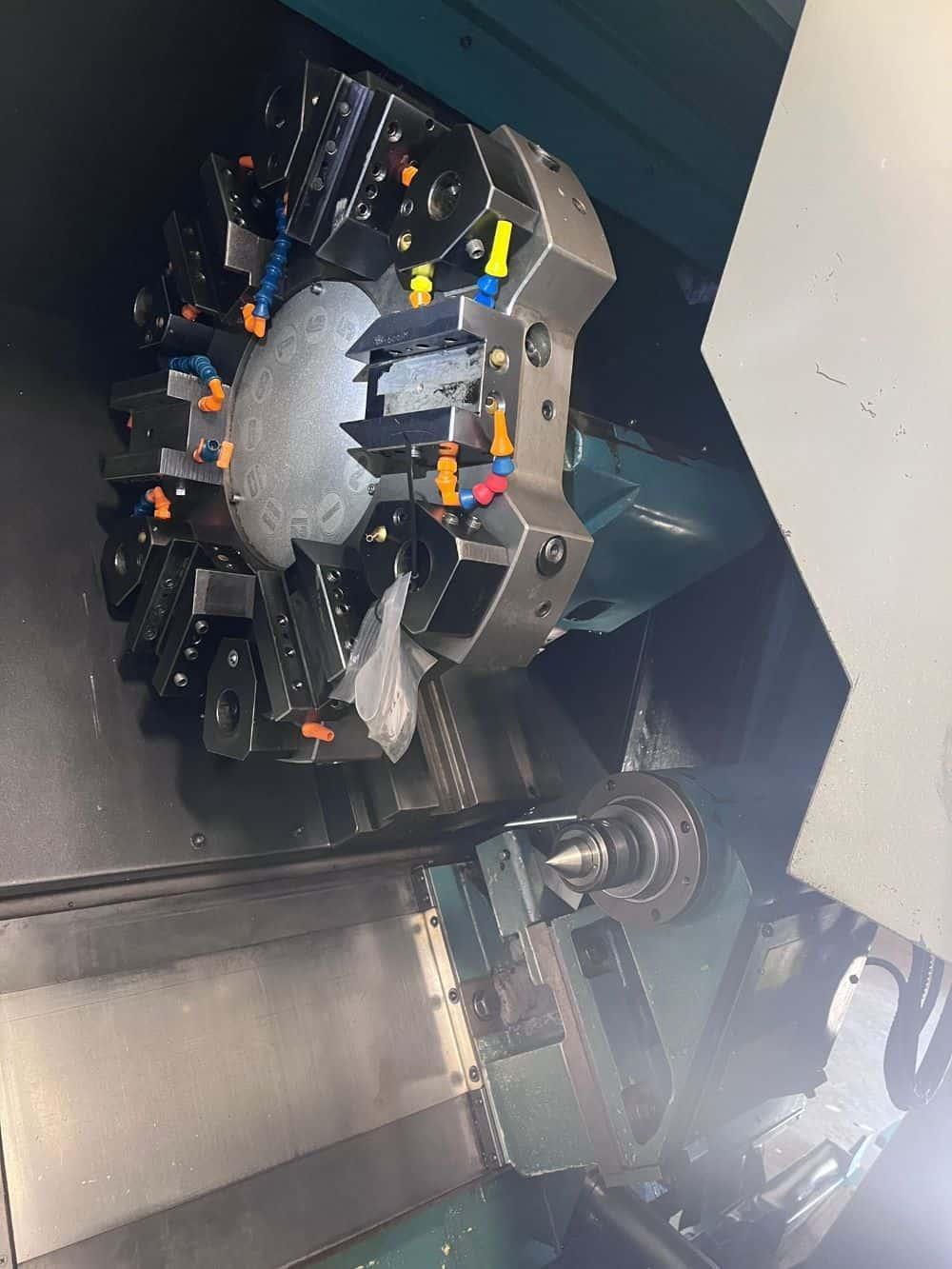

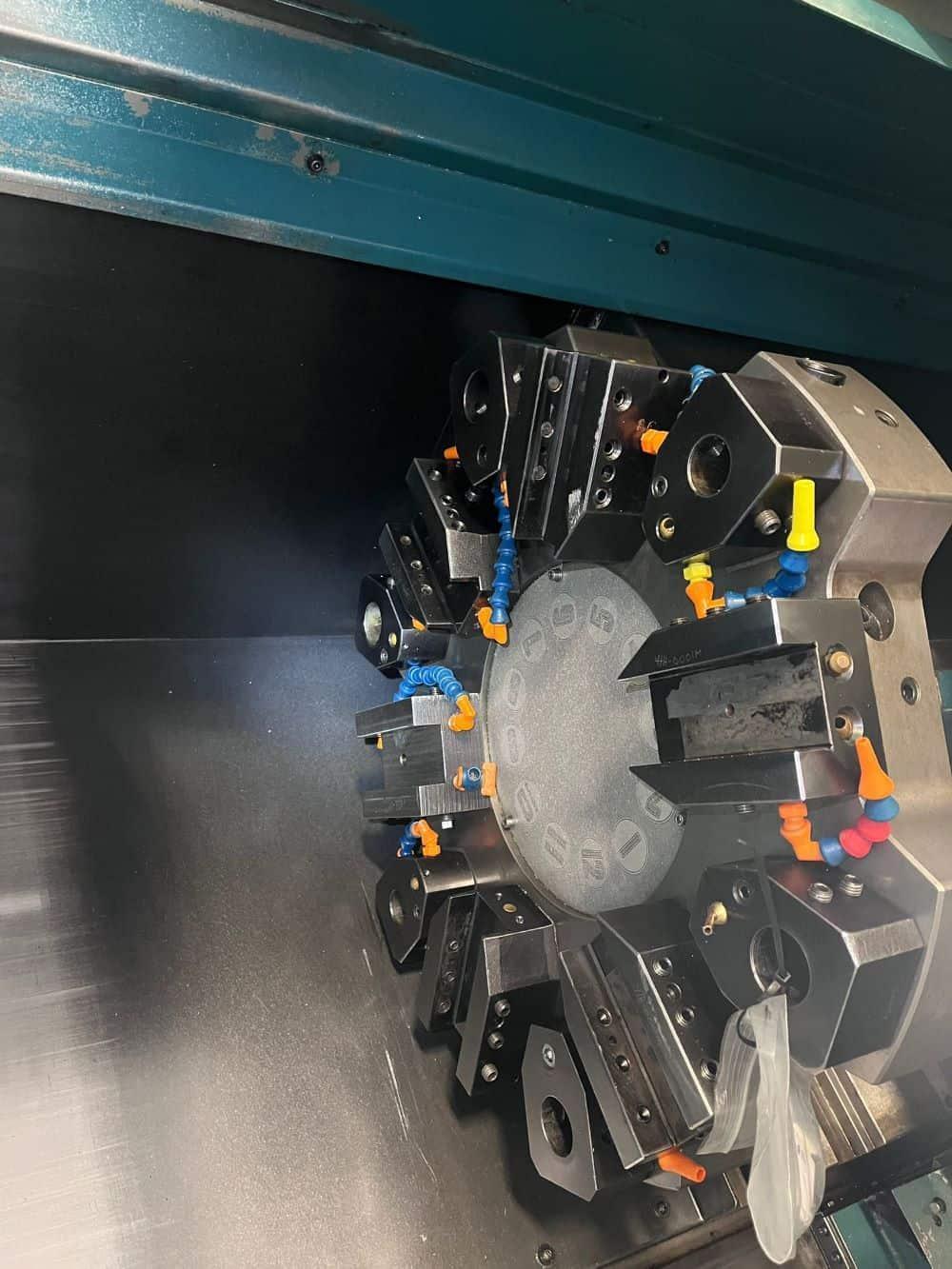

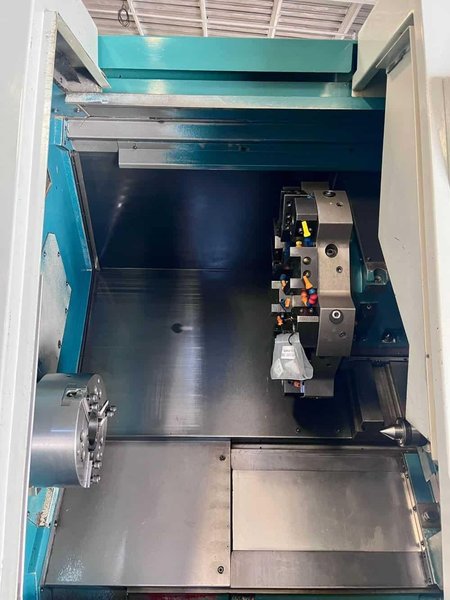

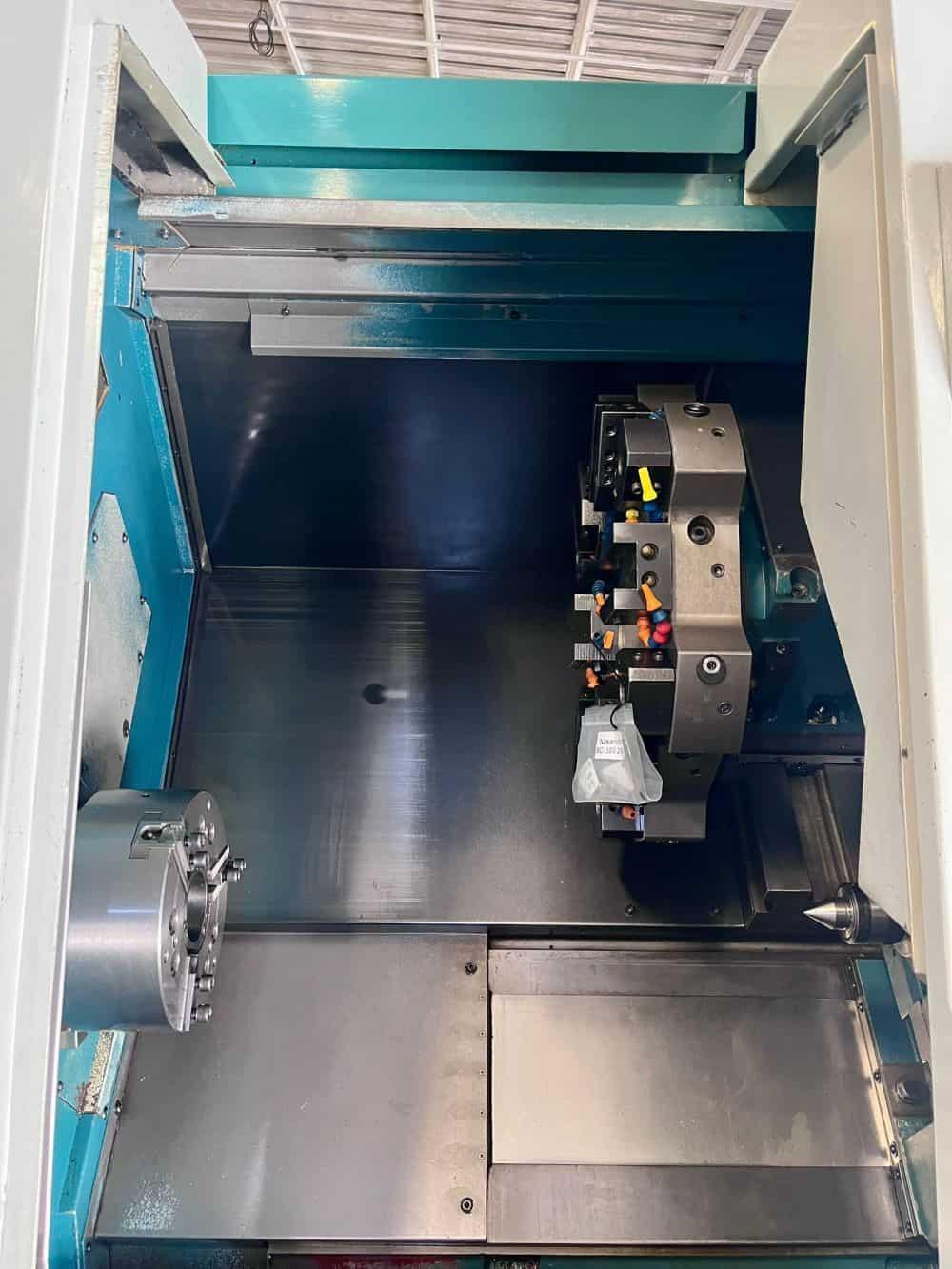

(6) Boring & (6) Turning Tool Holders are Mounted on Turret (As shown in the images)
Capacity:
Max Turning Diameter: 13.77″
Max Turning Length: 23.62″
Max Bar Capacity: 2.79″
Swing Over Bed: 22.00″
Swing Over Carriage: 17.70″
Distance Between Centers: 28.09″
Travels:
X Axis Travel: 8.75″
Z Axis Travel: 25.00″
Rapid Traverse X Axis: 629 IPM
Rapid Traverse Z Axis: 787 IPM
Spindle:
Spindle Nose: A2-8
Spindle Bore: 3.20″
Spindle Speed: 3500 RPM
Spindle Motor: 30 HP
Turret:
Turret Capacity: 12 Stations
Tool Holders Type: VDI
Tailstock:
Taper Size: MT#5
Tailstock Travel: 15.74″
Quill Diameter: 3.54″
Quill Travel: 3.93″
General:

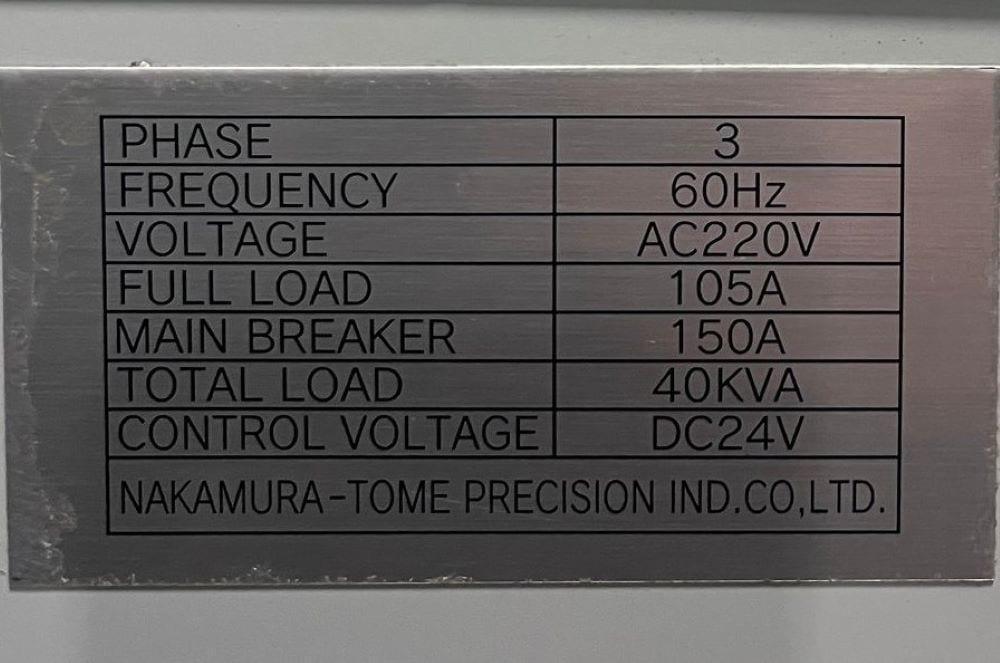

Power: 40 kva, 220v / 3-Phase
Overall Dimensions: 126″ x 68″ x 77″ High Approx.
Weight: 10,140 lbs. Approx.
