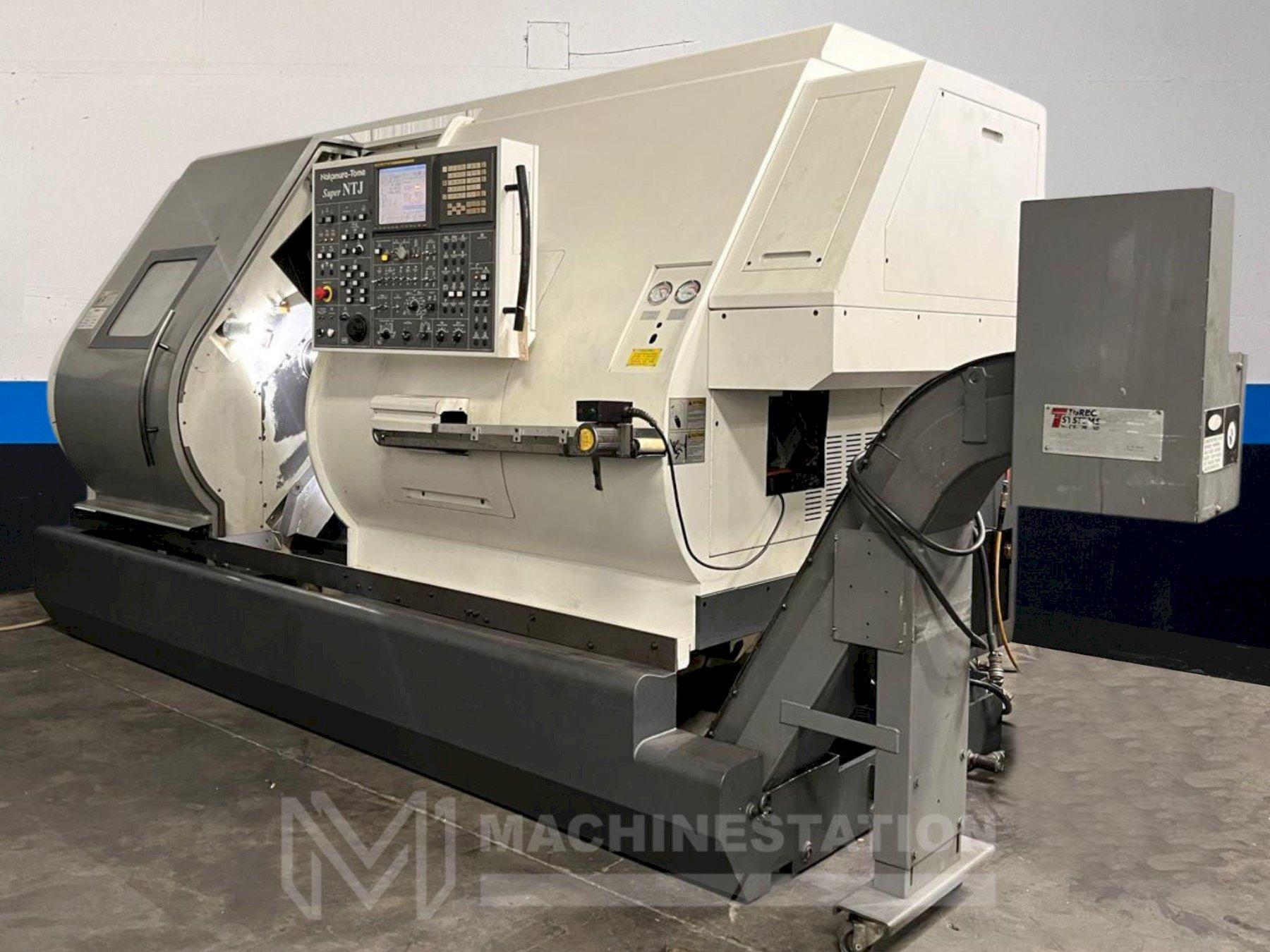

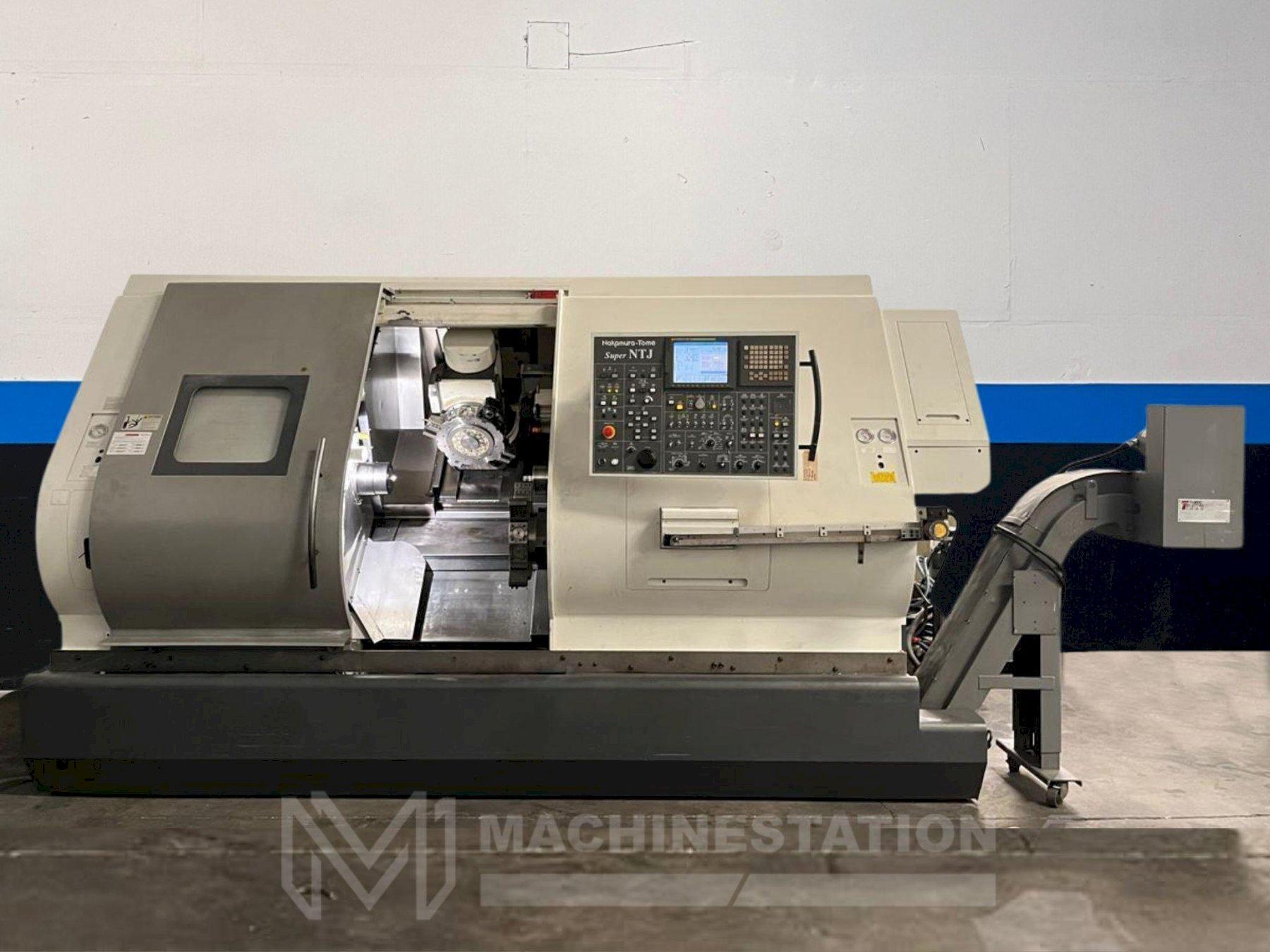

Name: Nakamura Tome Super NTJ Multi Axis CNC Turning Center – Lathe
Brand: NAKAMURA
SKU: 113011
Availability: InStock

Brand

NAKAMURA

Location

Not specified

Specifications
Files & Videos

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

SKU:	113011
Make:	Nakamura Tome
Model:	Super NTJ

Features:

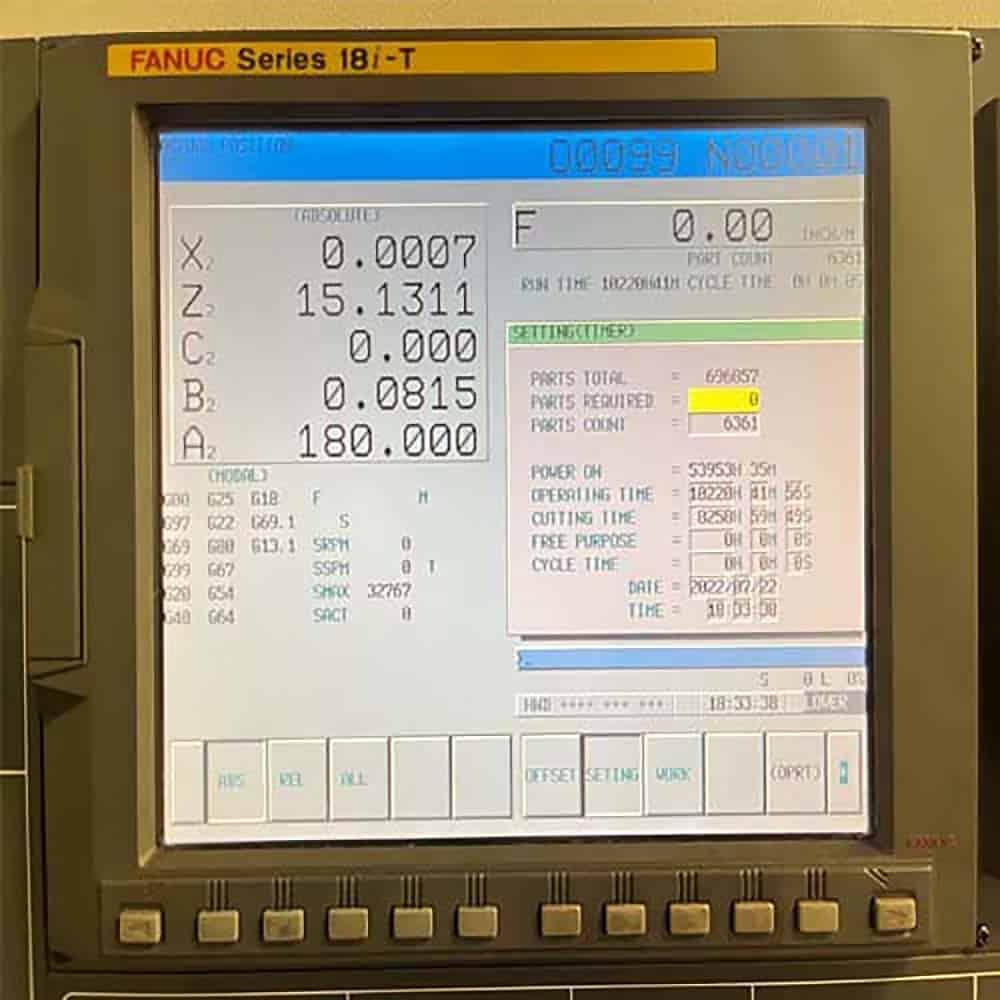

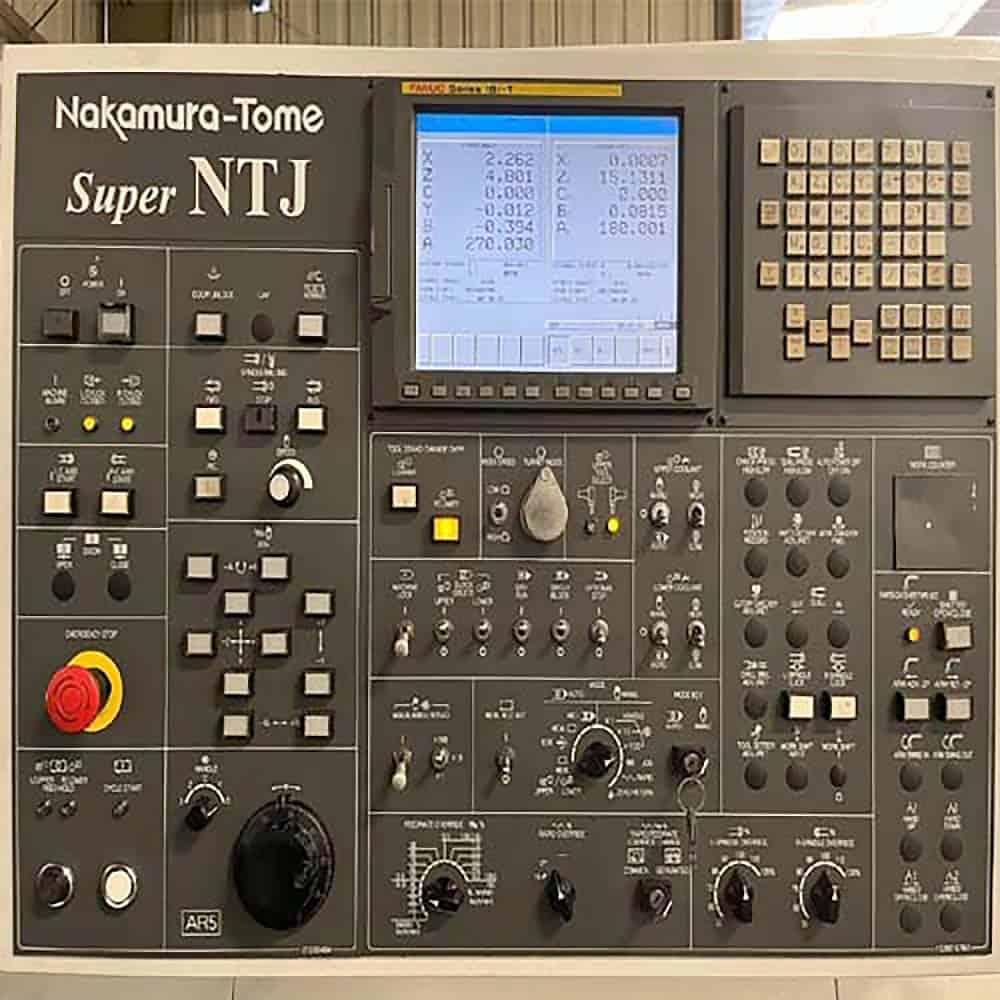

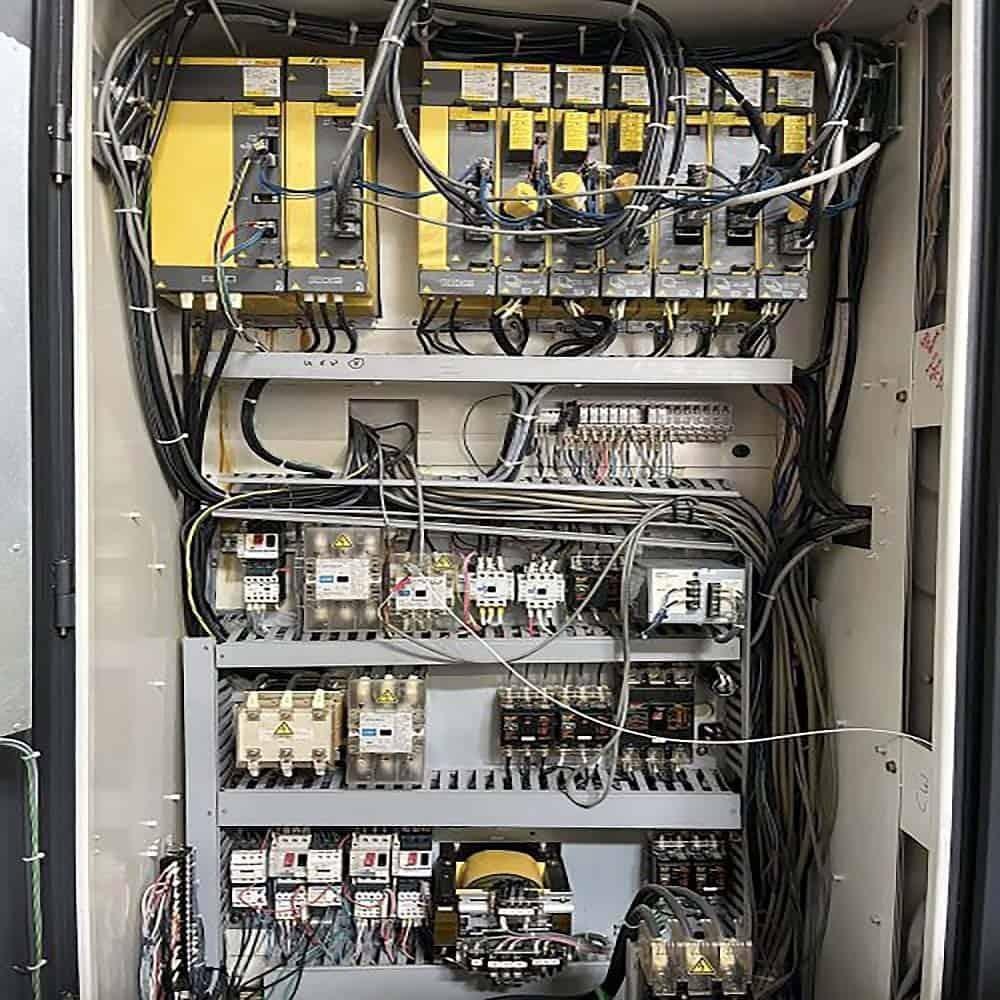

Fanuc 18i-T CNC Control
Collet Chuck on Main Spindle (Capable 6 inch Chuck)
Collet Chuck on Sub Spindle (Capable 6 inch Chuck)
Servo Controlled Full C-Axis on Both Spindles

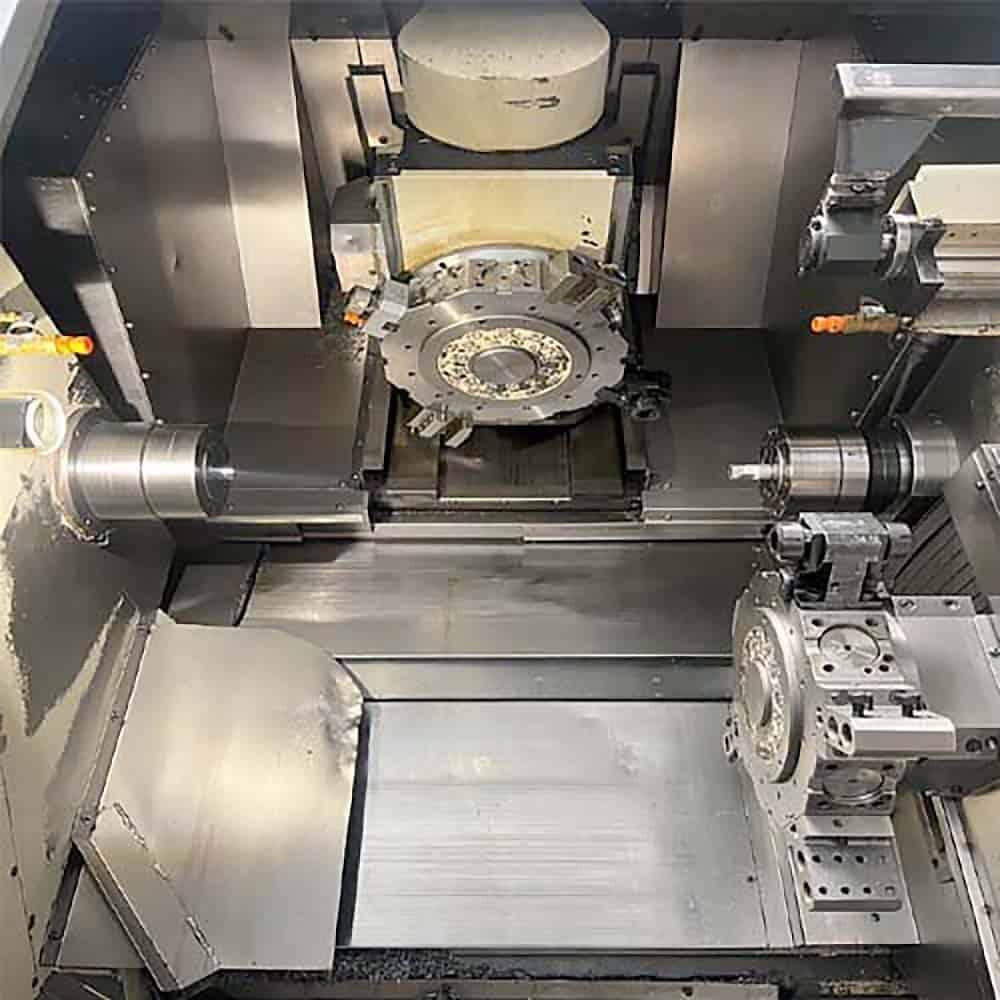

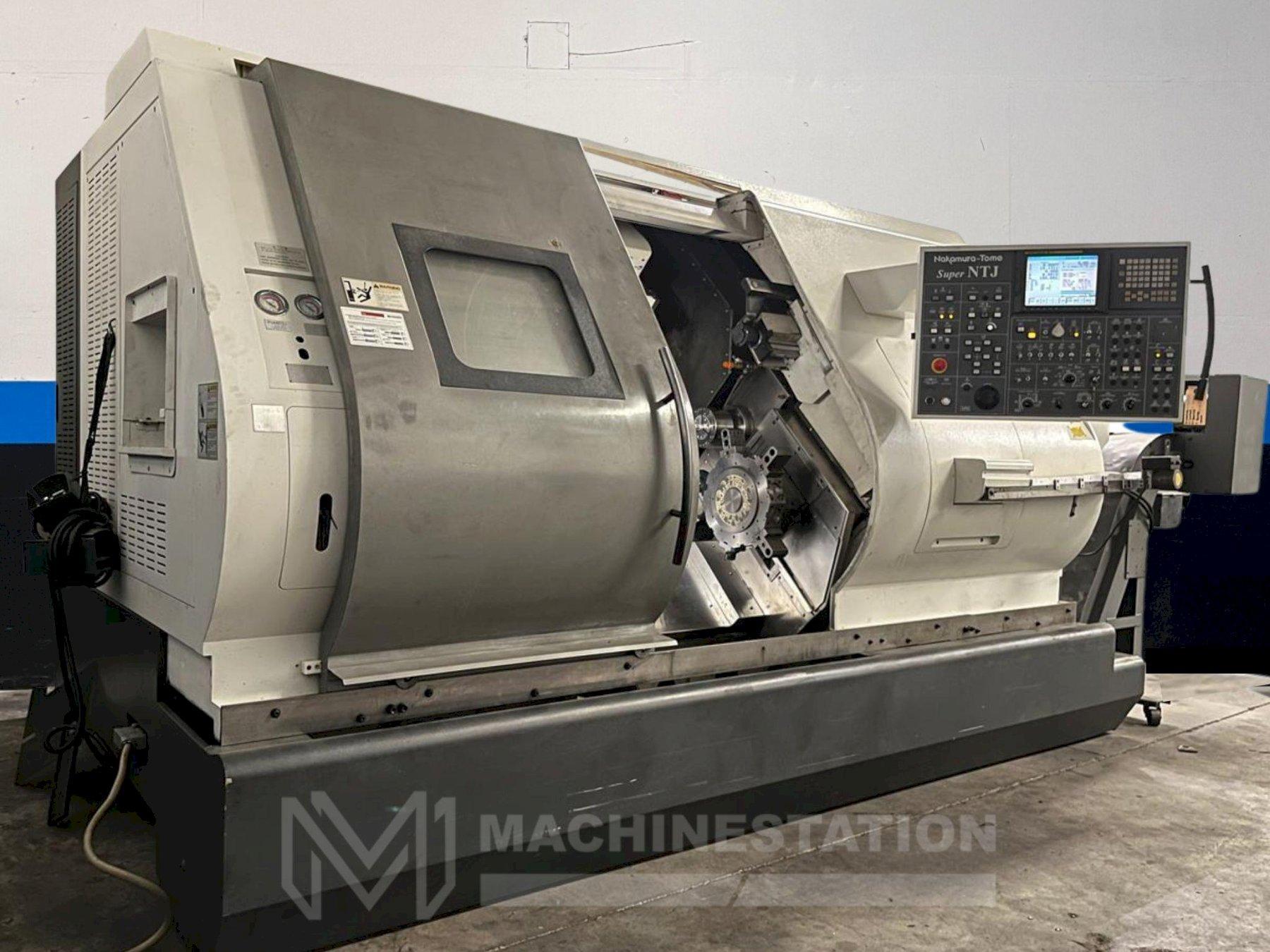

Twin Turrets with Live Tools
Radial and Axial Live Tooling on Both Turrets

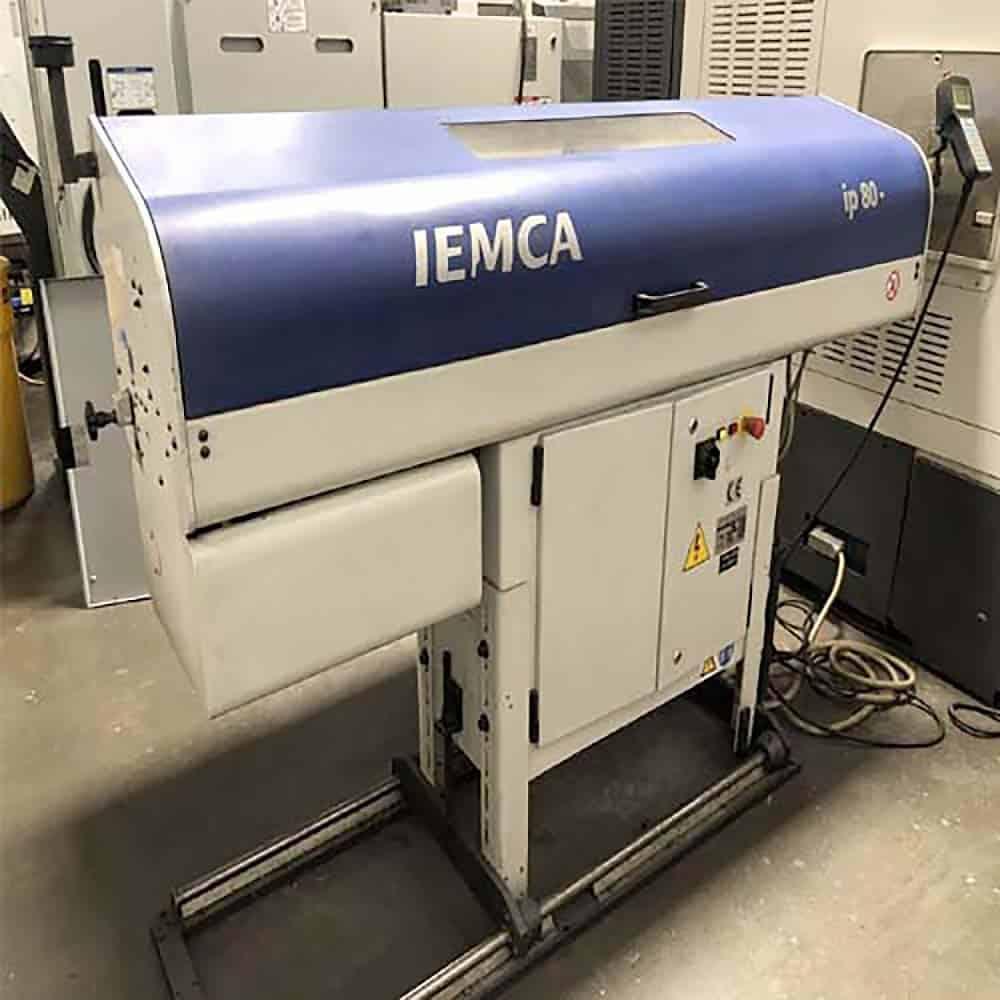

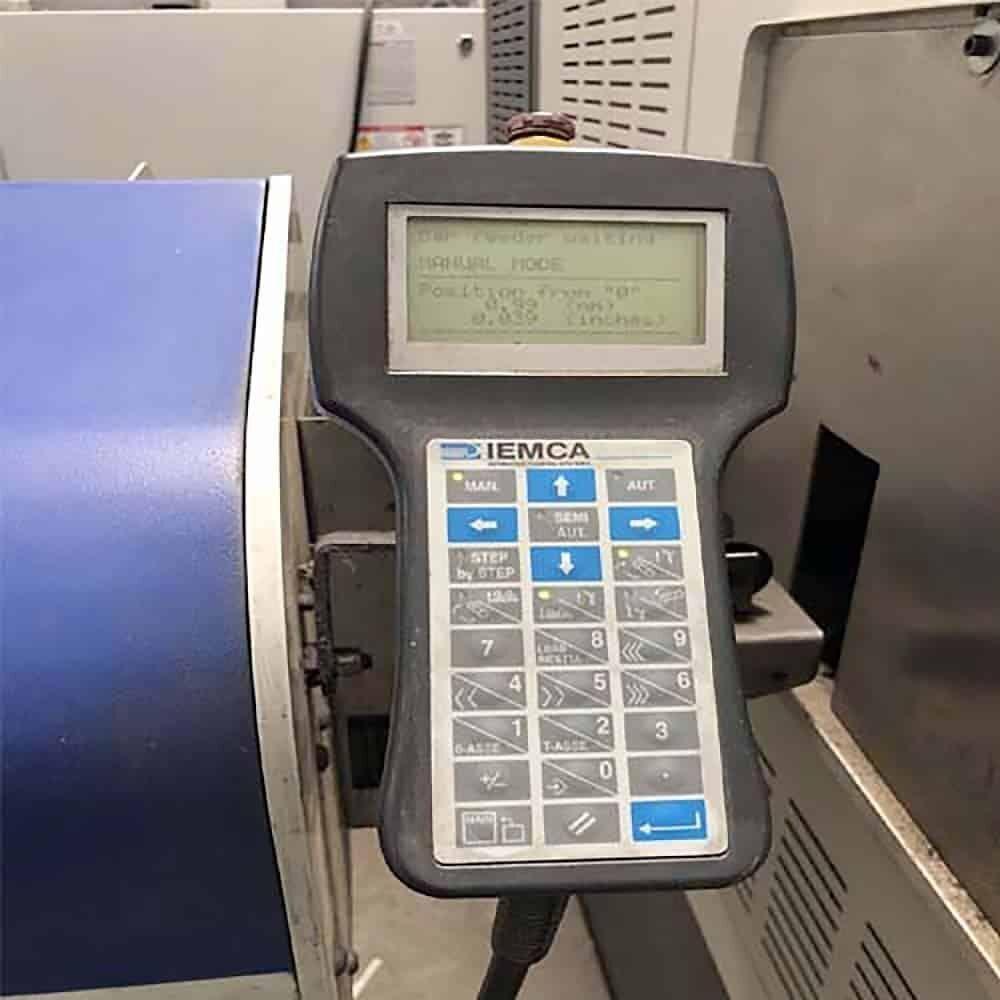

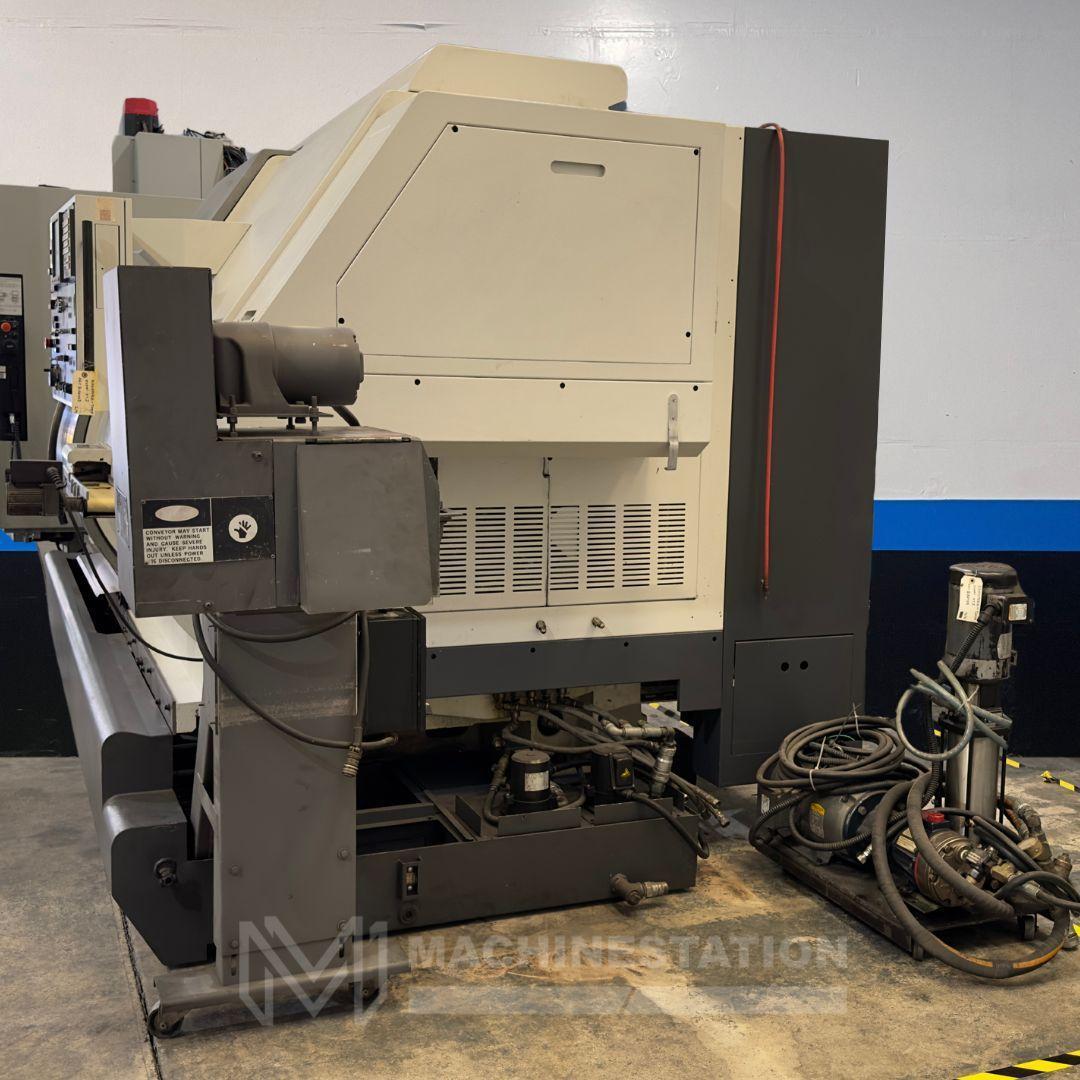

Comes with IEMCA VIP-80E Bar Feeder

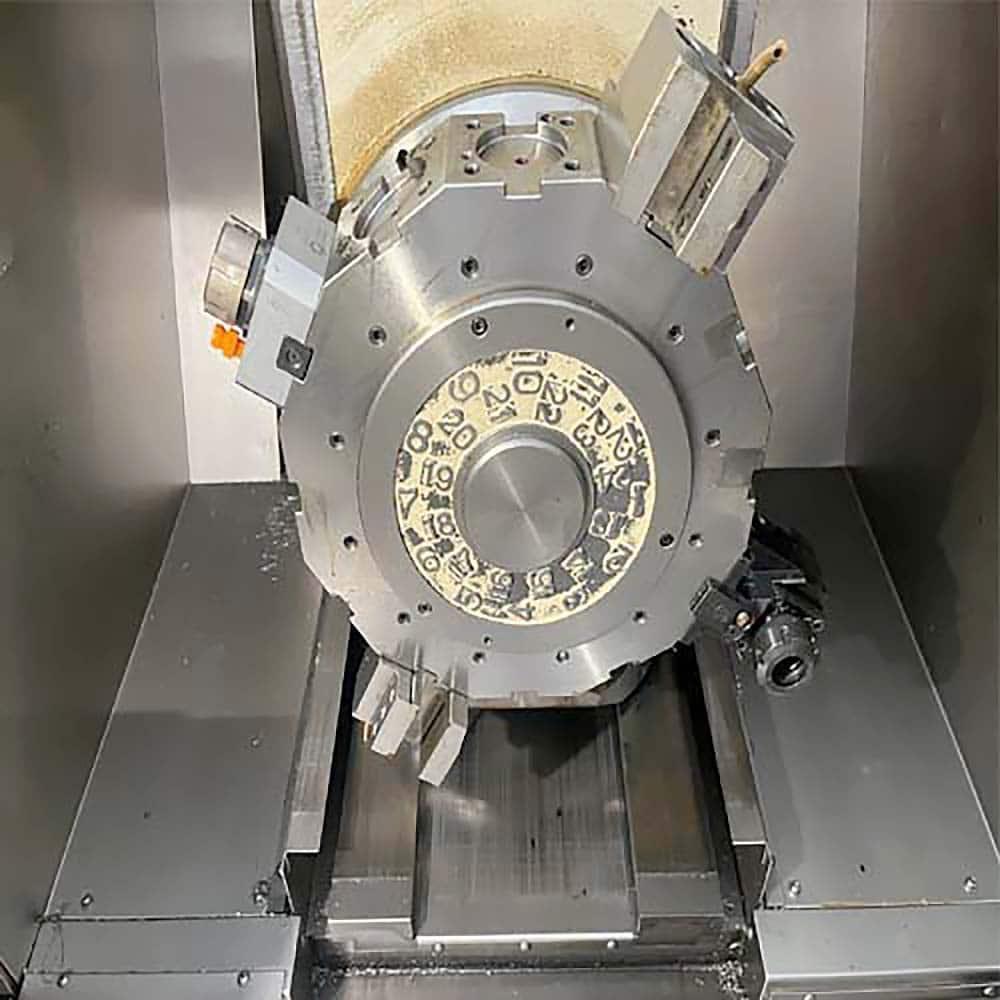

12 Station Upper Turret – 24 Positions
12 Station Lower Turret – 24 Positions
Y Axis Capability on Upper Turret
Both Spindle Synchronization
Auto Parts Catcher
High Pressure Coolant

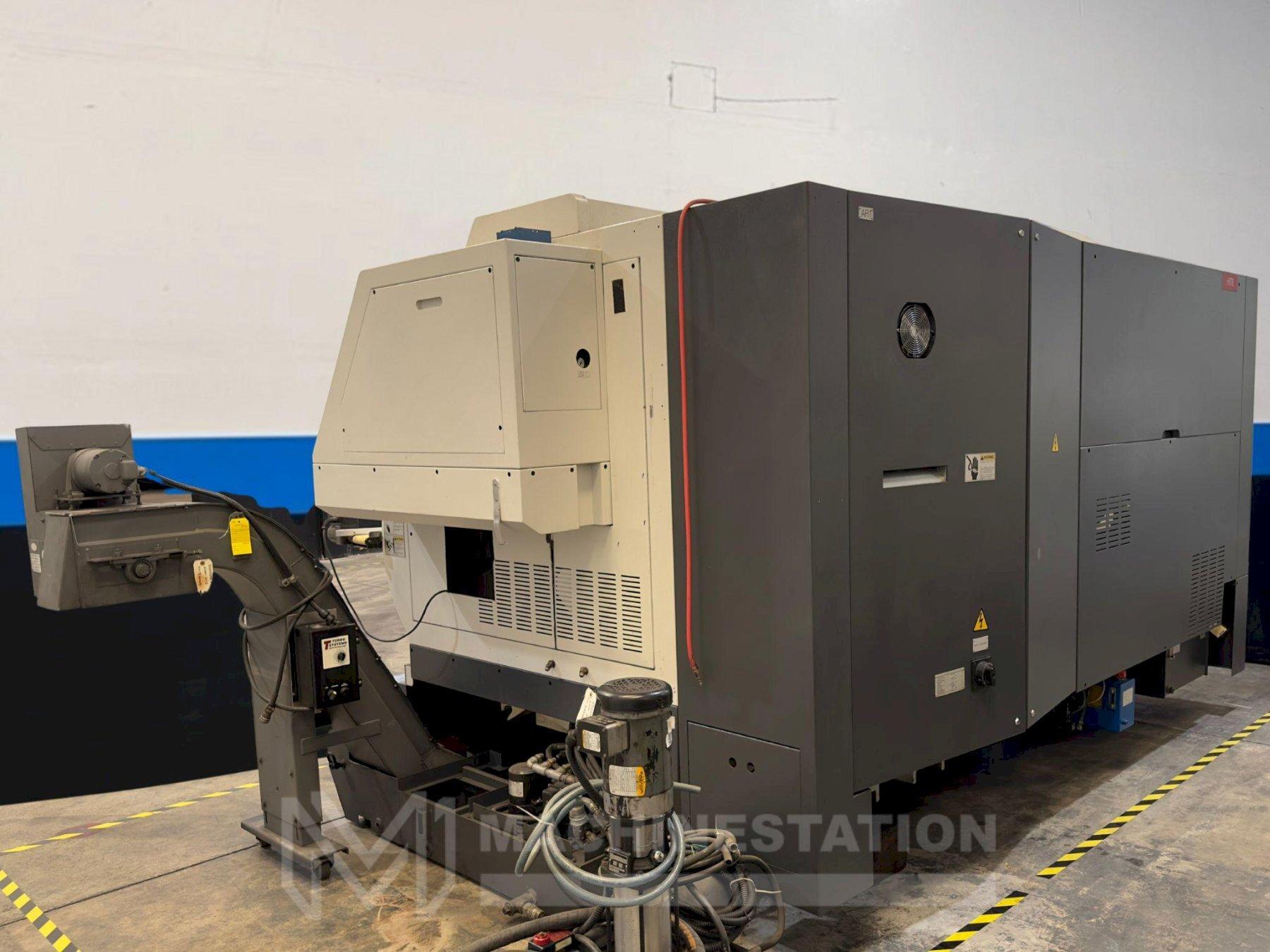

Chip Conveyor
Parts Conveyor
Coolant Tank
Books and Manuals

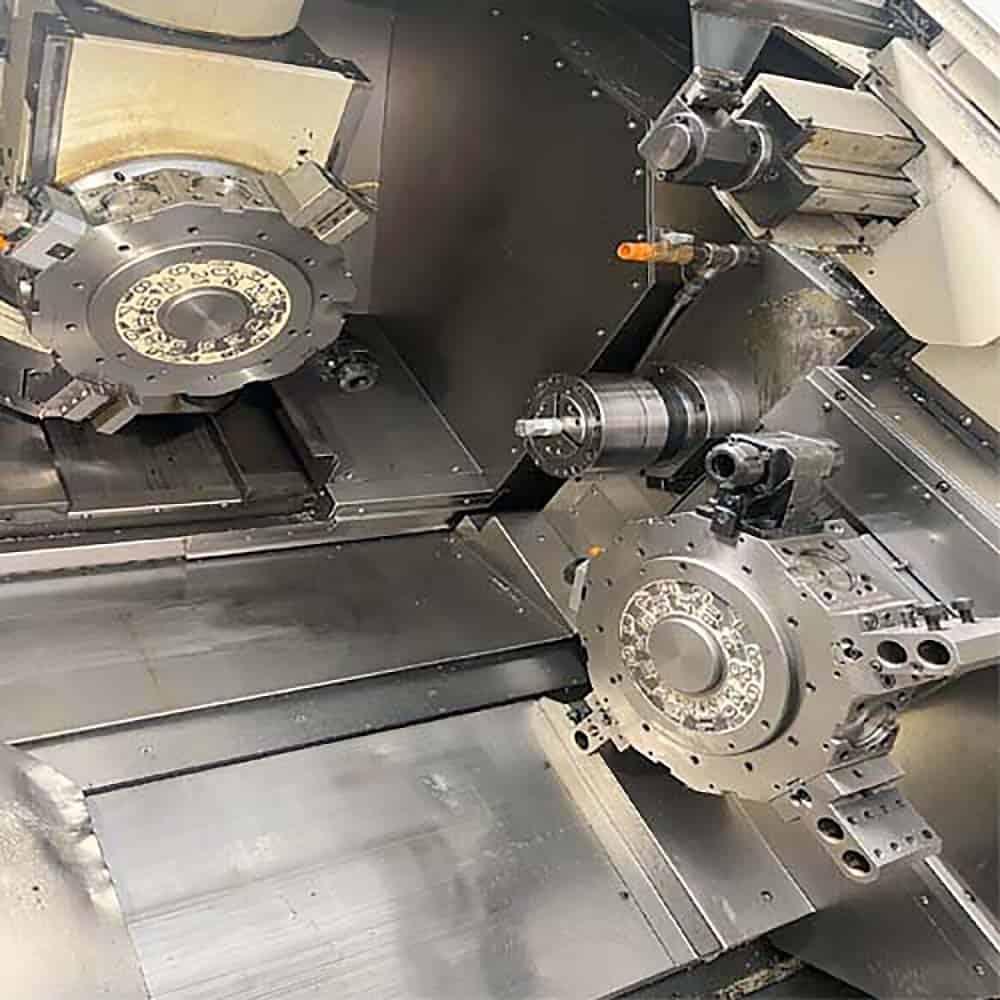

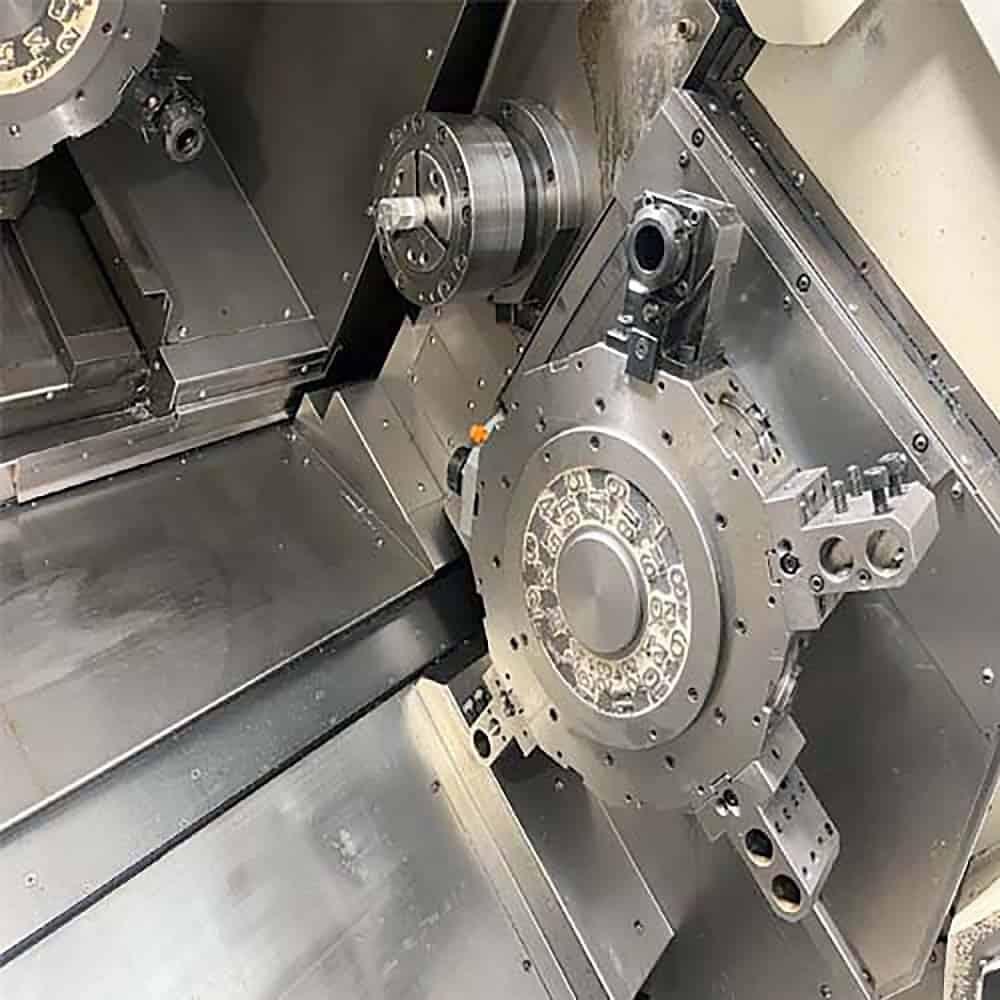

Misc. Tool Holders (Mounted on Turrets as shown in the images)

Capacity:
Max Turning Diameter Upper Turret : 7.48 inch
Max Turning Diameter Lower Turret : 7.48 inch
Max Swing : 26.0 inch
Max Swing with Cross Slide: 7.48 inch
Max Turning Length: 24.41 inch
Max Bar Capacity Main Spindle : 2.56 inch
Max Bar Capacity Sub Spindle : 2.00 inch
Distance Between Spindle Centers: 8.27 inch – 38.19 inch

Travels:
X1 Axis Travel : 13.58 inch
X2 Axis Travel : 6.59 inch
Z1 Axis Travel : 48.82 inch
Z2 Axis Travel : 26.97 inch
Y Axis Travel: 3.54 inch( +/- 1.77 inch)
B1 Axis Indexing (Upper Turret): 182 Degree( +/- 91 Degree)
B2 Axis Travel (Sub Spindle) : 29.52 inch
C Axis: 360° (0.001°)
Feedrate: Rapid Traverse
X Axis: 630 IPM Rapid Traverse
Y Axis: 236 IPM Rapid Traverse
Z Axis: 1575 IPM Rapid Traverse

Spindle:
Main Spindle Bore: 3.15 inch
Sub Spindle Bore: 2.48 inch
Main Spindle Nose: A2-6
Sub Spindle Nose: A2-5
Main Spindle Speed: 4500 RPM
Sub Spindle Speed: 5000 RPM
Main Spindle Power: 20 HP
Sub Spindle Power: 15 HP

Turret:
Upper Turret Capacity: 12 Stations – – 24 Positions
Lower Turret Capacity: 12 Stations – – 24 Positions
Live Milling Speed: 6000 RPM
Live Milling Motor: 7.5 HP
Turret Index Time (Tool to Tool): 0.2 sec
Tool Holders Type: BMT

General:
Power Source: AC 220v / 3-Phase / 60 Hz
Bar Feeder: 93 inch X 48 inch X 59 inch Height
Chip Conveyor & Coolant Tank: 200 inch X 63 inch X 66 inch Height
High Pressure Pump: 45 inch X 24 inch X 40 inch

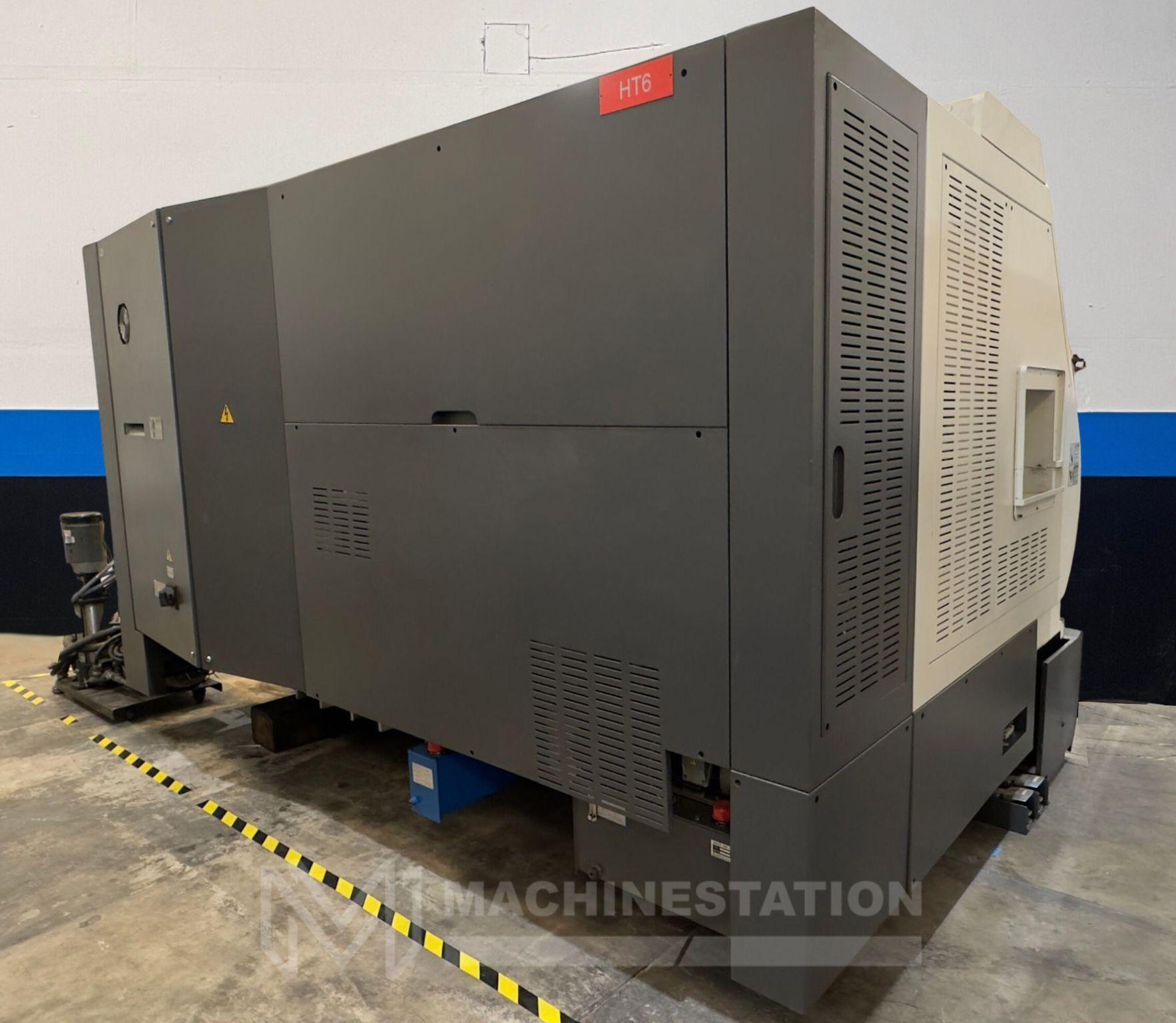

Machine Dimensions: 156 inch x 94 inch x 89 inch Height
Machine Weight: 27,500 lbs Approx
