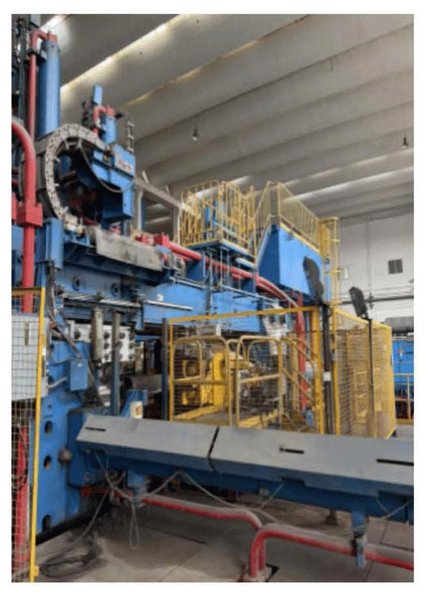

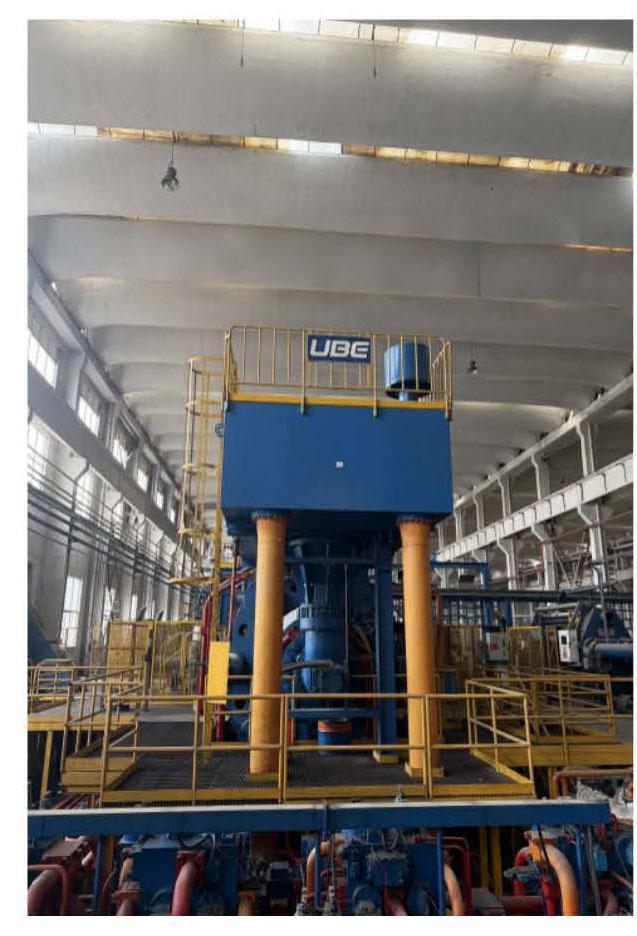

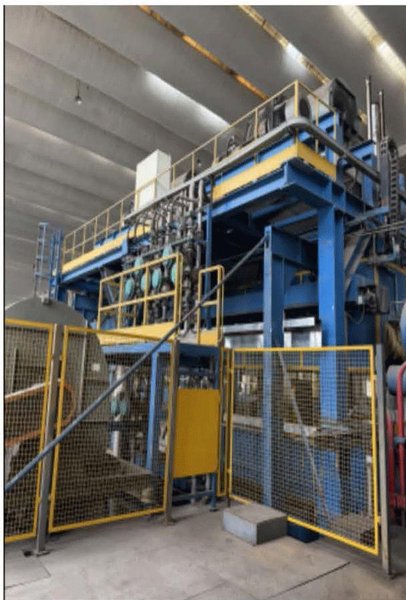

One Used 6800 MT UBE Aluminum Extrusion Press (14594)
Brand
Category
Type
Model
6800 MT
Stock #
14594
Year
Not specified
Condition
Not specified
Location
Not specified
| Tonnage | 6800 metric-tons |
|
One Used 6800 MT UBE Aluminum Extrusion Press

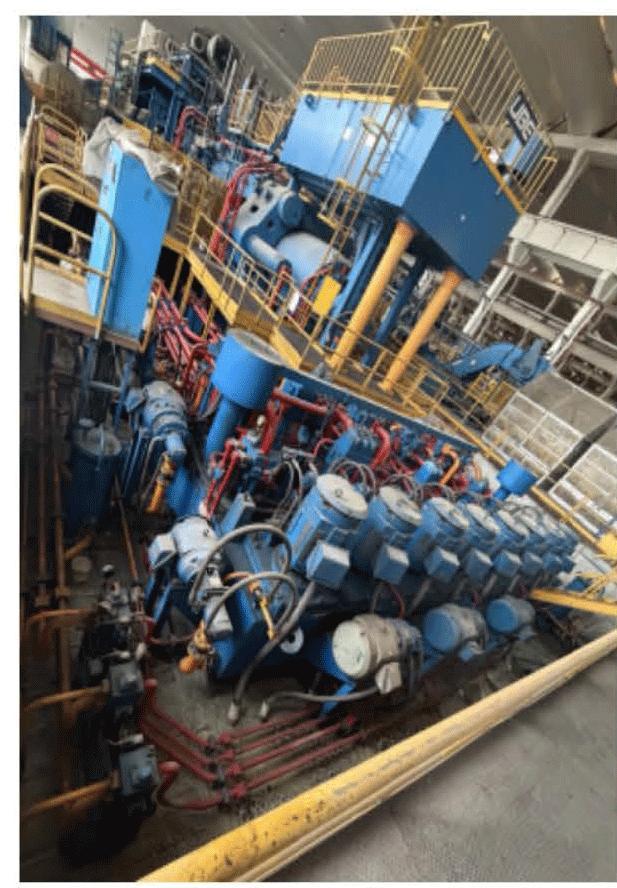

Stock # 14594 Inner hole of the extrusion cylinder 18" 467mm Inner bore 14" 365mm Length 1405mm Outer diameter 1546mm Extrusion Stem 18" 465.4mm 14” 363.6mm Length 1880mm Effective length 1500mm Aluminum ingot diameter 18" 457mm diameter 14" 356mm Maximum length 1346mm Minimum length 610mm Press pressure Forward maximum pressure 250kg/cm² Reverse maximum pressure 250kg/cm² Master cylinder stroke forward 3056mm Reverse 1436mm Extrusion cylinder stroke 152.5mm Speed Squeeze rod airspeed forward 400mm/s Extrusion speed 25.4mm/s returns 400mm/s The extrusion barrel advances 200mm/s The extrusion cylinder returns 180mm/s Under scissors (forward) 700mm/s Scissors on (forward) 650mm/s Under scissors ((reverse) 700mm/s Scissors on (reverse) 650mm/s Pump Main Pump 8 Variable Piston Pump (A2V500HM SUBMERGED TYPE) 250kg/cm² 506Lit/Min 1200rpm Cooling Filter Pump 2 Constant Transfer Pump 7kg/cm² 280+196Lit/Min 1800rpm 1 set of extrusion cylinder pressure holding pump Constant transfer pump 250kg/cm² 65Lit/Min 1200rpm Auxiliary Pump 1 Constant Transfer Pump 70kg/cm² 178+89Lit/Min 1200rpm Speed lifting and cooling pumps 3 Constant transfer pumps 80kg/cm² 271+89Lit/Min 1800rpm Servo pump 1 set Constant transfer pump 50kg/cm² 152+89Lit/Min 1200rpm Motor Main pump motor 8 units 230KW 480V Anti-drip rat cage induction direct start motor Servo and voltage holding motor 1 set 55KW 480V Anti-drip rat cage induction direct start motor Speed boosting and cooling power 3 sets 75KW 480V Anti-drip rat cage induction direct start motor Cooling filter motor 2 sets 11KW 480V Anti-drip rat cage induction direct start motor Auxiliary pump motor 1 set 37KW 480V Anti-drip rat cage induction direct start motor Extrusion drum heating outside 150KW 2 ends 20 KW/end **Temporary Specifications Subject to Revisions** **PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE** **ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION** |
|
