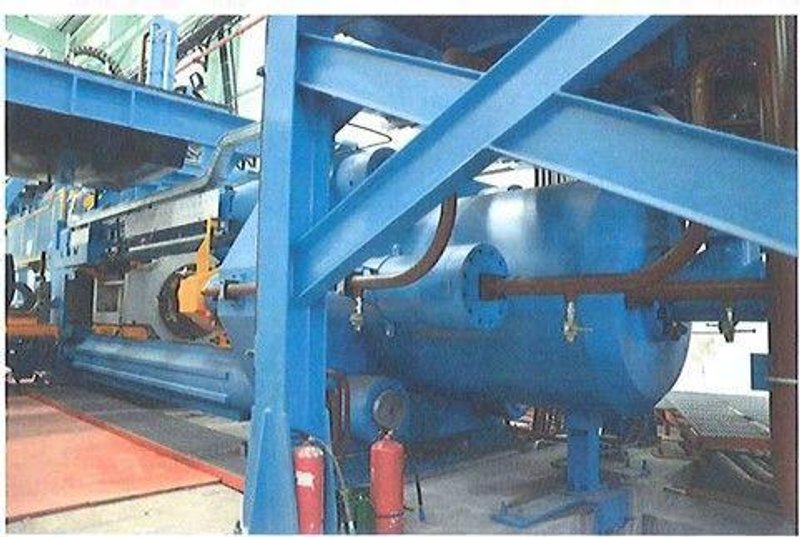

1800 METRIC TON, COMETAL ALUMINUM EXTRUSION PRESS LINE

EXTRUSION PRSS CHARACTERISTICS:

MANUFACTURER – COMETAL

YEAR – 2023

TYPE – SHORT STROKE BACK LOADING PRESS WITH HANDLING SYSTEM

STATUS – IN STORAGE NEW CONDIITION, NEVER INSTALLED

PRESS TONNAGE – 1870 METRIC TON

OPERATING PRESSURE – 280 BAR

BILLET DIAMETER – 7” (177.80MM)

BILLET LENGTH – 980MM

CONTAINER LINER LENGTH – 1000MM

MAX EXTRUSION SPEED – 25 MM/SEC

EXTRUSION SPEED AT 1800 TON – 22MM/SEC

LENGTH OF LEAD OUT TABLE – 30 METER

LENGTH OF COOLING BED – 50 METER

STRETECHER CAPACITY – 40 TON

(3) MAIN PUMPS – REXROTH

(3) MAIN PUMP MOTORS – 160 KW

MAIN CYLINDER COMPONENTS – REXROTH

PRESS FEEDING

LOG HEATING FURNACE WITH LOG PUSHER

MAX DIAMETER – 7”

WORKING TEMPERATURE – 400-500 DEGREES CELCIUS

MAX TEMPERATURE – 550 DEGREES CELCIUS

NUMBER OF ZONES – 3 + 2 TAPERED HEATING ZONES

HOT BILLET SAW

BILLET DIAMETER - 178MM

BILLE LENGTH – 300-1000MM

DIAMETER OF BLADE – 850MM

BILLET LOADER

HANDLING SYSTEM CHARACTERISTICS:

AIR & WATER COOLING SYSTEM

PULLER

PULLER SAW

RUNOUT TABLE – 50 METER LONG

KEVLAR BELT CONVEYOR

40 TON STRETCHER

EXIT SAW FEEDING TABLE

FINISHING SAW

FINISHING CUT TO LENGTH TABLE

STACKING FEEDIN TABLE AND STACKER
