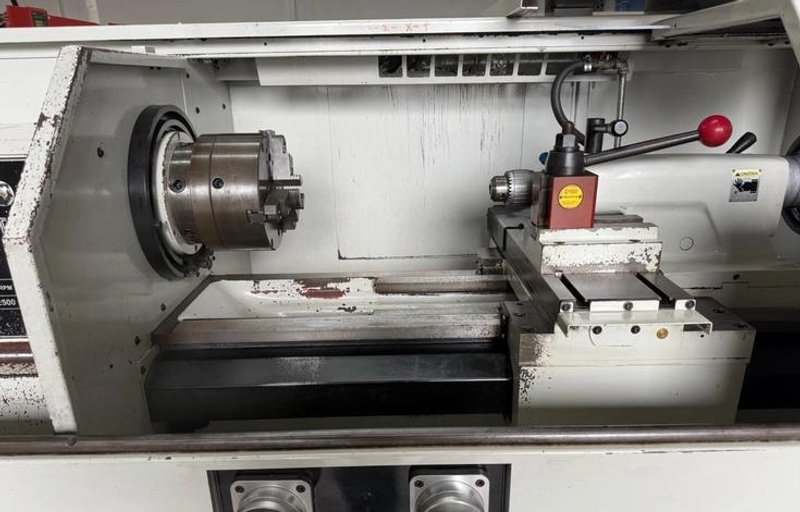

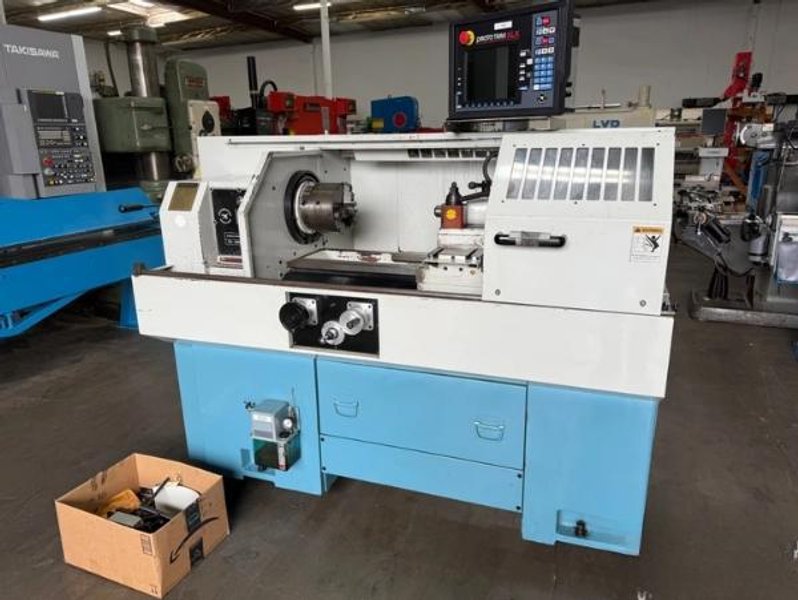

16” X 30” CNC Flat Bed Lathe with Southwestern Industries Prototrak SLX CNC Control, Two Axis DRO, Constant Surface Speed & Programmable Spindle Speeds, Hardened & Ground Bed way and Automatic Central Lubrication System.

GENERAL SPECIFICATIONS
Height of Centers:                        8”
Swing Over Bed:                        16”
Swing Over Cross Slide:                    8.6”
Swing Over Saddle Wings:                    16”
Max Distance Between Centers:                30”
Spindle Taper, Camlock, Size:                A2-4
Spindle Speed Range:                    150 - 2500 RPM
Spindle Bore:                            1.57”
Taper in Headstock Spindle:                #5 MT
Tailstock Quill Travel:                    6.3”
Tailstock Quill Diameter:                    2.36”
Tailstock Quill Taper Hole:                    #5 MT
Approx. Weight:                        2,500 Lbs
Approx. Dimensions:                    82” X 46” X 67”

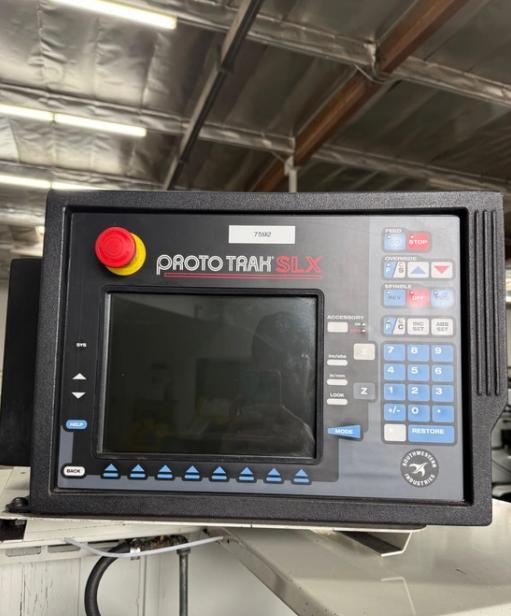

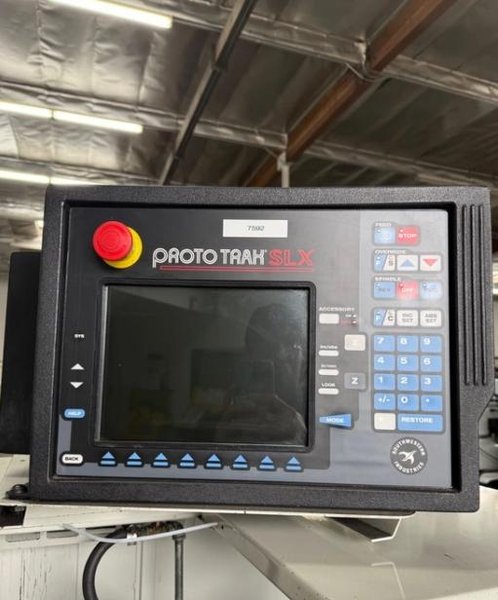

INCLUDES: Southwestern Industries Prototrak SLX CNC Control, Two Axis DRO, Constant Surface Speed & Programmable Spindle Speeds, Hardened & Ground Bed way and Automatic Central Lubrication System.

***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
