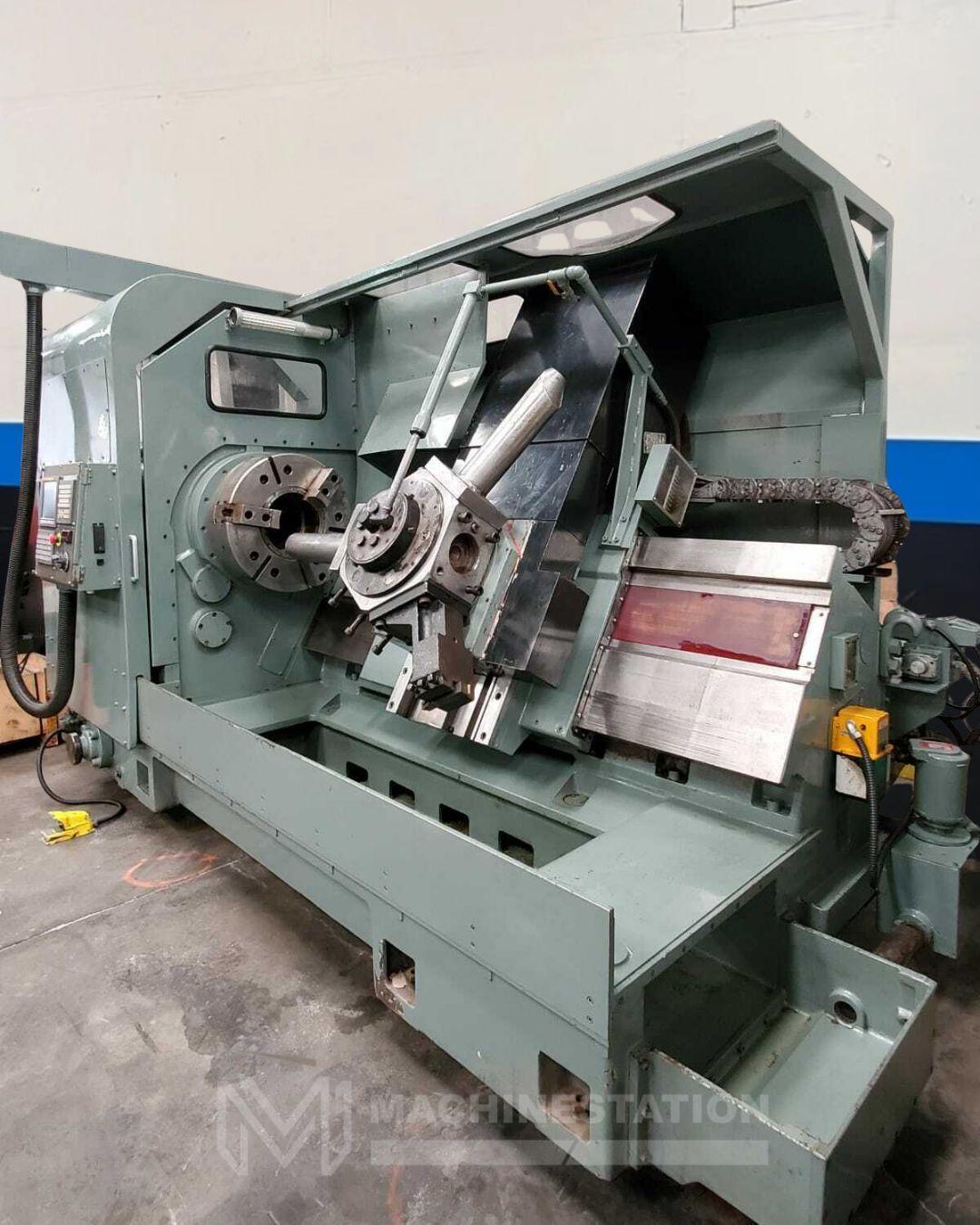

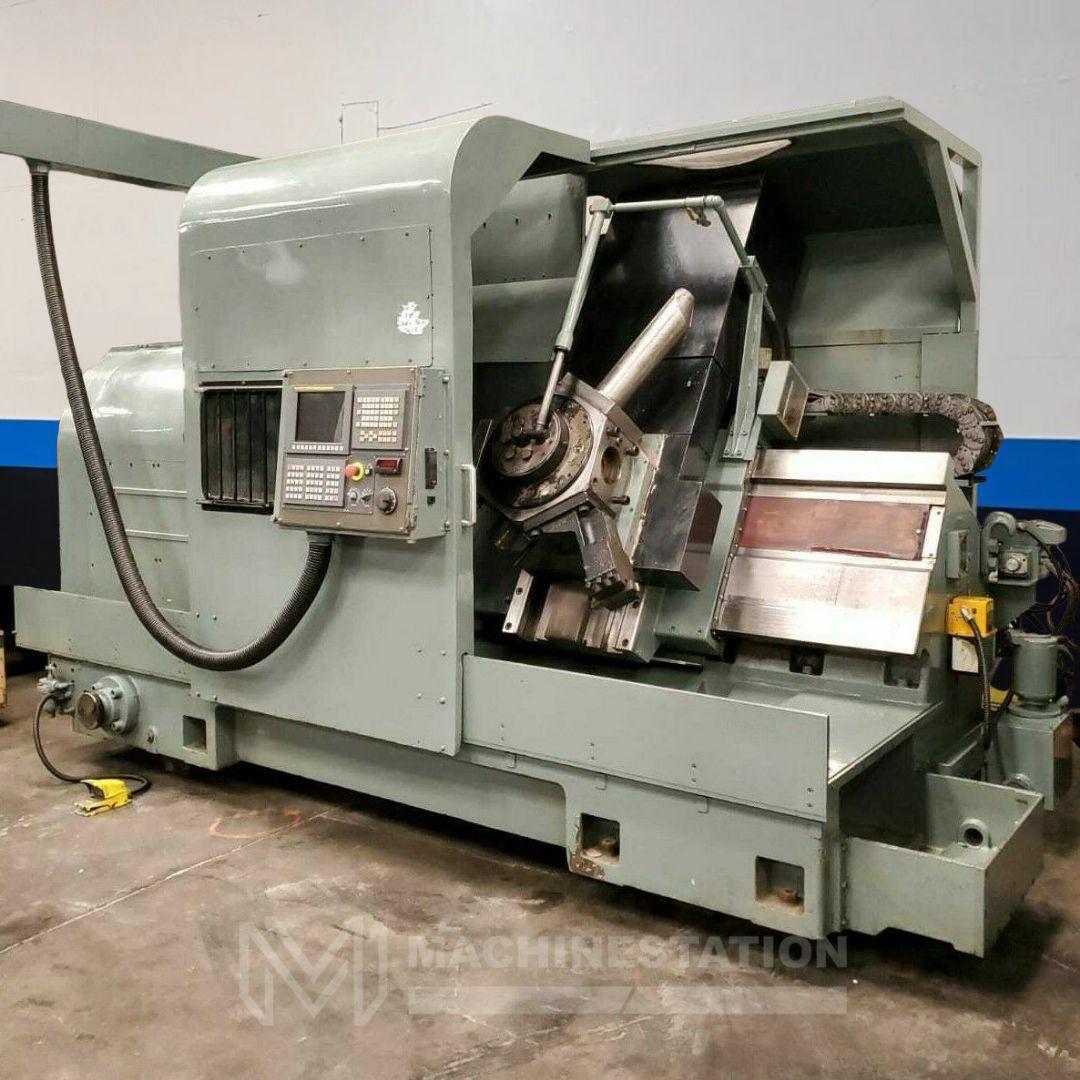

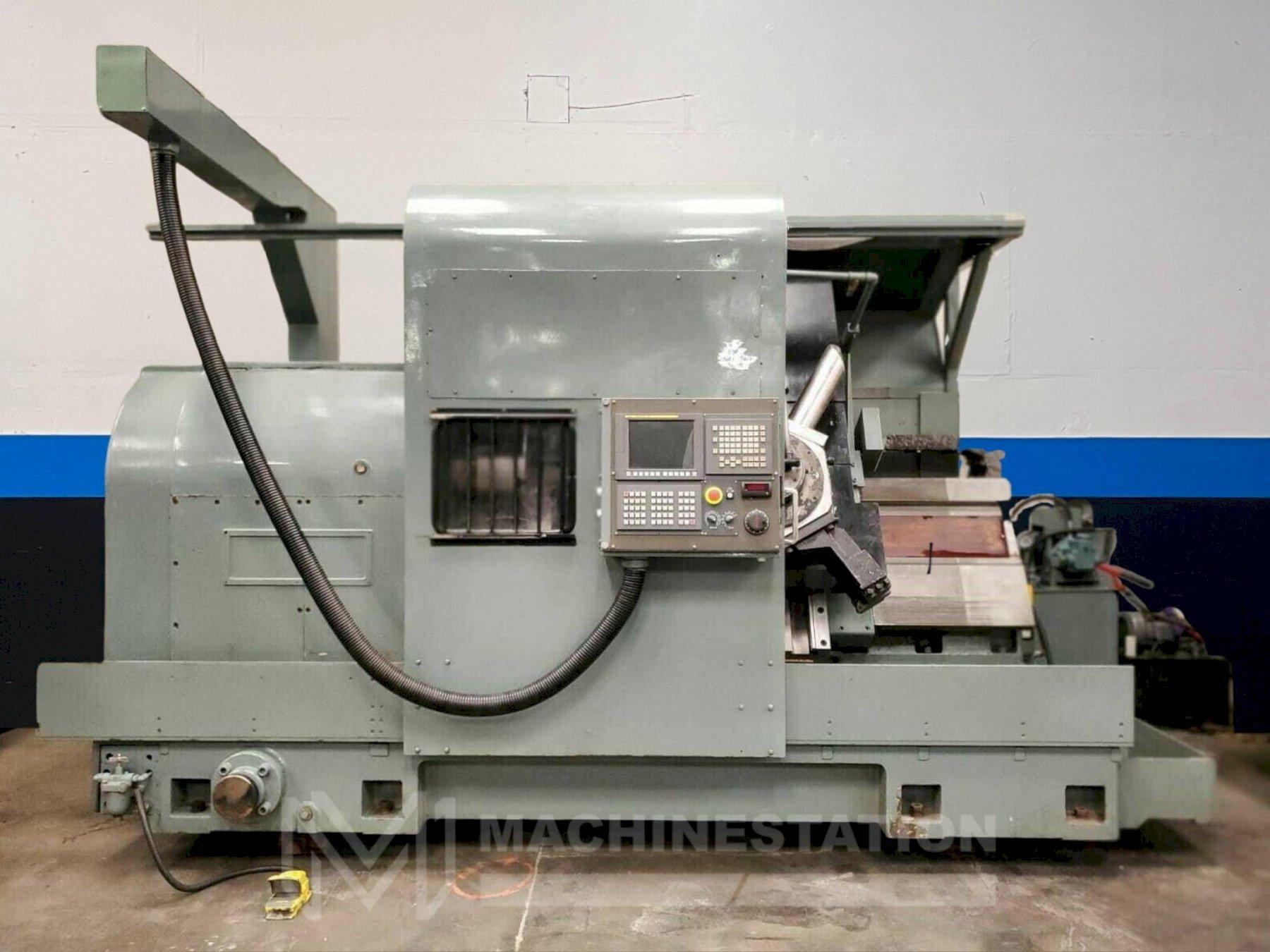

Mori Seiki SL-8 CNC Turning Center – 24″ Chuck, 10.5″ Big Bore Lathe

Mori Seiki SL-8 CNC Turning Center – 24″ Chuck, 10.5″ Big Bore Lathe

Name: Mori Seiki SL-8 CNC Turning Center – 24″ Chuck, 10.5″ Big Bore Lathe
Brand: MORI SEIKI
SKU: 113001
Availability: PreOrder

Brand

MORI SEIKI

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Make:	Mori Seiki
Model:	SL-8
Year:	1990 (Retrofitted with New Fanuc Control in 2014)
Condition:	Used – Good

Equipped With:

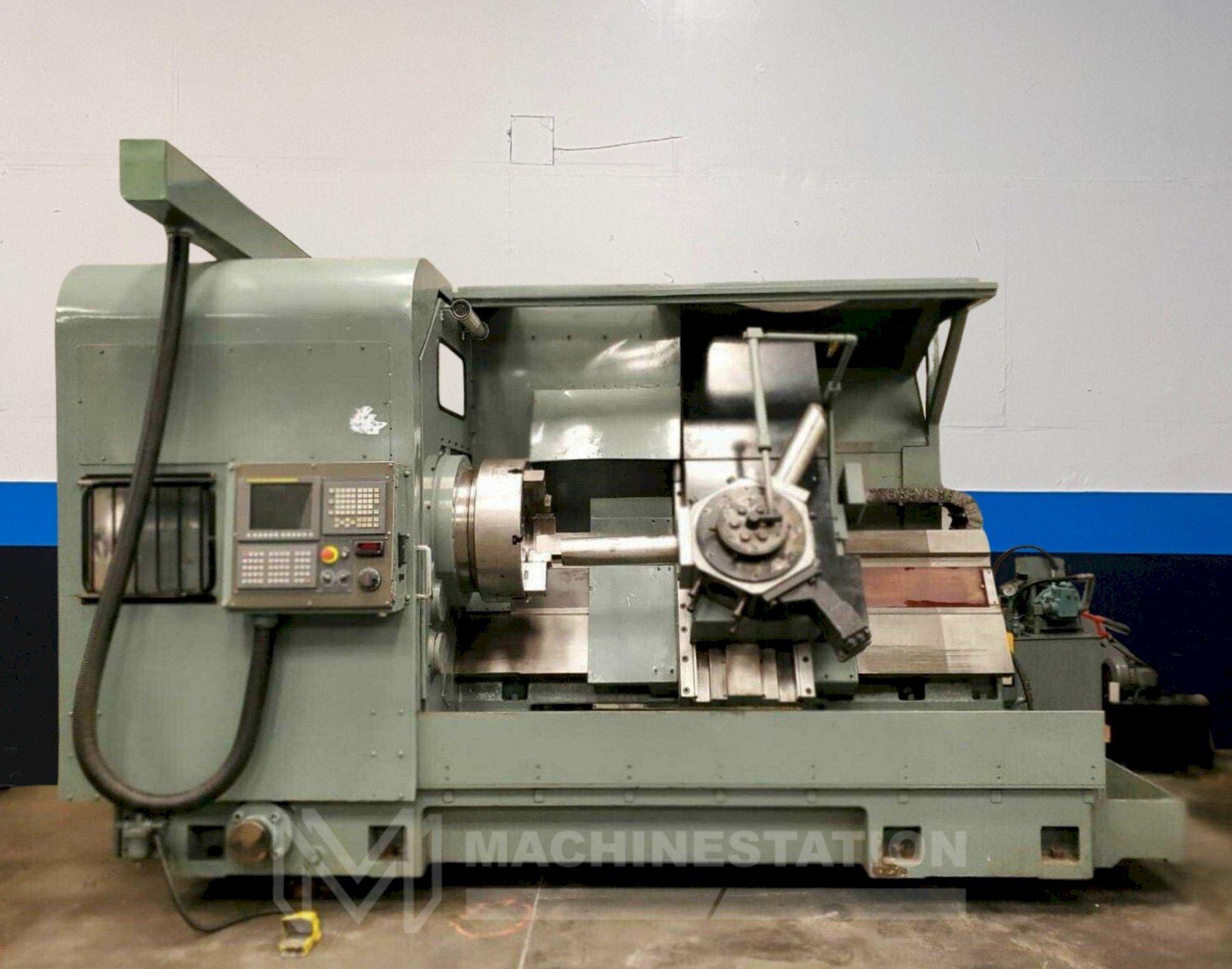

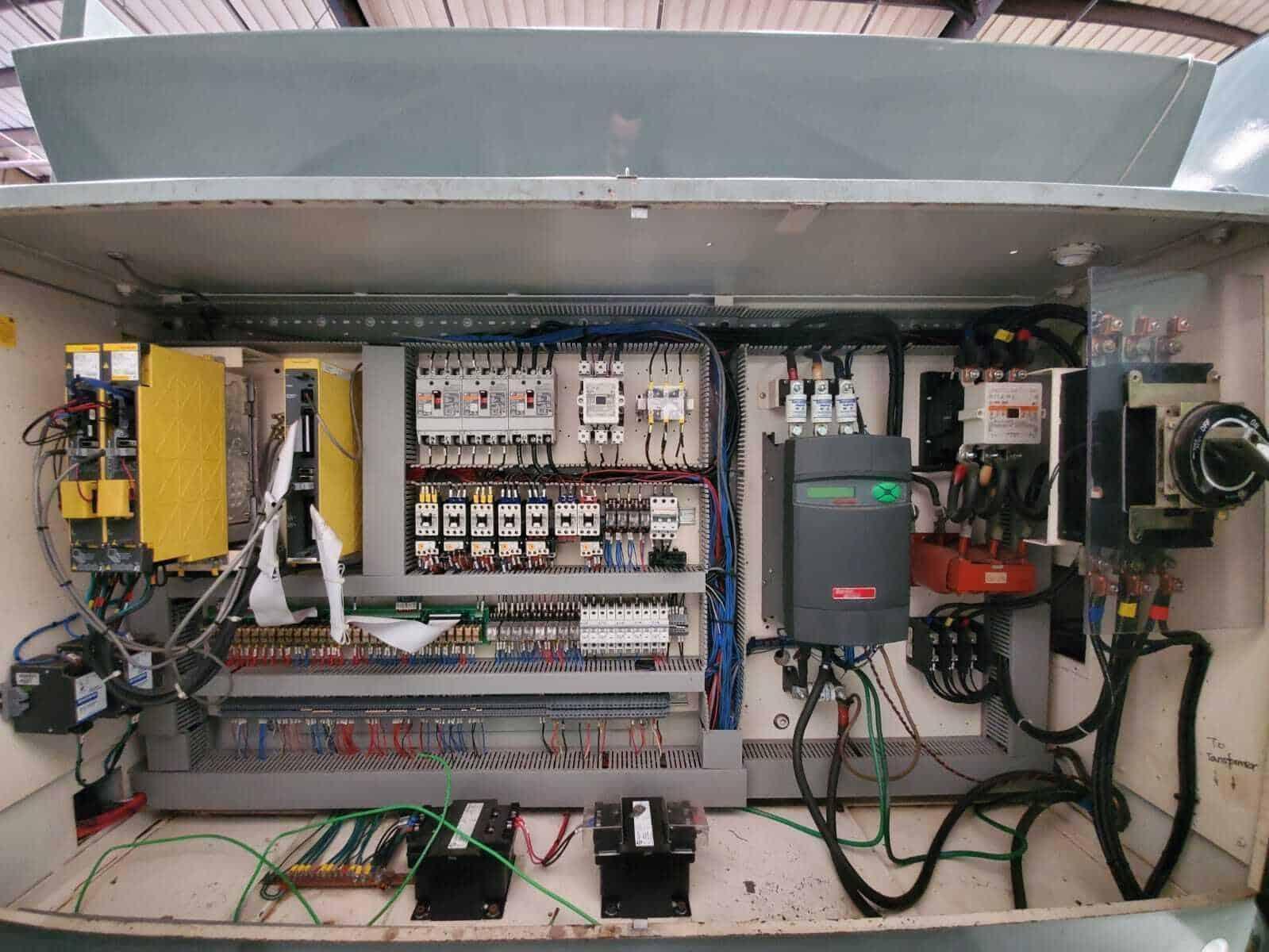

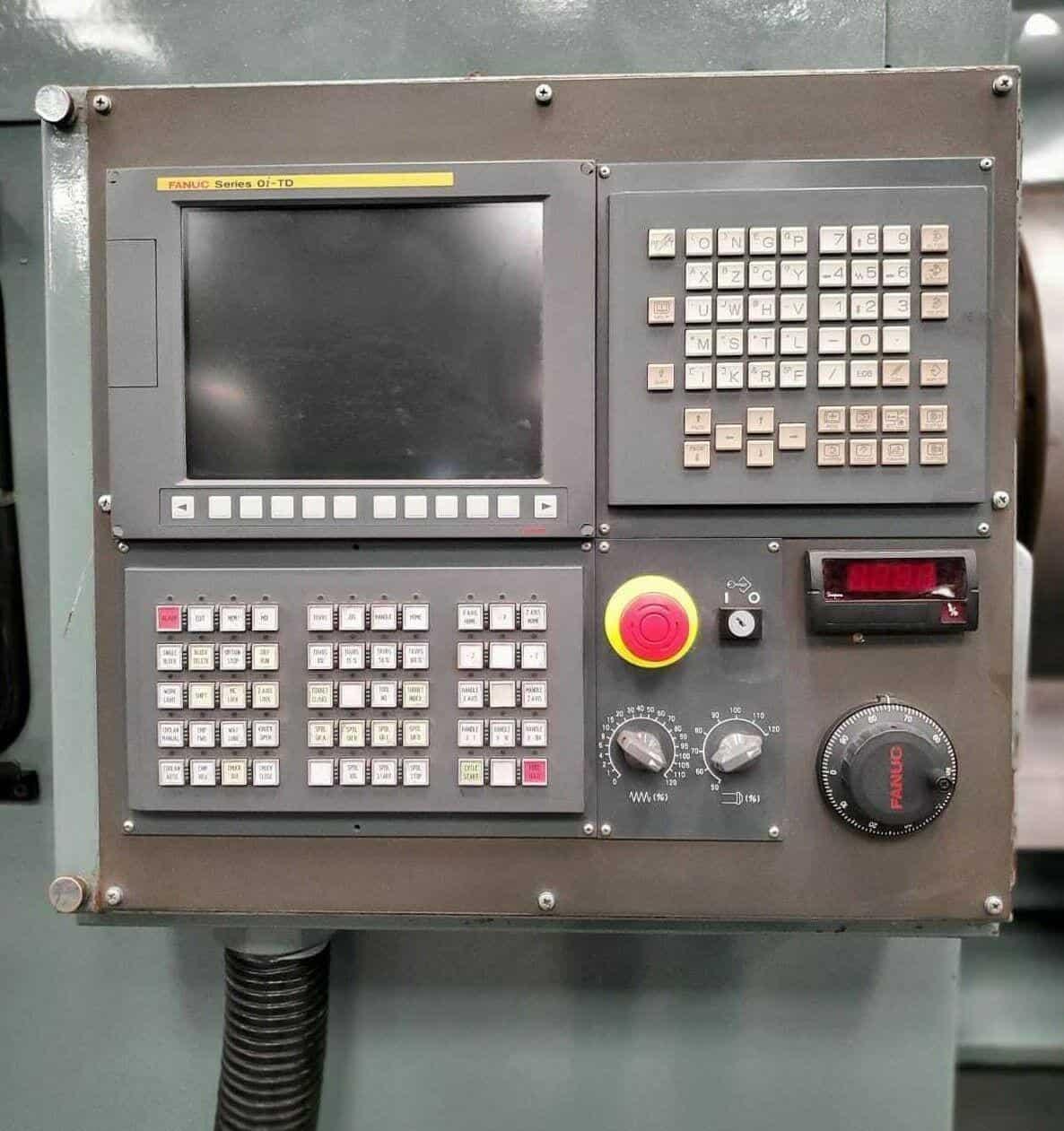

Fanuc 0i-TD CNC Control
6-Station Turret Box Ways Design
A1-20 10.5″ Big Bore Spindle
Long Bed Machine

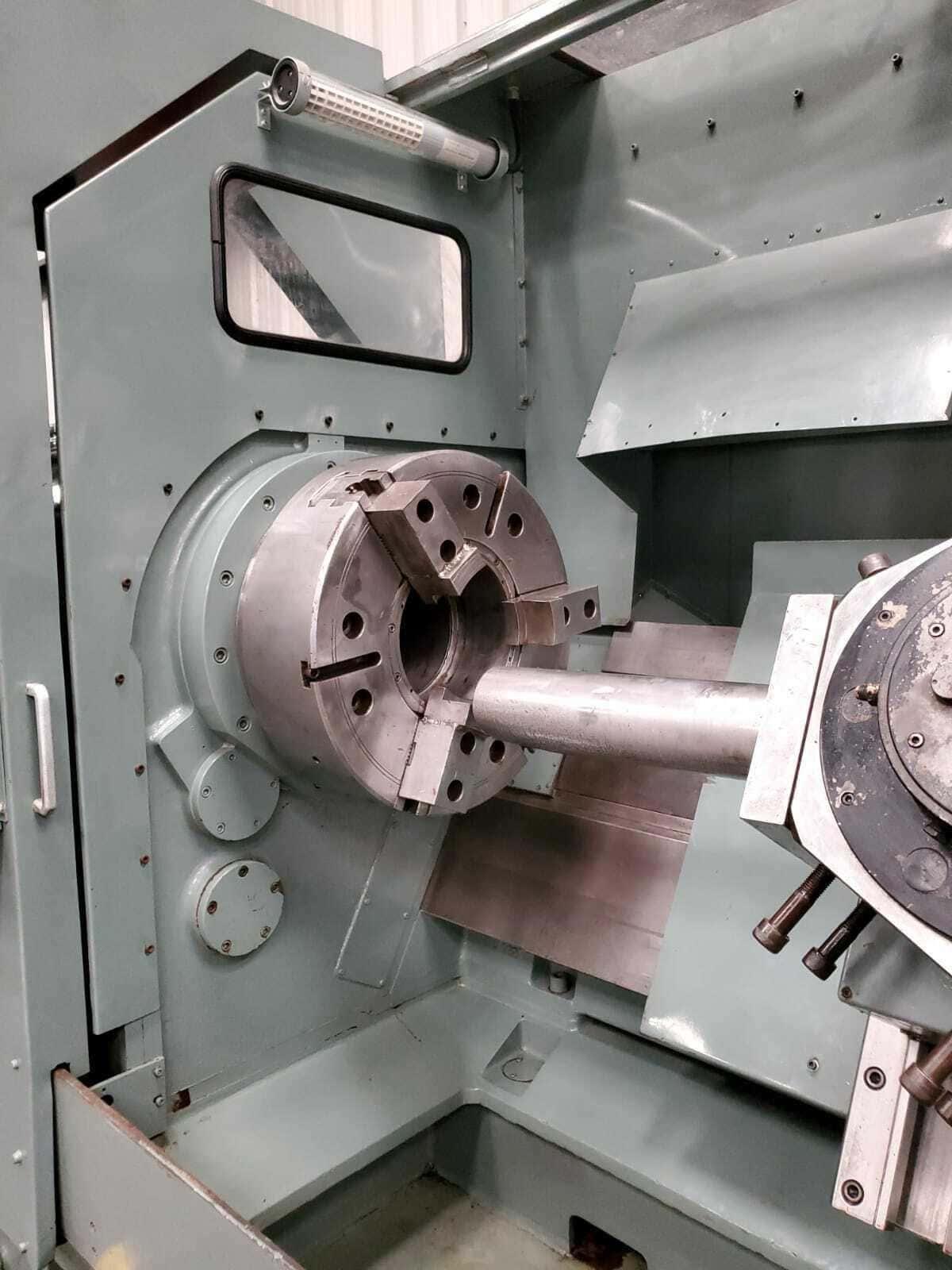

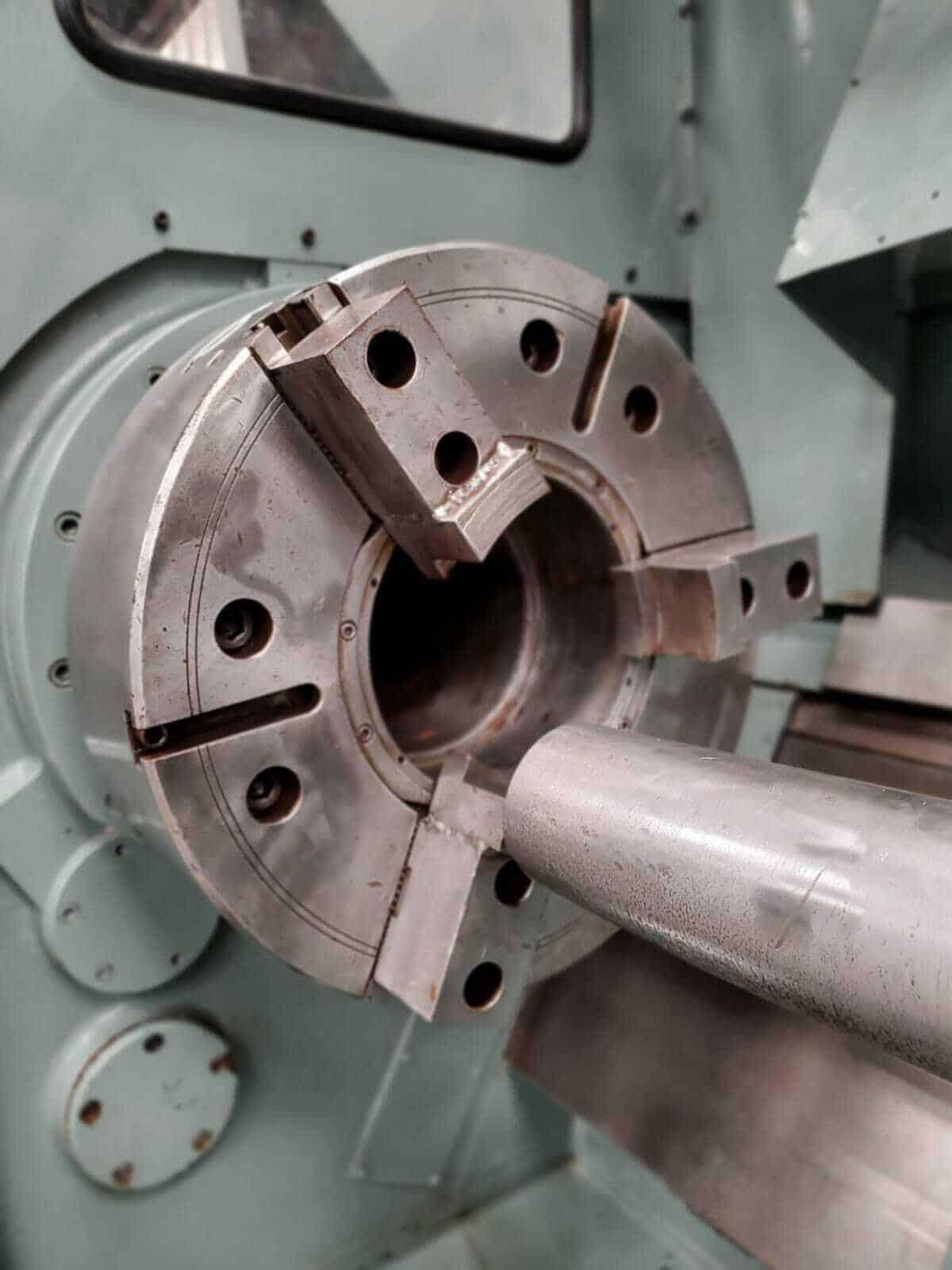

24″ 3-Jaw Chuck

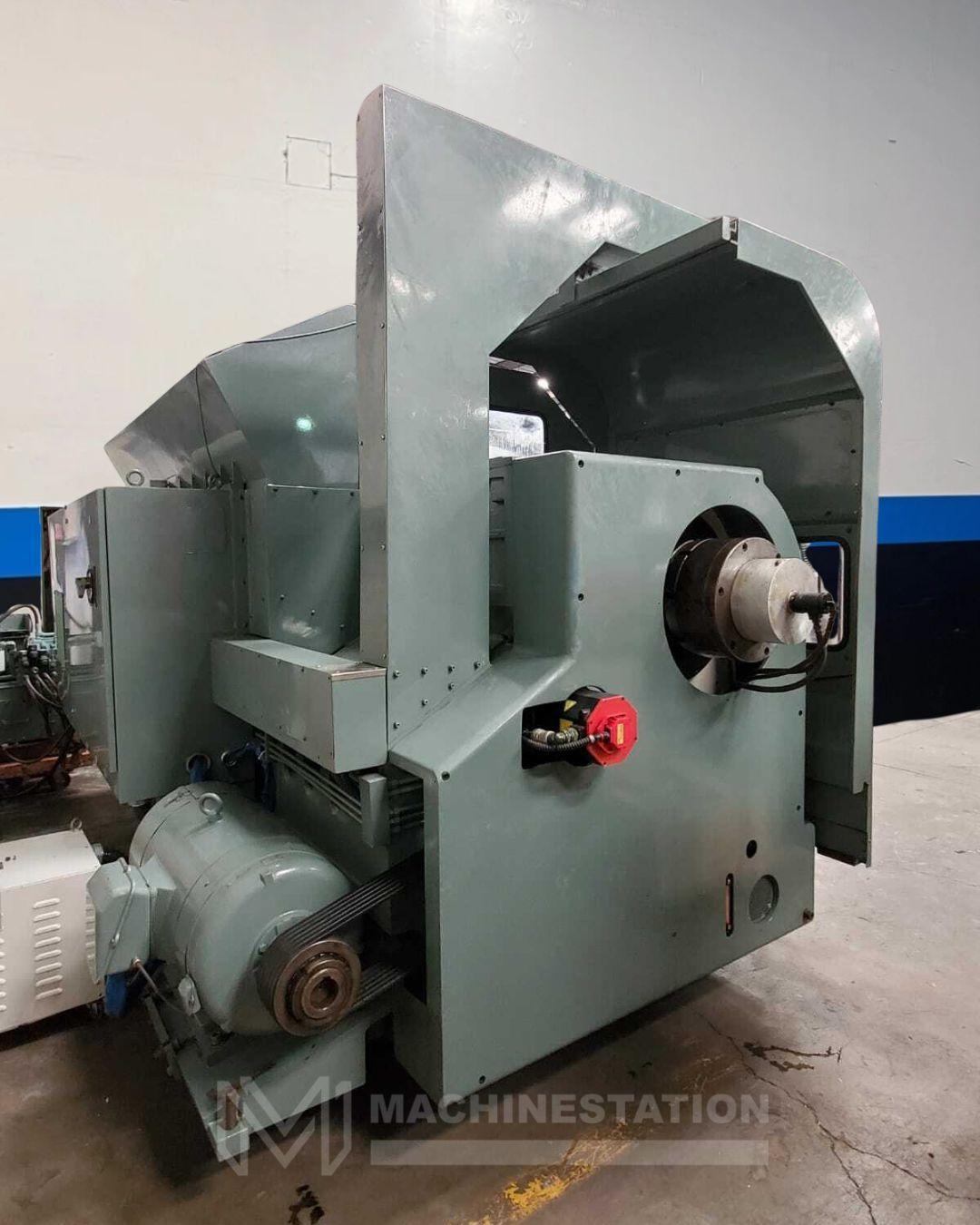

Geared Head spindle for powerful torque

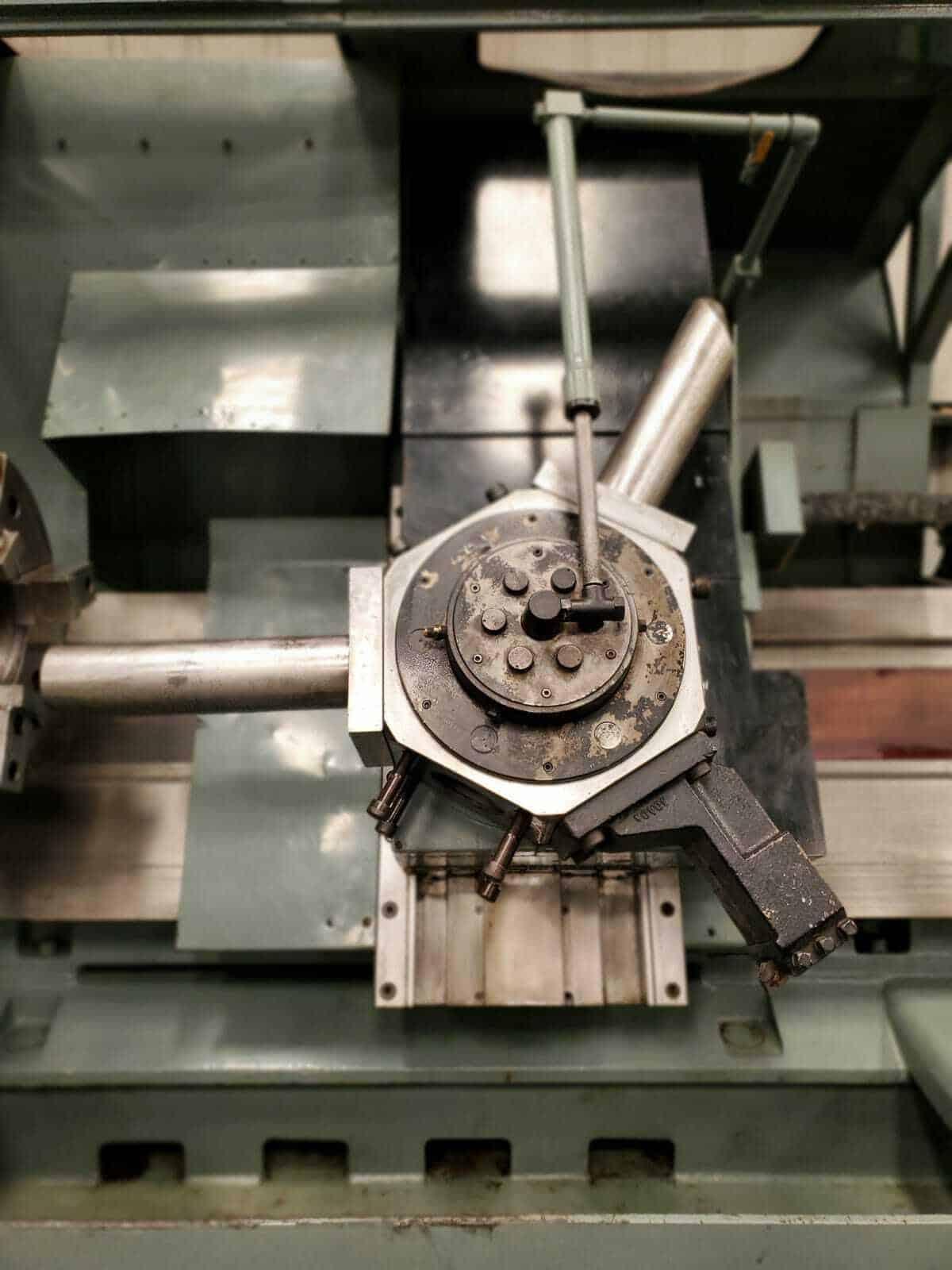

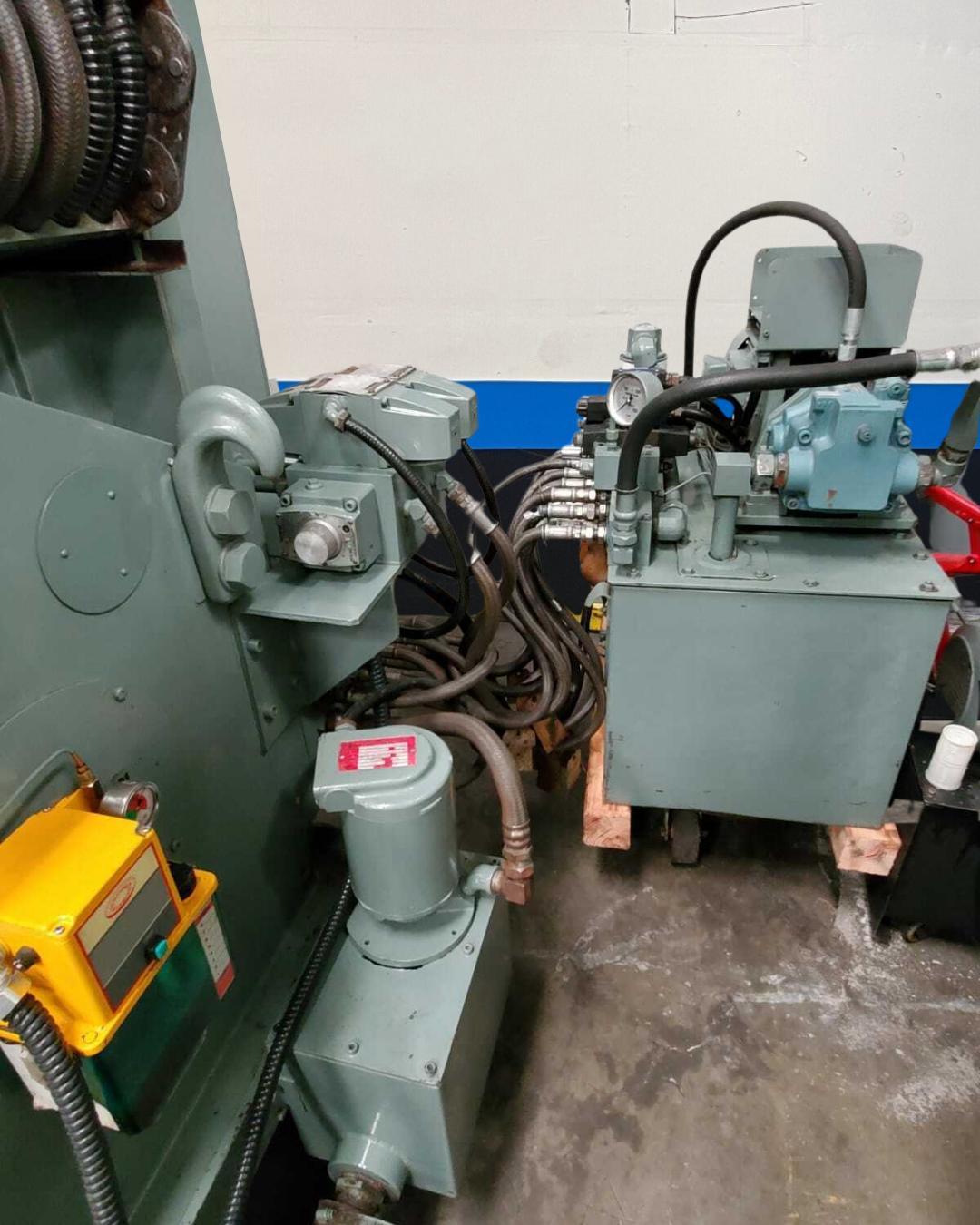

Hydraulic Turret
Chip Conveyor
Coolant System
Automatic Lubrication system
Foot Operated Control for Chuck
Coolant Tank Comes with Chip Conveyor
Note: Machine was retrofitted with New Fanuc Control in 2013/2014

Capacity:
Max Turning Diameter: 35.4″
Max Turning Length: 43.3″
Max Bar Capacity: 10.2″
Swing Over Carriage: 35.4″
Swing Over Bed: 39.9″

Travels:
X Axis Travel: 16.5″
Z1 Axis Travel : 43.3″
Rapid Traverse X Axis: 197 IPM
Rapid Traverse Z Axis: 315 IPM

Spindle:
Spindle Nose: A1-20
Spindle Bore: 10.5″
Spindle Speed: 4 – 550 RPM
Spindle Motor: 50 HP

Turret:
Capacity: 6 Stations Turret
Turret Index Time:

General:
Power Source: AC 220v / 3-Phase / 60 Hz
Requirement: 68 Amps Overall
Dimensions: 180″ x 80″ x 98″ High
Overall Dimensions: 220″ x 80″ x 98″ High with Chip Conveyor
Weight : 33,000 lbs Approx.
