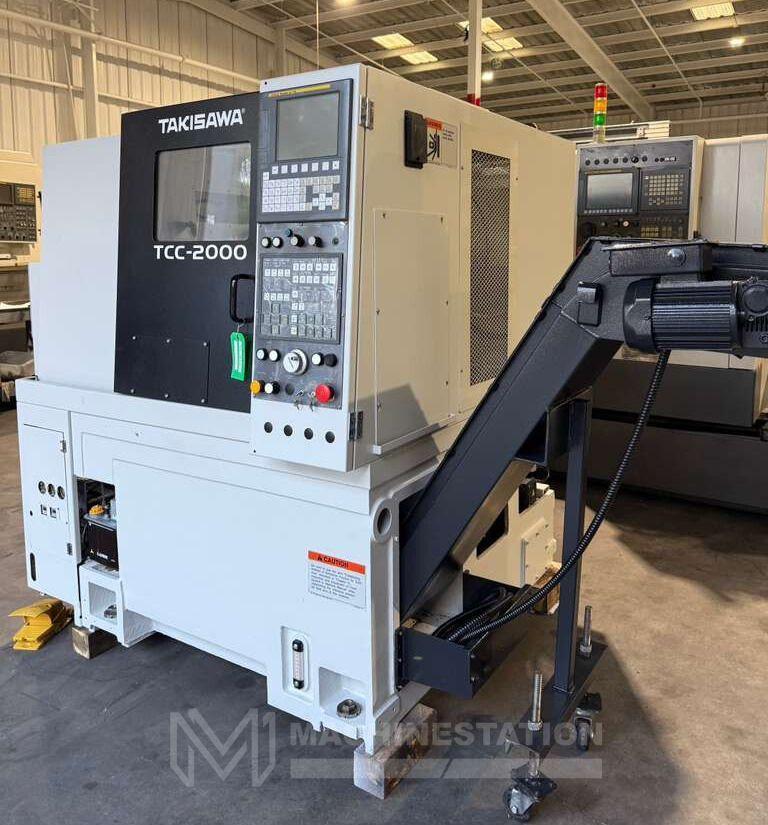

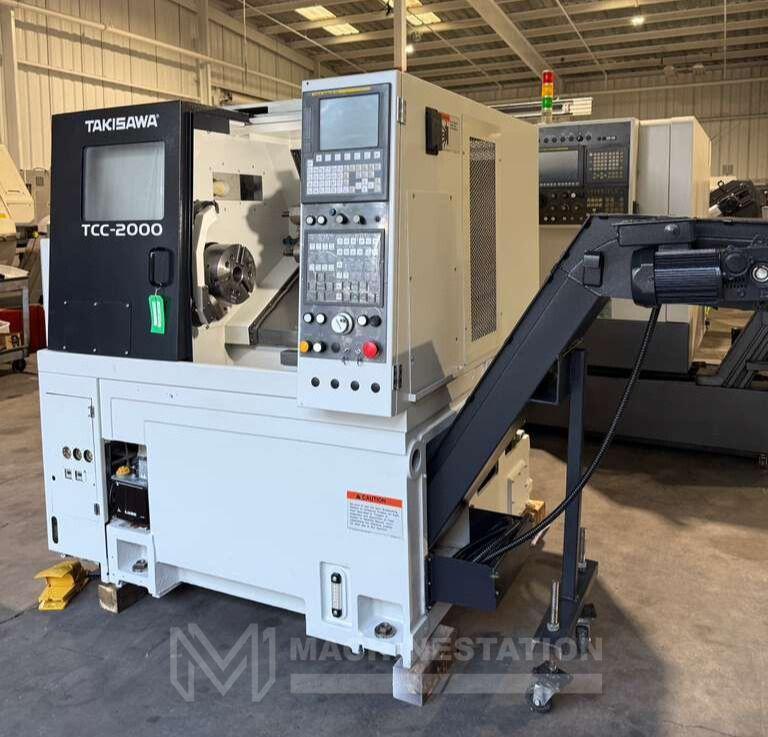

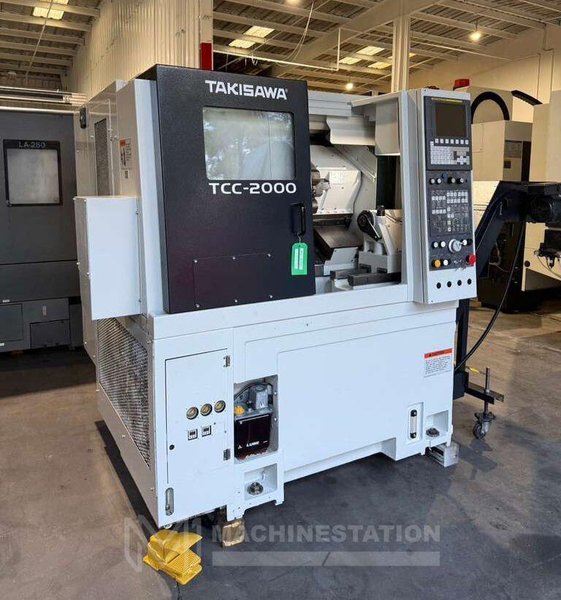

Name: Takisawa TCC-2000 L3 CNC Turning Center – Lathe
Brand: TAKISAWA
SKU: 112909
Availability: PreOrder

Brand

TAKISAWA

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Make:	Takisawa
Model:	TCC-2000 L3
Year:	2013
Condition:	Used – Good

Equipped With:

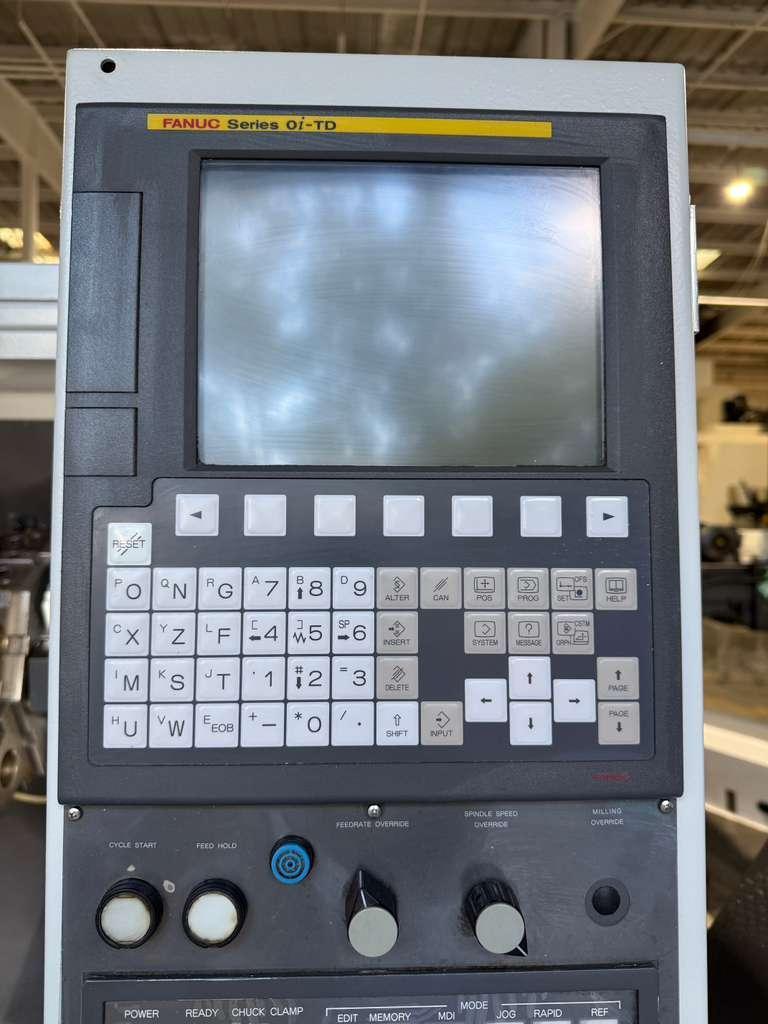

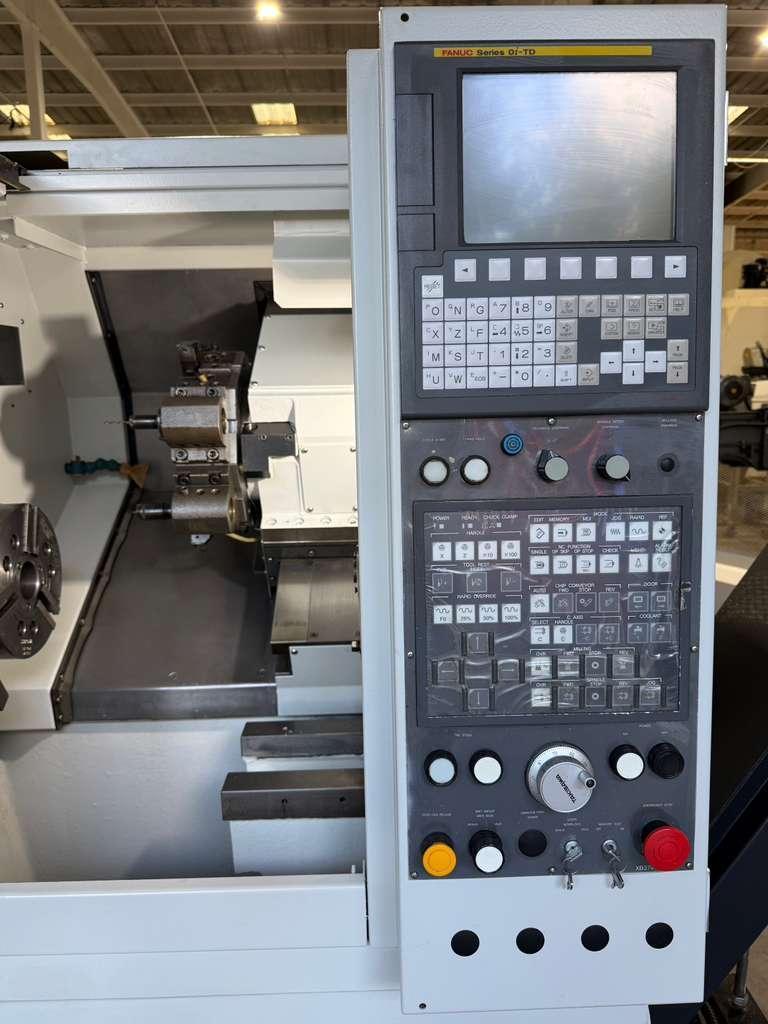

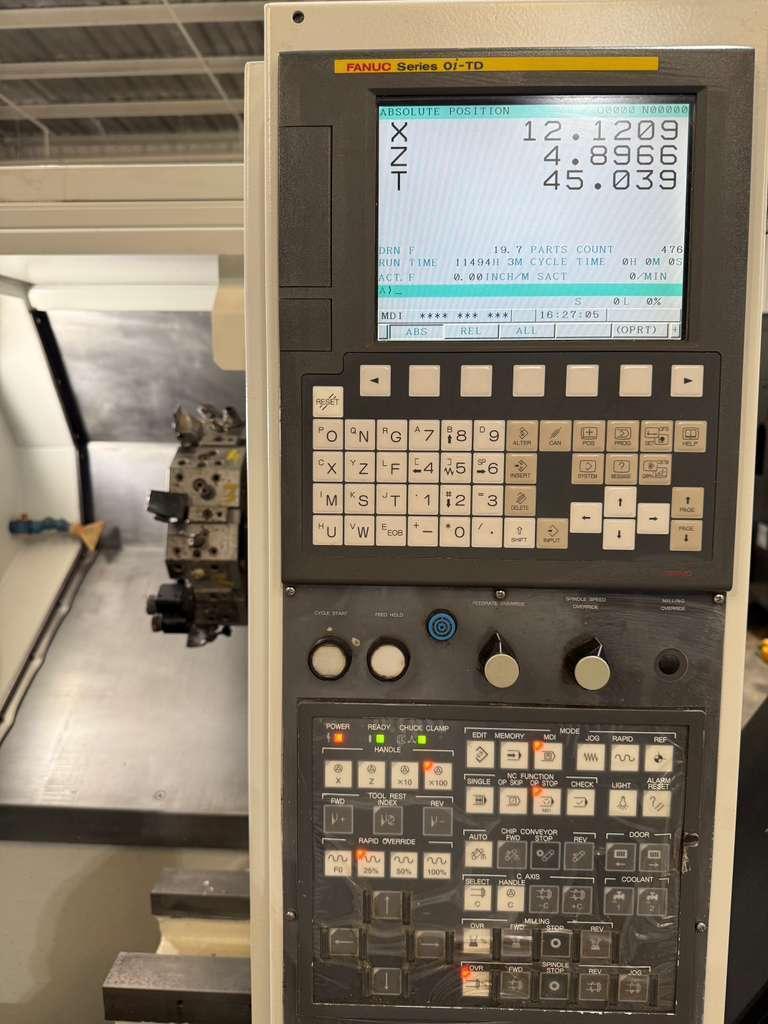

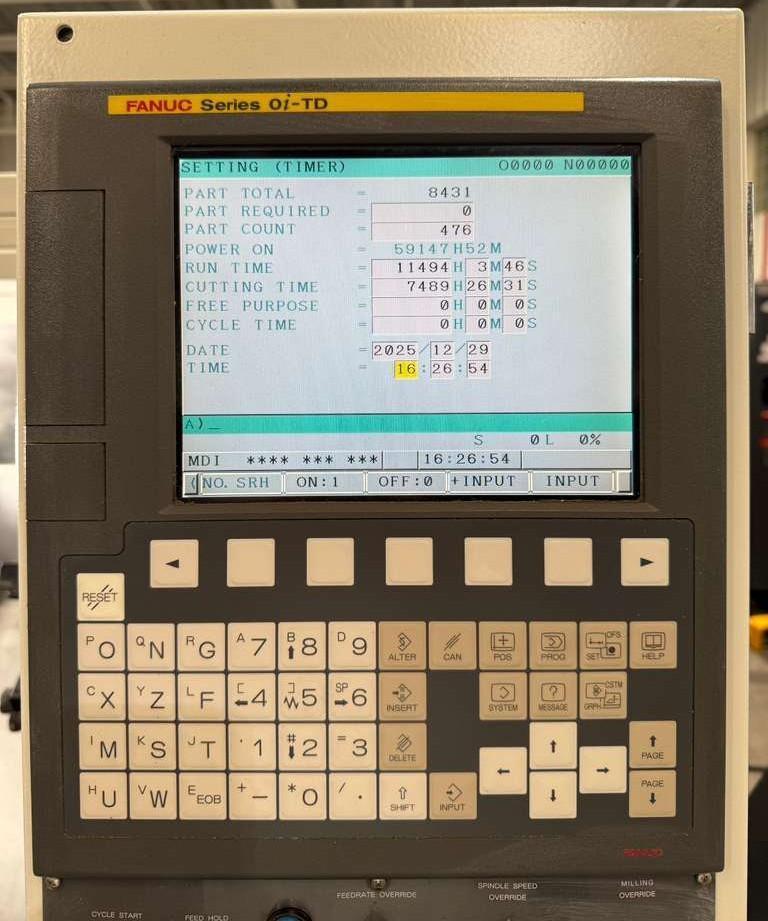

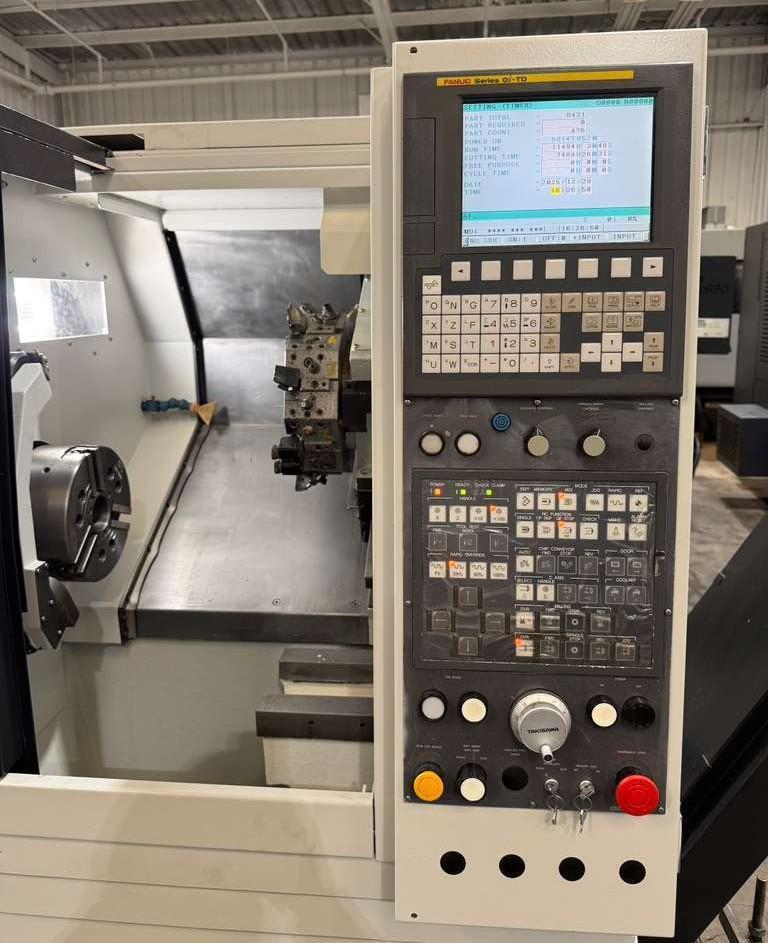

Fanuc Oi-TD CNC Control
Box Ways Construction

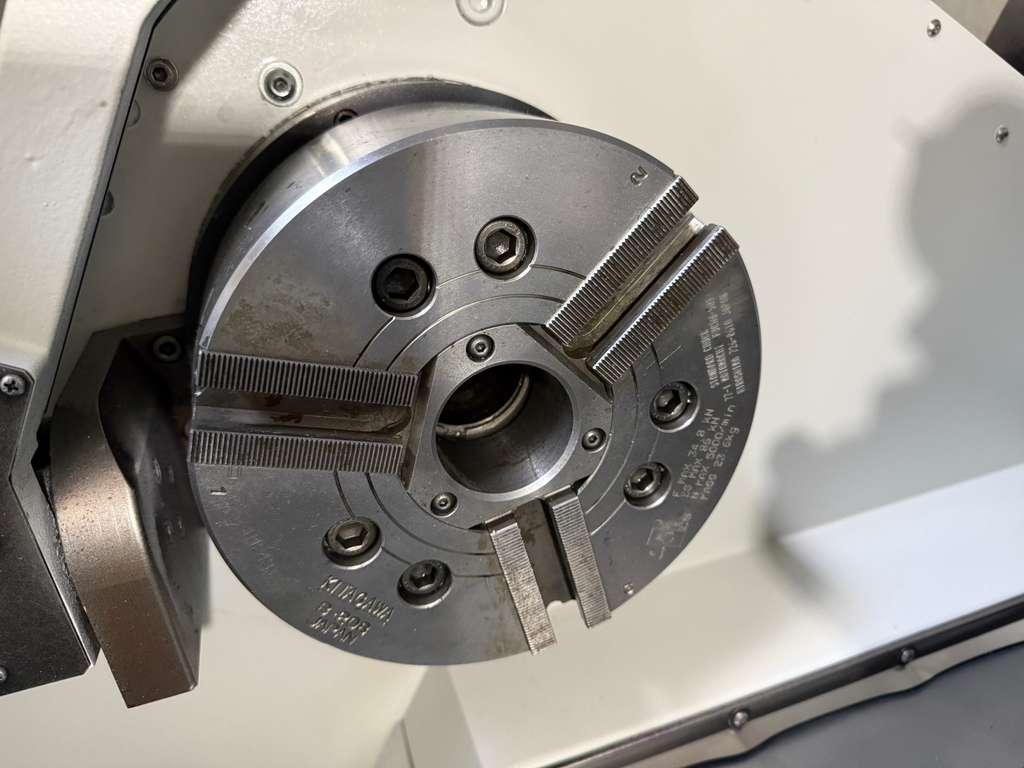

8” 3-Jaw Kitagawa B-208 Power Chuck

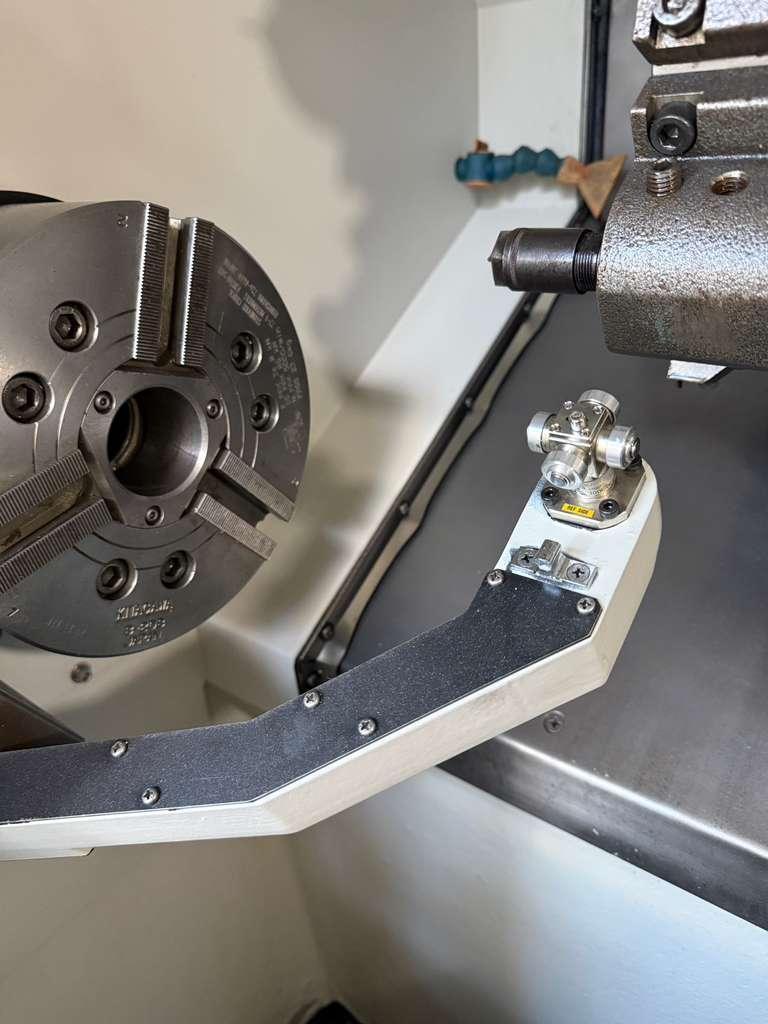

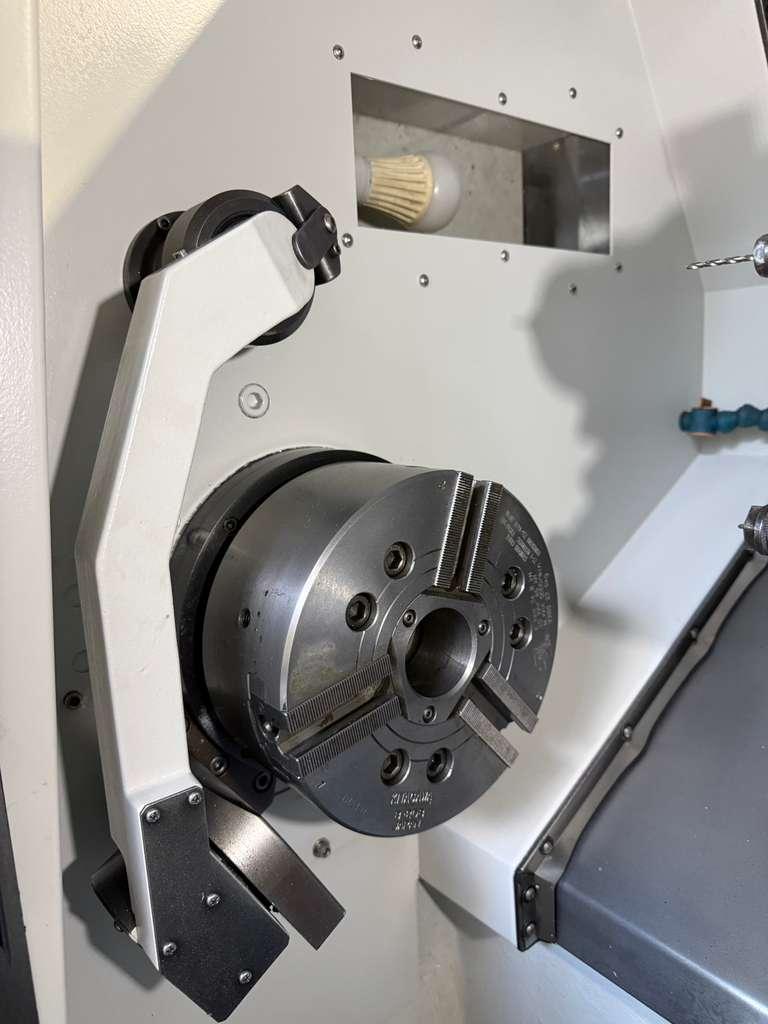

Automatic Tool Presetter

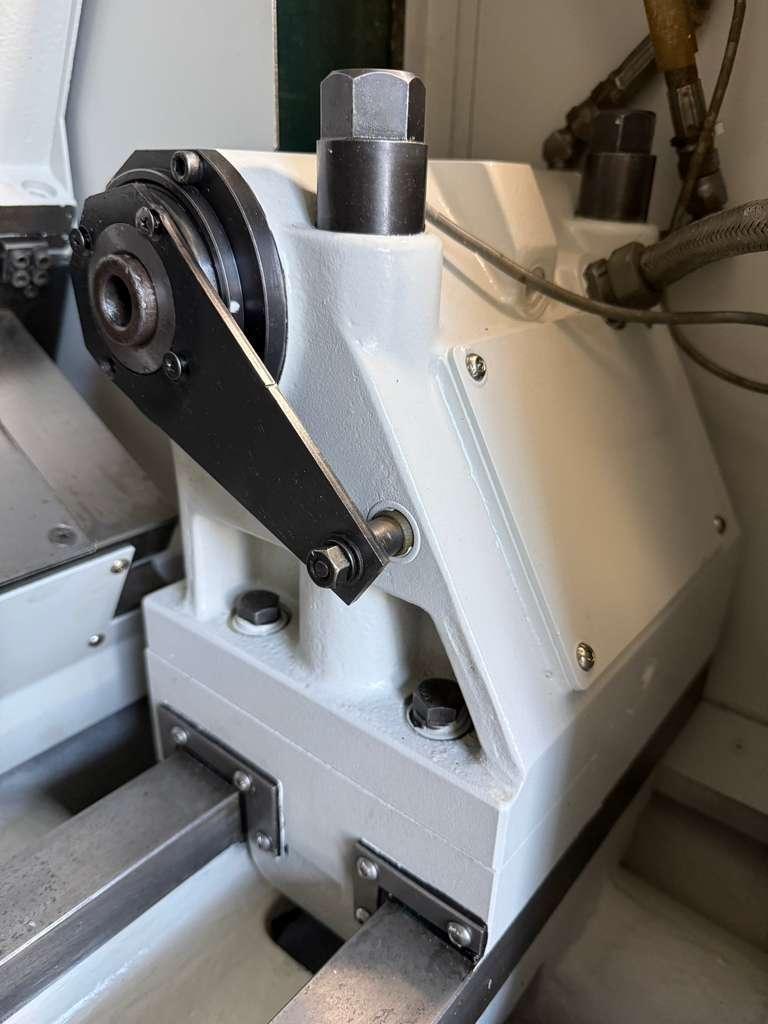

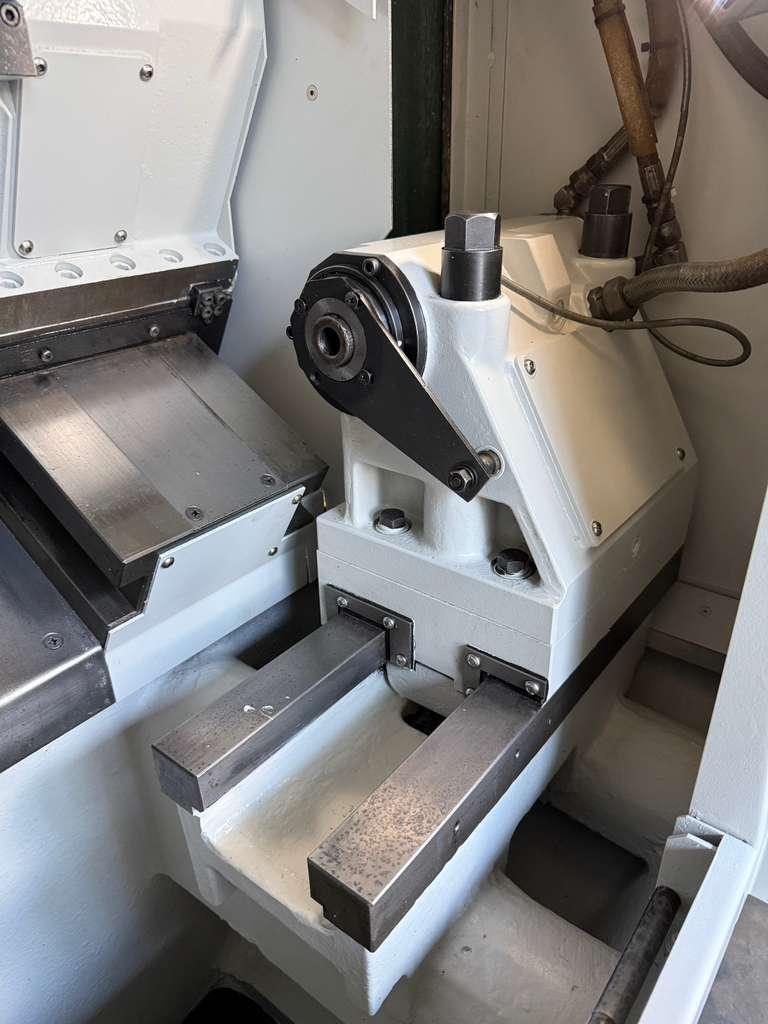

Tailstock

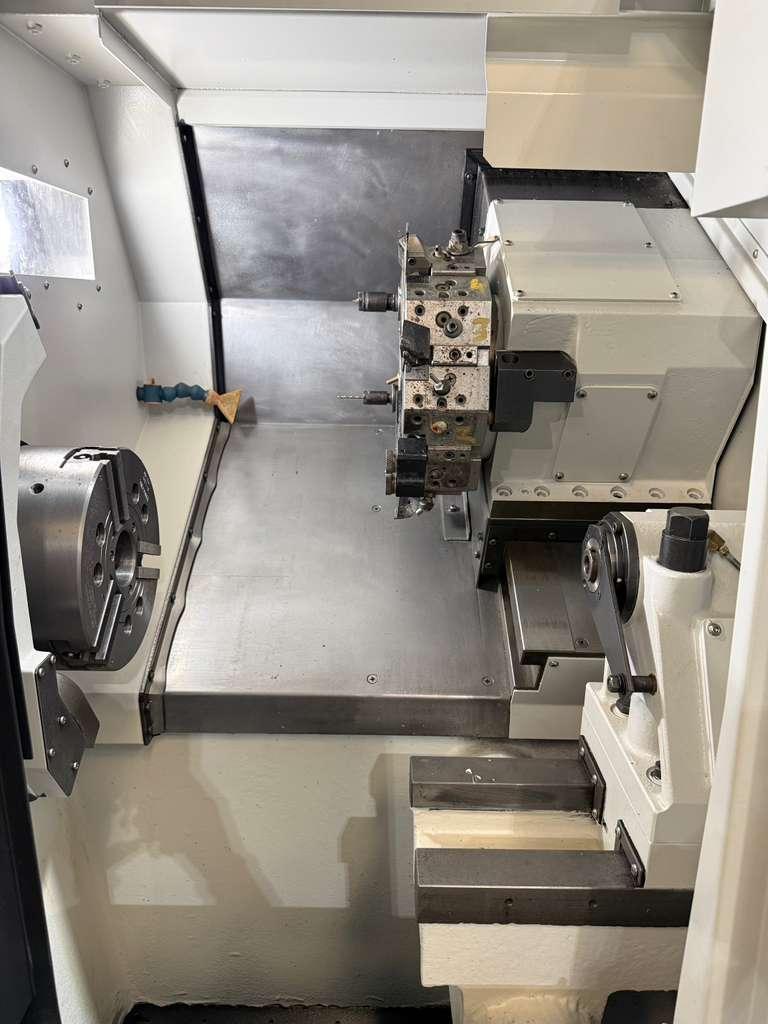

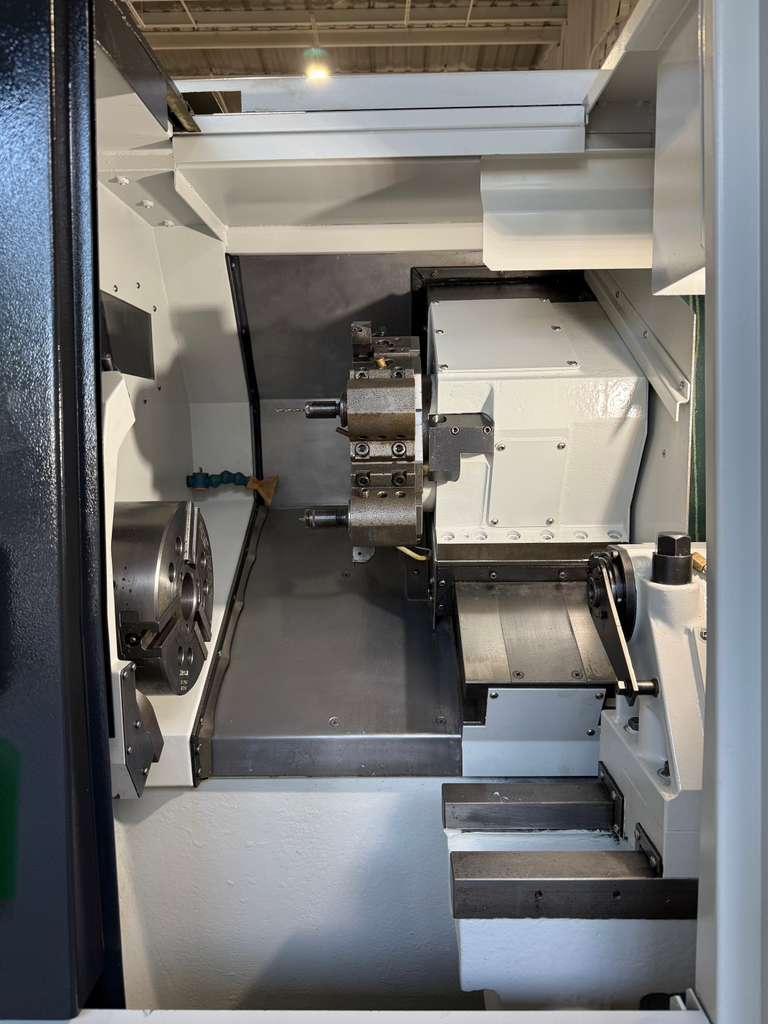

8-Station Automatic Turret
PCMCIA Card & USB Drive Interface
Rigid Tapping

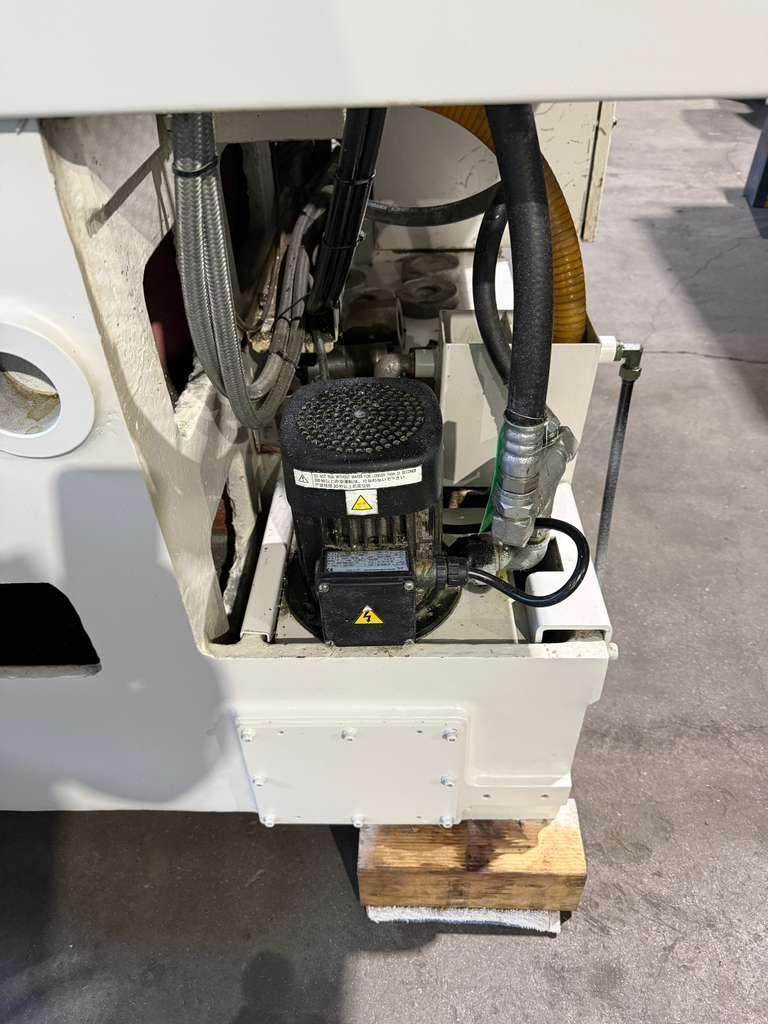

Coolant System
Chip Conveyor
Foot Switch

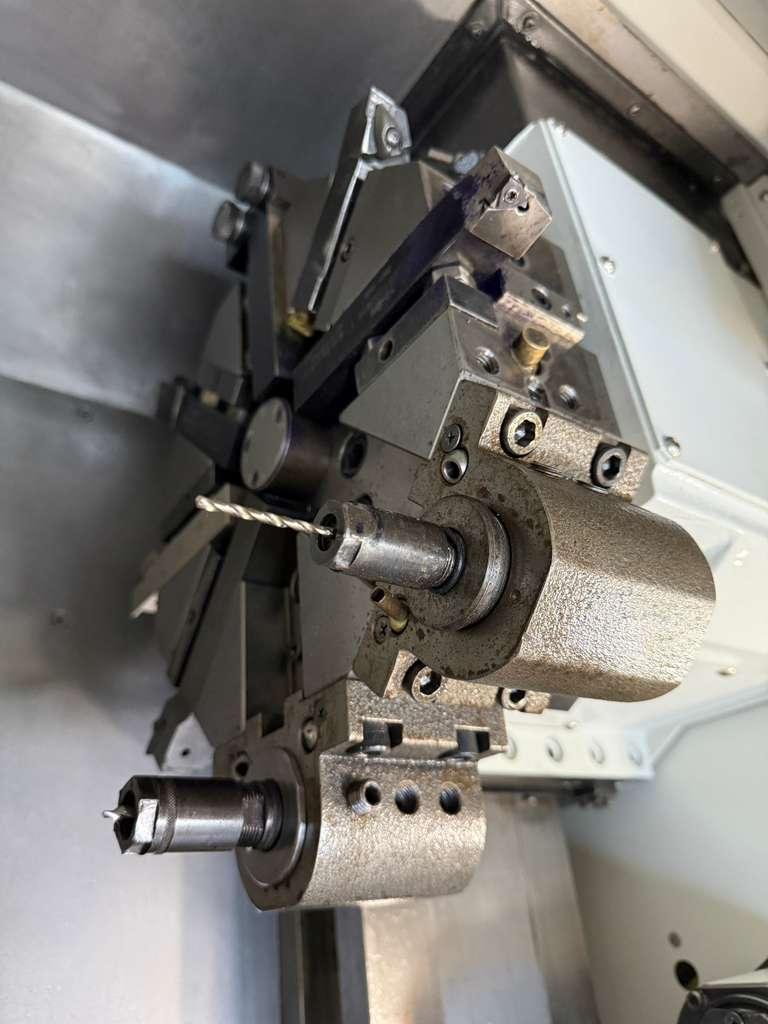

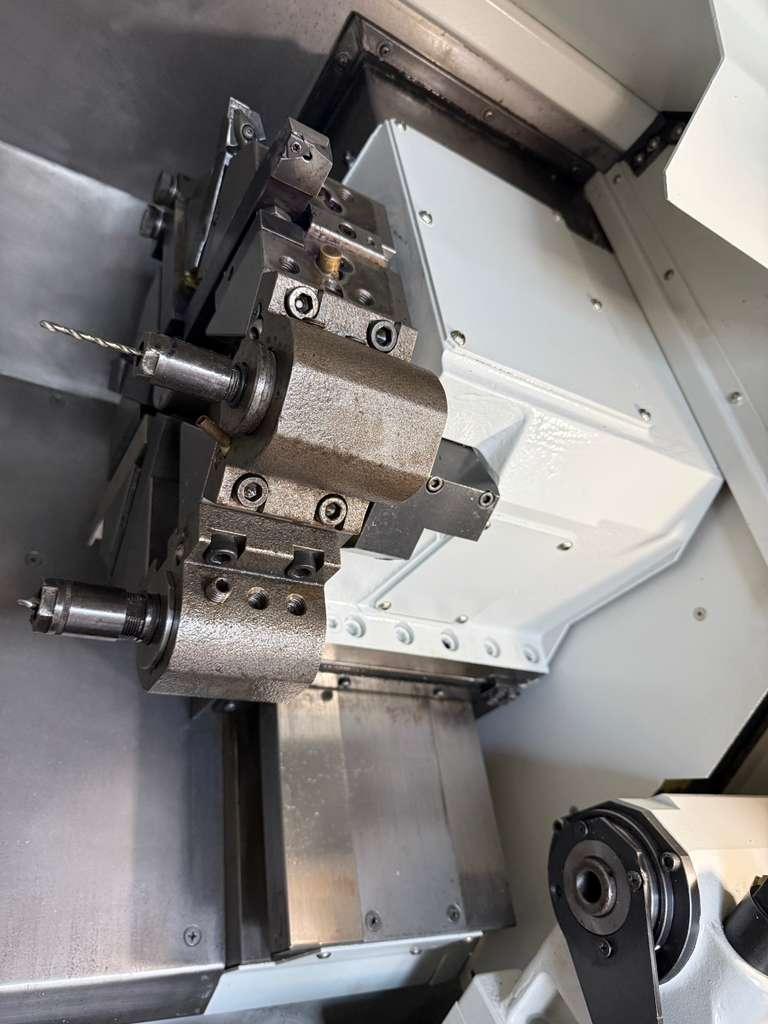

(2) Boring Tool Holders Are Mounted on Turret (As shown in the images)

Capacity:
Max Turning Diameter: 8.86″ ?
Max Turning Length: 11.85″
Swing Over Bed: 16.54″
Max Bar Capacity: 2.00″

Travels:
X Axis Travel: 7.48″
Z Axis Travel: 13.78″
Rapid Traverse X Axis: 945 IPM
Rapid Traverse Z Axis: 945 IPM

Spindle:
Spindle Nose: A2-6
Spindle Bore: 2.5″
Spindle Speed: 3200 RPM
Spindle Motor: 15 HP

Turret:
Turret Capacity: 8 Stations
Turning Tool Shank: 1″
Boring Bar Shank Diameter: 1.5″

Turret:
Tailstock Taper: MT-4
Tailstock Quill Diameter: 2.95″
Tailstock Quill Travel: 3.94″

General:
Power Source: AC 220 V, Three Phase, 50/60 Hz
Power Requirement: 16.1 kva
Overall Dimensions: 57″ x 55″ x 65″ High Approx.
Weight : 5,952 lbs Approx.
