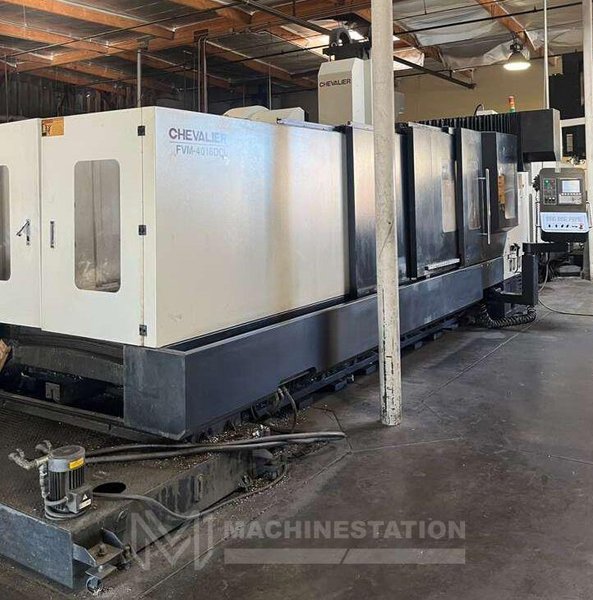

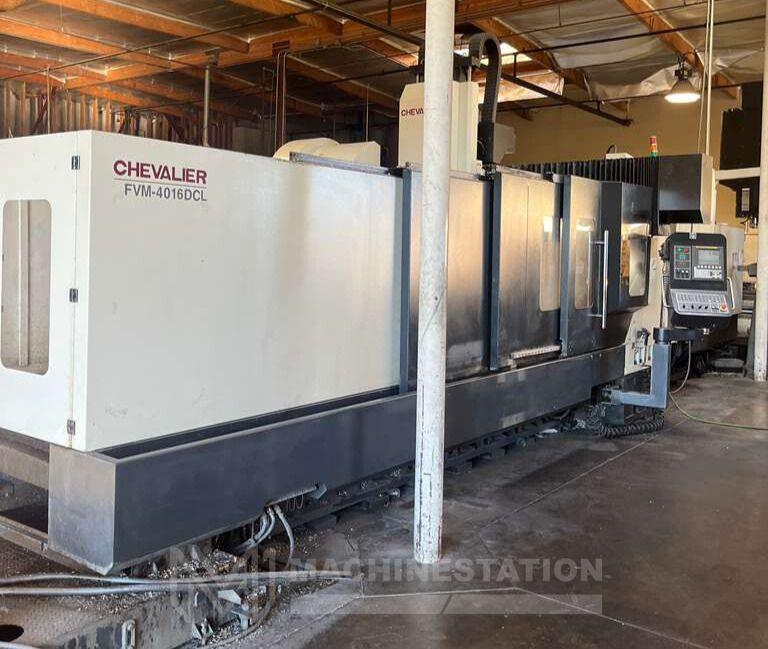

Chevalier FVM-4016DCL CNC Bridge Mill – 50 Taper Mill

Chevalier FVM-4016DCL CNC Bridge Mill – 50 Taper Mill

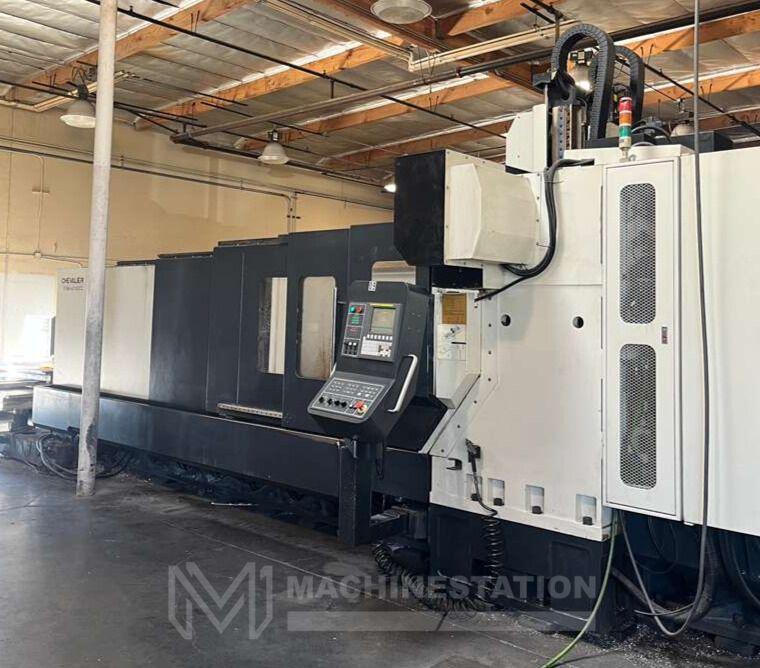

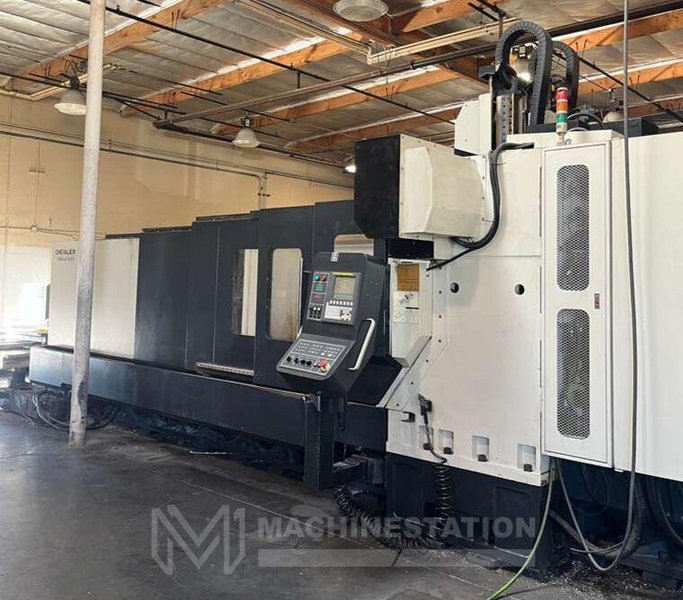

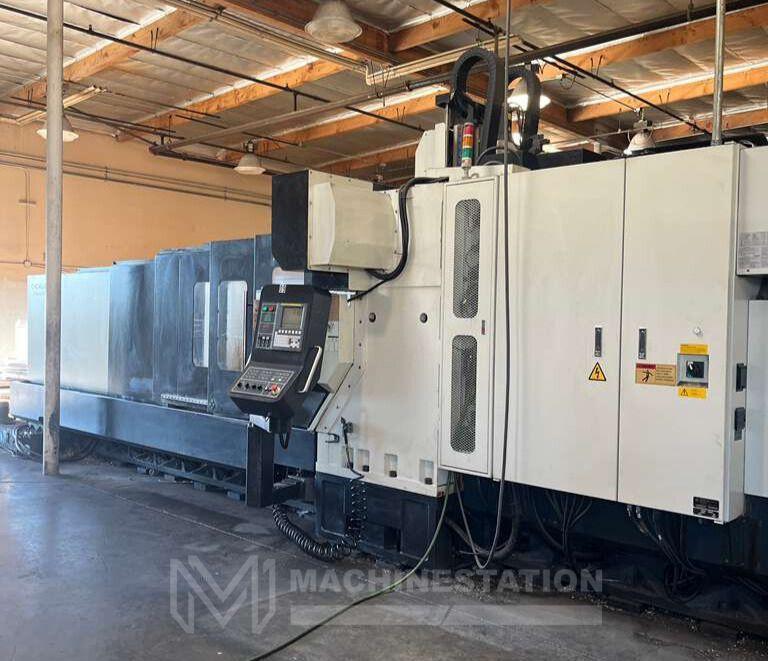

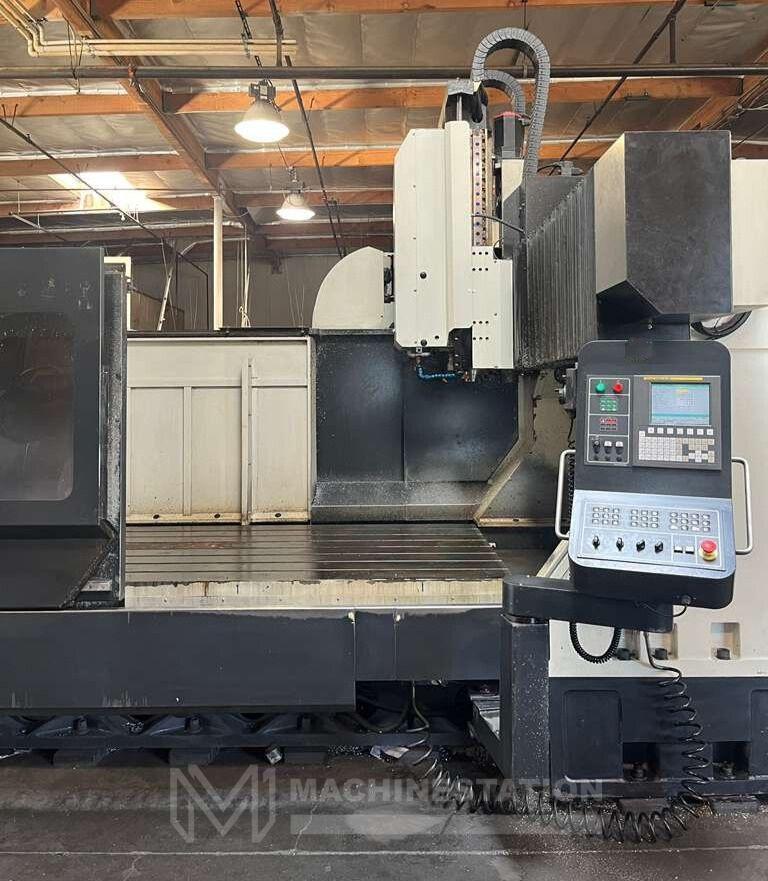

Name: Chevalier FVM-4016DCL CNC Bridge Mill – 50 Taper Mill
Brand: CHEVALIER
SKU: 112983
Availability: PreOrder

Brand

CHEVALIER

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	Chevalier
Model:	FVM-4016DCL
Year:	2013
Condition:	Used – Good

Equipped With:

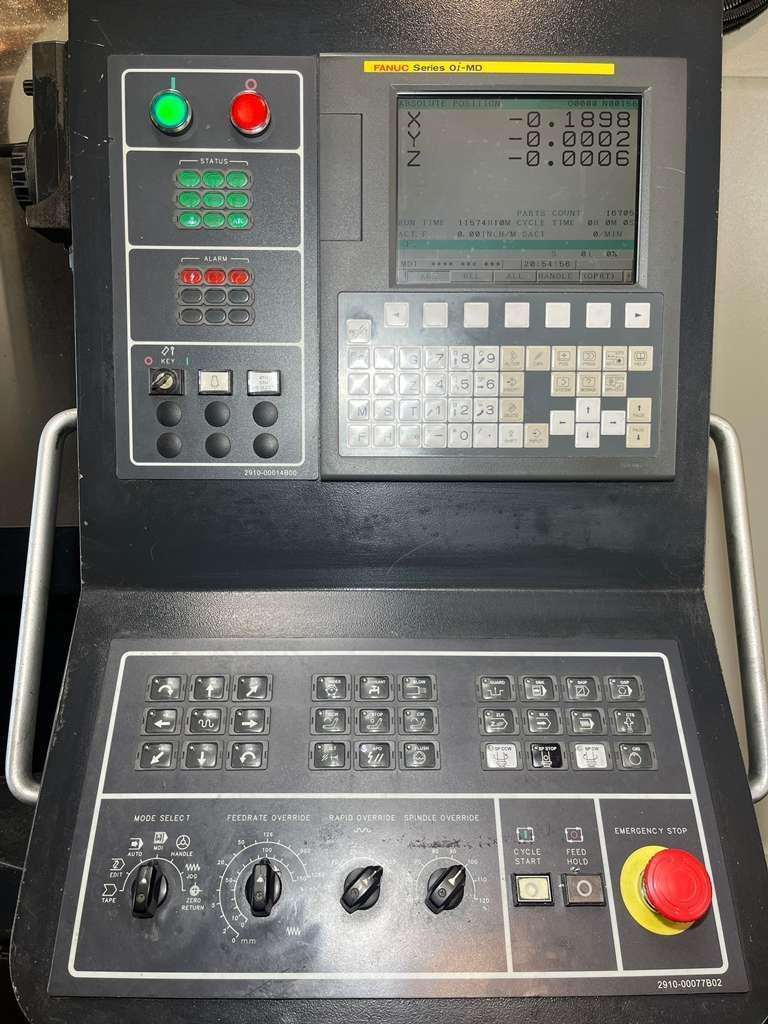

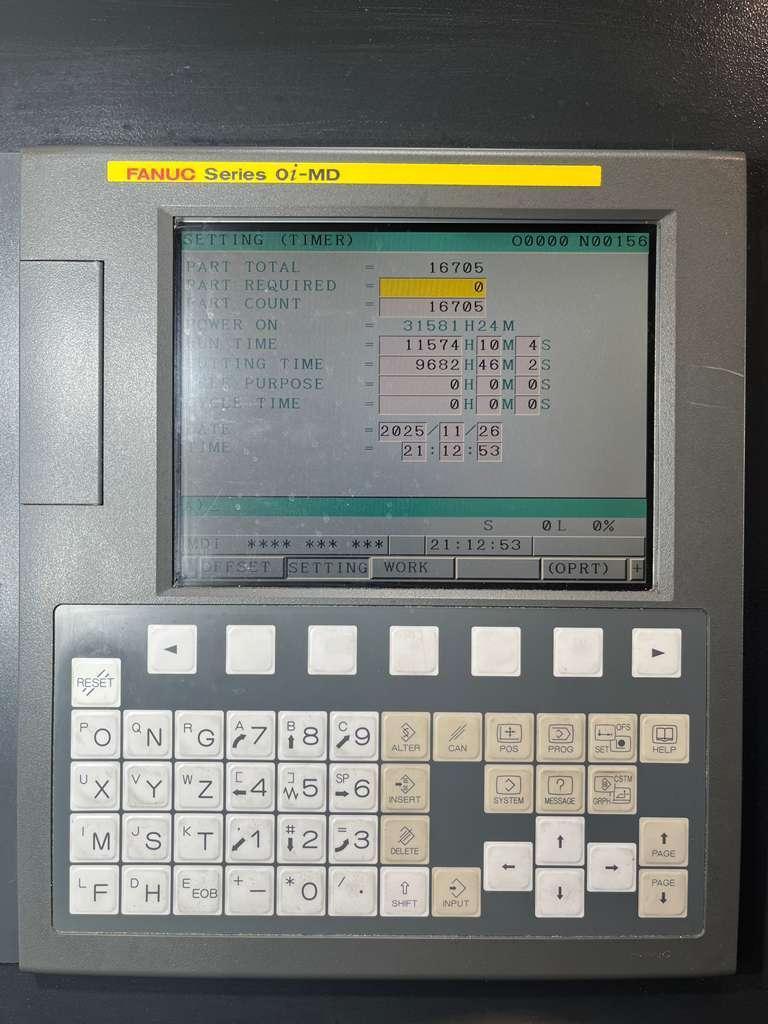

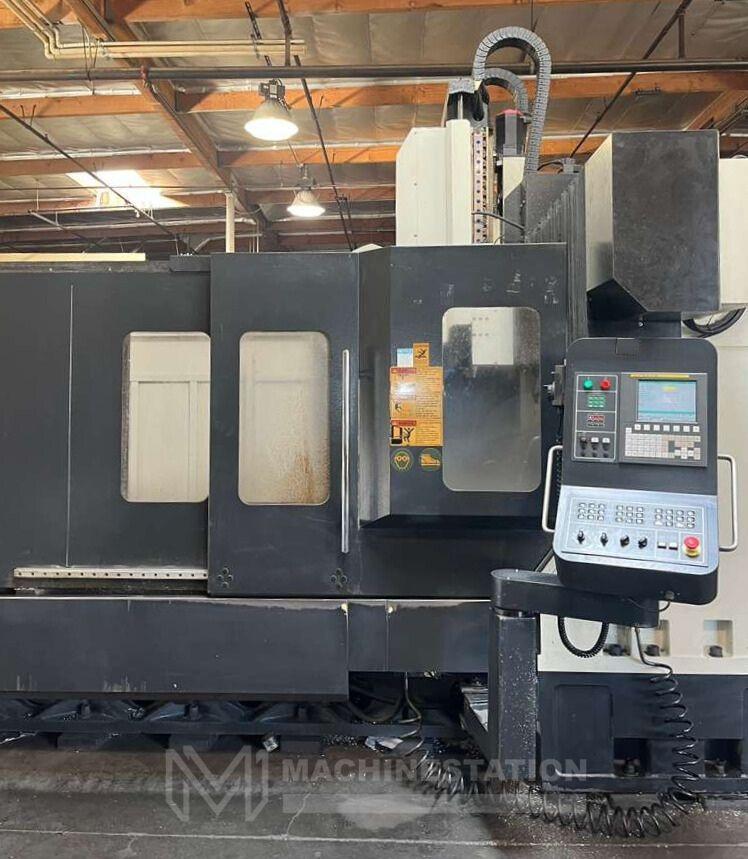

Fanuc Oi-MD CNC Control
161.4″ X 57″ Table
CAT-50 Taper Gear Head 6000 RPM Spindle
20 Station Side Mount Tool Changer
Powerful 30 HP High Torque Spindle Motor

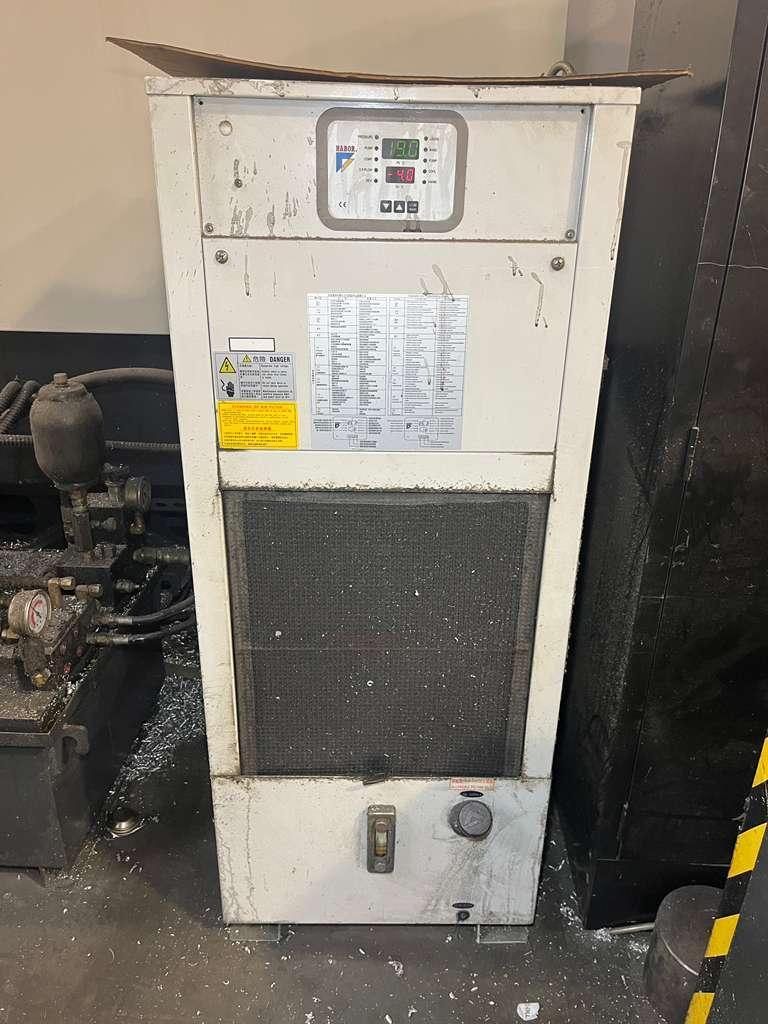

Spindle Chiller Unit
PCMCIA Card Slot
Rigid Tapping
Coolant System

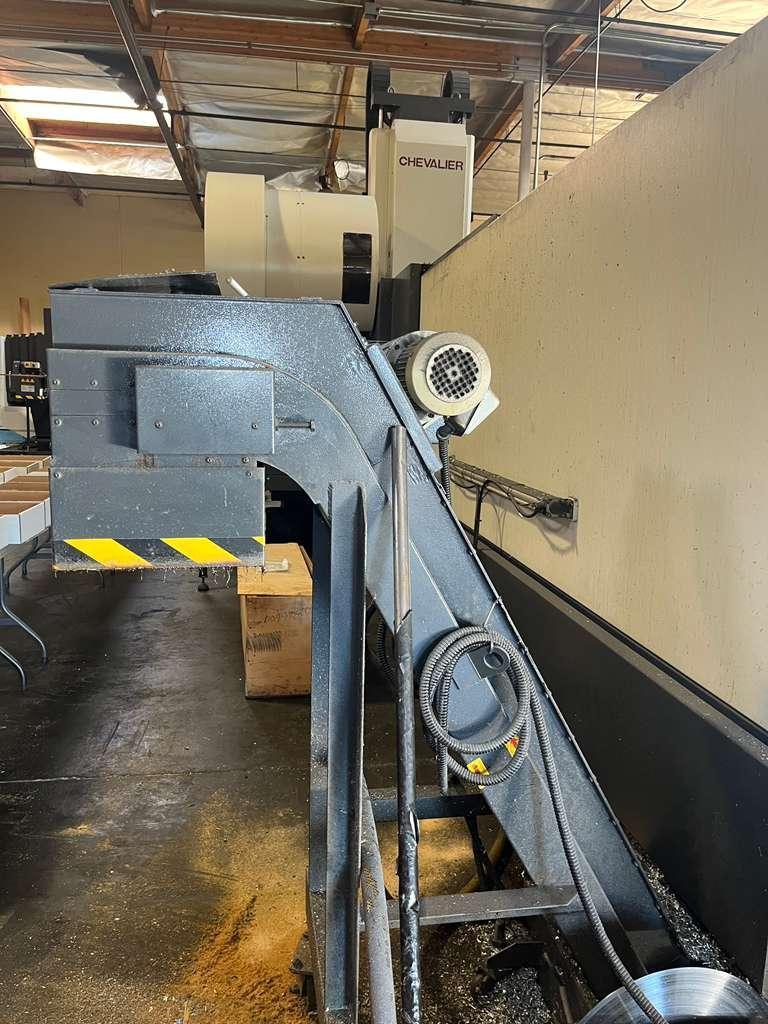

Chip Conveyor

Travels:
X-Axis: 161.4″
Y-Axis: 59.0″
Z-Axis: 26.7″
Distance Between Columns: 66.0″
Spindle Nose to Table (Min.- Max.): 7.87″- 34.60″
Rapid Feedrate X Y & Z: 590 IPM
Cutting Feedrate: .04″ – 276″ IPM

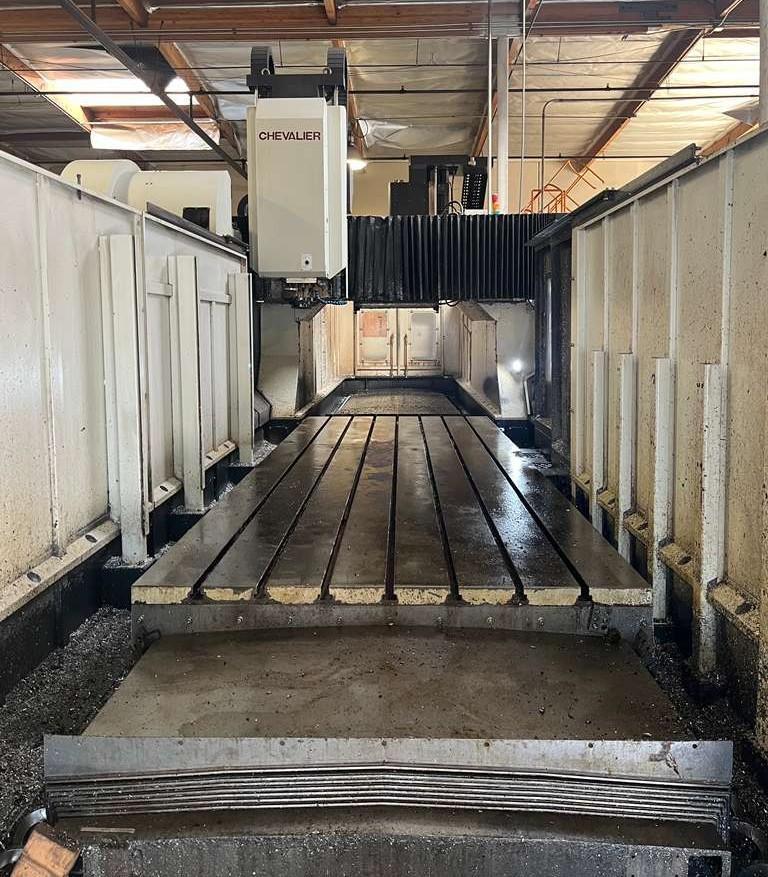

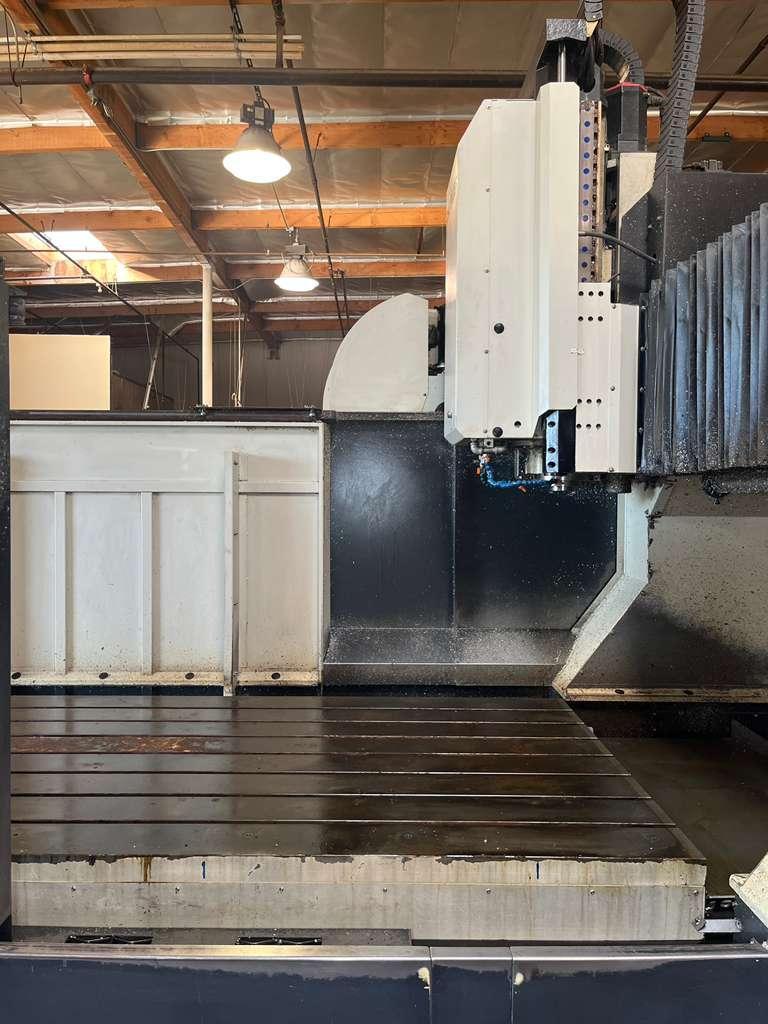

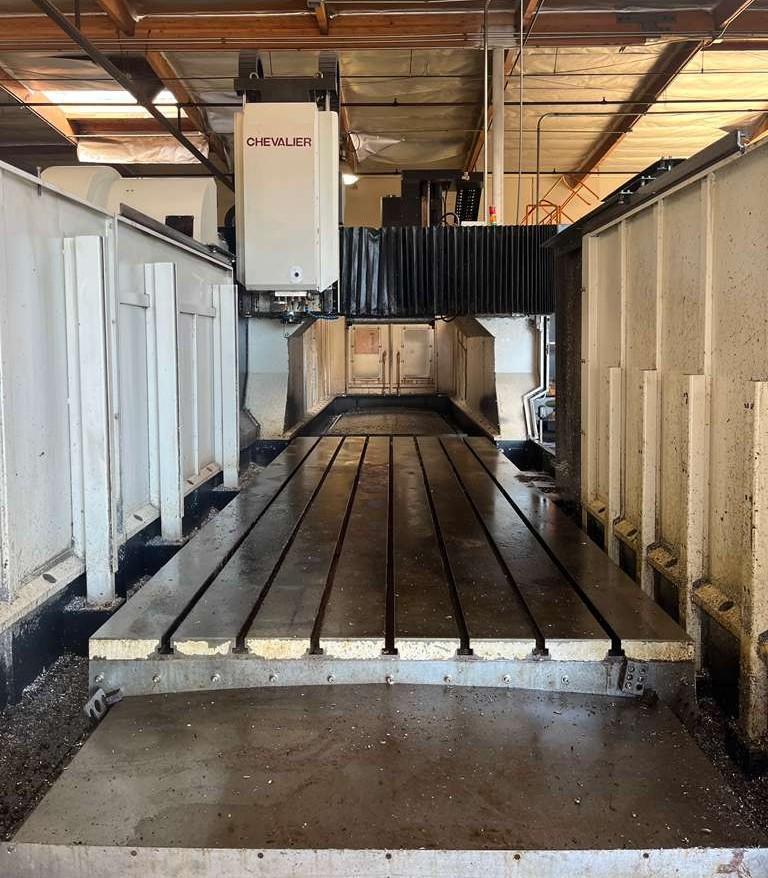

Table:
Length: 161.4″
Width: 57.0″
T-Slot: 0.87″ Wide x 7.08 x 0.27″
Max Weight on Table: 17600 lbs

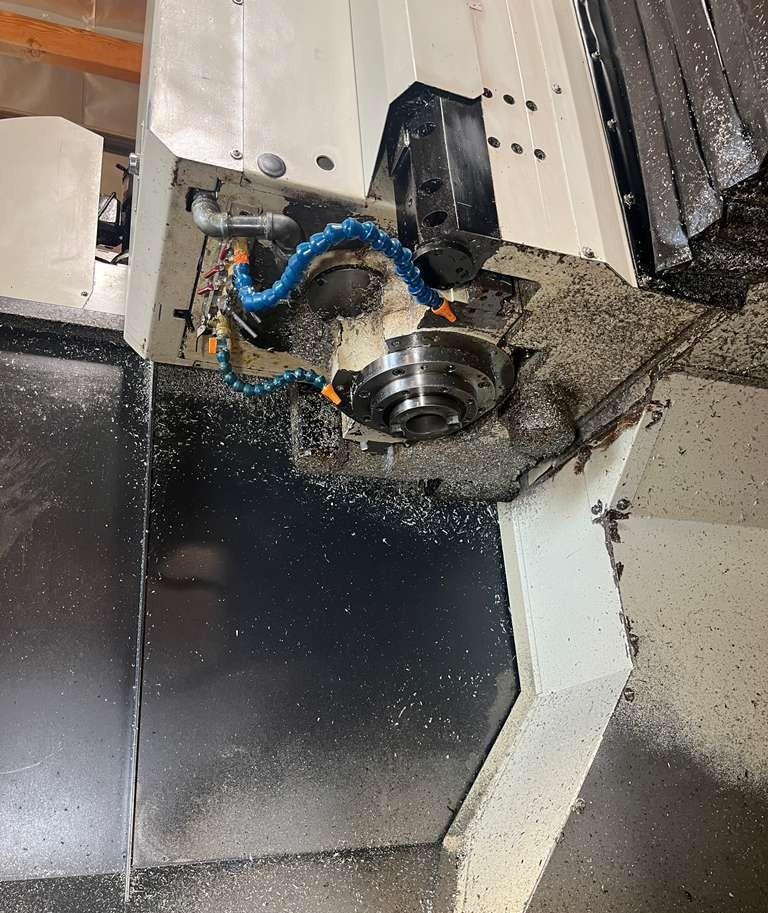

Spindle:
Taper Size: CAT-50
Spindle Speed (Gear Head): 6,000 RPM
Spindle Power: 30 HP

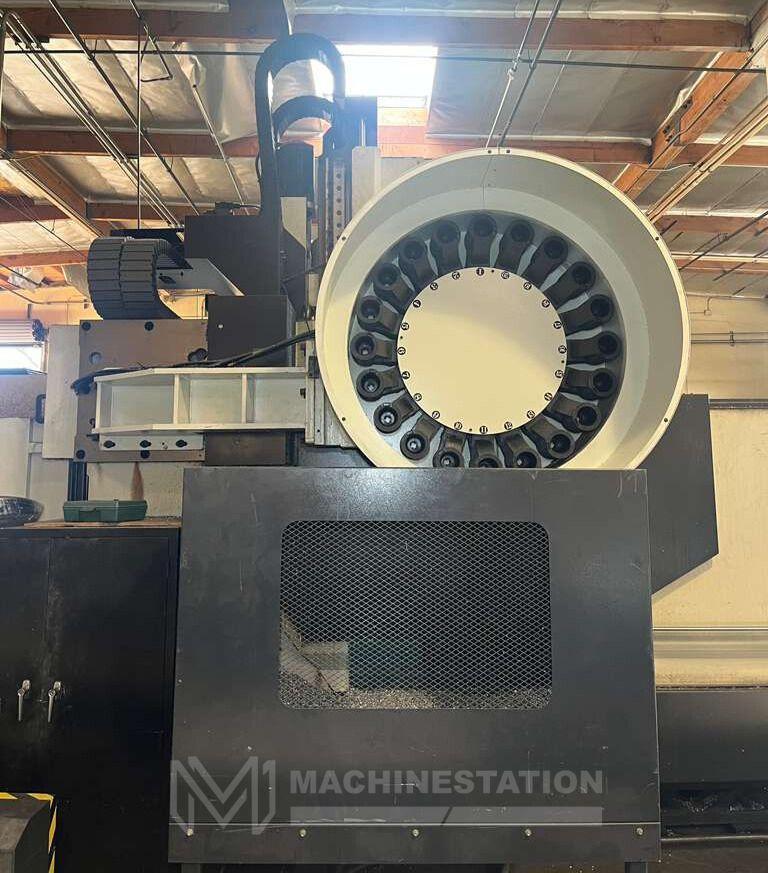

Automatic Tool Changer:
Tool Magazine Capacity: 20 Tools
Max Tool Diameter (Adjacent Tools): Ø4.92″
Max Tool Diameter (No Adjacent Tools): Ø7.87″
Max Tool Length: 15.7″
Max Tool Weight: 33 lbs
