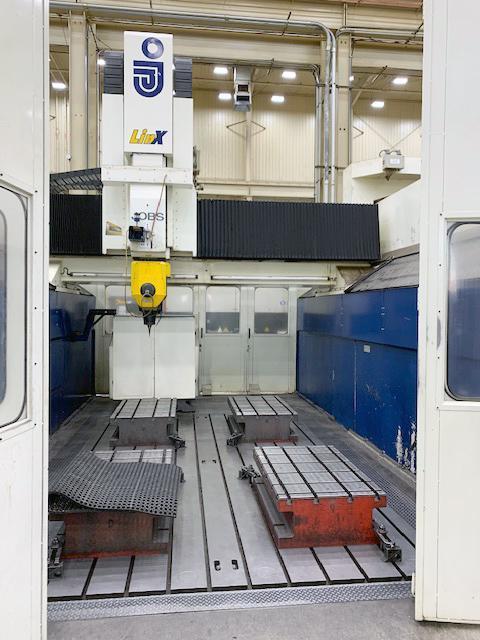

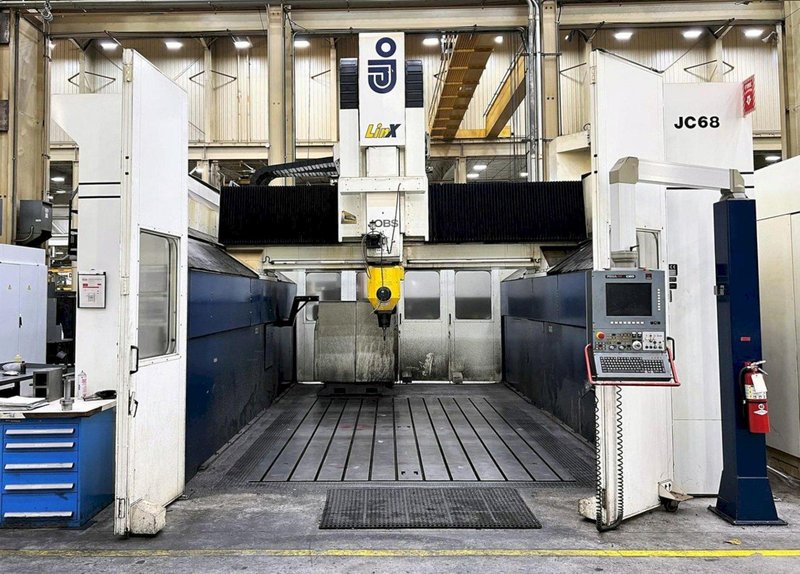

JOBS Linx/S 5-AXIS CNC Gantry Mill, 2003 – 3 Spindle Changer- HSK63, HSK100, 32 ATC, Fidia

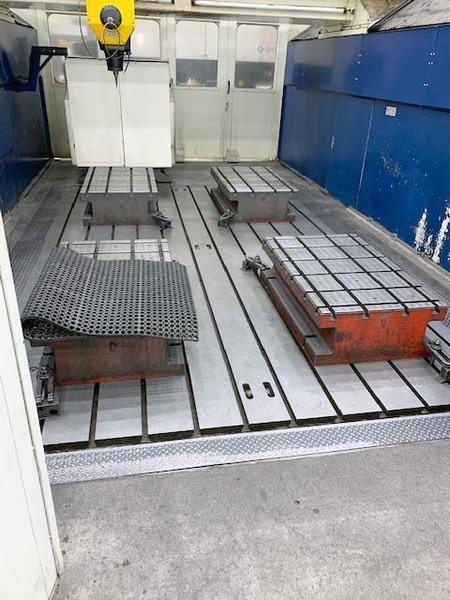

Table Size 197” x 118” X-Axis Travel: 165” (4200mm) Y-Axis Travel: 126” (3200mm) Z-Axis Travel: 49” (1250mm) Rotating Angle C-Axis: +/- 200 Deg Rotating Angle-B Axis: +90/-100 Deg

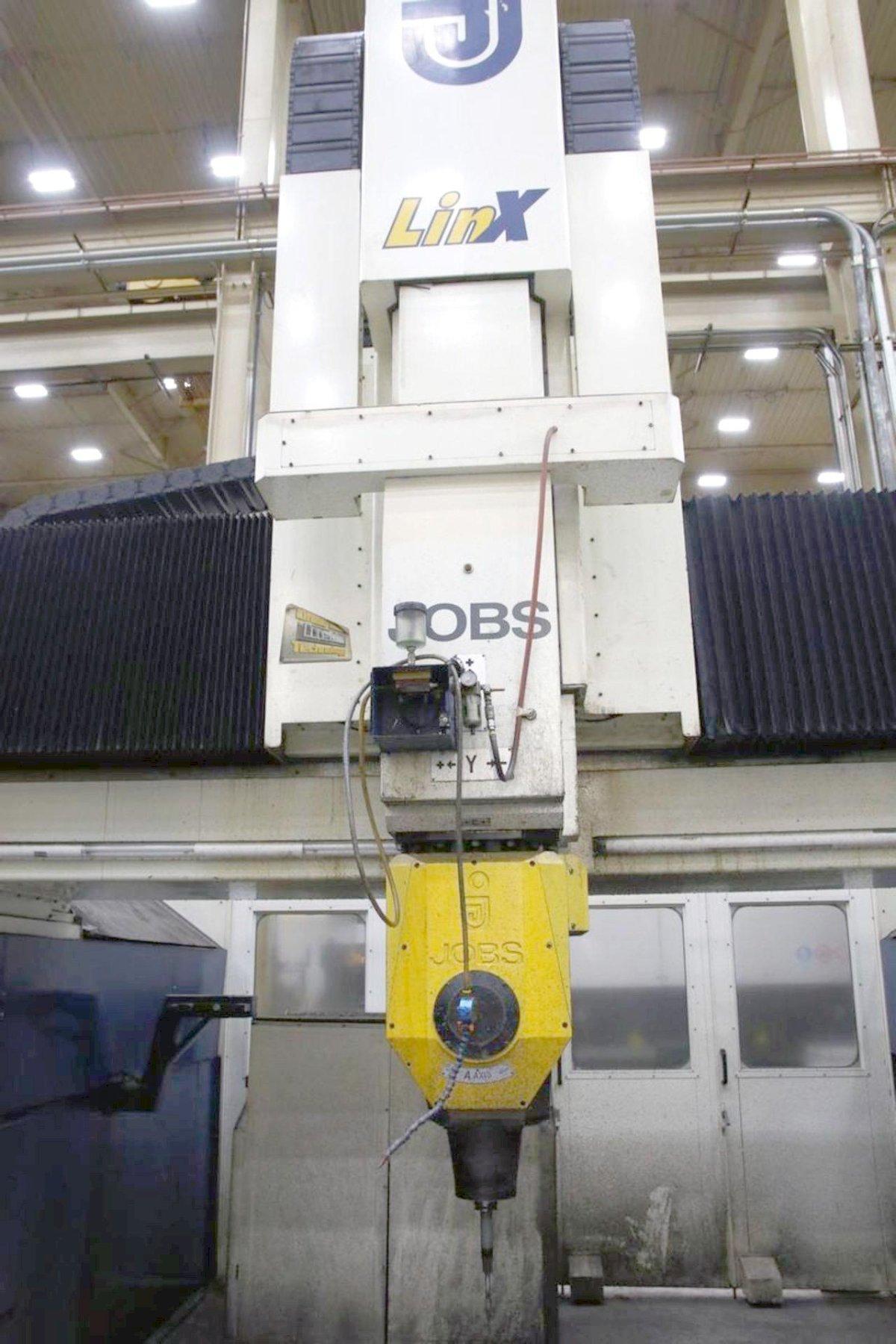

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Automatic Spindle Changer: 3 Spindle Head Positions HSK 63 Head Spindle Speed: 24,000 RPM HSK 100 Head Spindle Speed: 10,000 RPM HSK 63 Spindle Motor: 53 HP HSK 100 Spindle Motor: 45 HP Automatic Tool Changer: 32 Positions

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Power Requirements: 480V/60HZ/3 Ph Approx Machine Weight: 103,705 lbs (47,080 kg)

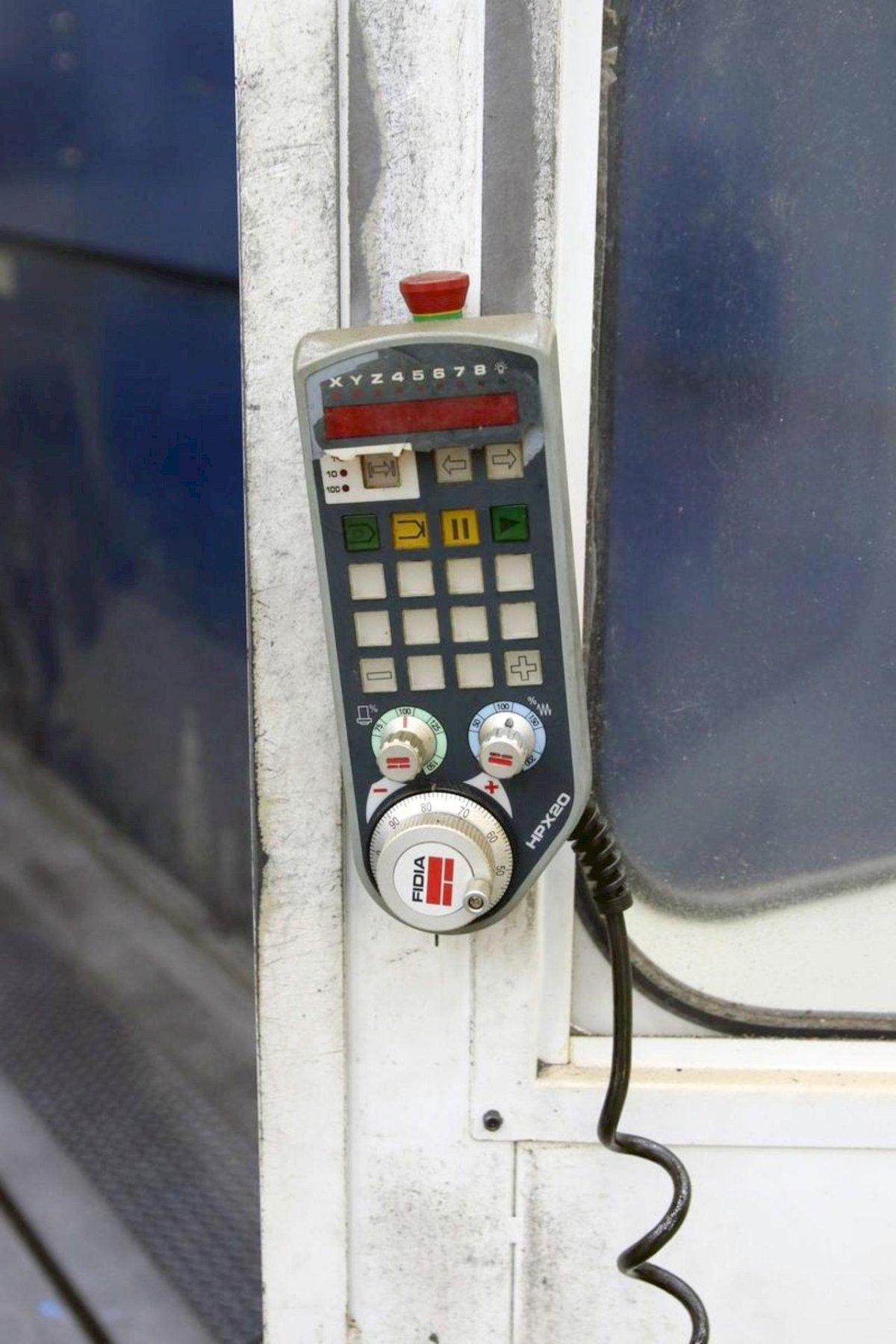

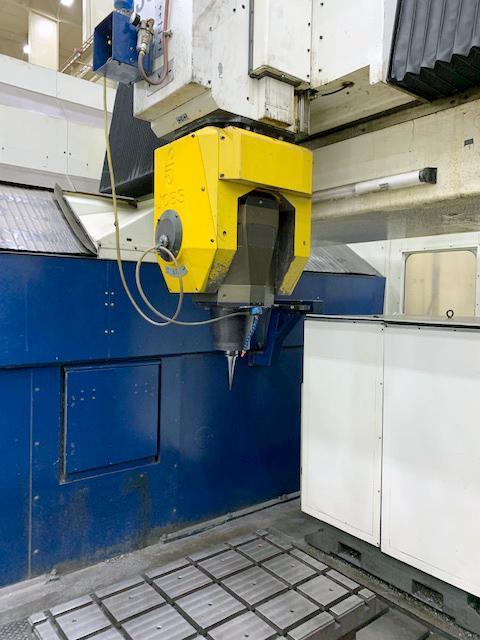

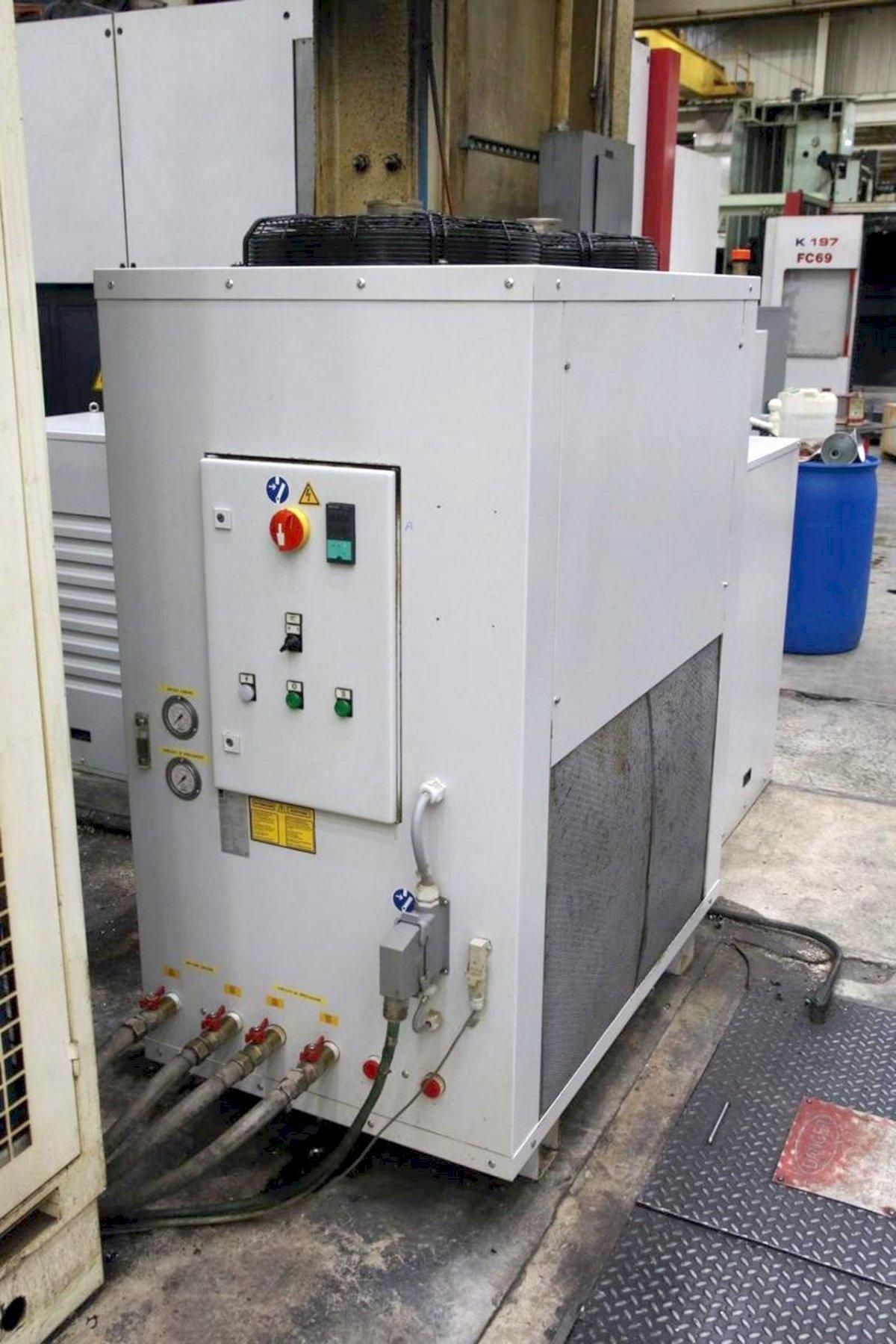

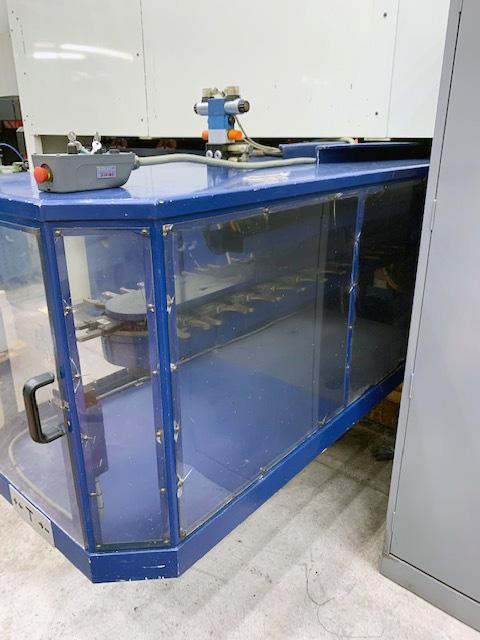

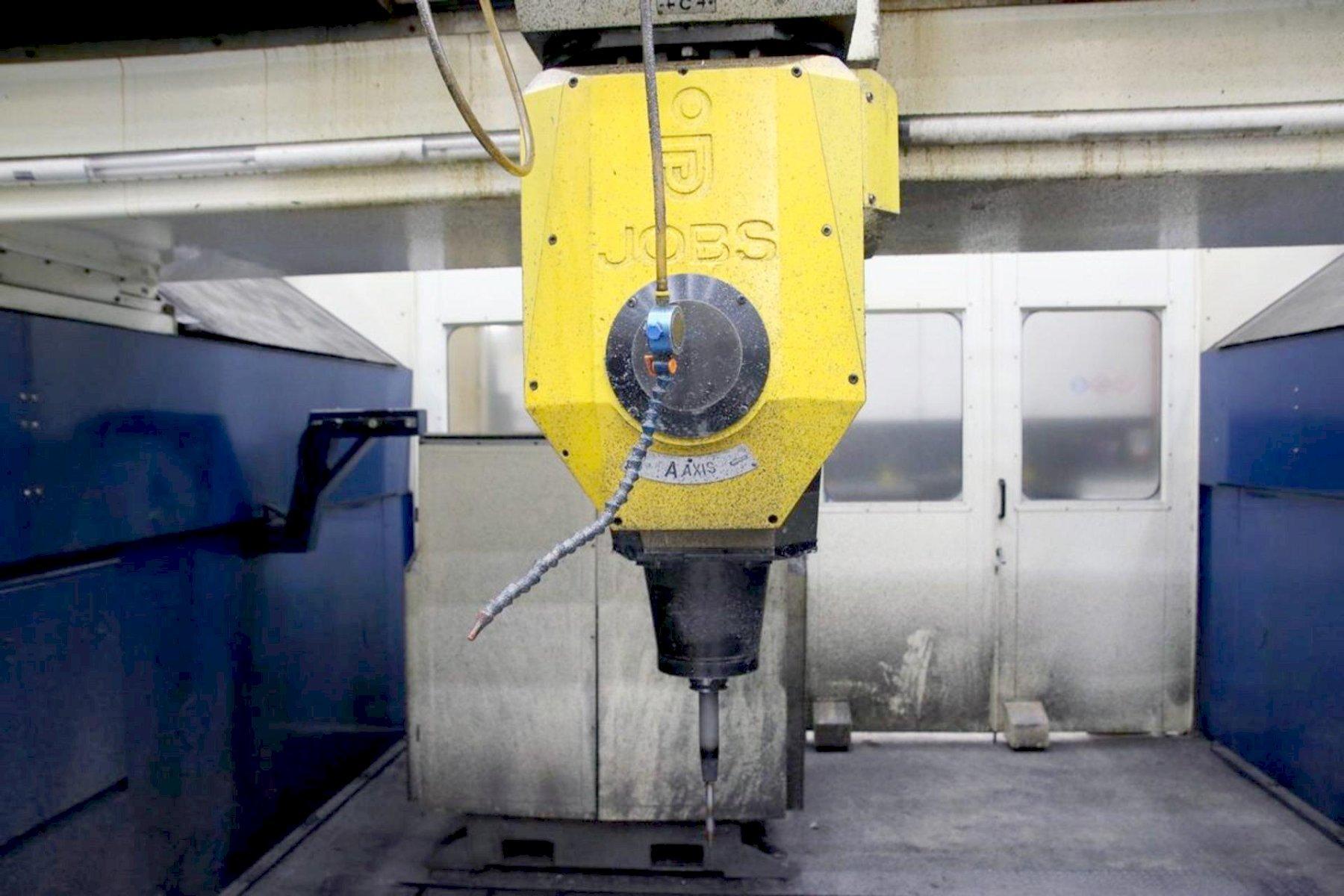

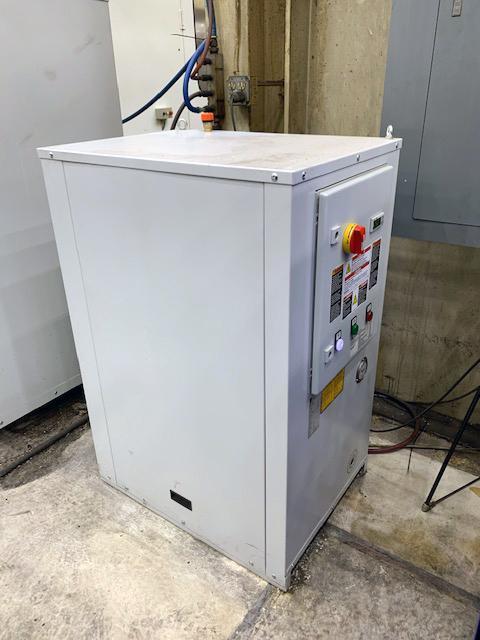

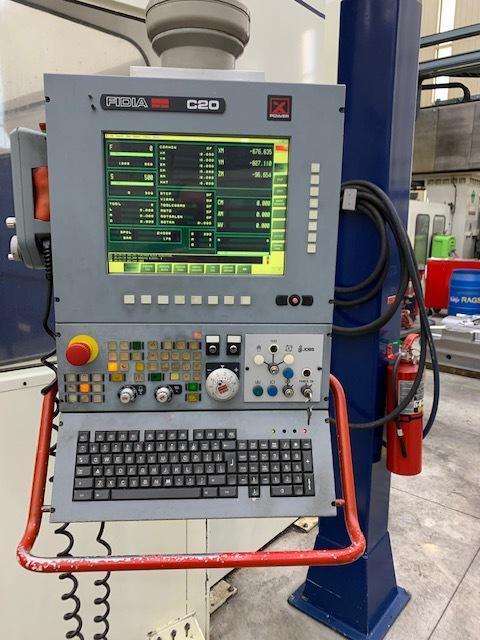

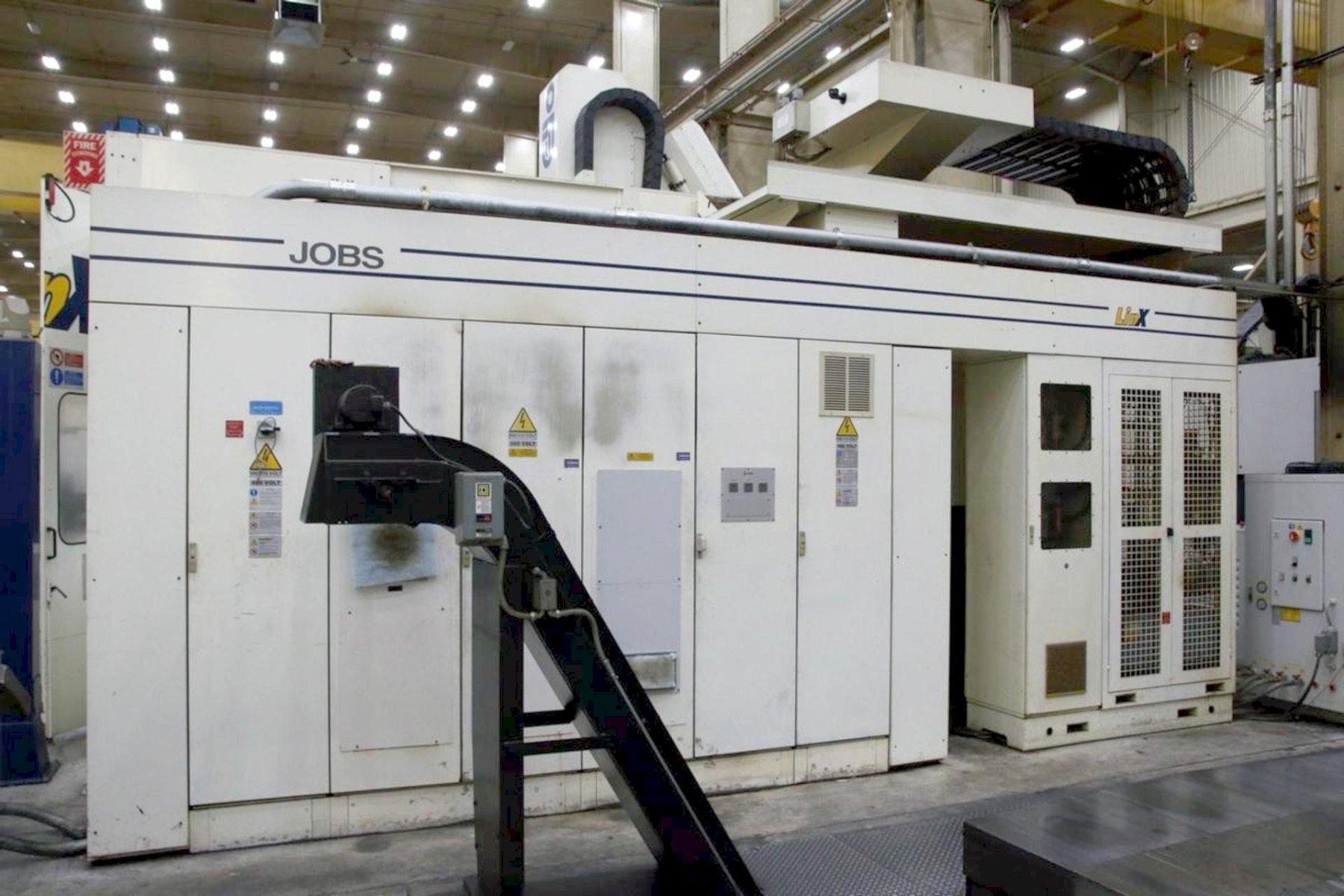

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: Fidia C20 CNC Control Universal Spindle Head 3 Position Spindle Head Changer 2x HSK 63 Spindle Heads 1x HSK 100 Spindle Head (New in Crate) Through Spindle Coolant 10 HP Hydraulic Power Unit 32 Position Automatic Tool Changer (16x HSK 100 Positions + 16x HSK 63 Positions) Chip Conveyor Fidia HMS Calibration (Head Measuring System)- 2019 Upgrade C-Axis Rebuilt- 2019 3x Chiller Units- New in 2019 All Available Manuals

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
