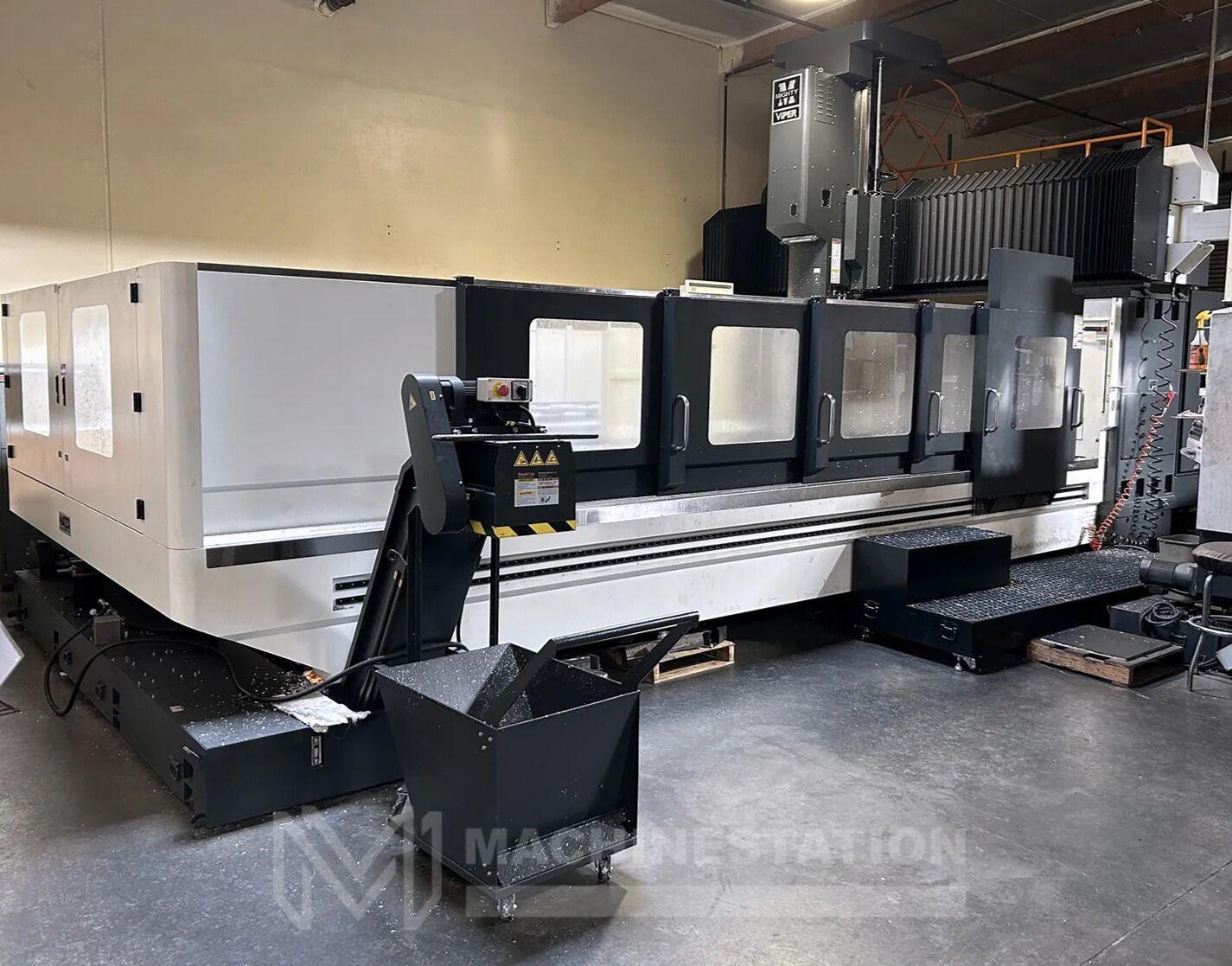

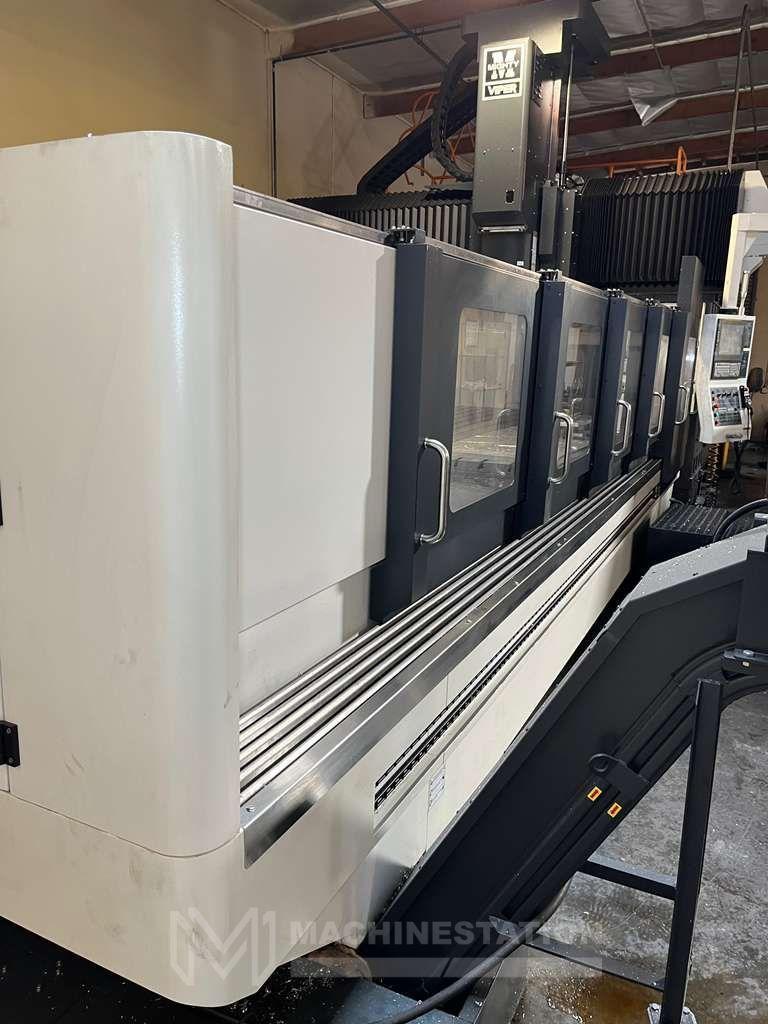

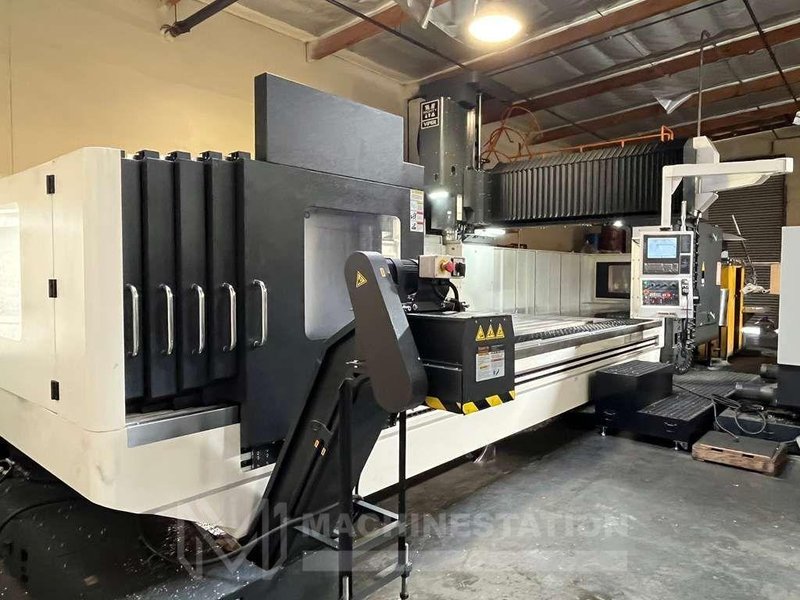

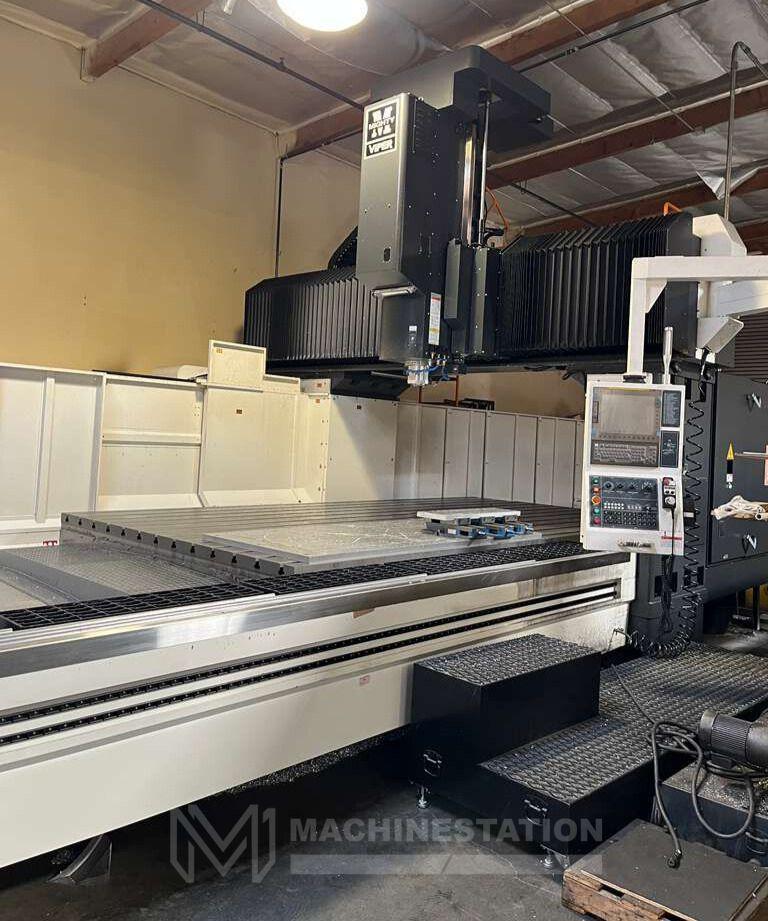

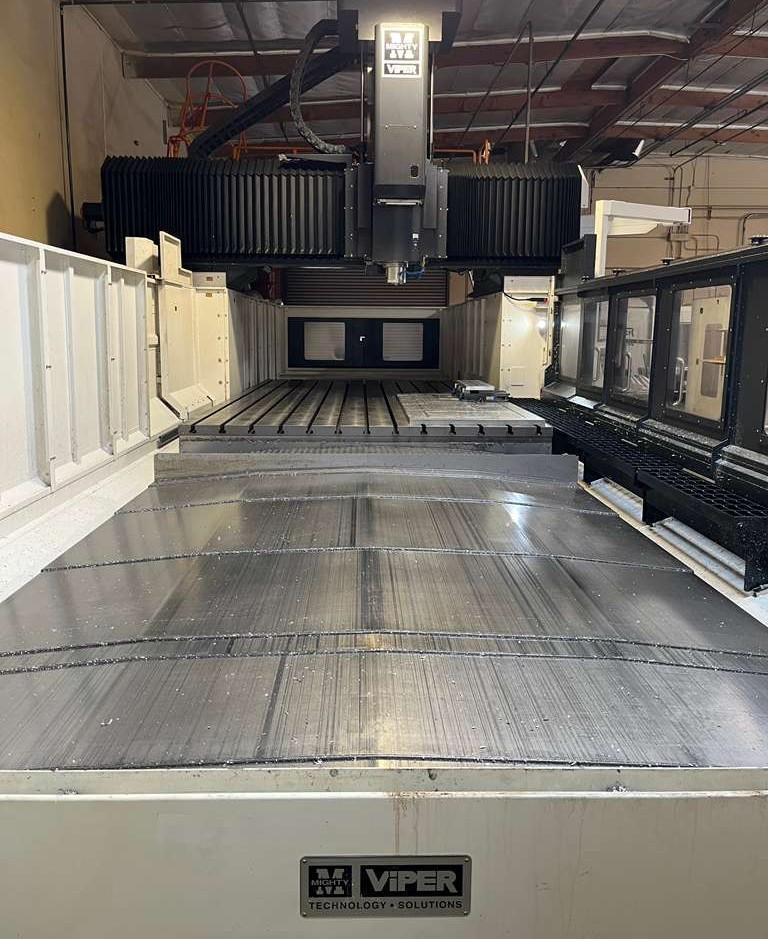

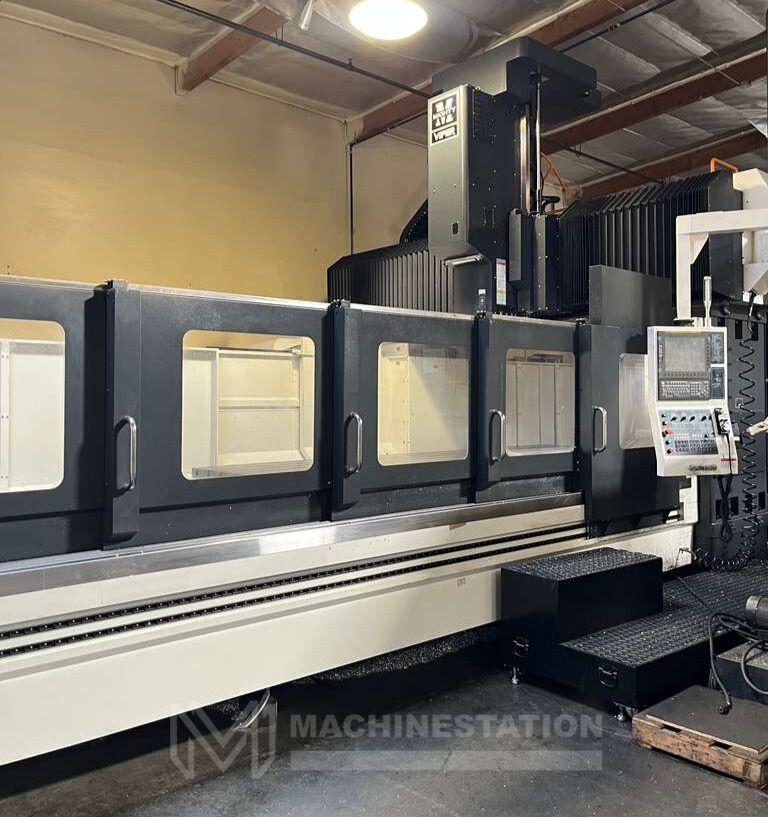

Name: Mighty Viper PMC-5127AD CNC Bridge Mill – 2023
Brand: MIGHTY VIPER
SKU: 112982
Availability: PreOrder

Brand

MIGHTY VIPER

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Make:	Mighty Viper
Model:	PMC-5127AD
Year:	2023
Condition:	Used – Excellent

Travels:
X-Axis Travel: 201″
Y-Axis Travel: 106″
Z-Axis Travel: 35.4″
Distance From Spindle Nose to Table Surface: 7.9″ – 43.3″
Distance Between Columns: 111″
Rapid Traverse (X/Y/Z): 472 / 787 / 591 IPM
Cutting Feedrate: 394 IPM

Features:

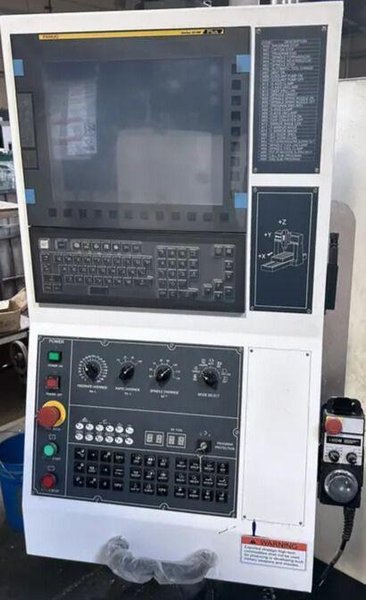

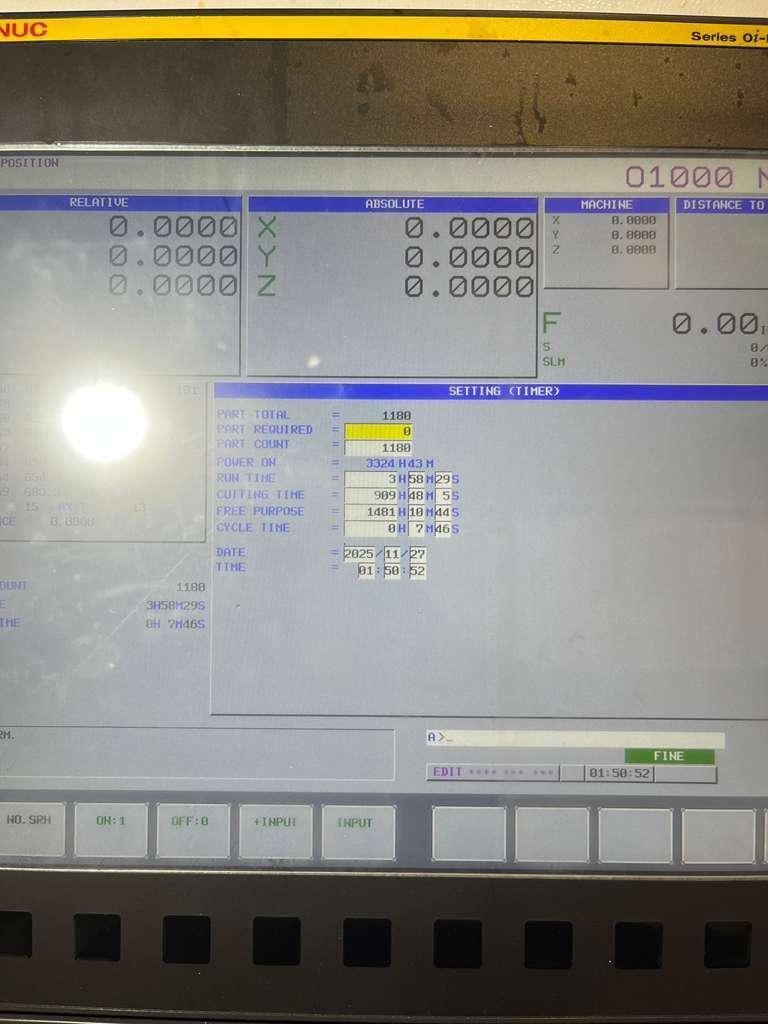

Fanuc 0i-MF Plus CNC Control
197″ x 102″ Table
10,000 RPM Direct-Drive BBT-50 Spindle
40 Station Automatic Tool Changer
35 HP High-Torque Spindle Motor
ATC Cam Type CAT-50
Remote Manual Pulse Generator
Coolant System
Centralized Automatic Lubrication System
Air Blast Through Spindle
Spindle Oil Cooler
Dual Spiral Chip Auger

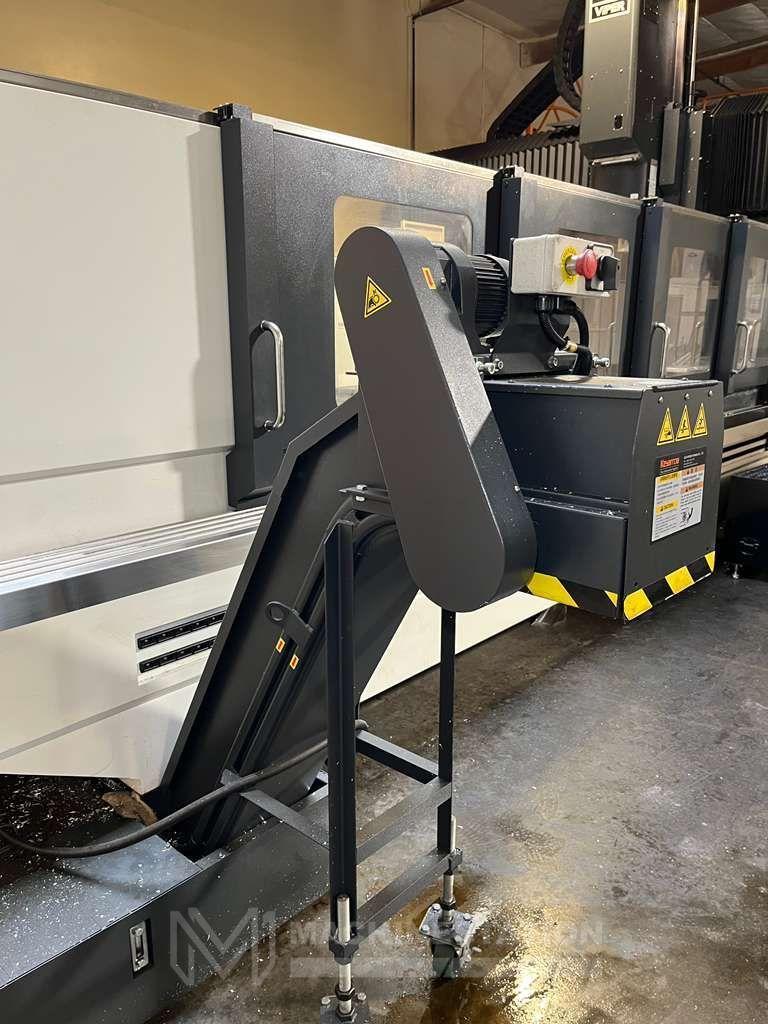

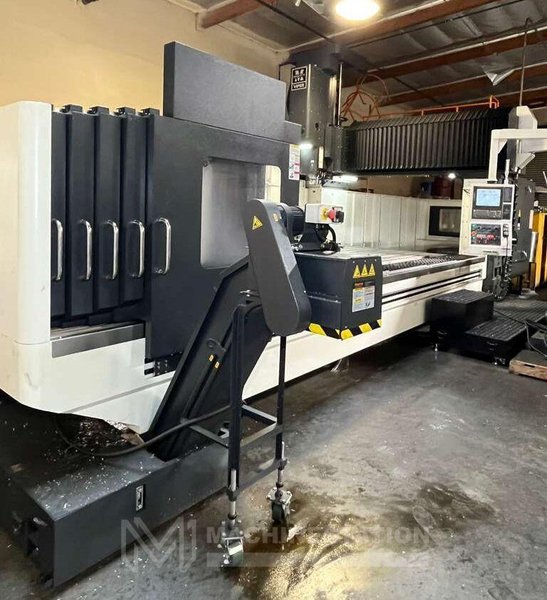

Link Type Lift-up Chip Conveyor
Work Light
Status Light For Abnormal Situation
Splash Guard
Automatic Power Off (M30)
Operation Finish Lamp (Tri-Color)
USB Interface
Foot Pedal Switch For Spindle Clamp & Unclamp
Levelling Bolts and Blocks
Operation Manual & Electrical Drawing
Heat Exchanger In Control Cabinet
Roller Type Linear Guide Way (X, Y Axis INA Brand)
Hiwin Brand X,Y,Z Axis Ballscrew (With X,Y,Z Axis Cooling)
Oil Skimmer
Coolant Gun & Air Gun
Door Interlock Switch
Note: This Machine Will Accept the CAT-50 Tool Holders with Long Retention Knob

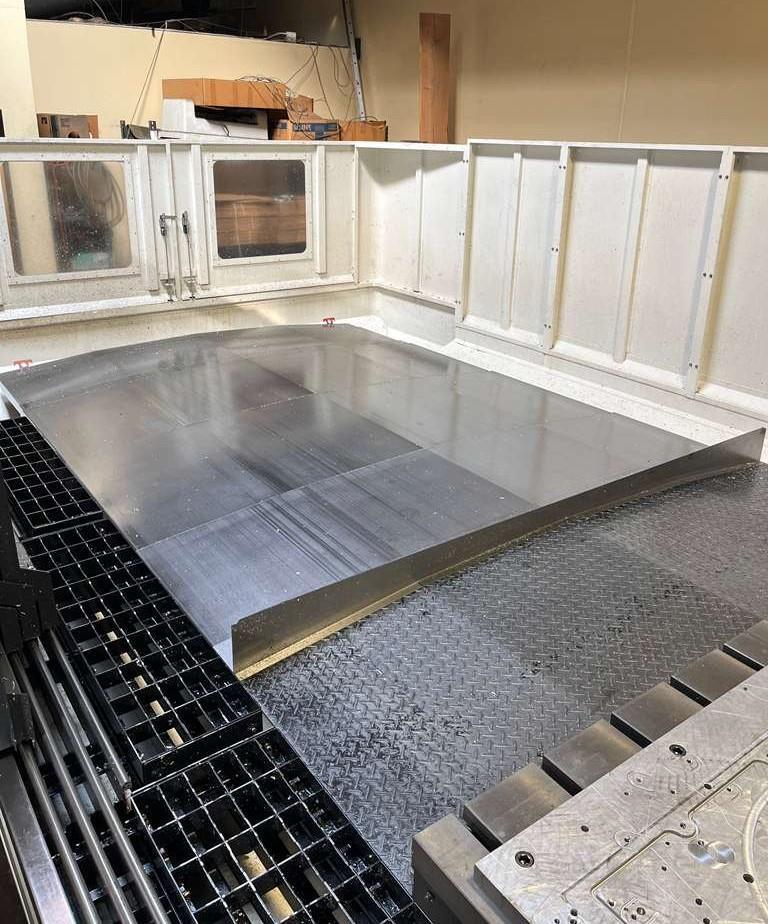

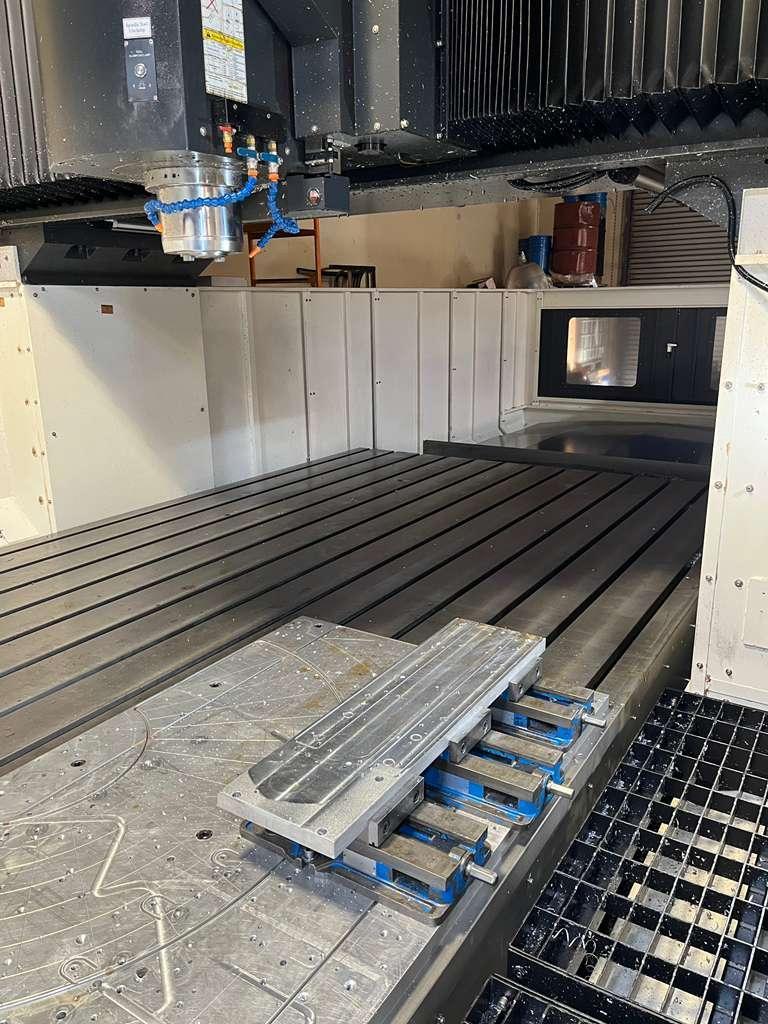

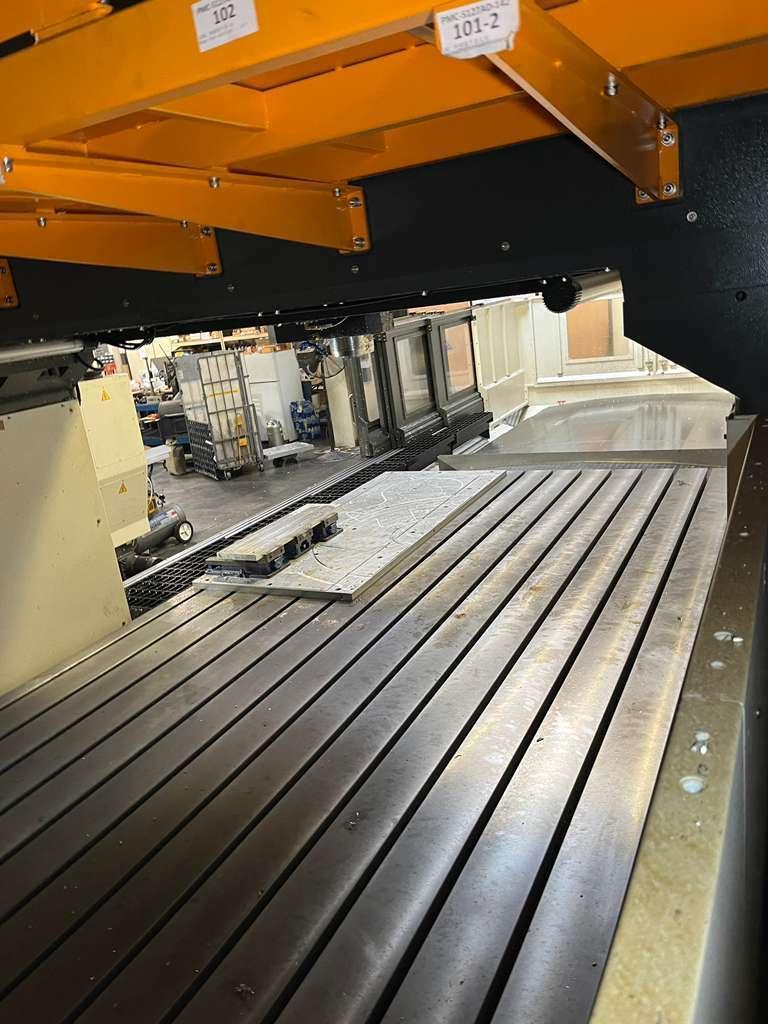

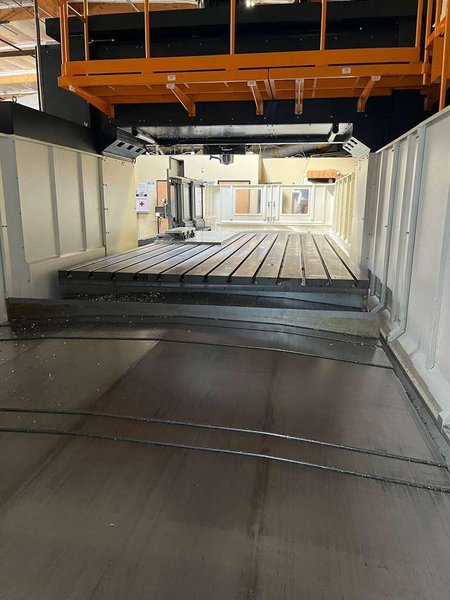

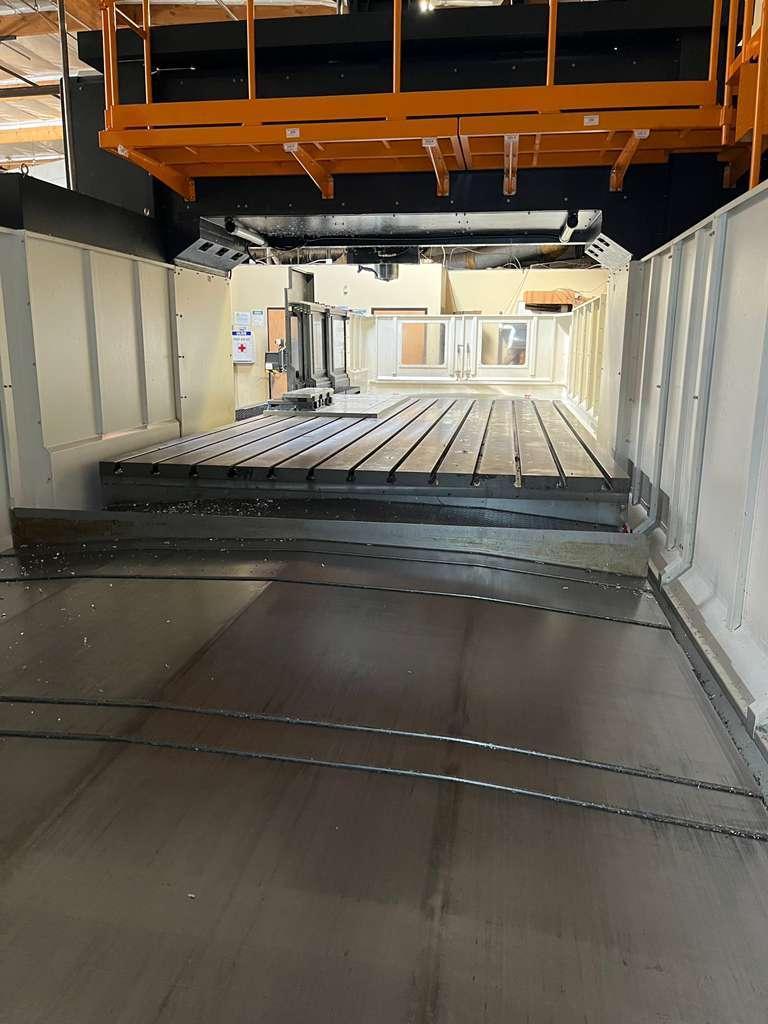

Table:
Table Length (X): 197″
Table Width (Y): 102″
Table T-Slots (size × number × pitch): 1.1″ × 13.0″ × 7.9″
Maximum Table Load: 44,000 lbs

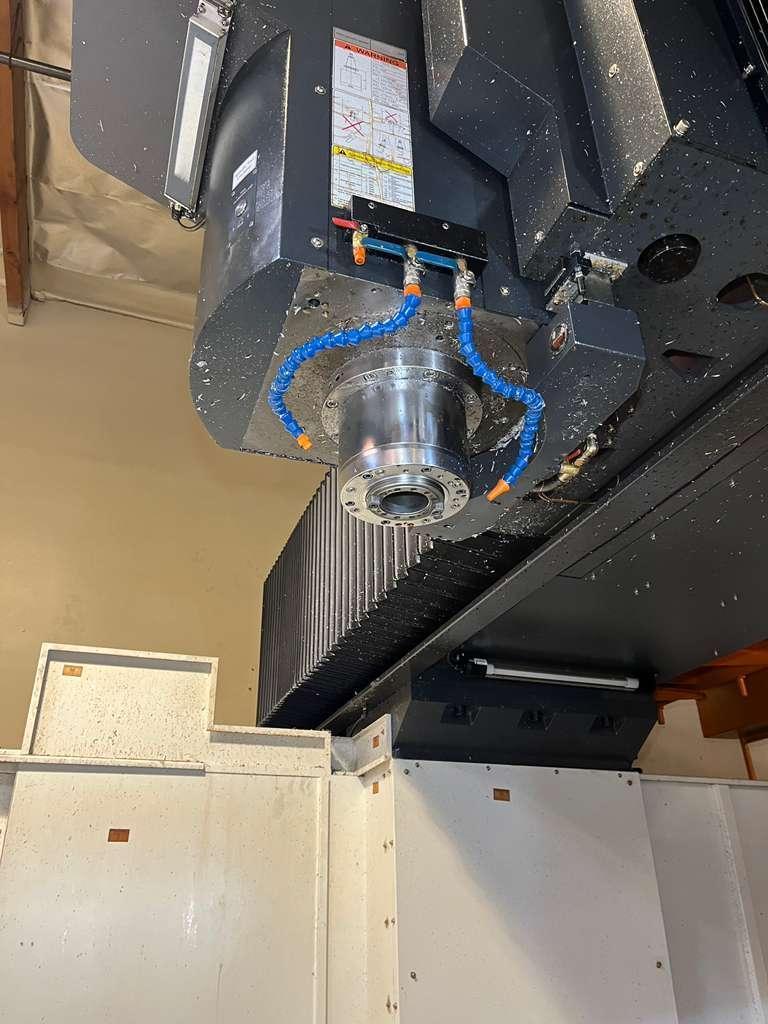

Spindle:
Spindle Nose Taper: BBT-50
Spindle Speed (Direct Drive): 10,000 RPM
Spindle Motor: 35 HP

Automatic Tool Changer:
Tool Magazine Capacity: 40 Tools
Max Tool Diameter (Adjacent Tools): Ø4.92″
Max Tool Diameter (No Adjacent Tools): Ø8.4″
Max Tool Length: 15.7″
Max Tool Weight: 44 lbs
Tool Shank: CAT-50

General:
Air Required: 90 psi 4 scfm
Power Requirement: 205-235v / 66FLA / 3-Phase / 50 kVA
Machine Dimensions (L × W × H): 49′ × 20′ × 15′ High Approx.
Machine Weight: 115,000 lbs
