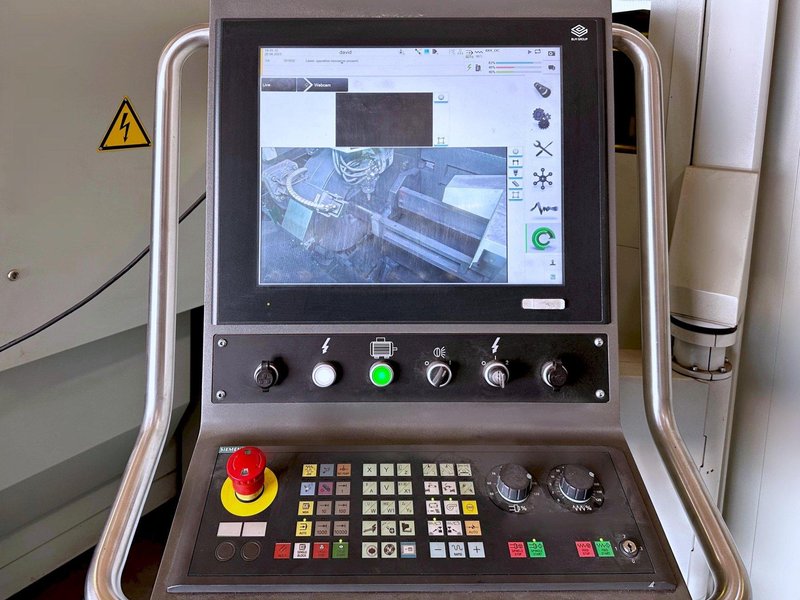

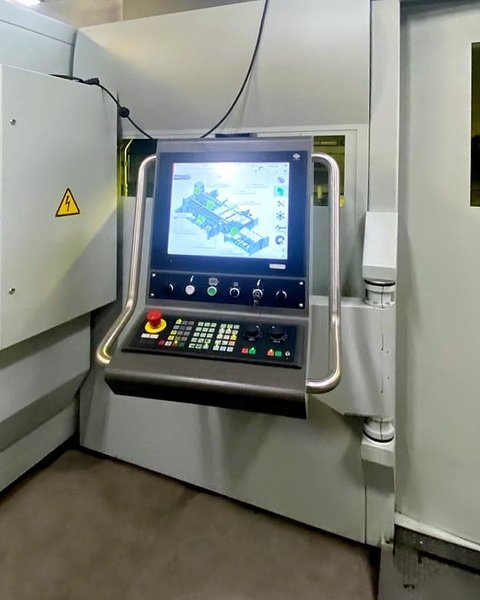

Controller | Siemens Simatic |

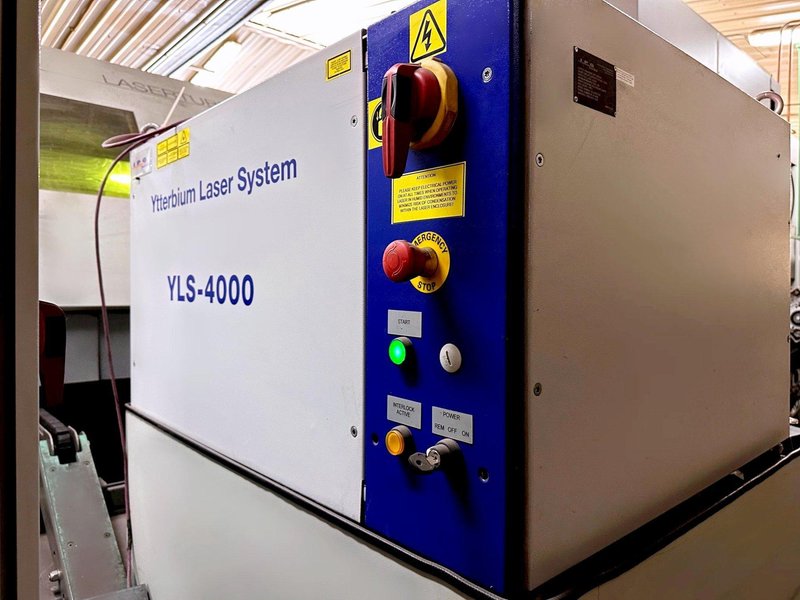

Laser Power | IPG YLS 4000 Watt Fiber Resonator |
Round Tube Diameter | .50” - 8.625” |
Square Tubes | .50” - 8.0” |
Rectangular Tube (Width) | .50” – 8.0” |
Bar Load Size | 28’ |

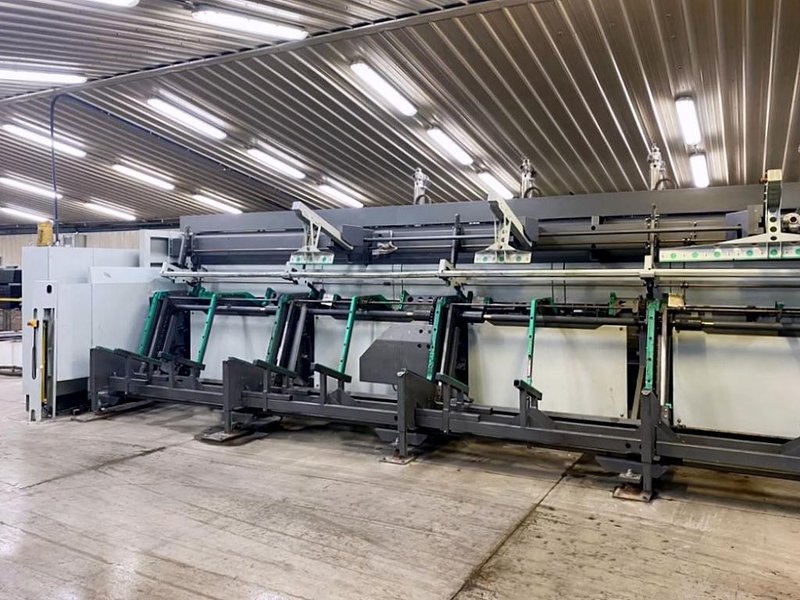

Min. Bar Load Length (Auto Bundle Loader) | 8.2' |
Bar Unload Size | 28” |
Max. Bundle Weight | 8,800 lbs. |
Max. Bar Weight (At full duty cycle) | 25 lbs. / Foot |
Unloading Lengths | 21' |

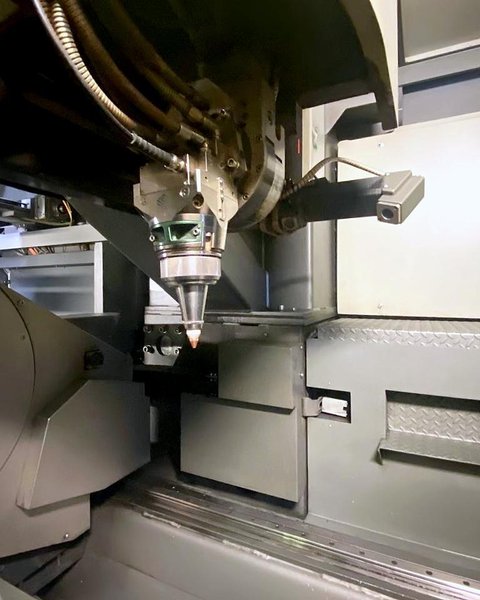

Tilt Head Cutting | Standard (+/- 45 Degrees) |
Open Shapes Capability | Standard - Processing Angle Iron, Channel, Flat Bar |
Booster Pierce / Breakthrough Detector | Standard |
Weld Seam Detection | Standard |
Tube Twist & Bow Correction | Standard |
Max. Cut Thickness (Mild Steel) | .394” |
Max. Cut Thickness (Stainless Steel) | .236” |
Max. Cut Thickness (Aluminum) | .236” |
Max. Cut Thickness (Brass) | .236” |
Max. Cut Thickness (Copper) | .157” |
Equipped With: 4kW IPG YLS Fiber Laser Active Focus Active Piercing Active Marking Active Scan Active Speed Optical Weld Seam Sensor (2) On-board cameras (Internal & Rear of Machine) |
