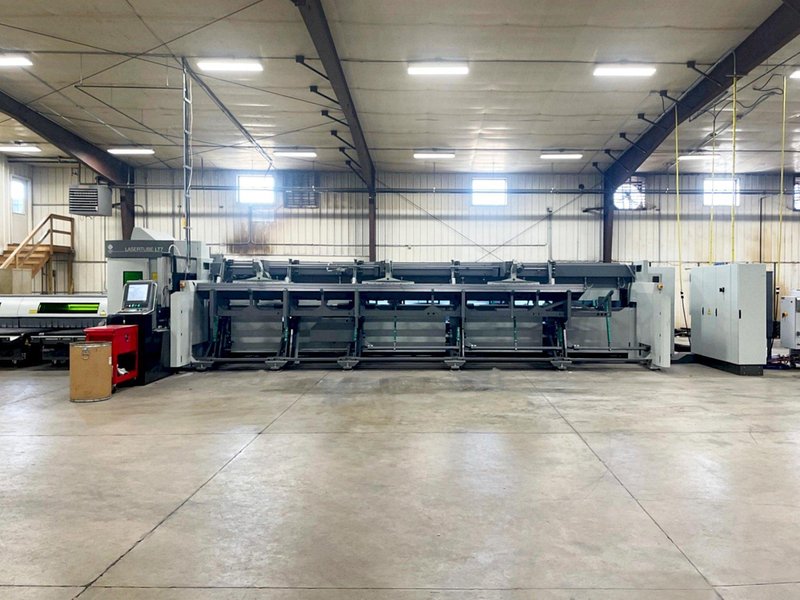

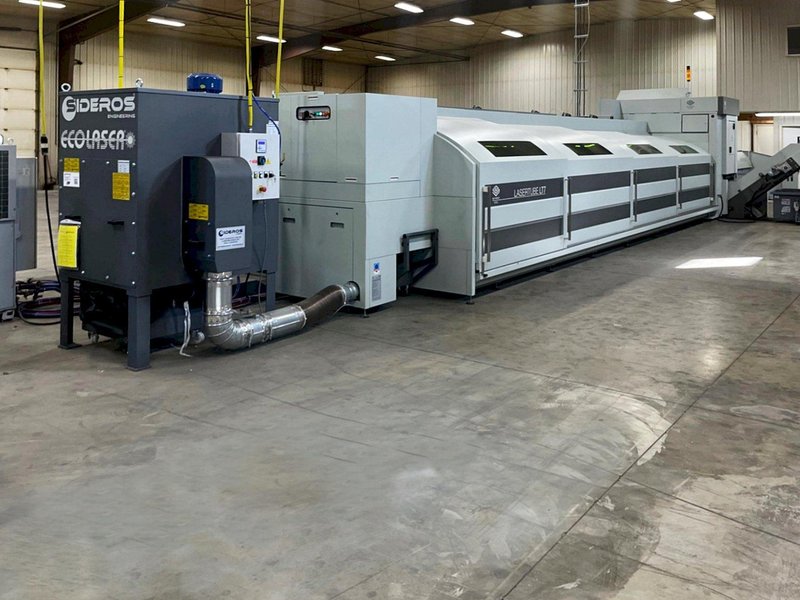

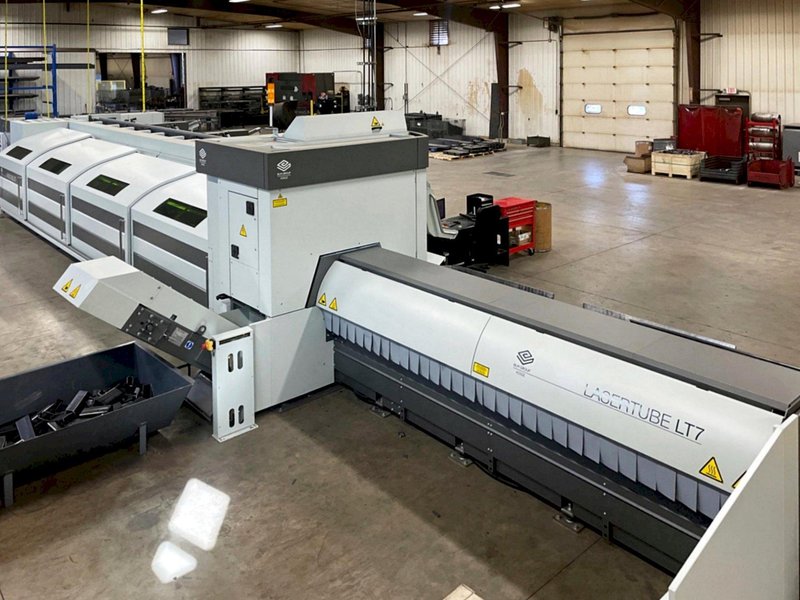

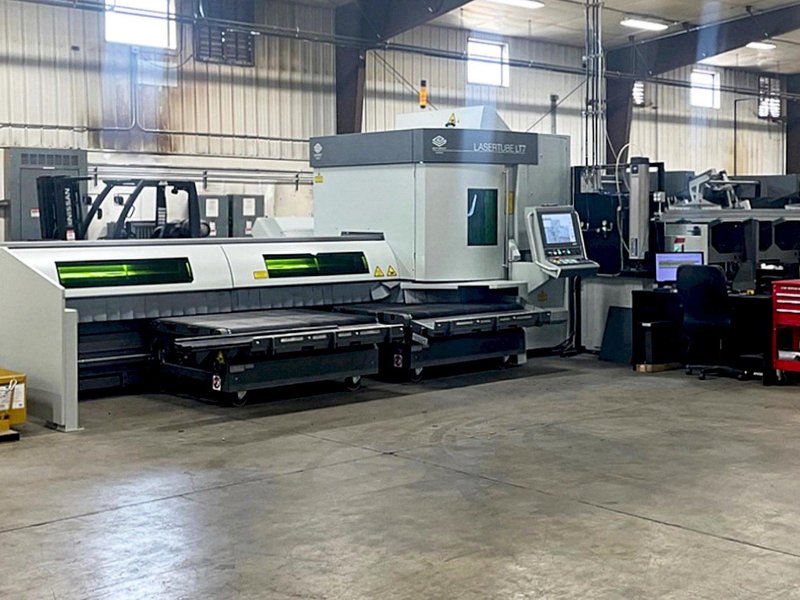

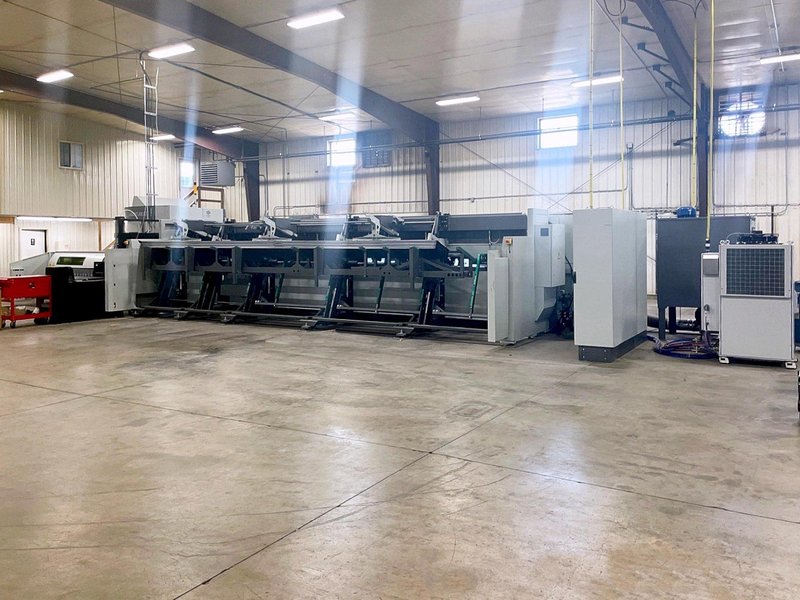

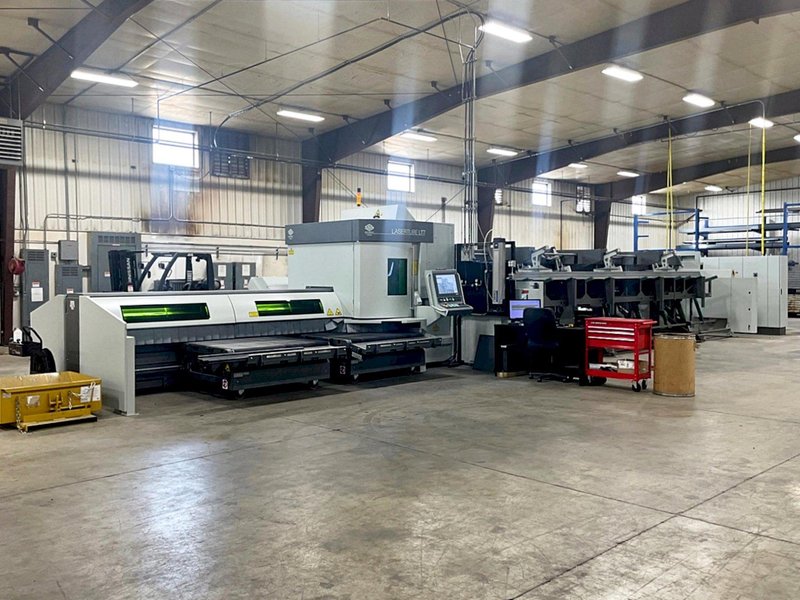

BLM LT7 Fiber 3D Tube Laser

Name: BLM LT7 Fiber 3D Tube Laser
Brand: BLM
SKU: 100585
Availability: InStock

Brand

BLM

Not specified

Fiber Source	IPG YLS-Type U 4 kW Fiber Resonator
Fiber Output	4 kW
Cutting Head Type	2D
Cutting Head	BLM ADIGE Tubecutter 2D
Max Cut Round Tube Diameter	6.0"
Max Cut Square Tube Diameter	6.0"
Orientation	Inverted
Loading Type	Fully Automatic
Loading Capabilities	Bundle & Single Bar
Minimum Loadable Length	74.80”
Maximum Loadable Length	27'
Bundle Loading Capacity	11,023 Lbs
Unloading Length	14.75'
Number Of Unloading Pos.	3
Shape Type	Round, Square, Rectangle, Open Profiles, Special Sections
Materials	Mild Steel, Stainless, Aluminum, Copper, Brass
Bar Weight Max.	15.5 lb/ft
Max. Material Wall Thickness	.47"
Average Drawn Power	20 kW (N2 cutting gas)
Average Drawn Power	15 kW (O2 cutting gas)
Machine Weight	52,960 Lbs.

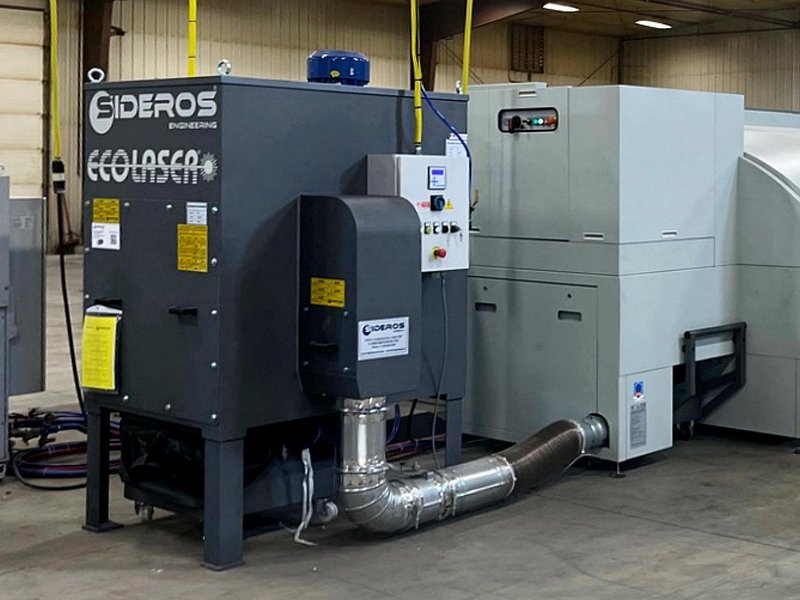

Equipped With: Inverted Orientation (Operator & Bundle Loader Same Side) 2D Cutting Head IPG YLS 4 kW Fiber Resonator IPG Closed Loop Chiller 27' Bundle Loader Automatic Pusher Integration For Bundle Loader 14.75' Part Unloader Three (2) Front Conveyor Offload Tables Rear Scrap Conveyor Active Scan – Laser/Camera Measurement System Active Weld - Camera Weld System (Internal/External) Active Focus - Automatic Adjust of Focal Position Active Marking - Quickly Mark Parts With Production Data Active Speed - Real-Time Adjustment of Cutting Parameters Active Piercing – Faster Piercing With Breakthrough Detection Sideros Dust Collector EC04 HC/S
