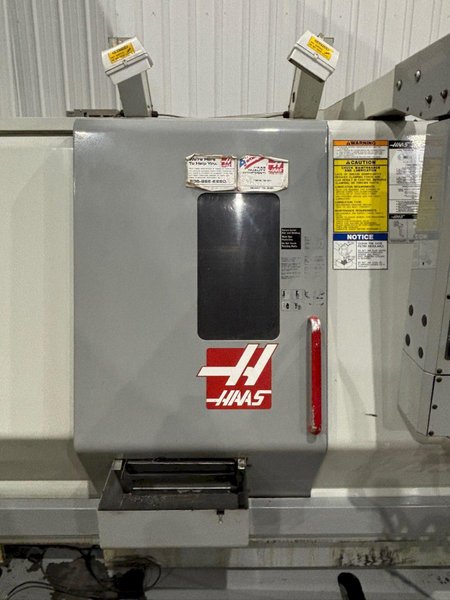

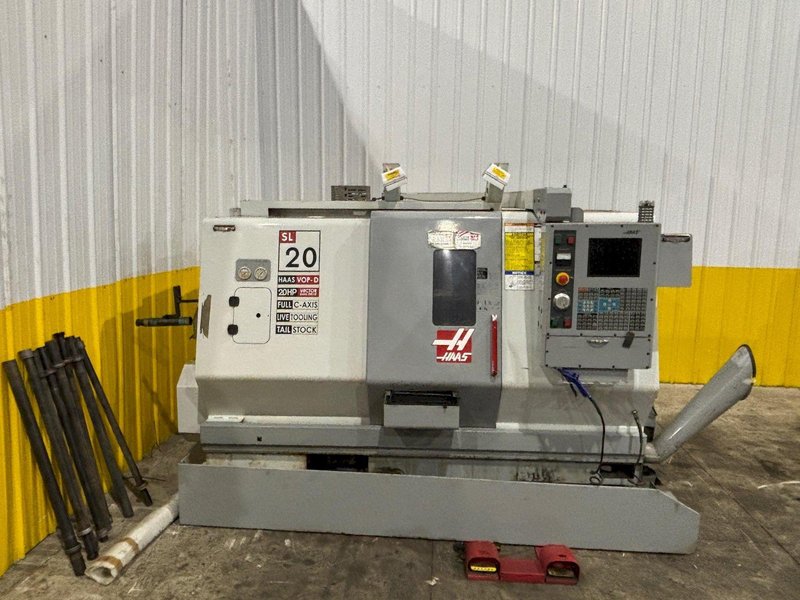

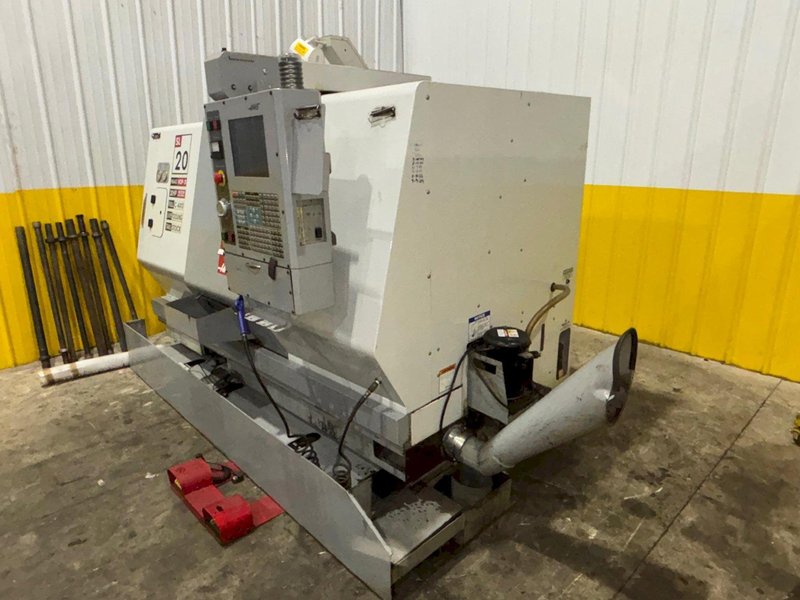

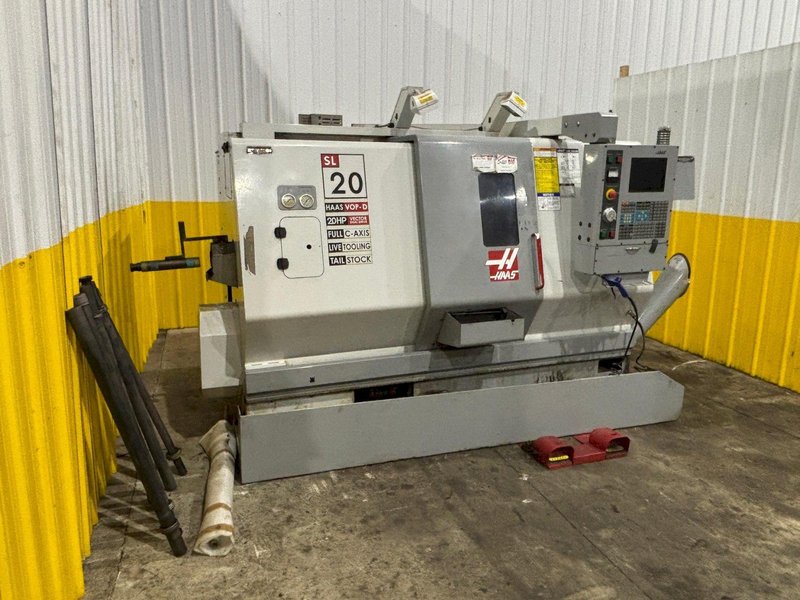

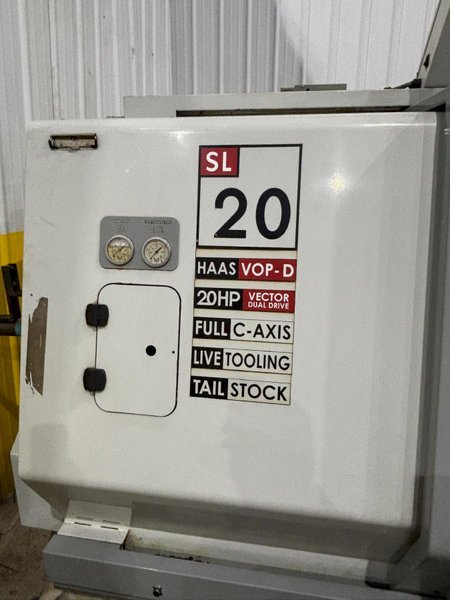

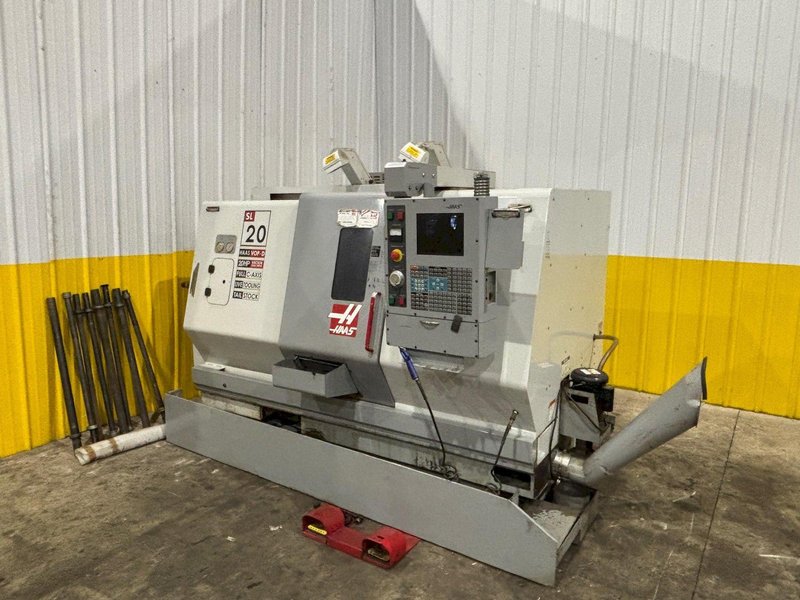

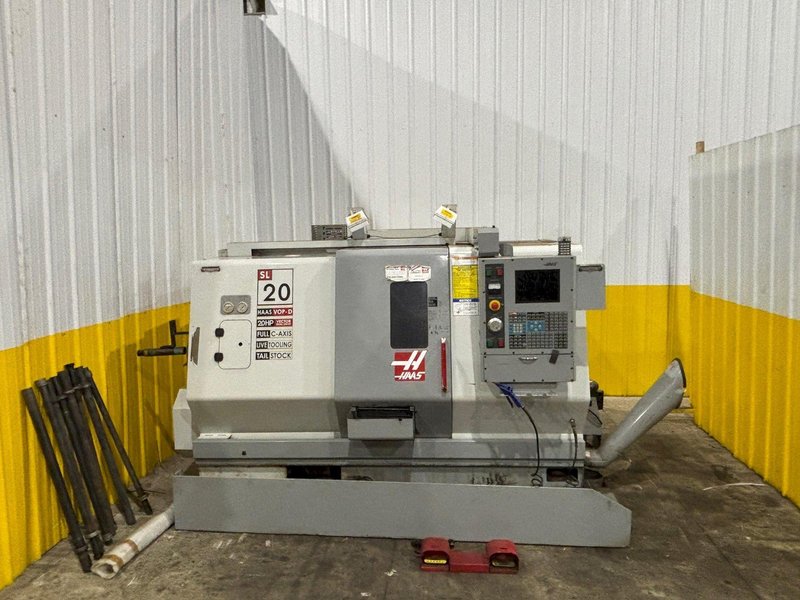

2004 HAAS MODEL #SL-20T CNC LATHE TURNING CENTER C AXIS & LIVE TOOLING: YOBRO #24480

2004 HAAS MODEL #SL-20T CNC LATHE TURNING CENTER C AXIS & LIVE TOOLING: YOBRO #24480

Name: 2004 HAAS MODEL #SL-20T CNC LATHE TURNING CENTER C AXIS & LIVE TOOLING: YOBRO #24480
Brand: HAAS
SKU: 24480
Availability: PreOrder

Brand

HAAS

Location

Ohio

REQUEST FINANCING

Specifications
Files & Videos

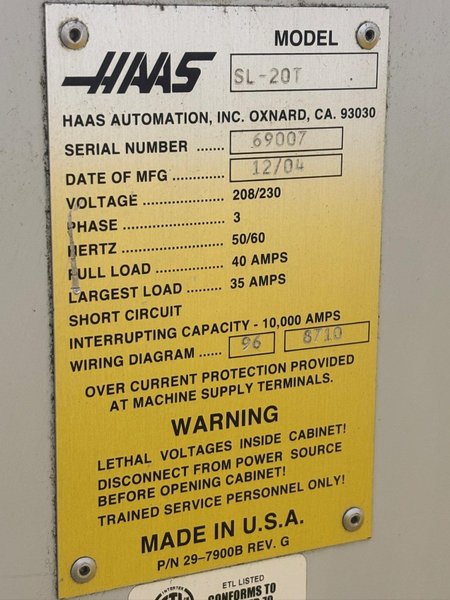

SERIAL ............................ 69007
MODEL ............................. SL-20T VOP-D
YEAR .............................. 2004

SWING OVER FRONT APRON ............ 23.0″

SWING OVER CROSS SLIDE ............ 9.5″

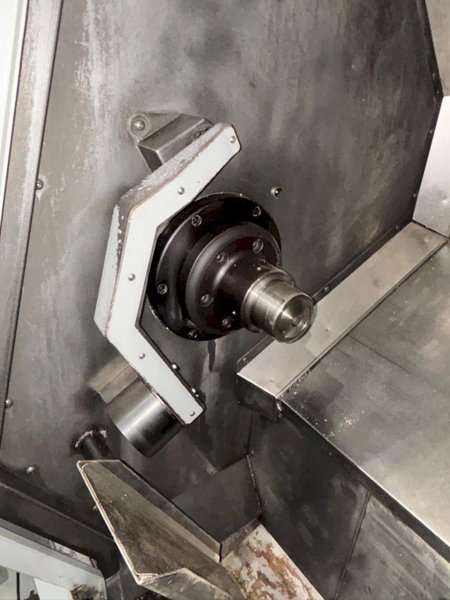

CHUCK SIZE ........................ 5C COLLET CHUCK

TURNIGN DIAMETER .................. 10.3″

TURNING LENGTH .................... 20″

RAPID FEED RATES .................. 710 IPM

SPINDLE SPEEDS .................... 4,000 Max RPM

SPINDLE NOSE ...................... A2-6

HOLE THRU SPINDLE ................. 3.0″

HOLE THRU DRAW TUBE ............... 2.06″

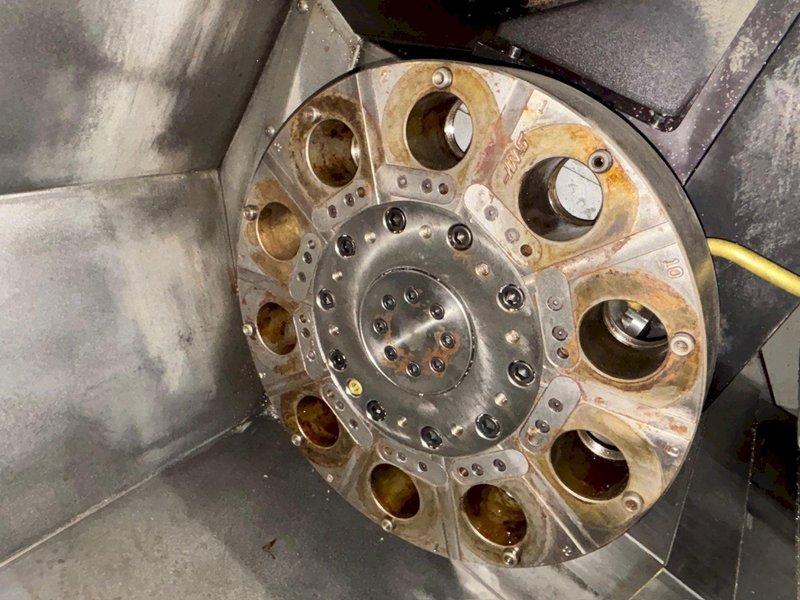

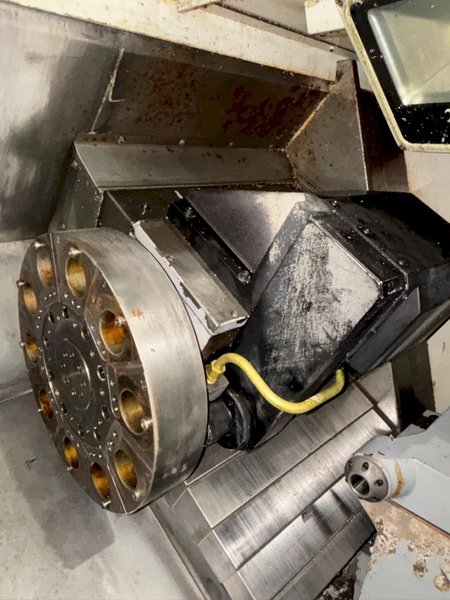

TURRET CAPACITY ................... 10 Station

TURRET INDEX TIME (ONE TOOL) ...... 1 Second

TURRET TRAVELS (X,Z) .............. 8.45″ / 20″

TURRET INDEX TIME ................. 1 SECOND PER STATION

TAILSTOCK TRAVEL .................. 20″

TAILSTOCK QUILL DIAMETER/TAPER .... #4 Morse Taper

RAPID FEED RATES .................. 1,000 IPM

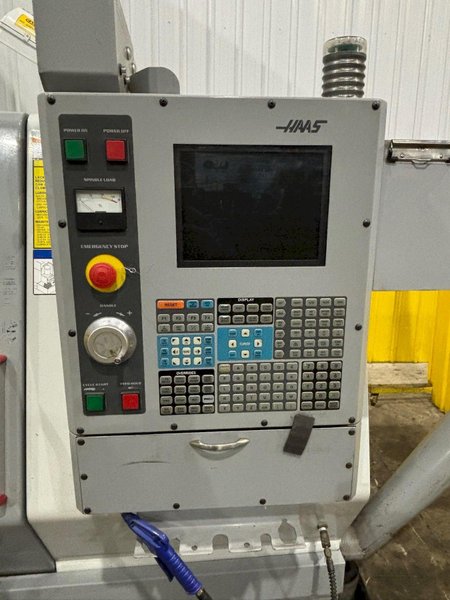

HAAS 32-BIT CNC CONTROL ........... YES
LIVE MILLING ON TURRET............. YES
FULL C-AXIS SPINDLE ............... .001 DEGREE
PROGRAMMABLE TAILSTOCK ............ YES

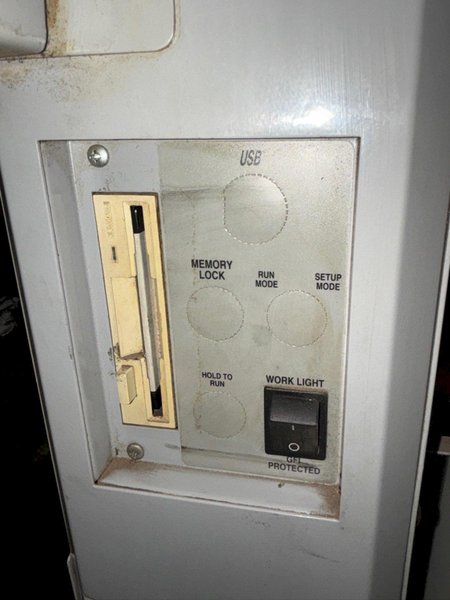

FLOPPY DRIVE ...................... YES

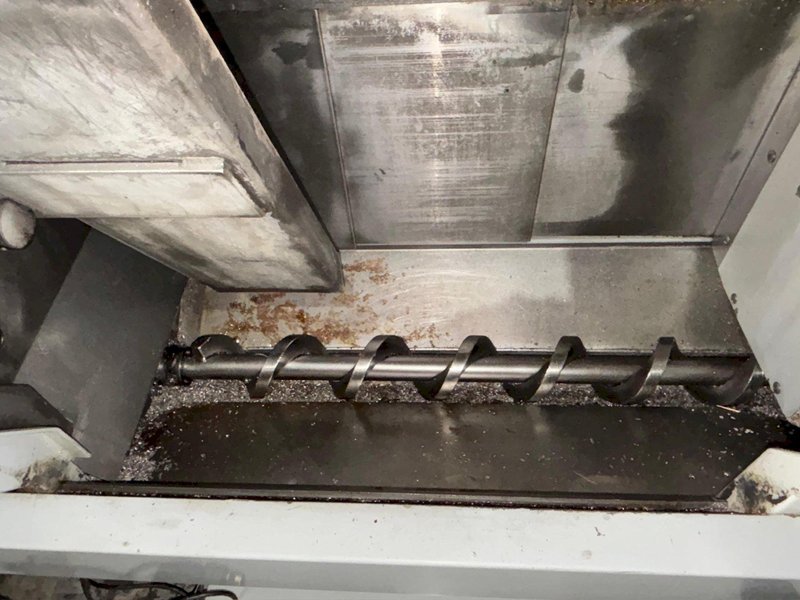

CHIP AUGER ........................ YES
TOOL PRESETTER .................... YES

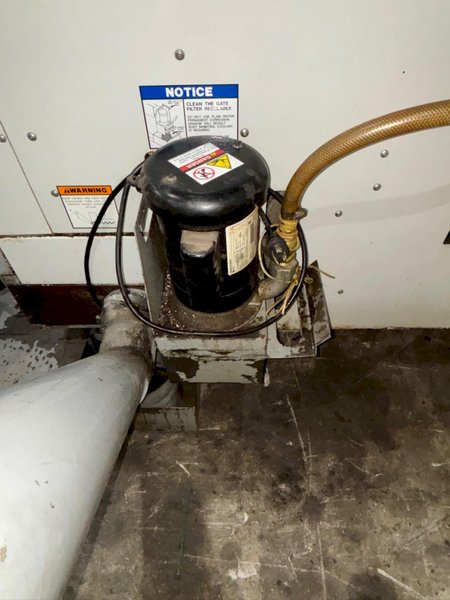

COOLANT SYSTEM WITH PUMP & TANK ... YES
SPINDLE VECTOR MOTOR DRIVE ........ 20HP
