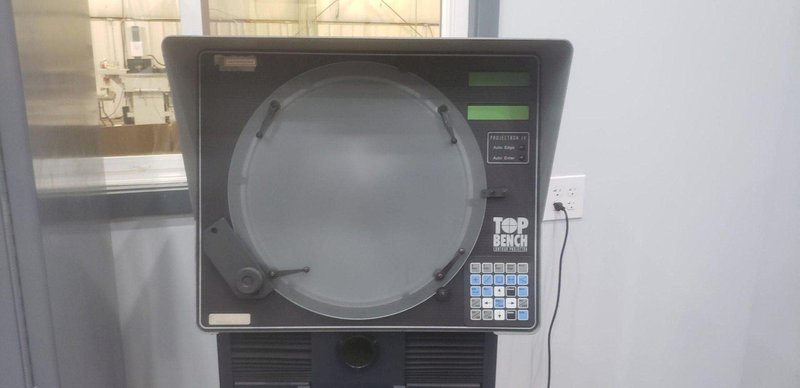

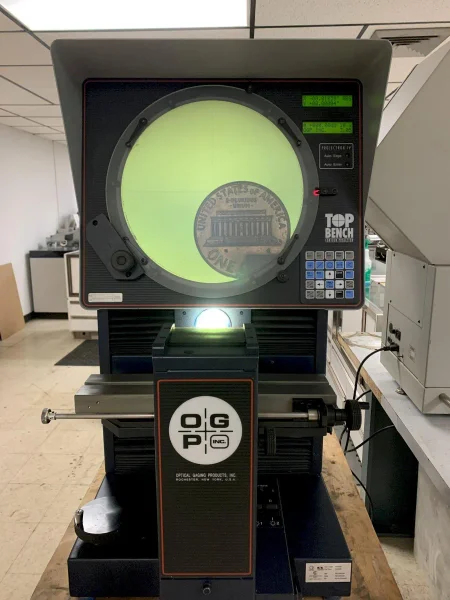

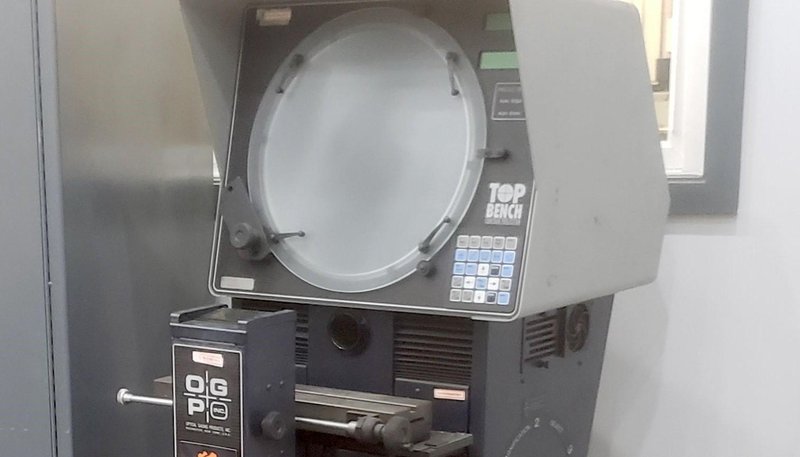

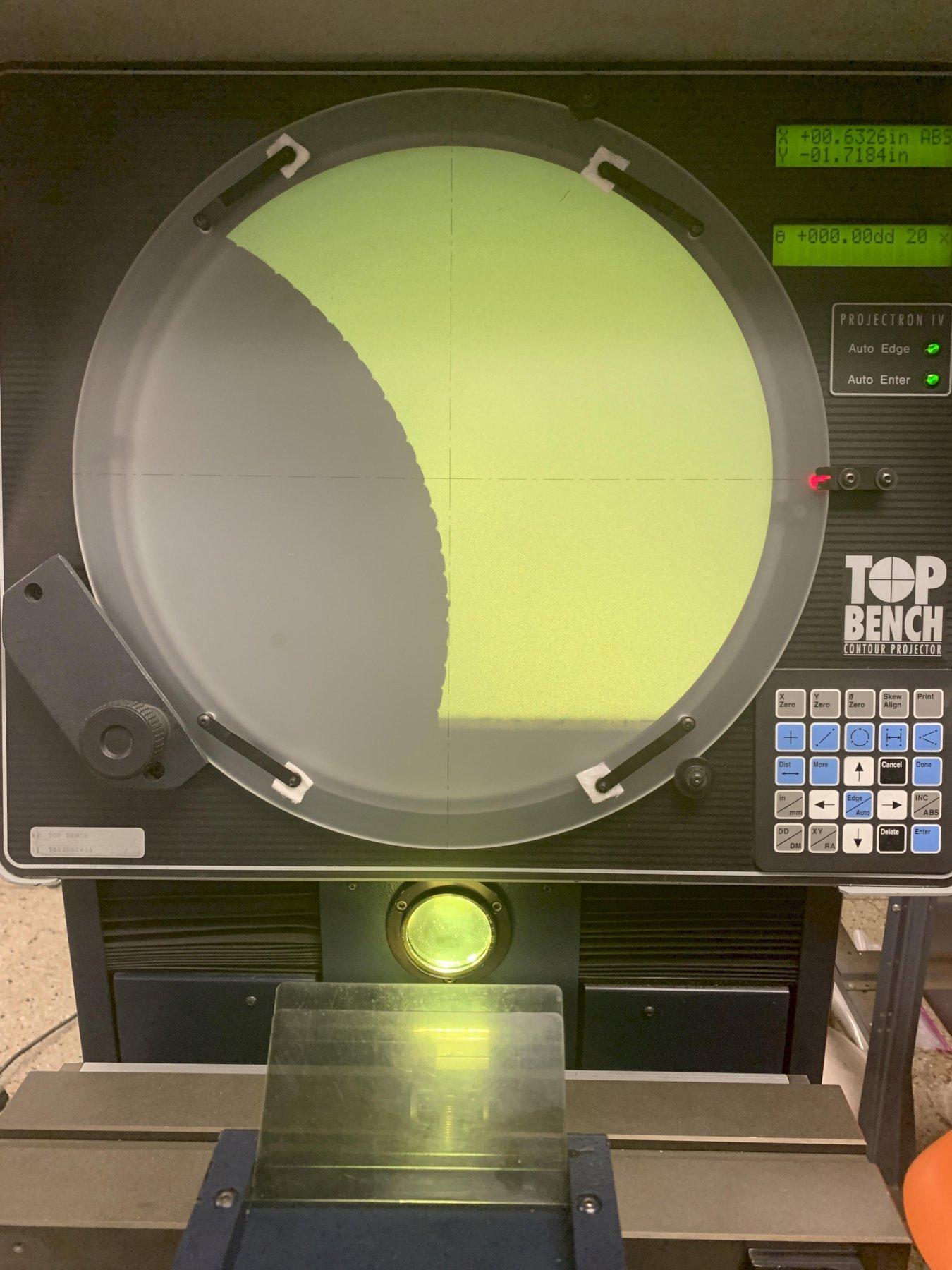

14" Optical Gaging Products (OGP) "Top Bench" Optical Comparator, s/n TB12061424.

14" Optical Gaging Products (OGP) "Top Bench" Optical Comparator, s/n TB12061424.

Name: 14" Optical Gaging Products (OGP) "Top Bench" Optical Comparator, s/n TB12061424.
Brand: OGP
SKU: 34921
Availability: InStock

Brand

OGP

Location

Ohio

REQUEST FINANCING

Specifications
Files & Videos

Specifications:
Screen Size - 14"
Table Size - 4-3/8" x 17-3/4"
Horizontal Table Travel - 12"
Vertical Table Travel - 6"
Table Load Capacity - 55 Lbs.
Chart Rotation - 360 Degrees w/Digital Display
Table Helix Adjustment - 7½º
Electrics - 1/60/115 Volts
Weight, Net / Shipping - 250 Lbs. / 400 Lbs.

Equipped with:

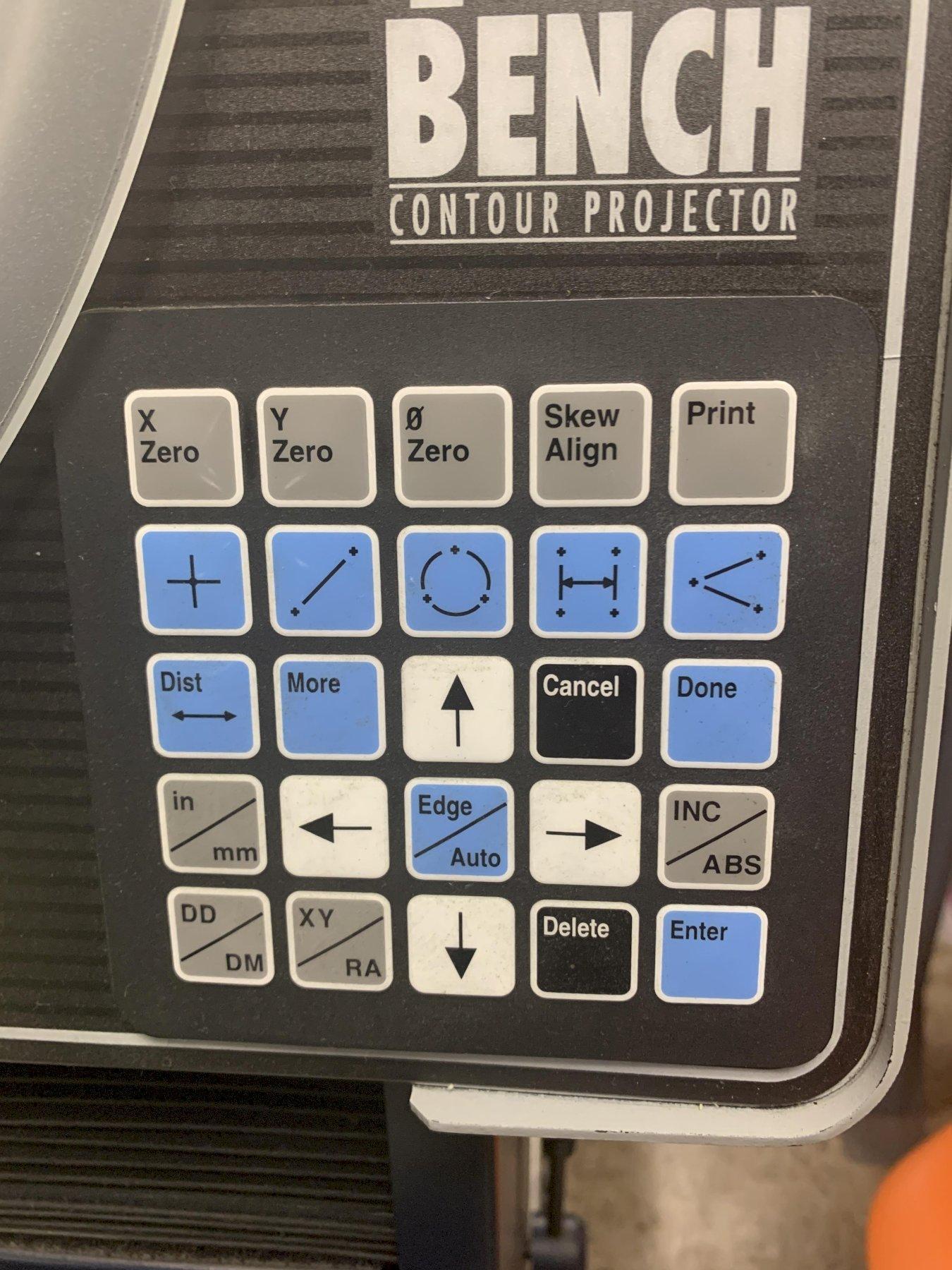

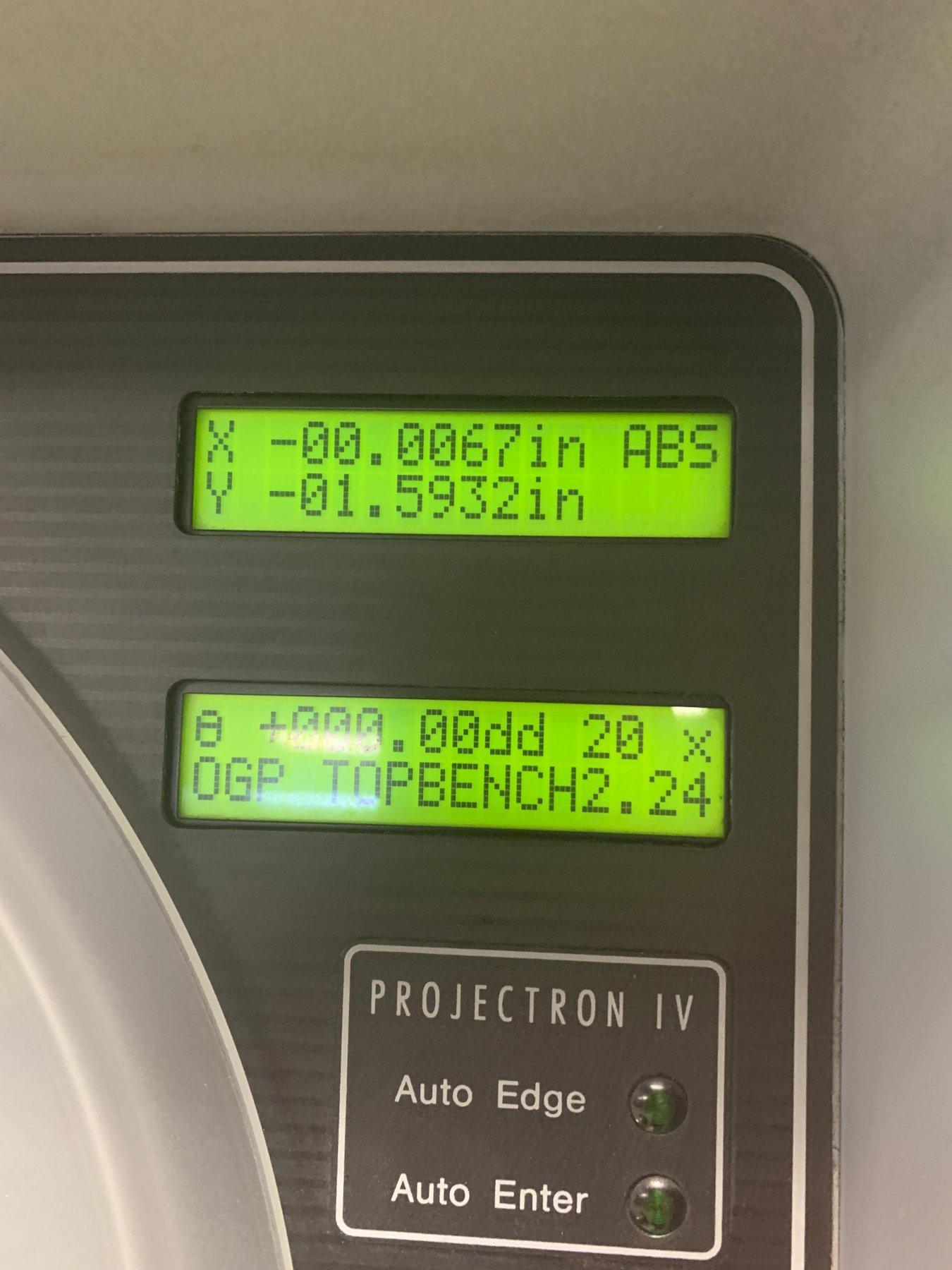

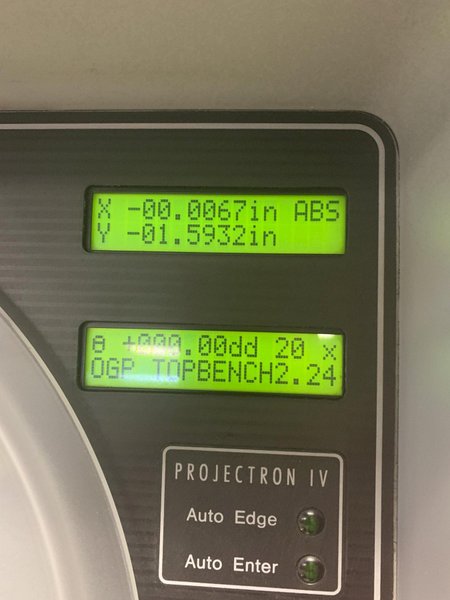

Built-in Digital Readout with Geometric Functions
Projectron IV Edge Detection
Digital Angle Display
Fresnel Lens for Maximum Screen Brightness
X-Axis Push Button Quick Release Travel
3 Position Lens Turret with 10 20 50x Lenses
Built-In Square-On Surface Reflection
Green Filter for Projection Lighting
Fully Correct Image (Contour & Surface)
Owners Manual

Notes:

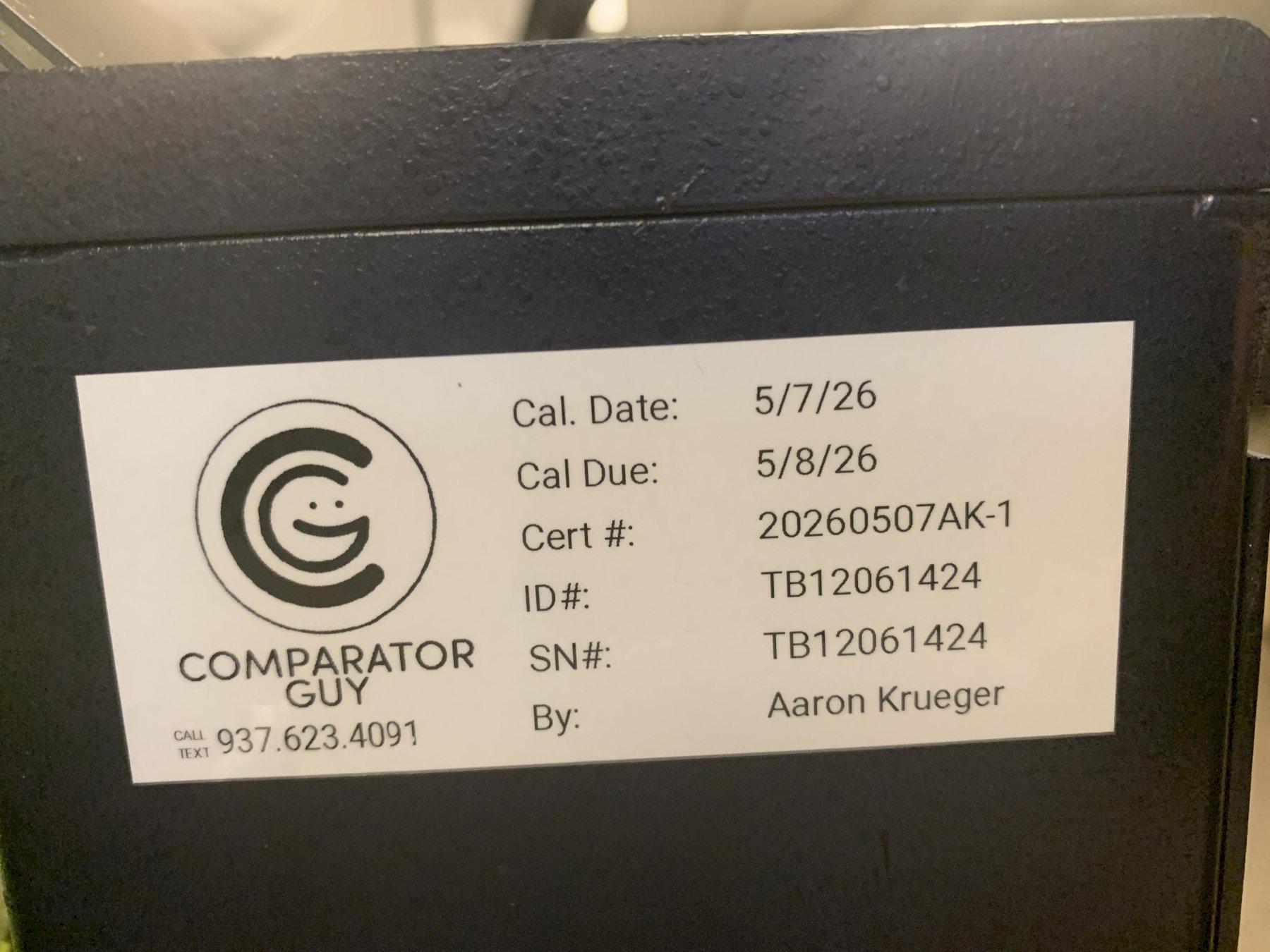

Recently serviced and passed calibration requirements.
We recommend buyer calibrated after transport.
Specifications subject to independent verification by the buyer.
Buyer responsible for shipping. We can assist with rates on request.
Number of OGP Bench Tops Sold by AMC currently 32 machines.
