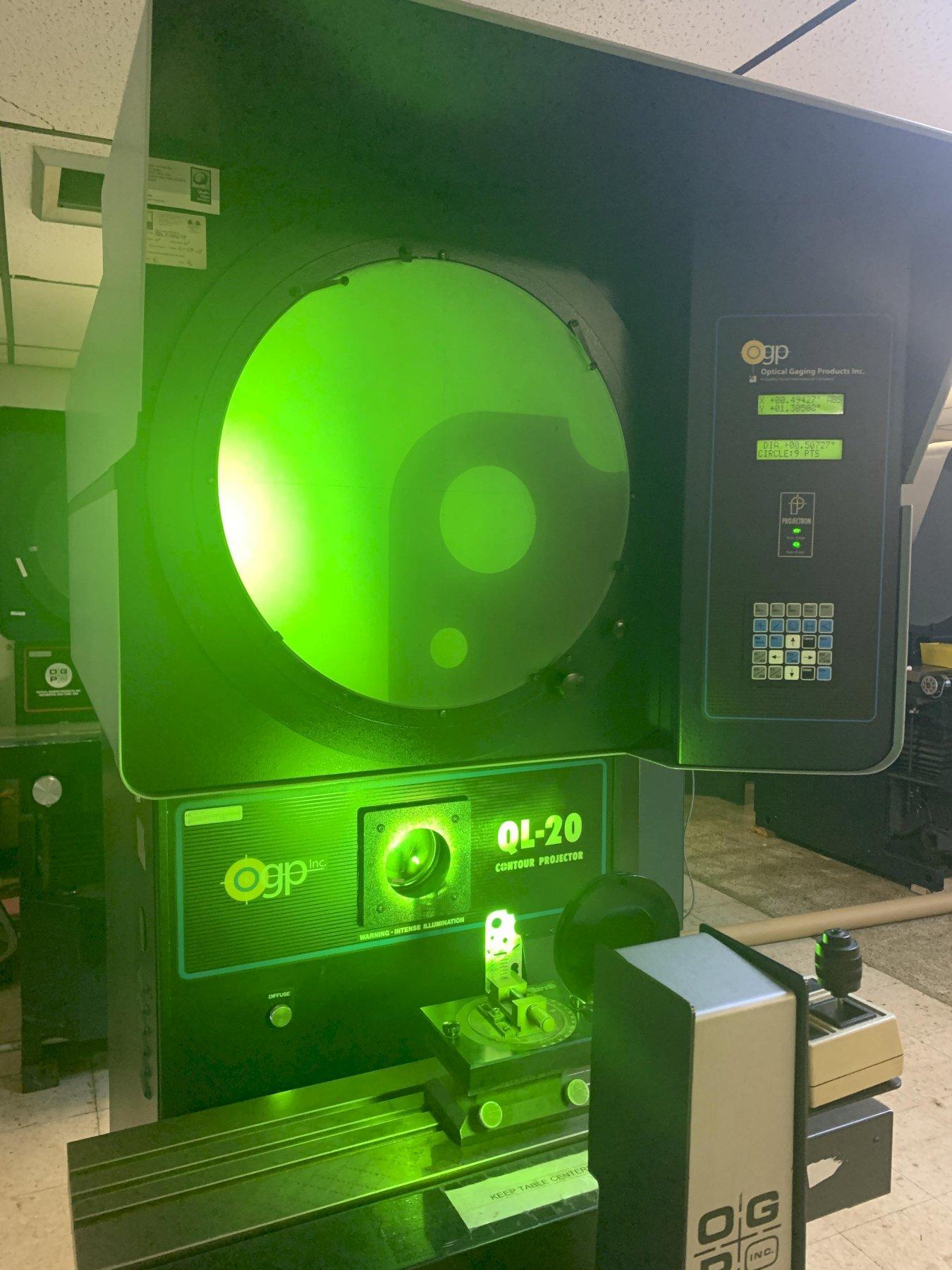

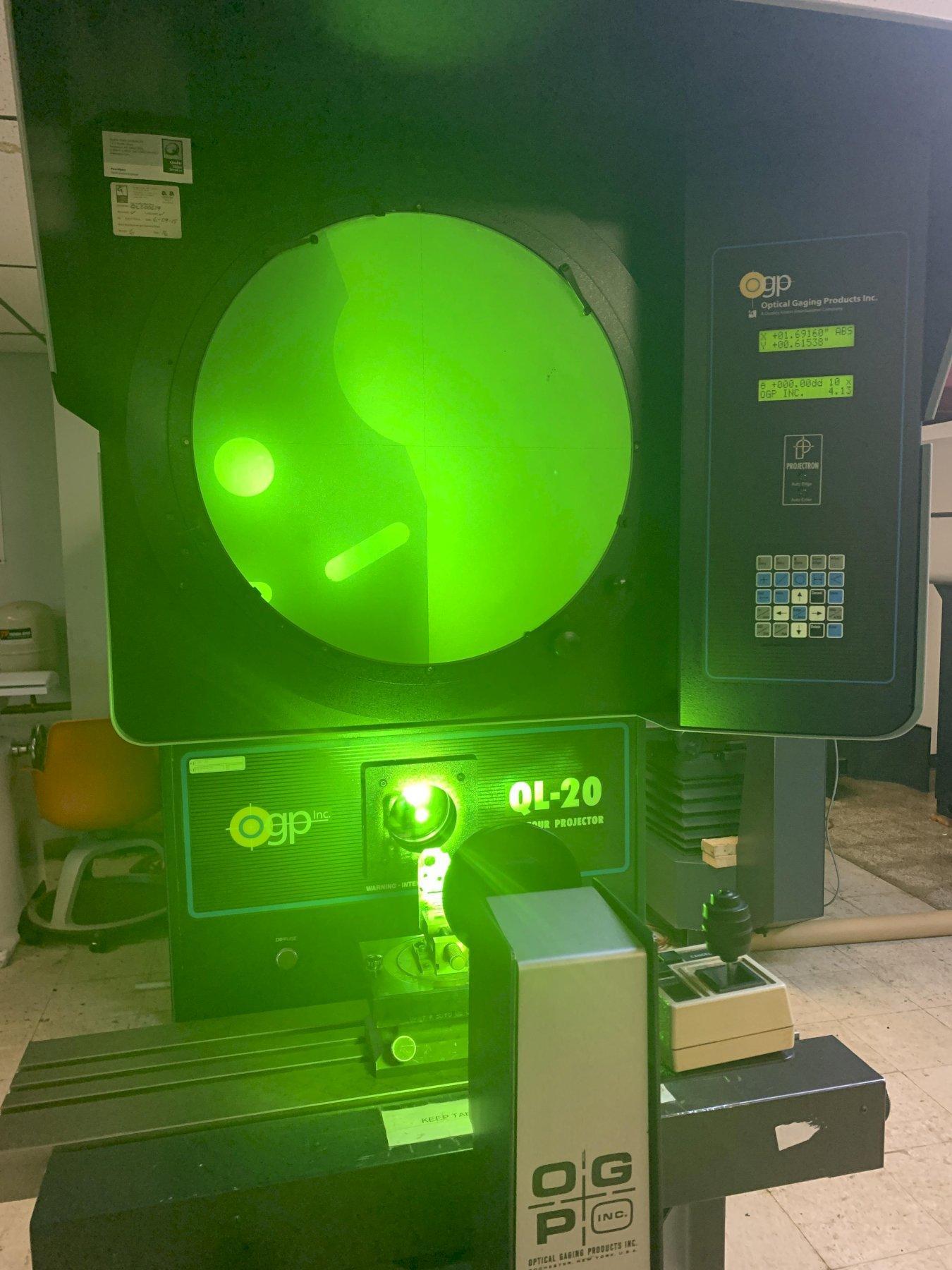

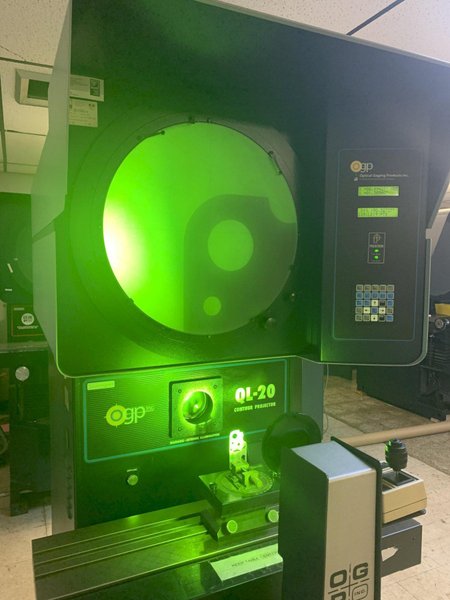

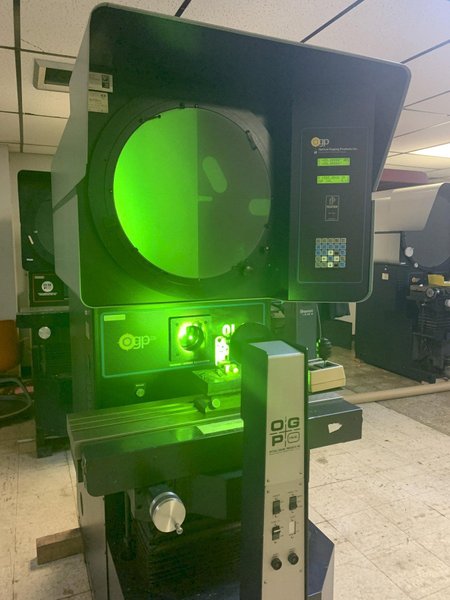

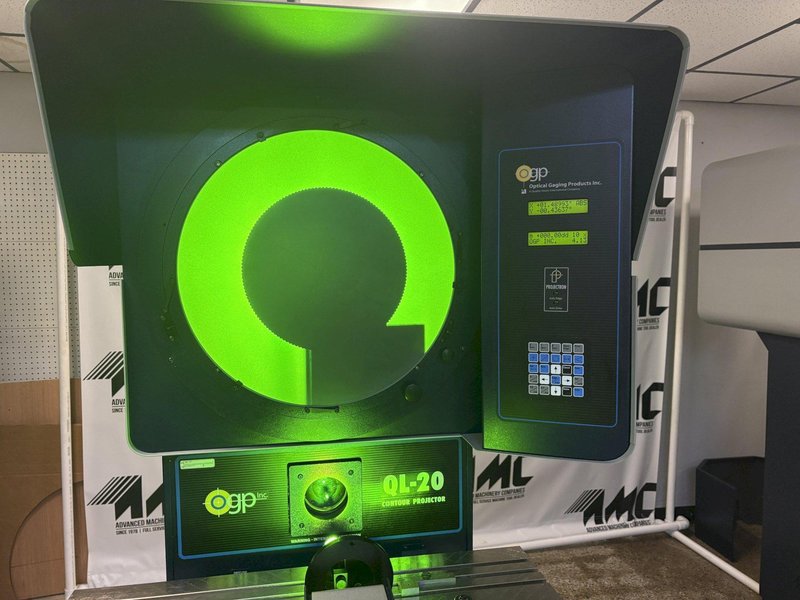

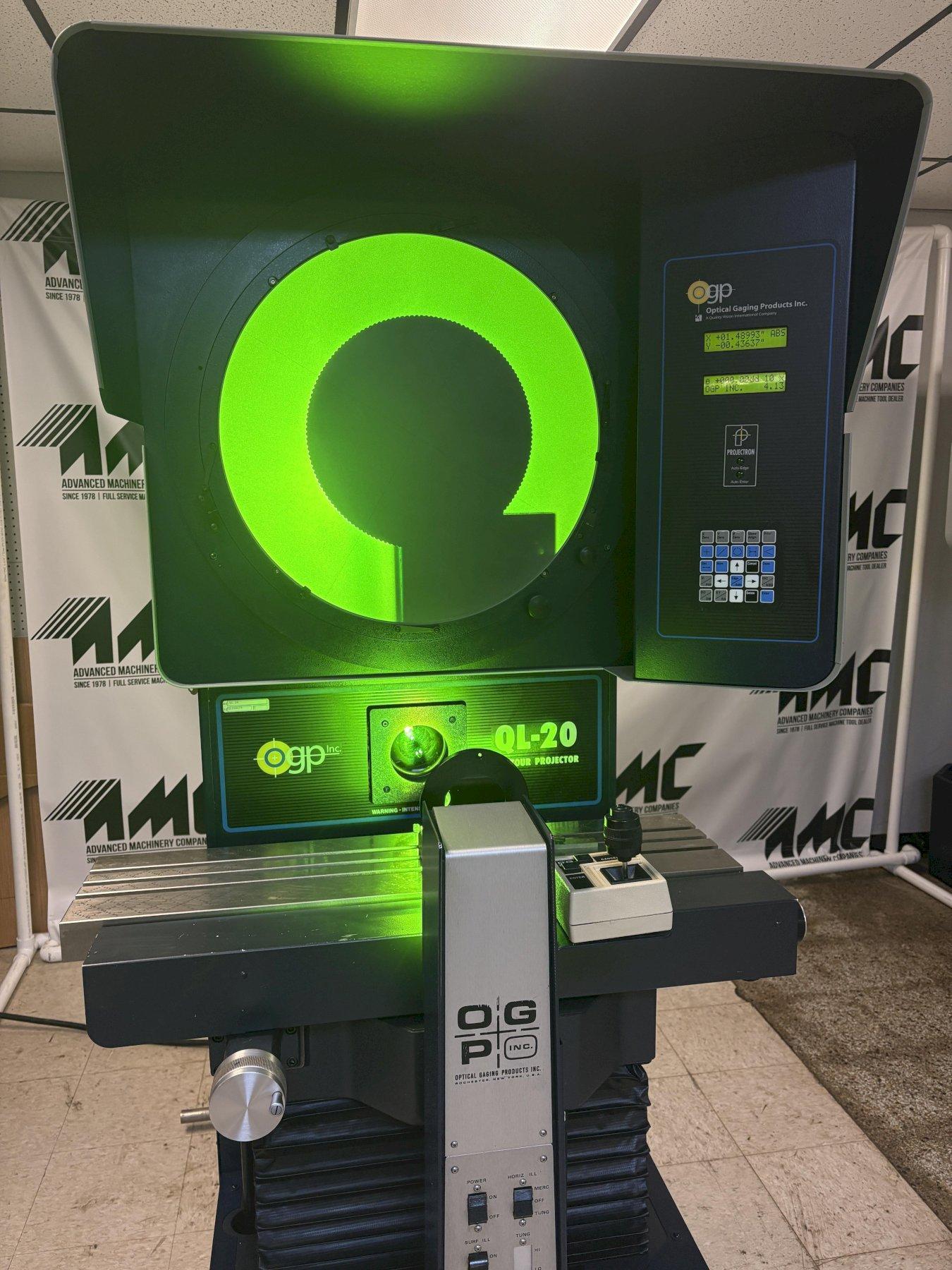

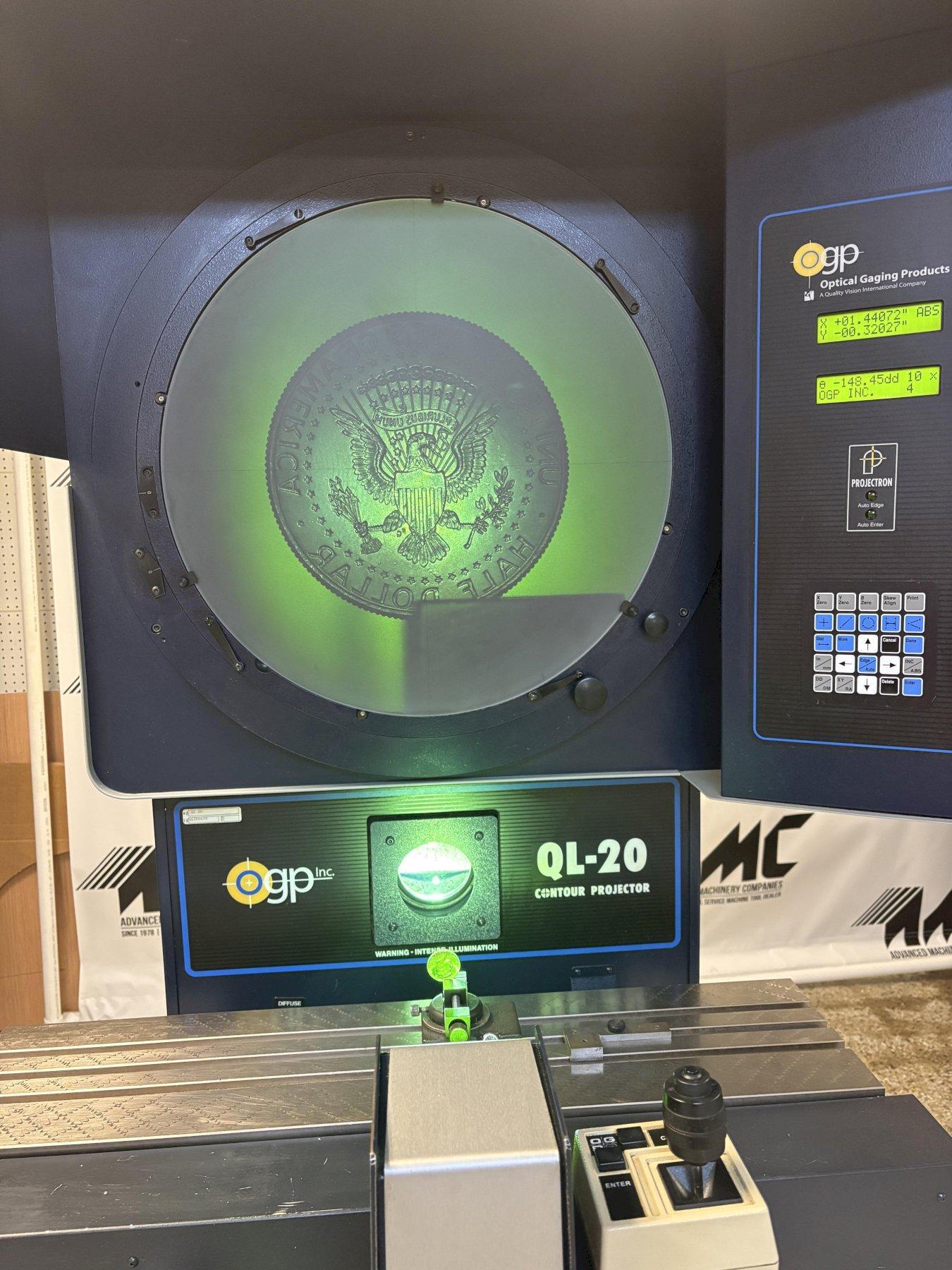

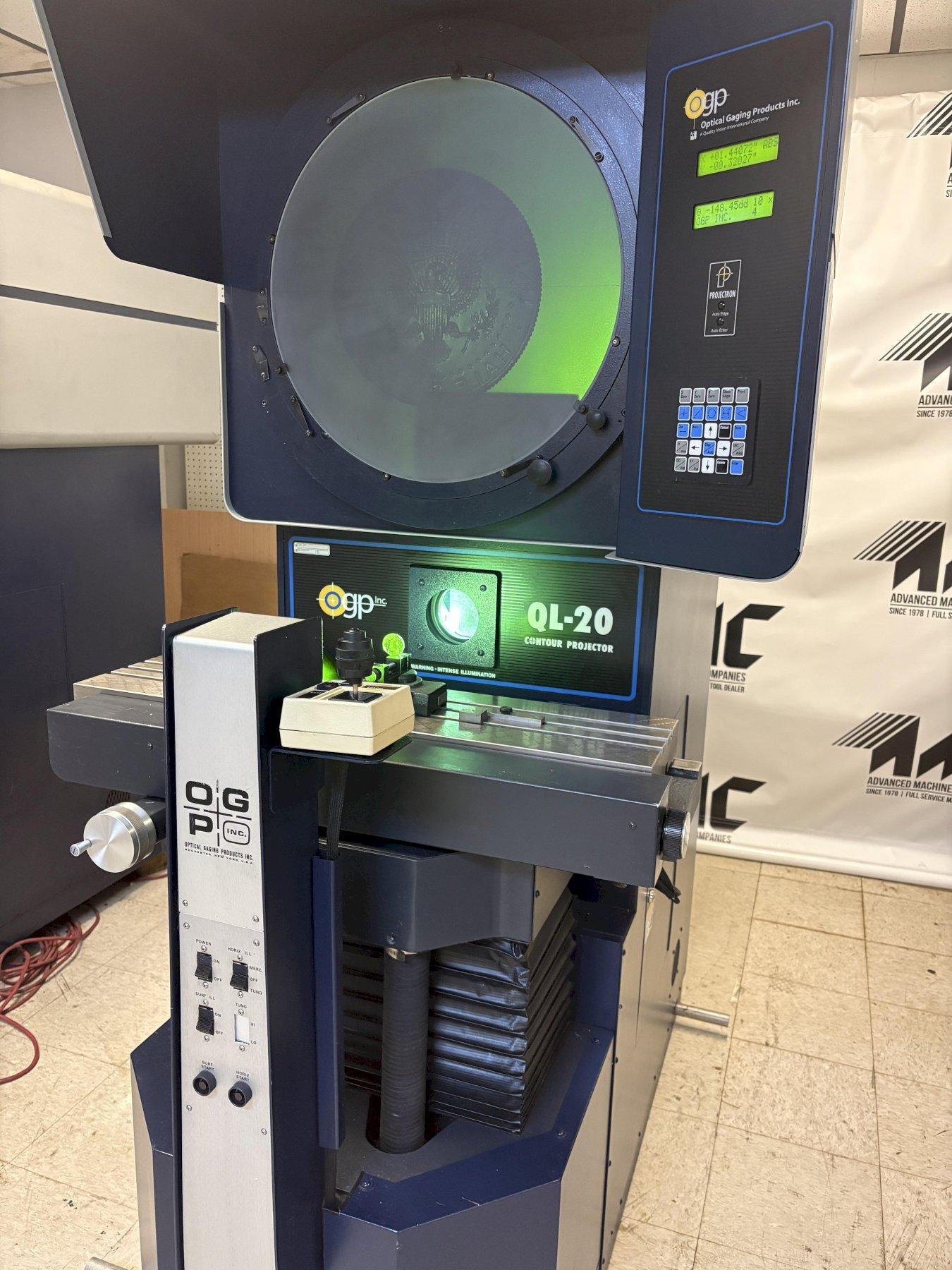

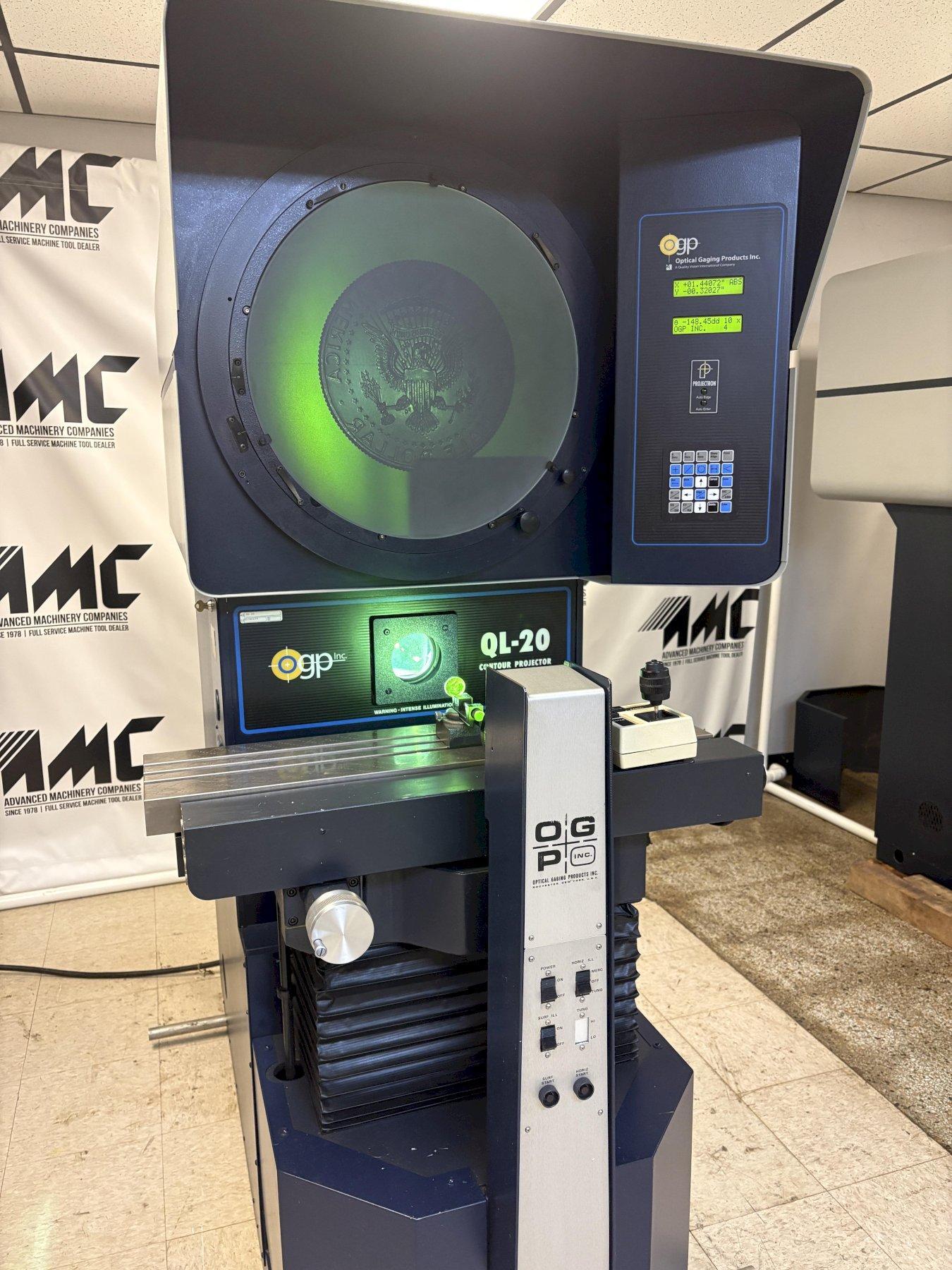

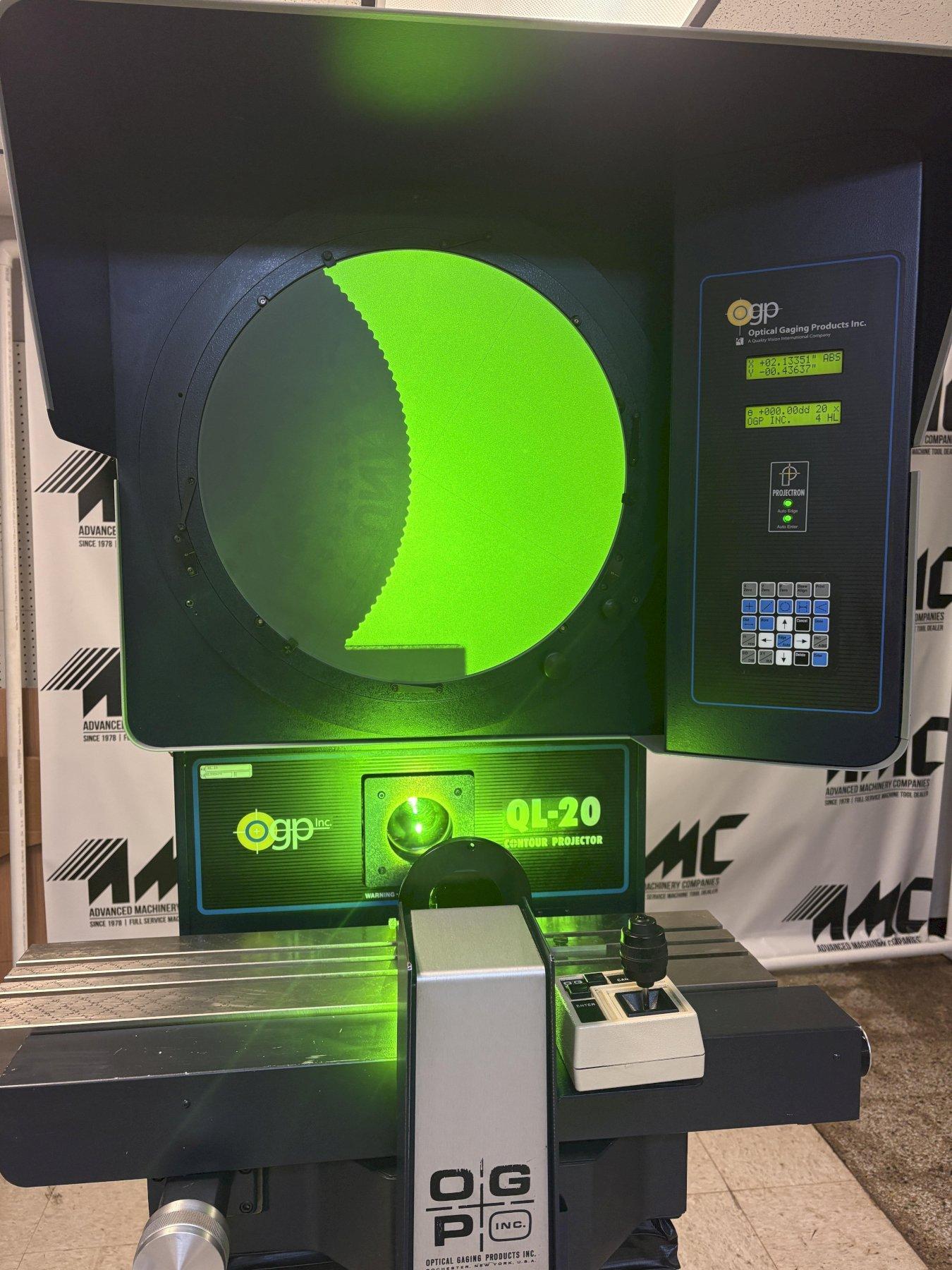

20" OGP Model QL20 Floor Model Optical Comparator and Measuring Machine, S/N QL200679.

Name: 20" OGP Model QL20 Floor Model Optical Comparator and Measuring Machine, S/N QL200679.
Brand: OGP
SKU: 34964
Availability: InStock

Brand

OGP

Location

Ohio

REQUEST FINANCING

Specifications
Files & Videos

Preliminary Specifications:

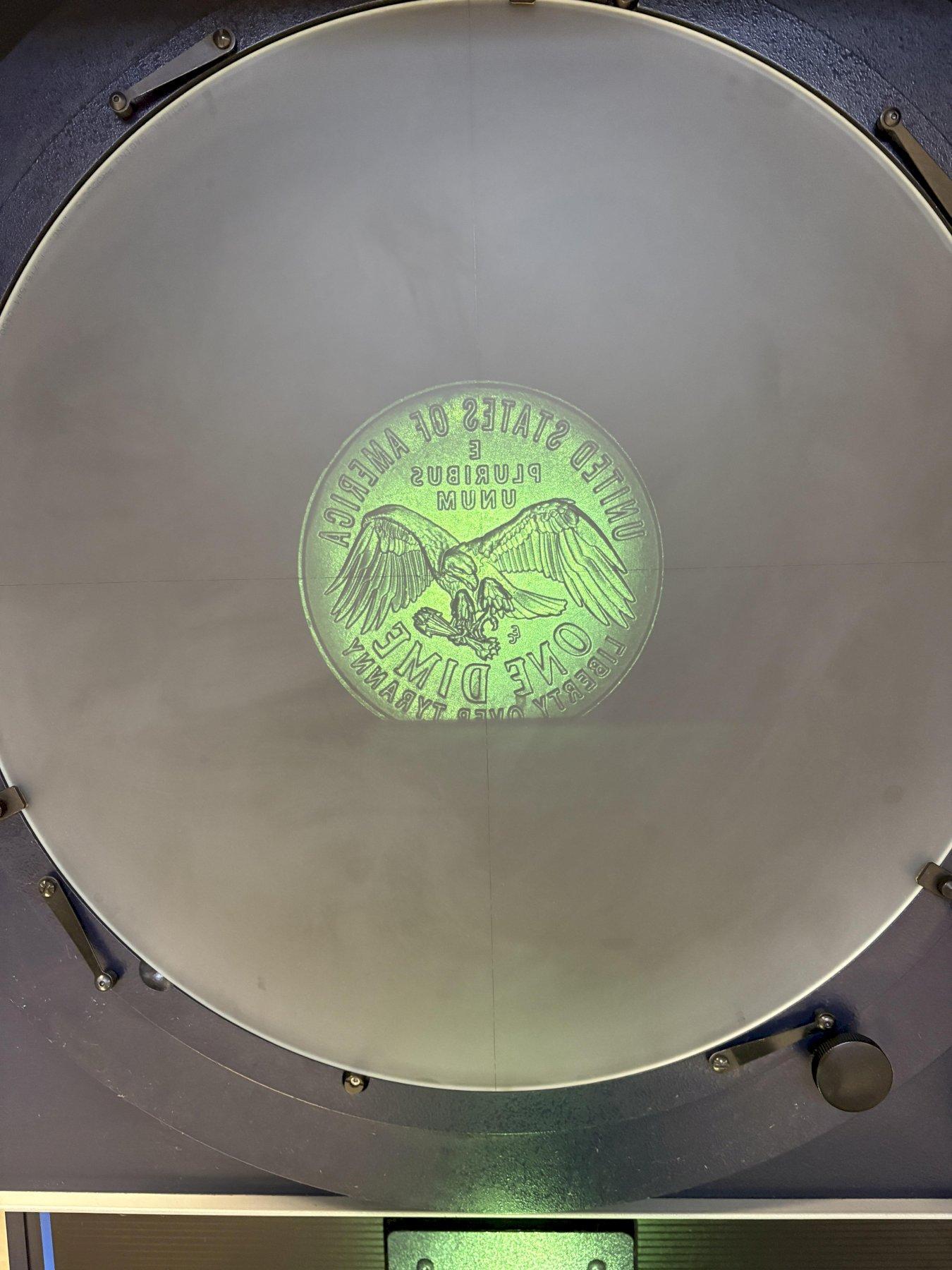

Screen Diameter - 20"
Table Size - 8" x 32"
Table Load Capacity - 550 Lbs.
Table Horizontal Travel - 15"
Table Vertical Travel - 9"
Focus Adjustment - 3"
Throat Clearance - 18.38"
XY Scale Resolution - 1 um (.00004")
Electrics - 1/60/115 vac, 22 amp
Approx Dimensions - 67" FB x 38" LR x 75" H
Approx Net Weight - 1600 Lbs.

Equipped with:

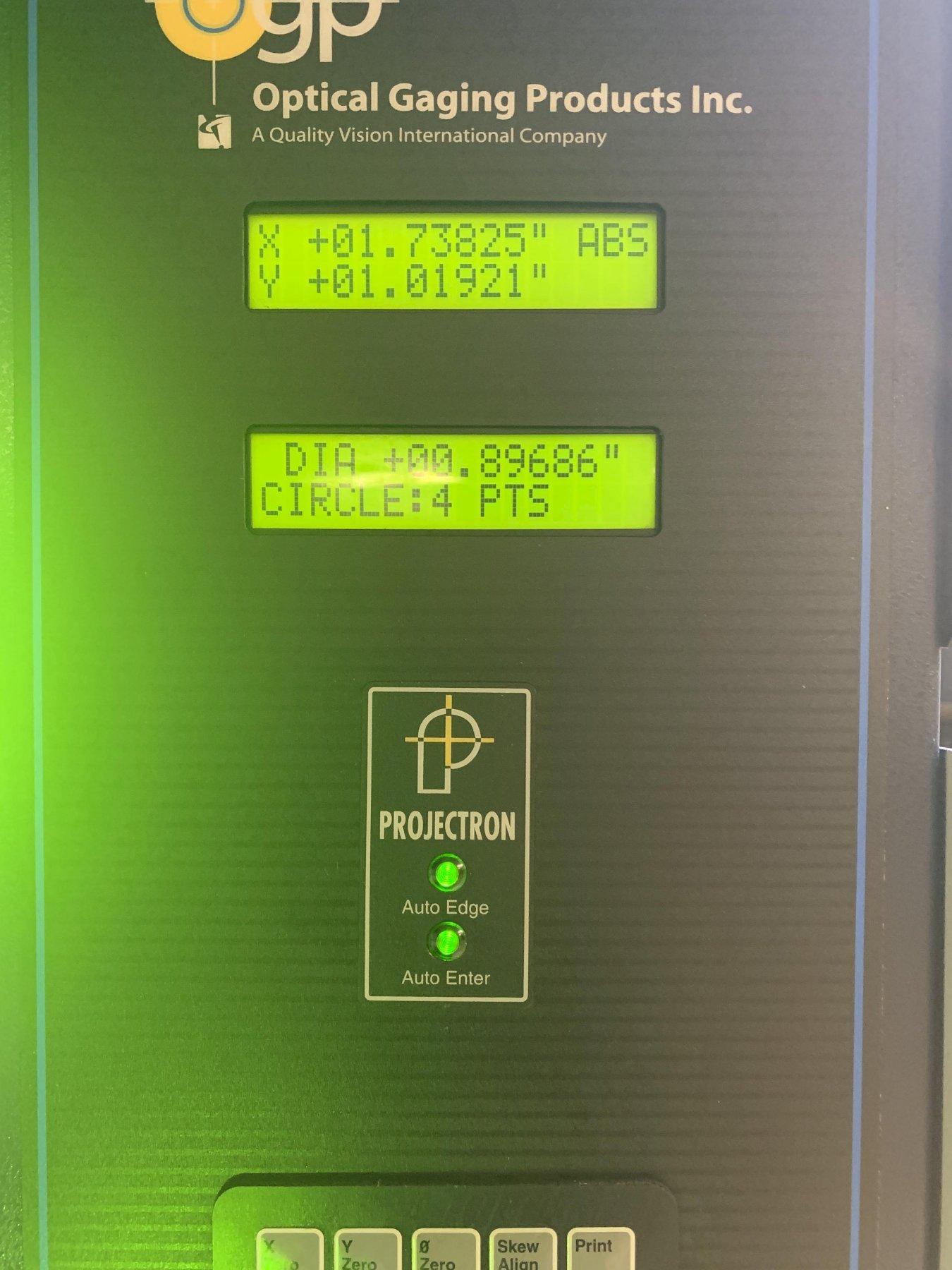

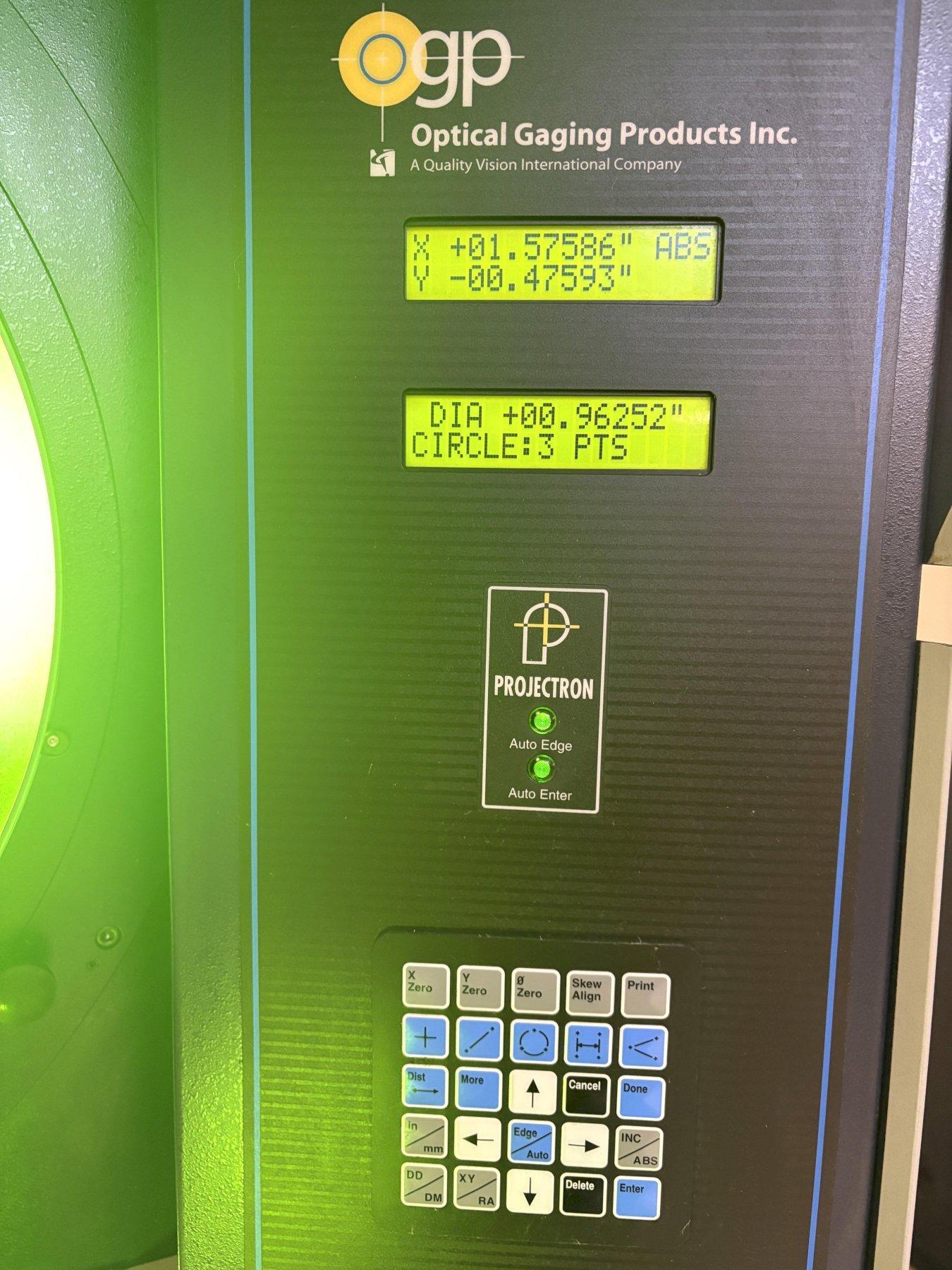

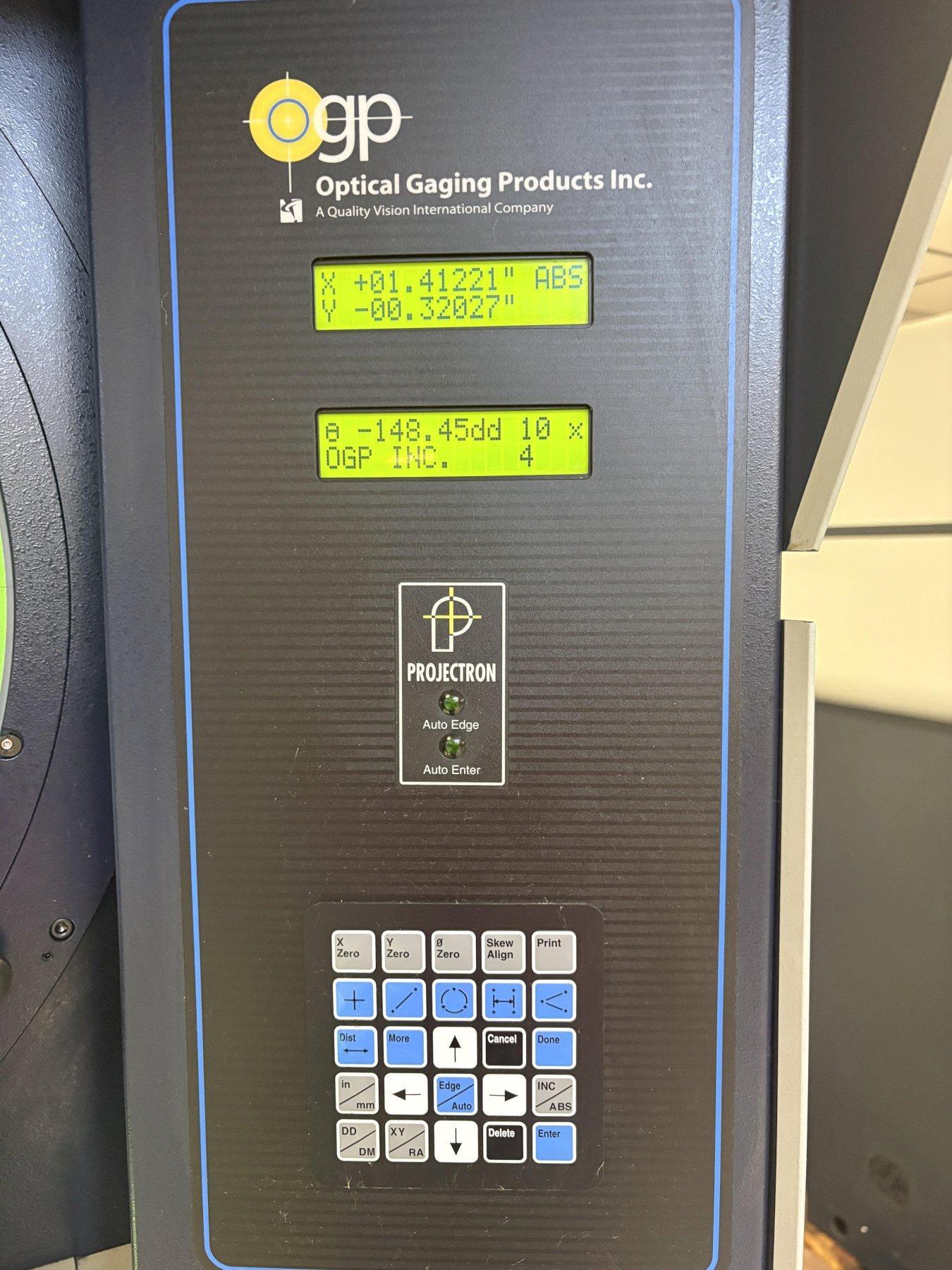

OGP Geometric Measuring Processor (DRO)

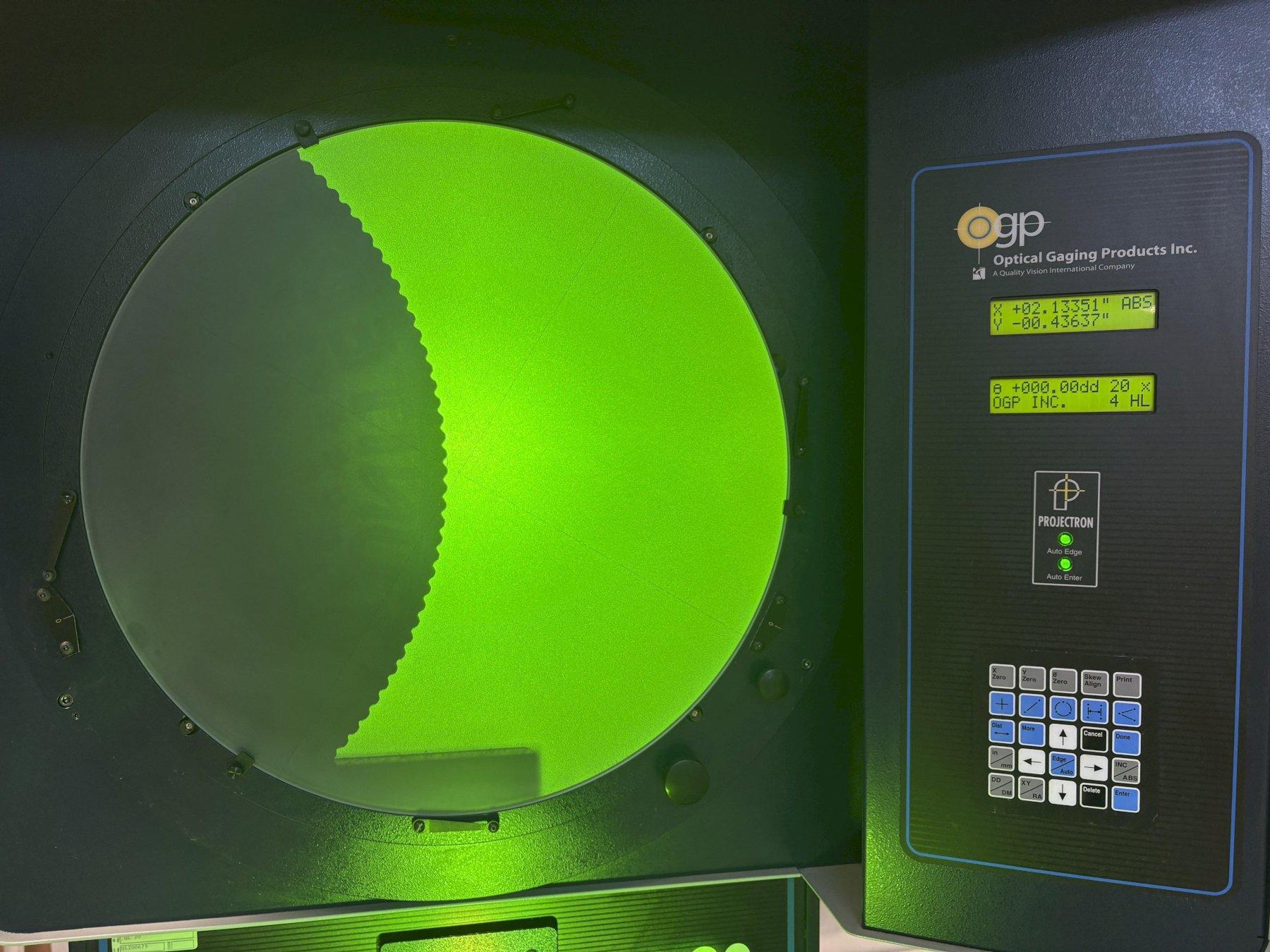

Projectron V Internally Mounted Automatic Edge Detection
Digital Angle Display

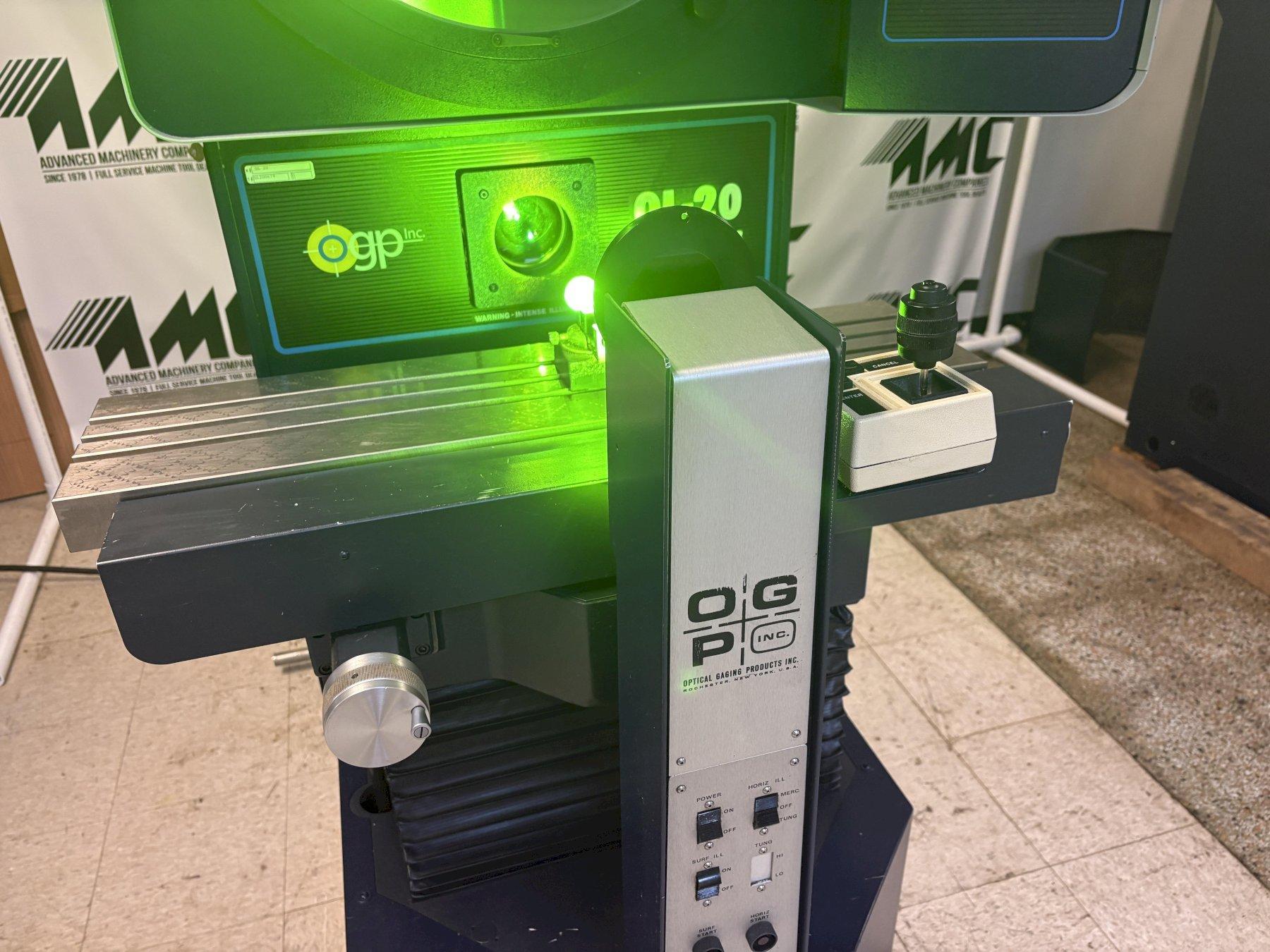

Power Table Travels with DC Servos and Joystick Control

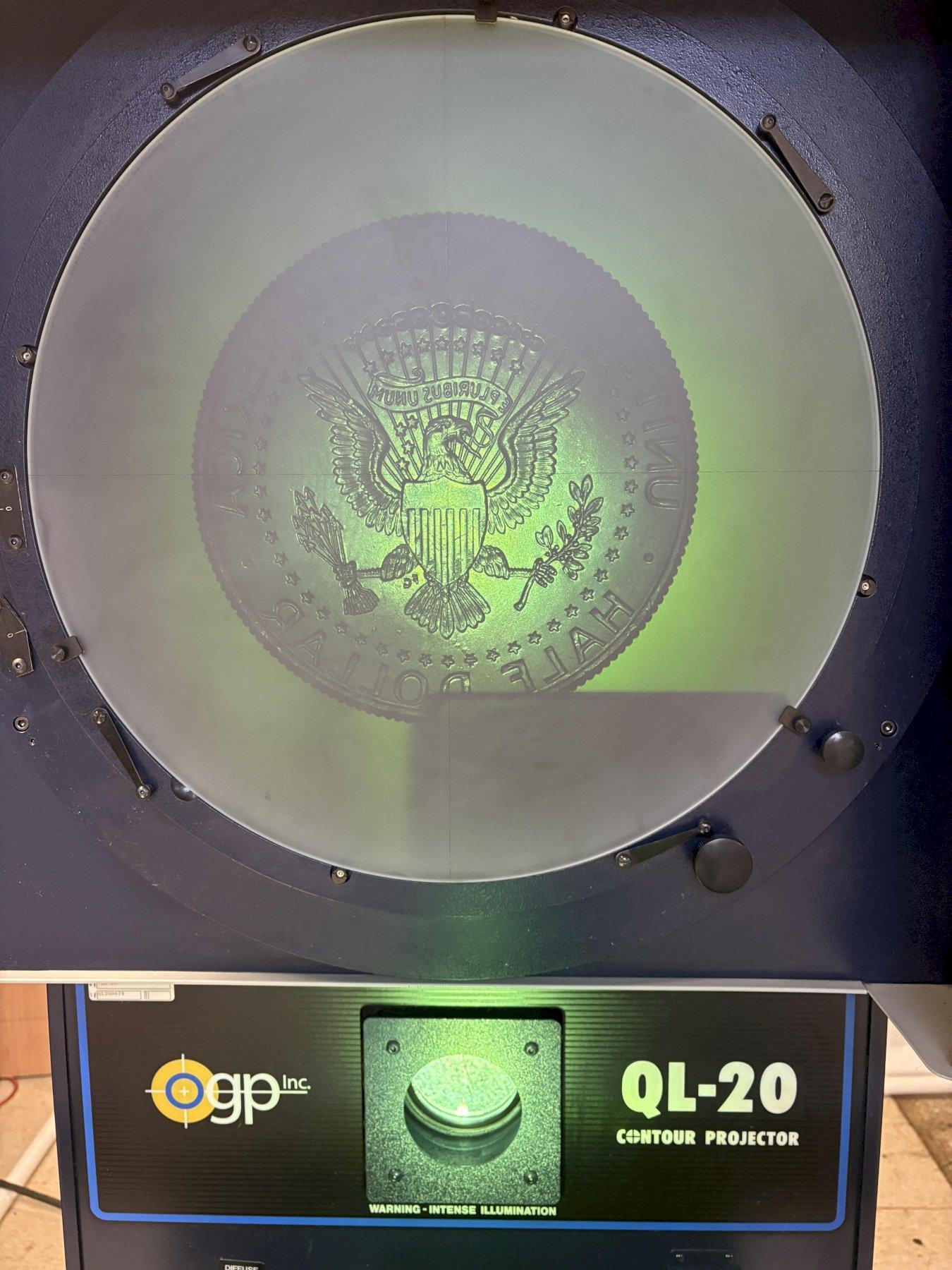

Mercury Arc Projection
Mercury Arc Surface Reflection
Power Lens Turret
Unreversed Image
All Necessary Manuals

Notes:
Arrival and availability pending
Specifications subject to independent verification by the buyer.

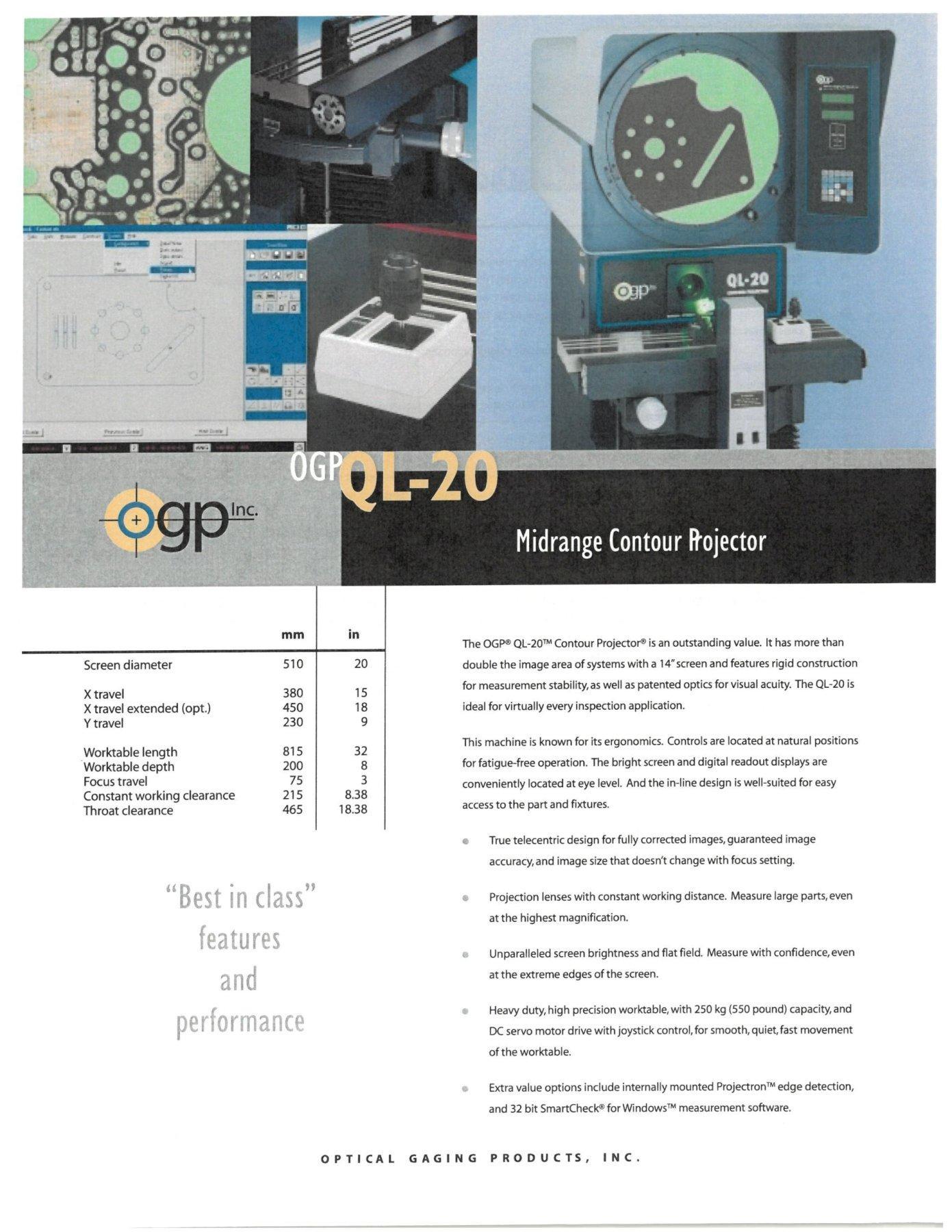

Factory Literature is for reference only. There may be discrepancies.
Shipping quotes available on request.
Number of OGP QL machines previously sold by AMC - 29
